Sayfa 0-33 - Isuzu EPC

0-33 — FAN AND FAN BELT (#43292) — 283 parça

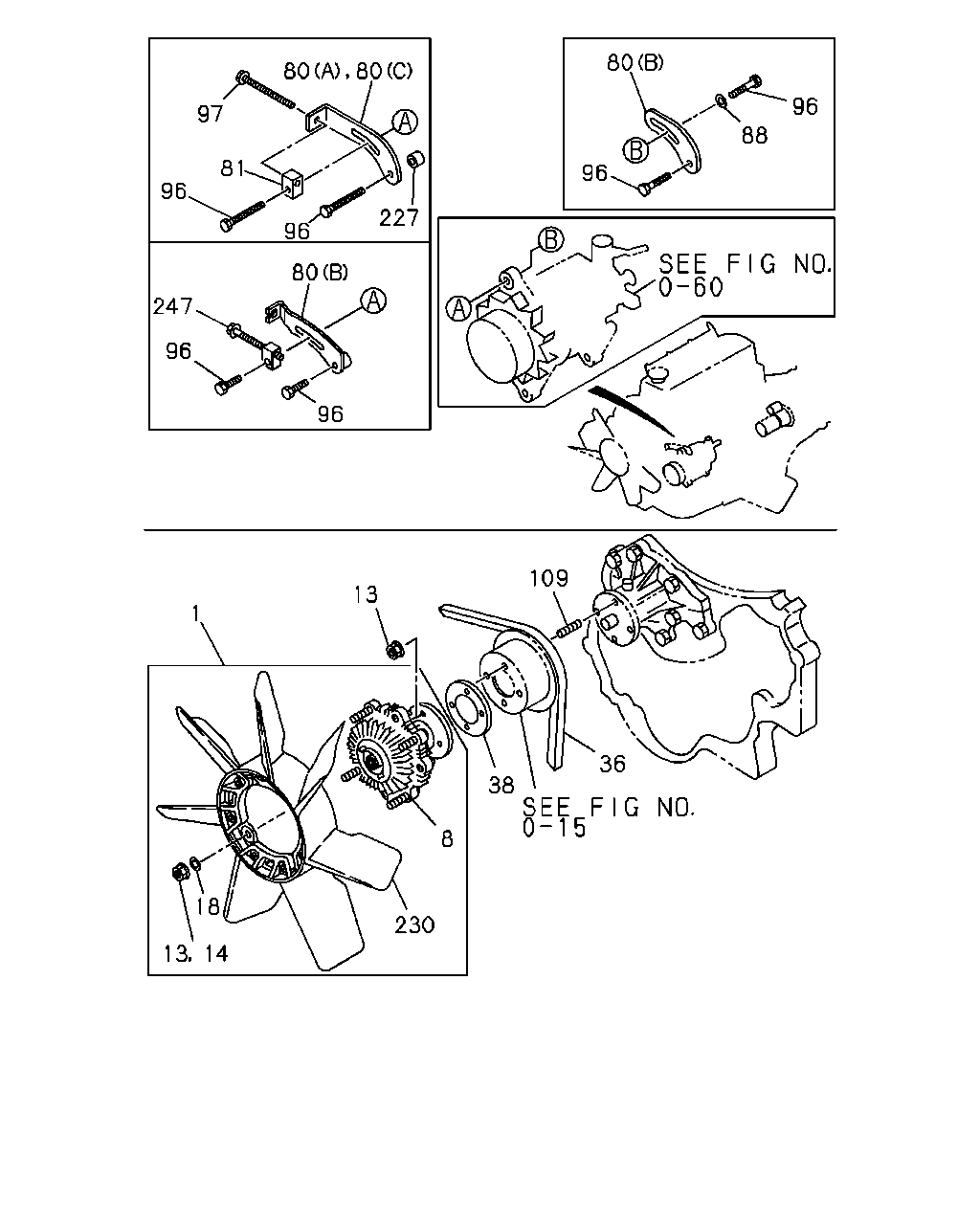

13 14 18 230 8 1 13 38 36 109 96 96 247 80 96 80 88 96 227 96 81 96 97 80 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING OD=410	8-94103-469-0	01	1	9112-9504	●
1	01.064 FAN; COOLING EXC. TURBOCHARGER<K51> OD=410	8-94103-469-0	01	1	9505-		●
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94454-187-0	01	1	9112-			●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94436-150-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9112-9504	●
8	01.064 CLUTCH; COOLING FAN	8-97039-034-0	01	1	9112-9504		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97039-034-0	01	1	9505-		●
8	01.064 CLUTCH; COOLING FAN EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9505-		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60) 01.066	8-94412-030-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-252-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN	8-97018-918-1	01	1	9112-9311				●
8	01.064 CLUTCH; COOLING FAN	8-97102-903-0	01	1	9312-9511				●
8	01.064 CLUTCH; COOLING FAN	8-97135-167-0	01	1	9512-				●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9112-9208	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	08	1	9112-9208		●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	08	1	9209-9310	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9311-9504	●	●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9505-		●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9505-		●
13	01.062 NUT; COOLING FAN 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9112-				●
13	01.062 NUT; COOLING FAN 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9112-				●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9112-9504	●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9112-9504			●
14	01.062 NUT; FAN TO CLU EXC. TURBOCHARGER<K51> 00.413 M6	9-09110-506-0	04	1	9505-		●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.413 M6	9-09110-506-0	04	1	9505-			●
14	01.062 NUT; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-253-0	04	1	9112-			●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9112-9504	●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9112-9504			●
18	01.062 WASHER; FAN TO CLU EXC. TURBOCHARGER<K51> 00.206 ID=6.1	9-09150-506-0	04	1	9505-		●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1	9-09150-506-0	04	1	9505-			●
18	01.062 WASHER; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-254-0	04	1	9112-			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9112-9504	●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9112-9504		●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9505-9505		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9506-9607		●
36	01.066 BELT; COOLING FAN CERAMIC HEATER<6YX> EXC. EUROPE EQUIPMENT(EK4) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9608-9701		●
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9608-9701		●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9608-9701		●
36	01.066 BELT; COOLING FAN CERAMIC HEATER<6YX> EXC. EUROPE EQUIPMENT(EK4) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-		●
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-		●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-		●
36	01.066 BELT; COOLING FAN CERAMIC HEATER<6YX>	8-97062-913-1	01	1	9112-9505		●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> CERAMIC HEATER<6YX>	8-97062-913-1	01	1	9506-9607		●
36	01.066 BELT; COOLING FAN EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX>	8-97062-913-1	01	1	9608-9711		●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97062-913-1	01	1	9608-9711		●
36	01.066 BELT; COOLING FAN EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN	8-94472-378-0	01	1	9112-9304			●
36	01.066 BELT; COOLING FAN L=875	8-97100-606-0	01	1	9305-			●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9112-9504	●	●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9505-		●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) (A)	8-94367-300-0	01	1	9112-9504	●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9112-9504		●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9506-9512		●
80	02.317 PLATE; ADJ EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94438-403-0	01	1	9112-9504	●
80	02.317 PLATE; ADJ HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (B)	8-94438-403-0	01	1	9112-9504		●
80	02.317 PLATE; ADJ TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> (B)	8-94438-403-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> (B)	8-94438-403-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> (B)	8-94438-403-0	01	1	9506-9512		●
80	02.317 PLATE; ADJ (B)	8-97132-049-0	01	1	9601-		●
80	02.317 PLATE; ADJ EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (C)	8-97038-402-1	01	1	9112-9505		●
80	02.317 PLATE; ADJ TURBOCHARGER<K51> CERAMIC HEATER<6YX> (C)	8-97038-402-1	01	1	9506-9603		●
80	02.317 PLATE; ADJ	8-94436-178-2	01	1	9112-9504			●
80	02.317 PLATE; ADJ	8-94460-846-1	01	1	9112-9504			●
80	02.317 PLATE; ADJ	8-97123-738-1	01	1	9505-			●
80	02.317 PLATE; ADJ	8-97018-939-2	01	1	9112-9302				●
80	02.317 PLATE; ADJ	8-97087-142-2	01	1	9303-				●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1)	8-94453-774-0	01	1	9112-9504	●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-94453-774-0	01	1	9112-9504		●
81	02.317 PIECE; SLIDING EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX>	8-94453-774-0	01	1	9112-9504		●
81	02.317 PIECE; SLIDING HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94453-774-0	01	1	9505-9603		●
81	02.317 PIECE; SLIDING	8-97031-664-0	01	1	9112-				●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9112-9504	●
88	02.317 WASHER; PL,ADJ PLATE HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> EXC. CERAMIC HEATER<6YX> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9112-9504		●
88	02.317 WASHER; PL,ADJ PLATE TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9505-9505		●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9505-9505		●
88	02.317 WASHER; PL,ADJ PLATE EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9506-9603		●
88	02.317 WASHER; PL,ADJ PLATE AIR CON PREPARATORY PACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9604-9607		●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9505-9603		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9604-9607		●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-9504	●
96	02.317 BOLT; ADJ PLATE HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> EXC. CERAMIC HEATER<6YX> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9505-9505		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9505-9505		●
96	02.317 BOLT; ADJ PLATE EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9506-9603		●
96	02.317 BOLT; ADJ PLATE AIR CON PREPARATORY PACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9604-9607		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-9505			●
96	02.317 BOLT; ADJ PLATE 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9506-			●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 FLANGE	0-28080-870-0	02	1	9112-9208				●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 W/LK WASHER	0-50040-870-0	02	1	9209-9302				●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 FLANGE	0-28080-870-0	02	1	9303-				●
96	02.317 BOLT; ADJ PLATE M6X75 FLANGE	8-97028-681-0	01	1	9112-				●
97	02.317 SCREW; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1)	8-94126-866-0	01	1	9112-9504	●
97	02.317 SCREW; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60)	8-94126-866-0	01	1	9112-9504		●
97	02.317 SCREW; ADJ PLATE EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX>	8-94126-866-0	01	1	9112-9504		●
97	02.317 SCREW; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60)	8-94126-866-0	01	1	9505-9505		●
97	02.317 SCREW; ADJ PLATE HEATER&DEFROSTER(C41) TURBOCHARGER<K51> CERAMIC HEATER<6YX>	8-94126-866-0	01	1	9505-9505		●
97	02.317 SCREW; ADJ PLATE	8-94126-866-0	01	1	9506-9506		●
97	02.317 SCREW; ADJ PLATE SHORT(UB***C) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94126-866-0	01	1	9507-9512		●
97	02.317 SCREW; ADJ PLATE LONG(UB***F) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HONG KONG EQUIPMENT(PQ1)	8-94126-866-0	01	1	9507-9512		●
97	02.317 SCREW; ADJ PLATE TURBOCHARGER<K51> CERAMIC HEATER<6YX>	8-94126-866-0	01	1	9601-9603		●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9112-9504	●	●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9505-		●
227	02.317 PIECE; DIST AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1)	8-94367-309-0	01	1	9112-9504	●
227	02.317 PIECE; DIST AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-94367-309-0	01	1	9112-9504		●
227	02.317 PIECE; DIST AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-94367-309-0	01	1	9505-9505		●
227	02.317 PIECE; DIST EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX>	8-94367-309-0	01	1	9506-9512		●
230	01.055 FAN; COOLING 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9112-9504	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-0	01	1	9112-9504		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.604 OD=450 8-BLADE	8-97049-499-0	01	1	9505-		●
230	01.055 FAN; COOLING EXC. TURBOCHARGER<K51> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9505-		●
230	01.055 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94310-517-0	01	1	9112-			●
230	01.055 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94311-255-0	01	1	9112-			●
247	02.317 SLIDER EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX>	8-97132-048-0	01	1	9601-9603		●
247	02.317 SLIDER AIR CONDITIONER MANUAL CONT(C60) EXC. HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-048-0	01	1	9604-9607		●
247	02.317 SLIDER AIR CONDITIONER MANUAL CONT(C60)	8-97132-048-0	01	1	9608-		●

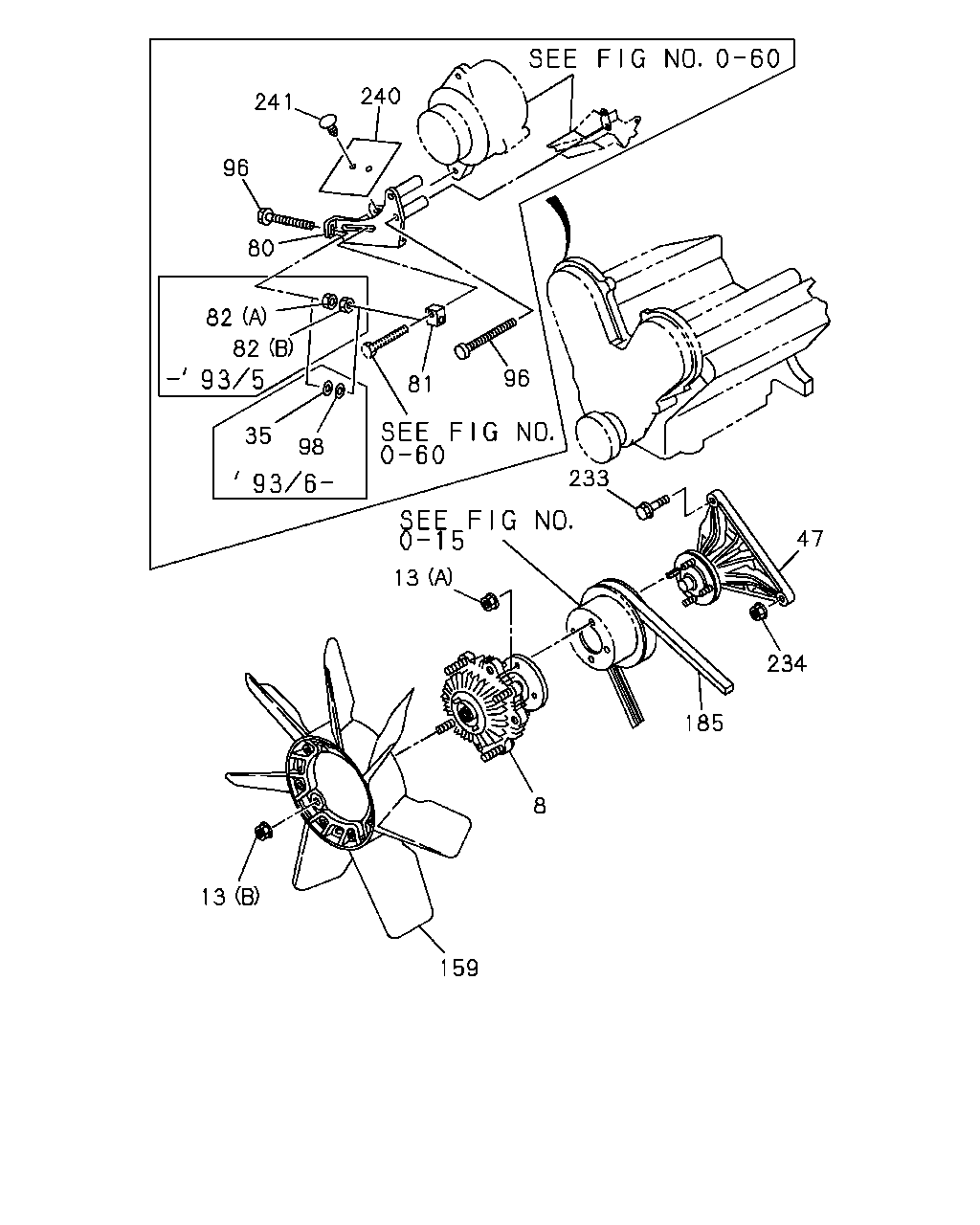

13 159 8 185 234 47 233 13 98 35 81 96 82 82 80 96 241 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9112-9504	●
8	01.064 CLUTCH; COOLING FAN	8-97039-034-0	01	1	9112-9504		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97039-034-0	01	1	9505-		●
8	01.064 CLUTCH; COOLING FAN EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9505-		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60) 01.066	8-94412-030-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-252-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN	8-97018-918-1	01	1	9112-9311				●
8	01.064 CLUTCH; COOLING FAN	8-97102-903-0	01	1	9312-9511				●
8	01.064 CLUTCH; COOLING FAN	8-97135-167-0	01	1	9512-				●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9112-9208	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	08	1	9112-9208		●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	08	1	9209-9310	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9311-9504	●	●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9505-		●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9505-		●
13	01.062 NUT; COOLING FAN 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	9112-				●
13	01.062 NUT; COOLING FAN 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9112-				●
35	01.060 WASHER; PL 00.206 ID=6.4	9-09160-506-0	01	1	9306-				●
47	01.060 BRACKET; FAN	8-97018-655-0	01	1	9112-9311				●
47	01.060 BRACKET; FAN	8-97108-785-0	01	1	9312-				●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) (A)	8-94367-300-0	01	1	9112-9504	●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9112-9504		●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9506-9512		●
80	02.317 PLATE; ADJ EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94438-403-0	01	1	9112-9504	●
80	02.317 PLATE; ADJ HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (B)	8-94438-403-0	01	1	9112-9504		●
80	02.317 PLATE; ADJ TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> (B)	8-94438-403-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> (B)	8-94438-403-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> (B)	8-94438-403-0	01	1	9506-9512		●
80	02.317 PLATE; ADJ (B)	8-97132-049-0	01	1	9601-		●
80	02.317 PLATE; ADJ EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (C)	8-97038-402-1	01	1	9112-9505		●
80	02.317 PLATE; ADJ TURBOCHARGER<K51> CERAMIC HEATER<6YX> (C)	8-97038-402-1	01	1	9506-9603		●
80	02.317 PLATE; ADJ	8-94436-178-2	01	1	9112-9504			●
80	02.317 PLATE; ADJ	8-94460-846-1	01	1	9112-9504			●
80	02.317 PLATE; ADJ	8-97123-738-1	01	1	9505-			●
80	02.317 PLATE; ADJ	8-97018-939-2	01	1	9112-9302				●
80	02.317 PLATE; ADJ	8-97087-142-2	01	1	9303-				●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1)	8-94453-774-0	01	1	9112-9504	●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-94453-774-0	01	1	9112-9504		●
81	02.317 PIECE; SLIDING EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX>	8-94453-774-0	01	1	9112-9504		●
81	02.317 PIECE; SLIDING HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94453-774-0	01	1	9505-9603		●
81	02.317 PIECE; SLIDING	8-97031-664-0	01	1	9112-				●
82	02.317 NUT; ADJ PLATE 16.176 (A) M6	9-09110-406-0	01	1	9112-9305				●
82	02.317 NUT; ADJ PLATE 08.915 (B) M6	9-09111-406-0	01	1	9112-9305				●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9505-9603		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9604-9607		●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-9504	●
96	02.317 BOLT; ADJ PLATE HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> EXC. CERAMIC HEATER<6YX> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9505-9505		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9505-9505		●
96	02.317 BOLT; ADJ PLATE EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9506-9603		●
96	02.317 BOLT; ADJ PLATE AIR CON PREPARATORY PACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9604-9607		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-9505			●
96	02.317 BOLT; ADJ PLATE 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9506-			●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 FLANGE	0-28080-870-0	02	1	9112-9208				●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 W/LK WASHER	0-50040-870-0	02	1	9209-9302				●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 FLANGE	0-28080-870-0	02	1	9303-				●
96	02.317 BOLT; ADJ PLATE M6X75 FLANGE	8-97028-681-0	01	1	9112-				●
98	02.317 RETAINER; ADJ PLATE	8-97101-664-0	01	1	9306-				●
159	01.064 BLADE; COOLING FAN OD=470 7-BLADE	8-97018-917-0	01	1	9112-				●
185	01.066 BELT; GEN DRIVE L=965 BANDO	8-94382-106-0	01	1	9112-				●
233	01.060 BOLT; FAN BRKT 09.171 M8X90 FLANGE	0-28080-890-0	01	1	9112-				●
234	01.060 NUT; FAN BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9112-				●
240	02.297 COVER; MUD,GEN 00.297 100X160 T=1.5 BLACK	8-97089-940-0	01	1	9303-				●
241	02.297 RIVET; COVER 12.934 D5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9303-9303				●
241	02.297 RIVET; COVER 16.742 DARK GRAY	8-97804-484-0	02	1	9304-				●

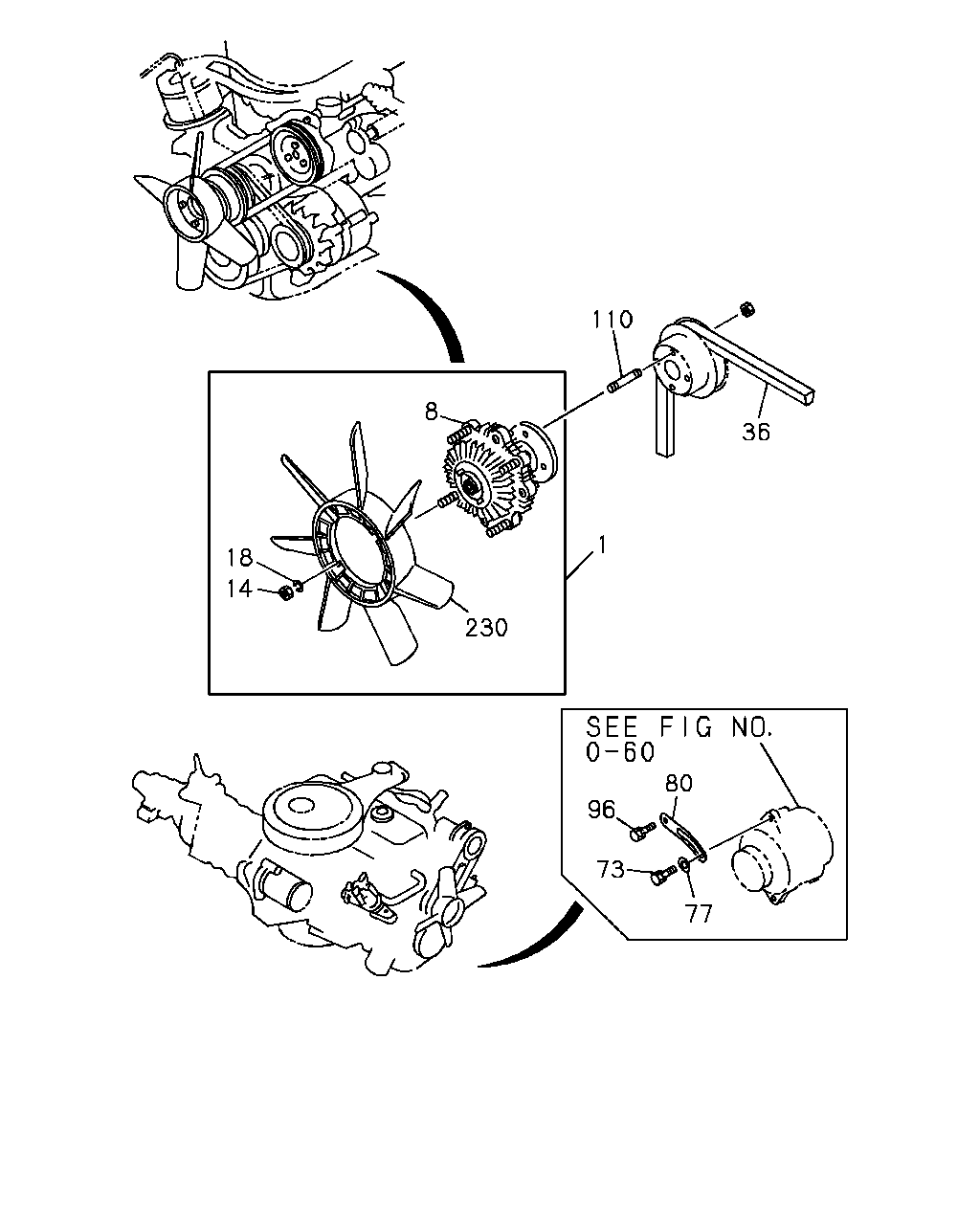

110 36 1 80 77 73 96 230 8 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING OD=410	8-94103-469-0	01	1	9112-9504	●
1	01.064 FAN; COOLING EXC. TURBOCHARGER<K51> OD=410	8-94103-469-0	01	1	9505-		●
1	01.064 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94454-187-0	01	1	9112-			●
1	01.064 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410	8-94436-150-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9112-9504	●
8	01.064 CLUTCH; COOLING FAN	8-97039-034-0	01	1	9112-9504		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97039-034-0	01	1	9505-		●
8	01.064 CLUTCH; COOLING FAN EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9505-		●
8	01.064 CLUTCH; COOLING FAN AIR CONDITIONER MANUAL CONT(C60) 01.066	8-94412-030-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-252-0	01	1	9112-			●
8	01.064 CLUTCH; COOLING FAN	8-97018-918-1	01	1	9112-9311				●
8	01.064 CLUTCH; COOLING FAN	8-97102-903-0	01	1	9312-9511				●
8	01.064 CLUTCH; COOLING FAN	8-97135-167-0	01	1	9512-				●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9112-9504	●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 00.413 M6	9-09110-506-0	04	1	9112-9504			●
14	01.062 NUT; FAN TO CLU EXC. TURBOCHARGER<K51> 00.413 M6	9-09110-506-0	04	1	9505-		●
14	01.062 NUT; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.413 M6	9-09110-506-0	04	1	9505-			●
14	01.062 NUT; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-253-0	04	1	9112-			●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9112-9504	●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 00.206 ID=6.1	9-09150-506-0	04	1	9112-9504			●
18	01.062 WASHER; FAN TO CLU EXC. TURBOCHARGER<K51> 00.206 ID=6.1	9-09150-506-0	04	1	9505-		●
18	01.062 WASHER; FAN TO CLU AIR CONDITIONER MANUAL CONT(C60) 00.206 ID=6.1	9-09150-506-0	04	1	9505-			●
18	01.062 WASHER; FAN TO CLU EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94311-254-0	04	1	9112-			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97043-551-0	01	1	9112-9504	●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9112-9504		●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9505-9505		●
36	01.066 BELT; COOLING FAN EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9506-9607		●
36	01.066 BELT; COOLING FAN CERAMIC HEATER<6YX> EXC. EUROPE EQUIPMENT(EK4) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9608-9701		●
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97043-551-0	01	1	9608-9701		●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97043-551-0	01	1	9608-9701		●
36	01.066 BELT; COOLING FAN CERAMIC HEATER<6YX> EXC. EUROPE EQUIPMENT(EK4) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-		●
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-		●
36	01.066 BELT; COOLING FAN EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9702-		●
36	01.066 BELT; COOLING FAN CERAMIC HEATER<6YX>	8-97062-913-1	01	1	9112-9505		●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> CERAMIC HEATER<6YX>	8-97062-913-1	01	1	9506-9607		●
36	01.066 BELT; COOLING FAN EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX>	8-97062-913-1	01	1	9608-9711		●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97062-913-1	01	1	9608-9711		●
36	01.066 BELT; COOLING FAN EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-		●
36	01.066 BELT; COOLING FAN	8-94472-378-0	01	1	9112-9304			●
36	01.066 BELT; COOLING FAN L=875	8-97100-606-0	01	1	9305-			●
73	02.277 BOLT; GEN TO ADJ PLATE 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9112-			●
77	02.277 WASHER; PL,GEN TO ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9112-			●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) (A)	8-94367-300-0	01	1	9112-9504	●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9112-9504		●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> (A)	8-94367-300-0	01	1	9506-9512		●
80	02.317 PLATE; ADJ EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94438-403-0	01	1	9112-9504	●
80	02.317 PLATE; ADJ HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (B)	8-94438-403-0	01	1	9112-9504		●
80	02.317 PLATE; ADJ TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> (B)	8-94438-403-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> (B)	8-94438-403-0	01	1	9505-9505		●
80	02.317 PLATE; ADJ EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> (B)	8-94438-403-0	01	1	9506-9512		●
80	02.317 PLATE; ADJ (B)	8-97132-049-0	01	1	9601-		●
80	02.317 PLATE; ADJ EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (C)	8-97038-402-1	01	1	9112-9505		●
80	02.317 PLATE; ADJ TURBOCHARGER<K51> CERAMIC HEATER<6YX> (C)	8-97038-402-1	01	1	9506-9603		●
80	02.317 PLATE; ADJ	8-94436-178-2	01	1	9112-9504			●
80	02.317 PLATE; ADJ	8-94460-846-1	01	1	9112-9504			●
80	02.317 PLATE; ADJ	8-97123-738-1	01	1	9505-			●
80	02.317 PLATE; ADJ	8-97018-939-2	01	1	9112-9302				●
80	02.317 PLATE; ADJ	8-97087-142-2	01	1	9303-				●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9505-9603		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9604-9607		●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-9504	●
96	02.317 BOLT; ADJ PLATE HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> EXC. CERAMIC HEATER<6YX> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-9504		●
96	02.317 BOLT; ADJ PLATE TURBOCHARGER<K51> HEATER&DEFROSTER(C41),AIR CON PREPARATORY PACK<S6D> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9505-9505		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9505-9505		●
96	02.317 BOLT; ADJ PLATE EXC. WEST MALAYSIA EQUIPMENT(S3D) CERAMIC HEATER<6YX> 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9506-9603		●
96	02.317 BOLT; ADJ PLATE AIR CON PREPARATORY PACK<S6D> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9604-9607		●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9608-		●
96	02.317 BOLT; ADJ PLATE 04.785 M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-9505			●
96	02.317 BOLT; ADJ PLATE 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9506-			●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 FLANGE	0-28080-870-0	02	1	9112-9208				●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 W/LK WASHER	0-50040-870-0	02	1	9209-9302				●
96	02.317 BOLT; ADJ PLATE 01.840 M8X70 FLANGE	0-28080-870-0	02	1	9303-				●
96	02.317 BOLT; ADJ PLATE M6X75 FLANGE	8-97028-681-0	01	1	9112-				●
110	01.064 SCREW; PULLEY 01.428 M8X20 L=32	9-04110-820-0	04	1	9112-			●
230	01.055 FAN; COOLING 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9112-9504	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-0	01	1	9112-9504		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.604 OD=450 8-BLADE	8-97049-499-0	01	1	9505-		●
230	01.055 FAN; COOLING EXC. TURBOCHARGER<K51> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9505-		●
230	01.055 FAN; COOLING AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94310-517-0	01	1	9112-			●
230	01.055 FAN; COOLING EXC. AIR CONDITIONER MANUAL CONT(C60) 01.604	8-94311-255-0	01	1	9112-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
