0-32 — WATER PIPING; ENGINE (#43291) — 236 parça
çizim 18625
75 72 69 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 01.097 PIPE; INL,WATER PUMP 8-94474-078-3 01 1 9112- ●
69 01.153 NUT; WATER PIPE
07.829 M6 FLANGE 		5-09440-004-0 01 1 9112- ●
72 00.206 BOLT; WATER PIPE
M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112- ●
75 01.097 GASKET; INL PIPE TO WATER PUMP
01.154 		8-94235-013-0 01 1 9112- ●

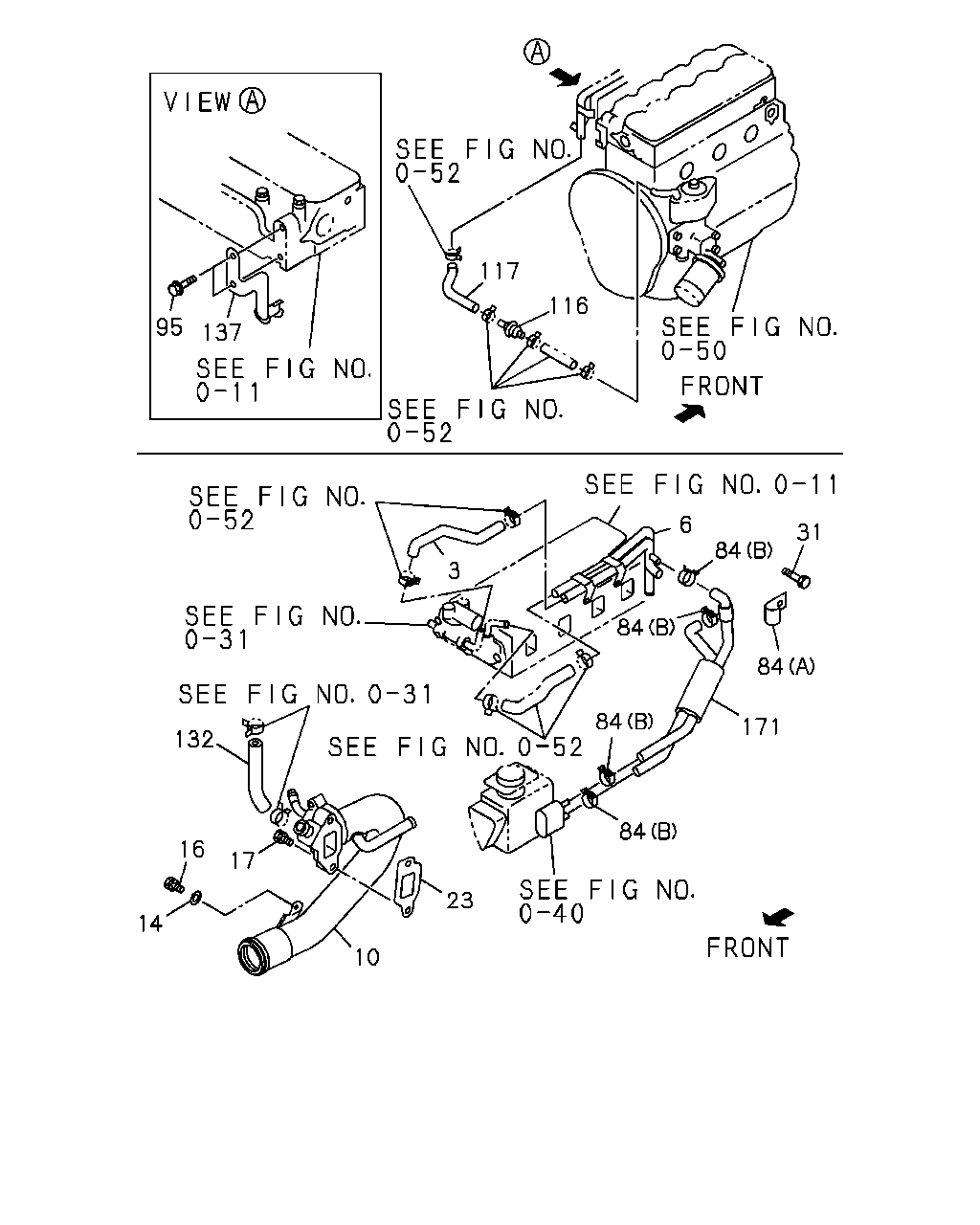

çizim 65509
84 171 84 31 84 6 84 84 23 10 14 16 17 132 3 95 137 116 117
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 01.540 HOSE; WATER,OIL COOLER 8-97038-809-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER 8-97043-720-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER
TURBOCHARGER<K51> 		8-97043-720-1 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (B) 		8-97110-426-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (A) 		8-97110-425-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97037-387-1 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97079-997-0 01 1 9309-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (A) 		8-97079-997-0 01 1 9608- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97031-438-0 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97079-995-0 01 1 9309-9506 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97119-654-0 01 1 9507-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (B) 		8-97119-654-0 01 1 9608- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97038-114-1 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97038-113-1 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE 8-97049-193-4 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
TURBOCHARGER<K51> 		8-97049-193-4 01 1 9505- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. TURBOCHARGER<K51> 		8-97110-511-2 01 1 9505- ●
10 01.153 PIPE; SUCTION 8-94340-786-3 01 1 9112-9504 ●
10 01.153 PIPE; SUCTION 8-97041-039-3 01 1 9112- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9112-9211 ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9212-9504 ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9505- ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9112-9504 ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9505- ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9112-9504 ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9505- ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9112-9504 ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9505- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9112-9504 ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9505- ●
31 01.159 BOLT; CLIP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 ID=12 		5-09700-331-0 01 1 9112-9504 ●
31 01.159 BOLT; CLIP
EXC. TURBOCHARGER<K51> 02.559 ID=12 		5-09700-331-0 01 1 9505- ●
31 01.159 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9608- ●
84 01.240 CLIP; HOSE,W/CSD
02.559 (A) ID=12 		5-09700-331-0 01 1 9112-9504 ●
84 01.240 CLIP; HOSE,W/CSD
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505- ●
84 01.240 CLIP; HOSE,W/CSD
03.162 (B) ID=15.5 		8-94221-519-0 04 1 9112-9504 ●
84 01.240 CLIP; HOSE,W/CSD
TURBOCHARGER<K51> 03.162 (B) ID=15.5 		8-94221-519-0 04 1 9505- ●
95 01.240 BOLT; CLIP
07.831 M8X12 		0-28010-812-0 02 1 9112-9204 ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9205-9404 ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9405-9504 ●
95 01.240 BOLT; CLIP
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112-9504 ●
95 01.240 BOLT; CLIP
TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9505-9507 ●
95 01.240 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9508-9607 ●
95 01.240 BOLT; CLIP
EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9505- ●
116 01.540 VALVE ASM; THERMO,OIL COOLER
EUROPE EQUIPMENT(EK4) 		5-21770-001-1 01 1 9112-9410 ●
117 01.855 HOSE; RUBBER,OIL COOLER TO THERM
EUROPE EQUIPMENT(EK4) 		8-97039-420-0 01 1 9112-9410 ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9112-9504 ● ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9505- ●
137 01.540 CLIP; HOSE,OIL COOLER 8-97039-302-0 01 1 9112-9504 ●
137 01.540 CLIP; HOSE,OIL COOLER
TURBOCHARGER<K51> 		8-97039-302-0 01 1 9505-9505 ●
171 01.240 HOSE; RUBBER,WAX CSD
EUROPE EQUIPMENT(EK4) 		8-97048-903-3 01 1 9112-9504 ●
171 01.240 HOSE; RUBBER,WAX CSD
EXC. EUROPE EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-97110-423-0 01 1 9505- ●
171 01.240 HOSE; RUBBER,WAX CSD
EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> 		8-97048-903-3 01 1 9505- ●
171 01.240 HOSE; RUBBER,WAX CSD
EXC. EUROPE EQUIPMENT(EK4) 		8-97049-001-2 01 1 9112-9504 ●
171 01.240 HOSE; RUBBER,WAX CSD
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 		8-97049-001-2 01 1 9505- ●

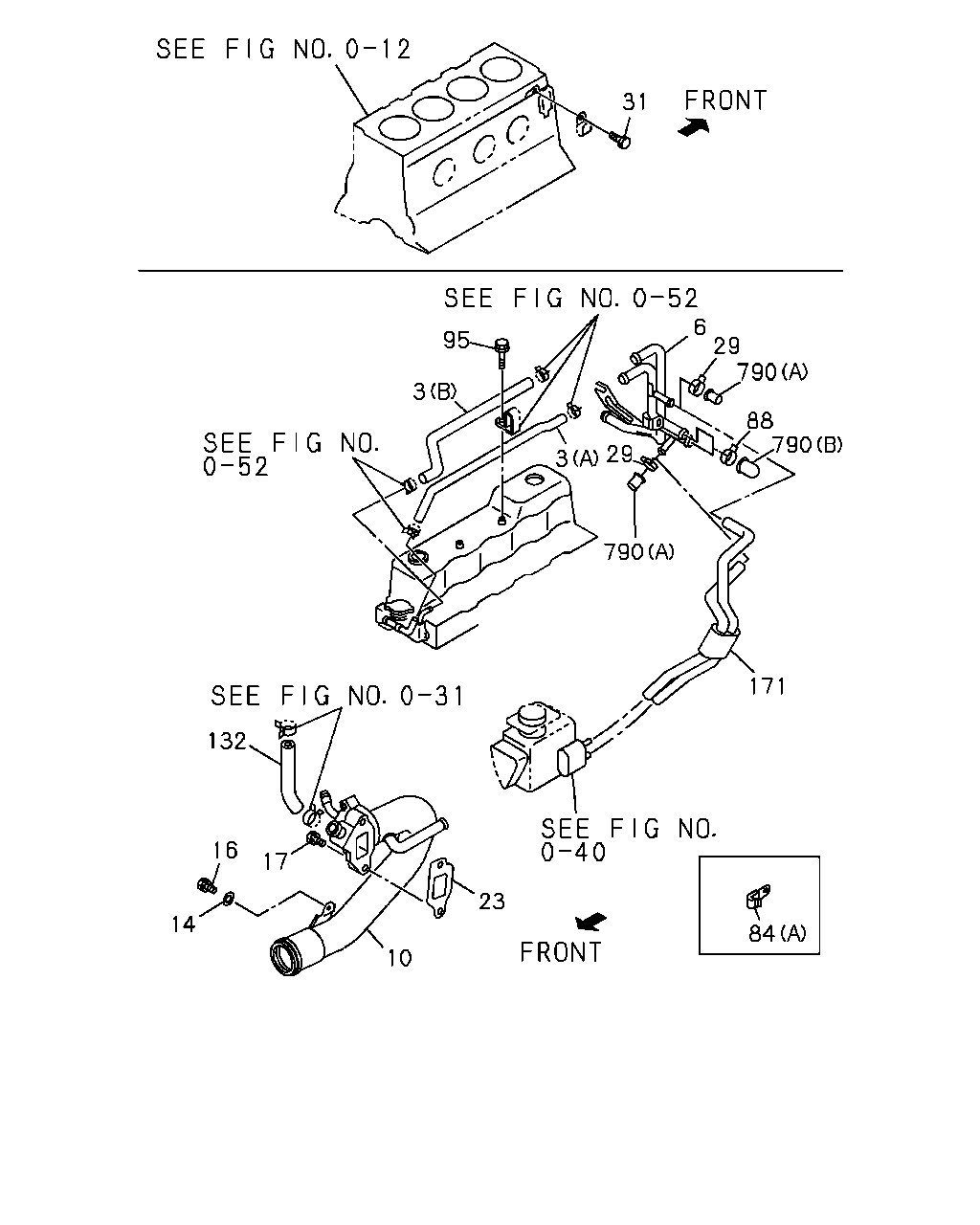

çizim 66113
31 6 29 790 88 790 29 3 95 3 790 171 23 10 17 16 14 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 01.540 HOSE; WATER,OIL COOLER 8-97038-809-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER 8-97043-720-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER
TURBOCHARGER<K51> 		8-97043-720-1 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (B) 		8-97110-426-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (A) 		8-97110-425-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97037-387-1 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97079-997-0 01 1 9309-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (A) 		8-97079-997-0 01 1 9608- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97031-438-0 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97079-995-0 01 1 9309-9506 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97119-654-0 01 1 9507-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (B) 		8-97119-654-0 01 1 9608- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97038-114-1 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97038-113-1 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE 8-97049-193-4 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
TURBOCHARGER<K51> 		8-97049-193-4 01 1 9505- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. TURBOCHARGER<K51> 		8-97110-511-2 01 1 9505- ●
10 01.153 PIPE; SUCTION 8-94340-786-3 01 1 9112-9504 ●
10 01.153 PIPE; SUCTION 8-97041-039-3 01 1 9112- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9112-9211 ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9212-9504 ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9505- ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9112-9504 ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9505- ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9112-9504 ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9505- ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9112-9504 ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9505- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9112-9504 ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9505- ●
29 01.166 CLIP; PIPE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER<K51> 01.097 ID=14.8 		8-94448-727-0 02 1 9505- ●
31 01.159 BOLT; CLIP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 ID=12 		5-09700-331-0 01 1 9112-9504 ●
31 01.159 BOLT; CLIP
EXC. TURBOCHARGER<K51> 02.559 ID=12 		5-09700-331-0 01 1 9505- ●
31 01.159 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9608- ●
88 01.097 CLIP; HOSE,HTR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-0 02 1 9505- ●
95 01.240 BOLT; CLIP
07.831 M8X12 		0-28010-812-0 02 1 9112-9204 ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9205-9404 ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9405-9504 ●
95 01.240 BOLT; CLIP
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112-9504 ●
95 01.240 BOLT; CLIP
TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9505-9507 ●
95 01.240 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9508-9607 ●
95 01.240 BOLT; CLIP
EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9505- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9112-9504 ● ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9505- ●
171 01.240 HOSE; RUBBER,WAX CSD
EUROPE EQUIPMENT(EK4) 		8-97048-903-3 01 1 9112-9504 ●
171 01.240 HOSE; RUBBER,WAX CSD
EXC. EUROPE EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-97110-423-0 01 1 9505- ●
171 01.240 HOSE; RUBBER,WAX CSD
EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> 		8-97048-903-3 01 1 9505- ●
171 01.240 HOSE; RUBBER,WAX CSD
EXC. EUROPE EQUIPMENT(EK4) 		8-97049-001-2 01 1 9112-9504 ●
171 01.240 HOSE; RUBBER,WAX CSD
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 		8-97049-001-2 01 1 9505- ●
790 01.097 CAP
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51> (B) 		8-94414-688-0 02 1 9505-9506 ●
790 01.097 CAP
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EUROPE EQUIPMENT(EK4),TURBOCHARGER<K51>,HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-94414-688-0 02 1 9507-9602 ●
790 01.097 CAP
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) (B) 		8-94414-688-0 02 1 9603- ●
790 01.097 CAP
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR<EE2>,EUROPE EQUIPMENT(EK4),TURB OCHARGER<K51> 08.846 (A) 		8-94366-898-1 02 1 9505-9607 ●
790 01.097 CAP
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER<K51> 08.846 (A) 		8-94366-898-1 02 1 9608- ●

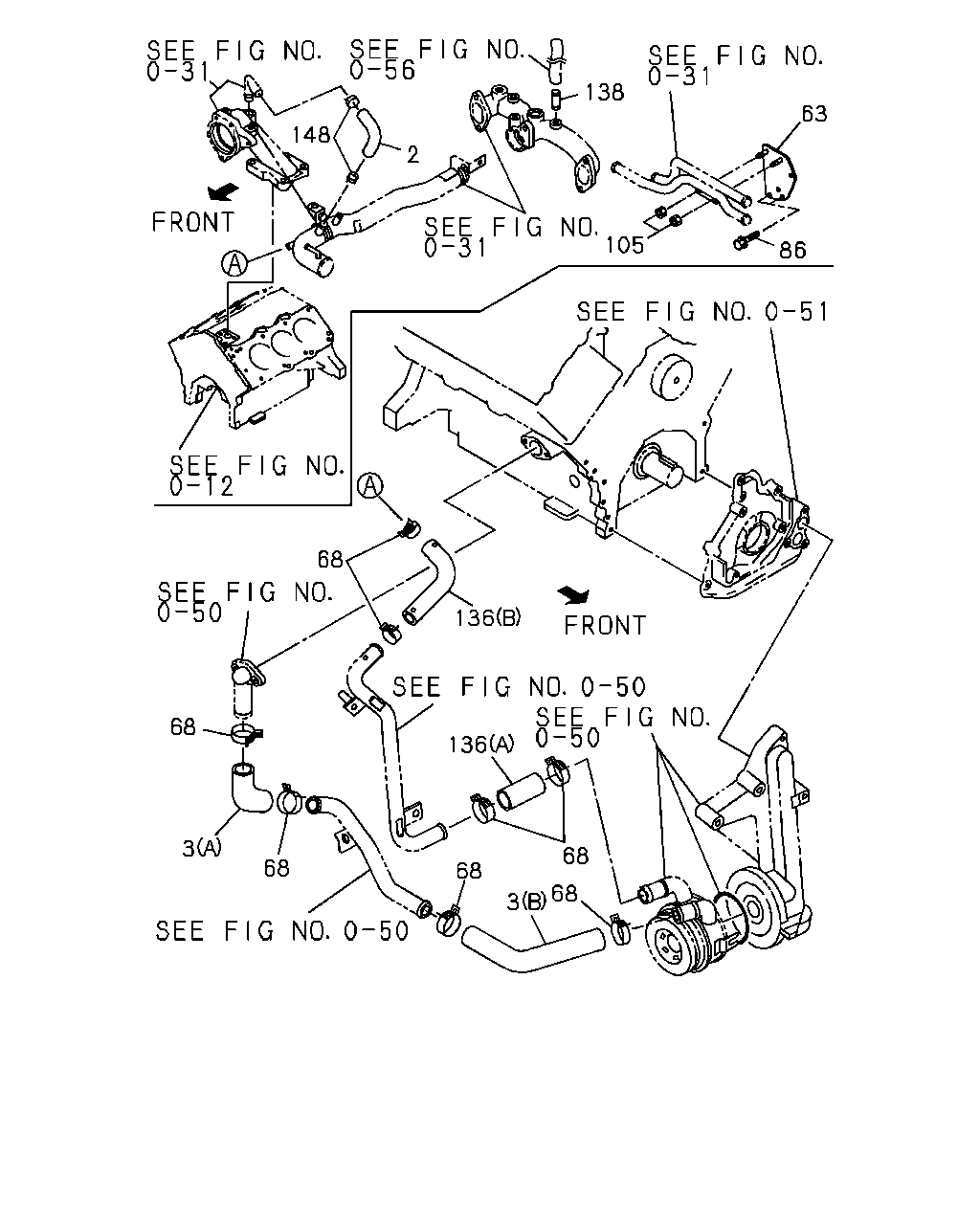

çizim 66227
3 68 68 68 68 3 68 136 136 68 86 63 138 105 2 148
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.097 HOSE; WATER,BY-PASS 8-94384-326-3 01 1 9112-9309 ●
2 01.097 HOSE; WATER,BY-PASS 8-97088-139-0 01 1 9310- ●
3 01.540 HOSE; WATER,OIL COOLER 8-97038-809-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER 8-97043-720-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER
TURBOCHARGER<K51> 		8-97043-720-1 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (B) 		8-97110-426-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (A) 		8-97110-425-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97037-387-1 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97079-997-0 01 1 9309-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (A) 		8-97079-997-0 01 1 9608- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97031-438-0 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97079-995-0 01 1 9309-9506 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97119-654-0 01 1 9507-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (B) 		8-97119-654-0 01 1 9608- ●
63 01.153 BRACKET; WATER PIPE
08.846 		8-97040-345-2 01 1 9112-9603 ●
63 01.153 BRACKET; WATER PIPE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 		8-97040-345-2 01 1 9604- ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) ID=20.8 		8-94125-862-0 08 1 9209-9209 ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 01.540 ID=18.9 		8-94478-875-0 06 1 9209-9308 ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 01.540 ID=18.9 		8-94478-875-0 06 1 9309-9607 ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 01.540 ID=18.9 		8-94478-875-0 06 1 9608- ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) ID=20.8 		8-94125-862-0 04 1 9112-9208 ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 08.846 ID=22 		8-94382-401-0 01 1 9209-9308 ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 08.846 ID=22 		8-94382-401-0 01 1 9309-9607 ●
68 01.166 CLIP; WATER HOSE,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 08.846 ID=22 		8-94382-401-0 01 1 9608- ●
86 01.153 BOLT; BRKT,HTR PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9112-9410 ●
86 01.153 BOLT; BRKT,HTR PIPE
00.662 M8X14 FLANGE 		0-28080-814-0 02 1 9411-9603 ●
86 01.153 BOLT; BRKT,HTR PIPE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.662 M8X14 FLANGE 		0-28080-814-0 02 1 9604- ●
105 01.153 NUT; PIPE
01.540 M8 FLANGE 		0-91150-208-0 02 1 9112-9407 ●
105 01.153 NUT; PIPE
07.633 M8 FLANGE 		0-91150-108-0 02 1 9408-9607 ●
105 01.153 NUT; PIPE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9608- ●
136 01.540 HOSE; OIL COOLER,RETURN 8-97038-808-1 01 1 9112-9504 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4) 08.846 (B) L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9112-9112 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.846 (B) L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9201-9208 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 08.846 (B) L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9209-9209 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 920907- 		8-97061-307-2 01 1 9209-9303 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97061-307-2 01 1 9304-9308 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97061-307-2 01 1 9309-9607 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (B) 		8-97061-307-2 01 1 9608- ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4) (A) 		8-97037-386-0 01 1 9112-9112 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97037-386-0 01 1 9201-9208 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97037-386-0 01 1 9209-9209 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 920907- L=60 		8-97079-996-0 01 1 9209-9303 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) L=60 		8-97079-996-0 01 1 9304-9308 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (A) L=60 		8-97079-996-0 01 1 9309-9607 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (A) L=60 		8-97079-996-0 01 1 9608- ●
138 01.251 PIPE; WATER
03.278 OD=10 L=28 		8-94221-275-1 01 1 9112- ●
148 01.097 CLIP; BYPASS HOSE
01.150 ID=21.7 		8-94413-822-0 02 1 9112-9401 ●
148 01.097 CLIP; BYPASS HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 9402- ●

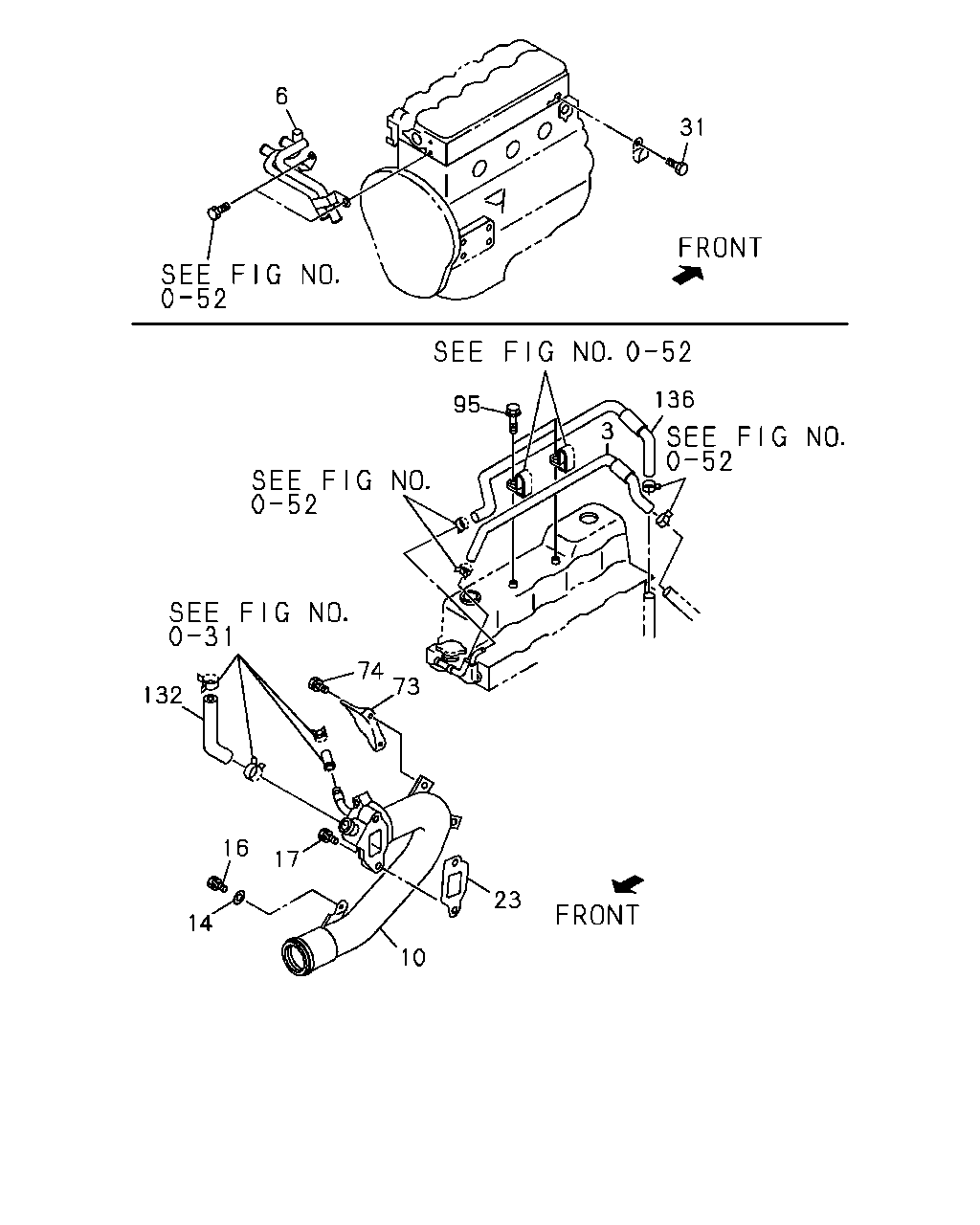

çizim 68308
31 6 136 3 95 74 73 23 10 17 16 14 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 01.540 HOSE; WATER,OIL COOLER 8-97038-809-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER 8-97043-720-1 01 1 9112-9504 ●
3 01.540 HOSE; WATER,OIL COOLER
TURBOCHARGER<K51> 		8-97043-720-1 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (B) 		8-97110-426-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EXC. TURBOCHARGER<K51> (A) 		8-97110-425-0 01 1 9505- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97037-387-1 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97079-997-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97079-997-0 01 1 9309-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (A) 		8-97079-997-0 01 1 9608- ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97031-438-0 01 1 9112-9208 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9209-9303 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97079-995-0 01 1 9304-9308 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97079-995-0 01 1 9309-9506 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97119-654-0 01 1 9507-9607 ●
3 01.540 HOSE; WATER,OIL COOLER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (B) 		8-97119-654-0 01 1 9608- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97038-114-1 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97038-113-1 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE 8-97049-193-4 01 1 9112-9504 ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
TURBOCHARGER<K51> 		8-97049-193-4 01 1 9505- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE
EXC. TURBOCHARGER<K51> 		8-97110-511-2 01 1 9505- ●
10 01.153 PIPE; SUCTION 8-94340-786-3 01 1 9112-9504 ●
10 01.153 PIPE; SUCTION 8-97041-039-3 01 1 9112- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9112-9211 ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9212-9504 ● ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 9505- ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9112-9504 ● ●
16 01.097 BOLT; INL PIPE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9505- ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9112-9504 ● ●
17 01.153 BOLT; SUCTION PIPE
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9505- ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9112-9504 ● ●
17 01.153 BOLT; SUCTION PIPE
01.252 M8X45 W/LK WASHER 		0-50040-845-0 01 1 9505- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9112-9504 ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9505- ●
31 01.159 BOLT; CLIP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 ID=12 		5-09700-331-0 01 1 9112-9504 ●
31 01.159 BOLT; CLIP
EXC. TURBOCHARGER<K51> 02.559 ID=12 		5-09700-331-0 01 1 9505- ●
31 01.159 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9608- ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-94470-560-1 01 1 9112-9504 ●
74 01.097 BOLT; HEAT PROTECTOR FIX
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9112-9504 ●
95 01.240 BOLT; CLIP
07.831 M8X12 		0-28010-812-0 02 1 9112-9204 ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9205-9404 ●
95 01.240 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9405-9504 ●
95 01.240 BOLT; CLIP
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112-9504 ●
95 01.240 BOLT; CLIP
TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9505-9507 ●
95 01.240 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9508-9607 ●
95 01.240 BOLT; CLIP
EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9505- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9112-9504 ● ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-247-1 01 1 9505- ●
136 01.540 HOSE; OIL COOLER,RETURN 8-97038-808-1 01 1 9112-9504 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4) 08.846 (B) L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9112-9112 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.846 (B) L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9201-9208 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 08.846 (B) L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9209-9209 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 920907- 		8-97061-307-2 01 1 9209-9303 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97061-307-2 01 1 9304-9308 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97061-307-2 01 1 9309-9607 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (B) 		8-97061-307-2 01 1 9608- ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4) (A) 		8-97037-386-0 01 1 9112-9112 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97037-386-0 01 1 9201-9208 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97037-386-0 01 1 9209-9209 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) 920907- L=60 		8-97079-996-0 01 1 9209-9303 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) L=60 		8-97079-996-0 01 1 9304-9308 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) (A) L=60 		8-97079-996-0 01 1 9309-9607 ●
136 01.540 HOSE; OIL COOLER,RETURN
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) (A) L=60 		8-97079-996-0 01 1 9608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
