0-31 — THERMOSTAT AND HOUSING (#43290) — 208 parça
çizim 18885
53 62 50 49 64 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-94214-962-0 01 1 9112-9404 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9405-9504 ●
1 01.246 THERMOSTAT
82?C 		8-97062-818-1 01 1 9112-9303 ●
1 01.246 THERMOSTAT
82?C 		8-97094-283-0 01 1 9304-9307 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9308-9404 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9505- ●
1 01.246 THERMOSTAT
82?C 		8-94336-069-0 01 1 9112- ●
1 01.246 THERMOSTAT
76.5?C 		8-97032-508-0 01 1 9112- ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9112-9504 ●
49 01.153 PIPE; WATER OUTLET 8-94368-587-0 01 1 9112-9504 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-94368-589-0 01 1 9505-9606 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> 		8-94368-587-0 01 1 9505-9709 ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> 		8-97183-181-0 01 1 9710- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9112- ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97037-385-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-467-1 01 1 9201-9303 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-467-1 01 1 9304-9308 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-467-1 01 1 9309-9607 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97075-467-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
SOUTH AFRICA EQUIPMENT(SW2) 		8-94382-118-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-94382-118-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-466-0 01 1 9201-9308 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9201-9308 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9309-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9608- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9112-9504 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9505- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9112- ●
50 01.252 BOLT; OUTLET PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9112- ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9112-9407 ●
50 01.252 BOLT; OUTLET PIPE
08.900 M8X28 FLANGE 		0-28080-828-0 01 1 9408- ●
53 01.153 NUT; OUTLET PIPE
00.854 M8 FLANGE 		5-09440-005-0 01 1 9112- ●
62 01.153 STUD; OUTLET PIPE TO INL MANIF
09.173 M8X22 L=34 		9-04110-822-0 01 1 9112- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-0 01 1 9112-9504 ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-1 01 1 9505- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94324-197-0 01 1 9112- ●

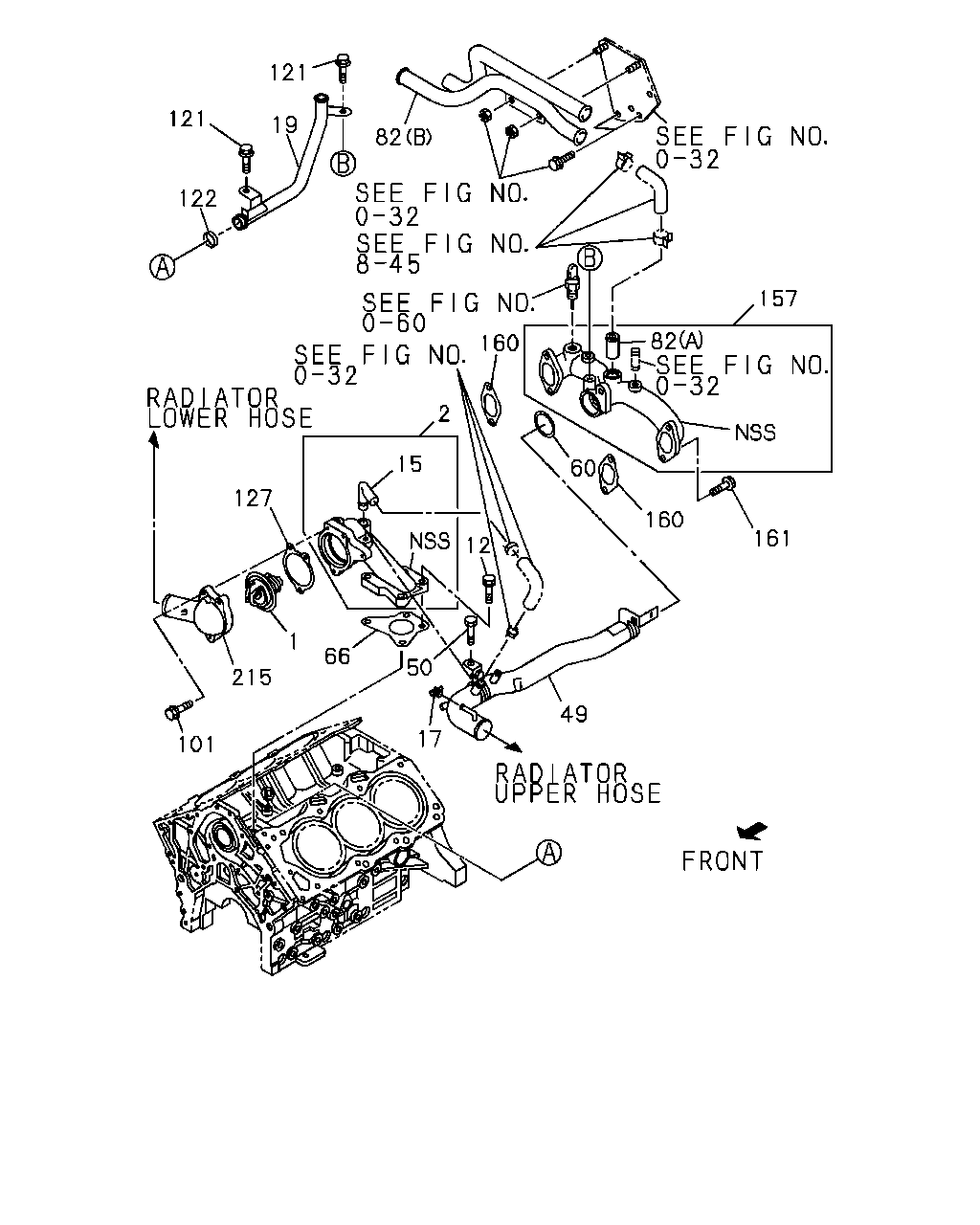

çizim 68342
49 17 50 66 1 215 101 127 12 15 2 160 60 160 161 82 157 82 121 19 121 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-94214-962-0 01 1 9112-9404 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9405-9504 ●
1 01.246 THERMOSTAT
82?C 		8-97062-818-1 01 1 9112-9303 ●
1 01.246 THERMOSTAT
82?C 		8-97094-283-0 01 1 9304-9307 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9308-9404 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9505- ●
1 01.246 THERMOSTAT
82?C 		8-94336-069-0 01 1 9112- ●
1 01.246 THERMOSTAT
76.5?C 		8-97032-508-0 01 1 9112- ●
2 01.251 HOUSING; THERMOSTAT 8-94382-202-0 01 1 9112-9307 ●
2 01.251 HOUSING; THERMOSTAT 8-97104-440-1 01 1 9308-9504 ● ●
2 01.251 HOUSING; THERMOSTAT 8-97038-191-4 01 1 9209-9307 ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9505- ●
2 01.251 HOUSING; THERMOSTAT 8-97038-191-3 01 1 9112-9208 ●
2 01.251 HOUSING; THERMOSTAT 8-97031-546-3 01 1 9112- ●
12 01.252 BOLT; HSG
03.275 M8X30 FLANGE 		0-28080-830-0 04 1 9112- ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9112-9504 ● ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9505- ●
15 01.251 PIPE; BYPASS 8-97014-716-0 01 1 9112-9309 ●
15 01.251 PIPE; BYPASS 8-97086-465-0 01 1 9310- ●
17 01.166 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 (A) ID=12 		5-09700-331-0 01 1 9112-9504 ●
17 01.166 CLIP; WATER HOSE
(B) ID=20.8 		8-94125-862-0 02 1 9112-9504 ● ●
17 01.166 CLIP; WATER HOSE
(B) ID=20.8 		8-94125-862-0 02 1 9505- ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 02 1 9112-9504 ●
17 01.166 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4), TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505-9505 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505-9505 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505-9505 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9506-9506 ●
17 01.166 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4), TURBOCHARGER<K51>,WEST MALAYSIA EQUIPMENT(S3D) 02.559 (A) ID=12 		5-09700-331-0 01 1 9506-9506 ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 01 1 9507-9607 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9608-9608 ●
17 01.166 CLIP; WATER HOSE
EXC. TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) ID=12 		5-09700-331-0 01 1 9608-9608 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9609- ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 01 1 9609- ●
17 01.166 CLIP; WATER HOSE
01.240 ID=11 WIRE W/BOLT 		8-94169-543-0 01 1 9201-9506 ●
17 01.166 CLIP; WATER HOSE 8-97134-858-0 01 1 9507- ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9112-9504 ● ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9505- ●
19 01.252 PIPE; HSG TO HTR 8-94384-231-3 01 1 9112- ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9112-9504 ●
49 01.153 PIPE; WATER OUTLET 8-94368-587-0 01 1 9112-9504 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-94368-589-0 01 1 9505-9606 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> 		8-94368-587-0 01 1 9505-9709 ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> 		8-97183-181-0 01 1 9710- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9112- ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97037-385-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-467-1 01 1 9201-9303 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-467-1 01 1 9304-9308 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-467-1 01 1 9309-9607 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97075-467-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
SOUTH AFRICA EQUIPMENT(SW2) 		8-94382-118-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-94382-118-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-466-0 01 1 9201-9308 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9201-9308 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9309-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9608- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9112-9504 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9505- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9112- ●
50 01.252 BOLT; OUTLET PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9112- ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9112-9407 ●
50 01.252 BOLT; OUTLET PIPE
08.900 M8X28 FLANGE 		0-28080-828-0 01 1 9408- ●
60 01.154 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		9-09561-338-0 01 1 9112- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-0 01 1 9112-9504 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9505- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94382-250-0 01 1 9112- ●
82 08.845 PIPE; WATER,HTR
03.602 (A) 		8-94379-756-0 01 1 9112- ●
82 08.845 PIPE; WATER,HTR
(B) 		8-97037-468-2 01 1 9112-9603 ●
82 08.845 PIPE; WATER,HTR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97037-468-2 01 1 9604- ●
101 01.251 BOLT; PIPE
03.275 M8X30 FLANGE 		0-28080-830-0 03 1 9112- ●
121 08.900 BOLT; HTR PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9112- ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 		9-09561-220-0 01 1 9112-9703 ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 		9-09561-220-0 02 1 9704- ●
127 01.159 GASKET; INL PIPE TO THERMOSTAT H 8-97014-696-0 01 1 9112- ●
157 01.251 MANIFOLD; WATER 8-94364-730-1 01 1 9112- ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94364-756-0 02 1 9112- ●
161 01.251 BOLT; MANIF TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 04 1 9112- ●
215 01.159 PIPE; WATER,INL 8-94374-967-3 01 1 9112- ●

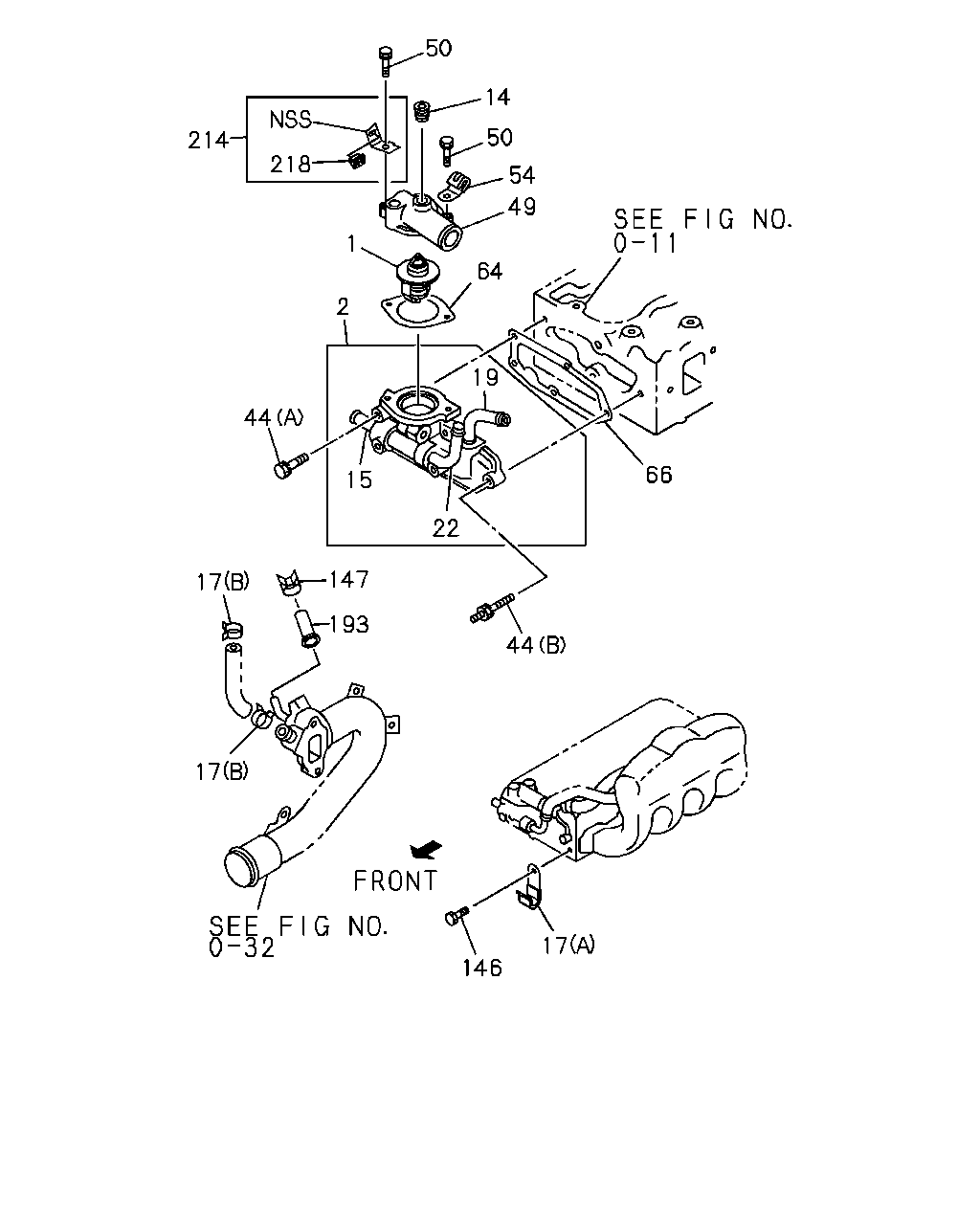

çizim 68377
50 14 50 54 49 64 214 218 1 2 44 19 15 22 66 44 147 17 17 193 146 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-94214-962-0 01 1 9112-9404 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9405-9504 ●
1 01.246 THERMOSTAT
82?C 		8-97062-818-1 01 1 9112-9303 ●
1 01.246 THERMOSTAT
82?C 		8-97094-283-0 01 1 9304-9307 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9308-9404 ●
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9505- ●
1 01.246 THERMOSTAT
82?C 		8-94336-069-0 01 1 9112- ●
1 01.246 THERMOSTAT
76.5?C 		8-97032-508-0 01 1 9112- ●
2 01.251 HOUSING; THERMOSTAT 8-94382-202-0 01 1 9112-9307 ●
2 01.251 HOUSING; THERMOSTAT 8-97104-440-1 01 1 9308-9504 ● ●
2 01.251 HOUSING; THERMOSTAT 8-97038-191-4 01 1 9209-9307 ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9505- ●
2 01.251 HOUSING; THERMOSTAT 8-97038-191-3 01 1 9112-9208 ●
2 01.251 HOUSING; THERMOSTAT 8-97031-546-3 01 1 9112- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9112-9308 ●
14 01.252 PLUG; SW
AUSTRALIA EQUIPMENT(RR3) 01.073 PT3/8 		5-09605-005-0 01 1 9112-9308 ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 01 1 9309-9504 ●
14 01.252 PLUG; SW
EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> 01.073 PT3/8 		5-09605-005-0 01 1 9505- ●
14 01.252 PLUG; SW
EXC. TURBOCHARGER<K51> 01.073 PT3/8 		5-09605-005-0 01 1 9505- ●
14 01.252 PLUG; SW
EXC. EUROPE EQUIPMENT(EK4) 01.073 PT3/8 		5-09605-005-0 02 1 9112-9504 ●
14 01.252 PLUG; SW
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 01.073 PT3/8 		5-09605-005-0 02 1 9506- ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9112-9504 ● ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9505- ●
15 01.251 PIPE; BYPASS 8-97014-716-0 01 1 9112-9309 ●
15 01.251 PIPE; BYPASS 8-97086-465-0 01 1 9310- ●
17 01.166 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 (A) ID=12 		5-09700-331-0 01 1 9112-9504 ●
17 01.166 CLIP; WATER HOSE
(B) ID=20.8 		8-94125-862-0 02 1 9112-9504 ● ●
17 01.166 CLIP; WATER HOSE
(B) ID=20.8 		8-94125-862-0 02 1 9505- ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 02 1 9112-9504 ●
17 01.166 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4), TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505-9505 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505-9505 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9505-9505 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9506-9506 ●
17 01.166 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4), TURBOCHARGER<K51>,WEST MALAYSIA EQUIPMENT(S3D) 02.559 (A) ID=12 		5-09700-331-0 01 1 9506-9506 ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 01 1 9507-9607 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9608-9608 ●
17 01.166 CLIP; WATER HOSE
EXC. TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) ID=12 		5-09700-331-0 01 1 9608-9608 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9609- ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 01 1 9609- ●
17 01.166 CLIP; WATER HOSE
01.240 ID=11 WIRE W/BOLT 		8-94169-543-0 01 1 9201-9506 ●
17 01.166 CLIP; WATER HOSE 8-97134-858-0 01 1 9507- ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9112-9504 ● ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9505- ●
19 01.252 PIPE; HSG TO HTR 8-94384-231-3 01 1 9112- ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-1 01 1 9112-9504 ● ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-1 01 1 9505- ●
44 01.252 BOLT; HSG TO HD
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9112-9504 ● ●
44 01.252 BOLT; HSG TO HD
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9505- ●
44 01.252 BOLT; HSG TO HD
(B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9112-9505 ● ●
44 01.252 BOLT; HSG TO HD
(B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9506- ●
49 01.153 PIPE; WATER OUTLET 8-94368-589-0 01 1 9112-9504 ●
49 01.153 PIPE; WATER OUTLET 8-94368-587-0 01 1 9112-9504 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-94368-589-0 01 1 9505-9606 ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> 		8-97139-712-0 01 1 9607- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> 		8-94368-587-0 01 1 9505-9709 ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> 		8-97183-181-0 01 1 9710- ●
49 01.153 PIPE; WATER OUTLET 8-94172-420-1 01 1 9112- ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97037-385-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-467-1 01 1 9201-9303 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-467-1 01 1 9304-9308 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-467-1 01 1 9309-9607 ●
49 01.153 PIPE; WATER OUTLET
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97075-467-1 01 1 9608- ●
49 01.153 PIPE; WATER OUTLET
SOUTH AFRICA EQUIPMENT(SW2) 		8-94382-118-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-94382-118-6 01 1 9112-9112 ●
49 01.153 PIPE; WATER OUTLET
SOUTH AFRICA EQUIPMENT(SW2) 		8-97075-466-0 01 1 9201-9308 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9201-9308 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9309-9607 ●
49 01.153 PIPE; WATER OUTLET
EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97075-466-0 01 1 9608- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9112-9504 ● ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9505- ●
50 01.252 BOLT; OUTLET PIPE
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9112- ●
50 01.252 BOLT; OUTLET PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9112- ●
50 01.252 BOLT; OUTLET PIPE
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9112-9407 ●
50 01.252 BOLT; OUTLET PIPE
08.900 M8X28 FLANGE 		0-28080-828-0 01 1 9408- ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9112-9504 ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9505- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-0 01 1 9112-9504 ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-1 01 1 9505- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94324-197-0 01 1 9112- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-0 01 1 9112-9504 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9505- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94382-250-0 01 1 9112- ●
146 01.166 BOLT; CLIP
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9112-9504 ●
146 01.166 BOLT; CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9112-9504 ●
146 01.166 BOLT; CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9505- ●
147 03.330 CLIP; RUBBER CAP
01.097 ID=14.8 		8-94448-727-0 01 1 9112-9504 ●
147 03.330 CLIP; RUBBER CAP
EXC. TURBOCHARGER<K51> 01.097 ID=14.8 		8-94448-727-0 01 1 9505- ●
193 01.252 CAP; RUBBER
08.846 		8-94366-898-1 01 1 9112-9504 ●
193 01.252 CAP; RUBBER
EXC. TURBOCHARGER<K51> 08.846 		8-94366-898-1 01 1 9505- ●
214 01.153 BRACKET; HARNESS
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97048-961-0 01 1 9112-9308 ●
214 01.153 BRACKET; HARNESS
EUROPE EQUIPMENT(EK4) 		8-97048-961-0 01 1 9309- ●
218 01.240 CLIP; CONNECTOR
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 01.166 		8-94456-949-0 01 1 9112-9308 ●
218 01.240 CLIP; CONNECTOR
EUROPE EQUIPMENT(EK4) 01.166 		8-94456-949-0 01 1 9309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
