2-26B — MANUAL TRANSMISSION GEAR (#4329) — 310 parça

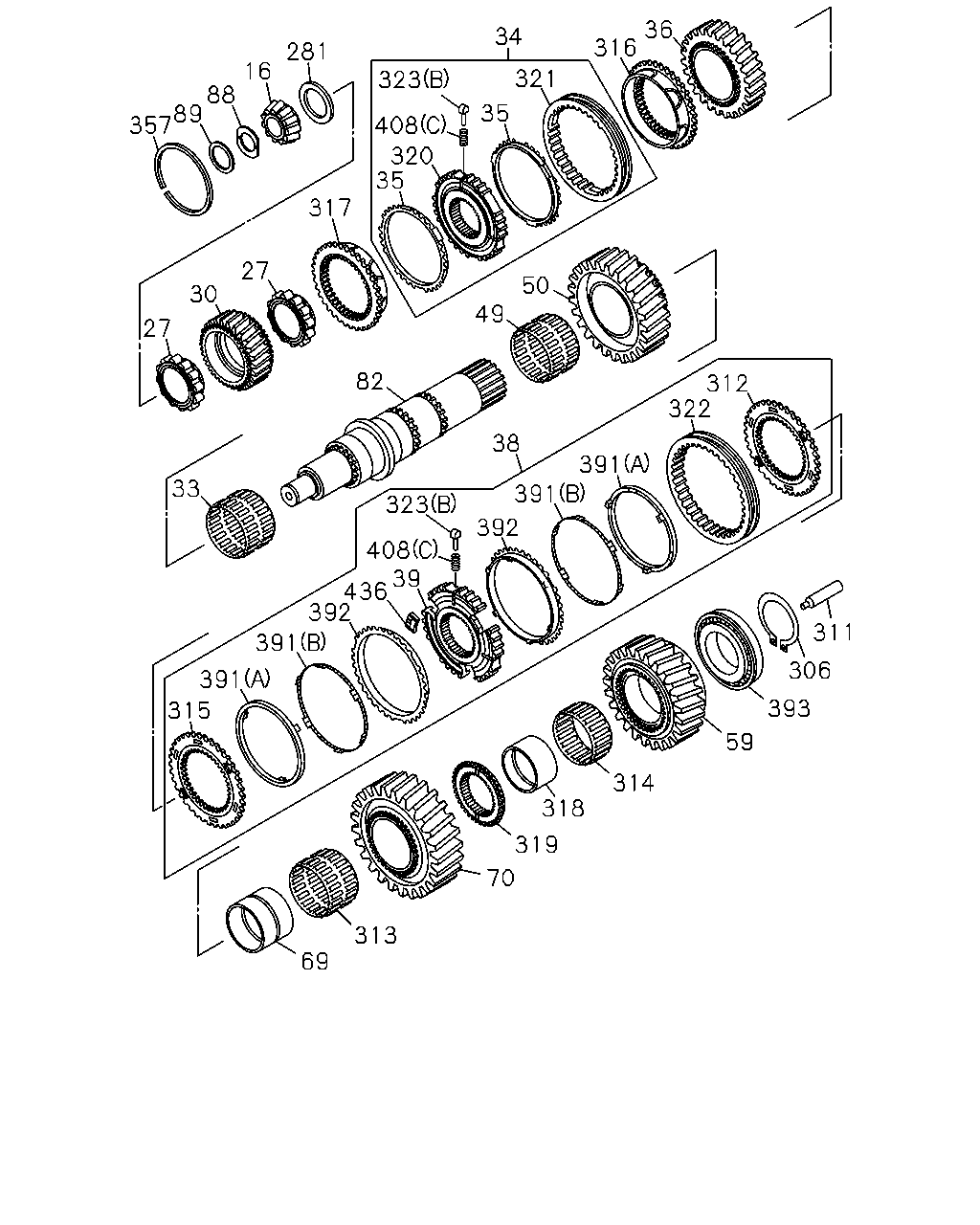

çizim 4781
36 316 34 281 16 321 323 88 89 357 35 408 320 35 317 27 50 30 49 27 82 312 322 38 391 33 391 323 392 408 39 436 392 311 391 306 391 393 315 59 314 318 319 70 313 69
BalonParca AdiParca NoAdetTipApplied Date
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 9603-
27 BEARING; 4TH GEAR 1-33259-046-0 02 1 9603-
30 GEAR; 4TH,MAINSHAFT 1-33252-451-0 01 1 9603-9904
30 GEAR; 4TH,MAINSHAFT 1-33252-466-0 01 1 9905-
33 BEARING; NEEDLE,3RD GEAR 1-33239-223-0 01 1 9603-
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 9603-
35 RING; BLOCK,4TH & 3RD 1-33265-438-0 02 1 9603-9707
35 RING; BLOCK,4TH & 3RD
EXC. PTO ZF TRANS RR(BDM) 		1-33265-438-0 02 1 9708-9807
35 RING; BLOCK,4TH & 3RD
PTO ZF TRANS RR(BDM) 		1-33219-241-0 02 1 9708-9807
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 9808-
36 GEAR; 3RD,MAINSHAFT 1-33252-450-0 01 1 9603-9904
36 GEAR; 3RD,MAINSHAFT 1-33252-465-0 01 1 9905-
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 9603-
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 9603-
49 BEARING; NEEDLE,2ND GEAR 1-33239-223-0 01 1 9603-
50 GEAR; 2ND,MAINSHAFT 1-33251-371-0 01 1 9603-9904
50 GEAR; 2ND,MAINSHAFT 1-33251-395-0 01 1 9905-
59 GEAR; REV MAINSHAFT 1-33257-076-0 01 1 9603-9904
59 GEAR; REV MAINSHAFT 1-33257-082-0 01 1 9905-
69 COLLAR; 1ST GEAR MAIN 1-33259-067-0 01 1 9603-
70 GEAR; 1ST,MAINSHAFT 1-33251-372-0 01 1 9603-9904
70 GEAR; 1ST,MAINSHAFT 1-33251-396-0 01 1 9905-
82 SHAFT; MAIN,TRANS 1-33231-239-0 01 1 9603-
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 AR 1 9603-9707
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.90 		1-33239-213-0 02 1 9708-9904
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 02 1 9905-
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 AR 1 9603-9707
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.70 		1-33239-214-0 02 1 9708-9904
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 02 1 9905-
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 AR 1 9603-9707
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.60 		1-33239-215-0 02 1 9708-9904
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 02 1 9905-
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=5.00 		1-33239-305-0 02 1 9708-9904
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 02 1 9905-
88 RING; THRUST,THRUST WASHER
PTO ZF TRANS RR(BDM) T=4.80 		1-33239-306-0 02 1 9708-9904
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 02 1 9905-
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.90 		1-33239-213-0 AR 1 9708-9904
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.70 		1-33239-214-0 AR 1 9708-9904
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.60 		1-33239-215-0 AR 1 9708-9904
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=5.00 		1-33239-305-0 AR 1 9708-9904
88 RING; THRUST,THRUST WASHER
EXC. PTO ZF TRANS RR(BDM) T=4.80 		1-33239-306-0 AR 1 9708-9904
89 RING; RET,THRUST RING 1-33239-216-0 01 1 9603-
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 AR 1 9603-9707
281 WASHER; THRUST,MAINSHAFT
PTO ZF TRANS RR(BDM) T=8.30 		1-33239-210-0 01 1 9708-9904
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 01 1 9905-
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 AR 1 9603-9707
281 WASHER; THRUST,MAINSHAFT
PTO ZF TRANS RR(BDM) T=7.90 		1-33239-211-0 01 1 9708-9904
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 01 1 9905-
281 WASHER; THRUST,MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) T=8.30 		1-33239-210-0 AR 1 9708-9904
281 WASHER; THRUST,MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) T=7.90 		1-33239-211-0 AR 1 9708-9904
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 9603-
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 9603-
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9603-
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 9603-
313 BEARING; NEEDLE,LOW GEAR 1-33259-043-0 01 1 9603-
314 BEARING; NEEDLE,REV GEAR 1-33259-045-0 01 1 9603-
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 9603-
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 9603-
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 9603-
318 COLLAR; DIST,REV GEAR 1-33259-044-0 01 1 9603-
319 CLUTCH; SLIDING 1-33261-229-0 01 1 9603-
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 9603-
321 SLEEVE; SYN,4TH & 3RD 1-33262-185-0 01 1 9603-9707
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 9708-
322 SLEEVE; SYN,LOW & 2ND 1-33262-186-0 01 1 9603-9707
322 SLEEVE; SYN,LOW & 2ND
EXC. PTO ZF TRANS RR(BDM) 		1-33262-186-0 01 1 9708-9904
322 SLEEVE; SYN,LOW & 2ND
PTO ZF TRANS RR(BDM) 		1-33269-079-0 01 1 9708-9904
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 9905-
323 INSERT
(A) 		1-33263-027-0 09 1 9603-
323 INSERT
(B) 		1-33263-030-0 09 1 9603-
357 RING
T=4.00 		1-33239-217-0 AR 1 9603-9707
357 RING
PTO ZF TRANS RR(BDM) T=4.00 		1-33239-217-0 01 1 9708-9904
357 RING
T=4.00 		1-33239-217-0 01 1 9905-
357 RING
T=3.60 		1-33239-218-0 AR 1 9603-9707
357 RING
PTO ZF TRANS RR(BDM) T=3.60 		1-33239-218-0 01 1 9708-9904
357 RING
T=3.60 		1-33239-218-0 01 1 9905-
357 RING
EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33239-217-0 AR 1 9708-9904
357 RING
EXC. PTO ZF TRANS RR(BDM) T=3.60 		1-33239-218-0 AR 1 9708-9904
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 9603-
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 9603-
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 9603-
393 BEARING; MAINSHAFT END 1-33239-222-0 01 1 9603-9701
393 BEARING; MAINSHAFT END 1-33239-304-0 01 1 9702-
408 SPRING
(A) 		1-33269-038-0 09 1 9603-
408 SPRING
(B) 		1-33269-039-0 09 1 9603-
408 SPRING
(C) 		1-33269-042-0 09 1 9603-
436 KEY; LOW & 2ND 1-33269-046-0 03 1 9603-

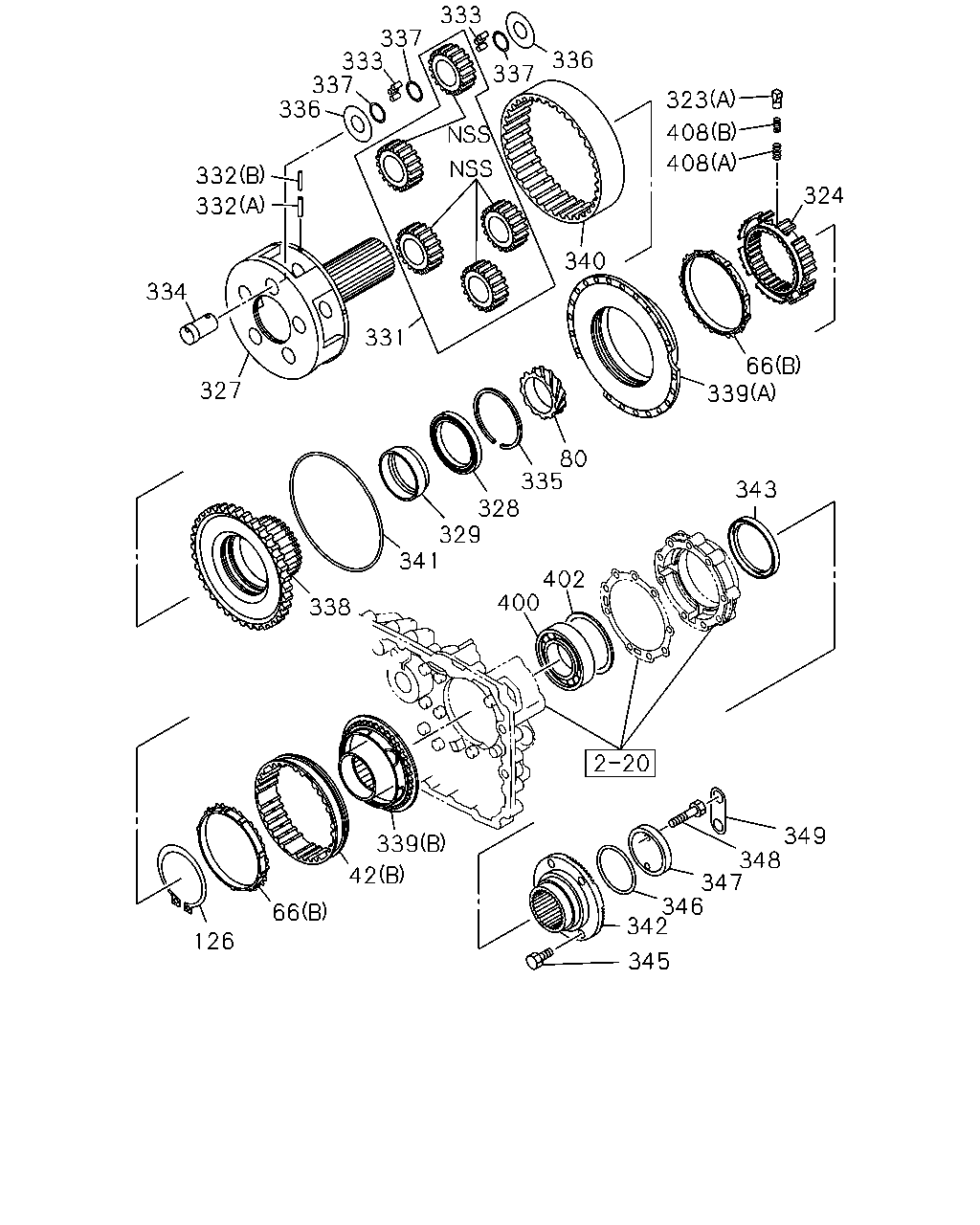

çizim 6488
333 337 333 337 336 336 337 323 408 408 332 324 332 340 334 331 66 339 327 80 335 328 329 341 343 402 400 338 349 348 347 346 342 339 42 66 126 345
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
(A) 		1-33262-185-0 01 1 9603-9707
42 SLEEVE
(A) 		1-33262-208-0 01 1 9708-
42 SLEEVE
(B) 		1-33339-020-0 01 1 9603-
66 RING; BLOCK,SYN
(A) 		1-33265-438-0 02 1 9603-9707
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 9708-
66 RING; BLOCK,SYN
(B) 		1-33339-019-0 02 1 9603-9707
66 RING; BLOCK,SYN
PTO ZF TRANS RR(BDM) (A) 		1-33219-241-0 02 1 9708-9807
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 9808-
66 RING; BLOCK,SYN
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33265-438-0 02 1 9708-9807
80 GEAR; SPD DRIVE 1-33371-063-0 01 1 9603-
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 AR 1 9603-9707
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=4.0 		1-33269-047-0 01 1 9708-9904
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 9905-
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 AR 1 9603-9707
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=3.9 		1-33269-048-0 01 1 9708-9904
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 9905-
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 AR 1 9603-9707
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=3.8 		1-33269-049-0 01 1 9708-9904
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 9905-
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 AR 1 9603-9707
126 RING; SNAP,CLU HUB
PTO ZF TRANS RR(BDM) T=3.7 		1-33269-050-0 01 1 9708-9904
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 9905-
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=4.0 		1-33269-047-0 AR 1 9708-9904
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=3.9 		1-33269-048-0 AR 1 9708-9904
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=3.8 		1-33269-049-0 AR 1 9708-9904
126 RING; SNAP,CLU HUB
EXC. PTO ZF TRANS RR(BDM) T=3.7 		1-33269-050-0 AR 1 9708-9904
323 INSERT
(A) 		1-33263-027-0 09 1 9603-
323 INSERT
(B) 		1-33263-030-0 09 1 9603-
324 HUB; CLU 1-33261-230-0 01 1 9603-
327 CARRIER; PLANETARY GEAR 1-33231-284-0 01 1 9603-
328 BEARING; CARRIER 1-33339-025-0 01 1 9603-
329 COLLAR; BEARING 1-33339-002-0 01 1 9603-
331 GEAR SET; PLANETARY 1-33239-224-0 01 1 9603-
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 9603-
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 9603-
333 ROLLER; PLANETARY GEAR 1-33239-225-0 AR 1 9603-
334 SHAFT; PLANETARY GEAR 1-33239-226-0 05 1 9603-
335 RING; SNAP,BEARING
T=2.50 		1-33339-005-0 AR 1 9603-9904
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 AR 1 9905-
335 RING; SNAP,BEARING
T=2.40 		1-33339-006-0 AR 1 9603-9904
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 AR 1 9905-
335 RING; SNAP,BEARING
T=2.30 		1-33339-007-0 AR 1 9603-9904
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 AR 1 9905-
335 RING; SNAP,BEARING
T=2.20 		1-33339-008-0 AR 1 9603-9904
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 AR 1 9905-
335 RING; SNAP,BEARING
T=2.10 		1-33339-009-0 AR 1 9603-9904
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 AR 1 9905-
335 RING; SNAP,BEARING
T=2.00 		1-33339-010-0 AR 1 9603-9904
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 AR 1 9905-
335 RING; SNAP,BEARING
PTO ZF TRANS RR(BDM) 		1-33219-246-0 01 1 9708-9904
335 RING; SNAP,BEARING 1-33219-246-0 01 1 9905-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 9603-
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 9603-
338 CARRIER; RING GEAR 1-33331-240-0 01 1 9603-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 9603-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33339-021-0 01 1 9603-
340 GEAR; RING 1-33339-046-0 01 1 9603-
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 9603-
342 FLANGE; OUTPUT 1-37243-324-0 01 1 9603-
343 SEAL; FLANGE 1-33139-052-0 01 1 9603-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 9603-
346 GASKET; FLANGE 1-37249-079-0 01 1 9603-
347 WASHER; FLANGE 1-37249-080-0 01 1 9603-
348 BOLT; SHAFT 1-37249-155-0 02 1 9603-
349 WASHER; LK,SHAFT 1-37249-081-0 01 1 9603-
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 9603-
402 SHIM
T=0.60 		1-33139-015-0 AR 1 9603-
402 SHIM
T=0.50 		1-33139-016-0 AR 1 9603-
402 SHIM
T=0.30 		1-33139-017-0 AR 1 9603-
402 SHIM
T=0.40 		1-33139-018-0 AR 1 9603-
402 SHIM
T=0.20 		1-33139-019-0 AR 1 9603-
408 SPRING
(A) 		1-33269-038-0 09 1 9603-
408 SPRING
(B) 		1-33269-039-0 09 1 9603-
408 SPRING
(C) 		1-33269-042-0 09 1 9603-

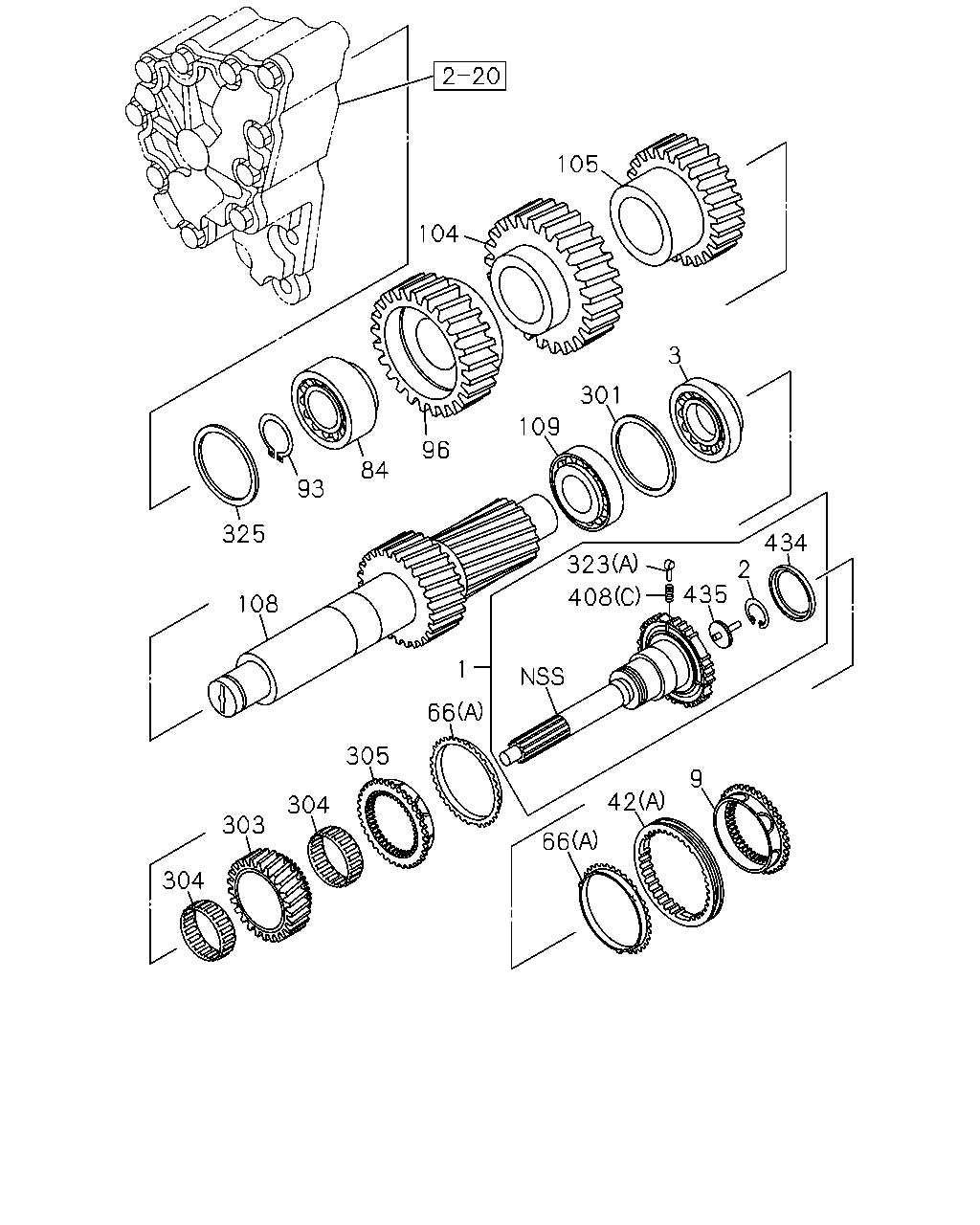

çizim 39232
105 104 3 301 109 96 84 93 325 434 323 2 435 408 108 1 66 305 9 42 304 303 66 304
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33211-928-0 01 1 9603-9707
1 SHAFT; TOP GEAR,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33211-928-0 01 1 9708-9904
1 SHAFT; TOP GEAR,TRANS
PTO ZF TRANS RR(BDM) 		1-33219-244-0 01 1 9708-9904
1 SHAFT; TOP GEAR,TRANS 1-33219-244-0 01 1 9905-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 9603-
3 BEARING; TOP GEAR SHAFT 1-33219-113-0 01 1 9603-9707
3 BEARING; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR(BDM) 		1-33219-113-0 01 1 9708-9904
3 BEARING; TOP GEAR SHAFT
PTO ZF TRANS RR(BDM) 		1-33219-242-0 01 1 9708-9904
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 9905-
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 9603-
42 SLEEVE
(A) 		1-33262-185-0 01 1 9603-9707
42 SLEEVE
(A) 		1-33262-208-0 01 1 9708-
42 SLEEVE
(B) 		1-33339-020-0 01 1 9603-
66 RING; BLOCK,SYN
(A) 		1-33265-438-0 02 1 9603-9707
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 9708-
66 RING; BLOCK,SYN
(B) 		1-33339-019-0 02 1 9603-9707
66 RING; BLOCK,SYN
PTO ZF TRANS RR(BDM) (A) 		1-33219-241-0 02 1 9708-9807
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 9808-
66 RING; BLOCK,SYN
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33265-438-0 02 1 9708-9807
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 9603-
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 9603-
96 GEAR; COUNTER DRIVE 1-33331-238-0 01 1 9603-9704
96 GEAR; COUNTER DRIVE 1-33331-253-0 01 1 9705-9904
96 GEAR; COUNTER DRIVE 1-33331-259-0 01 1 9905-
104 GEAR; 4TH,COUNTER 1-33338-357-0 01 1 9603-9904
104 GEAR; 4TH,COUNTER 1-33338-375-0 01 1 9905-
105 GEAR; 3RD,COUNTER 1-33333-159-0 01 1 9603-9904
105 GEAR; 3RD,COUNTER 1-33333-163-0 01 1 9905-
108 SHAFT; COUNTER 1-33311-293-0 01 1 9603-9904
108 SHAFT; COUNTER 1-33311-310-0 01 1 9905-
109 BEARING; COUNTER SHAFT,RR 1-33319-134-0 01 1 9603-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 9603-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 9603-
303 GEAR; SPLITTER 1-33219-157-0 01 1 9603-9707
303 GEAR; SPLITTER
EXC. PTO ZF TRANS RR(BDM) 		1-33219-157-0 01 1 9708-9904
303 GEAR; SPLITTER
PTO ZF TRANS RR(BDM) 		1-33219-245-0 01 1 9708-9904
303 GEAR; SPLITTER 1-33219-249-0 01 1 9905-
304 BEARING; SPLITTER GEAR 1-33219-156-0 02 1 9603-9611
304 BEARING; SPLITTER GEAR 1-33219-238-0 01 1 9612-9707
304 BEARING; SPLITTER GEAR
EXC. PTO ZF TRANS RR(BDM) 		1-33219-238-0 02 1 9708-9904
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 9603-
323 INSERT
(A) 		1-33263-027-0 09 1 9603-
323 INSERT
(B) 		1-33263-030-0 09 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 9603-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 9603-
408 SPRING
(A) 		1-33269-038-0 09 1 9603-
408 SPRING
(B) 		1-33269-039-0 09 1 9603-
408 SPRING
(C) 		1-33269-042-0 09 1 9603-
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 9603-
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 9603-

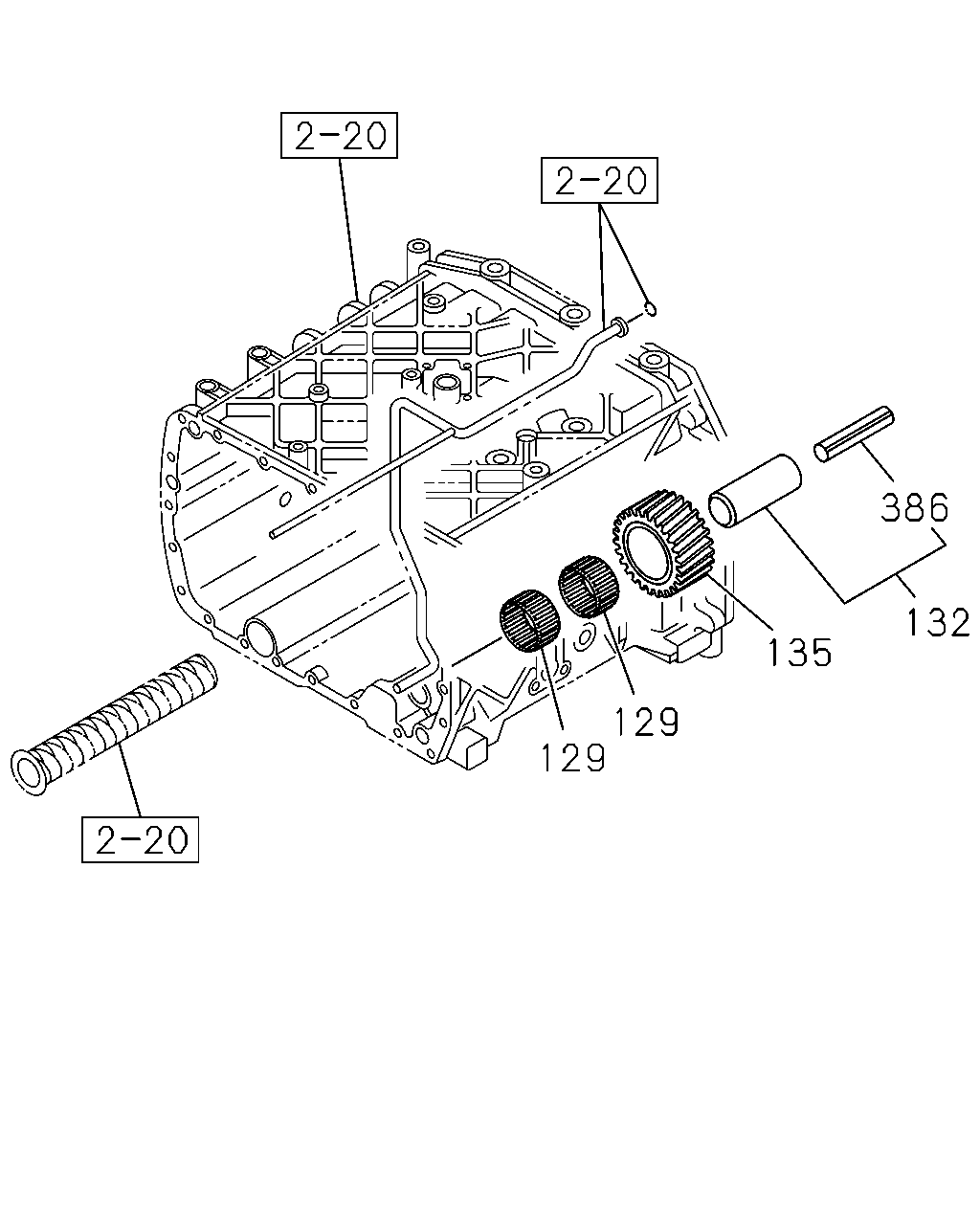

çizim 39998
386 132 135 129 129
BalonParca AdiParca NoAdetTipApplied Date
129 BEARING; NEEDLE,IDLER 1-33369-020-0 02 1 9603-
132 SHAFT; REV 1-33351-027-0 01 1 9603-9904
132 SHAFT; REV 1-33351-032-0 01 1 9905-
135 GEAR; REV IDLER 1-33361-076-0 01 1 9603-9904
135 GEAR; REV IDLER 1-33361-082-0 01 1 9905-
386 PIN; REV SHAFT 1-33359-003-0 01 1 9603-9904
386 PIN; REV SHAFT 1-33359-012-0 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
