0-30 — WATER PUMP AND CORROSION RESISTOR (#43289) — 122 parça

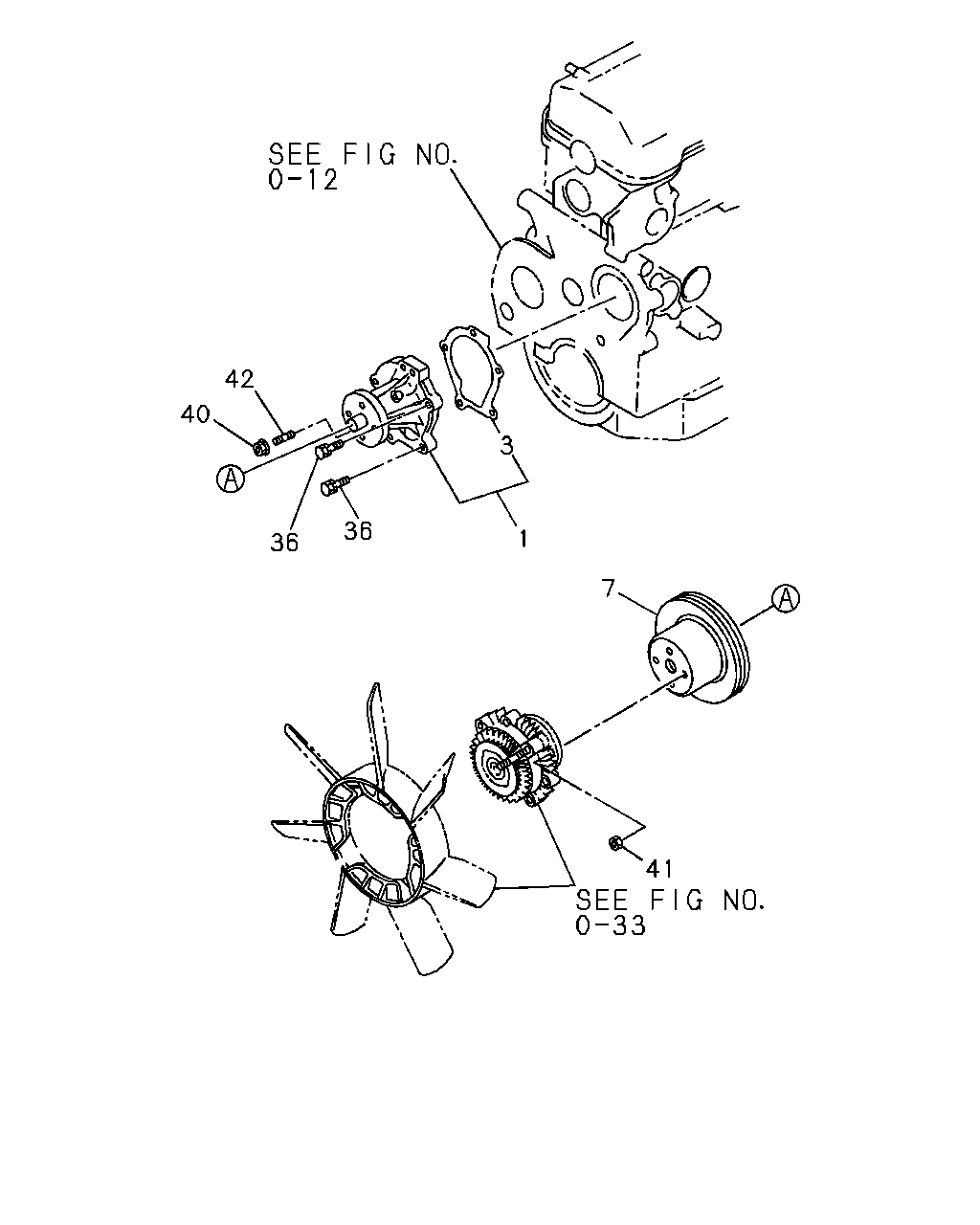

1 42 42 3 40 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97062-796-0	01	1	9112-9309	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9309-9504	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9505-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9112-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97061-280-0	01	1	9112-9412				●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97125-975-0	01	1	9501-				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9112-9504	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9505-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9112-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97014-207-0	01	1	9112-9512				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97135-478-0	01	1	9601-				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9112-9504	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9505-	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9705				●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9706-				●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 M8X20 W/DRY-ROCK	8-97021-210-0	01	1	9706-				●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9112-9504	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-	●
40	07.874 NUT; WATER PUMP 00.854 M8 FLANGE	5-09440-005-0	01	1	9112-			●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9112-9504	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9505-	●
42	01.073 STUD; WATER PUMP 03.901 M8X25 L=37	9-04110-825-0	01	1	9112-9204			●
42	01.073 STUD; WATER PUMP 00.206 M8X25 L=36	1-09300-050-0	01	1	9205-			●
42	01.073 STUD; WATER PUMP 03.901 M8X65 L=86	8-97019-062-0	01	1	9112-9301				●
42	01.073 STUD; WATER PUMP M8X21 L=86	8-97088-691-0	01	1	9302-				●

40 42 36 36 1 3 7 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97062-796-0	01	1	9112-9309	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9309-9504	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9505-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9112-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97061-280-0	01	1	9112-9412				●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97125-975-0	01	1	9501-				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9112-9504	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9505-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9112-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97014-207-0	01	1	9112-9512				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97135-478-0	01	1	9601-				●
7	01.062 PULLEY; WATER PUMP	8-94472-589-0	01	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9112-9504	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9505-	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9705				●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9706-				●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 M8X20 W/DRY-ROCK	8-97021-210-0	01	1	9706-				●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9112-9504	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-	●
40	07.874 NUT; WATER PUMP 00.854 M8 FLANGE	5-09440-005-0	01	1	9112-			●
41	01.062 NUT; PULLEY 00.854 M8 FLANGE	5-09440-005-0	04	1	9112-9207			●
41	01.062 NUT; PULLEY 07.633 M8 FLANGE	0-91150-108-0	04	1	9208-			●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9112-9504	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9505-	●
42	01.073 STUD; WATER PUMP 03.901 M8X25 L=37	9-04110-825-0	01	1	9112-9204			●
42	01.073 STUD; WATER PUMP 00.206 M8X25 L=36	1-09300-050-0	01	1	9205-			●
42	01.073 STUD; WATER PUMP 03.901 M8X65 L=86	8-97019-062-0	01	1	9112-9301				●
42	01.073 STUD; WATER PUMP M8X21 L=86	8-97088-691-0	01	1	9302-				●

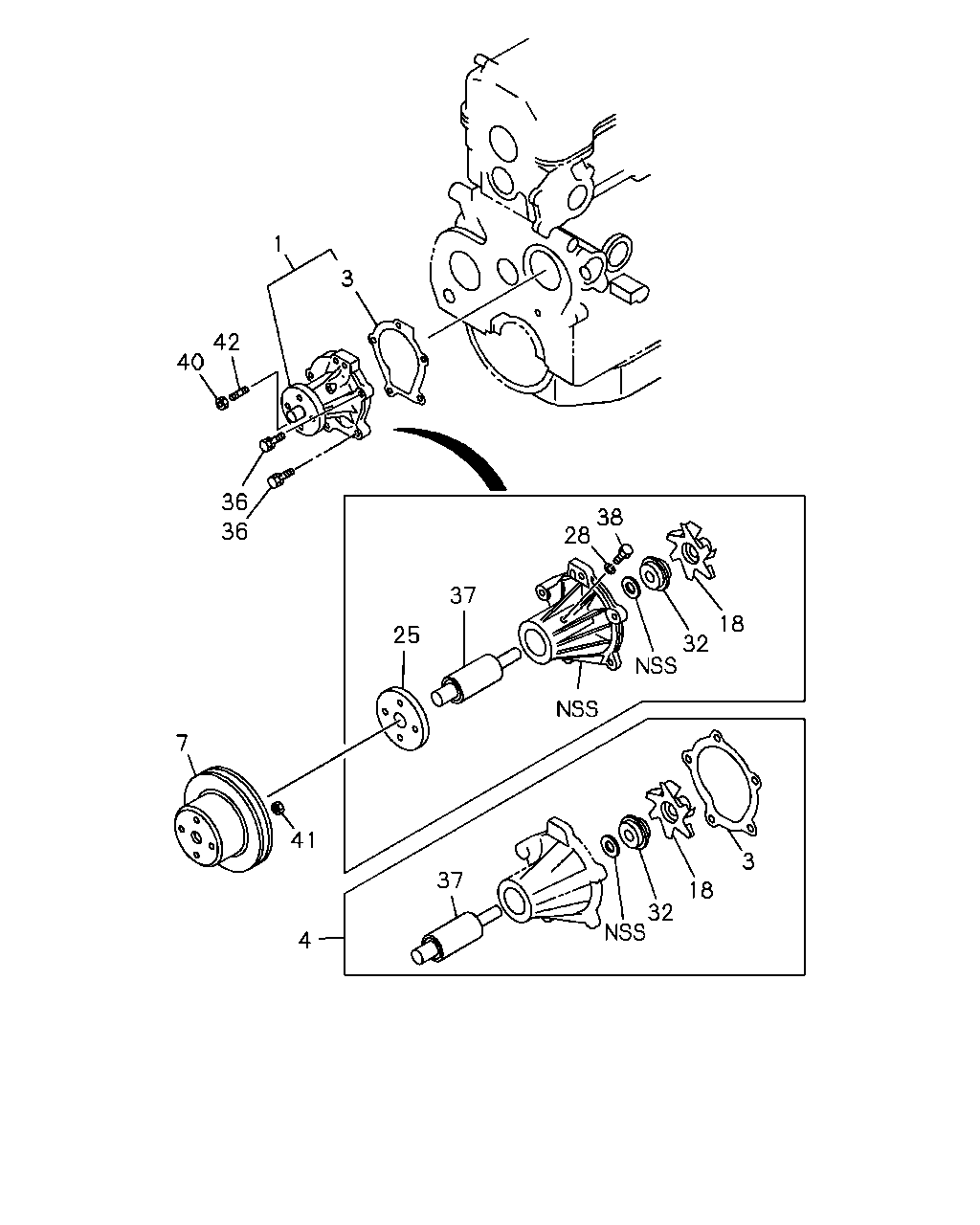

4 41 7 37 32 18 3 32 18 38 28 37 25 36 36 40 42 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97062-796-0	01	1	9112-9309	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9309-9504	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9505-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9112-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97061-280-0	01	1	9112-9412				●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97125-975-0	01	1	9501-				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9112-9504	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9505-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9112-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97014-207-0	01	1	9112-9512				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97135-478-0	01	1	9601-				●
4	01.123 REPAIR KIT; WATER PUMP	8-94332-680-0	01	1	9112-9306			●
7	01.062 PULLEY; WATER PUMP	8-94472-589-0	01	1	9112-			●
18	01.109 IMPELLER; WATER PUMP 01.069	8-94146-329-0	01	1	9112-9306			●
25	01.123 CENTER; WATER PUMP 01.069	8-94146-330-0	01	1	9112-9306			●
28	01.105 WASHER; WATER PUMP 00.002 ID=8.2	9-09150-508-0	01	1	9112-9306			●
32	01.123 SEAL UNIT; WATER PUMP	8-94311-754-0	01	1	9112-9306			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9112-9504	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9505-	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9705				●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9706-				●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 M8X20 W/DRY-ROCK	8-97021-210-0	01	1	9706-				●
37	01.123 BEARING UNIT; WATER PUMP	8-94146-328-1	01	1	9112-9306			●
38	01.073 SCREW; WATER PUMP 01.105	9-09814-014-1	01	1	9112-9306			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9112-9504	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-	●
40	07.874 NUT; WATER PUMP 00.854 M8 FLANGE	5-09440-005-0	01	1	9112-			●
41	01.062 NUT; PULLEY 00.854 M8 FLANGE	5-09440-005-0	04	1	9112-9207			●
41	01.062 NUT; PULLEY 07.633 M8 FLANGE	0-91150-108-0	04	1	9208-			●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9112-9504	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9505-	●
42	01.073 STUD; WATER PUMP 03.901 M8X25 L=37	9-04110-825-0	01	1	9112-9204			●
42	01.073 STUD; WATER PUMP 00.206 M8X25 L=36	1-09300-050-0	01	1	9205-			●
42	01.073 STUD; WATER PUMP 03.901 M8X65 L=86	8-97019-062-0	01	1	9112-9301				●
42	01.073 STUD; WATER PUMP M8X21 L=86	8-97088-691-0	01	1	9302-				●

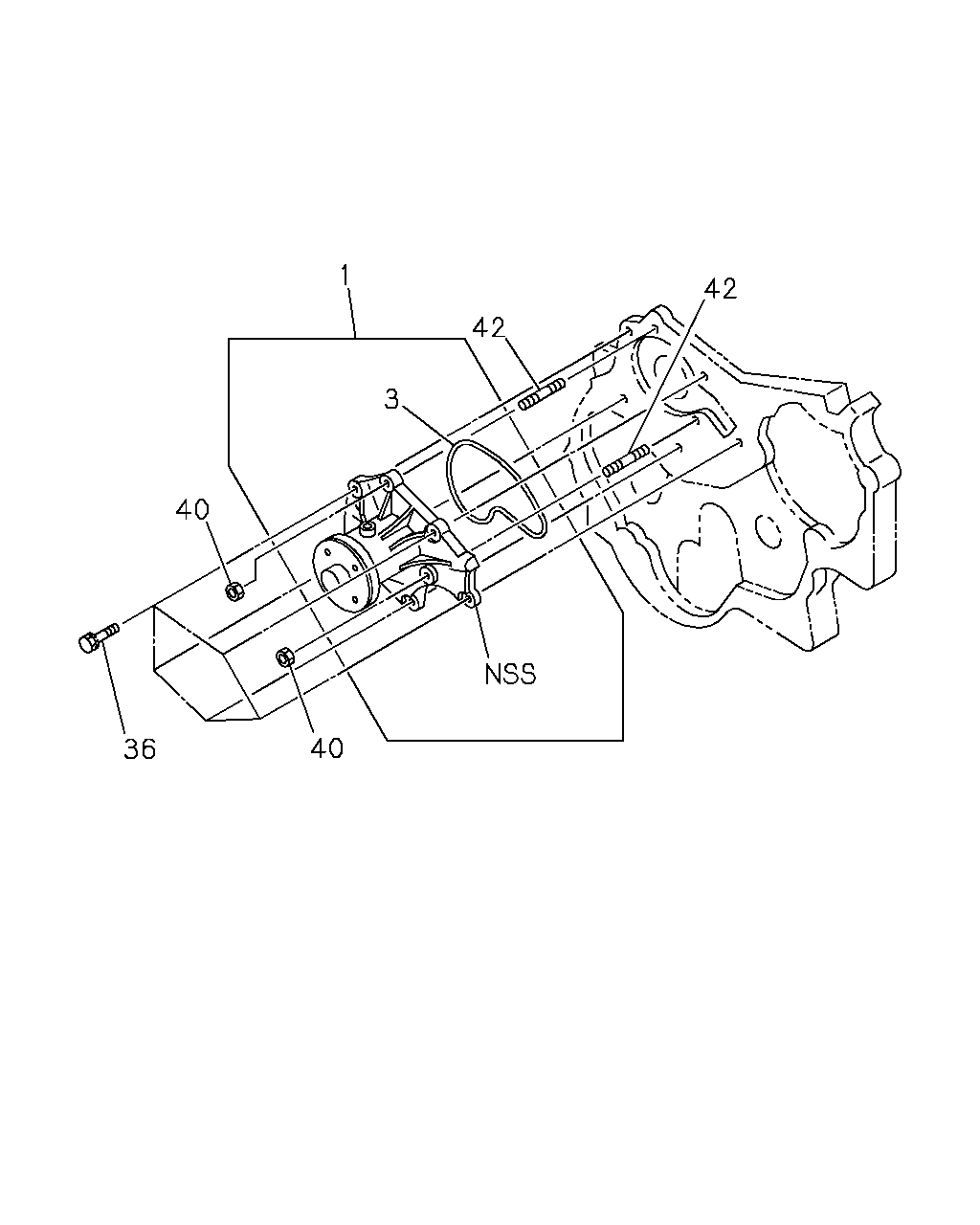

42 36 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97062-796-0	01	1	9112-9309	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9309-9504	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-0	01	1	9505-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97021-774-0	01	1	9112-9306			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97081-623-1	01	1	9307-			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97061-280-0	01	1	9112-9412				●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97125-975-0	01	1	9501-				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9112-9504	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9505-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94324-195-0	01	1	9112-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97014-207-0	01	1	9112-9512				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97135-478-0	01	1	9601-				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9112-9504	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9505-	●
36	00.386 BOLT; WATER PUMP TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 01.540 M8X35 W/LK WASHER	0-50040-835-0	02	1	9112-			●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9705				●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9706-				●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 M8X20 W/DRY-ROCK	8-97021-210-0	01	1	9706-				●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9112-9504	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9505-	●
42	01.073 STUD; WATER PUMP 03.901 M8X25 L=37	9-04110-825-0	01	1	9112-9204			●
42	01.073 STUD; WATER PUMP 00.206 M8X25 L=36	1-09300-050-0	01	1	9205-			●
42	01.073 STUD; WATER PUMP 03.901 M8X65 L=86	8-97019-062-0	01	1	9112-9301				●
42	01.073 STUD; WATER PUMP M8X21 L=86	8-97088-691-0	01	1	9302-				●
