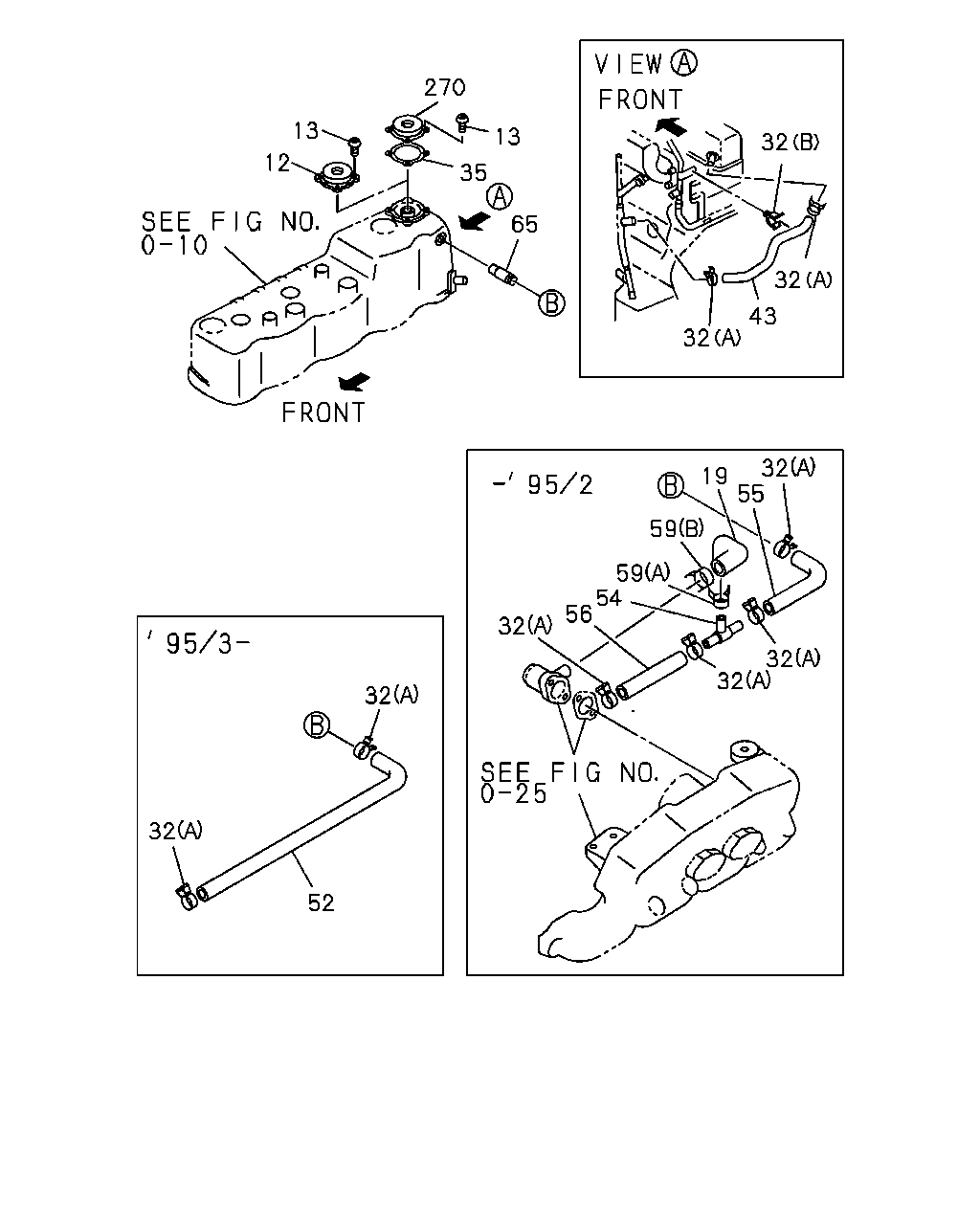

0-28 — VENTILATION SYSTEM (#43288) — 90 parça

13 12 65 32 30 31 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9112-9308	●	●
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9309-9504		●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4)	8-94250-172-0	01	1	9309-9504	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4)	8-94250-172-0	01	1	9505-9505	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9506-9506	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9507-9607	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9608-	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9112-9504	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9505-	●
30	03.417 HOSE; VENTILATOR,CYL HD COVER	8-97039-413-0	01	1	9112-9504		●
31	03.417 BOLT; HOSE CLIP 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9112-9206		●
31	03.417 BOLT; HOSE CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9207-9504		●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9112-9504		●
32	03.417 CLIP; VENT HOSE 03.680 (B) ID=20 L=25	9-09916-078-0	01	1	9112-9504		●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	06	1	9112-9504	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	02	1	9112-9408	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9505-9607	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 03.265 (A) ID=20.4	8-94121-113-0	02	1	9705-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9705-	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9409-9504	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9505-	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9112-9504	●	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9505-	●

133 52 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
42	03.278 PIPE; PCV,INL MANIF 01.745	8-94153-176-0	01	1	9112-		●
42	03.278 PIPE; PCV,INL MANIF	8-97029-376-0	01	1	9112-9208			●
52	03.278 HOSE; PCV 03.417	8-94437-494-2	01	1	9503-9504	●
52	03.278 HOSE; PCV TURBOCHARGER<K51> 03.417	8-94437-494-3	01	1	9505-	●
52	03.278 HOSE; PCV EXC. TURBOCHARGER<K51>	8-97110-427-0	01	1	9505-	●
52	03.278 HOSE; PCV 03.265	8-94146-248-1	01	1	9112-9207		●
52	03.278 HOSE; PCV	8-97069-260-0	01	1	9208-		●
133	01.750 VALVE; PCV L=58.5	8-94331-209-0	01	1	9112-		●
133	01.750 VALVE; PCV	8-94386-755-0	01	1	9112-			●

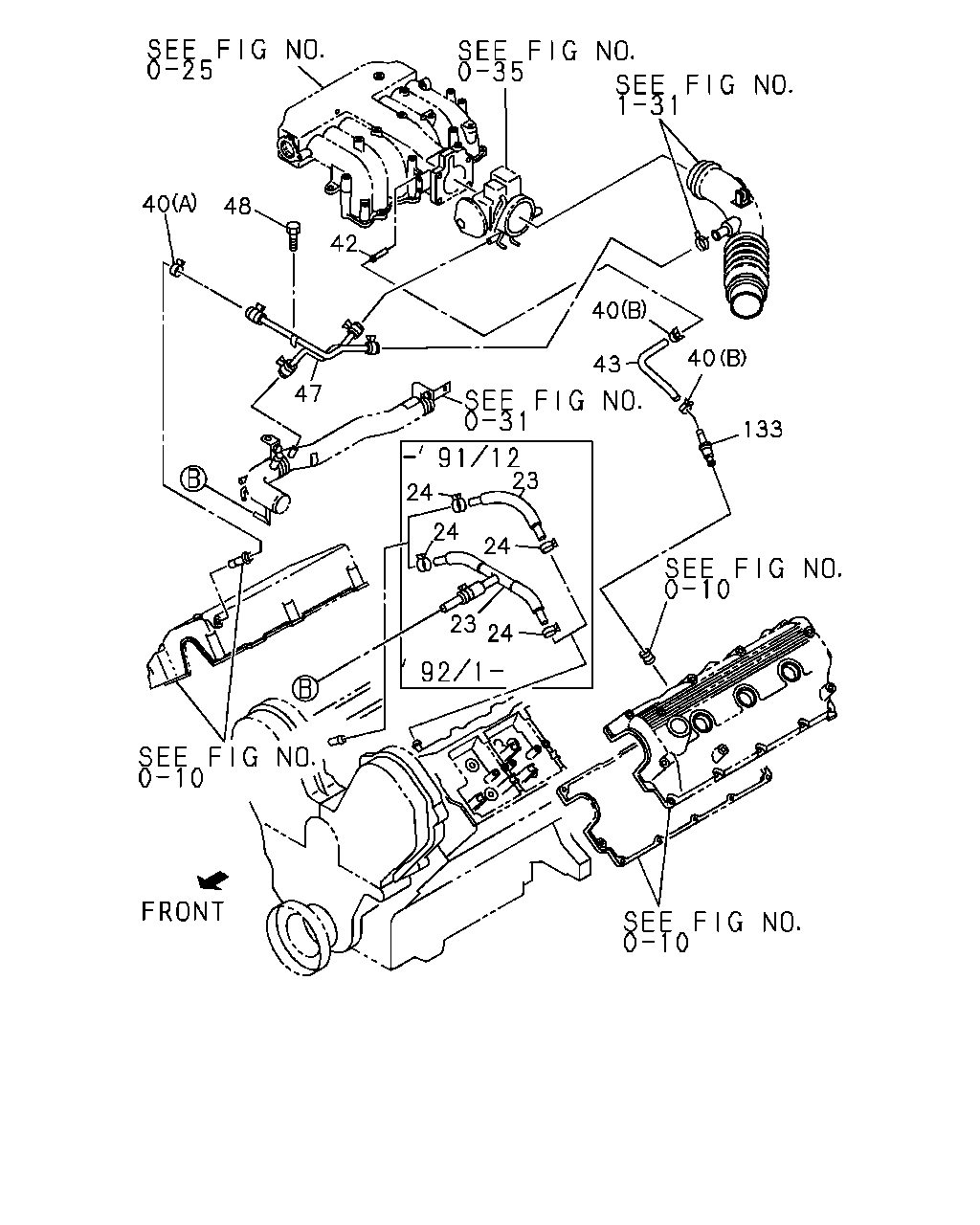

24 23 24 24 24 23 133 40 43 40 42 48 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
23	00.413 HOSE; RUBBER,VENTILATOR PIPE	8-97037-254-1	01	1	9112-9112			●
23	00.413 HOSE; RUBBER,VENTILATOR PIPE W/JOINT:3WAY & 3-HOSE	8-97075-341-1	01	1	9201-			●
24	00.413 CLIP; RUBBER HOSE,VENTILATOR 00.034 ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-			●
40	03.680 CLIP; PCV HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	9112-			●
40	03.680 CLIP; PCV HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9112-			●
42	03.278 PIPE; PCV,INL MANIF 01.745	8-94153-176-0	01	1	9112-		●
42	03.278 PIPE; PCV,INL MANIF	8-97029-376-0	01	1	9112-9208			●
43	03.278 HOSE; PCV OD=22	8-97039-185-2	01	1	9112-9504	●
43	03.278 HOSE; PCV TURBOCHARGER<K51> OD=22	8-97039-185-2	01	1	9505-	●
43	03.278 HOSE; PCV OD=13	8-94364-503-1	01	1	9112-			●
47	03.278 PIPE ASM; PCV	8-97032-383-5	01	1	9112-			●
48	03.278 BOLT; PIPE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9112-			●
133	01.750 VALVE; PCV L=58.5	8-94331-209-0	01	1	9112-		●
133	01.750 VALVE; PCV	8-94386-755-0	01	1	9112-			●

270 13 12 13 35 65 32 32 43 32 32 55 19 59 59 54 56 32 32 32 32 32 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9112-9308	●	●
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9309-9504		●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4)	8-94250-172-0	01	1	9309-9504	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4)	8-94250-172-0	01	1	9505-9505	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9506-9506	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9507-9607	●
12	01.745 VENTILATOR; AIR EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9608-	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9112-9504	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9505-	●
19	00.413 HOSE; RUBBER BREATHER 01.745	8-94369-188-0	01	1	9112-9502	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9112-9504		●
32	03.417 CLIP; VENT HOSE 03.680 (B) ID=20 L=25	9-09916-078-0	01	1	9112-9504		●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	06	1	9112-9504	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	02	1	9112-9408	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9505-9607	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 03.265 (A) ID=20.4	8-94121-113-0	02	1	9705-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9705-	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9409-9504	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9505-	●
35	03.415 GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4)	8-97074-771-0	01	1	9309-9504	●
35	03.415 GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97074-771-0	01	1	9505-9506	●
35	03.415 GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97074-771-0	01	1	9507-9512	●
35	03.415 GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97138-782-0	01	1	9601-9607	●
35	03.415 GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D)	8-97138-782-0	01	1	9608-	●
43	03.278 HOSE; PCV OD=22	8-97039-185-2	01	1	9112-9504	●
43	03.278 HOSE; PCV TURBOCHARGER<K51> OD=22	8-97039-185-2	01	1	9505-	●
43	03.278 HOSE; PCV OD=13	8-94364-503-1	01	1	9112-				●
52	03.278 HOSE; PCV 03.417	8-94437-494-2	01	1	9503-9504	●
52	03.278 HOSE; PCV TURBOCHARGER<K51> 03.417	8-94437-494-3	01	1	9505-	●
52	03.278 HOSE; PCV EXC. TURBOCHARGER<K51>	8-97110-427-0	01	1	9505-	●
52	03.278 HOSE; PCV 03.265	8-94146-248-1	01	1	9112-9207			●
52	03.278 HOSE; PCV	8-97069-260-0	01	1	9208-			●
54	01.745 HOSE; PCV,3 WAY	8-94366-847-0	01	1	9112-9502	●
55	01.745 HOSE; PCV,CHECK VLV TO 3 WAY OD=22.5	8-94369-187-0	01	1	9112-9502	●
56	01.745 HOSE; PCV,3 WAY TO INT DUCT L=240	0-02614-240-0	01	1	9112-9502	●
59	08.846 CLIP; HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9112-9502	●
59	08.846 CLIP; HOSE 03.417 (B) ID=24.3	8-94366-846-0	01	1	9112-9502	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9112-9504	●	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9505-	●
270	01.750 COVER; VENTILATOR EUROPE EQUIPMENT(EK4)	8-97062-460-0	01	1	9309-9504	●
270	01.750 COVER; VENTILATOR EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97062-460-0	01	1	9505-9506	●
270	01.750 COVER; VENTILATOR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97062-460-0	01	1	9507-9512	●
270	01.750 COVER; VENTILATOR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94163-368-0	01	1	9601-9607	●
270	01.750 COVER; VENTILATOR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D)	8-94163-368-0	01	1	9608-	●
