Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#43287) — 280 parça

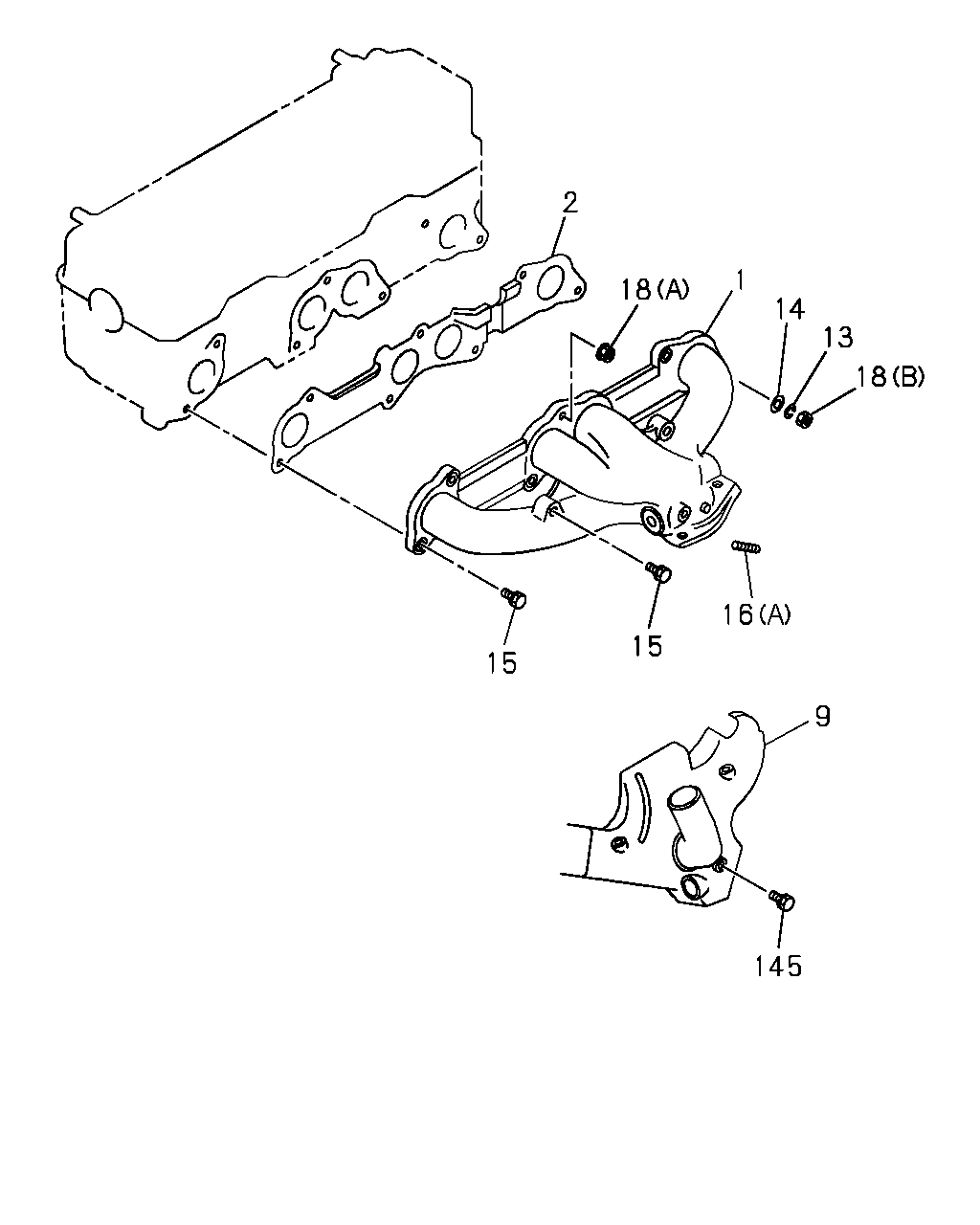

2 18 1 18 13 14 16 15 15 9 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9112-9305	●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9504	●
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97039-474-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97039-474-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST	8-94454-598-2	01	1	9112-9209			●
1	03.601 MANIFOLD; EXHAUST 920914-	8-97083-579-0	01	1	9209-			●
1	03.601 MANIFOLD; EXHAUST	8-94364-773-6	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST	8-97115-618-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-94364-775-4	01	1	9112-9208				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97081-232-2	01	1	9209-9510				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97115-611-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97037-422-7	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97128-510-0	01	1	9511-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97020-591-0	01	1	9112-9408	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9409-9504	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9505-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9112-9308			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97117-182-0	01	1	9309-9501			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9502-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94323-173-0	02	1	9112-9510				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97104-316-0	02	1	9511-				●
9	03.602 COVER; HOT AIR HOT AIR INTAKE(RN4)	8-94148-909-2	01	1	9112-9207			●
9	03.602 COVER; HOT AIR HOT AIR INTAKE(RN4)	8-97083-580-1	01	1	9208-			●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9112-9504	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9505-9606		●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9112-			●
14	03.604 WASHER; PL,EXH MANIF 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9112-9210		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9211-9504		●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER<K51> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9505-9606		●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER<K51> 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9209-			●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9112-9504	●	●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9505-9606		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-		●
15	03.604 BOLT; EXH MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9112-			●
16	03.604 STUD; EXH PIPE TO MANIF M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9209-9210	●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9504	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. TURBOCHARGER<K51> 03.613 M10X38 L=53	5-09302-007-0	02	1	9505-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9112-9208			●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9209-9308			●	●
16	03.604 STUD; EXH PIPE TO MANIF SOUTH AFRICA EQUIPMENT(SW2) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9209-9308				●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9309-9510			●
16	03.604 STUD; EXH PIPE TO MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9309-9510				●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9511-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (B) M10X25 L=40	9-04411-025-0	04	1	9211-9510				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	06	1	9511-9607				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4) (B) M12X15 L=46.6	8-97115-132-0	06	1	9608-				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	06	1	9608-				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4) (A) M8X18 L=29	8-97061-377-0	02	1	9112-9208				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) M8X18 L=29	8-97061-377-0	02	1	9209-9308				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) M8X18 L=29	8-97061-377-1	02	1	9309-				●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9112-9504	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9505-9606		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-		●
18	03.604 NUT; EXH MANIF 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9112-			●
18	03.604 NUT; EXH MANIF 02.559 (B) M8	9-09110-408-0	07	1	9112-			●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	14	1	9112-9510				●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	16	1	9511-				●
145	03.604 BOLT; COVER TO MANIF HOT AIR INTAKE(RN4) 03.405 M8X14 W/LK WASHERT	8-94370-634-0	03	1	9112-			●

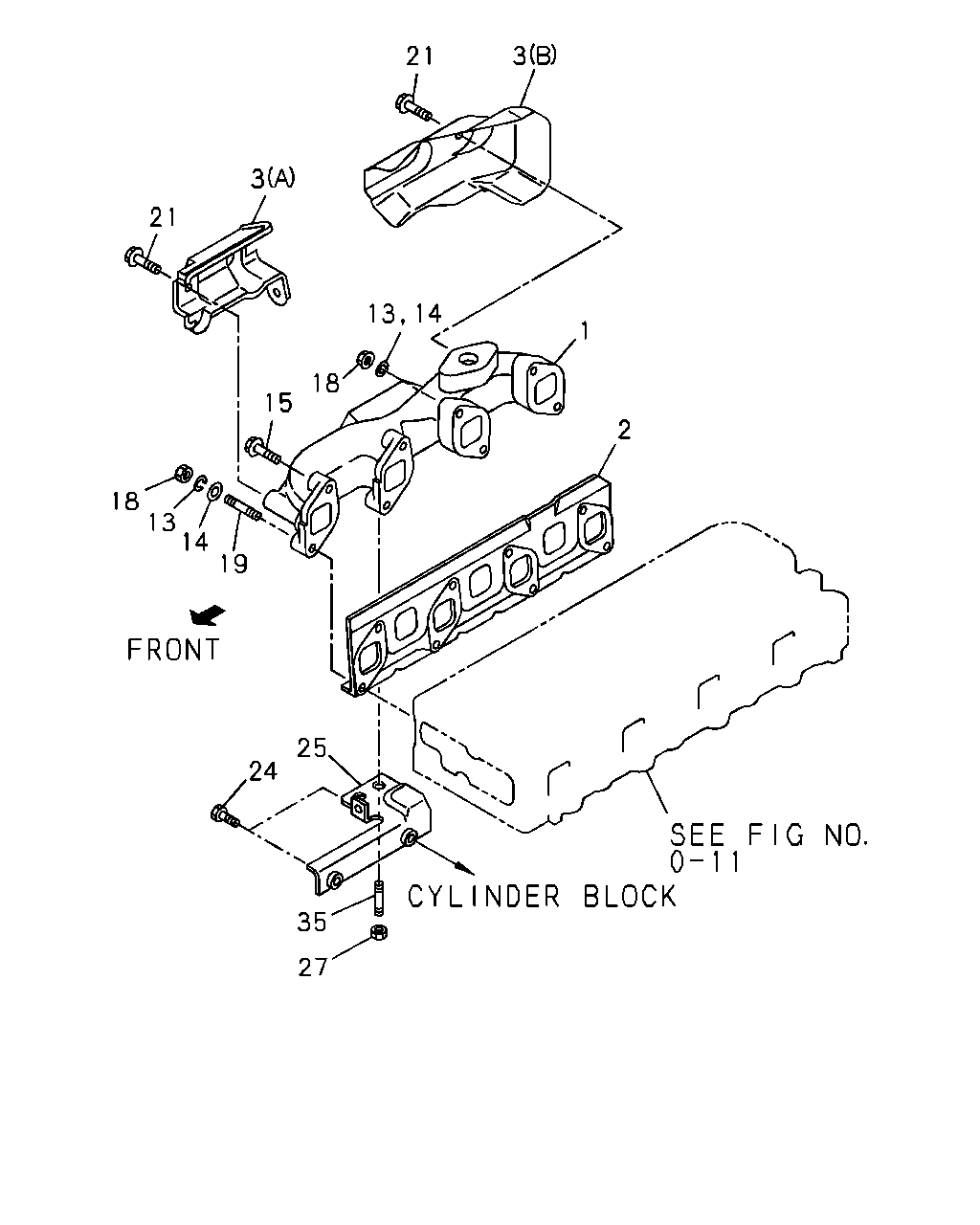

3 21 3 21 14 13 18 15 18 13 14 19 25 24 35 27 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9112-9305	●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9504	●
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97039-474-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97039-474-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST	8-94454-598-2	01	1	9112-9209			●
1	03.601 MANIFOLD; EXHAUST 920914-	8-97083-579-0	01	1	9209-			●
1	03.601 MANIFOLD; EXHAUST	8-94364-773-6	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST	8-97115-618-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-94364-775-4	01	1	9112-9208				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97081-232-2	01	1	9209-9510				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97115-611-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97037-422-7	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97128-510-0	01	1	9511-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97020-591-0	01	1	9112-9408	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9409-9504	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9505-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9112-9308			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97117-182-0	01	1	9309-9501			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9502-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94323-173-0	02	1	9112-9510				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97104-316-0	02	1	9511-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9112-9504	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51>	8-94472-396-0	01	1	9505-9701		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51>	8-97131-704-0	01	1	9702-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97038-107-0	01	1	9112-9504		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (B)	8-97038-107-1	01	1	9505-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97066-757-1	01	1	9112-9504		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97066-757-1	01	1	9505-9511		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-0	01	1	9512-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94364-943-5	01	1	9112-9510				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97101-976-0	01	1	9511-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94364-942-5	01	1	9112-9510				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97101-975-1	01	1	9511-				●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9112-9504	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9505-9606		●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9112-			●
14	03.604 WASHER; PL,EXH MANIF 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9112-9210		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9211-9504		●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER<K51> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9505-9606		●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER<K51> 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9607-		●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9209-			●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9112-9504	●	●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9505-9606		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-		●
15	03.604 BOLT; EXH MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9112-			●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9112-9504	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9505-9606		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-		●
18	03.604 NUT; EXH MANIF 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9112-			●
18	03.604 NUT; EXH MANIF 02.559 (B) M8	9-09110-408-0	07	1	9112-			●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	14	1	9112-9510				●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	16	1	9511-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-0	02	1	9112-9504	●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9505-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9112-9504	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9505-		●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9504		●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9505-9611		●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9612-		●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	10	1	9112-9510				●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9511-				●
24	03.613 BOLT; BRKT,EXH MANIF 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9112-9504		●
24	03.613 BOLT; BRKT,EXH MANIF TURBOCHARGER<K51> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9505-		●
24	03.613 BOLT; BRKT,EXH MANIF 03.890 M10X32 W/LK WASHER	0-50141-032-0	01	1	9112-9504		●
24	03.613 BOLT; BRKT,EXH MANIF TURBOCHARGER<K51> 03.890 M10X32 W/LK WASHER	0-50141-032-0	01	1	9505-		●
25	03.602 BRACKET; EXH MANIF	8-97038-106-2	01	1	9112-9504		●
25	03.602 BRACKET; EXH MANIF TURBOCHARGER<K51>	8-97038-106-2	01	1	9505-9603		●
25	03.602 BRACKET; EXH MANIF TURBOCHARGER<K51>	8-97145-973-0	01	1	9604-		●
27	03.602 NUT; BRKT,EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9112-9504		●
27	03.602 NUT; BRKT,EXH MANIF TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	9505-9603		●
27	03.602 NUT; BRKT,EXH MANIF TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	01	1	9604-		●
35	03.604 STUD; BRKT M8X20 L=29	5-09300-069-0	02	1	9112-9504		●
35	03.604 STUD; BRKT TURBOCHARGER<K51> M8X20 L=29	5-09300-069-0	02	1	9505-9603		●
35	03.604 STUD; BRKT TURBOCHARGER<K51> M8X20 L=29	5-09300-069-0	01	1	9604-		●

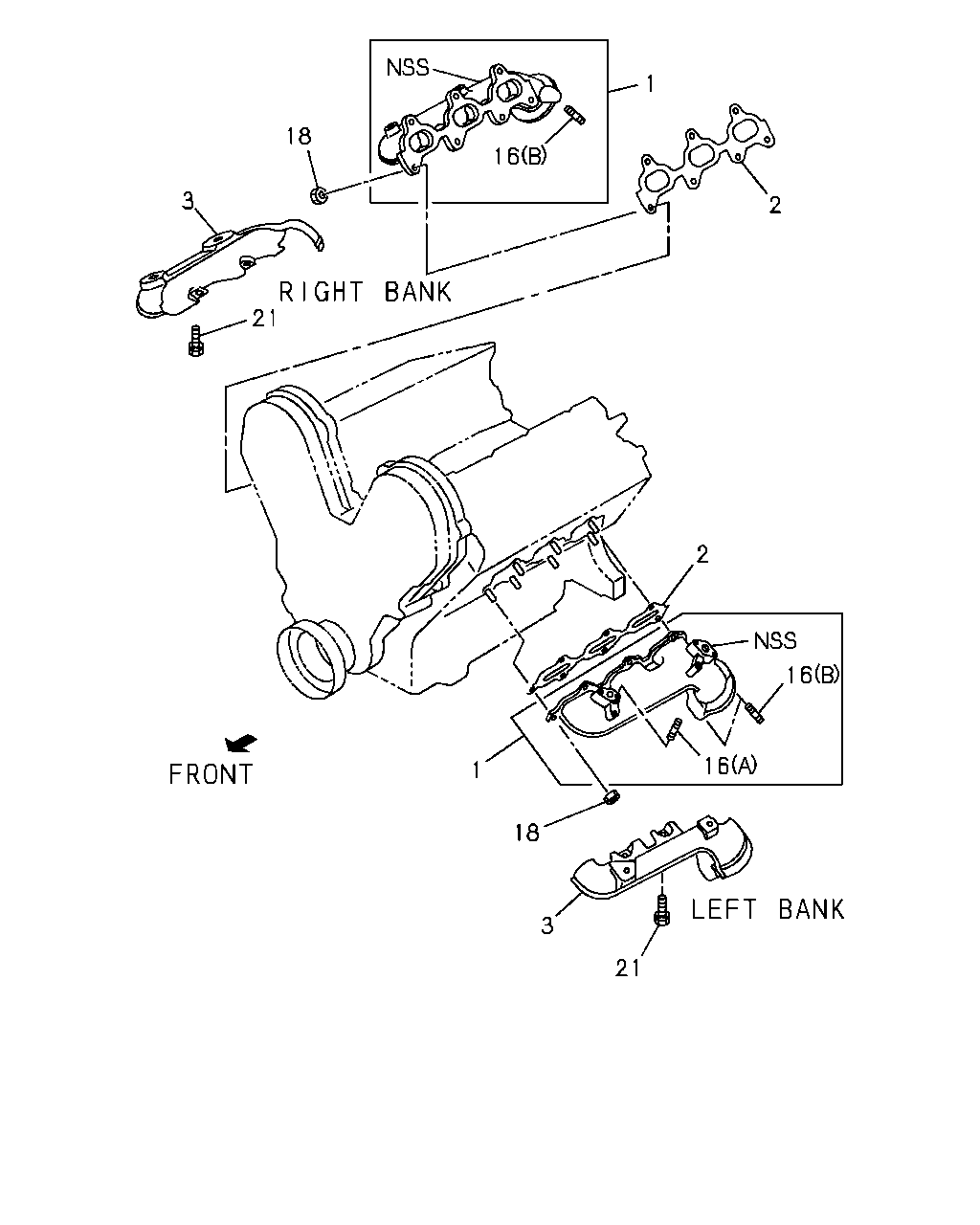

16 1 2 18 3 21 1 18 3 21 16 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9112-9305	●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9504	●
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97039-474-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97039-474-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST	8-94454-598-2	01	1	9112-9209			●
1	03.601 MANIFOLD; EXHAUST 920914-	8-97083-579-0	01	1	9209-			●
1	03.601 MANIFOLD; EXHAUST	8-94364-773-6	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST	8-97115-618-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-94364-775-4	01	1	9112-9208				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97081-232-2	01	1	9209-9510				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97115-611-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97037-422-7	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97128-510-0	01	1	9511-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97020-591-0	01	1	9112-9408	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9409-9504	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9505-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9112-9308			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97117-182-0	01	1	9309-9501			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9502-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94323-173-0	02	1	9112-9510				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97104-316-0	02	1	9511-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9112-9504	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51>	8-94472-396-0	01	1	9505-9701		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51>	8-97131-704-0	01	1	9702-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97038-107-0	01	1	9112-9504		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (B)	8-97038-107-1	01	1	9505-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97066-757-1	01	1	9112-9504		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97066-757-1	01	1	9505-9511		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-0	01	1	9512-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94364-943-5	01	1	9112-9510				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97101-976-0	01	1	9511-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94364-942-5	01	1	9112-9510				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97101-975-1	01	1	9511-				●
16	03.604 STUD; EXH PIPE TO MANIF M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9209-9210	●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9504	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. TURBOCHARGER<K51> 03.613 M10X38 L=53	5-09302-007-0	02	1	9505-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9112-9208			●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9209-9308			●	●
16	03.604 STUD; EXH PIPE TO MANIF SOUTH AFRICA EQUIPMENT(SW2) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9209-9308				●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9309-9510			●
16	03.604 STUD; EXH PIPE TO MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9309-9510				●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9511-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (B) M10X25 L=40	9-04411-025-0	04	1	9211-9510				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	06	1	9511-9607				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4) (B) M12X15 L=46.6	8-97115-132-0	06	1	9608-				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	06	1	9608-				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4) (A) M8X18 L=29	8-97061-377-0	02	1	9112-9208				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) M8X18 L=29	8-97061-377-0	02	1	9209-9308				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) M8X18 L=29	8-97061-377-1	02	1	9309-				●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9112-9504	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9505-9606		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-		●
18	03.604 NUT; EXH MANIF 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9112-			●
18	03.604 NUT; EXH MANIF 02.559 (B) M8	9-09110-408-0	07	1	9112-			●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	14	1	9112-9510				●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	16	1	9511-				●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9112-9504	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9505-		●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9504		●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9505-9611		●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9612-		●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	10	1	9112-9510				●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9511-				●

18 1 19 13 15 16 2 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST	8-94259-880-2	01	1	9112-9305	●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	9306-9504	●
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97039-474-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97039-474-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-2	01	1	9112-9504		●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97039-473-3	01	1	9505-		●
1	03.601 MANIFOLD; EXHAUST	8-94454-598-2	01	1	9112-9209			●
1	03.601 MANIFOLD; EXHAUST 920914-	8-97083-579-0	01	1	9209-			●
1	03.601 MANIFOLD; EXHAUST	8-94364-773-6	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST	8-97115-618-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-94364-775-4	01	1	9112-9208				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97081-232-2	01	1	9209-9510				●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97115-611-1	01	1	9511-				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97037-422-7	01	1	9112-9510				●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97128-510-0	01	1	9511-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97020-591-0	01	1	9112-9408	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9409-9504	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-1	01	1	9505-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9112-9308			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97117-182-0	01	1	9309-9501			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-054-0	01	1	9502-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94323-173-0	02	1	9112-9510				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97104-316-0	02	1	9511-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94472-396-0	01	1	9112-9504	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51>	8-94472-396-0	01	1	9505-9701		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51>	8-97131-704-0	01	1	9702-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97038-107-0	01	1	9112-9504		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (B)	8-97038-107-1	01	1	9505-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97066-757-1	01	1	9112-9504		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97066-757-1	01	1	9505-9511		●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-0	01	1	9512-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94364-943-5	01	1	9112-9510				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97101-976-0	01	1	9511-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-94364-942-5	01	1	9112-9510				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97101-975-1	01	1	9511-				●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9112-9504	●	●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	02	1	9505-9606		●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9112-			●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9112-9504	●	●
15	03.604 BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9505-9606		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9607-		●
15	03.604 BOLT; EXH MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9112-			●
16	03.604 STUD; EXH PIPE TO MANIF M10X45 L=60 STAINLESS	8-97032-977-0	02	1	9209-9210	●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9211-9504	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. TURBOCHARGER<K51> 03.613 M10X38 L=53	5-09302-007-0	02	1	9505-		●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9112-9208			●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9209-9308			●	●
16	03.604 STUD; EXH PIPE TO MANIF SOUTH AFRICA EQUIPMENT(SW2) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9209-9308				●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9309-9510			●
16	03.604 STUD; EXH PIPE TO MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9309-9510				●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (A) M10X25 L=40	9-04411-025-0	02	1	9511-			●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 (B) M10X25 L=40	9-04411-025-0	04	1	9211-9510				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	06	1	9511-9607				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4) (B) M12X15 L=46.6	8-97115-132-0	06	1	9608-				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	06	1	9608-				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4) (A) M8X18 L=29	8-97061-377-0	02	1	9112-9208				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) M8X18 L=29	8-97061-377-0	02	1	9209-9308				●
16	03.604 STUD; EXH PIPE TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) M8X18 L=29	8-97061-377-1	02	1	9309-				●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9112-9504	●	●
18	03.604 NUT; EXH MANIF 00.002 M8	9-09110-508-0	02	1	9505-9606		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9607-		●
18	03.604 NUT; EXH MANIF 00.854 (A) M8 FLANGE	5-09440-005-0	04	1	9112-			●
18	03.604 NUT; EXH MANIF 02.559 (B) M8	9-09110-408-0	07	1	9112-			●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	14	1	9112-9510				●
18	03.604 NUT; EXH MANIF 00.004 M10 LOCK NUT	8-94375-110-0	16	1	9511-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-0	02	1	9112-9504	●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9505-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9112-9504	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9505-		●
21	03.604 BOLT; HEAT PROTECTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9504		●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9505-9611		●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9612-		●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	10	1	9112-9510				●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9511-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
