Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#43286) — 254 parça

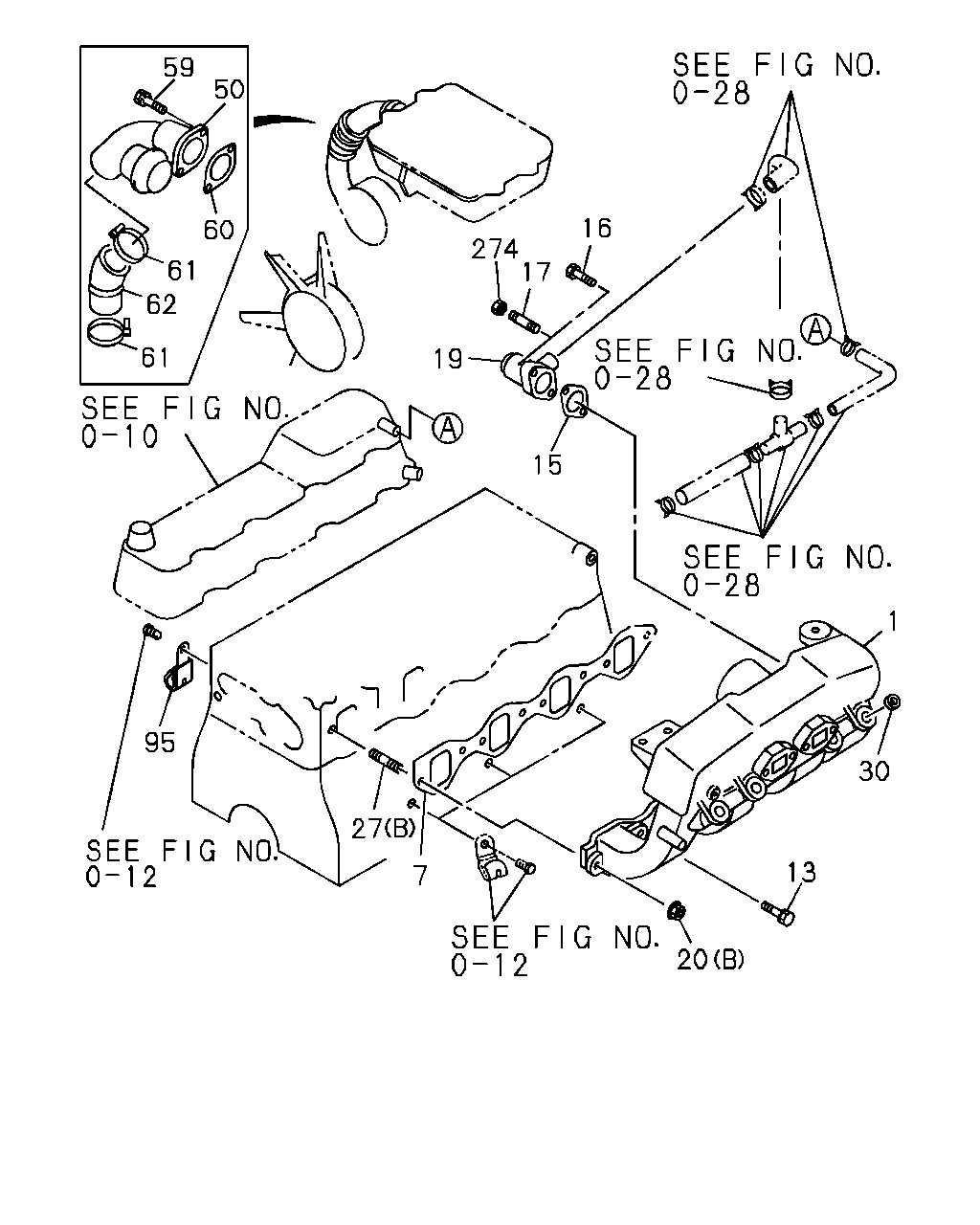

59 50 60 61 62 61 95 27 20 13 30 1 15 19 274 16 17 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97116-137-0	01	1	9505-9511		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97139-649-0	01	1	9512-		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	03.265 MANIFOLD; INL	8-97044-025-1	01	1	9112-			●
1	03.265 MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	03.265 MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9112-9504	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9505-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-052-0	01	1	9112-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94364-579-0	02	1	9112-9408				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97095-861-0	02	1	9409-				●
13	03.275 BOLT; INL MANIF M6X28	0-50140-628-0	06	1	9112-9504	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9112-9504	●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209		●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9504		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9505-9612		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9505-		●
13	03.275 BOLT; INL MANIF 08.900 M8X28 FLANGE	0-28080-828-0	02	1	9112-				●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-361-0	01	1	9112-9209		●
15	03.342 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97086-759-0	01	1	9210-9502		●
16	01.745 BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9206-9502		●
17	03.342 STUD; VLV 03.162 M6X20 L=29	9-04110-620-0	02	1	9112-9205		●
19	03.342 VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9112-9502		●
20	03.275 NUT; INL MANIF 07.829 (A) M6 FLANGE	5-09440-004-0	02	1	9112-9504	●
20	03.275 NUT; INL MANIF 00.854 (B) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●	●
20	03.275 NUT; INL MANIF 00.854 (B) M8 FLANGE	5-09440-005-0	02	1	9505-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	06	1	9112-				●
27	03.275 STUD; INL MANIF 03.162 (A) M6X20 L=29	9-04110-620-0	02	1	9112-9504	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	02	1	9112-9504	●	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	02	1	9505-		●
27	03.275 STUD; INL MANIF (A) M8X35 L=47	0-49540-828-0	01	1	9112-9406				●
27	03.275 STUD; INL MANIF (A) M8X28 L=46	0-49740-828-0	01	1	9407-				●
27	03.275 STUD; INL MANIF (B) M8X117 L=128	8-97015-836-0	01	1	9112-9406				●
27	03.275 STUD; INL MANIF (B) M8X117 L=128	8-97111-477-0	01	1	9407-				●
30	03.265 CUP; SEALING,INL MANIF EUROPE EQUIPMENT(EK4) 00.253 OD=16	5-11129-006-0	04	1	9112-9502		●
30	03.265 CUP; SEALING,INL MANIF 00.253 (A) OD=16	9-11129-081-0	02	1	9112-			●
30	03.265 CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9112-			●
30	03.265 CUP; SEALING,INL MANIF (A) OD=35	8-97029-374-0	01	1	9112-9208				●
30	03.265 CUP; SEALING,INL MANIF (B) OD=40	8-97029-375-0	01	1	9112-9208				●
50	03.265 PIPE; INL EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.407	8-97038-185-0	01	1	9112-9308		●
50	03.265 PIPE; INL EXC. EUROPE EQUIPMENT(EK4) 03.407	8-97038-185-0	01	1	9309-9504		●
50	03.265 PIPE; INL TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 03.407	8-97038-185-0	01	1	9505-9505		●
50	03.265 PIPE; INL EUROPE EQUIPMENT(EK4) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 03.407	8-97038-185-0	01	1	9506-9607		●
50	03.265 PIPE; INL TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 03.407	8-97038-185-0	01	1	9506-9607		●
50	03.265 PIPE; INL 03.407	8-97038-185-0	01	1	9608-9609		●
50	03.265 PIPE; INL	8-97139-402-0	01	1	9610-		●
59	03.403 BOLT; INL PIPE TO MANIF 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9112-9504		●
59	03.403 BOLT; INL PIPE TO MANIF TURBOCHARGER<K51> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9505-		●
60	03.270 GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.275	8-97045-364-0	01	1	9112-9210		●
60	03.270 GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.275	8-97086-961-0	01	1	9211-9504		●
60	03.270 GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> 03.275	8-97086-961-0	01	1	9505-		●
61	03.273 CLIP; CONNECTOR HOSE 01.166 ID=44-60	8-94175-940-0	02	1	9112-9403		●
61	03.273 CLIP; CONNECTOR HOSE 03.407 ID=44-60	8-94126-770-0	02	1	9404-9504		●
61	03.273 CLIP; CONNECTOR HOSE TURBOCHARGER<K51> 03.407 ID=44-60	8-94126-770-0	02	1	9505-9508		●
61	03.273 CLIP; CONNECTOR HOSE TURBOCHARGER<K51> 03.407 ID=45.5-56.5	8-97131-943-0	02	1	9509-		●
62	03.265 HOSE; CONNECTOR 03.273	8-94340-603-1	01	1	9112-9412		●
62	03.265 HOSE; CONNECTOR	8-97120-496-0	01	1	9501-9504		●
62	03.265 HOSE; CONNECTOR TURBOCHARGER<K51>	8-97120-496-0	01	1	9505-		●
95	03.278 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 ID=12	5-09700-331-0	01	1	9112-9504	●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9112-9504		●
95	03.278 CLIP; RUBBER HOSE EXC. TURBOCHARGER<K51> 02.559 ID=12	5-09700-331-0	01	1	9505-9506		●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9505-9506		●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9507-9607		●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9608-9608		●
95	03.278 CLIP; RUBBER HOSE EXC. TURBOCHARGER<K51> 02.559 ID=12	5-09700-331-0	01	1	9608-9608		●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9609-		●
274	03.342 NUT; RELIEF VLV 07.829 M6 FLANGE	5-09440-004-0	02	1	9112-9205		●

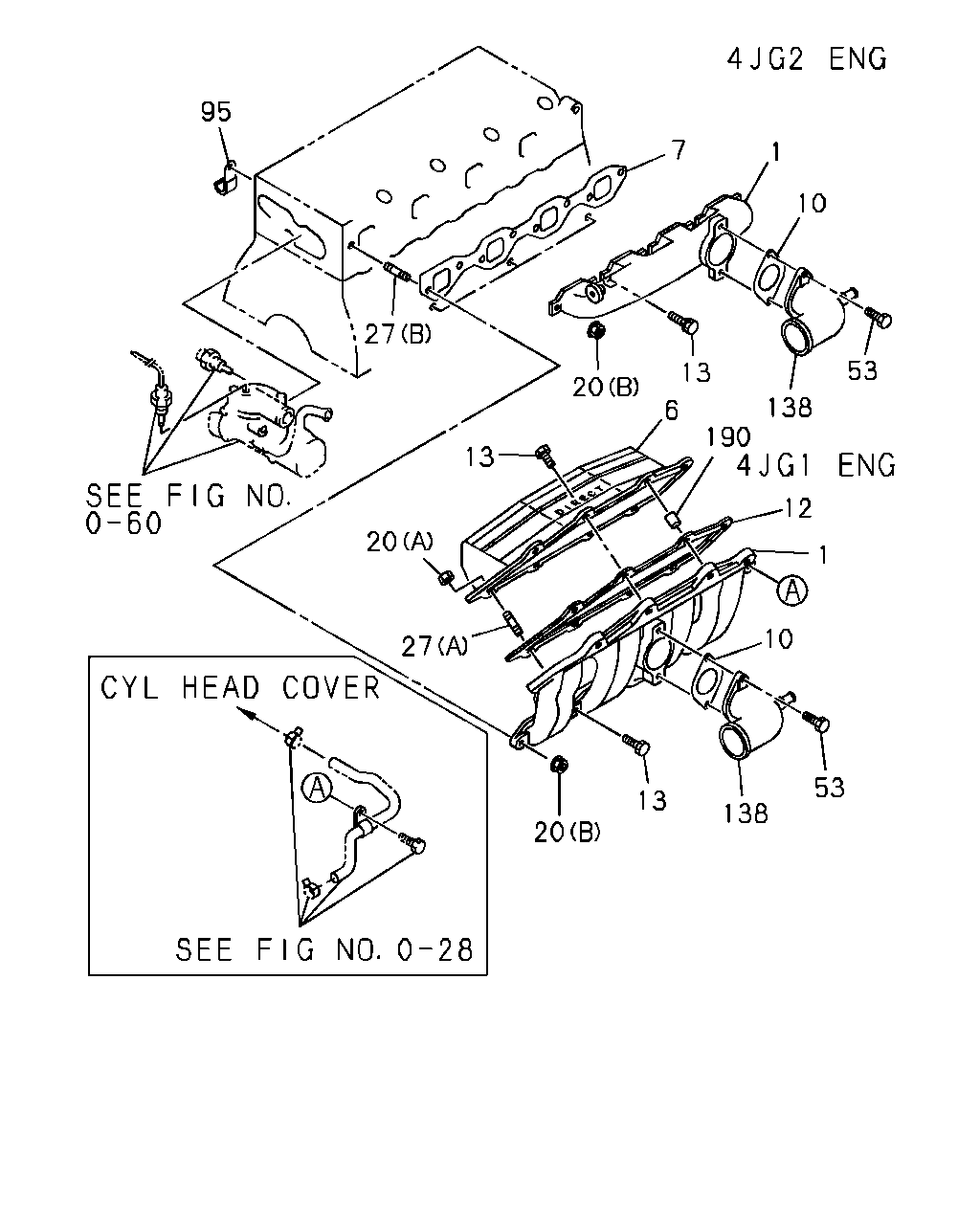

95 7 1 10 53 138 13 6 20 190 12 1 10 53 138 13 20 27 20 13 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97116-137-0	01	1	9505-9511		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97139-649-0	01	1	9512-		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	03.265 MANIFOLD; INL	8-97044-025-1	01	1	9112-			●
1	03.265 MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	03.265 MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
6	03.265 MANIFOLD; INL,UPR	8-94320-921-1	01	1	9112-9504	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9112-9504	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9505-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-052-0	01	1	9112-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94364-579-0	02	1	9112-9408				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97095-861-0	02	1	9409-				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97046-015-0	01	1	9112-9209	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97035-883-0	01	1	9210-9504	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>	8-97035-883-0	01	1	9505-		●
12	03.270 GASKET; INL MANIF,UPR TO LWR	8-94320-923-0	01	1	9112-9504	●
13	03.275 BOLT; INL MANIF M6X28	0-50140-628-0	06	1	9112-9504	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9112-9504	●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209		●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9504		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9505-9612		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9505-		●
13	03.275 BOLT; INL MANIF 08.900 M8X28 FLANGE	0-28080-828-0	02	1	9112-				●
20	03.275 NUT; INL MANIF 07.829 (A) M6 FLANGE	5-09440-004-0	02	1	9112-9504	●
20	03.275 NUT; INL MANIF 00.854 (B) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●	●
20	03.275 NUT; INL MANIF 00.854 (B) M8 FLANGE	5-09440-005-0	02	1	9505-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	06	1	9112-				●
27	03.275 STUD; INL MANIF 03.162 (A) M6X20 L=29	9-04110-620-0	02	1	9112-9504	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	02	1	9112-9504	●	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	02	1	9505-		●
27	03.275 STUD; INL MANIF (A) M8X35 L=47	0-49540-828-0	01	1	9112-9406				●
27	03.275 STUD; INL MANIF (A) M8X28 L=46	0-49740-828-0	01	1	9407-				●
27	03.275 STUD; INL MANIF (B) M8X117 L=128	8-97015-836-0	01	1	9112-9406				●
27	03.275 STUD; INL MANIF (B) M8X117 L=128	8-97111-477-0	01	1	9407-				●
53	03.602 BOLT; INL PIPE 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●
53	03.602 BOLT; INL PIPE EXC. TURBOCHARGER<K51> 09.171 M10X30 W/LK WASHER	0-50051-030-0	02	1	9505-		●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9112-				●
95	03.278 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 02.559 ID=12	5-09700-331-0	01	1	9112-9504	●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9112-9504		●
95	03.278 CLIP; RUBBER HOSE EXC. TURBOCHARGER<K51> 02.559 ID=12	5-09700-331-0	01	1	9505-9506		●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9505-9506		●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9507-9607		●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9608-9608		●
95	03.278 CLIP; RUBBER HOSE EXC. TURBOCHARGER<K51> 02.559 ID=12	5-09700-331-0	01	1	9608-9608		●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9609-		●
138	03.265 PIPE; INL	8-97023-536-0	01	1	9112-9504	●
138	03.265 PIPE; INL EXC. TURBOCHARGER<K51>	8-97023-536-0	01	1	9505-		●
190	03.275 COLLAR; INLET MANIFOLD	8-94320-924-0	08	1	9112-9504	●

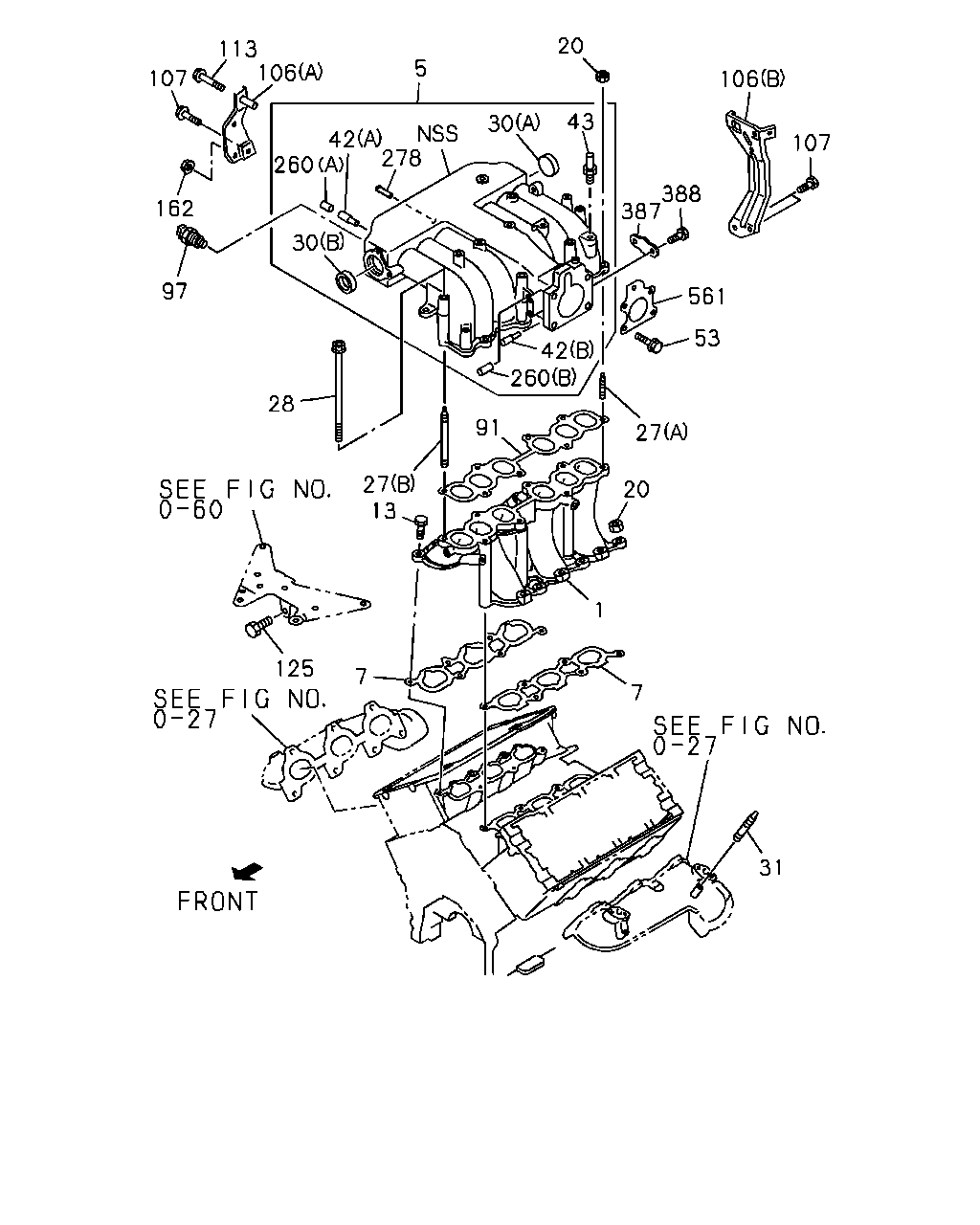

107 113 5 106 20 106 107 388 387 43 30 278 42 260 30 162 97 28 42 260 561 53 27 20 91 27 13 125 7 1 7 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97116-137-0	01	1	9505-9511		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97139-649-0	01	1	9512-		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	03.265 MANIFOLD; INL	8-97044-025-1	01	1	9112-			●
1	03.265 MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	03.265 MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
5	03.278 CHAMBER; COMMON	8-94385-045-4	01	1	9112-9308				●
5	03.278 CHAMBER; COMMON EXC. VAUXHALL EQUIPMENT<EK3>	8-94385-045-6	01	1	9309-9504				●
5	03.278 CHAMBER; COMMON EXC. VAUXHALL EQUIPMENT<EK3>	8-97102-898-1	01	1	9505-				●
5	03.278 CHAMBER; COMMON VAUXHALL EQUIPMENT<EK3>	8-97092-481-1	01	1	9309-9504				●
5	03.278 CHAMBER; COMMON VAUXHALL EQUIPMENT<EK3>	8-97102-885-1	01	1	9505-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9112-9504	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9505-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-052-0	01	1	9112-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94364-579-0	02	1	9112-9408				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97095-861-0	02	1	9409-				●
13	03.275 BOLT; INL MANIF M6X28	0-50140-628-0	06	1	9112-9504	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9112-9504	●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209		●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9504		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9505-9612		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-		●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9505-		●
13	03.275 BOLT; INL MANIF 08.900 M8X28 FLANGE	0-28080-828-0	02	1	9112-				●
20	03.275 NUT; INL MANIF 07.829 (A) M6 FLANGE	5-09440-004-0	02	1	9112-9504	●
20	03.275 NUT; INL MANIF 00.854 (B) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●	●
20	03.275 NUT; INL MANIF 00.854 (B) M8 FLANGE	5-09440-005-0	02	1	9505-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	06	1	9112-				●
27	03.275 STUD; INL MANIF 03.162 (A) M6X20 L=29	9-04110-620-0	02	1	9112-9504	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	02	1	9112-9504	●	●
27	03.275 STUD; INL MANIF 03.901 (B) M8X25 L=37	9-04110-825-0	02	1	9505-		●
27	03.275 STUD; INL MANIF (A) M8X35 L=47	0-49540-828-0	01	1	9112-9406				●
27	03.275 STUD; INL MANIF (A) M8X28 L=46	0-49740-828-0	01	1	9407-				●
27	03.275 STUD; INL MANIF (B) M8X117 L=128	8-97015-836-0	01	1	9112-9406				●
27	03.275 STUD; INL MANIF (B) M8X117 L=128	8-97111-477-0	01	1	9407-				●
28	03.278 BOLT; CHAMBER M8X126	8-94128-482-1	02	1	9112-				●
28	03.278 BOLT; CHAMBER M8X205	8-97012-566-1	04	1	9112-9301				●
28	03.278 BOLT; CHAMBER M8X210	8-97086-385-0	04	1	9302-				●
30	03.265 CUP; SEALING,INL MANIF EUROPE EQUIPMENT(EK4) 00.253 OD=16	5-11129-006-0	04	1	9112-9502		●
30	03.265 CUP; SEALING,INL MANIF 00.253 (A) OD=16	9-11129-081-0	02	1	9112-			●
30	03.265 CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9112-			●
30	03.265 CUP; SEALING,INL MANIF (A) OD=35	8-97029-374-0	01	1	9112-9208				●
30	03.265 CUP; SEALING,INL MANIF (B) OD=40	8-97029-375-0	01	1	9112-9208				●
31	03.278 STUD; COMMON CHAMBER M10X35 L=50	8-97015-835-0	02	1	9112-9510				●
31	03.278 STUD; COMMON CHAMBER M10X35 L=50	8-97015-835-0	04	1	9511-				●
42	03.278 PIPE; VAC,COMMON CHAMBER (A)	8-97029-377-0	01	1	9112-9206				●
42	03.278 PIPE; VAC,COMMON CHAMBER (B)	8-97036-810-0	02	1	9112-9208				●
43	03.278 CONNECTOR; M/VAC	8-97029-379-0	01	1	9112-9312				●
53	03.602 BOLT; INL PIPE 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●
53	03.602 BOLT; INL PIPE EXC. TURBOCHARGER<K51> 09.171 M10X30 W/LK WASHER	0-50051-030-0	02	1	9505-		●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9112-				●
91	03.278 GASKET; COMMON CHAMBER TO INL MA	8-94364-577-0	01	1	9112-				●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE	8-25037-334-0	01	1	9112-9308				●
106	03.671 STAY; COMMON CHAMBER (A)	8-94376-251-4	01	1	9112-9510				●
106	03.671 STAY; COMMON CHAMBER (A)	8-97103-830-1	01	1	9511-				●
106	03.671 STAY; COMMON CHAMBER (B)	8-94376-905-4	01	1	9112-				●
107	03.671 BOLT; STAY,COMMON CHAMBER 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9112-				●
113	03.275 BOLT; STAY 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9112-9510				●
113	03.275 BOLT; STAY 01.780 M8X55 FLANGE	8-97015-522-0	01	1	9112-9301				●
113	03.275 BOLT; STAY 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9302-				●
125	01.150 BOLT; BRKT TO INL MANIF 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9112-9206				●
125	01.150 BOLT; BRKT TO INL MANIF 05.398	8-11090-651-0	03	1	9207-				●
162	03.275 NUT; STAY 00.004 M10 LOCK NUT	8-94375-110-0	01	1	9112-9510				●
162	03.275 NUT; STAY 00.004 M10 LOCK NUT	8-94375-110-0	02	1	9511-				●
260	03.278 CAP; RUBBER (A)	8-97029-378-0	01	1	9112-9206				●
260	03.278 CAP; RUBBER 01.780 (B) ID=4	8-94217-809-0	01	1	9112-9212				●
260	03.278 CAP; RUBBER 01.780 (B) 921221- OD=7	8-94206-392-0	01	1	9212-				●
278	03.278 PIPE; MAP SENSOR	8-97029-380-0	01	1	9112-9208				●
387	03.265 PLATE; EGR,INL MANIF EXC. EUROPE EQUIPMENT(EK4)	8-97037-425-0	01	1	9112-9303				●
387	03.265 PLATE; EGR,INL MANIF SOUTH AFRICA EQUIPMENT(SW2)	8-97037-425-0	01	1	9304-9308				●
387	03.265 PLATE; EGR,INL MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-97037-425-0	01	1	9304-9308				●
387	03.265 PLATE; EGR,INL MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-97037-425-0	01	1	9309-				●
388	01.153 BOLT; EGR PLATE,INL MANIF EXC. EUROPE EQUIPMENT(EK4) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9112-9303				●
388	01.153 BOLT; EGR PLATE,INL MANIF SOUTH AFRICA EQUIPMENT(SW2) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9304-9308				●
388	01.153 BOLT; EGR PLATE,INL MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9304-9308				●
388	01.153 BOLT; EGR PLATE,INL MANIF EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9309-				●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9112-				●

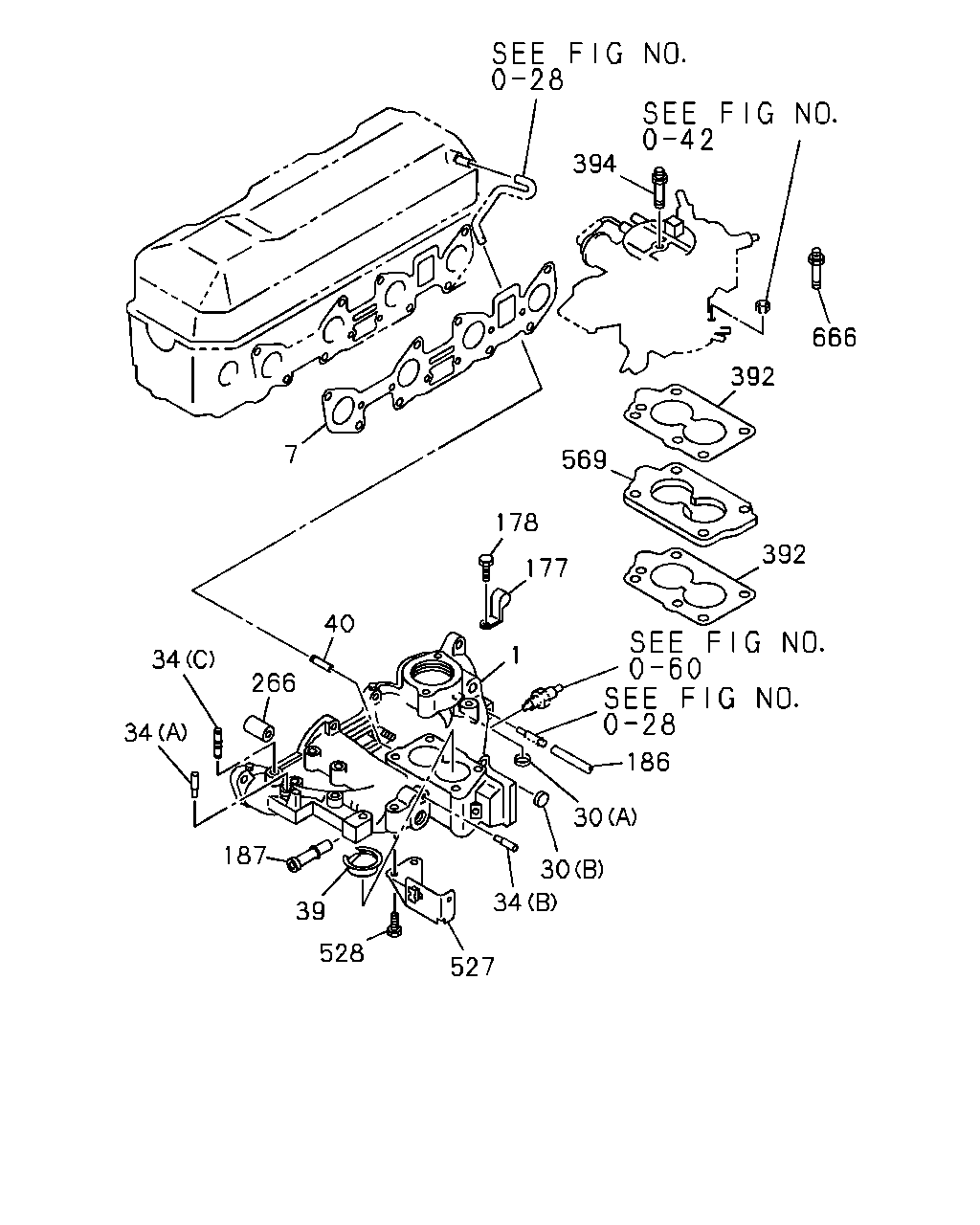

394 666 392 569 392 178 177 7 40 1 186 30 30 34 527 528 39 187 34 34 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97116-137-0	01	1	9505-9511		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97139-649-0	01	1	9512-		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	03.265 MANIFOLD; INL	8-97044-025-1	01	1	9112-			●
1	03.265 MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	03.265 MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9112-9504	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9505-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-052-0	01	1	9112-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94364-579-0	02	1	9112-9408				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97095-861-0	02	1	9409-				●
30	03.265 CUP; SEALING,INL MANIF EUROPE EQUIPMENT(EK4) 00.253 OD=16	5-11129-006-0	04	1	9112-9502		●
30	03.265 CUP; SEALING,INL MANIF 00.253 (A) OD=16	9-11129-081-0	02	1	9112-			●
30	03.265 CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9112-			●
30	03.265 CUP; SEALING,INL MANIF (A) OD=35	8-97029-374-0	01	1	9112-9208				●
30	03.265 CUP; SEALING,INL MANIF (B) OD=40	8-97029-375-0	01	1	9112-9208				●
34	03.675 PIPE; VAC (A) OD=4 L=21	8-94145-897-2	01	1	9112-			●
34	03.675 PIPE; VAC 03.278 (B) OD=5 L=34	8-94200-851-2	01	1	9112-			●
34	03.675 PIPE; VAC (C) OD=10 L=50	8-94330-262-0	01	1	9112-			●
39	03.278 TUBE; DISTR,INL MANIF	8-94463-029-0	01	1	9112-			●
40	03.278 PIPE; VAC LINE,INL MANIF OD=6 L=28	8-94214-981-0	01	1	9112-			●
177	02.343 CLIP; CABLE TO MANIF 04.930 ID=11 H=20 L=20	9-09527-010-0	01	1	9112-9204			●
177	02.343 CLIP; CABLE TO MANIF ID=13 H=24 L=20	9-09527-012-0	01	1	9205-			●
178	03.680 BOLT; CARB CABLE CLIP 16.341 M6X12 W/LK WASHER	9-01900-612-0	01	1	9112-9204			●
178	03.680 BOLT; CARB CABLE CLIP 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-			●
186	03.278 HOSE; IDLE COMPENSATOR 08.962 L=380 SERVICED BY L=3000	0-04750-300-0	01	1	9112-			●
187	03.726 CONNECTOR; HTR	8-94136-759-3	01	1	9112-			●
266	03.680 CAP; RUBBER,CONNECTOR 01.780 OD=7	8-94206-392-0	01	1	9112-			●
266	03.680 CAP; RUBBER,CONNECTOR 01.780 ID=4	8-94217-809-0	01	1	9112-			●
392	03.726 GASKET; EFE HTR	8-94146-256-0	02	1	9112-			●
394	03.403 STUD; ACL TO CARB,CARB CENTER M8X84	8-94159-217-2	01	1	9112-			●
527	03.308 BRACKET; UNION 03.407	8-97038-927-2	01	1	9112-			●
528	03.278 BOLT; BRKT,UNION 03.444 M8X14 W/LK WASHERT	8-94208-228-0	02	1	9112-9602			●
528	03.278 BOLT; BRKT,UNION 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9603-			●
569	03.602 INSULATOR; HEAT	8-94463-028-0	01	1	9112-			●
666	03.275 STUD; FUEL PUMP 03.726 M8X18 L=38	8-94146-549-0	02	1	9608-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
