Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#43284) — 298 parça

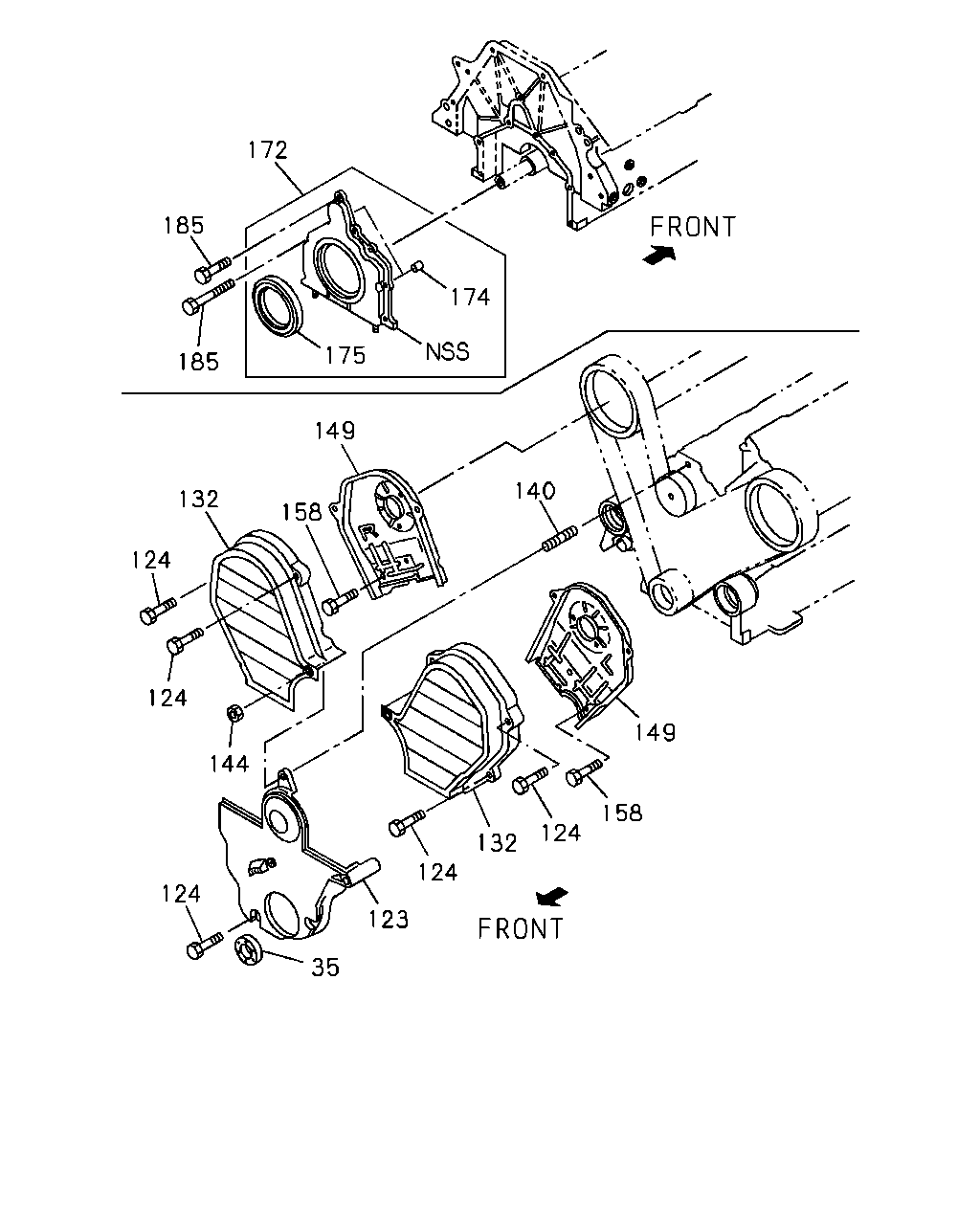

35 124 123 132 124 158 149 140 124 144 124 124 132 158 149 175 185 185 172 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9112-	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9112-		●
123	00.206 COVER; TIMING,LWR EUROPE EQUIPMENT(EK4)	8-97038-105-1	01	1	9112-			●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9112-	●
123	00.206 COVER; TIMING,LWR	8-94374-960-1	01	1	9112-		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9112-			●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4) M6X50 W/LK WASHER	8-94152-616-1	03	1	9112-			●
124	00.206 BOLT; TIMING COVER M6X50 FLANGE	0-28010-650-0	01	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9205-9208	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9209-9308	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9309-	●
124	00.206 BOLT; TIMING COVER 09.211 M6X16 W/LK WASHER	9-01900-616-0	06	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	06	1	9205-	●
124	00.206 BOLT; TIMING COVER 01.652 M6X25 W/LK WASHER	9-01900-625-0	01	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-9208	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9209-9308	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9309-	●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9112-9208		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9309-9607		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9608-		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9208		●
124	00.206 BOLT; TIMING COVER SOUTH AFRICA EQUIPMENT(SW2) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9309-9607		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9608-		●
132	00.206 COVER; TIMING,UPR EUROPE EQUIPMENT(EK4)	8-97038-103-1	01	1	9112-			●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9112-	●
132	00.206 COVER; TIMING,UPR	8-94374-964-0	01	1	9112-		●
132	00.206 COVER; TIMING,UPR	8-94374-963-0	01	1	9112-		●
140	00.206 STUD; COVER M8X90 L=106	5-09300-067-0	01	1	9112-		●
144	00.206 NUT; COVER 07.633 M8 FLANGE	0-91150-108-0	01	1	9112-		●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9112-	●
149	00.206 PLATE; FRT,C/BL	8-94374-962-2	01	1	9112-		●
149	00.206 PLATE; FRT,C/BL	8-94374-961-2	01	1	9112-		●
158	00.206 BOLT; FRT PLATE M6X16 W/LK&PL WASHER	9-01960-616-0	03	1	9112-9204	●
158	00.206 BOLT; FRT PLATE 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9205-9207	●
158	00.206 BOLT; FRT PLATE 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9208-	●
158	00.206 BOLT; FRT PLATE 07.039 M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9112-9204	●
158	00.206 BOLT; FRT PLATE 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9205-	●
158	00.206 BOLT; FRT PLATE 08.900 M8X12 FLANGE	0-28080-812-0	08	1	9112-		●
172	00.137 RETAINER; CR/SHF	8-94174-212-3	01	1	9112-	●
172	00.137 RETAINER; CR/SHF	8-97016-140-2	01	1	9112-9307		●
172	00.137 RETAINER; CR/SHF	8-97102-450-1	01	1	9308-		●
174	00.683 DOWEL; RET TO C/BL	8-94339-958-0	02	1	9112-9309		●
174	00.683 DOWEL; RET TO C/BL 930920-	8-97103-336-0	02	1	9309-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-		●
185	00.727 BOLT; RET TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-	●
185	00.727 BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9112-	●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9112-9407		●
185	00.727 BOLT; RET TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	06	1	9408-9601		●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9602-		●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9112-		●

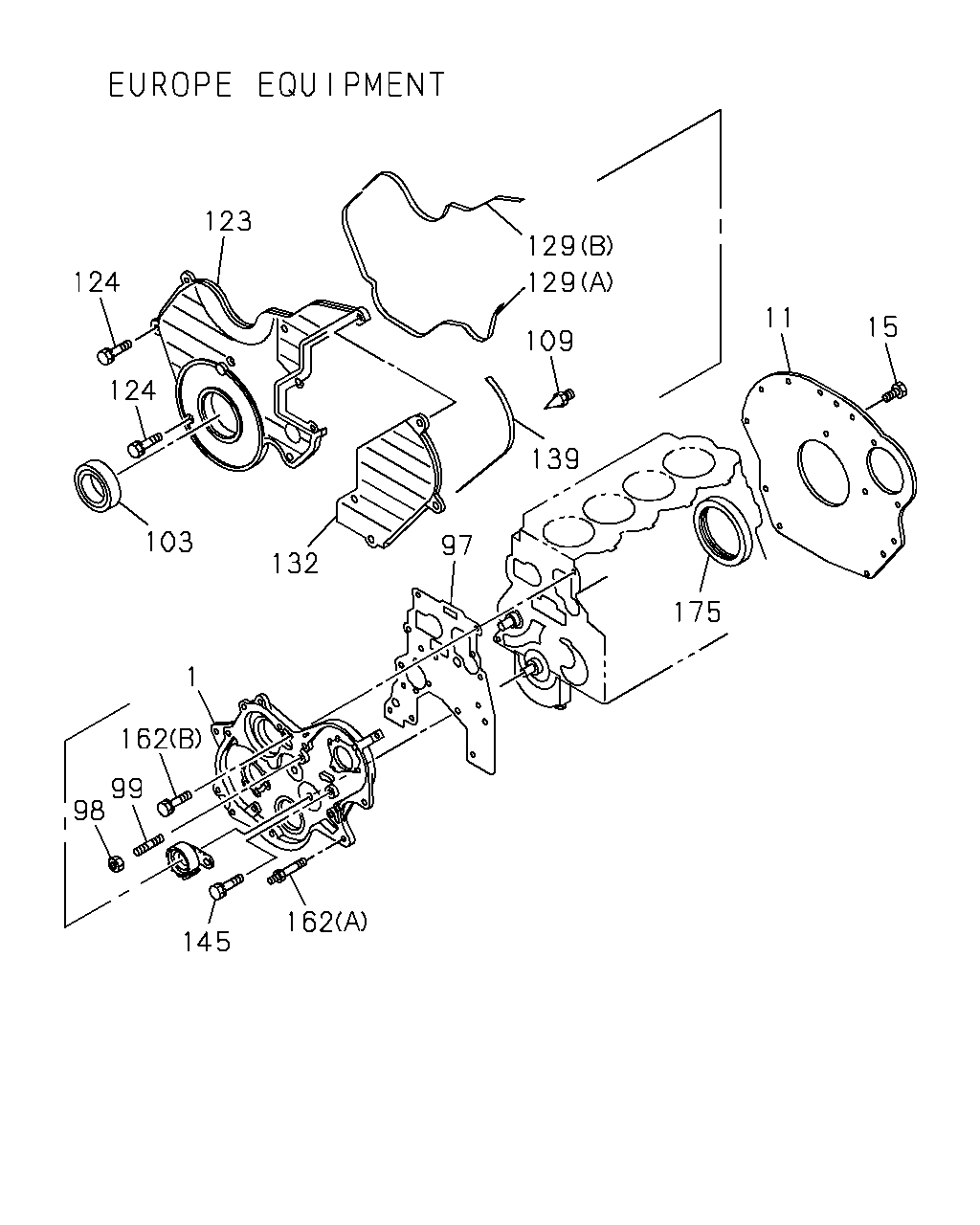

145 162 98 99 162 1 97 175 15 11 139 109 129 129 132 103 124 124 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9112-9504				●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94155-361-3	01	1	9112-9504			●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94155-361-3	01	1	9505-9506			●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-97129-982-1	01	1	9507-			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-94133-497-6	01	1	9112-9206			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97083-629-2	01	1	9207-9410			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97115-133-0	01	1	9411-9606			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97160-960-0	01	1	9607-			●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9112-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9112-9504			●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9505-			●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9112-	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9112-9504			●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9505-			●
15	00.683 BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9112-	●
15	00.683 BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9112-	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97046-470-0	01	1	9112-9305			●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97080-302-0	01	1	9306-9504			●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97129-429-0	01	1	9505-			●
98	00.206 NUT; STUD,INJ PUMP EUROPE EQUIPMENT(EK4) 03.340 M8	8-94224-829-0	03	1	9112-			●
99	00.206 STUD; INJ PUMP EUROPE EQUIPMENT(EK4) M8X25 L=41	9-04020-825-0	03	1	9112-9406			●
99	00.206 STUD; INJ PUMP EUROPE EQUIPMENT(EK4) 00.004 M8X28 L=44	9-04020-828-0	03	1	9407-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9112-9308			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9309-9504				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97049-145-0	01	1	9309-9504			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97049-145-0	01	1	9505-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97071-560-1	01	1	9309-			●
109	00.219 POINTER; TIMING EUROPE EQUIPMENT(EK4) M5X7.5	8-94133-500-0	01	1	9112-			●
123	00.206 COVER; TIMING,LWR EUROPE EQUIPMENT(EK4)	8-97038-105-1	01	1	9112-			●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9112-	●
123	00.206 COVER; TIMING,LWR	8-94374-960-1	01	1	9112-		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9112-			●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4) M6X50 W/LK WASHER	8-94152-616-1	03	1	9112-			●
124	00.206 BOLT; TIMING COVER M6X50 FLANGE	0-28010-650-0	01	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9205-9208	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9209-9308	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9309-	●
124	00.206 BOLT; TIMING COVER 09.211 M6X16 W/LK WASHER	9-01900-616-0	06	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	06	1	9205-	●
124	00.206 BOLT; TIMING COVER 01.652 M6X25 W/LK WASHER	9-01900-625-0	01	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-9208	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9209-9308	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9309-	●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9112-9208		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9309-9607		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9608-		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9208		●
124	00.206 BOLT; TIMING COVER SOUTH AFRICA EQUIPMENT(SW2) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9309-9607		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9608-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) (A) L=560	8-94464-695-1	01	1	9112-			●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) (B) L=366	8-94464-696-0	01	1	9112-			●
132	00.206 COVER; TIMING,UPR EUROPE EQUIPMENT(EK4)	8-97038-103-1	01	1	9112-			●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9112-	●
132	00.206 COVER; TIMING,UPR	8-94374-964-0	01	1	9112-		●
132	00.206 COVER; TIMING,UPR	8-94374-963-0	01	1	9112-		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) L=215	8-94139-961-0	01	1	9112-			●
145	00.206 BOLT; TENSIONER GUIDE EUROPE EQUIPMENT(EK4) M8X20	8-94152-617-1	01	1	9112-			●
162	00.206 BOLT; FRT PLATE EUROPE EQUIPMENT(EK4) 01.531 (B) M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9112-9205			●
162	00.206 BOLT; FRT PLATE EUROPE EQUIPMENT(EK4) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	04	1	9206-			●
162	00.206 BOLT; FRT PLATE EUROPE EQUIPMENT(EK4) (A) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9112-9607			●
162	00.206 BOLT; FRT PLATE EUROPE EQUIPMENT(EK4) (A) M8X42.5 L=69	8-97148-539-0	01	1	9608-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-		●

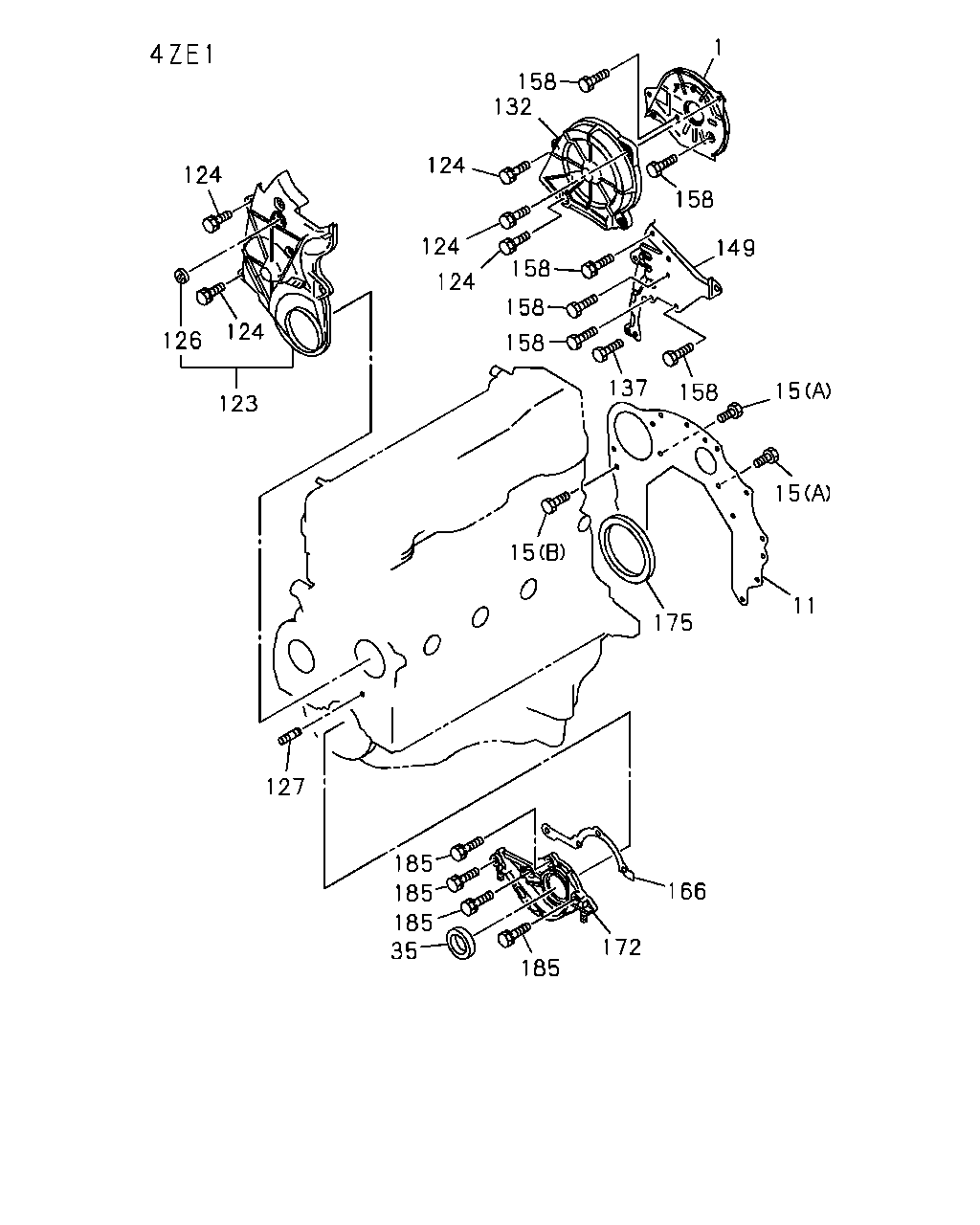

1 158 149 15 158 137 15 11 175 15 166 172 185 35 185 185 185 127 123 124 126 124 158 158 158 124 124 124 132 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9112-9504				●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94155-361-3	01	1	9112-9504			●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94155-361-3	01	1	9505-9506			●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-97129-982-1	01	1	9507-			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-94133-497-6	01	1	9112-9206			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97083-629-2	01	1	9207-9410			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97115-133-0	01	1	9411-9606			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97160-960-0	01	1	9607-			●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9112-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9112-9504			●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9505-			●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9112-	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9112-9504			●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9505-			●
15	00.683 BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9112-	●
15	00.683 BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9112-	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9112-	●
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9112-		●
123	00.206 COVER; TIMING,LWR EUROPE EQUIPMENT(EK4)	8-97038-105-1	01	1	9112-			●
123	00.206 COVER; TIMING,LWR	8-94449-471-4	01	1	9112-	●
123	00.206 COVER; TIMING,LWR	8-94374-960-1	01	1	9112-		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9112-			●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4) M6X50 W/LK WASHER	8-94152-616-1	03	1	9112-			●
124	00.206 BOLT; TIMING COVER M6X50 FLANGE	0-28010-650-0	01	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9205-9208	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9209-9308	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9309-	●
124	00.206 BOLT; TIMING COVER 09.211 M6X16 W/LK WASHER	9-01900-616-0	06	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 04.686 M6X16 W/LK WASHER	0-50040-616-0	06	1	9205-	●
124	00.206 BOLT; TIMING COVER 01.652 M6X25 W/LK WASHER	9-01900-625-0	01	1	9112-9204	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-9208	●
124	00.206 BOLT; TIMING COVER 01.153 M6X50 FLANGE	0-28080-650-0	01	1	9209-9308	●
124	00.206 BOLT; TIMING COVER 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9309-	●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9112-9208		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9309-9607		●
124	00.206 BOLT; TIMING COVER EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9608-		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9112-9208		●
124	00.206 BOLT; TIMING COVER SOUTH AFRICA EQUIPMENT(SW2) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9209-9308		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9309-9607		●
124	00.206 BOLT; TIMING COVER EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 07.010 M8X20 FLANGE	0-28080-820-0	09	1	9608-		●
126	00.206 GROMMET; TIMING COVER,LWR	8-94150-996-0	01	1	9112-	●
127	00.206 STUD; TENSIONER 03.613 M8X50 L=62	9-04110-850-0	01	1	9112-	●
132	00.206 COVER; TIMING,UPR EUROPE EQUIPMENT(EK4)	8-97038-103-1	01	1	9112-			●
132	00.206 COVER; TIMING,UPR	8-94452-421-1	01	1	9112-	●
132	00.206 COVER; TIMING,UPR	8-94374-964-0	01	1	9112-		●
132	00.206 COVER; TIMING,UPR	8-94374-963-0	01	1	9112-		●
137	00.206 BOLT; FRT PLATE 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9505-	●
149	00.206 PLATE; FRT,C/BL	8-94405-609-3	01	1	9112-	●
149	00.206 PLATE; FRT,C/BL	8-94374-962-2	01	1	9112-		●
149	00.206 PLATE; FRT,C/BL	8-94374-961-2	01	1	9112-		●
158	00.206 BOLT; FRT PLATE M6X16 W/LK&PL WASHER	9-01960-616-0	03	1	9112-9204	●
158	00.206 BOLT; FRT PLATE 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9205-9207	●
158	00.206 BOLT; FRT PLATE 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9208-	●
158	00.206 BOLT; FRT PLATE 07.039 M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9112-9204	●
158	00.206 BOLT; FRT PLATE 01.540 M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9205-	●
158	00.206 BOLT; FRT PLATE 08.900 M8X12 FLANGE	0-28080-812-0	08	1	9112-		●
166	00.207 GASKET; RET TO C/BL 01.429	8-94214-914-0	01	1	9112-9602	●
166	00.207 GASKET; RET TO C/BL	8-97143-478-0	01	1	9603-	●
172	00.137 RETAINER; CR/SHF	8-94174-212-3	01	1	9112-	●
172	00.137 RETAINER; CR/SHF	8-97016-140-2	01	1	9112-9307		●
172	00.137 RETAINER; CR/SHF	8-97102-450-1	01	1	9308-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-		●
185	00.727 BOLT; RET TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-	●
185	00.727 BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9112-	●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9112-9407		●
185	00.727 BOLT; RET TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	06	1	9408-9601		●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9602-		●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9112-		●

78 71 72 73 68 69 78 55 68 73 72 73 71 77 75 103 60 58 57 65 54 56 38 36 1 33 32 175 11 15

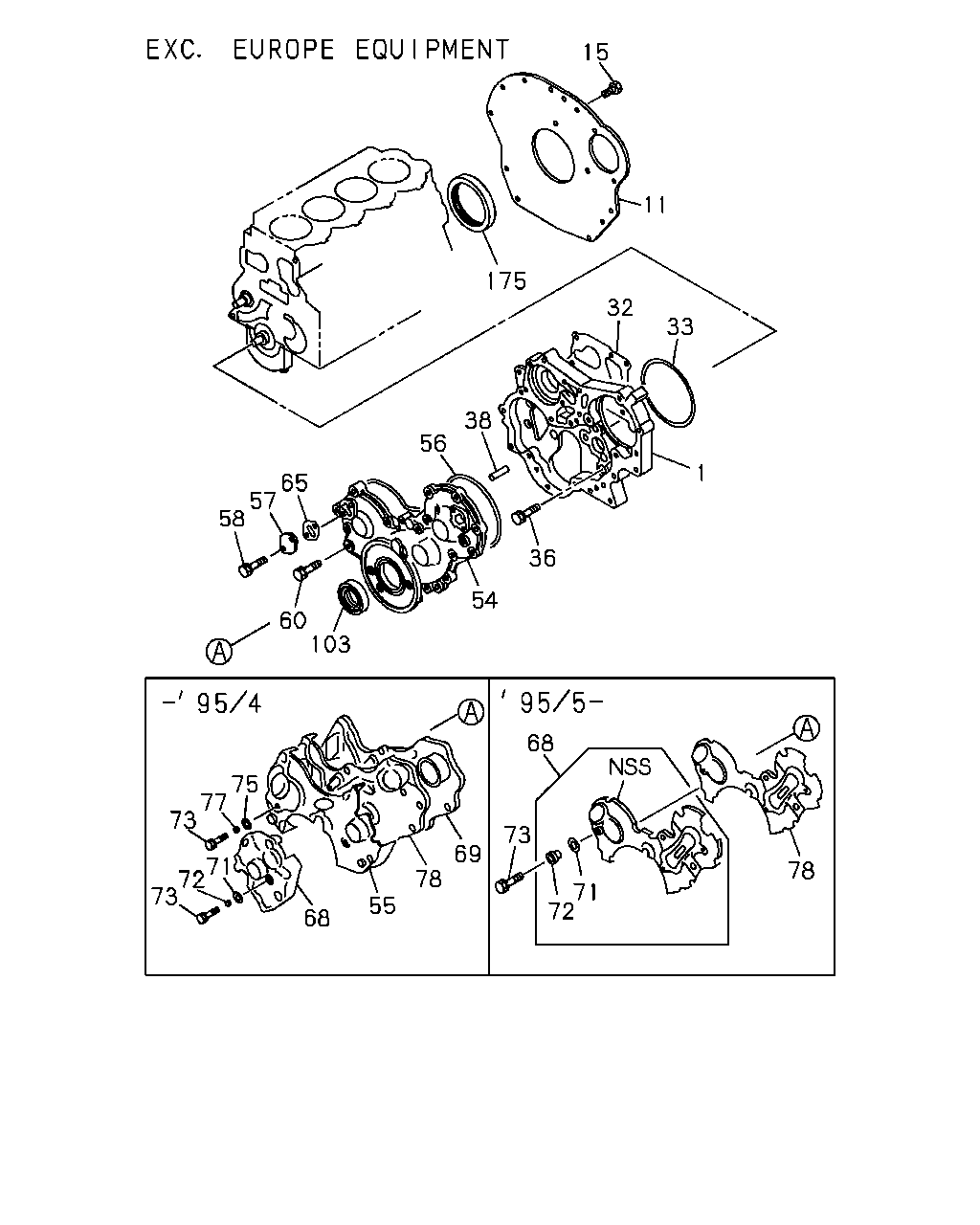

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-94155-361-3	01	1	9112-9504				●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94155-361-3	01	1	9112-9504			●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94155-361-3	01	1	9505-9506			●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-97129-982-1	01	1	9507-			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-94133-497-6	01	1	9112-9206			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97083-629-2	01	1	9207-9410			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97115-133-0	01	1	9411-9606			●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97160-960-0	01	1	9607-			●
1	00.206 CASE; TIMING GEAR	8-94405-608-3	01	1	9112-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9112-9504			●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9505-			●
11	00.683 PLATE; RR,C/BL	8-94443-574-2	01	1	9112-	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9112-9504			●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9505-			●
15	00.683 BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9112-	●
15	00.683 BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9112-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97046-469-1	01	1	9112-9504				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97046-469-1	01	1	9112-9504			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97046-469-1	01	1	9505-9507			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97129-427-0	01	1	9508-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9112-9504				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-94109-707-0	01	1	9112-9504			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-94109-707-0	01	1	9505-			●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9112-9504				●
36	00.206 BOLT; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9112-9504			●
36	00.206 BOLT; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9505-			●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504				●
36	00.206 BOLT; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504			●
36	00.206 BOLT; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9505-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9112-9504				●
38	00.685 PIN; GEAR CASE COVER EXC. EUROPE EQUIPMENT(EK4) 00.669 OD=10 L=20	9-08151-020-0	02	1	9112-9504			●
38	00.685 PIN; GEAR CASE COVER EXC. EUROPE EQUIPMENT(EK4) 00.669 OD=10 L=20	9-08151-020-0	02	1	9505-			●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9112-9504				●
54	00.206 COVER; GEAR CASE EXC. EUROPE EQUIPMENT(EK4)	8-94155-360-2	01	1	9112-9504			●
54	00.206 COVER; GEAR CASE EXC. EUROPE EQUIPMENT(EK4)	8-94155-360-2	01	1	9505-			●
55	00.206 COVER; NOISE SHIELD	8-94420-293-3	01	1	9112-9407				●
55	00.206 COVER; NOISE SHIELD EXC. EUROPE EQUIPMENT(EK4)	8-94420-293-3	01	1	9112-9407			●
55	00.206 COVER; NOISE SHIELD	8-94155-721-1	01	1	9408-9504				●
55	00.206 COVER; NOISE SHIELD EXC. EUROPE EQUIPMENT(EK4)	8-94155-721-1	01	1	9408-9504			●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9112-9504				●
56	00.207 GASKET; GEAR CASE TO COVER EXC. EUROPE EQUIPMENT(EK4)	8-94140-117-1	01	1	9112-9504			●
56	00.207 GASKET; GEAR CASE TO COVER EXC. EUROPE EQUIPMENT(EK4)	8-94140-117-1	01	1	9505-			●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9112-9504				●
57	00.206 COVER; TIMING CHECK HOLE EXC. EUROPE EQUIPMENT(EK4)	5-11321-009-0	02	1	9112-9504			●
57	00.206 COVER; TIMING CHECK HOLE EXC. EUROPE EQUIPMENT(EK4)	5-11321-009-0	02	1	9505-			●
58	00.206 BOLT; CHECK HOLE COVER 01.073 M6X14 W/LK WASHER	9-01900-614-0	04	1	9112-9204				●
58	00.206 BOLT; CHECK HOLE COVER EXC. EUROPE EQUIPMENT(EK4) 01.073 M6X14 W/LK WASHER	9-01900-614-0	04	1	9112-9204			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9205-9504				●
58	00.206 BOLT; CHECK HOLE COVER EXC. EUROPE EQUIPMENT(EK4) M6X14 W/LK WASHER	0-50040-614-0	04	1	9205-9504			●
58	00.206 BOLT; CHECK HOLE COVER EXC. EUROPE EQUIPMENT(EK4) M6X14 W/LK WASHER	0-50040-614-0	04	1	9505-			●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9112-9504				●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9112-9504			●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9505-			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504				●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504			●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9505-			●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9112-9504				●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9112-9504			●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9505-			●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9112-9504				●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) M8X65 W/LK WASHER	8-94205-986-1	06	1	9112-9504			●
60	00.206 BOLT; COVER TO CASE EXC. EUROPE EQUIPMENT(EK4) M8X65 W/LK WASHER	8-94205-986-1	06	1	9505-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97045-362-1	02	1	9112-9412				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. EUROPE EQUIPMENT(EK4)	8-97045-362-1	02	1	9112-9412			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9501-9504				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. EUROPE EQUIPMENT(EK4)	8-97118-698-0	02	1	9501-9504			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. EUROPE EQUIPMENT(EK4)	8-97118-698-0	02	1	9505-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-94423-518-3	01	1	9112-9504				●
68	00.206 COVER ASM; GEAR CASE COVER EXC. EUROPE EQUIPMENT(EK4)	8-94423-518-3	01	1	9112-9504			●
68	00.206 COVER ASM; GEAR CASE COVER EXC. EUROPE EQUIPMENT(EK4)	8-94155-721-1	01	1	9505-			●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94423-517-2	01	1	9112-9504				●
69	00.206 SEAL; RUBBER,COVER TO COVER EXC. EUROPE EQUIPMENT(EK4)	8-94423-517-2	01	1	9112-9504			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	02	1	9112-9404				●
71	00.206 RUBBER; MTG,COVER EXC. EUROPE EQUIPMENT(EK4)	5-19389-002-0	02	1	9112-9404			●
71	00.206 RUBBER; MTG,COVER EXC. EUROPE EQUIPMENT(EK4)	5-19389-002-0	04	1	9505-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	02	1	9112-9504				●
72	00.206 BUSHING; SPACER,COVER TO COVER EXC. EUROPE EQUIPMENT(EK4)	5-19389-009-0	02	1	9112-9504			●
72	00.206 BUSHING; SPACER,COVER TO COVER EXC. EUROPE EQUIPMENT(EK4)	5-19389-009-0	04	1	9505-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9112-9504				●
73	00.206 BOLT; COVER FIX EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9112-9504			●
73	00.206 BOLT; COVER FIX EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9505-			●
75	00.206 RUBBER; NOISE COVER MTG,TIMING G	5-19389-002-0	02	1	9112-9504				●
75	00.206 RUBBER; NOISE COVER MTG,TIMING G EXC. EUROPE EQUIPMENT(EK4)	5-19389-002-0	02	1	9112-9504			●
77	00.206 BUSHING; MTG RUBBER,NOISE COVER	5-19389-009-0	02	1	9112-9504				●
77	00.206 BUSHING; MTG RUBBER,NOISE COVER EXC. EUROPE EQUIPMENT(EK4)	5-19389-009-0	02	1	9112-9504			●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94420-559-6	01	1	9112-9504				●
78	00.206 SPACER; MTG RUBBER,NOISE COVER EXC. EUROPE EQUIPMENT(EK4)	8-94420-559-6	01	1	9112-9504			●
78	00.206 SPACER; MTG RUBBER,NOISE COVER EXC. EUROPE EQUIPMENT(EK4)	8-94155-722-3	01	1	9505-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9112-9308			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9309-9504				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97049-145-0	01	1	9309-9504			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97049-145-0	01	1	9505-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97071-560-1	01	1	9309-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
