Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#43283) — 364 parça

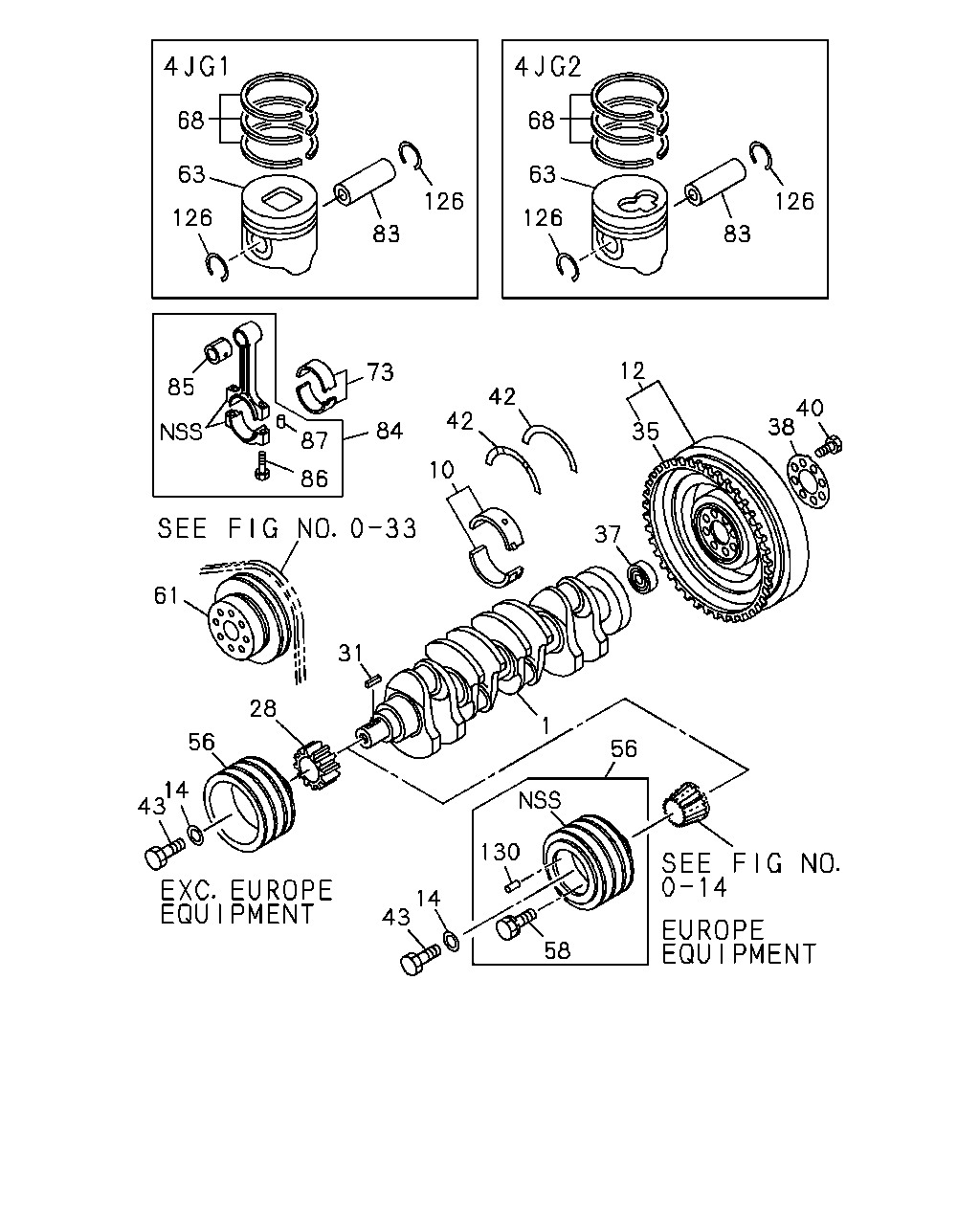

58 43 14 130 56 1 43 14 28 56 31 61 10 37 35 12 38 40 42 42 84 73 86 87 85 126 63 68 83 126 68 126 63 83 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9112-9504	●	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9505-	●
1	00.646 CRANKSHAFT	8-94163-188-1	01	1	9112-9510			●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9511-			●
1	00.646 CRANKSHAFT	8-97063-242-0	01	1	9112-9506				●
1	00.646 CRANKSHAFT	8-97112-580-2	01	1	9507-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 YELLOW	8-97072-978-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 GREEN	8-97072-979-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 BROWN	8-97072-980-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 PINK	8-97072-981-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 BROWN	8-97072-982-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 GREEN	8-97072-983-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 YELLOW	8-97072-984-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 PINK	8-97072-985-0	02	1	9112-				●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9112-9504	●	●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9505-	●
12	00.666 FLYWHEEL W/RING GEAR	8-94462-101-2	01	1	9112-			●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-94374-957-3	01	1	9112-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9401-9504	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9505-	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9112-9504		●
28	00.728 GEAR; CR/SHF EXC. EUROPE EQUIPMENT(EK4) Z=21	8-94139-754-0	01	1	9112-9504	●
28	00.728 GEAR; CR/SHF EXC. EUROPE EQUIPMENT(EK4) Z=21	8-94139-754-0	01	1	9505-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9112-9504	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9505-	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9112-9504	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9505-	●
35	00.673 GEAR; RING ID=271	9-12333-032-1	01	1	9112-			●
35	00.673 GEAR; RING A/T THM(RMQ) W/DRIVE PLATE	8-94374-968-2	01	1	9112-				●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9112-				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9112-9504	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9505-	●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	8-97031-741-0	01	1	9112-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9112-9504	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9505-	●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9112-			●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9112-				●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	08	1	9112-9312	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9401-9504	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9505-	●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9112-			●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9112-				●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9112-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9112-9504	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9505-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9112-			●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9112-				●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9112-9312	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-1	01	1	9401-9504	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9505-	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9112-			●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94387-650-2	01	1	9112-9504		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. EUROPE EQUIPMENT(EK4) 3-GROOVE	8-94387-650-2	01	1	9112-9504	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. EUROPE EQUIPMENT(EK4) 3-GROOVE	8-94387-650-2	01	1	9505-9708	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. EUROPE EQUIPMENT(EK4) 3-GROOVE	8-97184-135-0	01	1	9709-	●
56	00.659 PULLEY; CR/SHF DAMPER EUROPE EQUIPMENT(EK4) 3-GROOVE	8-94460-623-1	01	1	9112-9707	●
56	00.659 PULLEY; CR/SHF DAMPER EUROPE EQUIPMENT(EK4) 3-GROOVE	8-97182-904-0	01	1	9708-	●
58	00.659 BOLT; CR/SHF PULLEY EUROPE EQUIPMENT(EK4) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9112-9707	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9112-9504	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9505-	●
61	00.659 PULLEY; FAN DRIVE 4-GROOVE OD=127	8-97018-941-0	01	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-612-0	04	1	9112-9308		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-614-0	04	1	9309-9504		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-613-0	04	1	9112-9308		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-615-0	04	1	9309-9504		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-620-0	04	1	9112-9307	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EUROPE EQUIPMENT(EK4) GRADE=AX	8-97176-620-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EUROPE EQUIPMENT(EK4) GRADE=AX	8-97176-622-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-0	04	1	9309-9504	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-622-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-616-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-621-0	04	1	9112-9307	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EUROPE EQUIPMENT(EK4) GRADE=CX	8-97176-621-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EUROPE EQUIPMENT(EK4) GRADE=CX	8-97176-623-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-0	04	1	9309-9504	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-623-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-617-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-751-0	04	1	9112-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-752-0	04	1	9112-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97176-773-0	06	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97176-774-0	06	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97176-775-0	06	1	9112-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94379-486-0	04	1	9112-9308		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94370-449-0	04	1	9112-9308	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9309-9504	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9505-9708	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-	●
68	00.643 RING SET; PISTON,STANDARD	8-94405-614-2	04	1	9112-			●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4)	8-94319-223-0	06	1	9112-9501				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4)	8-97127-562-0	06	1	9502-				●
68	00.643 RING SET; PISTON,STANDARD EXC. EUROPE EQUIPMENT(EK4)	8-97037-372-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9112-9504	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9505-	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97072-986-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97072-987-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97072-988-0	06	1	9112-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9112-9504	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9505-	●
83	00.636 PIN; PISTON	8-94220-367-0	04	1	9112-			●
83	00.636 PIN; PISTON	9-12211-034-1	06	1	9112-				●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9112-9504	●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9505-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9112-			●
84	00.603 ROD ASM; CONN	8-94319-046-3	06	1	9112-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9112-9504	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9505-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9112-9504	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9505-	●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9112-			●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9112-9506				●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	24	1	9507-				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9112-9504	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9505-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9112-9504	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9505-	●
130	00.662 PIN; STRAIGHT EUROPE EQUIPMENT(EK4) 08.939 OD=4 L=12	9-08160-412-0	01	1	9112-9707	●

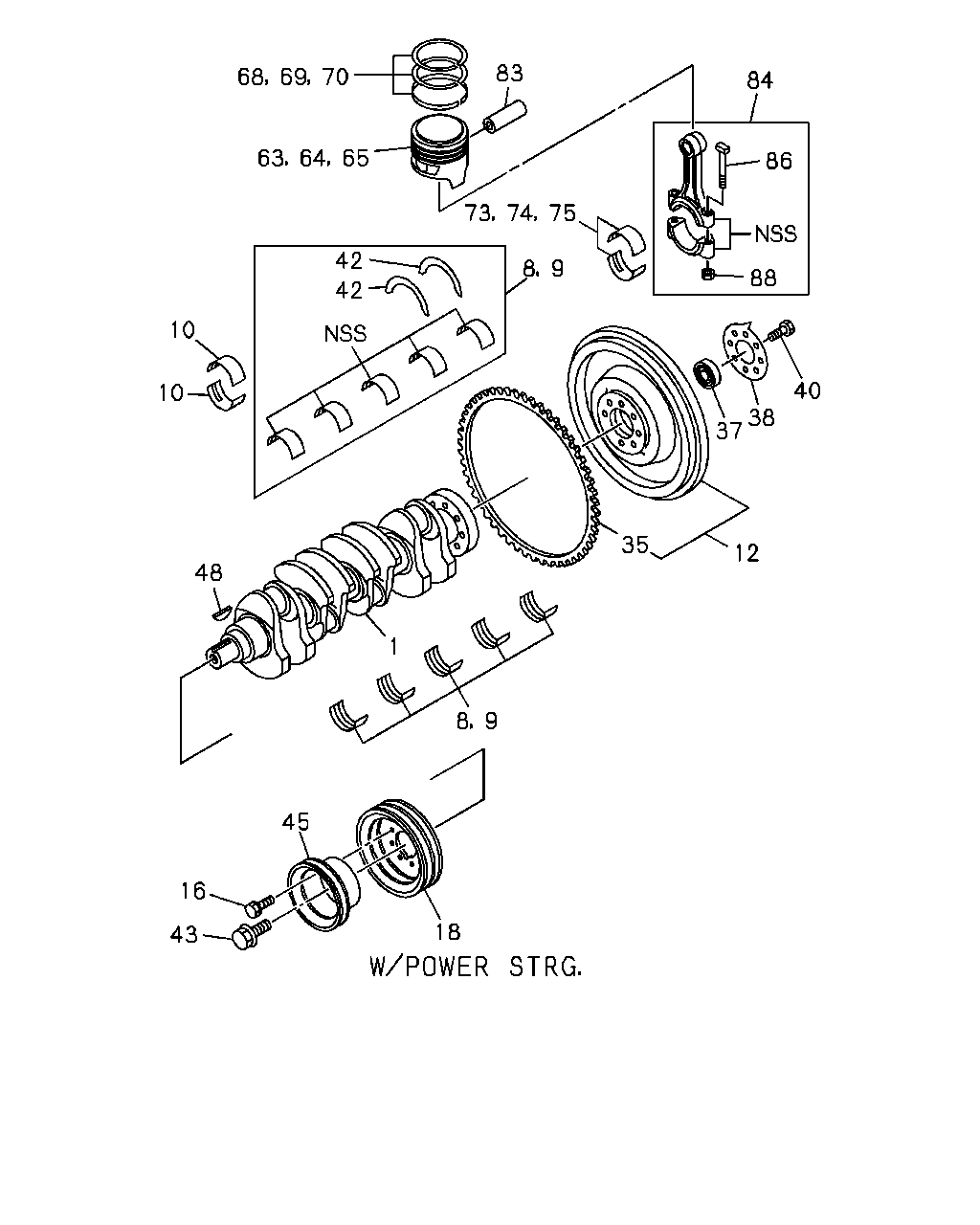

18 43 45 16 8 9 1 48 35 12 37 38 40 88 86 84 75 74 73 9 8 83 42 42 10 10 63 64 65 70 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9112-9504	●	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9505-	●
1	00.646 CRANKSHAFT	8-94163-188-1	01	1	9112-9510			●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9511-			●
1	00.646 CRANKSHAFT	8-97063-242-0	01	1	9112-9506				●
1	00.646 CRANKSHAFT	8-97112-580-2	01	1	9507-				●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-94320-176-0	01	1	9112-			●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-94320-177-0	01	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 YELLOW	8-97072-978-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 GREEN	8-97072-979-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 BROWN	8-97072-980-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 PINK	8-97072-981-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 BROWN	8-97072-982-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 GREEN	8-97072-983-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 YELLOW	8-97072-984-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 PINK	8-97072-985-0	02	1	9112-				●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9112-9504	●	●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9505-	●
12	00.666 FLYWHEEL W/RING GEAR	8-94462-101-2	01	1	9112-			●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-94374-957-3	01	1	9112-				●
16	00.662 BOLT; PULLEY TO CENTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	04	1	9112-			●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94174-281-3	01	1	9112-9202			●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9203-			●
18	00.659 PULLEY; CR/SHF 3-GROOVE	8-97045-330-3	01	1	9112-				●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9112-9504	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9505-	●
35	00.673 GEAR; RING ID=271	9-12333-032-1	01	1	9112-			●
35	00.673 GEAR; RING A/T THM(RMQ) W/DRIVE PLATE	8-94374-968-2	01	1	9112-				●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9112-				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9112-9504	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9505-	●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	8-97031-741-0	01	1	9112-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9112-9504	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9505-	●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9112-			●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9112-				●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	08	1	9112-9312	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9401-9504	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9505-	●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9112-			●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9112-				●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9112-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9112-9504	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9505-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9112-			●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9112-				●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9112-9312	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-1	01	1	9401-9504	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9505-	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9112-			●	●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C	8-94136-782-2	01	1	9112-			●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9112-			●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-612-0	04	1	9112-9308		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-614-0	04	1	9309-9504		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-613-0	04	1	9112-9308		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-615-0	04	1	9309-9504		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-620-0	04	1	9112-9307	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EUROPE EQUIPMENT(EK4) GRADE=AX	8-97176-620-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EUROPE EQUIPMENT(EK4) GRADE=AX	8-97176-622-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-0	04	1	9309-9504	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-622-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-616-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-621-0	04	1	9112-9307	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EUROPE EQUIPMENT(EK4) GRADE=CX	8-97176-621-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EUROPE EQUIPMENT(EK4) GRADE=CX	8-97176-623-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-0	04	1	9309-9504	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-623-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-617-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-751-0	04	1	9112-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-752-0	04	1	9112-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97176-773-0	06	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97176-774-0	06	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97176-775-0	06	1	9112-				●
64	00.629 PISTON; O/S=0.50	8-94319-522-1	04	1	9112-			●
65	00.629 PISTON; O/S=1.00	8-94319-523-1	04	1	9112-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94379-486-0	04	1	9112-9308		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94370-449-0	04	1	9112-9308	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9309-9504	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9505-9708	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-	●
68	00.643 RING SET; PISTON,STANDARD	8-94405-614-2	04	1	9112-			●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4)	8-94319-223-0	06	1	9112-9501				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4)	8-97127-562-0	06	1	9502-				●
68	00.643 RING SET; PISTON,STANDARD EXC. EUROPE EQUIPMENT(EK4)	8-97037-372-0	06	1	9112-				●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-249-0	04	1	9112-			●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-250-0	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9112-9504	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9505-	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97072-986-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97072-987-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97072-988-0	06	1	9112-				●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-94320-178-0	04	1	9112-			●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94320-179-0	04	1	9112-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9112-9504	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9505-	●
83	00.636 PIN; PISTON	8-94220-367-0	04	1	9112-			●
83	00.636 PIN; PISTON	9-12211-034-1	06	1	9112-				●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9112-9504	●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9505-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9112-			●
84	00.603 ROD ASM; CONN	8-94319-046-3	06	1	9112-				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9112-9504	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9505-	●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9112-			●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9112-9506				●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	24	1	9507-				●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9112-			●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	9112-9607				●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	24	1	9608-				●

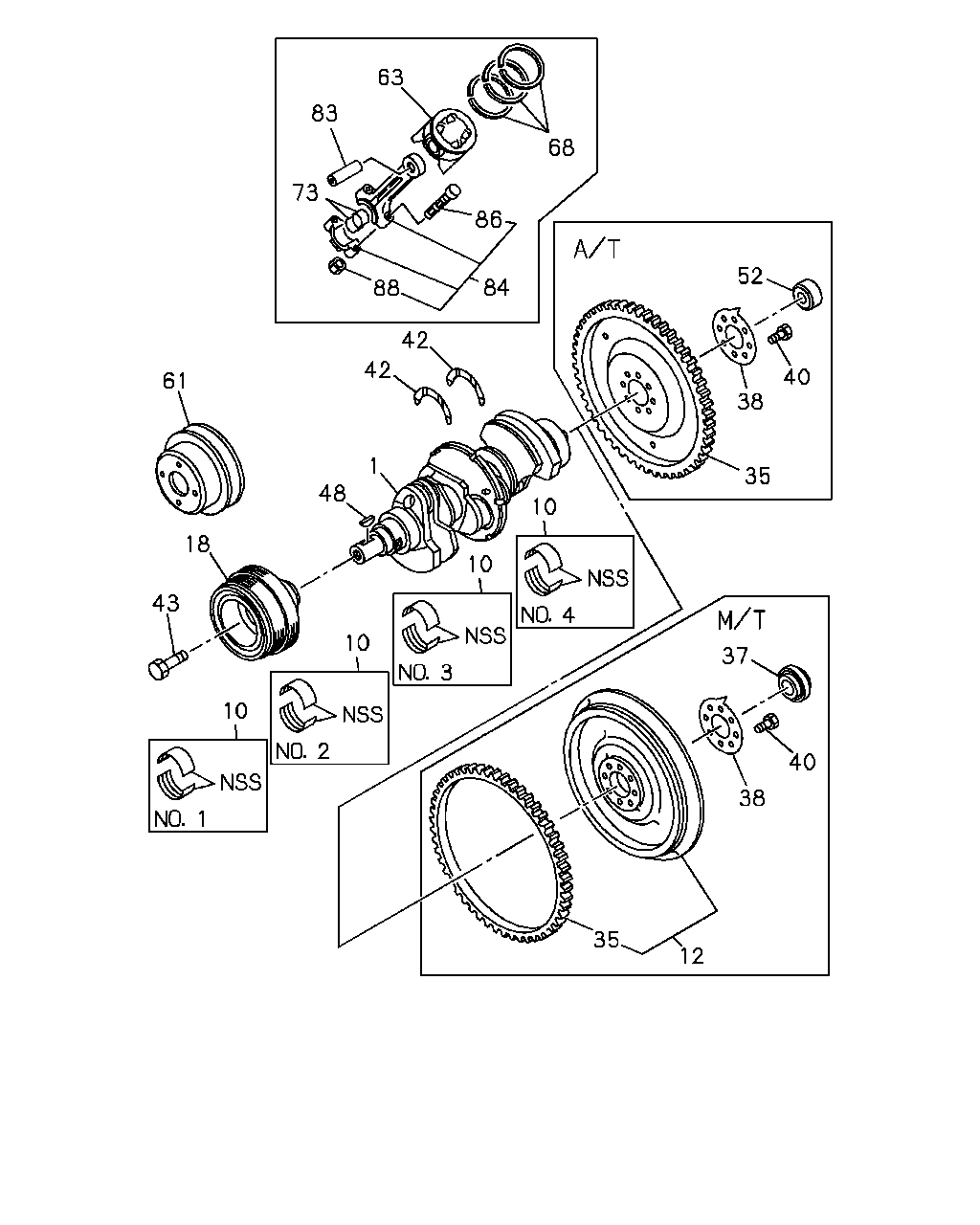

12 35 38 37 40 10 10 10 10 35 38 40 52 42 42 1 48 18 43 61 88 84 86 68 63 83 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9112-9504	●	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9505-	●
1	00.646 CRANKSHAFT	8-94163-188-1	01	1	9112-9510			●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9511-			●
1	00.646 CRANKSHAFT	8-97063-242-0	01	1	9112-9506				●
1	00.646 CRANKSHAFT	8-97112-580-2	01	1	9507-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9112-9504	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9505-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9112-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 YELLOW	8-97072-978-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 GREEN	8-97072-979-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 BROWN	8-97072-980-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 PINK	8-97072-981-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 BROWN	8-97072-982-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 GREEN	8-97072-983-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 YELLOW	8-97072-984-0	02	1	9112-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 PINK	8-97072-985-0	02	1	9112-				●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9112-9504	●	●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9505-	●
12	00.666 FLYWHEEL W/RING GEAR	8-94462-101-2	01	1	9112-			●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-94374-957-3	01	1	9112-				●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94174-281-3	01	1	9112-9202			●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9203-			●
18	00.659 PULLEY; CR/SHF 3-GROOVE	8-97045-330-3	01	1	9112-				●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9112-9504	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-0	01	1	9505-	●
35	00.673 GEAR; RING ID=271	9-12333-032-1	01	1	9112-			●
35	00.673 GEAR; RING A/T THM(RMQ) W/DRIVE PLATE	8-94374-968-2	01	1	9112-				●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9112-				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9112-9504	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9505-	●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	8-97031-741-0	01	1	9112-				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9112-9504	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9505-	●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9112-			●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9112-				●
40	00.669 BOLT; FLYWHEEL M13X36.5	8-94433-991-0	08	1	9112-9312	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9401-9504	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9505-	●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9112-			●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9112-				●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9112-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9112-9504	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9505-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9112-			●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9112-				●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9112-9312	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-1	01	1	9401-9504	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9505-	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9112-			●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9112-			●	●
52	00.669 SLEEVE; CONV PILOT A/T THM(RMQ)	8-94384-695-0	01	1	9112-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9112-9504	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9505-	●
61	00.659 PULLEY; FAN DRIVE 4-GROOVE OD=127	8-97018-941-0	01	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-612-0	04	1	9112-9308		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-614-0	04	1	9309-9504		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-613-0	04	1	9112-9308		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-615-0	04	1	9309-9504		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-620-0	04	1	9112-9307	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EUROPE EQUIPMENT(EK4) GRADE=AX	8-97176-620-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EUROPE EQUIPMENT(EK4) GRADE=AX	8-97176-622-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-0	04	1	9309-9504	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-622-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-616-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-621-0	04	1	9112-9307	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EUROPE EQUIPMENT(EK4) GRADE=CX	8-97176-621-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EUROPE EQUIPMENT(EK4) GRADE=CX	8-97176-623-0	04	1	9308-9308	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-0	04	1	9309-9504	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-623-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-617-0	04	1	9505-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-751-0	04	1	9112-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-752-0	04	1	9112-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97176-773-0	06	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97176-774-0	06	1	9112-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97176-775-0	06	1	9112-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94379-486-0	04	1	9112-9308		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94370-449-0	04	1	9112-9308	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9309-9504	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9505-9708	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-	●
68	00.643 RING SET; PISTON,STANDARD	8-94405-614-2	04	1	9112-			●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4)	8-94319-223-0	06	1	9112-9501				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4)	8-97127-562-0	06	1	9502-				●
68	00.643 RING SET; PISTON,STANDARD EXC. EUROPE EQUIPMENT(EK4)	8-97037-372-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9112-9504	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9505-	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9112-			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97072-986-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97072-987-0	06	1	9112-				●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97072-988-0	06	1	9112-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9112-9504	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9505-	●
83	00.636 PIN; PISTON	8-94220-367-0	04	1	9112-			●
83	00.636 PIN; PISTON	9-12211-034-1	06	1	9112-				●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9112-9504	●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9505-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9112-			●
84	00.603 ROD ASM; CONN	8-94319-046-3	06	1	9112-				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9112-9504	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9505-	●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9112-			●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9112-9506				●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	24	1	9507-				●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9112-			●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	9112-9607				●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	24	1	9608-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
