Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#43282) — 424 parça

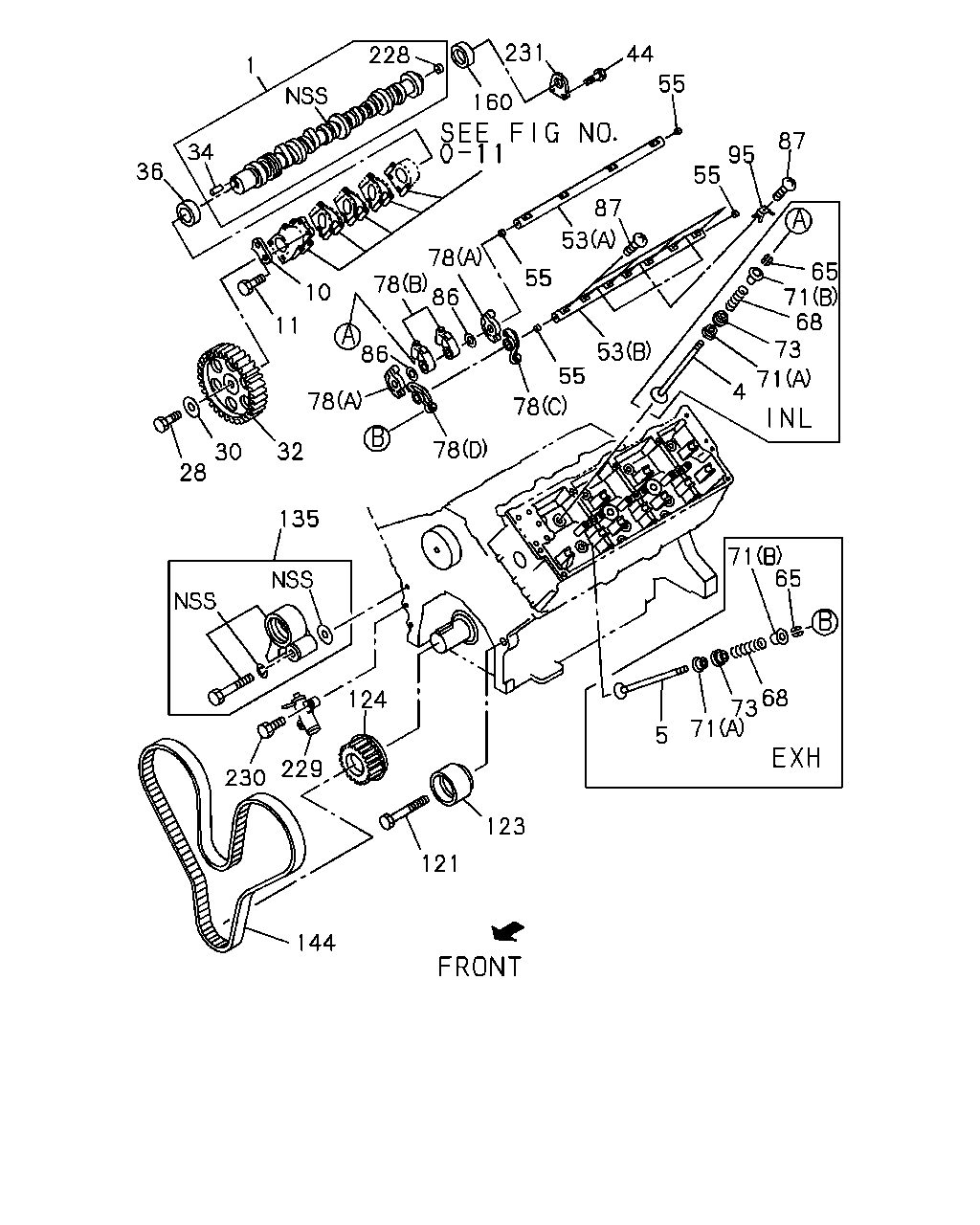

144 121 123 230 229 124 5 71 73 68 65 71 135 28 30 32 78 11 10 86 78 78 86 78 78 55 53 55 53 87 4 71 73 68 71 65 87 95 55 55 44 231 160 228 1 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9112-9504	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9505-	●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9112-			●
1	00.519 CAMSHAFT	8-97027-958-2	01	1	9112-				●
1	00.519 CAMSHAFT	8-97027-957-2	01	1	9112-				●
4	00.296 VALVE; INL	8-94363-134-0	04	1	9112-9307	●	●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-94363-134-0	04	1	9308-9308	●	●
4	00.296 VALVE; INL EXC. EUROPE EQUIPMENT(EK4)	8-97080-214-1	04	1	9308-9308	●	●
4	00.296 VALVE; INL	8-94363-134-0	04	1	9309-9504		●
4	00.296 VALVE; INL	8-97080-214-1	04	1	9309-9504	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9505-	●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9112-			●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-97015-546-2	12	1	9112-				●
4	00.296 VALVE; INL EXC. EUROPE EQUIPMENT(EK4)	8-97037-373-0	12	1	9112-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9112-9504	●	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-97043-861-1	04	1	9505-	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-0	04	1	9505-	●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9112-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH EUROPE EQUIPMENT(EK4)	8-97015-547-1	12	1	9112-				●
5	00.297 VALVE; EXH EXC. EUROPE EQUIPMENT(EK4)	8-97037-374-0	12	1	9112-				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9112-9504		●
10	00.533 PLATE; THRUST EXC. EUROPE EQUIPMENT(EK4)	8-94110-480-1	01	1	9112-9504	●
10	00.533 PLATE; THRUST EXC. EUROPE EQUIPMENT(EK4)	8-94110-480-1	01	1	9505-	●
10	00.533 PLATE; THRUST	8-94364-753-0	02	1	9112-				●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9112-9504	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9505-	●
11	00.533 BOLT; THRUST PLATE TO C/BL 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9112-				●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9112-			●
28	00.738 BOLT; CAM PULLEY 09.008 M10X32	9-02061-032-0	02	1	9112-9401				●
28	00.738 BOLT; CAM PULLEY M10X32	8-97109-673-0	02	1	9402-				●
30	00.662 WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9112-			●
30	00.662 WASHER; PULLEY 00.736	8-94232-045-0	02	1	9112-				●
32	00.736 SPROCKET; CM/SHF INL	8-97016-141-2	01	1	9112-9411				●
32	00.736 SPROCKET; CM/SHF INL	8-97066-480-2	01	1	9112-9411				●
32	00.736 SPROCKET; CM/SHF INL	8-97065-823-2	02	1	9412-				●
34	00.533 PIN; CM/SHF 00.662	9-08160-512-0	01	1	9112-			●
34	00.533 PIN; CM/SHF 00.738 OD=5 L=10	9-08160-510-0	02	1	9112-				●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) 00.213 OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=45	8-94334-845-0	01	1	9112-			●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94389-593-1	02	1	9112-				●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9504		●
44	00.738 BOLT EXC. EUROPE EQUIPMENT(EK4) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9504	●
44	00.738 BOLT EXC. EUROPE EQUIPMENT(EK4) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9505-	●
44	00.738 BOLT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9404-				●
44	00.738 BOLT EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9404-				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-9504	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9505-	●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94364-723-2	02	1	9112-				●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94364-724-1	02	1	9112-				●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-9504	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9505-	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9112-			●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9112-			●
55	00.356 PLUG; ROCKER SHAFT END	8-94454-615-0	08	1	9112-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9112-9504	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9505-	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9112-			●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9112-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-9504	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9505-	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9112-			●
68	00.303 SPRING; VLV	8-97023-108-1	24	1	9112-				●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9112-9504	●	●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9505-	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9112-9504	●	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9505-	●
71	00.309 SEAT; SPR (A) LOWER OD=34	8-94200-749-0	08	1	9112-			●
71	00.309 SEAT; SPR (B) UPPER OD=32	8-94233-232-1	08	1	9112-			●
71	00.309 SEAT; SPR (A) LOWER OD=30.5	8-94316-354-0	24	1	9112-				●
71	00.309 SEAT; SPR (B) UPPER OD=29	8-94370-633-1	24	1	9112-				●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97033-673-0	08	1	9112-			●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-158-1	24	1	9112-				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9112-9504	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9505-	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9112-			●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9209-			●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97021-542-0	12	1	9112-9207				●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97084-929-1	12	1	9208-				●
78	00.333 ARM; ROCKER (B) INLET	8-97032-012-0	12	1	9112-9207				●
78	00.333 ARM; ROCKER (B) INLET	8-97084-927-1	12	1	9208-9308				●
78	00.333 ARM; ROCKER (B) INLET	8-97089-270-2	12	1	9309-				●
78	00.333 ARM; ROCKER (C) EXHAUST	8-97032-013-1	06	1	9112-				●
78	00.333 ARM; ROCKER (D) EXHAUST	8-97032-014-1	06	1	9112-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9112-9504	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9505-	●
86	00.349 WASHER; ROCKER ARM FIX	8-94360-876-0	12	1	9112-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9112-9504	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9505-	●
87	00.349 BOLT; ROCKER SHAFT M8X32 HEX SOCKET	8-94365-130-0	22	1	9112-				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-9504	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9505-	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT	8-94379-497-1	06	1	9112-				●
121	00.724 BOLT; IDLE PULLEY EUROPE EQUIPMENT(EK4) M12X60	0-10811-260-0	01	1	9112-9206	●
121	00.724 BOLT; IDLE PULLEY EUROPE EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9207-	●
121	00.724 BOLT; IDLE PULLEY M10X60 FLANGE	0-28191-060-0	01	1	9112-				●
123	00.724 PULLEY; IDLE,TIMING EUROPE EQUIPMENT(EK4)	8-94382-215-0	01	1	9112-	●
123	00.724 PULLEY; IDLE,TIMING	8-94386-488-3	01	1	9112-				●
124	00.659 PULLEY; TIMING,CR/SHF EUROPE EQUIPMENT(EK4) Z=22	8-94133-501-3	01	1	9112-	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9112-			●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-				●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9112-			●
135	00.724 PULLEY; TENSIONER	8-94364-816-1	01	1	9112-9408				●
135	00.724 PULLEY; TENSIONER	8-97116-002-0	01	1	9409-				●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9112-9304	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-97065-986-0	01	1	9305-9503	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9504-	●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9112-			●
144	00.724 BELT; TIMING BANDO L=1784	8-97016-326-0	01	1	9112-				●
160	00.533 PLUG; CM/SHF END NOK OD=45	8-94471-941-2	02	1	9112-				●
228	00.738 CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	02	1	9112-				●
229	00.724 ROD ASM; PUSH,TENSIONER	8-94364-817-0	01	1	9112-9408				●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97116-003-1	01	1	9409-				●
230	00.724 BOLT; PUSH ROD 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9112-				●
231	00.662 PLATE; CAP HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=35 & 2-8.5	8-97113-327-0	01	1	9404-				●
231	00.662 PLATE; CAP EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=35 & 2-8.5	8-97113-327-0	02	1	9404-				●

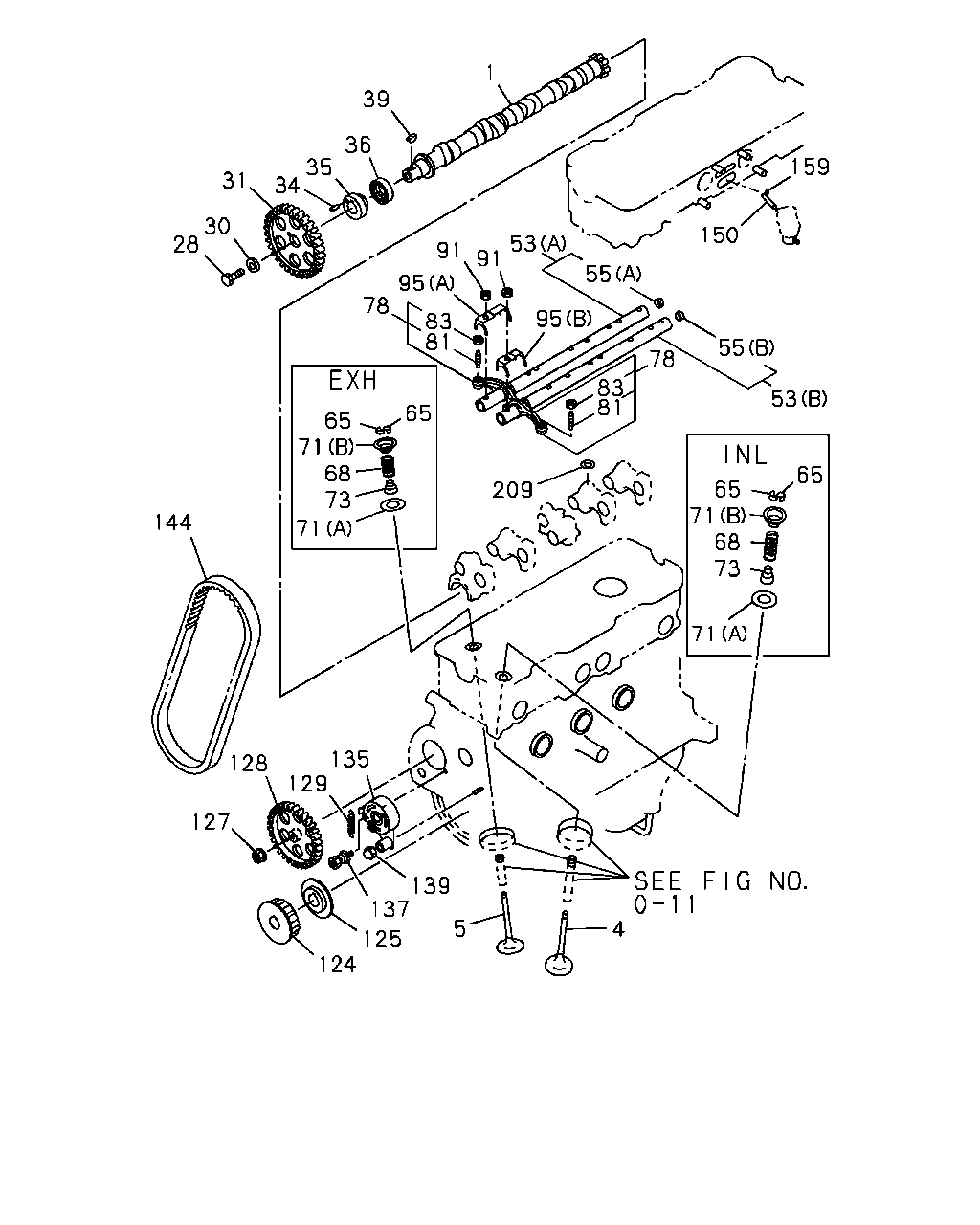

4 5 139 137 125 124 127 128 129 135 144 71 71 73 68 65 65 209 71 73 71 68 65 65 81 83 78 55 53 55 95 81 83 78 95 91 91 53 150 159 1 39 36 35 34 31 30 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9112-9504	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9505-	●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9112-			●
1	00.519 CAMSHAFT	8-97027-958-2	01	1	9112-				●
1	00.519 CAMSHAFT	8-97027-957-2	01	1	9112-				●
4	00.296 VALVE; INL	8-94363-134-0	04	1	9112-9307	●	●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-94363-134-0	04	1	9308-9308	●	●
4	00.296 VALVE; INL EXC. EUROPE EQUIPMENT(EK4)	8-97080-214-1	04	1	9308-9308	●	●
4	00.296 VALVE; INL	8-94363-134-0	04	1	9309-9504		●
4	00.296 VALVE; INL	8-97080-214-1	04	1	9309-9504	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9505-	●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9112-			●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-97015-546-2	12	1	9112-				●
4	00.296 VALVE; INL EXC. EUROPE EQUIPMENT(EK4)	8-97037-373-0	12	1	9112-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9112-9504	●	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-97043-861-1	04	1	9505-	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-0	04	1	9505-	●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9112-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH EUROPE EQUIPMENT(EK4)	8-97015-547-1	12	1	9112-				●
5	00.297 VALVE; EXH EXC. EUROPE EQUIPMENT(EK4)	8-97037-374-0	12	1	9112-				●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9112-			●
28	00.738 BOLT; CAM PULLEY 09.008 M10X32	9-02061-032-0	02	1	9112-9401				●
28	00.738 BOLT; CAM PULLEY M10X32	8-97109-673-0	02	1	9402-				●
30	00.662 WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9112-			●
30	00.662 WASHER; PULLEY 00.736	8-94232-045-0	02	1	9112-				●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) Z=44	8-94133-510-2	01	1	9112-9210	●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) Z=44	8-97043-288-0	01	1	9211-9503	●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) Z=44	8-97116-059-0	01	1	9504-9608	●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) 960826- Z=44	8-97147-983-0	01	1	9608-	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9112-			●
34	00.533 PIN; CM/SHF 00.662	9-08160-512-0	01	1	9112-			●
34	00.533 PIN; CM/SHF 00.738 OD=5 L=10	9-08160-510-0	02	1	9112-				●
35	00.533 BOSS; CM/SHF	8-94251-272-1	01	1	9112-			●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) 00.213 OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=45	8-94334-845-0	01	1	9112-			●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94389-593-1	02	1	9112-				●
39	00.529 KEY; WOODRUFF,BOSS 08.960	9-08055-516-0	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-9504	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9505-	●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94364-723-2	02	1	9112-				●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94364-724-1	02	1	9112-				●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-9504	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9505-	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9112-			●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9112-			●
55	00.356 PLUG; ROCKER SHAFT END	8-94454-615-0	08	1	9112-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9112-9504	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9505-	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9112-			●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9112-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-9504	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9505-	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9112-			●
68	00.303 SPRING; VLV	8-97023-108-1	24	1	9112-				●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9112-9504	●	●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9505-	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9112-9504	●	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9505-	●
71	00.309 SEAT; SPR (A) LOWER OD=34	8-94200-749-0	08	1	9112-			●
71	00.309 SEAT; SPR (B) UPPER OD=32	8-94233-232-1	08	1	9112-			●
71	00.309 SEAT; SPR (A) LOWER OD=30.5	8-94316-354-0	24	1	9112-				●
71	00.309 SEAT; SPR (B) UPPER OD=29	8-94370-633-1	24	1	9112-				●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97033-673-0	08	1	9112-			●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94324-158-1	24	1	9112-				●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9112-9504	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9505-	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9112-			●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9209-			●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97021-542-0	12	1	9112-9207				●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97084-929-1	12	1	9208-				●
78	00.333 ARM; ROCKER (B) INLET	8-97032-012-0	12	1	9112-9207				●
78	00.333 ARM; ROCKER (B) INLET	8-97084-927-1	12	1	9208-9308				●
78	00.333 ARM; ROCKER (B) INLET	8-97089-270-2	12	1	9309-				●
78	00.333 ARM; ROCKER (C) EXHAUST	8-97032-013-1	06	1	9112-				●
78	00.333 ARM; ROCKER (D) EXHAUST	8-97032-014-1	06	1	9112-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9112-9504	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9505-	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9112-			●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9112-9504	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9505-	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9112-			●
91	00.349 NUT; ROCKER SHAFT 00.002 M8	9-09110-508-0	10	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-9504	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9505-	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT	8-94379-497-1	06	1	9112-				●
124	00.659 PULLEY; TIMING,CR/SHF EUROPE EQUIPMENT(EK4) Z=22	8-94133-501-3	01	1	9112-	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9112-			●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-				●
125	00.662 PLATE; GUIDE,TIMING BELT 00.724	8-94215-184-0	01	1	9112-			●
127	00.724 NUT; PULLEY M12	8-94221-051-0	01	1	9112-			●
128	00.724 PULLEY; TIMING,OIL PUMP Z=45	8-94174-224-1	01	1	9112-			●
129	00.724 SPRING; TENSIONER L=65	8-94472-329-0	01	1	9112-			●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9112-			●
135	00.724 PULLEY; TENSIONER	8-94364-816-1	01	1	9112-9408				●
135	00.724 PULLEY; TENSIONER	8-97116-002-0	01	1	9409-				●
137	00.724 BOLT; TENSIONER EUROPE EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9112-	●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9112-			●
139	00.724 NUT; TENSIONER 00.002 M8	9-09110-508-0	01	1	9112-			●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9112-9304	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-97065-986-0	01	1	9305-9503	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9504-	●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9112-			●
144	00.724 BELT; TIMING BANDO L=1784	8-97016-326-0	01	1	9112-				●
150	00.426 ROD ASM; PUSH,FUEL PUMP W/RING	8-94159-290-1	01	1	9112-			●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP	8-94159-292-0	01	1	9112-			●
209	00.349 WASHER; LK,ROCKER ARM BRKT 16.674 ID=8.4	9-09160-508-0	02	1	9112-			●

44 10 9 45 11 111 101 107 112 109 113 106 104 50 49 36 46 31 45 11 41 48 47 123 144 42 121 43 116 118 120 119 146 148 146 145 117 147 122 124 138 137

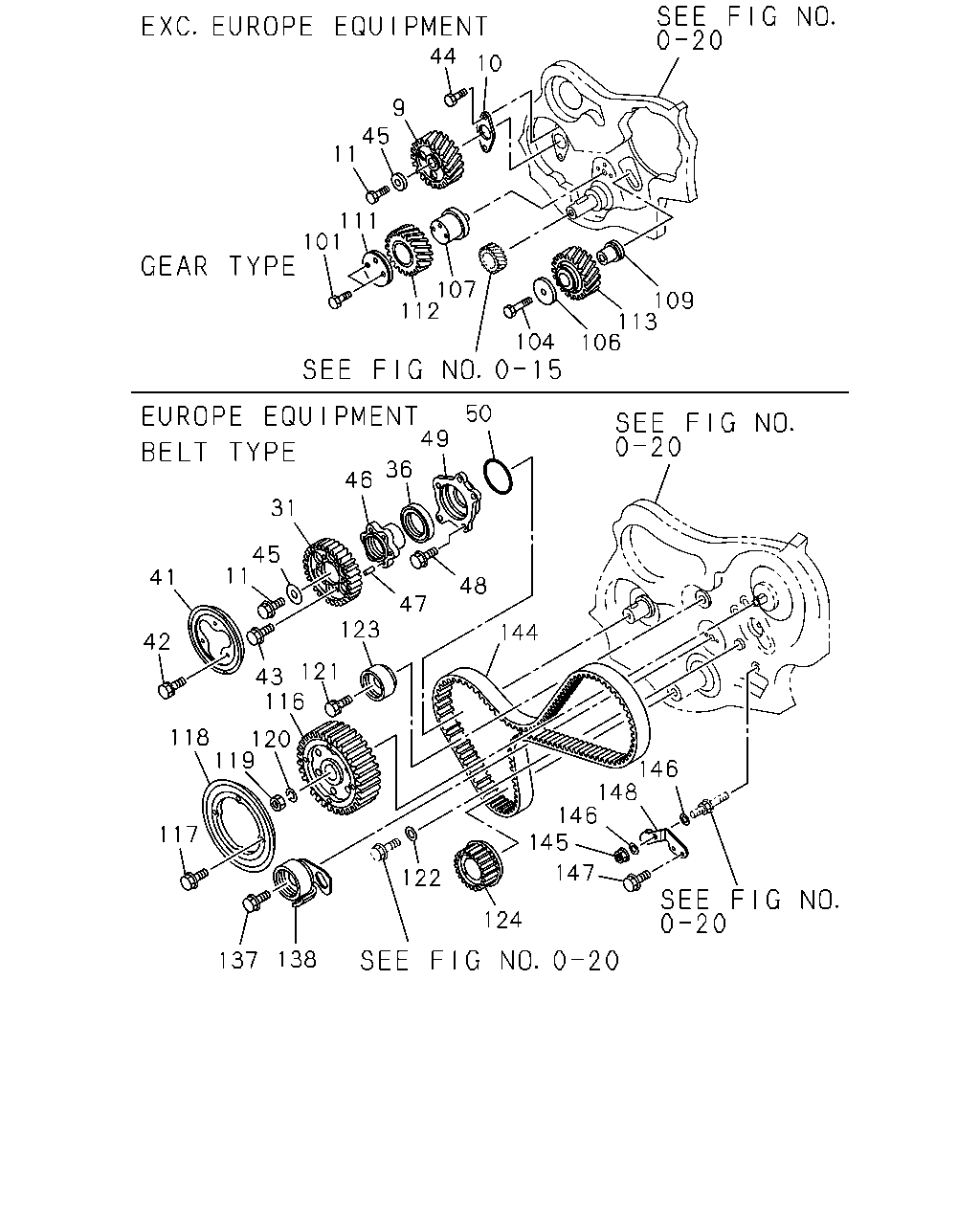

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	00.736 GEAR; CM/SHF	8-94110-479-1	01	1	9112-9212		●
9	00.736 GEAR; CM/SHF EXC. EUROPE EQUIPMENT(EK4)	8-94110-479-1	01	1	9112-9212	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-0	01	1	9301-9504		●
9	00.736 GEAR; CM/SHF EXC. EUROPE EQUIPMENT(EK4) Z=42	8-97079-212-0	01	1	9301-9504	●
9	00.736 GEAR; CM/SHF EXC. EUROPE EQUIPMENT(EK4) Z=42	8-97079-212-0	01	1	9505-	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9112-9504		●
10	00.533 PLATE; THRUST EXC. EUROPE EQUIPMENT(EK4)	8-94110-480-1	01	1	9112-9504	●
10	00.533 PLATE; THRUST EXC. EUROPE EQUIPMENT(EK4)	8-94110-480-1	01	1	9505-	●
10	00.533 PLATE; THRUST	8-94364-753-0	02	1	9112-				●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9112-9504	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9505-	●
11	00.533 BOLT; THRUST PLATE TO C/BL 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9112-				●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) Z=44	8-94133-510-2	01	1	9112-9210	●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) Z=44	8-97043-288-0	01	1	9211-9503	●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) Z=44	8-97116-059-0	01	1	9504-9608	●
31	00.736 SPROCKET; CM/SHF EUROPE EQUIPMENT(EK4) 960826- Z=44	8-97147-983-0	01	1	9608-	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9112-			●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) 00.213 OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=45	8-94334-845-0	01	1	9112-			●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94389-593-1	02	1	9112-				●
41	00.662 FLANGE; CAM PULLEY EUROPE EQUIPMENT(EK4)	8-94157-492-0	01	1	9112-	●
42	00.662 BOLT; FLANGE CAM EUROPE EQUIPMENT(EK4) 03.704 M8X16 W/LK WASHER	0-50040-816-0	03	1	9112-9307	●
42	00.662 BOLT; FLANGE CAM EUROPE EQUIPMENT(EK4) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9308-	●
43	00.662 BOLT; PULLEY EUROPE EQUIPMENT(EK4) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9112-	●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9504		●
44	00.738 BOLT EXC. EUROPE EQUIPMENT(EK4) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9504	●
44	00.738 BOLT EXC. EUROPE EQUIPMENT(EK4) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9505-	●
44	00.738 BOLT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9404-				●
44	00.738 BOLT EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9404-				●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9112-9504	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9505-	●
46	00.736 CENTER ASM; TIMING PULLEY EUROPE EQUIPMENT(EK4)	8-94133-513-1	01	1	9112-9501	●
46	00.736 CENTER ASM; TIMING PULLEY EUROPE EQUIPMENT(EK4)	8-97118-491-0	01	1	9502-	●
47	00.662 PIN; STRAIGHT,CENTER EUROPE EQUIPMENT(EK4) 08.939 OD=4 L=12	9-08160-412-0	01	1	9112-	●
48	00.724 BOLT; RET EUROPE EQUIPMENT(EK4) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9112-	●
49	00.724 RETAINER; OIL SEAL,CM/SHF EUROPE EQUIPMENT(EK4)	8-94133-516-2	01	1	9112-	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) 00.738	9-09561-250-0	01	1	9112-9305	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4)	8-97080-893-0	01	1	9306-	●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9112-9504		●
101	00.724 BOLT; THRUST COLLAR EXC. EUROPE EQUIPMENT(EK4) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9112-9504	●
101	00.724 BOLT; THRUST COLLAR EXC. EUROPE EQUIPMENT(EK4) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9505-	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	9112-9504		●
104	00.724 BOLT; SHAFT IDLE EXC. EUROPE EQUIPMENT(EK4)	8-94109-706-1	01	1	9112-9504	●
104	00.724 BOLT; SHAFT IDLE EXC. EUROPE EQUIPMENT(EK4)	8-94109-706-1	01	1	9505-	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9112-9504		●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. EUROPE EQUIPMENT(EK4) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9112-9504	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. EUROPE EQUIPMENT(EK4) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9505-	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9112-9504		●
107	00.724 SHAFT; IDLE GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94139-758-1	01	1	9112-9504	●
107	00.724 SHAFT; IDLE GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94139-758-1	01	1	9505-	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	9112-9504		●
109	00.724 SHAFT; IDLE GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94109-913-1	01	1	9112-9504	●
109	00.724 SHAFT; IDLE GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94109-913-1	01	1	9505-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9112-9504		●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94141-937-1	01	1	9112-9504	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. EUROPE EQUIPMENT(EK4)	8-94141-937-1	01	1	9505-	●
112	00.724 GEAR; IDLE Z=31	8-94139-759-0	01	1	9112-9504		●
112	00.724 GEAR; IDLE EXC. EUROPE EQUIPMENT(EK4) Z=31	8-94139-759-0	01	1	9112-9504	●
112	00.724 GEAR; IDLE EXC. EUROPE EQUIPMENT(EK4) Z=31	8-94139-759-0	01	1	9505-9611	●
112	00.724 GEAR; IDLE EXC. EUROPE EQUIPMENT(EK4) Z=31	8-97164-773-0	01	1	9612-	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	9112-9504		●
113	00.724 GEAR; IDLE EXC. EUROPE EQUIPMENT(EK4) Z=37	8-94139-761-0	01	1	9112-9504	●
113	00.724 GEAR; IDLE EXC. EUROPE EQUIPMENT(EK4) Z=37	8-94139-761-0	01	1	9505-	●
116	00.659 PULLEY; TIMING,INJ PUMP EUROPE EQUIPMENT(EK4)	8-94387-652-0	01	1	9112-9211	●
116	00.659 PULLEY; TIMING,INJ PUMP EUROPE EQUIPMENT(EK4) Z=44 B=37.7	8-97043-289-0	01	1	9212-	●
117	00.662 BOLT; FLANGE EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9112-	●
118	00.662 FLANGE; INJ PUMP PULLEY EUROPE EQUIPMENT(EK4) 03.340	5-12539-020-0	01	1	9112-9608	●
119	00.662 NUT; PULLEY EUROPE EQUIPMENT(EK4) 03.340 M14	8-94226-565-0	01	1	9112-	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP EUROPE EQUIPMENT(EK4) 03.340	8-94226-554-0	01	1	9112-	●
121	00.724 BOLT; IDLE PULLEY EUROPE EQUIPMENT(EK4) M12X60	0-10811-260-0	01	1	9112-9206	●
121	00.724 BOLT; IDLE PULLEY EUROPE EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9207-	●
121	00.724 BOLT; IDLE PULLEY M10X60 FLANGE	0-28191-060-0	01	1	9112-				●
122	00.724 WASHER; IDLE,TIMING BELT EUROPE EQUIPMENT(EK4) 06.172 ID=12.5	9-09164-512-0	01	1	9112-9206	●
123	00.724 PULLEY; IDLE,TIMING EUROPE EQUIPMENT(EK4)	8-94382-215-0	01	1	9112-	●
123	00.724 PULLEY; IDLE,TIMING	8-94386-488-3	01	1	9112-				●
124	00.659 PULLEY; TIMING,CR/SHF EUROPE EQUIPMENT(EK4) Z=22	8-94133-501-3	01	1	9112-	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9112-			●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-				●
137	00.724 BOLT; TENSIONER EUROPE EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9112-	●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9112-			●
138	00.724 TENSIONER; TIMING BELT EUROPE EQUIPMENT(EK4)	8-94382-214-0	01	1	9112-	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9112-9304	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-97065-986-0	01	1	9305-9503	●
144	00.724 BELT; TIMING EUROPE EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9504-	●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9112-			●
144	00.724 BELT; TIMING BANDO L=1784	8-97016-326-0	01	1	9112-				●
145	00.724 NUT; FLANGE EUROPE EQUIPMENT(EK4) 03.340 M8	8-94224-829-0	01	1	9112-9606	●
145	00.724 NUT; FLANGE EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	01	1	9607-	●
146	00.724 WASHER; PL,TENSION LEVER EUROPE EQUIPMENT(EK4) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●
147	00.724 BOLT; TENSION LEVER EUROPE EQUIPMENT(EK4) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9112-9605	●
147	00.724 BOLT; TENSION LEVER EUROPE EQUIPMENT(EK4) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9606-	●
148	00.724 LEVER; TENSION,TIMING BELT EUROPE EQUIPMENT(EK4)	8-94167-317-0	01	1	9112-9605	●
148	00.724 LEVER; TENSION,TIMING BELT EUROPE EQUIPMENT(EK4)	8-97146-370-0	01	1	9606-	●

1 14 89 4 5 88 71 68 72 71 65 65 55 56 78 84 78 95 54 53 81 83 86 85 86 87 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9112-9504	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9505-	●
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9112-			●
1	00.519 CAMSHAFT	8-97027-958-2	01	1	9112-				●
1	00.519 CAMSHAFT	8-97027-957-2	01	1	9112-				●
4	00.296 VALVE; INL	8-94363-134-0	04	1	9112-9307	●	●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-94363-134-0	04	1	9308-9308	●	●
4	00.296 VALVE; INL EXC. EUROPE EQUIPMENT(EK4)	8-97080-214-1	04	1	9308-9308	●	●
4	00.296 VALVE; INL	8-94363-134-0	04	1	9309-9504		●
4	00.296 VALVE; INL	8-97080-214-1	04	1	9309-9504	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9505-	●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9112-			●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-97015-546-2	12	1	9112-				●
4	00.296 VALVE; INL EXC. EUROPE EQUIPMENT(EK4)	8-97037-373-0	12	1	9112-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9112-9504	●	●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-97043-861-1	04	1	9505-	●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-0	04	1	9505-	●
5	00.297 VALVE; EXH	8-94174-223-1	04	1	9112-9403			●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	00.297 VALVE; EXH EUROPE EQUIPMENT(EK4)	8-97015-547-1	12	1	9112-				●
5	00.297 VALVE; EXH EXC. EUROPE EQUIPMENT(EK4)	8-97037-374-0	12	1	9112-				●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9112-9504	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9505-	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-9504	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9505-	●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9112-			●
53	00.353 SHAFT; ROCKER ARM (A) INLET	8-94364-723-2	02	1	9112-				●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST	8-94364-724-1	02	1	9112-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9112-9504	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9505-	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-9504	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9505-	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9112-			●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9112-			●
55	00.356 PLUG; ROCKER SHAFT END	8-94454-615-0	08	1	9112-				●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9112-9504	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9505-	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9112-9504	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9505-	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9112-			●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9112-				●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-9504	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9505-	●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9112-			●
68	00.303 SPRING; VLV	8-97023-108-1	24	1	9112-				●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9112-9504	●	●
71	00.309 SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9505-	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9112-9504	●	●
71	00.309 SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9505-	●
71	00.309 SEAT; SPR (A) LOWER OD=34	8-94200-749-0	08	1	9112-			●
71	00.309 SEAT; SPR (B) UPPER OD=32	8-94233-232-1	08	1	9112-			●
71	00.309 SEAT; SPR (A) LOWER OD=30.5	8-94316-354-0	24	1	9112-				●
71	00.309 SEAT; SPR (B) UPPER OD=29	8-94370-633-1	24	1	9112-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9112-9504	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.283	5-12569-006-0	08	1	9505-9604	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9605-	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9112-9504	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9505-	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9112-			●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9209-			●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97021-542-0	12	1	9112-9207				●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97084-929-1	12	1	9208-				●
78	00.333 ARM; ROCKER (B) INLET	8-97032-012-0	12	1	9112-9207				●
78	00.333 ARM; ROCKER (B) INLET	8-97084-927-1	12	1	9208-9308				●
78	00.333 ARM; ROCKER (B) INLET	8-97089-270-2	12	1	9309-				●
78	00.333 ARM; ROCKER (C) EXHAUST	8-97032-013-1	06	1	9112-				●
78	00.333 ARM; ROCKER (D) EXHAUST	8-97032-014-1	06	1	9112-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9112-9504	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9505-	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9112-			●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9112-9504	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9505-	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9112-			●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9112-9504	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9505-	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9112-9504	●	●
85	00.349 BOLT; BRKT TURBOCHARGER<K51> M8X15,M10X60 L=82	8-94433-304-0	02	1	9505-	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9112-9504	●	●
85	00.349 BOLT; BRKT TURBOCHARGER<K51> M8X37 & M10X60 L=104	8-94437-493-1	01	1	9505-	●
85	00.349 BOLT; BRKT EXC. TURBOCHARGER<K51> M8X15,M10X60 L=82	8-94433-304-0	03	1	9505-	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9112-9504	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9505-	●
86	00.349 WASHER; ROCKER ARM FIX	8-94360-876-0	12	1	9112-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9112-9504	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9505-	●
87	00.349 BOLT; ROCKER SHAFT M8X32 HEX SOCKET	8-94365-130-0	22	1	9112-				●
88	00.426 ROD; PUSH	8-94143-202-0	08	1	9112-9308	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9309-9504	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9505-	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9112-9504	●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9505-	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-9504	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9505-	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9112-			●
95	00.376 SPRING; ROCKER SHAFT	8-94379-497-1	06	1	9112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
