Sayfa 0-12 - Isuzu EPC

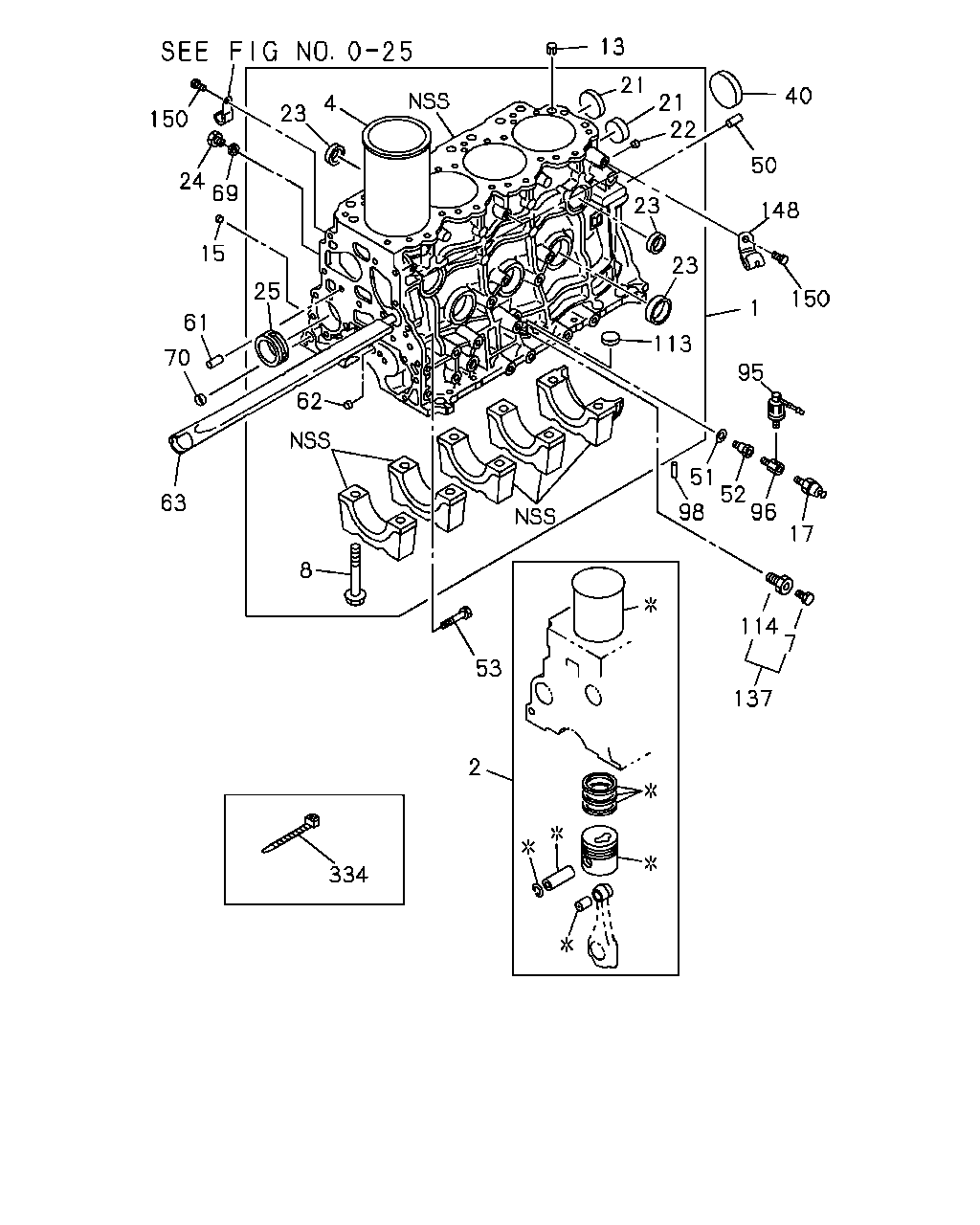

0-12 — CYLINDER BLOCK (#43280) — 230 parça

2 334 53 8 62 63 70 61 25 15 69 24 150 23 4 13 21 21 40 22 148 50 23 23 150 1 113 95 51 98 96 52 114 137 7 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97037-994-4	01	1	9112-9303	●
1	00.033 BLOCK ASM; CYL	8-97095-167-0	01	1	9304-9504	●
1	00.033 BLOCK ASM; CYL	8-94456-786-5	01	1	9112-9303		●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9304-		●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9112-			●
1	00.033 BLOCK ASM; CYL	8-97019-616-5	01	1	9112-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-197-0	04	1	9112-9303	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-201-0	04	1	9304-9308	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-197-0	04	1	9309-9504	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-198-0	04	1	9112-9303	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-202-0	04	1	9304-9308	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-198-0	04	1	9309-9504	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-199-0	04	1	9112-9303	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-203-0	04	1	9304-9308	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-199-0	04	1	9309-9504	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-200-0	04	1	9112-9303	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-204-0	04	1	9304-9308	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-200-0	04	1	9309-9504	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-217-0	04	1	9112-9308		●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-213-0	04	1	9309-9504		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-213-1	04	1	9505-		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-205-0	04	1	9505-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-218-0	04	1	9112-9308		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-214-0	04	1	9309-9504		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-214-1	04	1	9505-		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-206-0	04	1	9505-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-219-0	04	1	9112-9308		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-215-0	04	1	9309-9504		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-215-1	04	1	9505-		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-207-0	04	1	9505-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-220-0	04	1	9112-9308		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-216-0	04	1	9309-9504		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-216-1	04	1	9505-		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-208-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9505-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9112-9504	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9505-		●
7	00.034 PLUG; WATER DRAIN M10X30	9-09809-097-0	01	1	9112-9502	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9112-9502			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-9504	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9505-		●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9112-9504	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9505-		●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9112-			●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9112-				●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9112-				●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9112-9504	●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9505-		●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9112-			●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9112-				●
15	01.531 PLUG; OIL GALLERY PT1/8	5-09605-019-2	03	1	9112-9205	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9206-9504	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9505-		●
15	01.531 PLUG; OIL GALLERY PT1/8	5-09605-019-2	04	1	9112-9204			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9205-			●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9112-9504	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9505-		●
17	01.800 SWITCH; OIL PRESSURE WO/ADAPTER	8-94156-643-0	01	1	9112-			●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9112-9303	●	●
21	00.034 CUP; SEALING,RR OD=36	8-97036-548-0	01	1	9304-9305	●	●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9306-9504	●	●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9505-		●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9112-9303	●	●
21	00.034 CUP; SEALING,RR OD=38	8-97036-549-0	01	1	9304-9305	●	●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9306-9504	●	●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9505-		●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9112-			●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9112-9303	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12	8-97036-335-0	01	1	9304-9305	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9306-9504	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9505-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9112-9303	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=45	8-97036-550-0	03	1	9304-9305	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9306-9504	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9505-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9112-9303	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=18	8-97036-337-0	03	1	9304-9305	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9306-9504	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9505-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9112-9303	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	8-97036-339-0	02	1	9304-9305	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9306-9308	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	9112-9504	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	9505-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9309-9504	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9505-		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94419-728-0	01	1	9112-9504	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. TURBOCHARGER<K51>	8-94419-728-0	01	1	9505-		●
25	00.539 METAL; CM/SHF CENTER AND REAR	8-94427-201-1	02	1	9112-9504	●	●
25	00.539 METAL; CM/SHF CENTER AND REAR	8-94427-201-2	02	1	9505-		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-1	01	1	9112-9504	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9505-		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9112-9504	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9505-		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9112-9504	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9505-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9112-9504	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9505-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-1	01	1	9112-9203	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-1	01	1	9204-9504	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9505-		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9112-9504	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9505-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9112-9504	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9505-		●
62	00.034 CUP; SEALING,C/BL FRT EUROPE EQUIPMENT(EK4) OD=14	5-11219-011-0	01	1	9112-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9112-9504	●	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9505-		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-9504	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9112-9504	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9505-		●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9112-			●
95	01.800 PRESSURE UNIT; OIL	8-94232-115-2	01	1	9112-9504	●	●	●
95	01.800 PRESSURE UNIT; OIL	8-97106-478-2	01	1	9505-		●	●
96	01.800 ADAPTER; PRESS UNIT & SW PT1/8 & 2-PS1/8	8-94419-858-0	01	1	9112-9504	●	●
96	01.800 ADAPTER; PRESS UNIT & SW PT1/8 & 2-PS1/8	8-94419-858-1	01	1	9505-		●
96	01.800 ADAPTER; PRESS UNIT & SW	8-94454-582-1	01	1	9112-			●
98	01.428 PIN; C/BL TO CRANKCASE	9-09878-597-0	02	1	9112-9308	●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9112-9504	●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9505-		●
114	01.153 NIPPLE; WATER DRAIN	8-94133-968-1	01	1	9112-9502	●	●
137	00.034 COCK; DRAIN,WATER	8-94422-600-0	01	1	9112-9502	●	●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9112-9203	●	●
148	02.313 CLIP; HARNESS 01.152 ID=18 L=44	8-94225-185-0	03	1	9204-9504	●	●
148	02.313 CLIP; HARNESS 01.152 ID=18 L=44	8-94225-185-0	03	1	9505-		●
150	02.313 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 00.206 M8X12 W/LK WASHER	0-50040-812-0	04	1	9112-9402	●
150	02.313 BOLT; CLIP 00.206 M8X12 W/LK WASHER	0-50040-812-0	04	1	9112-9402		●
150	02.313 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) 03.330 M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9403-9504	●
150	02.313 BOLT; CLIP 03.330 M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9403-9504		●
150	02.313 BOLT; CLIP 03.330 M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9505-9612		●
150	02.313 BOLT; CLIP 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9701-		●
150	02.313 BOLT; CLIP EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.206 M8X12 W/LK WASHER	0-50040-812-0	03	1	9112-9402	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9403-9504	●	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9505-		●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9112-9504	●	●	●	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9505-		●	●	●

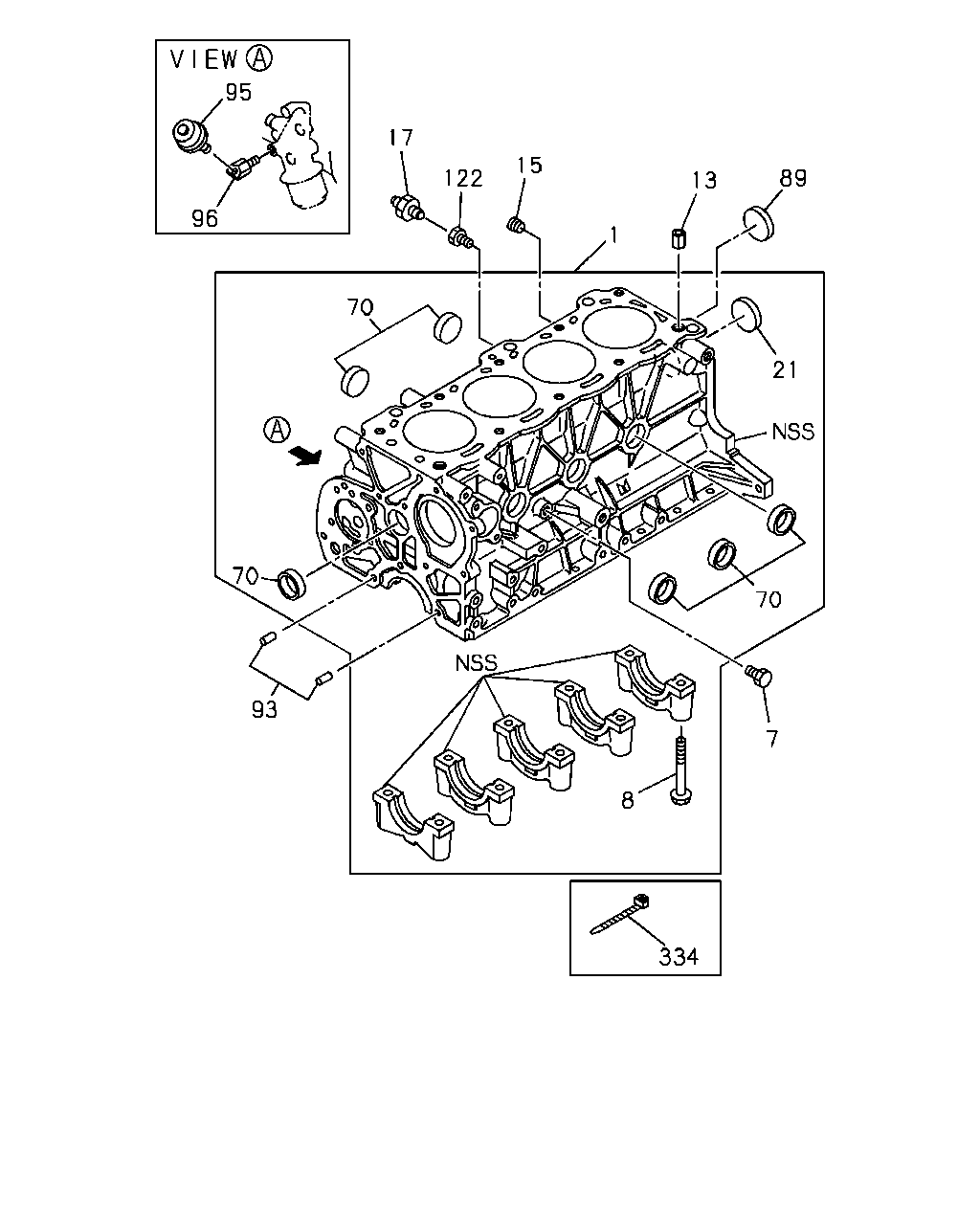

95 96 17 15 122 1 13 89 21 70 70 93 334 8 7 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97037-994-4	01	1	9112-9303	●
1	00.033 BLOCK ASM; CYL	8-97095-167-0	01	1	9304-9504	●
1	00.033 BLOCK ASM; CYL	8-94456-786-5	01	1	9112-9303		●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9304-		●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9112-			●
1	00.033 BLOCK ASM; CYL	8-97019-616-5	01	1	9112-				●
7	00.034 PLUG; WATER DRAIN M10X30	9-09809-097-0	01	1	9112-9502	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9112-9502			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-9504	●	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9505-		●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9112-9504	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9505-		●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9112-			●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9112-				●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9112-				●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9112-9504	●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9505-		●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9112-			●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9112-				●
15	01.531 PLUG; OIL GALLERY PT1/8	5-09605-019-2	03	1	9112-9205	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9206-9504	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9505-		●
15	01.531 PLUG; OIL GALLERY PT1/8	5-09605-019-2	04	1	9112-9204			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9205-			●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9112-9504	●	●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9505-		●
17	01.800 SWITCH; OIL PRESSURE WO/ADAPTER	8-94156-643-0	01	1	9112-			●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9112-9303	●	●
21	00.034 CUP; SEALING,RR OD=36	8-97036-548-0	01	1	9304-9305	●	●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9306-9504	●	●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9505-		●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9112-9303	●	●
21	00.034 CUP; SEALING,RR OD=38	8-97036-549-0	01	1	9304-9305	●	●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9306-9504	●	●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9505-		●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9112-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9112-9504	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9505-		●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9112-			●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=18	5-11219-008-0	02	1	9112-			●
93	00.206 DOWEL; RET TO C/BL OD=11 L=8	9-11229-058-1	02	1	9112-			●
95	01.800 PRESSURE UNIT; OIL	8-94232-115-2	01	1	9112-9504	●	●	●
95	01.800 PRESSURE UNIT; OIL	8-97106-478-2	01	1	9505-		●	●
96	01.800 ADAPTER; PRESS UNIT & SW PT1/8 & 2-PS1/8	8-94419-858-0	01	1	9112-9504	●	●
96	01.800 ADAPTER; PRESS UNIT & SW PT1/8 & 2-PS1/8	8-94419-858-1	01	1	9505-		●
96	01.800 ADAPTER; PRESS UNIT & SW	8-94454-582-1	01	1	9112-			●
122	01.800 ADAPTER; OIL PRESSURE SWITCH PT1/8 STRAIGHT	9-09902-238-0	01	1	9112-			●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9112-9504	●	●	●	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9505-		●	●	●

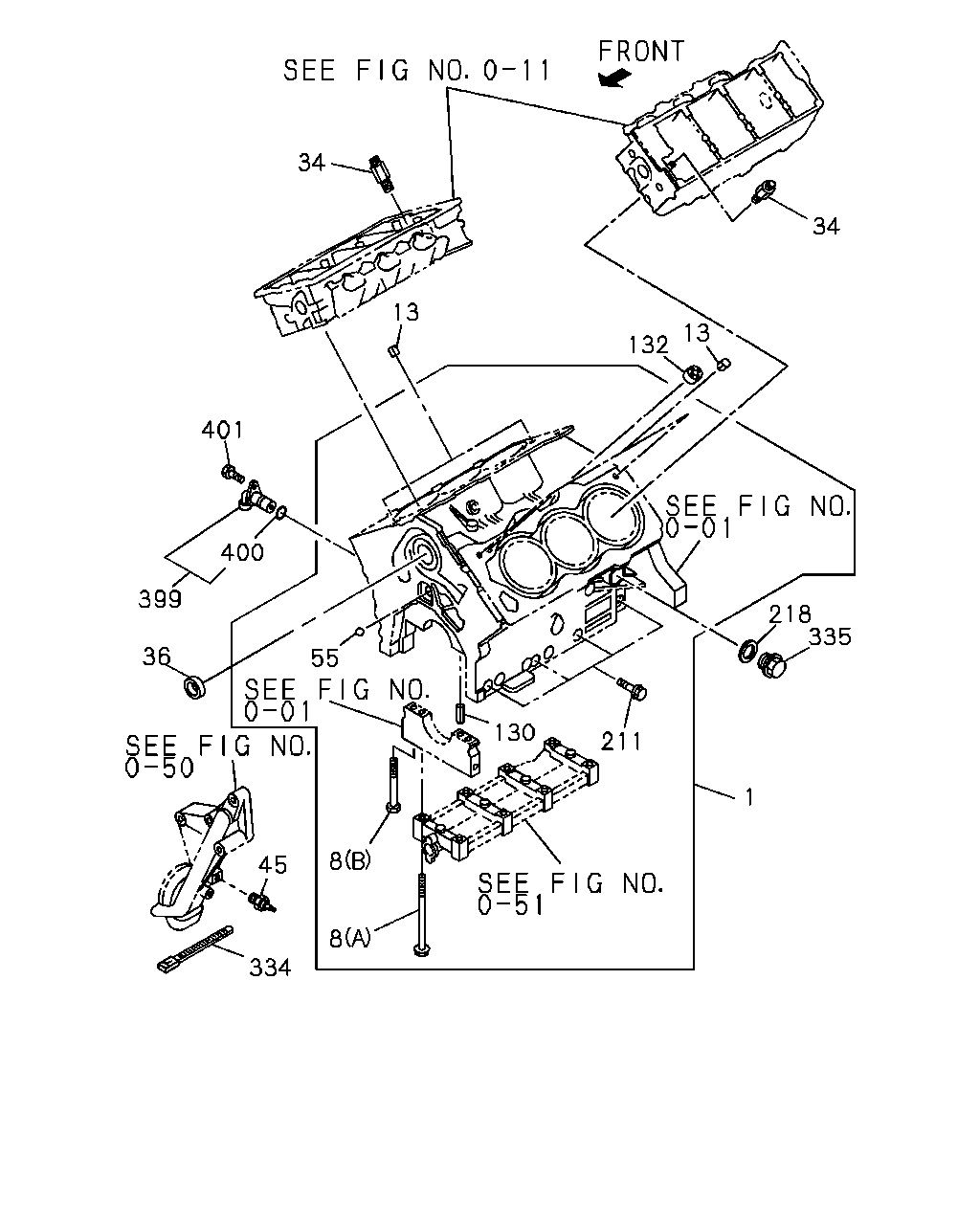

34 13 132 13 34 401 400 399 36 55 45 334 8 8 211 130 1 335 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97037-994-4	01	1	9112-9303	●
1	00.033 BLOCK ASM; CYL	8-97095-167-0	01	1	9304-9504	●
1	00.033 BLOCK ASM; CYL	8-94456-786-5	01	1	9112-9303		●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9304-		●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9112-			●
1	00.033 BLOCK ASM; CYL	8-97019-616-5	01	1	9112-				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9112-9504	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9505-		●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9112-			●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9112-				●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9112-				●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9112-9504	●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9505-		●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9112-			●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9112-				●
34	01.609 VALVE; OIL RELIEF	8-94384-311-0	02	1	9112-				●
36	00.034 CUP; SEALING,WATER JACKET 00.293 OD=30	8-94241-638-0	02	1	9112-				●
45	01.800 SWITCH; OIL PRESSURE	8-94312-940-0	01	1	9112-				●
55	01.531 PLUG; OIL GALLERY 01.837 3/8" BALL	9-00097-011-0	01	1	9112-				●
130	00.056 DOWEL; BRG CAP	8-94382-070-0	08	1	9112-				●
132	01.519 VALVE; CHECK,OIL	8-97025-439-1	02	1	9112-				●
211	01.428 BOLT; CRANKCASE M10X31 FLANGE	8-94363-094-1	08	1	9112-				●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97028-304-0	01	1	9112-9310				●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9112-9504	●	●	●	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9505-		●	●	●
335	01.531 PLUG; C/BL,SIDE M28X16 FLANGE	8-97028-246-2	01	1	9112-				●
399	00.724 SENSOR; CRANKSHAFT POSITION	8-01103-661-0	01	1	9112-9305				●
399	00.724 SENSOR; CRANKSHAFT POSITION	8-10456-043-0	01	1	9306-				●
400	00.724 GASKET; CRANKSHAFT POSITION SENS	8-97049-451-0	01	1	9112-9305				●
400	00.724 GASKET; CRANKSHAFT POSITION SENS	8-01989-866-0	01	1	9306-				●
401	00.724 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
