0-11 — CYLINDER HEAD (#43279) — 285 parça

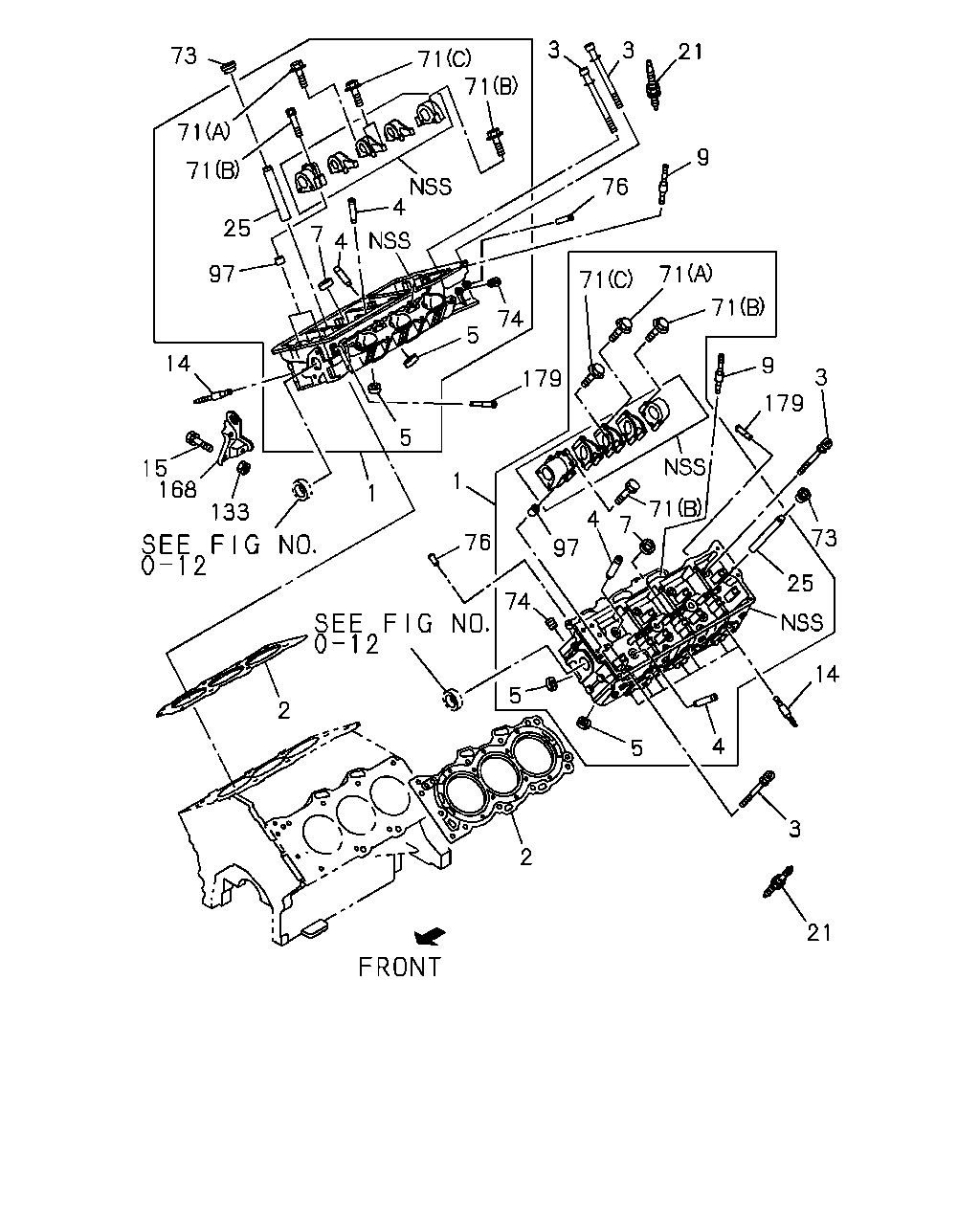

çizim 17050
21 3 3 76 9 71 71 71 9 3 179 73 25 14 3 21 4 5 5 2 2 76 74 97 4 7 71 179 1 1 133 168 15 14 5 5 74 4 7 4 71 71 73 71 25 97 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9112-9504 ●
1 00.269 HEAD ASM; CYL 8-97016-504-6 01 1 9112-9307 ●
1 00.269 HEAD ASM; CYL
EUROPE EQUIPMENT(EK4) 		8-97016-504-6 01 1 9308-9308 ●
1 00.269 HEAD ASM; CYL
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-338-2 01 1 9308-9308 ●
1 00.269 HEAD ASM; CYL 8-97086-338-2 01 1 9309-9504 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97086-338-3 01 1 9505- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97089-280-1 01 1 9505- ●
1 00.269 HEAD ASM; CYL 8-97023-676-0 01 1 9112-9409 ●
1 00.269 HEAD ASM; CYL 8-97111-153-0 01 1 9410- ●
1 00.269 HEAD ASM; CYL 8-97026-729-3 02 1 9112-9212 ●
1 00.269 HEAD ASM; CYL 8-97089-717-1 02 1 9301-9510 ●
1 00.269 HEAD ASM; CYL 8-97134-256-0 02 1 9511- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94174-279-0 01 1 9112- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97019-361-1 02 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9112-9504 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9505-9701 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M8X90 		9-05820-890-0 06 1 9112- ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9112-9504 ● ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9505- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9112- ●
4 00.283 GUIDE; VLV
EXHAUST 		8-94206-763-0 04 1 9112-9409 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9410- ●
4 00.283 GUIDE; VLV 8-94316-157-0 24 1 9112- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9112-9307 ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9309-9504 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
EUROPE EQUIPMENT(EK4) INLET 		8-94431-521-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
EXC. EUROPE EQUIPMENT(EK4) INLET 		8-97083-162-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9309- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9112-9504 ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-94431-522-0 04 1 9505- ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST 		8-94130-559-0 04 1 9505- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94174-204-0 04 1 9112-9212 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9301- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94174-205-0 04 1 9112-9409 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9410- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97015-610-0 12 1 9112- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97015-611-0 12 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=32 		5-11219-015-0 02 1 9304-9504 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=32 		5-11219-015-0 02 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		8-97036-338-0 07 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 04 1 9112- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9112- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9112- ●
14 03.275 STUD; EXH MANIF
(A) M8X30 L=46 		9-04010-830-0 04 1 9112- ●
14 03.275 STUD; EXH MANIF
03.613 (B) M8X42 L=58 		8-94202-457-2 03 1 9112-9205 ●
14 03.275 STUD; EXH MANIF
00.413 (B) M8X42 L=58 		8-97061-462-0 03 1 9206-9409 ●
14 03.275 STUD; EXH MANIF
(B) M8X42 L=58 		8-97118-447-0 03 1 9410- ●
14 03.275 STUD; EXH MANIF
M10X25 L=40 		0-49641-025-0 12 1 9112- ●
15 00.004 BOLT; HANGER,FRT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9112- ●
15 00.004 BOLT; HANGER,FRT
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9112-9510 ●
21 02.270 PLUG; SPARK
DENSO 		5-81380-008-0 04 1 9112-9410 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9112- ●
21 02.270 PLUG; SPARK
AC SPARK 		8-25108-074-0 06 1 9112-9506 ●
21 02.270 PLUG; SPARK
DENSO 		8-94328-374-0 06 1 9507- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9112- ●
25 00.293 PLUG; CYL HD 8-94364-752-4 06 1 9112- ●
71 00.413 BOLT; CAM BRKT
09.171 (A) M8X80 FLANGE 		0-28080-880-0 06 1 9112- ●
71 00.413 BOLT; CAM BRKT
03.275 (B) M8X53 FLANGE 		8-94458-474-1 12 1 9112- ●
71 00.413 BOLT; CAM BRKT
(C) M6X52 FLANGE REAMER 		8-97015-523-0 12 1 9112- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94372-154-0 06 1 9112- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		5-09605-019-2 04 1 9112-9707 ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 9708- ●
76 00.293 PLUG; CYL HD
D=8 TAPER 1/24 		5-11119-009-0 02 1 9112- ●
97 00.349 DOWEL; CAM BRKT SET
00.413 		8-94108-075-1 08 1 9112- ●
133 00.004 NUT; HANGER
M10 LOCK NUT 		8-94375-110-0 01 1 9112-9510 ●
133 00.004 NUT; HANGER
M10 LOCK NUT 		8-94375-110-0 02 1 9511- ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9112- ●
168 00.004 HANGER; ENG,FRT 8-94386-757-4 01 1 9112-9510 ●
168 00.004 HANGER; ENG,FRT 8-97104-310-0 01 1 9511- ●
179 00.293 PIPE; VENT
03.278 		8-94107-531-0 02 1 9112- ●

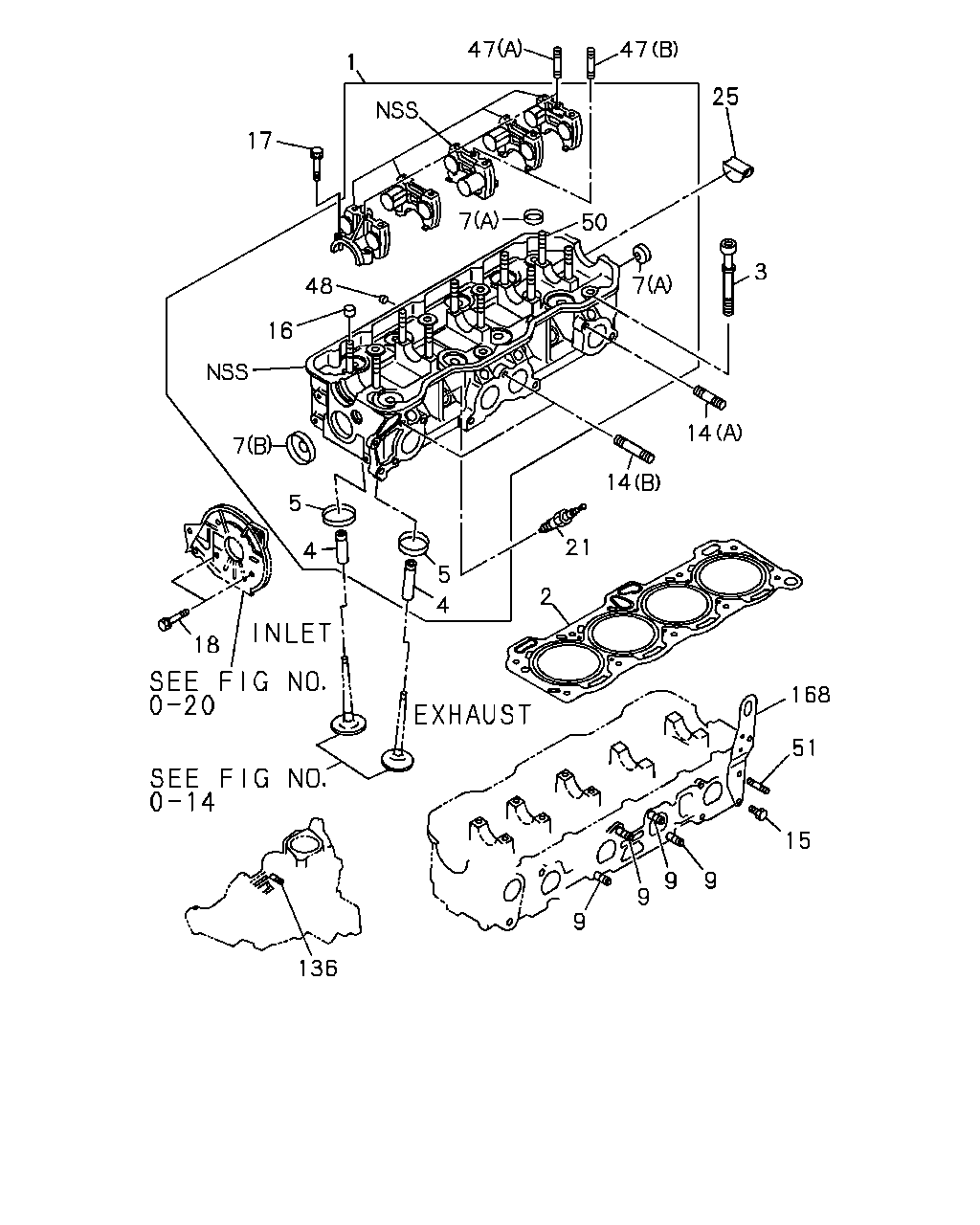

çizim 65478
9 9 9 9 15 51 168 2 4 5 21 14 14 3 7 50 25 47 47 1 17 7 48 16 7 5 4 18 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9112-9504 ●
1 00.269 HEAD ASM; CYL 8-97016-504-6 01 1 9112-9307 ●
1 00.269 HEAD ASM; CYL
EUROPE EQUIPMENT(EK4) 		8-97016-504-6 01 1 9308-9308 ●
1 00.269 HEAD ASM; CYL
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-338-2 01 1 9308-9308 ●
1 00.269 HEAD ASM; CYL 8-97086-338-2 01 1 9309-9504 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97086-338-3 01 1 9505- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97089-280-1 01 1 9505- ●
1 00.269 HEAD ASM; CYL 8-97023-676-0 01 1 9112-9409 ●
1 00.269 HEAD ASM; CYL 8-97111-153-0 01 1 9410- ●
1 00.269 HEAD ASM; CYL 8-97026-729-3 02 1 9112-9212 ●
1 00.269 HEAD ASM; CYL 8-97089-717-1 02 1 9301-9510 ●
1 00.269 HEAD ASM; CYL 8-97134-256-0 02 1 9511- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94174-279-0 01 1 9112- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97019-361-1 02 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9112-9504 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9505-9701 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M8X90 		9-05820-890-0 06 1 9112- ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9112-9504 ● ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9505- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9112- ●
4 00.283 GUIDE; VLV
EXHAUST 		8-94206-763-0 04 1 9112-9409 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9410- ●
4 00.283 GUIDE; VLV 8-94316-157-0 24 1 9112- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9112-9307 ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9309-9504 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
EUROPE EQUIPMENT(EK4) INLET 		8-94431-521-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
EXC. EUROPE EQUIPMENT(EK4) INLET 		8-97083-162-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9309- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9112-9504 ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-94431-522-0 04 1 9505- ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST 		8-94130-559-0 04 1 9505- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94174-204-0 04 1 9112-9212 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9301- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94174-205-0 04 1 9112-9409 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9410- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97015-610-0 12 1 9112- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97015-611-0 12 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=32 		5-11219-015-0 02 1 9304-9504 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=32 		5-11219-015-0 02 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		8-97036-338-0 07 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 04 1 9112- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9112- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9112- ●
14 03.275 STUD; EXH MANIF
(A) M8X30 L=46 		9-04010-830-0 04 1 9112- ●
14 03.275 STUD; EXH MANIF
03.613 (B) M8X42 L=58 		8-94202-457-2 03 1 9112-9205 ●
14 03.275 STUD; EXH MANIF
00.413 (B) M8X42 L=58 		8-97061-462-0 03 1 9206-9409 ●
14 03.275 STUD; EXH MANIF
(B) M8X42 L=58 		8-97118-447-0 03 1 9410- ●
14 03.275 STUD; EXH MANIF
M10X25 L=40 		0-49641-025-0 12 1 9112- ●
15 00.004 BOLT; HANGER,FRT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9112- ●
15 00.004 BOLT; HANGER,FRT
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9112-9510 ●
16 00.413 DOWEL; ROCKER SHAFT BRKT 8-94108-075-1 10 1 9112- ●
17 00.349 BOLT; ROCKER SHAFT BRKT
04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9112- ●
18 00.293 BOLT; SEAL PLATE
03.164 M6X18 		9-01960-618-0 02 1 9112-9204 ●
18 00.293 BOLT; SEAL PLATE
08.900 M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9205-9504 ●
21 02.270 PLUG; SPARK
DENSO 		5-81380-008-0 04 1 9112-9410 ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9112- ●
21 02.270 PLUG; SPARK
AC SPARK 		8-25108-074-0 06 1 9112-9506 ●
21 02.270 PLUG; SPARK
DENSO 		8-94328-374-0 06 1 9507- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9112- ●
25 00.293 PLUG; CYL HD 8-94364-752-4 06 1 9112- ●
47 00.413 STUD; CYL HD
00.349 (B) M8X33 L=44 		8-94232-311-0 01 1 9112- ●
47 00.413 STUD; CYL HD
00.349 (A) M8X18 L=29 		8-94232-312-0 02 1 9112- ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 OD=6.3 		8-94200-790-2 01 1 9112- ●
50 00.349 STUD; ROCKER SHAFT BRKT
M8X65 L=81 		9-04020-865-0 10 1 9112- ●
51 00.413 STUD; HANGER
M8X60 L=72 		9-04110-860-0 01 1 9112- ●
136 03.901 STUD; FUEL PUMP
03.726 M8X18 L=38 		8-94146-549-0 02 1 9112-9607 ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9112- ●
168 00.004 HANGER; ENG,FRT 8-94386-757-4 01 1 9112-9510 ●
168 00.004 HANGER; ENG,FRT 8-97104-310-0 01 1 9511- ●

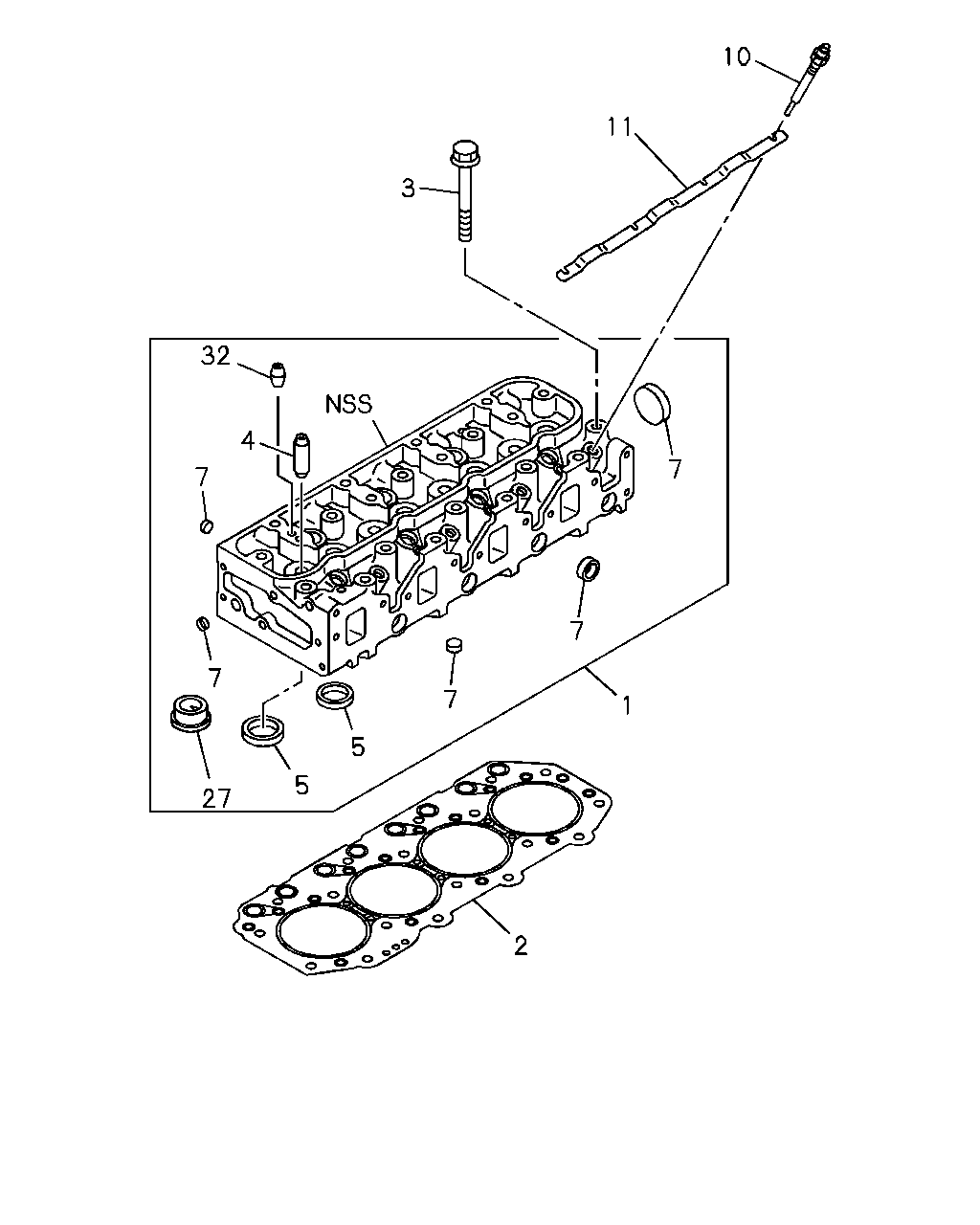

çizim 65679
10 11 3 32 4 7 7 27 5 2 5 1 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9112-9504 ●
1 00.269 HEAD ASM; CYL 8-97016-504-6 01 1 9112-9307 ●
1 00.269 HEAD ASM; CYL
EUROPE EQUIPMENT(EK4) 		8-97016-504-6 01 1 9308-9308 ●
1 00.269 HEAD ASM; CYL
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-338-2 01 1 9308-9308 ●
1 00.269 HEAD ASM; CYL 8-97086-338-2 01 1 9309-9504 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97086-338-3 01 1 9505- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97089-280-1 01 1 9505- ●
1 00.269 HEAD ASM; CYL 8-97023-676-0 01 1 9112-9409 ●
1 00.269 HEAD ASM; CYL 8-97111-153-0 01 1 9410- ●
1 00.269 HEAD ASM; CYL 8-97026-729-3 02 1 9112-9212 ●
1 00.269 HEAD ASM; CYL 8-97089-717-1 02 1 9301-9510 ●
1 00.269 HEAD ASM; CYL 8-97134-256-0 02 1 9511- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9112-9504 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94174-279-0 01 1 9112- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97019-361-1 02 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9112-9504 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9505-9701 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9112- ●
3 00.293 BOLT; CYL HD TO BLOCK
M8X90 		9-05820-890-0 06 1 9112- ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9112-9504 ● ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9505- ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9112- ●
4 00.283 GUIDE; VLV
EXHAUST 		8-94206-763-0 04 1 9112-9409 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9410- ●
4 00.283 GUIDE; VLV 8-94316-157-0 24 1 9112- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9112-9307 ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9309-9504 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
EUROPE EQUIPMENT(EK4) INLET 		8-94431-521-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
EXC. EUROPE EQUIPMENT(EK4) INLET 		8-97083-162-0 04 1 9308-9308 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9309- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9112-9504 ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-94431-522-0 04 1 9505- ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST 		8-94130-559-0 04 1 9505- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94174-204-0 04 1 9112-9212 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9301- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94174-205-0 04 1 9112-9409 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9410- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97015-610-0 12 1 9112- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97015-611-0 12 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=32 		5-11219-015-0 02 1 9304-9504 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=32 		5-11219-015-0 02 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=45 		1-09600-005-1 01 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		1-09600-011-2 07 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12.3 		5-09600-013-0 05 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9112-9303 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9306-9504 ● ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 03 1 9505- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
OD=22 		8-97036-338-0 07 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=25 		9-11129-079-0 02 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=40 		9-11219-309-0 01 1 9112- ●
7 00.253 CUP; SEALING,CYL HEAD
OD=16 		5-11129-006-0 04 1 9112- ●
10 02.270 PLUG; GLOW 8-94140-115-4 04 1 9112-9504 ●
10 02.270 PLUG; GLOW
NGK 		8-97044-037-1 04 1 9112- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9112-9504 ●
11 02.251 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9112-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
27 00.253 PLUG; HOT 8-97041-496-1 04 1 9112-9307 ●
27 00.253 PLUG; HOT
EUROPE EQUIPMENT(EK4) 		8-97041-496-1 04 1 9308-9308 ●
27 00.253 PLUG; HOT
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-450-0 04 1 9308-9308 ●
27 00.253 PLUG; HOT 8-97086-450-0 04 1 9309-9504 ●
27 00.253 PLUG; HOT
TURBOCHARGER<K51> 		8-97086-450-0 04 1 9505- ●
27 00.253 PLUG; HOT
EXC. TURBOCHARGER<K51> 		8-97089-278-0 04 1 9505- ●
32 00.004 ORIFICE
TURBOCHARGER<K51> 		8-97190-639-0 01 1 9711- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
