0-10 — CYLINDER HEAD COVER (#43278) — 95 parça

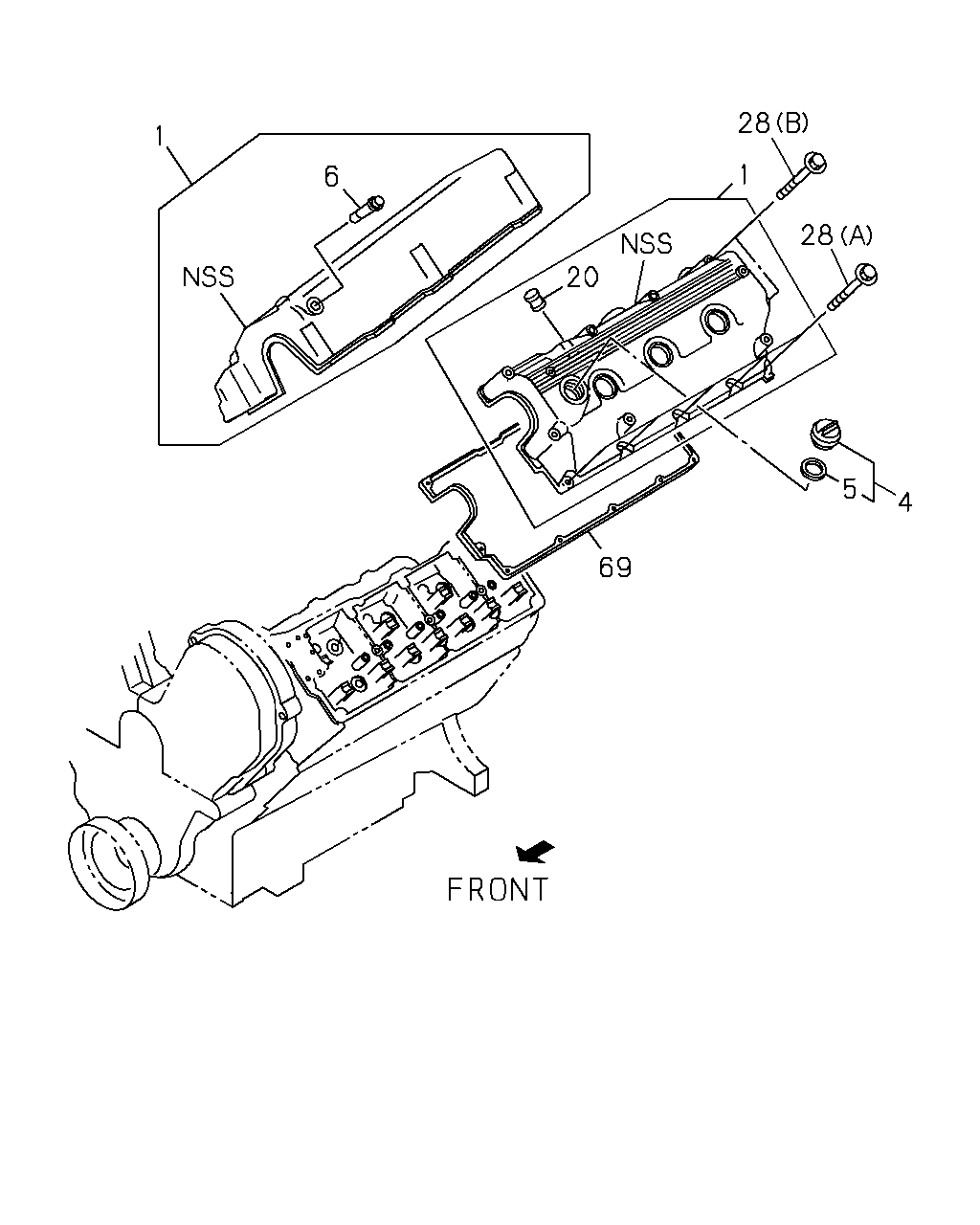

1 6 28 1 20 28 4 5 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	9112-9504	●
1	00.386 COVER; CYL HD	8-97038-193-2	01	1	9112-9504		●
1	00.386 COVER; CYL HD TURBOCHARGER<K51>	8-97038-193-2	01	1	9505-		●
1	00.386 COVER; CYL HD EXC. TURBOCHARGER<K51>	8-94476-696-0	01	1	9505-		●
1	00.386 COVER; CYL HD	8-94360-532-0	01	1	9112-			●
1	00.386 COVER; CYL HD	8-94364-712-3	01	1	9112-				●
1	00.386 COVER; CYL HD	8-94364-711-3	01	1	9112-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9112-9504	●		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	9112-9504		●		●
4	01.758 CAP; OIL FILLER TURBOCHARGER<K51>	8-94425-685-2	01	1	9505-		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	9505-				●
4	01.758 CAP; OIL FILLER EXC. TURBOCHARGER<K51>	8-94133-207-5	01	1	9505-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9505-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9112-9504	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9505-		●	●	●
6	01.762 PIPE; PCV HOSE	8-97016-327-0	01	1	9112-				●
20	00.413 GROMMET; HD COVER	8-97021-737-0	01	1	9112-				●
28	00.413 BOLT; HD COVER (A) M6X32 W/HEX-SOCKET	9-05820-632-0	10	1	9112-				●
28	00.413 BOLT; HD COVER 08.900 (B) M6X80 W/HEX-SOCKET	9-05820-680-0	12	1	9112-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-744-0	01	1	9112-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9504	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9505-9605		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94214-985-0	01	1	9112-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97048-720-2	02	1	9112-9511				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-569-0	02	1	9512-				●

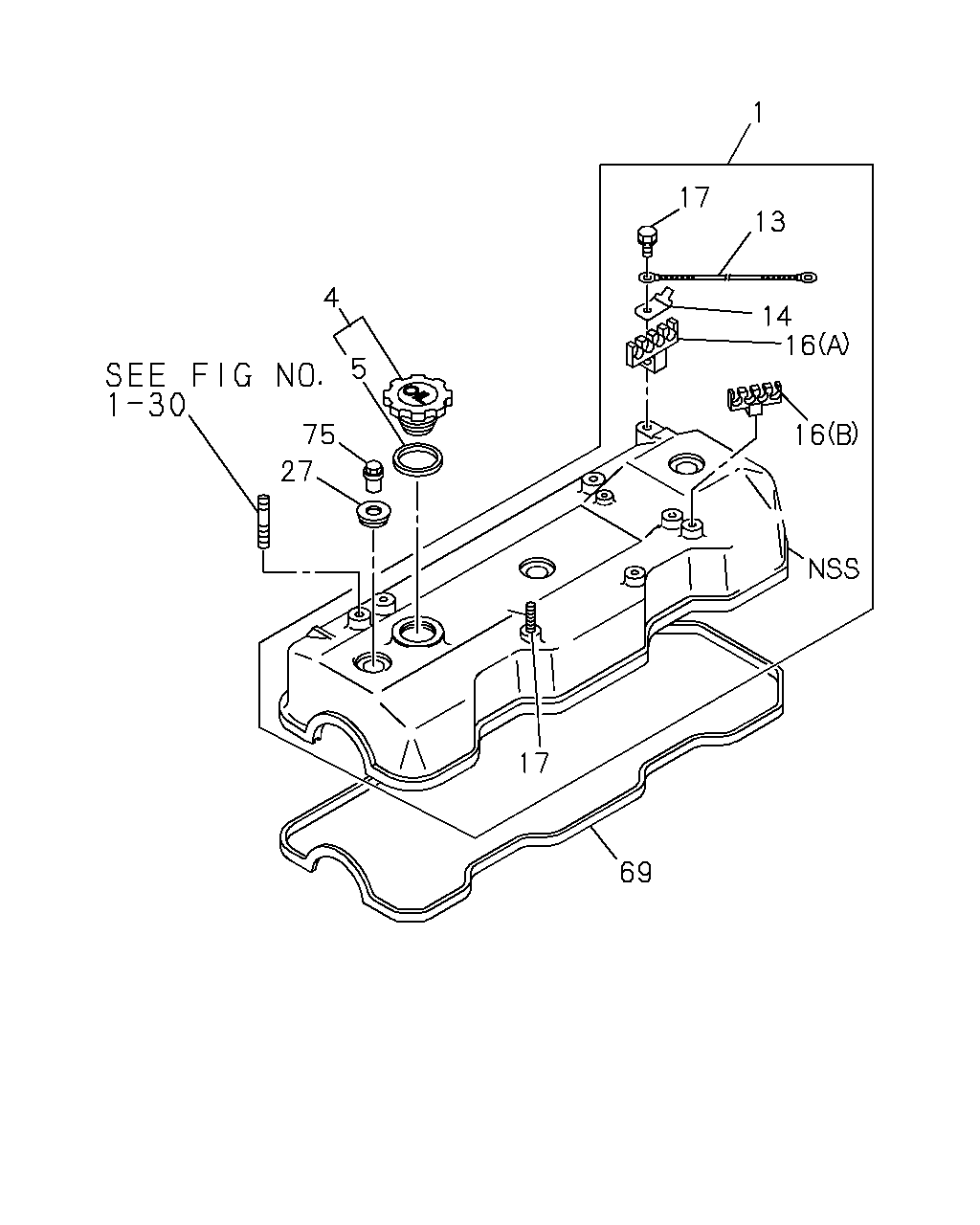

4 5 75 27 17 69 16 16 14 13 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	9112-9504	●
1	00.386 COVER; CYL HD	8-97038-193-2	01	1	9112-9504		●
1	00.386 COVER; CYL HD TURBOCHARGER<K51>	8-97038-193-2	01	1	9505-		●
1	00.386 COVER; CYL HD EXC. TURBOCHARGER<K51>	8-94476-696-0	01	1	9505-		●
1	00.386 COVER; CYL HD	8-94360-532-0	01	1	9112-			●
1	00.386 COVER; CYL HD	8-94364-712-3	01	1	9112-				●
1	00.386 COVER; CYL HD	8-94364-711-3	01	1	9112-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9112-9504	●		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	9112-9504		●		●
4	01.758 CAP; OIL FILLER TURBOCHARGER<K51>	8-94425-685-2	01	1	9505-		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	9505-				●
4	01.758 CAP; OIL FILLER EXC. TURBOCHARGER<K51>	8-94133-207-5	01	1	9505-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9505-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9112-9504	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9505-		●	●	●
13	00.413 CABLE; BONDING,HD COVER 02.240	8-94112-860-0	01	1	9112-			●
14	00.413 TERMINAL; EARTH,HD COVER 02.530	8-94102-644-0	01	1	9112-			●
16	02.251 CLIP; CABLE (A)	8-94152-503-0	01	1	9112-			●
16	02.251 CLIP; CABLE (B)	8-94160-680-0	01	1	9112-			●
17	00.413 BOLT; CLIP TO HD COVER 01.073 M6X14 W/LK WASHER	9-01900-614-0	02	1	9112-9204			●
17	00.413 BOLT; CLIP TO HD COVER 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9205-			●
17	00.413 BOLT; CLIP TO HD COVER 01.428 M6X12 L=21	9-04110-612-0	01	1	9112-			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9112-9407	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9408-9501	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9502-9504	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9505-		●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9112-9407			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-744-0	01	1	9112-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9504	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9505-9605		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94214-985-0	01	1	9112-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97048-720-2	02	1	9112-9511				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-569-0	02	1	9512-				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9112-9407	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9408-9504	●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9505-		●	●
75	00.413 NUT; CAP,HD COVER M8 OD=24	8-94173-430-0	03	1	9112-9407			●

4 5 4 5 69 1 27 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	9112-9504	●
1	00.386 COVER; CYL HD	8-97038-193-2	01	1	9112-9504		●
1	00.386 COVER; CYL HD TURBOCHARGER<K51>	8-97038-193-2	01	1	9505-		●
1	00.386 COVER; CYL HD EXC. TURBOCHARGER<K51>	8-94476-696-0	01	1	9505-		●
1	00.386 COVER; CYL HD	8-94360-532-0	01	1	9112-			●
1	00.386 COVER; CYL HD	8-94364-712-3	01	1	9112-				●
1	00.386 COVER; CYL HD	8-94364-711-3	01	1	9112-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9112-9504	●		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	9112-9504		●		●
4	01.758 CAP; OIL FILLER TURBOCHARGER<K51>	8-94425-685-2	01	1	9505-		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	9505-				●
4	01.758 CAP; OIL FILLER EXC. TURBOCHARGER<K51>	8-94133-207-5	01	1	9505-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9505-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9112-9504	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9505-		●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9112-9407	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9408-9501	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9502-9504	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9505-		●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9112-9407			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-744-0	01	1	9112-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9504	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9505-9605		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94214-985-0	01	1	9112-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97048-720-2	02	1	9112-9511				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-569-0	02	1	9512-				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9112-9407	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9408-9504	●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9505-		●	●
75	00.413 NUT; CAP,HD COVER M8 OD=24	8-94173-430-0	03	1	9112-9407			●
