◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#43277) — 489 parça

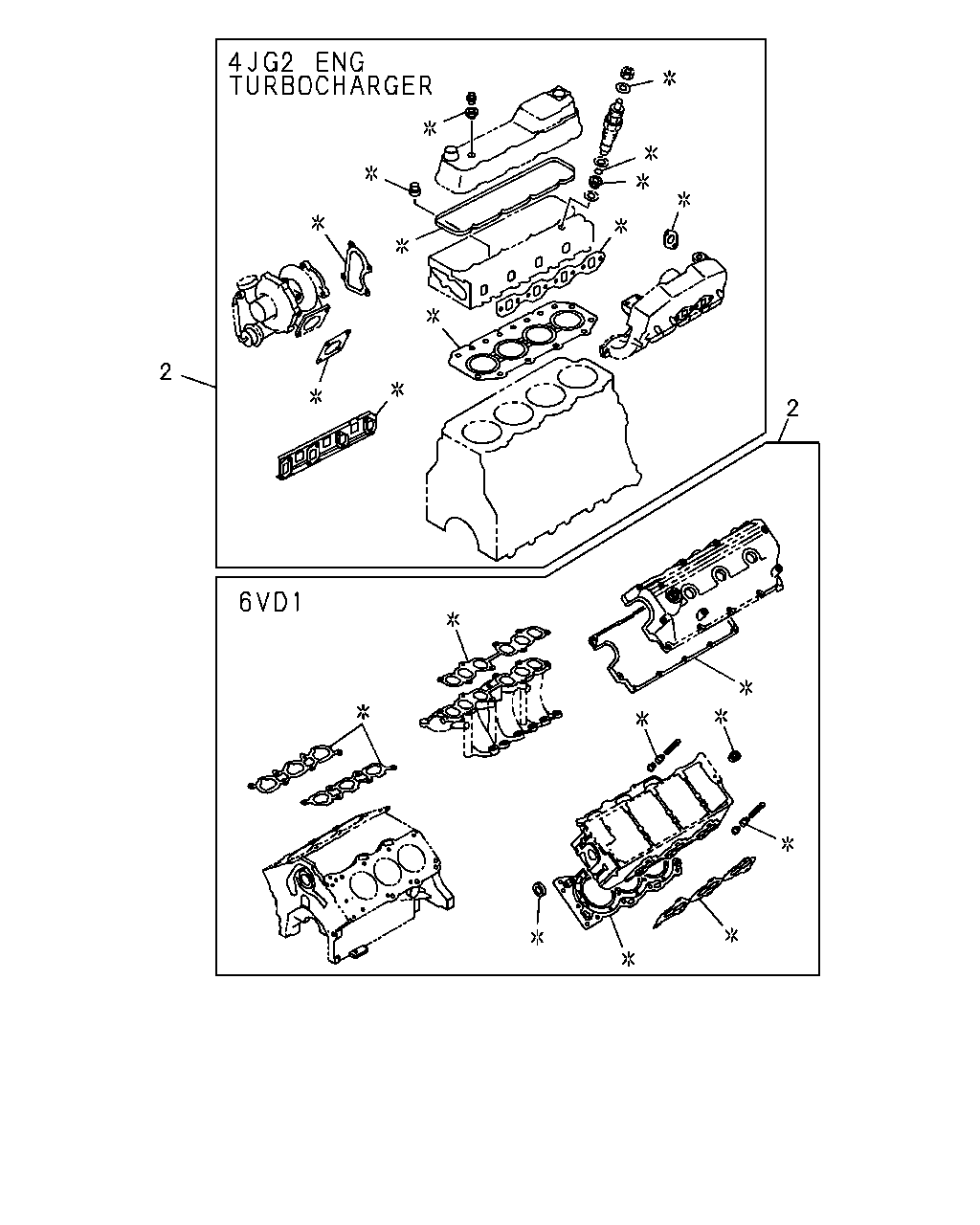

çizim 17046
2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-132-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-012-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-507-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9112-9208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9209-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-013-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-508-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-134-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-014-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-509-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-135-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-698-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-627-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-048-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-255-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-245-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-255-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-850-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-939-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-136-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-699-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-628-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-049-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-256-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-246-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-256-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-851-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-940-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-137-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-700-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-629-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-050-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-257-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-247-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-257-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-852-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-941-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-149-0 01 1 9112-9407 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-930-0 01 1 9408-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-288-0 01 1 9502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87810-979-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-839-1 01 1 9409-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-633-0 01 1 9511-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-720-0 01 1 9512- ●

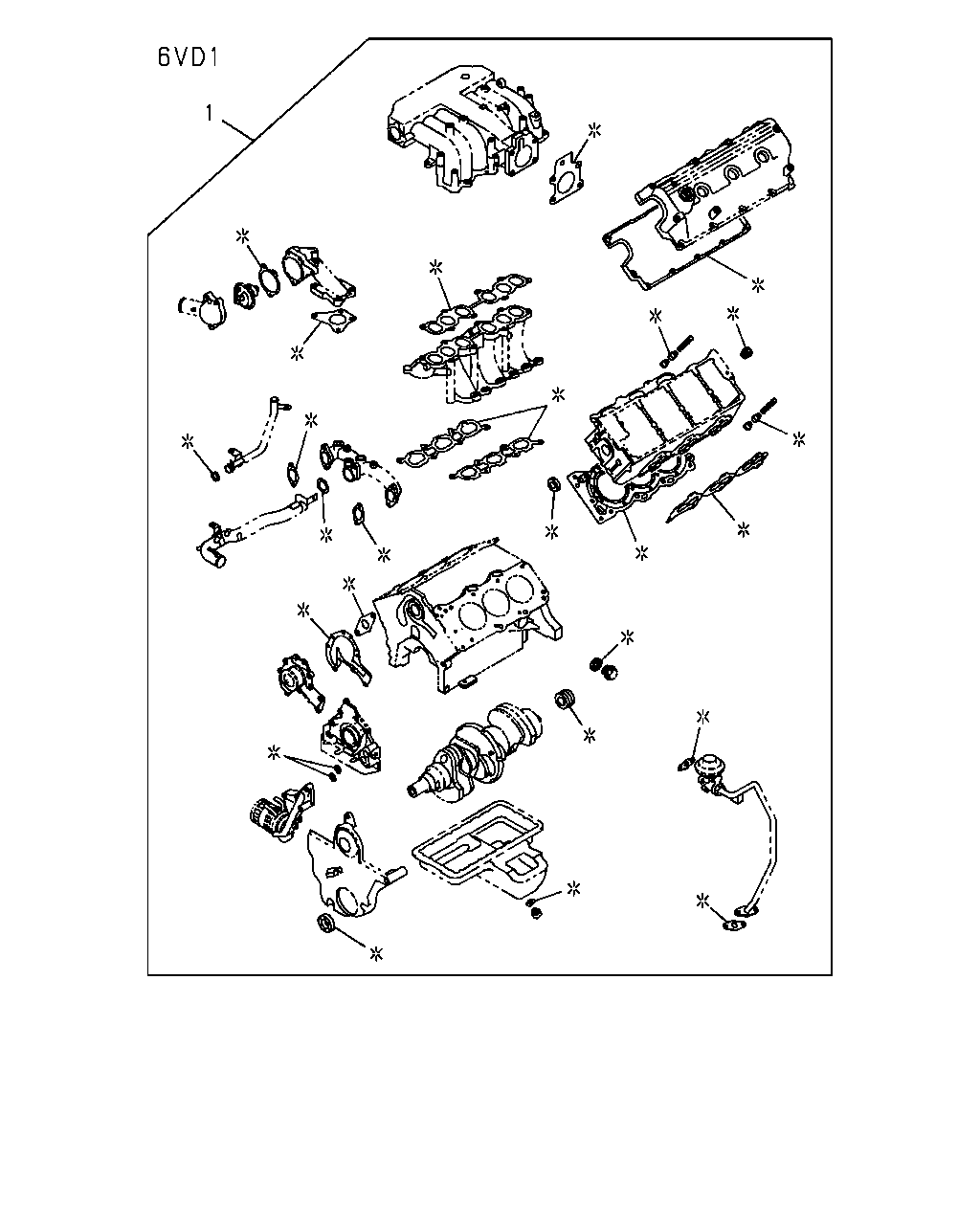

çizim 17049
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-114-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-414-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-009-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-191-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-565-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-115-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-415-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-010-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-192-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-566-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-116-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-416-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-011-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-193-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-567-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-117-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-417-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-695-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-019-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-194-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-561-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-571-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-844-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-929-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-118-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-418-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-696-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-020-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-195-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-562-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-572-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-845-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-930-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-119-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-419-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-697-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-021-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-196-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-563-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-573-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-846-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-931-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-513-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-025-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-197-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-568-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-847-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-945-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-514-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-026-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-198-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-569-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-848-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-946-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-515-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-027-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-199-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-570-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-849-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-947-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-200-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-841-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-201-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-842-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-202-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-843-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-148-0 01 1 9112-9310 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-677-0 01 1 9311-9407 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-835-0 01 1 9408-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-955-0 01 1 9409-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-260-1 01 1 9502- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87810-977-1 01 1 9112-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-838-2 01 1 9409-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-632-0 01 1 9511-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-719-0 01 1 9512- ●

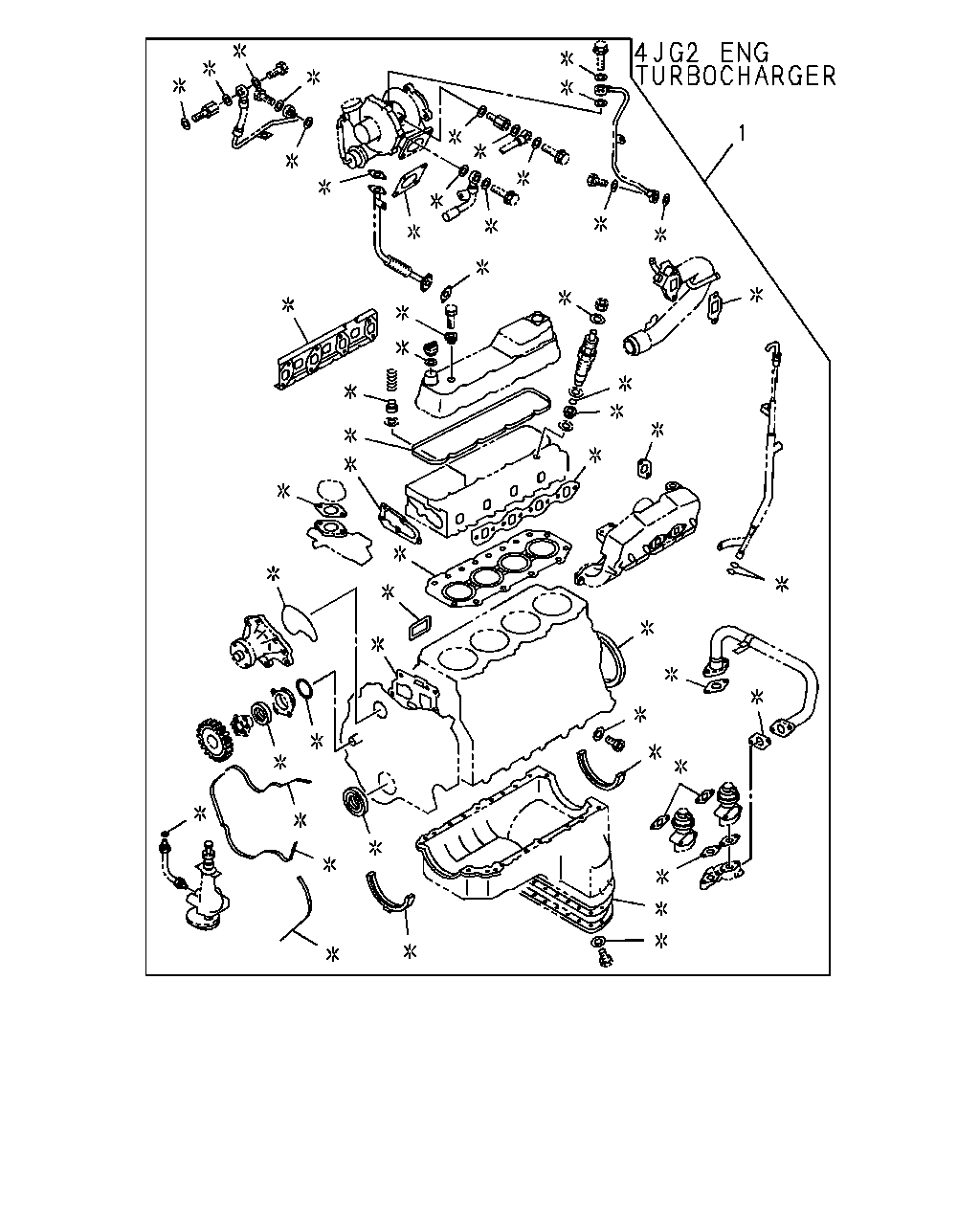

çizim 17322
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-114-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-414-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-009-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-191-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-565-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-115-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-415-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-010-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-192-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-566-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-116-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-416-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-011-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-193-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-567-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-117-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-417-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-695-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-019-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-194-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-561-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-571-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-844-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-929-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-118-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-418-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-696-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-020-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-195-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-562-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-572-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-845-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-930-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-119-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-419-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-697-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-021-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-196-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-563-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-573-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-846-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-931-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-513-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-025-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-197-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-568-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-847-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-945-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-514-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-026-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-198-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-569-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-848-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-946-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-515-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-027-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-199-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-570-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-849-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-947-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-200-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-841-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-201-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-842-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-202-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-843-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-148-0 01 1 9112-9310 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-677-0 01 1 9311-9407 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-835-0 01 1 9408-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-955-0 01 1 9409-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-260-1 01 1 9502- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87810-977-1 01 1 9112-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-838-2 01 1 9409-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-632-0 01 1 9511-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-719-0 01 1 9512- ●

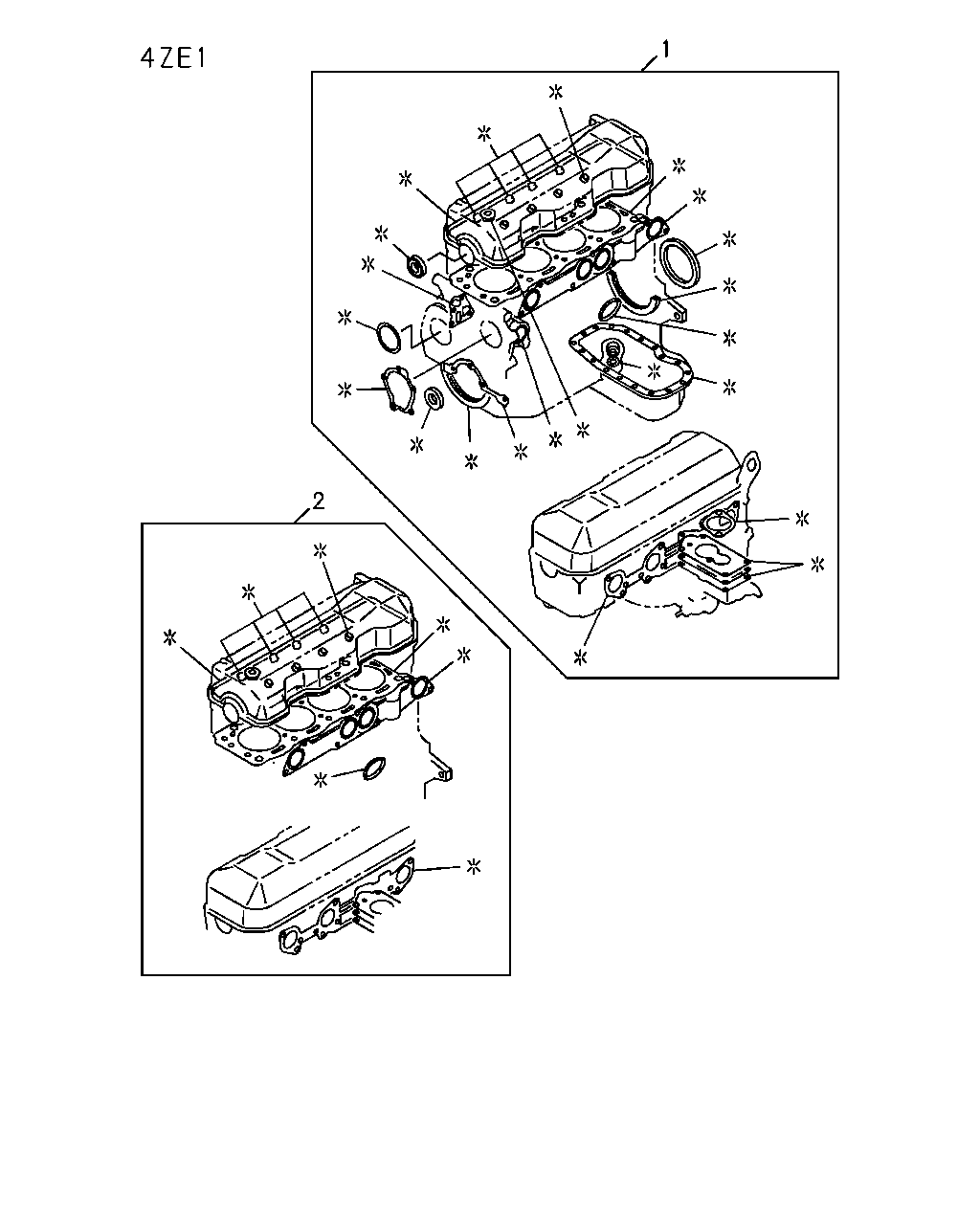

çizim 18544
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-114-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-414-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-009-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-191-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-565-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-115-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-415-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-010-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-192-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-566-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-116-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-416-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-011-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-193-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-567-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-117-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-417-0 01 1 9206-9308 ●

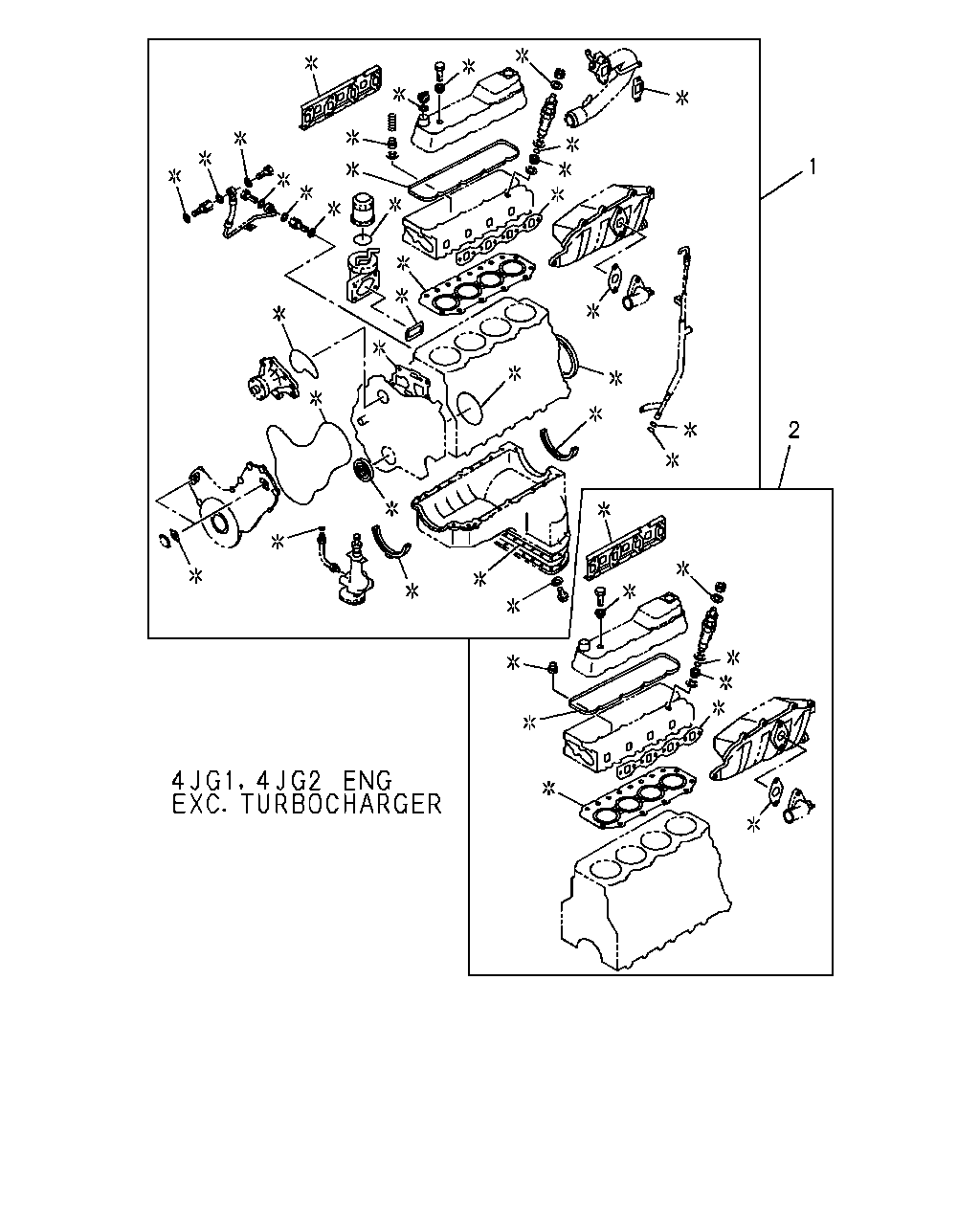

1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-695-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-019-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-194-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-561-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-571-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-844-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-929-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-118-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-418-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-696-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-020-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-195-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-562-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-572-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-845-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-930-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-119-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-419-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-697-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-021-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-196-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-563-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-573-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-846-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-931-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-513-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-025-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-197-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-568-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-847-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-945-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-514-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-026-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-198-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-569-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-848-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-946-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-515-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-027-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-199-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-570-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-849-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-947-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-200-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-841-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-201-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-842-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-202-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-843-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-148-0 01 1 9112-9310 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-677-0 01 1 9311-9407 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-835-0 01 1 9408-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-955-0 01 1 9409-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-260-1 01 1 9502- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87810-977-1 01 1 9112-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-838-2 01 1 9409-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-632-0 01 1 9511-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-719-0 01 1 9512- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-132-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-012-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-507-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9112-9208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9209-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-013-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-508-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-134-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-014-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-509-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-135-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-698-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-627-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-048-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-255-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-245-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-255-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-850-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-939-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-136-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-699-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-628-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-049-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-256-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-246-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-256-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-851-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-940-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-137-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-700-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-629-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-050-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-257-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-247-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-257-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-852-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-941-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-149-0 01 1 9112-9407 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-930-0 01 1 9408-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-288-0 01 1 9502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87810-979-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-839-1 01 1 9409-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-633-0 01 1 9511-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-720-0 01 1 9512- ●
çizim 18626
2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-114-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-414-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-009-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-191-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-565-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-115-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-415-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-010-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-192-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-566-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-116-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-416-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-011-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-193-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-567-0 01 1 9502-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-117-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-417-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-695-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-019-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-194-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-561-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-571-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-844-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-929-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-118-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-418-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-696-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-020-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-195-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-562-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-572-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-845-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-930-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-119-1 01 1 9112-9205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-419-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-697-0 01 1 9309-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-021-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-196-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-563-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-573-0 01 1 9503-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-846-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-931-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-513-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-025-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-197-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-568-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-574-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-847-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87812-945-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-514-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-026-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-198-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-569-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-575-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-848-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87812-946-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-515-0 01 1 9206-9308 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-027-0 01 1 9309-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-199-0 01 1 9411-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-570-0 01 1 9502-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9503-9505 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-576-0 01 1 9506-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-849-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87812-947-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-200-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-841-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-201-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-842-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-202-0 01 1 9505-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-843-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-0 01 1 9605- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-148-0 01 1 9112-9310 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-677-0 01 1 9311-9407 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-835-0 01 1 9408-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-955-0 01 1 9409-9501 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-260-1 01 1 9502- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87810-977-1 01 1 9112-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87811-838-2 01 1 9409-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-632-0 01 1 9511-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87812-719-0 01 1 9512- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-132-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-012-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-507-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9112-9208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-133-1 01 1 9209-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-013-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-508-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-134-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-014-0 01 1 9409-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-509-0 01 1 9502-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-135-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-698-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.60 1-HOLE 		5-87811-627-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-048-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-255-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-245-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-255-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-850-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-939-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-136-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-699-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.65 2-HOLE 		5-87811-628-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-049-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-256-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-246-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-256-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-851-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-940-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-137-1 01 1 9112-9308 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-700-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.70 3-HOLE 		5-87811-629-0 01 1 9309-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-050-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-257-0 01 1 9503-9504 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-247-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-257-0 01 1 9505-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-852-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-941-0 01 1 9605- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-149-0 01 1 9112-9407 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-930-0 01 1 9408-9501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-288-0 01 1 9502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87810-979-1 01 1 9112-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87811-839-1 01 1 9409-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-633-0 01 1 9511-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87812-720-0 01 1 9512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
