◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#43272) — 111 parça

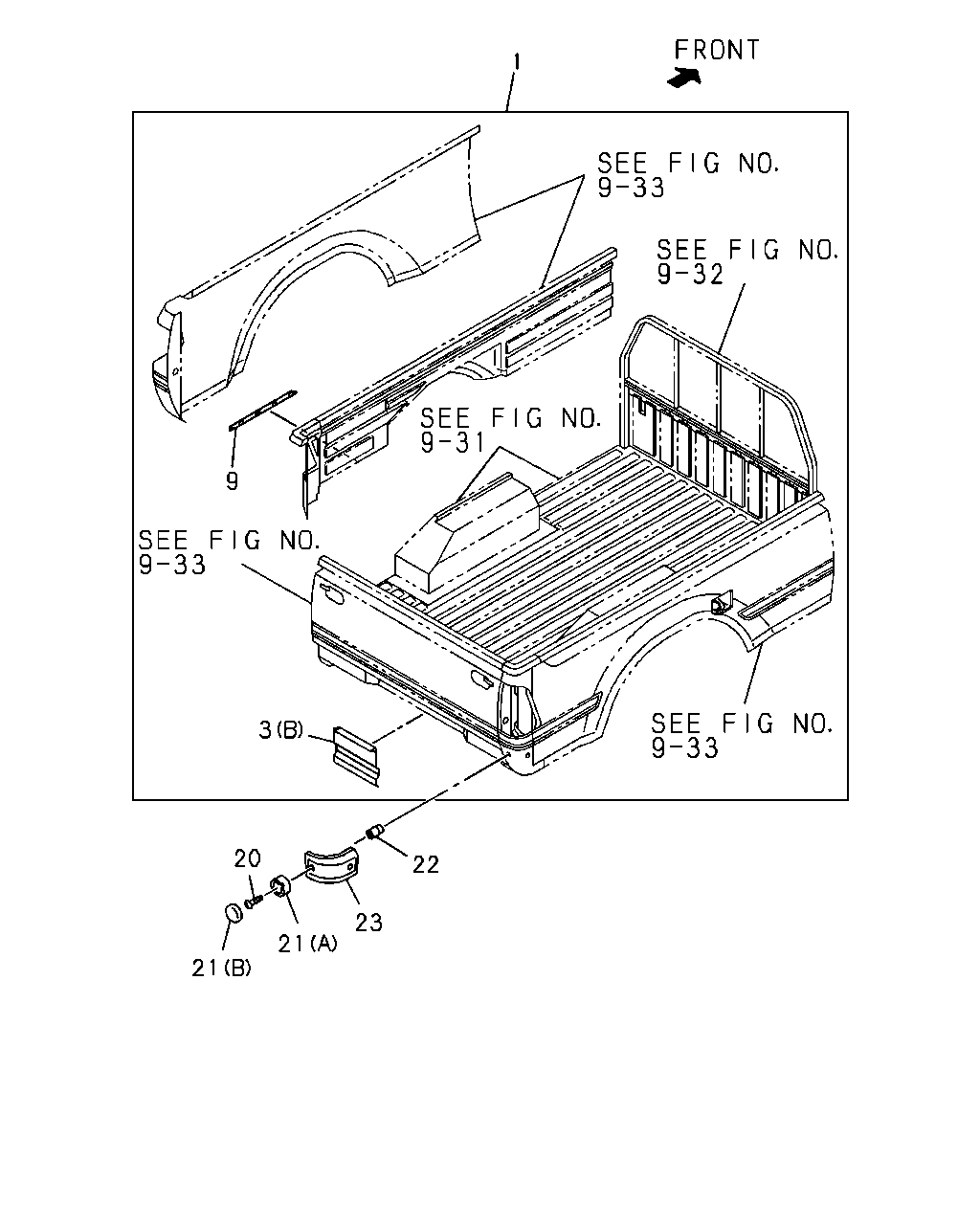

çizim 17832
1 9 3 22 23 21 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-239-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-230-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-236-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-484-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-229-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-233-0 01 1 9210-9301 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97094-294-0 01 1 9302- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-240-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-226-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-234-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-482-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-225-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-231-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-476-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-238-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-002-0 01 1 9210-9509 ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9510- ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-228-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-235-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-483-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-227-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-232-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-477-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-355-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-357-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-354-0 01 1 9210- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-97040-266-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97040-266-0 01 1 9407- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (B) 		8-97040-266-0 01 1 9407- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		8-94404-323-0 01 1 9210- ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) L=430 		8-94441-322-0 02 1 9210-9406 ● ● ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) L=430 		8-94441-322-0 02 1 9407- ● ● ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=430 		8-94441-322-0 02 1 9407- ● ● ● ● ● ● ● ●
20 17.447 SCREW; PROTECTOR,RR BODY
RR BODY CORNER RUBBER<6DP> 		9-03800-635-0 04 1 9210- ● ● ● ● ● ● ● ●
21 17.447 CAP; SCREW,PROTECTOR
RR BODY CORNER RUBBER<6DP> (B) 		8-94422-712-1 04 1 9210- ● ● ● ● ● ● ● ●
21 17.447 CAP; SCREW,PROTECTOR
RR BODY CORNER RUBBER<6DP> (A) 		8-94422-713-0 04 1 9210- ● ● ● ● ● ● ● ●
22 17.447 NUT; CORNER PROTECTOR
RR BODY CORNER RUBBER<6DP> 12.183 		8-94437-508-1 04 1 9210- ● ● ● ● ● ● ● ●
23 08.214 RUBBER; RR BODY CORNER
RR BODY CORNER RUBBER<6DP> 17.447 		8-94459-715-0 01 1 9210- ● ● ● ● ● ● ● ●
23 08.214 RUBBER; RR BODY CORNER
RR BODY CORNER RUBBER<6DP> 17.447 		8-94459-714-0 01 1 9210- ● ● ● ● ● ● ● ●

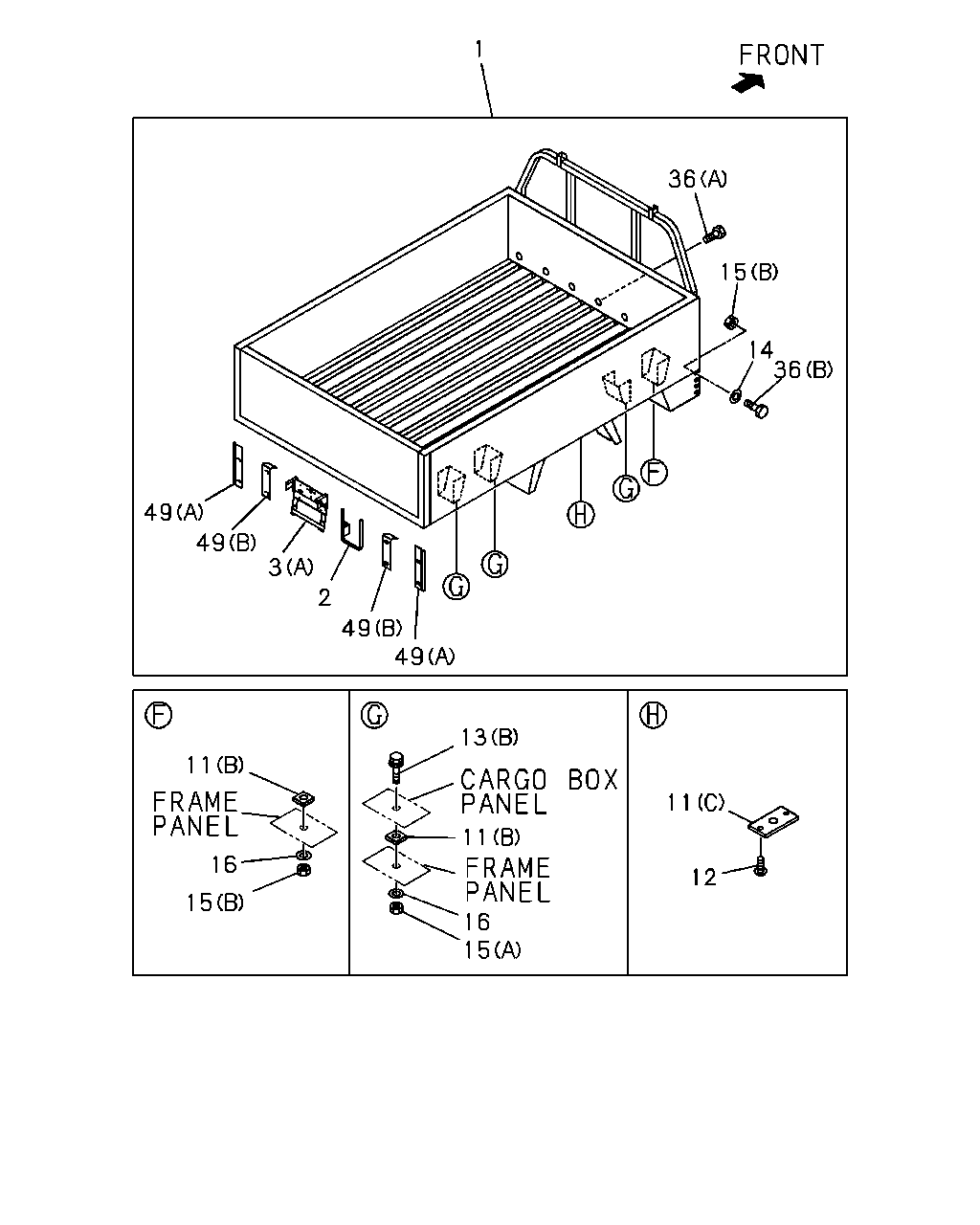

çizim 66757
1 36 15 14 36 49 49 2 3 49 49 11 16 15 15 16 11 13 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-239-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-230-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-236-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-484-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-229-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-233-0 01 1 9210-9301 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97094-294-0 01 1 9302- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-240-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-226-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-234-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-482-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-225-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-231-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-476-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97040-238-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-002-0 01 1 9210-9509 ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9510- ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-228-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-235-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-483-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97040-227-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97040-232-0 01 1 9210-9302 ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97078-477-0 01 1 9303- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97038-355-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-357-0 01 1 9210- ● ●
1 17.090 BODY ASM; REAR
TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL W/GUAR D FRAME(6MW) 		8-97038-354-0 01 1 9210- ● ●
2 17.185 STEP; RR
RR BODY FLAT BED<RS6> 		8-94178-853-0 01 1 9210- ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-97040-266-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97040-266-0 01 1 9407- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
TAIL GATE CENTER PULL TYPE ISUZU LE TTER(ER9),TAIL GATE CENTER PULL TYPE PLAIN(S1P) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (B) 		8-97040-266-0 01 1 9407- ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		8-94404-323-0 01 1 9210- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 04 1 9210- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-94331-738-1 06 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) (B) 		8-94331-738-1 08 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9210- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 08 1 9210- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9210- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 02 1 9210- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER 		8-94483-977-0 06 1 9210- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 		8-97065-438-0 12 1 9510- ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) M12 FLANGE 		8-97028-764-0 06 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
(A) M12 FLANGE 		8-97028-764-0 08 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 08 1 9510- ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 07.874 ID=12.5 		5-09503-093-0 06 1 9210- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
07.874 ID=12.5 		5-09503-093-0 08 1 9210- ● ● ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 07 1 9510- ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 17.455 (B) M10X22 FLANGE 		8-97065-440-0 12 1 9510- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-734-0 01 1 9210- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-685-0 01 1 9210- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-733-0 01 1 9210- ● ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-684-0 01 1 9210- ● ●

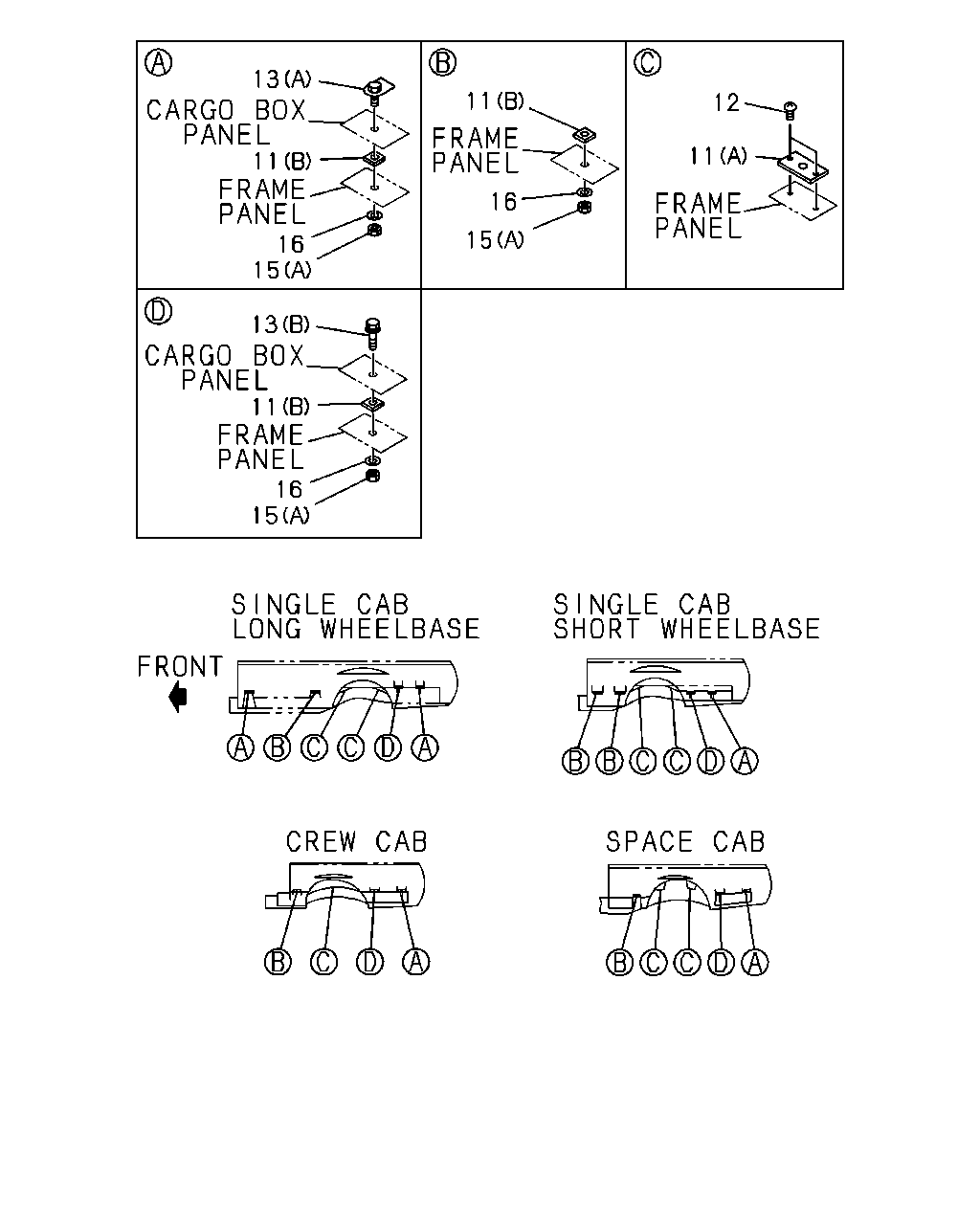

çizim 68701
13 11 16 15 15 16 11 12 11 13 11 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 04 1 9210- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) 		8-94331-738-1 06 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODYDOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/ GUARD FRAME(6MW) (B) 		8-94331-738-1 08 1 9210- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9210- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) (A) 		8-94331-737-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 08 1 9210- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9210- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 M6X20 		9-07077-620-0 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (B) M12X35 W/PL WASHER 		8-94483-977-0 02 1 9210- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 02 1 9210- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) 		8-94479-376-1 04 1 9210- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X35 W/PL WASHER 		8-94483-977-0 06 1 9210- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) (A) M12 FLANGE 		8-97028-764-0 06 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
(A) M12 FLANGE 		8-97028-764-0 08 1 9210- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 08 1 9510- ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S),RR BODY DOUBLE WAL L CTR PULL W/GUARD FRAME(6MW) 07.874 ID=12.5 		5-09503-093-0 06 1 9210- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
07.874 ID=12.5 		5-09503-093-0 08 1 9210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
