◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#43270) — 35 parça

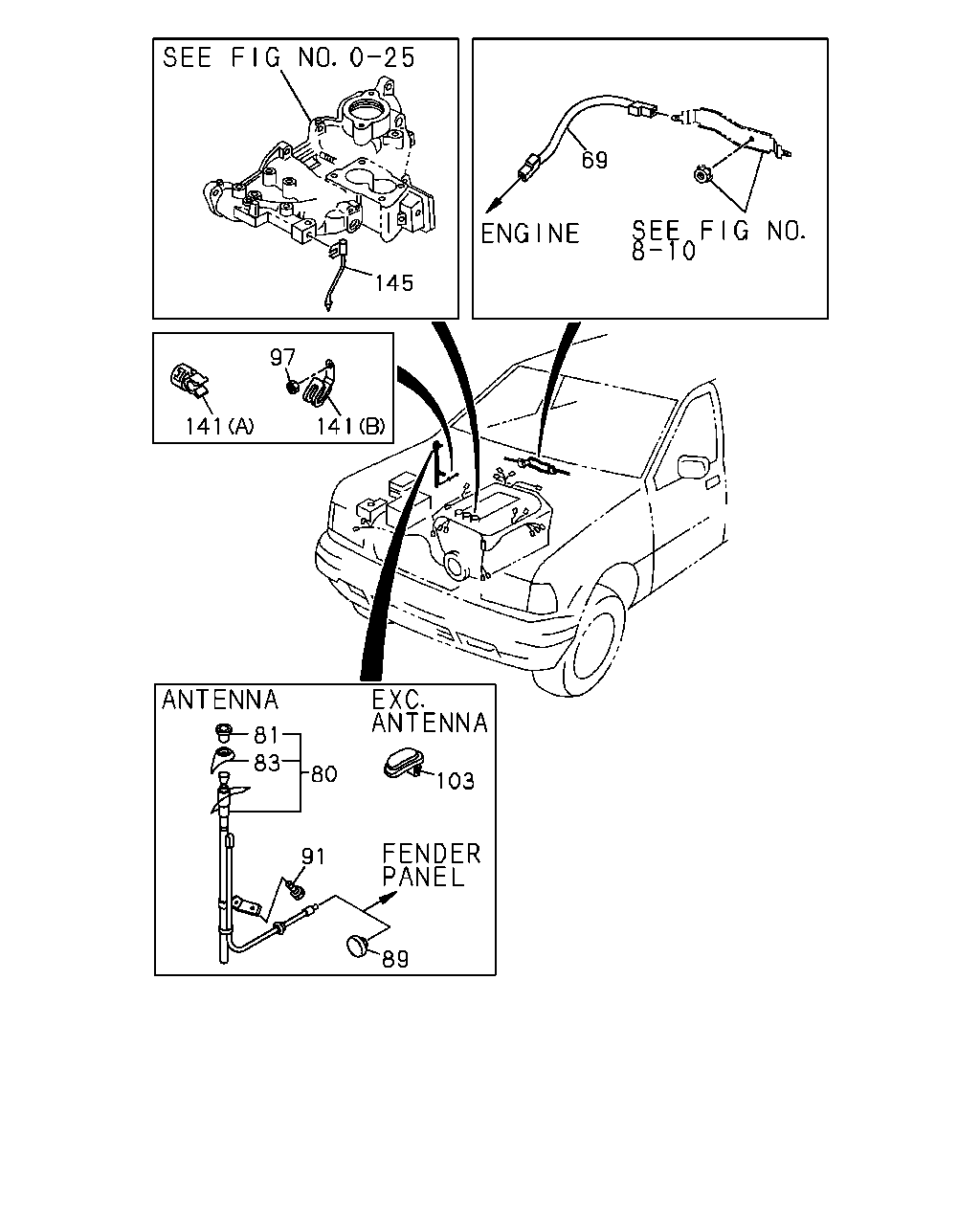

çizim 17113
145 69 141 97 141 81 83 80 103 91 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
69 09.663 CABLE; BONDING,ENG TO BODY
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 09.647 		8-94318-918-1 01 1 9210- ● ● ● ● ● ● ● ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-94434-491-3 01 1 9210- ● ● ● ● ● ● ● ●
81 09.647 NUT; ANTENNA POLE
ANTENNA<U73> 		8-94323-723-0 01 1 9210- ● ● ● ● ● ● ● ●
83 09.647 GROMMET; BASE,ANTENNA POLE INNER
ANTENNA<U73> 		8-94323-722-0 01 1 9210- ● ● ● ● ● ● ● ●
89 09.775 GROMMET; FEEDER CABLE
EXC. ANTENNA<U73> 		8-94111-420-0 01 1 9210- ● ● ● ● ● ● ● ●
91 09.663 BOLT; ANTENNA
ANTENNA<U73> 02.810 M6X10 		8-94154-839-0 01 1 9210- ● ● ● ● ● ● ● ●
97 09.647 NUT; FEEDER CLIP
12.809 M6 FLANGE 		8-97022-131-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
97 09.647 NUT; FEEDER CLIP
07.833 M6 FLANGE 		8-97063-399-0 01 1 9406- ● ● ● ● ● ● ● ●
103 09.647 GROMMET; ANTENNA HOLE,FRT
EXC. ANTENNA<U73> 		8-94443-804-2 01 1 9210- ● ● ● ● ● ● ● ●
141 03.162 CLIP; ANTENNA CABLE
01.152 (B) ID=8.5 		5-09700-275-0 01 1 9210- ● ● ● ● ● ● ● ●
141 03.162 CLIP; ANTENNA CABLE
(A) ID=5 		8-94459-581-1 02 1 9210- ● ● ● ● ● ● ● ●
145 09.663 CONDENSER; IGN COIL
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 02.319 		1-84132-004-0 01 1 9404- ● ● ● ●

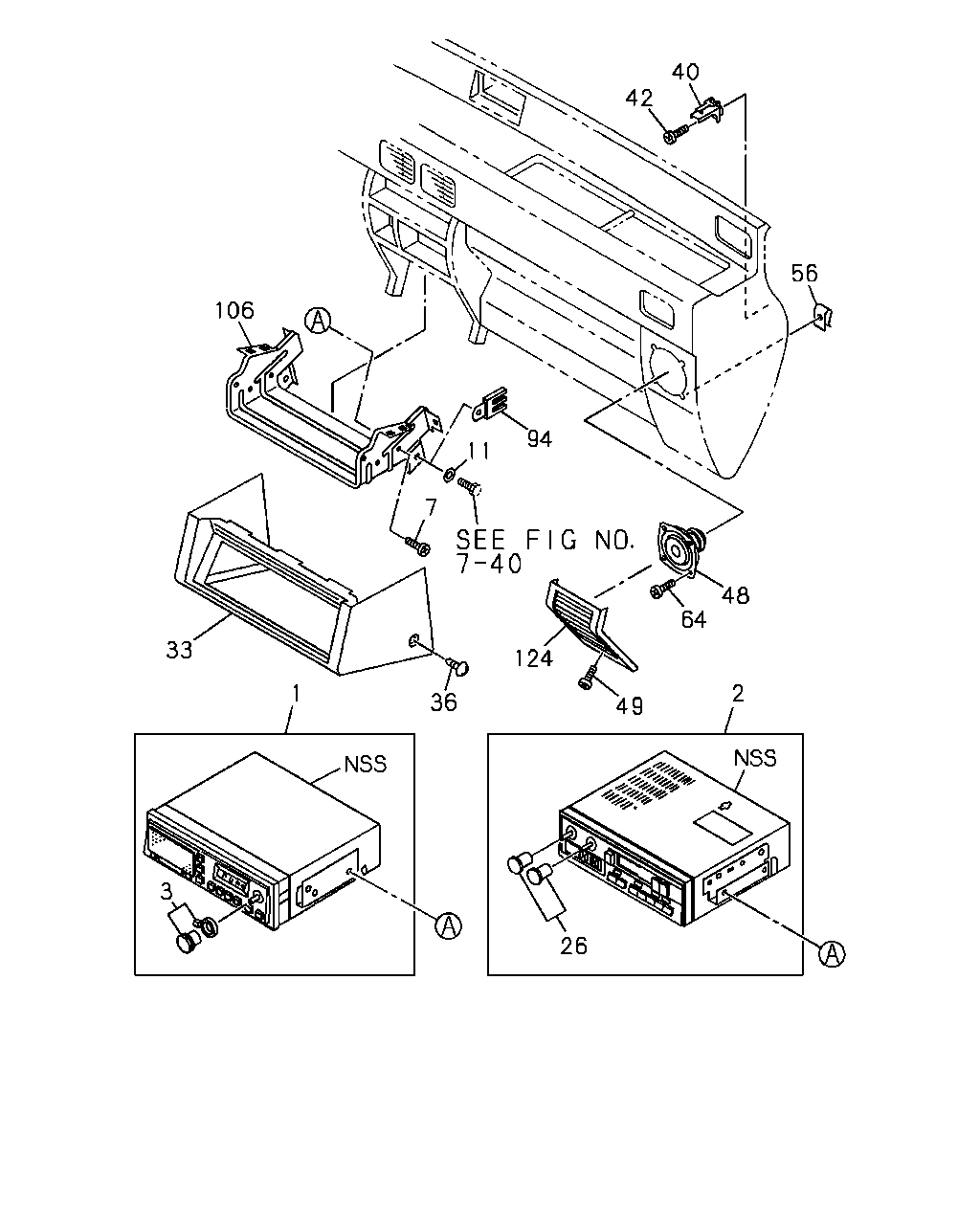

çizim 64875
42 40 56 48 49 2 64 124 11 94 106 7 36 1 33 26 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.650 RADIO
RADIO AM ASIA/OCEANIA BAND(7AQ) 		8-97071-897-0 01 1 9210- ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU) 		8-97071-642-1 01 1 9210- ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE LATIN AMERIC A BAND(7AW) 		8-97071-641-1 01 1 9210- ● ● ● ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM ASIA/OCEANIA BAND(7AQ) 		8-97086-366-0 01 1 9210- ● ● ● ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM ASIA/OCEANIA BAND(7AQ), RADIO AM/FM W/CASSETTE ASIA/OCEANIA BA ND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9210- ● ● ● ● ● ● ● ●
11 09.667 WASHER; LK,BRKT TO FACIA
ANTENNA<U73> 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9210- ● ● ● ● ● ● ● ●
11 09.667 WASHER; LK,BRKT TO FACIA
EXC. ANTENNA<U73> 02.587 ID=6.4 OD=18 		9-09160-706-0 02 1 9210- ● ● ● ● ● ● ● ●
26 09.649 ATTACH KIT; RADIO
RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE L ATIN AMERICA BAND(7AW) 		8-97084-967-0 01 1 9210- ● ● ● ● ● ● ● ●
33 09.650 COVER; RADIO
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) BROWN 		8-94477-147-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
33 09.650 COVER; RADIO
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-148-2 01 1 9210-9308 ● ● ● ● ● ● ● ●
33 09.650 COVER; RADIO
GRADE STD(RBA),GRADE DLX(RBB) GRAY 		8-94477-148-2 01 1 9309- ● ● ● ● ● ● ● ●
36 09.779 SCREW; COVER
GRADE STD(RBA),GRADE DLX(RBB) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
40 09.667 CLIP; HARNESS,SPEAKER
EXC. RADIO AM/FM W/CASSETTE ASIA/OC EANIA BAND(7AU) 02.559 		8-94109-486-0 02 1 9210- ● ● ● ● ● ● ● ●
42 09.667 SCREW; CLIP
EXC. RADIO AM/FM W/CASSETTE ASIA/OC EANIA BAND(7AU),RADIO AM/FM W/CASSETTE LATIN AMERICA BAND(7AW) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE L ATIN AMERICA BAND(7AW) 		8-94434-601-1 02 1 9210- ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9210- ● ● ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE L ATIN AMERICA BAND(7AW) 		8-94449-956-0 08 1 9210- ● ● ● ● ● ● ● ●
64 09.650 SCREW; TAP,RR SPEAKER TO SPEAKER
RADIO AM/FM W/CASSETTE ASIA/OCEANIA BAND(7AU),RADIO AM/FM W/CASSETTE L ATIN AMERICA BAND(7AW) 16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 08 1 9210- ● ● ● ● ● ● ● ●
94 09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		8-94153-662-1 01 1 9210- ● ● ● ● ● ● ● ●
106 09.655 BRACKET; STEREO DECK
GRADE STD(RBA),GRADE DLX(RBB) 16.120 		8-94435-484-3 01 1 9210- ● ● ● ● ● ● ● ●
124 09.665 GRILLE; SPEAKER
INTERIOR COLOR BEIGE(120) BROWN 		8-94474-771-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
124 09.665 GRILLE; SPEAKER
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94474-772-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
124 09.665 GRILLE; SPEAKER
GRAY 		8-94474-772-1 01 1 9309- ● ● ● ● ● ● ● ●
