8-80 — WINDSHIELD WIPER AND WASHER (#43269) — 45 parça

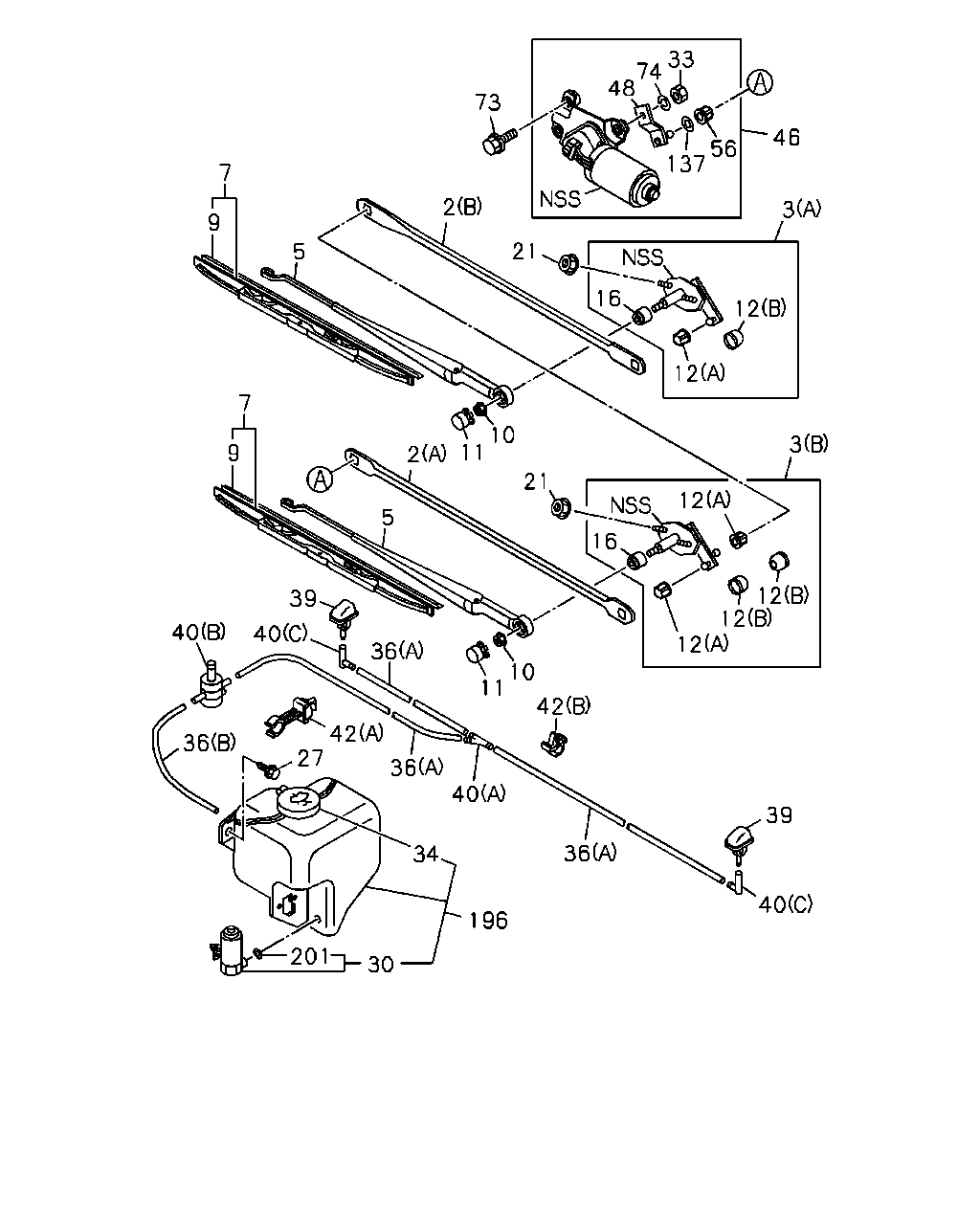

çizim 17114
73 48 74 33 56 46 3 137 2 16 12 12 3 21 5 7 9 10 11 2 21 7 9 5 16 12 12 12 12 39 40 36 40 42 10 11 36 39 40 40 36 27 36 42 34 196 30 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.063 LINK; FRT WIPER
(A) 		8-94319-012-0 01 1 9210-9311 ● ● ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97110-242-0 01 1 9312- ● ● ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-94319-013-0 01 1 9210-9311 ● ● ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97110-243-0 01 1 9312- ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 1PIVOT 		8-94319-014-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 1PIVOT 		8-97103-347-0 01 1 9309-9311 ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 1PIVOT 		8-97110-241-0 01 1 9312- ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 2PIVOT 		8-94319-015-0 01 1 9210-9311 ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 2PIVOT 		8-97110-240-0 01 1 9312- ● ● ● ● ● ● ● ●
5 16.063 ARM; WIPER
L=468 		8-94317-667-0 01 1 9210-9605 ● ● ● ● ● ● ● ●
5 16.063 ARM; WIPER
L=468 		8-97149-370-0 01 1 9606- ● ● ● ● ● ● ● ●
5 16.063 ARM; WIPER
L=495 		8-94317-668-0 01 1 9210-9605 ● ● ● ● ● ● ● ●
5 16.063 ARM; WIPER
L=495 		8-97149-371-0 01 1 9606- ● ● ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-94317-671-0 02 1 9210-9510 ● ● ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97136-363-0 02 1 9511- ● ● ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=450 		8-94317-675-0 02 1 9210- ● ● ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
00.349 M8 FLANGE 		9-09844-190-0 02 1 9210- ● ● ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM 8-94460-965-0 02 1 9210- ● ● ● ● ● ● ● ●
12 16.063 RETAINER; BALL JOINT,FRT WIPER L
(A) 		5-83318-029-0 03 1 9210-9311 ● ● ● ● ● ● ● ●
12 16.063 RETAINER; BALL JOINT,FRT WIPER L
10.159 (B) 		8-97025-889-0 03 1 9312- ● ● ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT 8-94319-016-0 02 1 9210- ● ● ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 9210- ● ● ● ● ● ● ● ●
27 16.065 BOLT; WASHER TANK
03.885 M6X20 		8-94412-422-0 02 1 9210- ● ● ● ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-94335-625-1 01 1 9210- ● ● ● ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM
00.787 M8 		9-09111-408-0 01 1 9210- ● ● ● ● ● ● ● ●
34 16.065 CAP; WASHER TANK
10.154 		8-94436-369-0 01 1 9210- ● ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(B) L=1340 		8-94321-116-1 01 1 9210-9406 ● ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (B) L=1340 SERVICED BY L=10000 		8-94153-780-0 01 1 9407- ● ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(A)L=230X2,L=570 SERVICED BY L=10000 		9-09914-906-0 01 1 9210- ● ● ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-94447-235-0 02 1 9210- ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-003-0 01 1 9210- ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (C) 		8-94335-628-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (C) 		8-94335-628-0 02 1 9309- ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97039-660-0 01 1 9210- ● ● ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (A) L=46 		8-94154-654-1 01 1 9210- ● ● ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (B) ID=5.8 L=8 		8-94155-681-0 03 1 9210- ● ● ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-94318-806-1 01 1 9210- ● ● ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-94323-720-0 01 1 9210- ● ● ● ● ● ● ● ●
56 16.063 JOINT; OUTER,WIPER MOTOR
10.151 		8-94323-719-0 01 1 9210- ● ● ● ● ● ● ● ●
73 16.063 BOLT
01.287 M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 9210- ● ● ● ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR
00.002 ID=8.2 		9-09150-508-0 01 1 9210- ● ● ● ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.151 		8-94167-624-0 01 1 9210- ● ● ● ● ● ● ● ●
196 16.065 TANK; WASHER 8-97074-818-0 01 1 9210-9509 ● ● ● ● ● ● ● ●
196 16.065 TANK; WASHER 8-97075-617-0 01 1 9510- ● ● ● ● ● ● ● ●
201 16.064 LINING; WIPER MOTOR
10.154 		8-94352-050-0 01 1 9210- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
