8-74 — EVAPORATOR (#43267) — 48 parça

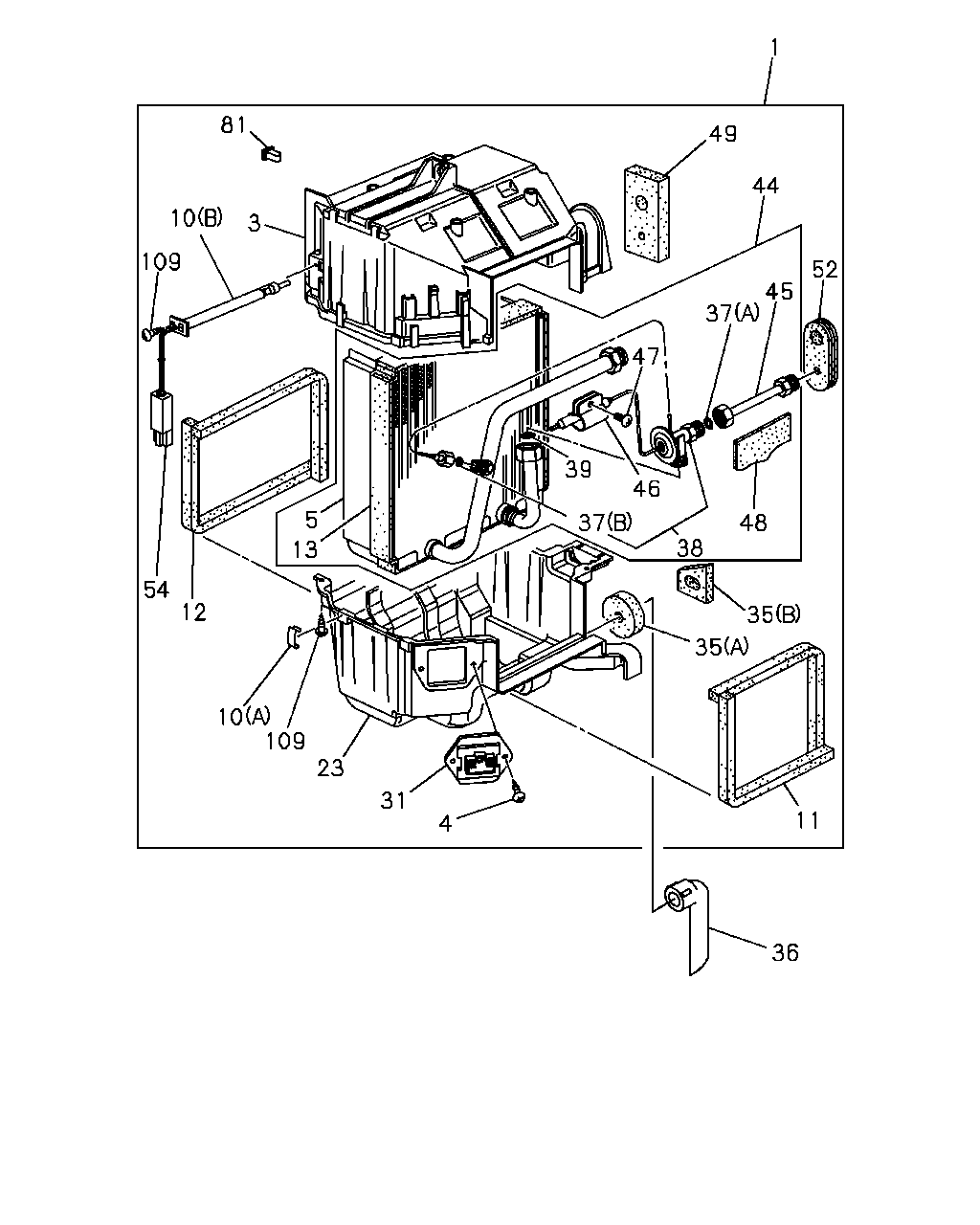

çizim 66575
81 3 10 109 49 1 44 52 47 37 45 46 48 39 37 38 35 5 13 54 10 12 109 23 31 4 11 36 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.210 EVAPORATOR ASM
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94380-197-1 01 1 9210-9303 ● ● ● ● ● ● ● ●
1 09.210 EVAPORATOR ASM
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97085-850-1 01 1 9304-9312 ● ● ● ● ● ● ● ●
1 09.210 EVAPORATOR ASM
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97102-682-2 01 1 9401-9410 ● ● ● ● ● ● ● ●
1 09.210 EVAPORATOR ASM
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97122-764-1 01 1 9411- ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97046-485-0 01 1 9210-9312 ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97107-603-1 01 1 9401- ● ● ● ● ● ● ● ●
4 09.211 SCREW; RESISTOR TO CASE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.855 		8-94248-807-0 02 1 9210- ● ● ● ● ● ● ● ●
5 09.210 EVAPORATOR
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97046-488-0 01 1 9210-9511 ● ● ● ● ● ● ● ●
5 09.210 EVAPORATOR
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97143-352-0 01 1 9512- ● ● ● ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.854 (A) 		1-83574-148-0 03 1 9210- ● ● ● ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-97046-494-0 01 1 9210-9307 ● ● ● ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-94481-724-0 01 1 9308-9308 ● ● ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94324-804-0 02 1 9210-9307 ● ● ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97105-793-0 01 1 9308-9312 ● ● ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97103-724-0 01 1 9401- ● ● ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94324-805-0 02 1 9210-9307 ● ● ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97105-794-0 01 1 9308-9312 ● ● ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97103-723-0 01 1 9401- ● ● ● ● ● ● ● ●
13 09.211 SEAL; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) T=5.0 		8-97069-402-0 01 1 9210- ● ● ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97046-486-1 01 1 9210- ● ● ● ● ● ● ● ●
31 09.277 RESISTOR; POWER EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.855 		8-97078-452-1 01 1 9210- ● ● ● ● ● ● ● ●
35 09.211 GROMMET; EVAP,LOW
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) 		8-97069-405-2 01 1 9210- ● ● ● ● ● ● ● ●
35 09.211 GROMMET; EVAP,LOW
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) 		8-97069-407-0 01 1 9210-9307 ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94446-972-1 01 1 9210- ● ● ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) ID=4.5 		8-94248-212-0 01 1 9210-9312 ● ● ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) ID=6 		8-94481-700-0 01 1 9210- ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94327-421-0 01 1 9210-9303 ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97085-275-0 01 1 9304-9312 ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97112-753-0 01 1 9401-9511 ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97143-242-0 01 1 9512- ● ● ● ● ● ● ● ●
39 09.214 GASKET; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94481-717-0 01 1 9210- ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97046-487-0 01 1 9210-9303 ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97095-627-1 01 1 9304-9410 ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A" 		8-97126-123-0 01 1 9411-9511 ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97143-361-0 01 1 9512- ● ● ● ● ● ● ● ●
45 09.220 PIPE; EXPANSION VLV
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97046-489-0 01 1 9210- ● ● ● ● ● ● ● ●
46 09.214 CLIP; EXPANSION VLV
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		1-83574-124-1 01 1 9210- ● ● ● ● ● ● ● ●
47 09.214 SCREW; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M5X14 		8-94244-002-0 01 1 9210-9511 ● ● ● ● ● ● ● ●
47 09.214 SCREW; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97130-601-0 01 1 9512- ● ● ● ● ● ● ● ●
48 09.214 INSULATOR; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		5-83579-024-0 01 1 9210-9307 ● ● ● ● ● ● ● ●
48 09.214 INSULATOR; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97105-792-0 01 1 9308-9312 ● ● ● ● ● ● ● ●
48 09.214 INSULATOR; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97103-725-0 01 1 9401- ● ● ● ● ● ● ● ●
49 09.211 GROMMET; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97069-404-1 01 1 9210- ● ● ● ● ● ● ● ●
52 09.242 GROMMET; EVAP,A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94324-801-0 01 1 9210- ● ● ● ● ● ● ● ●
54 09.172 THERMOSTAT; A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.275 		8-97046-491-0 01 1 9210-9303 ● ● ● ● ● ● ● ●
54 09.172 THERMOSTAT; A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.275 "R-134A" 		8-97087-577-0 01 1 9304- ● ● ● ● ● ● ● ●
81 09.211 CLIP; THERMOSTAT A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94481-724-0 01 1 9309- ● ● ● ● ● ● ● ●
109 09.211 BOLT; EVAP
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 04 1 9210- ● ● ● ● ● ● ● ●
