Sayfa 8-73 - Isuzu EPC

8-73 — BLOWER UNIT (#43266) — 97 parça

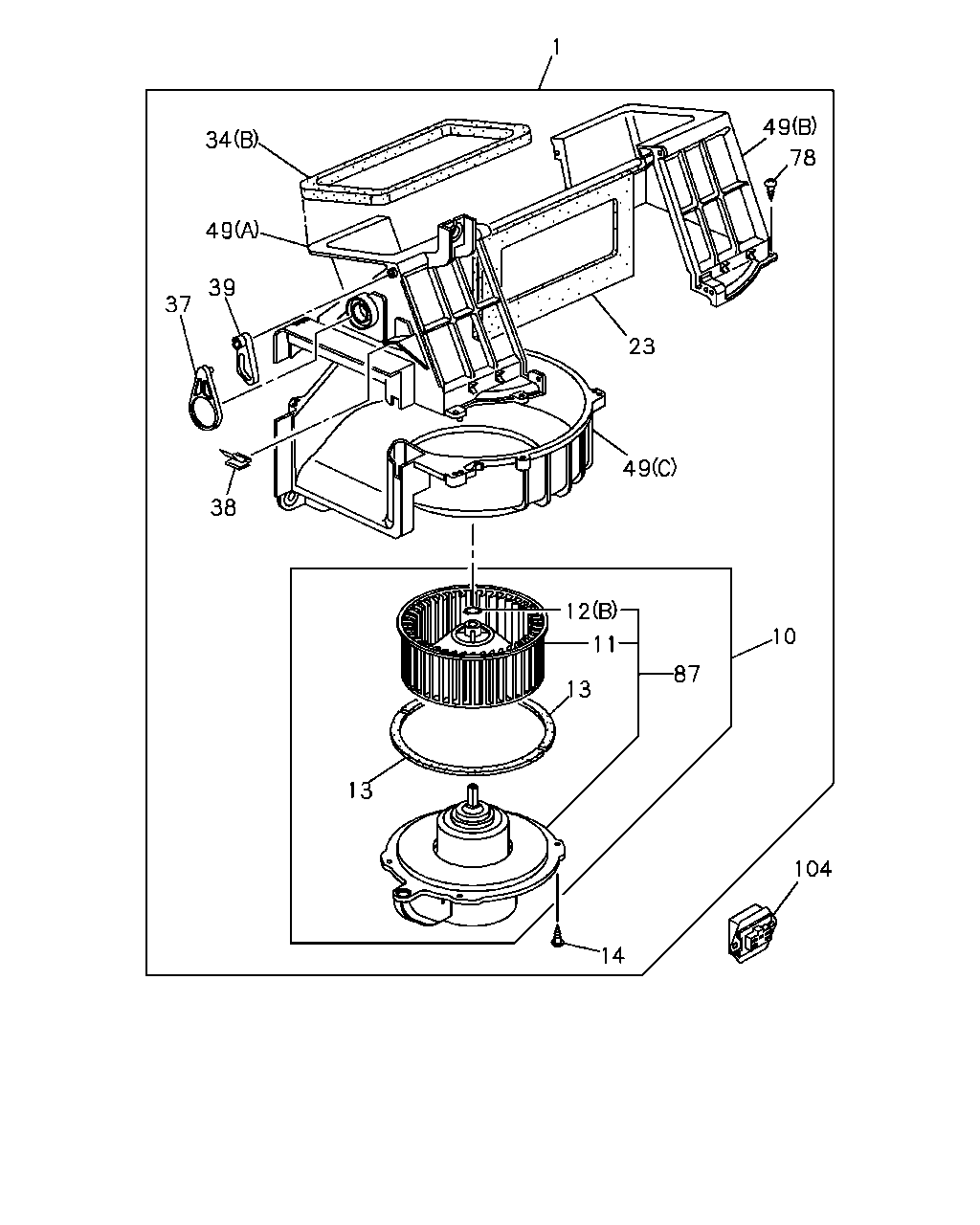

34 1 49 78 23 49 12 10 87 13 13 14 104 11 38 37 39 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97078-871-3	01	1	9210-9404	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97102-681-1	01	1	9405-9405	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97102-681-1	01	1	9406-9511	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97139-525-0	01	1	9512-	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-811-5	01	1	9210-9404	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97103-727-0	01	1	9405-9405	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97103-727-0	01	1	9406-	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-812-0	01	1	9210-9302	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97096-067-0	01	1	9303-9405	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97096-067-0	01	1	9406-	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	5-83569-088-0	01	1	9210-9404	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9210-9405	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9406-	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9210-9405	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94324-816-0	02	1	9406-	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	04	1	9210-9405	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	04	1	9406-9511	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 10.240 M5X20	9-09829-324-1	04	1	9512-	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9210-9404	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97072-039-0	01	1	9405-9405	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97072-039-0	01	1	9406-9511	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94324-818-2	01	1	9512-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97027-786-0	01	1	9210-9404	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97069-409-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C)	8-97069-410-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94327-437-0	01	1	9309-9405	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (B)	8-94327-437-0	01	1	9406-	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-819-1	01	1	9210-9405	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94324-819-1	01	1	9406-	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9210-9405	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94337-654-0	01	1	9406-	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.852	8-94324-820-0	01	1	9210-9405	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.852	8-94324-820-0	01	1	9406-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-94324-808-4	01	1	9210-9405	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (A)	8-94324-808-4	01	1	9406-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94324-809-1	01	1	9210-9405	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (B)	8-94324-809-1	01	1	9406-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C)	8-94324-810-4	01	1	9210-9405	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (C)	8-94324-810-4	01	1	9406-	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	10	1	9210-9405	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	10	1	9406-9511	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	08	1	9512-	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97083-137-1	01	1	9210-9404	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97106-492-0	01	1	9405-9405	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97106-492-0	01	1	9406-9511	●	●	●	●	●	●	●	●
104	08.855 RESISTOR; BLOWER UNIT AIR CON PREPARATORY PACK<S6D>	8-97078-452-1	01	1	9507-				●

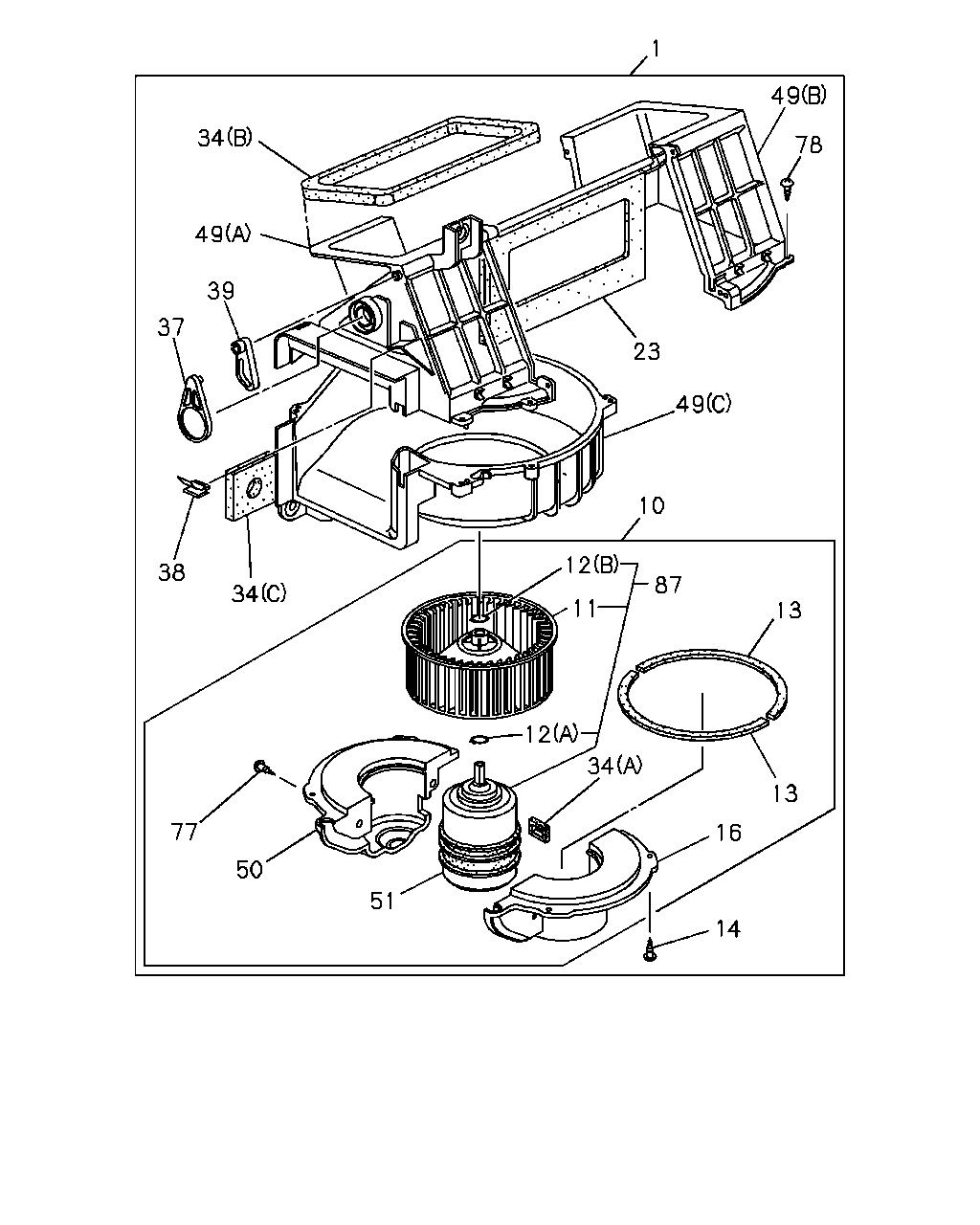

34 1 49 78 23 49 49 39 37 38 10 12 34 11 87 13 13 34 16 12 14 51 50 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97078-871-3	01	1	9210-9404	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97102-681-1	01	1	9405-9405	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97102-681-1	01	1	9406-9511	●	●	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97139-525-0	01	1	9512-	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-811-5	01	1	9210-9404	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97103-727-0	01	1	9405-9405	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97103-727-0	01	1	9406-	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-812-0	01	1	9210-9302	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97096-067-0	01	1	9303-9405	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97096-067-0	01	1	9406-	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	5-83569-088-0	01	1	9210-9404	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9210-9405	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9406-	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9210-9405	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94324-816-0	02	1	9406-	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	04	1	9210-9405	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	04	1	9406-9511	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 10.240 M5X20	9-09829-324-1	04	1	9512-	●	●	●	●	●	●	●	●
16	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-814-0	01	1	9210-9312	●	●	●	●	●	●	●	●
16	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97112-756-0	01	1	9401-9404	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9210-9404	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97072-039-0	01	1	9405-9405	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97072-039-0	01	1	9406-9511	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94324-818-2	01	1	9512-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97027-786-0	01	1	9210-9404	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97069-409-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C)	8-97069-410-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94327-437-0	01	1	9309-9405	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (B)	8-94327-437-0	01	1	9406-	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-819-1	01	1	9210-9405	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94324-819-1	01	1	9406-	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9210-9405	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-94337-654-0	01	1	9406-	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.852	8-94324-820-0	01	1	9210-9405	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.852	8-94324-820-0	01	1	9406-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-94324-808-4	01	1	9210-9405	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (A)	8-94324-808-4	01	1	9406-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94324-809-1	01	1	9210-9405	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (B)	8-94324-809-1	01	1	9406-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C)	8-94324-810-4	01	1	9210-9405	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (C)	8-94324-810-4	01	1	9406-	●	●	●	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-813-0	01	1	9210-9312	●	●	●	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97112-757-0	01	1	9401-9404	●	●	●	●	●	●	●	●
51	08.855 ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94324-815-0	01	1	9210-9404	●	●	●	●	●	●	●	●
77	08.857 SCREW; COVER TO COVER,BLOWER UNI HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.846 M5X16	8-94248-820-0	02	1	9210-9404	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	10	1	9210-9405	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	10	1	9406-9511	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	08	1	9512-	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97083-137-1	01	1	9210-9404	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97106-492-0	01	1	9405-9405	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1)	8-97106-492-0	01	1	9406-9511	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
