8-70 — AIR CONDITIONING VENTILATION UNIT (#43264) — 47 parça

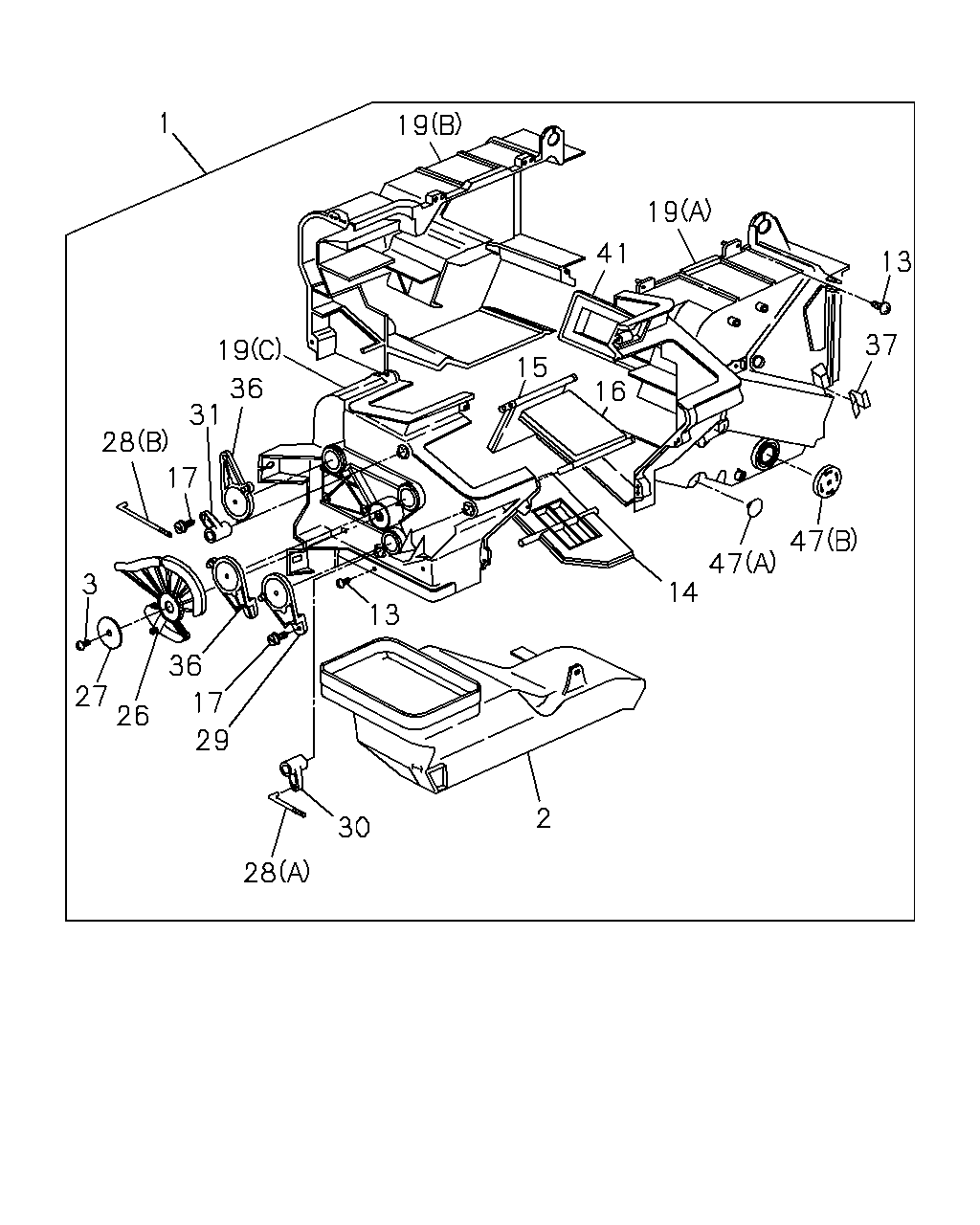

çizim 66716
1 19 19 13 37 47 14 47 16 15 41 19 31 28 36 17 3 36 26 29 13 17 27 30 2 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.845 VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94473-796-3 01 1 9210-9412 ● ● ● ● ● ● ● ●
1 08.845 VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 		8-94473-796-3 01 1 9501- ● ● ● ● ● ● ● ●
2 08.854 DUCT; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.845 		8-94324-831-1 01 1 9210-9412 ● ● ● ● ● ● ● ●
2 08.854 DUCT; VENTILATOR
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 08.845 		8-94324-831-1 01 1 9501- ● ● ● ● ● ● ● ●
3 08.852 SCREW; LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.846 M5X16 		8-94248-820-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
3 08.852 SCREW; LEVER
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 08.846 M5X16 		8-94248-820-0 01 1 9501- ● ● ● ● ● ● ● ●
13 08.852 SCREW; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 14 1 9210-9307 ● ● ● ● ● ● ● ●
13 08.852 SCREW; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 13 1 9308-9412 ● ● ● ● ● ● ● ●
13 08.852 SCREW; CASE
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) M4X16 		8-94324-850-0 13 1 9501- ● ● ● ● ● ● ● ●
14 08.854 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-836-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
14 08.854 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 		8-94324-836-0 01 1 9501- ● ● ● ● ● ● ● ●
15 08.854 DOOR; MIX,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-837-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
15 08.854 DOOR; MIX,VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 		8-94324-837-0 01 1 9501- ● ● ● ● ● ● ● ●
16 08.854 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.845 		8-94324-835-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
16 08.854 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 08.845 		8-94324-835-0 01 1 9501- ● ● ● ● ● ● ● ●
17 08.852 CLIP; SHUTTER LEVER,VENTILATION
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94248-794-0 03 1 9210-9412 ● ● ● ● ● ● ● ●
17 08.852 CLIP; SHUTTER LEVER,VENTILATION
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 09.786 		8-94248-794-0 03 1 9501- ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94324-828-3 01 1 9210-9412 ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) (A) 		8-94324-828-3 01 1 9501- ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94324-829-3 01 1 9210-9412 ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) (B) 		8-94324-829-3 01 1 9501- ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (C) 		8-94324-830-1 01 1 9210-9412 ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) (C) 		8-94324-830-1 01 1 9501- ● ● ● ● ● ● ● ●
26 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94324-845-1 01 1 9210-9412 ● ● ● ● ● ● ● ●
26 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 09.786 		8-94324-845-1 01 1 9501- ● ● ● ● ● ● ● ●
27 08.852 WASHER; LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94129-950-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
27 08.852 WASHER; LEVER
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 		8-94129-950-0 01 1 9501- ● ● ● ● ● ● ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94324-848-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) (A) 		8-94324-848-0 01 1 9501- ● ● ● ● ● ● ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.866 (B) 		8-94324-849-0 02 1 9210-9412 ● ● ● ● ● ● ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 08.866 (B) 		8-94324-849-0 02 1 9501- ● ● ● ● ● ● ● ●
29 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94324-844-1 01 1 9210-9412 ● ● ● ● ● ● ● ●
29 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 09.786 		8-94324-844-1 01 1 9501- ● ● ● ● ● ● ● ●
30 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.786 		8-94324-842-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
30 08.852 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 09.786 		8-94324-842-0 01 1 9501- ● ● ● ● ● ● ● ●
31 08.852 LEVER; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.856 		8-94324-841-0 02 1 9210-9412 ● ● ● ● ● ● ● ●
31 08.852 LEVER; VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 08.856 		8-94324-841-0 02 1 9501- ● ● ● ● ● ● ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-843-1 02 1 9210-9412 ● ● ● ● ● ● ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 		8-94324-843-1 02 1 9501- ● ● ● ● ● ● ● ●
37 08.852 CLIP; CABLE,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 09.787 		8-94337-654-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
37 08.852 CLIP; CABLE,VENTILATION UNIT
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 09.787 		8-94337-654-0 01 1 9501- ● ● ● ● ● ● ● ●
41 08.852 COVER; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-659-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
41 08.852 COVER; CASE
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) 		8-94328-659-0 01 1 9501- ● ● ● ● ● ● ● ●
47 08.845 PLUG; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94328-657-0 04 1 9210-9412 ● ● ● ● ● ● ● ●
47 08.845 PLUG; CASE
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) (A) 		8-94328-657-0 04 1 9501- ● ● ● ● ● ● ● ●
47 08.845 PLUG; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94328-658-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
47 08.845 PLUG; CASE
FORGED AIR VENTILATION(C57),AIR CONPREPARATORY PACK<S6D>,COOLER WO/HE ATER(YL1) (B) 		8-94328-658-0 01 1 9501- ● ● ● ● ● ● ● ●
