8-65 — CONTROL LEVER; HEATER AND AIR CON (#43263) — 32 parça

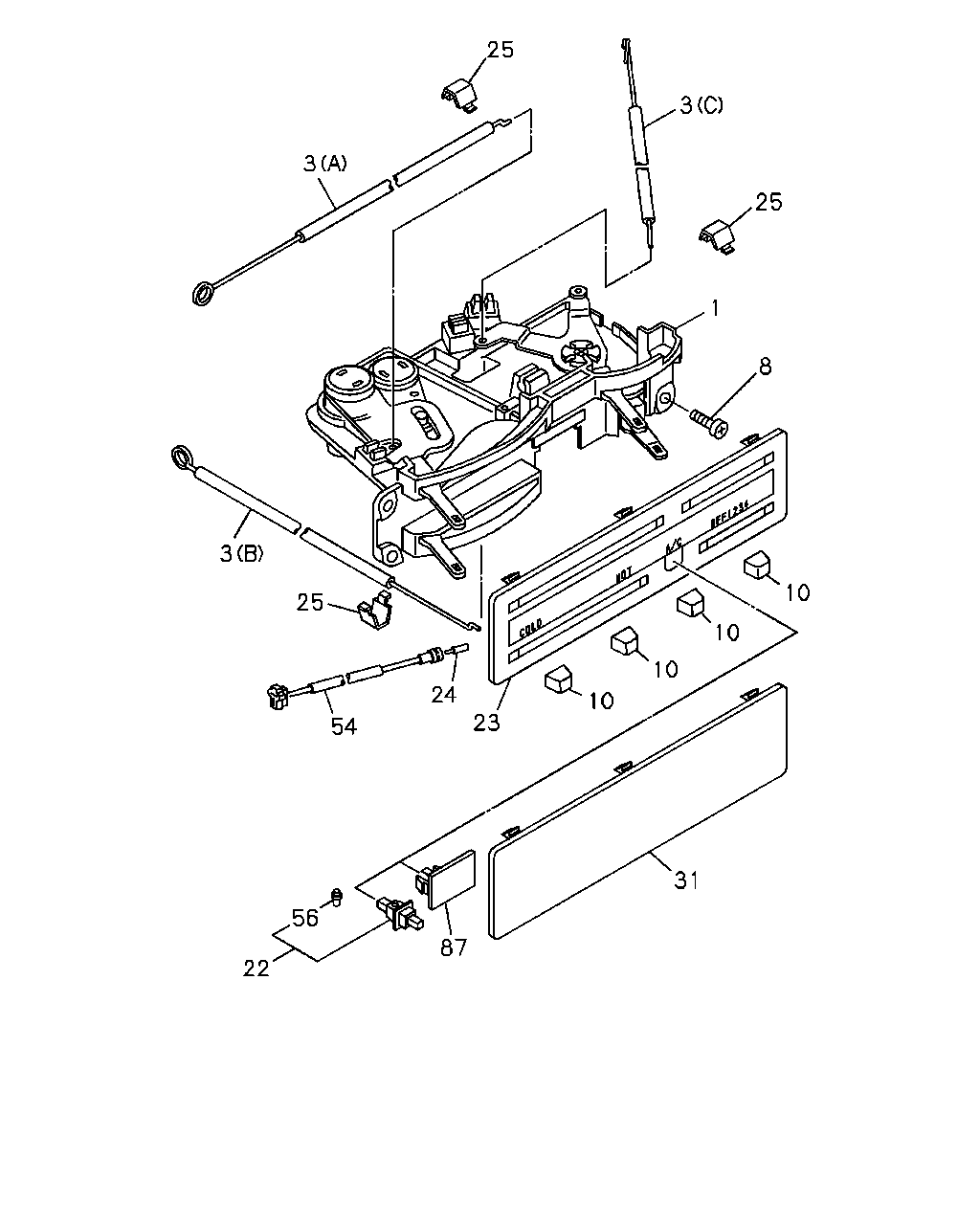

çizim 66303
3 25 3 25 1 8 10 10 10 10 23 24 54 25 3 31 87 56 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.849 LEVER SUB ASM; HTR CONT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-859-0 01 1 9210- ● ● ● ● ● ● ● ●
1 08.849 LEVER SUB ASM; HTR CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-852-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
1 08.849 LEVER SUB ASM; HTR CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-852-0 01 1 9406- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) TEMP LEVER 		8-94324-854-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> (B) TEMP LEVER 		8-94324-854-0 01 1 9406- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) MODE LEVER 		8-94324-853-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (A) MODE LEVER 		8-94324-853-0 01 1 9406- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C) F/C LEVER 		8-94324-855-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) (C) F/C LEVER 		8-94324-855-0 01 1 9406- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9210-9405 ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9406- ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94435-195-0 03 1 9210- ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94435-195-0 04 1 9210-9405 ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94435-195-0 04 1 9406- ● ● ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-94442-974-0 01 1 9210-9408 ● ● ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 		8-97117-963-0 01 1 9409- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94435-499-4 01 1 9210- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94435-498-4 01 1 9210-9405 ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94435-498-4 01 1 9406- ● ● ● ● ● ● ● ●
24 08.991 BULB; CONT LEVER
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 12V 1.4W 		5-82194-021-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
24 08.991 BULB; CONT LEVER
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 12V 1.4W 		5-82194-021-0 01 1 9406- ● ● ● ● ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 08.849 		8-94325-471-0 02 1 9210- ● ● ● ● ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.849 		8-94325-471-0 03 1 9210-9405 ● ● ● ● ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.849 		8-94325-471-0 03 1 9406- ● ● ● ● ● ● ● ●
31 08.850 COVER; HOLE,CONT LEVER
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),COOLER WO/HEATER(YL1) 		8-94318-804-0 01 1 9210-9412 ● ● ● ● ● ● ● ●
31 08.850 COVER; HOLE,CONT LEVER
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER(C60),AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94318-804-0 01 1 9501- ● ● ● ● ● ● ● ●
54 08.849 HARNESS; CONT BEZEL
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.991 12V 1.4W 		8-94155-537-3 01 1 9210-9405 ● ● ● ● ● ● ● ●
54 08.849 HARNESS; CONT BEZEL
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 08.991 12V 1.4W 		8-94155-537-3 01 1 9406- ● ● ● ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 14V 60MA 		8-94337-134-0 01 1 9210- ● ● ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57) 08.852 		8-94435-500-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57) 08.852 		8-94435-500-0 01 1 9406- ● ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK<S6D> 08.852 		8-94435-500-0 01 1 9406- ●
