◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#43262) — 119 parça

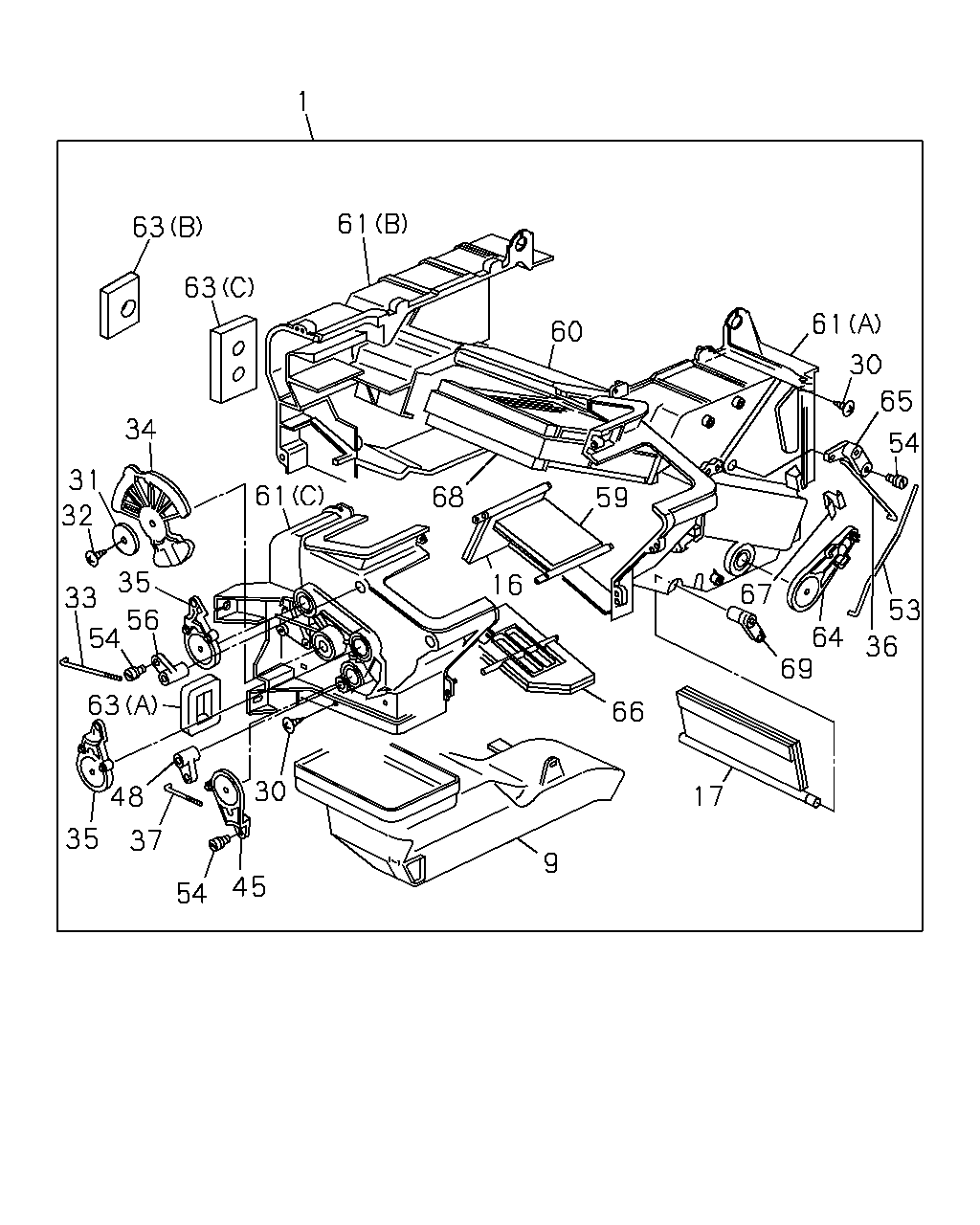

çizim 18119
1 61 63 63 60 61 30 65 54 53 67 64 36 69 17 66 16 59 68 61 34 31 32 35 33 63 56 54 48 35 37 30 45 54 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-97078-873-2 01 1 9210-9405 ● ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-97078-873-2 01 1 9406-9412 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-97078-873-2 01 1 9406-9412 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-97078-873-2 01 1 9501- ● ● ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.845 		8-94324-831-1 01 1 9210-9405 ● ● ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.845 		8-94324-831-1 01 1 9406-9412 ● ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.845 		8-94324-831-1 01 1 9406-9412 ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.845 		8-94324-831-1 01 1 9501- ● ● ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.854 		8-94324-837-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.854 		8-94324-837-0 01 1 9406-9412 ● ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.854 		8-94324-837-0 01 1 9406-9412 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.854 		8-94324-837-0 01 1 9501- ● ● ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.845 		8-94324-834-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.845 		8-94324-834-0 01 1 9406-9412 ● ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.845 		8-94324-834-0 01 1 9406-9412 ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.845 		8-94324-834-0 01 1 9501- ● ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 M4X16 		8-94324-850-0 14 1 9210-9307 ● ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 M4X16 		8-94324-850-0 13 1 9308-9405 ● ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 M4X16 		8-94324-850-0 13 1 9406-9412 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.852 M4X16 		8-94324-850-0 13 1 9406-9412 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 M4X16 		8-94324-850-0 13 1 9501- ● ● ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94129-950-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94129-950-0 01 1 9406-9412 ● ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94129-950-0 01 1 9406-9412 ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94129-950-0 01 1 9501- ● ● ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.846 M5X16 		8-94248-820-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.846 M5X16 		8-94248-820-0 01 1 9406-9412 ● ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.846 M5X16 		8-94248-820-0 01 1 9406-9412 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.846 M5X16 		8-94248-820-0 01 1 9501- ● ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.866 		8-94324-849-0 02 1 9210-9405 ● ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.866 		8-94324-849-0 02 1 9406-9412 ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.866 		8-94324-849-0 02 1 9406-9412 ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.866 		8-94324-849-0 02 1 9501- ● ● ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-845-1 01 1 9210-9405 ● ● ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-845-1 01 1 9406-9412 ● ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-845-1 01 1 9406-9412 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-845-1 01 1 9501- ● ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-843-1 02 1 9210-9405 ● ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-843-1 02 1 9406-9412 ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-843-1 02 1 9406-9412 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-843-1 02 1 9501- ● ● ● ● ● ● ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.786 		8-94324-847-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.786 		8-94324-847-0 01 1 9406-9412 ● ● ● ● ● ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 09.786 		8-94324-847-0 01 1 9406-9412 ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.786 		8-94324-847-0 01 1 9501- ● ● ● ● ● ● ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-848-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-848-0 01 1 9406-9412 ● ● ● ● ● ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-848-0 01 1 9406-9412 ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-848-0 01 1 9501- ● ● ● ● ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-844-1 01 1 9210-9405 ● ● ● ● ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-844-1 01 1 9406-9412 ● ● ● ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-844-1 01 1 9406-9412 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-844-1 01 1 9501- ● ● ● ● ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-842-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-842-0 01 1 9406-9412 ● ● ● ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-842-0 01 1 9406-9412 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-842-0 01 1 9501- ● ● ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-846-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-846-0 01 1 9406-9412 ● ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-846-0 01 1 9406-9412 ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-846-0 01 1 9501- ● ● ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.786 		8-94248-794-0 04 1 9210-9405 ● ● ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.786 		8-94248-794-0 04 1 9406-9412 ● ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 09.786 		8-94248-794-0 04 1 9406-9412 ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.786 		8-94248-794-0 04 1 9501- ● ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.856 		8-94324-841-0 02 1 9210-9405 ● ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.856 		8-94324-841-0 02 1 9406-9412 ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.856 		8-94324-841-0 02 1 9406-9412 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.856 		8-94324-841-0 02 1 9501- ● ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-835-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-835-0 01 1 9406-9412 ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-835-0 01 1 9406-9412 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-835-0 01 1 9501- ● ● ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-833-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-833-0 01 1 9406-9412 ● ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-833-0 01 1 9406-9412 ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-833-0 01 1 9501- ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) 		8-94324-828-3 01 1 9210-9405 ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) 		8-94324-828-3 01 1 9406-9412 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> (A) 		8-94324-828-3 01 1 9406-9412 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) 		8-94324-828-3 01 1 9501- ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) 		8-94324-829-3 01 1 9210-9405 ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) 		8-94324-829-3 01 1 9406-9412 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> (B) 		8-94324-829-3 01 1 9406-9412 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) 		8-94324-829-3 01 1 9501- ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C) 		8-94324-830-1 01 1 9210-9405 ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C) 		8-94324-830-1 01 1 9406-9412 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> (C) 		8-94324-830-1 01 1 9406-9412 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C) 		8-94324-830-1 01 1 9501- ● ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) 		8-97069-413-0 01 1 9210-9307 ● ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C) 		8-97069-416-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C) 		8-97069-416-0 01 1 9406-9412 ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> (C) 		8-97069-416-0 01 1 9406-9412 ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C) 		8-97069-416-0 01 1 9501- ● ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) 		8-97069-417-0 01 1 9210-9307 ● ● ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-840-1 01 1 9210-9405 ● ● ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-840-1 01 1 9406-9412 ● ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94324-840-1 01 1 9406-9412 ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94324-840-1 01 1 9501- ● ● ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 		8-94324-838-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 		8-94324-838-0 01 1 9406-9412 ● ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.852 		8-94324-838-0 01 1 9406-9412 ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.852 		8-94324-838-0 01 1 9501- ● ● ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.854 		8-94324-836-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.854 		8-94324-836-0 01 1 9406-9412 ● ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 08.854 		8-94324-836-0 01 1 9406-9412 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 08.854 		8-94324-836-0 01 1 9501- ● ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.787 		8-94337-654-0 02 1 9210-9405 ● ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.787 		8-94337-654-0 02 1 9406-9412 ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 09.787 		8-94337-654-0 02 1 9406-9412 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 09.787 		8-94337-654-0 02 1 9501- ● ● ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94327-444-2 01 1 9210-9405 ● ● ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94327-444-2 01 1 9406-9412 ● ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-94327-444-2 01 1 9406-9412 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-94327-444-2 01 1 9501- ● ● ● ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-97045-854-0 01 1 9210-9405 ● ● ● ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-97045-854-0 01 1 9406-9412 ● ● ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D> 		8-97045-854-0 01 1 9406-9412 ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 		8-97045-854-0 01 1 9501- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
