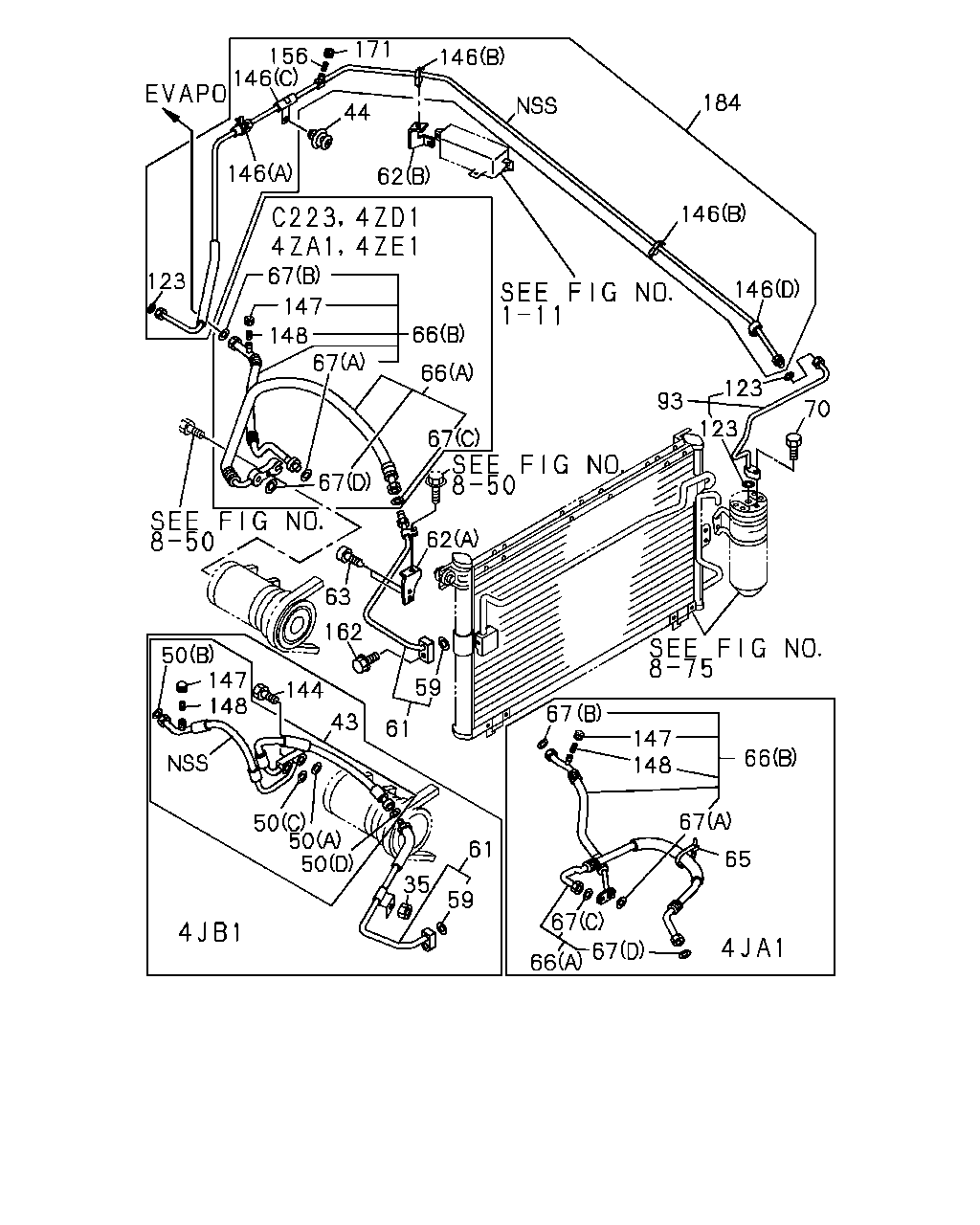

8-52 — PIPING; AIR CONDITIONING (#43261) — 69 parça

44 156 146 171 146 184 146 146 123 70 93 123 66 148 147 67 65 67 67 67 66 61 59 35 50 50 50 61 43 144 148 50 147 63 62 162 59 67 66 66 67 148 147 67 123 146 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
35	09.242 NUT; FLEX HOSE,A/C 4JB1 ENG(RLF) TURBOCHARGER(K51) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.062 M6 FLANGE	0-91150-206-0	01	1	9510-	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) "R-134A"	8-97086-226-2	01	1	9510-9603	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97086-226-2	01	1	9604-	●	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 12.801 D6.8X12	8-94198-687-0	01	1	9210-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) (B) ID=13.9	8-94113-330-0	01	1	9510-9603	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	01	1	9604-	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) (D) ID=10.8	8-94113-331-0	01	1	9510-9603	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (D) ID=10.8	8-94113-331-0	01	1	9604-	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) 09.260 (C) ID=11.0	8-94461-900-0	01	1	9510-9603	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.260 (C) ID=11.0	8-94461-900-0	01	1	9604-	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) 09.260 (A) ID=14.8	8-94461-901-0	01	1	9510-9603	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.260 (A) ID=14.8	8-94461-901-0	01	1	9604-	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9210-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97069-423-1	01	1	9210-9509	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97069-423-1	01	1	9510-9603	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER(K51)	8-97069-423-1	01	1	9604-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JB1 ENG(RLF) TURBOCHARGER(K51) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97044-164-2	01	1	9510-	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9210-9509	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9510-9603	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER(K51) (A)	8-94459-508-1	01	1	9604-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9210-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9210-9509	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9510-9603	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER(K51) M6X12	9-09829-330-1	02	1	9604-	●	●	●	●	●	●	●	●
65	09.242 CLIP; A/C PIPE 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.785 L=300	8-94151-373-0	01	1	9210-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZA1 ENG(L17) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97022-194-0	01	1	9210-9301				●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZA1 ENG(L17) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97086-217-0	01	1	9302-				●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97022-185-0	01	1	9210-9303	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97086-220-1	01	1	9304-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97022-193-0	01	1	9210-9301	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97086-216-0	01	1	9302-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97022-188-0	01	1	9210-9303	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) "R-134A"	8-97086-223-1	01	1	9304-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97022-190-0	01	1	9210-9301	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97069-327-1	01	1	9302-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97022-184-0	01	1	9210-9308		●	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97022-192-0	01	1	9210-9308		●	●	●		●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.222 (D) ID=10.8	8-94113-331-0	01	1	9210-9509	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.222 (D) ID=10.8	8-94113-331-0	01	1	9510-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.172 (B) ID=7.80	8-94113-333-0	01	1	9210-9303	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.172 (B) ID=7.80	8-94113-333-0	01	1	9304-9308		●	●	●		●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9210-9509	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9510-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) ID=14.8	8-94461-901-0	01	1	9210-9509	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) ID=14.8	8-94461-901-0	01	1	9510-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9304-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9210-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97069-424-1	01	1	9210-9303	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9304-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9210-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9304-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9510-9603	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9604-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9407-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9210-9303	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9210-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	03	1	9304-9406	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9210-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9407-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZD1 ENG(LW3) AIR CONDITIONER(C60) ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	01	1	9407-			●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9304-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9403-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9210-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) CAP MARK H	8-97083-101-0	01	1	9304-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9403-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-97081-319-1	01	1	9210-9303	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-860-2	01	1	9304-9402	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZD1 ENG(LW3) AIR CONDITIONER(C60) ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-855-2	01	1	9403-			●	●	●		●
