Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#43260) — 190 parça

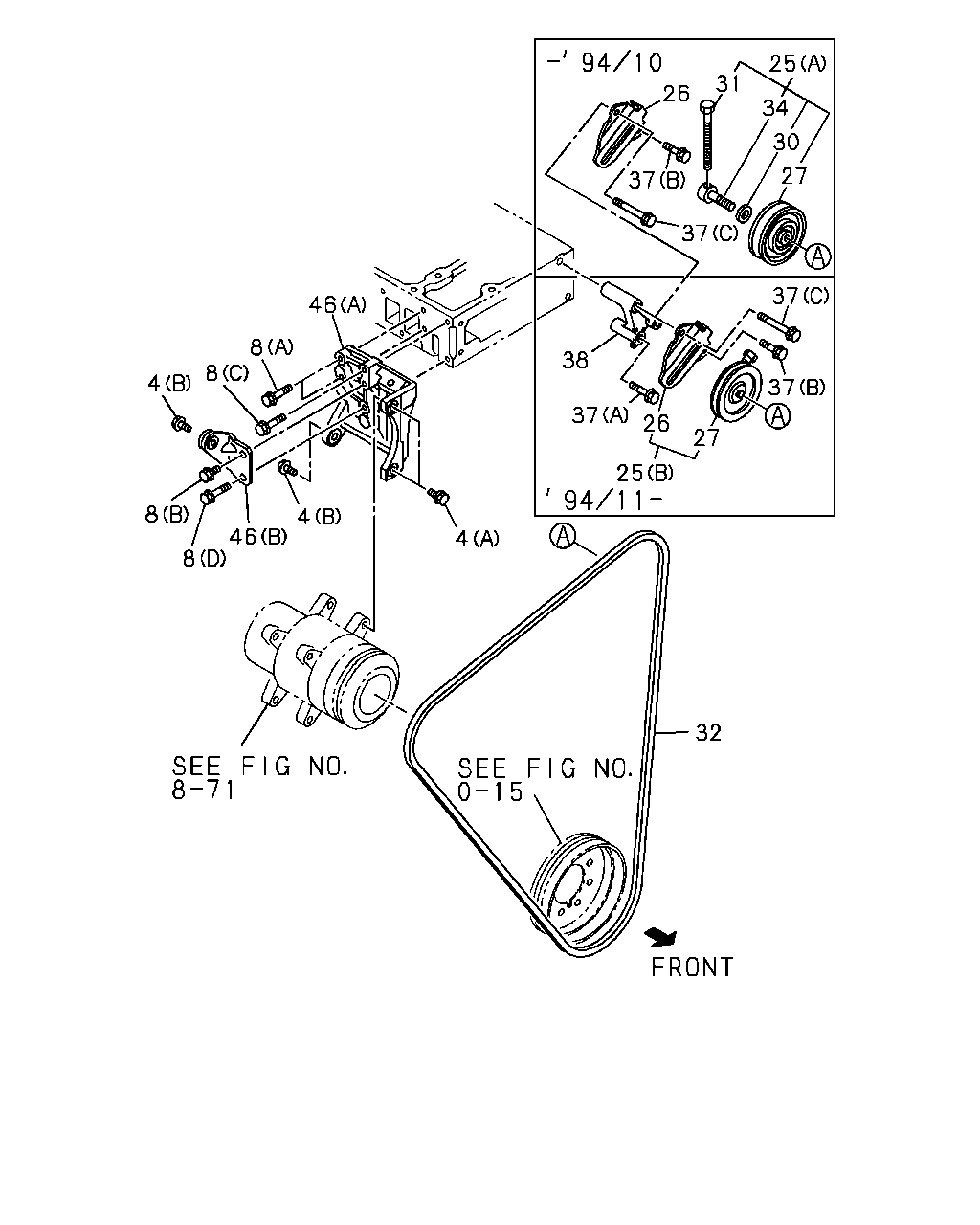

46 8 8 4 8 4 46 8 4 25 26 27 37 38 37 37 37 27 30 37 31 34 26 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-9406	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9407-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9210-9308	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9309-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	04	1	9210-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.727 M8X32 W/LK WASHER	0-50040-832-0	02	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-9308		●	●	●		●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9210-9406	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9407-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9210-9308	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9210-9406	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9407-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.652 (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (G) M10X55	5-09030-038-1	02	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9210-9308		●	●	●		●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9510-9604					●		●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9605-				●	●		●	●
8	09.171 BOLT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 M10X55	5-09030-038-1	01	1	9210-9308		●	●	●		●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (A)	8-94121-175-1	01	1	9210-9308	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (A)	8-94121-175-1	01	1	9309-9410	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> (A)	8-94121-175-1	01	1	9309-9410				●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (B)	8-97080-948-0	01	1	9411-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> (B)	8-97080-948-0	01	1	9411-				●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94104-679-0	01	1	9210-9308		●	●	●		●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-1	01	1	9210-9308	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9309-	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9309-				●	●		●	●
26	09.180 BRACKET; IDLE PULLEY,A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-848-0	01	1	9210-9308		●	●	●		●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	9-13363-606-0	01	1	9210-9308	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	9-13363-606-0	01	1	9309-9406	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	9-13363-606-0	01	1	9309-9406				●	●		●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9411-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9411-				●	●		●	●
27	09.180 PULLEY; IDLE,A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-845-0	01	1	9210-9308		●	●	●		●	●	●
30	09.181 COLLAR; IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94311-250-0	01	1	9210-9308	●	●	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94311-250-0	01	1	9309-9406	●	●	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-94311-250-0	01	1	9309-9406				●	●		●	●
30	09.181 COLLAR; IDLE PULLEY C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-851-0	01	1	9210-9308		●	●	●		●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> M8X110	8-94121-024-0	01	1	9210-9308	●	●	●	●	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> M8X110 L=110	8-94121-024-0	01	1	9309-9406	●	●	●	●	●	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> M8X110 L=110	8-94121-024-0	01	1	9309-9406				●	●		●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9210-9604	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9210-9604				●	●		●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9605-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94442-970-0	01	1	9210-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> L=1509	5-13671-113-0	01	1	9210-9308		●	●	●		●	●	●
32	01.066 BELT; A/C CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94146-423-0	02	1	9210-9308		●	●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9605-				●	●		●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) POWER STEERING<N40>	8-94434-926-0	01	1	9510-9604					●		●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) POWER STEERING<N40> AIR CONDITIONER(C60)	8-94434-926-0	01	1	9605-				●	●		●	●
34	09.181 SHAFT; IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94311-249-0	01	1	9210-9308	●	●	●	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94311-249-0	01	1	9309-9406	●	●	●	●	●	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-94311-249-0	01	1	9309-9406				●	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9210-9308	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9309-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9309-				●	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 00.029 (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9210-9308	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 00.029 (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9309-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> 00.029 (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9309-				●	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9210-9308	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9309-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9309-				●	●		●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94109-900-1	01	1	9210-9308	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94109-900-1	01	1	9309-9408	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-94109-900-1	01	1	9309-9408				●	●		●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97107-868-0	01	1	9409-	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-97107-868-0	01	1	9409-				●	●		●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.242 (A)	8-97085-064-0	01	1	9210-9410	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-97114-781-0	01	1	9411-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (B)	8-97085-065-0	01	1	9210-9410	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9411-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) 09.242 (A)	8-97114-780-0	01	1	9510-9604					●		●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) 09.242 (A)	8-97114-780-0	01	1	9605-				●	●		●	●

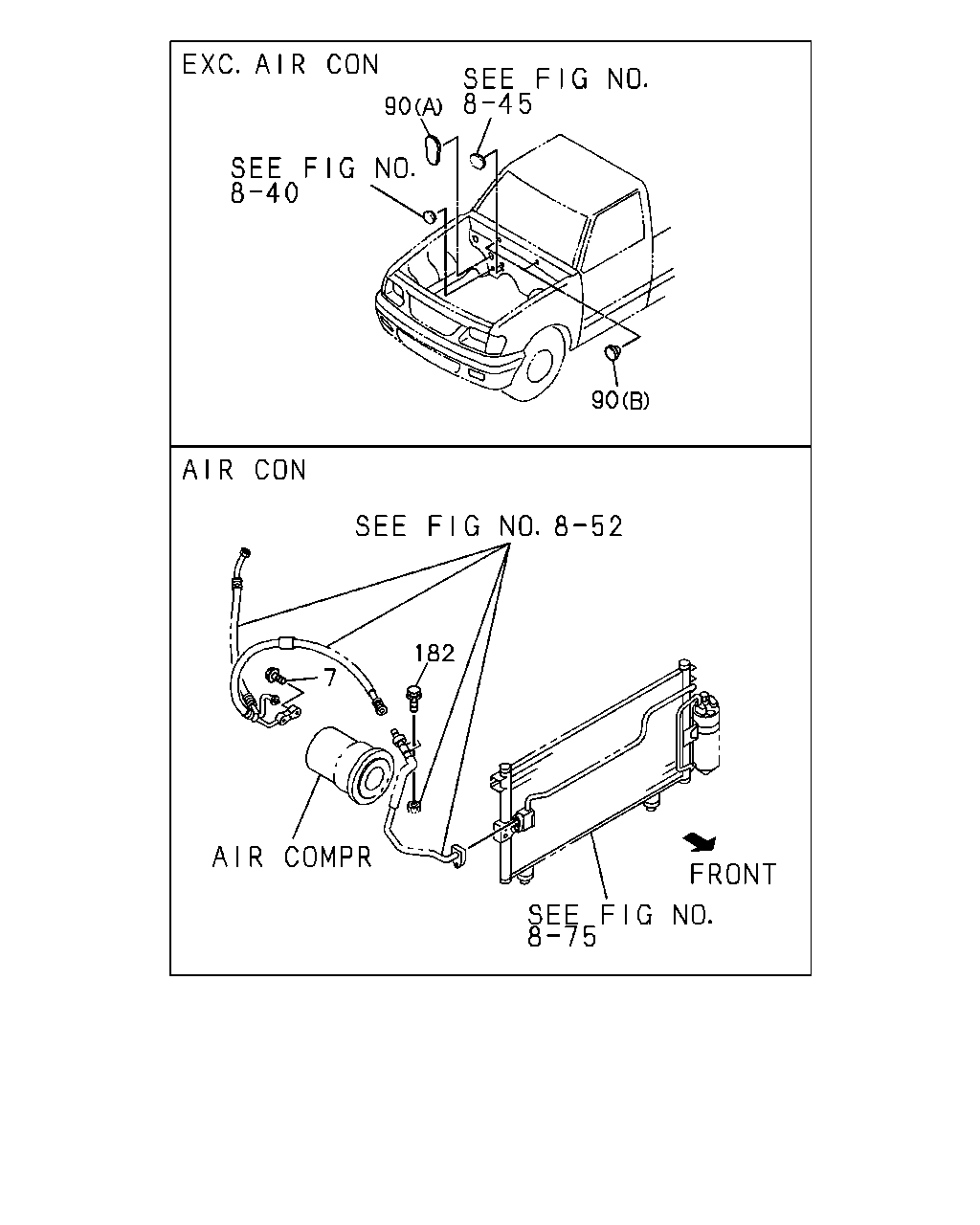

90 90 182 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	09.242 BOLT; BRKT C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9210-9308	●	●	●	●	●	●	●	●
7	09.242 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9309-	●	●	●	●	●	●	●	●
7	09.242 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9210-	●	●	●	●	●	●	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (A)	8-94222-310-1	01	1	9210-	●	●	●	●	●	●	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 16.550 (B) OD=12	9-09956-122-0	02	1	9210-	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	9210-	●	●	●	●	●	●	●	●

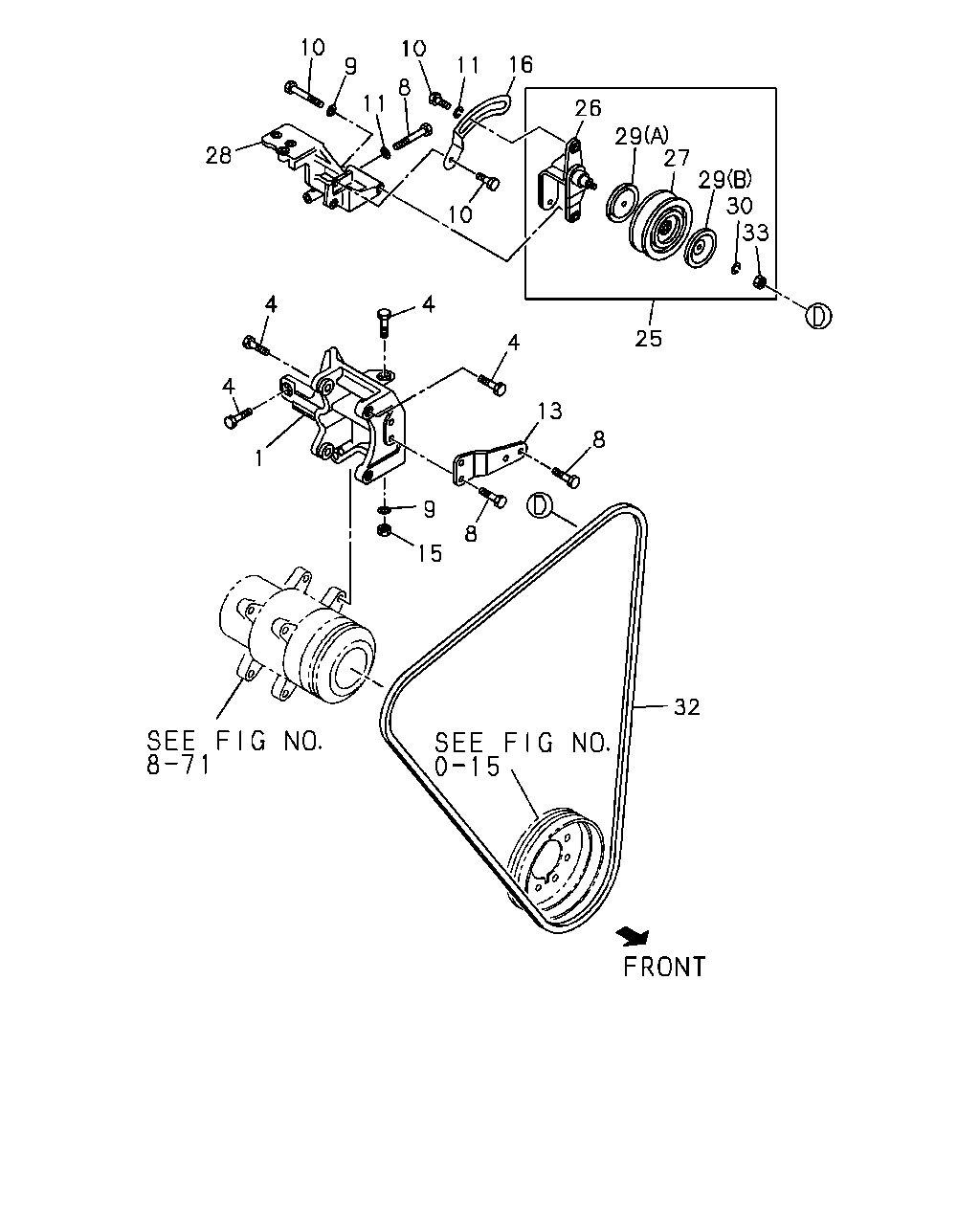

10 10 26 16 11 8 11 9 28 10 29 27 29 30 33 25 8 13 4 4 4 4 1 9 15 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.242 BRACKET; A/C 4ZA1 ENG(L17) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94454-772-0	01	1	9210-	●	●	●	●
1	09.242 BRACKET; A/C 4ZD1 ENG(LW3) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94438-540-2	01	1	9210-	●	●	●	●	●	●	●	●
1	09.242 BRACKET; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94441-552-4	01	1	9210-	●	●	●	●	●	●	●	●
1	09.242 BRACKET; A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94438-102-0	01	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-9406	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9407-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9210-9308	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9309-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	04	1	9210-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.727 M8X32 W/LK WASHER	0-50040-832-0	02	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-9308		●	●	●		●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9210-9406	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9407-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9210-9308	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9210-9406	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9407-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.652 (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (G) M10X55	5-09030-038-1	02	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9210-9308		●	●	●		●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9510-9604					●		●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9605-				●	●		●	●
8	09.171 BOLT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 M10X55	5-09030-038-1	01	1	9210-9308		●	●	●		●	●	●
9	09.171 WASHER; LK,A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 00.002 ID=10.2	9-09150-510-0	03	1	9210-9308		●	●	●		●	●	●
9	09.171 WASHER; LK,A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.002 ID=10.2	9-09150-510-0	01	1	9210-9308		●	●	●		●	●	●
10	09.173 BOLT; ADJ PLATE C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 M10X95	0-10806-095-0	01	1	9210-9308		●	●	●		●	●	●
10	09.173 BOLT; ADJ PLATE C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9210-9308		●	●	●		●	●	●
11	04.085 WASHER; PL,A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> ID=10.5 OD=22	9-09164-610-0	01	1	9210-9308		●	●	●		●	●	●
11	04.085 WASHER; PL,A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> ID=10.5 OD=26	9-09164-710-0	01	1	9210-9308		●	●	●		●	●	●
13	09.171 BRACKET; CMPR,FRT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94125-085-0	01	1	9210-9308		●	●	●		●	●	●
15	09.173 NUT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 00.002 M10	9-09110-510-0	02	1	9210-9308		●	●	●		●	●	●
15	09.173 NUT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.002 M10	9-09110-510-0	01	1	9210-9308		●	●	●		●	●	●
16	09.171 PLATE; ADJ,CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.180	8-94111-632-0	01	1	9210-9308		●	●	●		●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (A)	8-94121-175-1	01	1	9210-9308	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (A)	8-94121-175-1	01	1	9309-9410	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> (A)	8-94121-175-1	01	1	9309-9410				●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (B)	8-97080-948-0	01	1	9411-	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> (B)	8-97080-948-0	01	1	9411-				●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94104-679-0	01	1	9210-9308		●	●	●		●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-1	01	1	9210-9308	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9309-	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9309-				●	●		●	●
26	09.180 BRACKET; IDLE PULLEY,A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-848-0	01	1	9210-9308		●	●	●		●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	9-13363-606-0	01	1	9210-9308	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	9-13363-606-0	01	1	9309-9406	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	9-13363-606-0	01	1	9309-9406				●	●		●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9411-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9411-				●	●		●	●
27	09.180 PULLEY; IDLE,A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-845-0	01	1	9210-9308		●	●	●		●	●	●
28	09.180 BRACKET; ADJ PULLEY C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 06.606	8-97065-216-0	01	1	9210-9308		●	●	●		●	●	●
29	09.181 COVER; DUST,IDLE PULLEY C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (A)	8-94342-849-0	01	1	9210-9308		●	●	●		●	●	●
29	09.181 COVER; DUST,IDLE PULLEY C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> (B)	8-94342-850-0	01	1	9210-9308		●	●	●		●	●	●
30	09.181 COLLAR; IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94311-250-0	01	1	9210-9308	●	●	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94311-250-0	01	1	9309-9406	●	●	●	●	●	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-94311-250-0	01	1	9309-9406				●	●		●	●
30	09.181 COLLAR; IDLE PULLEY C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-851-0	01	1	9210-9308		●	●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9210-9604	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9210-9604				●	●		●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9605-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94442-970-0	01	1	9210-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> L=1509	5-13671-113-0	01	1	9210-9308		●	●	●		●	●	●
32	01.066 BELT; A/C CMPR C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94146-423-0	02	1	9210-9308		●	●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9605-				●	●		●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER(C60) POWER STEERING<N40>	8-94434-926-0	01	1	9510-9604					●		●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) POWER STEERING<N40> AIR CONDITIONER(C60)	8-94434-926-0	01	1	9605-				●	●		●	●
33	09.181 NUT; IDLER PULLEY C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94342-852-0	01	1	9210-9308		●	●	●		●	●	●

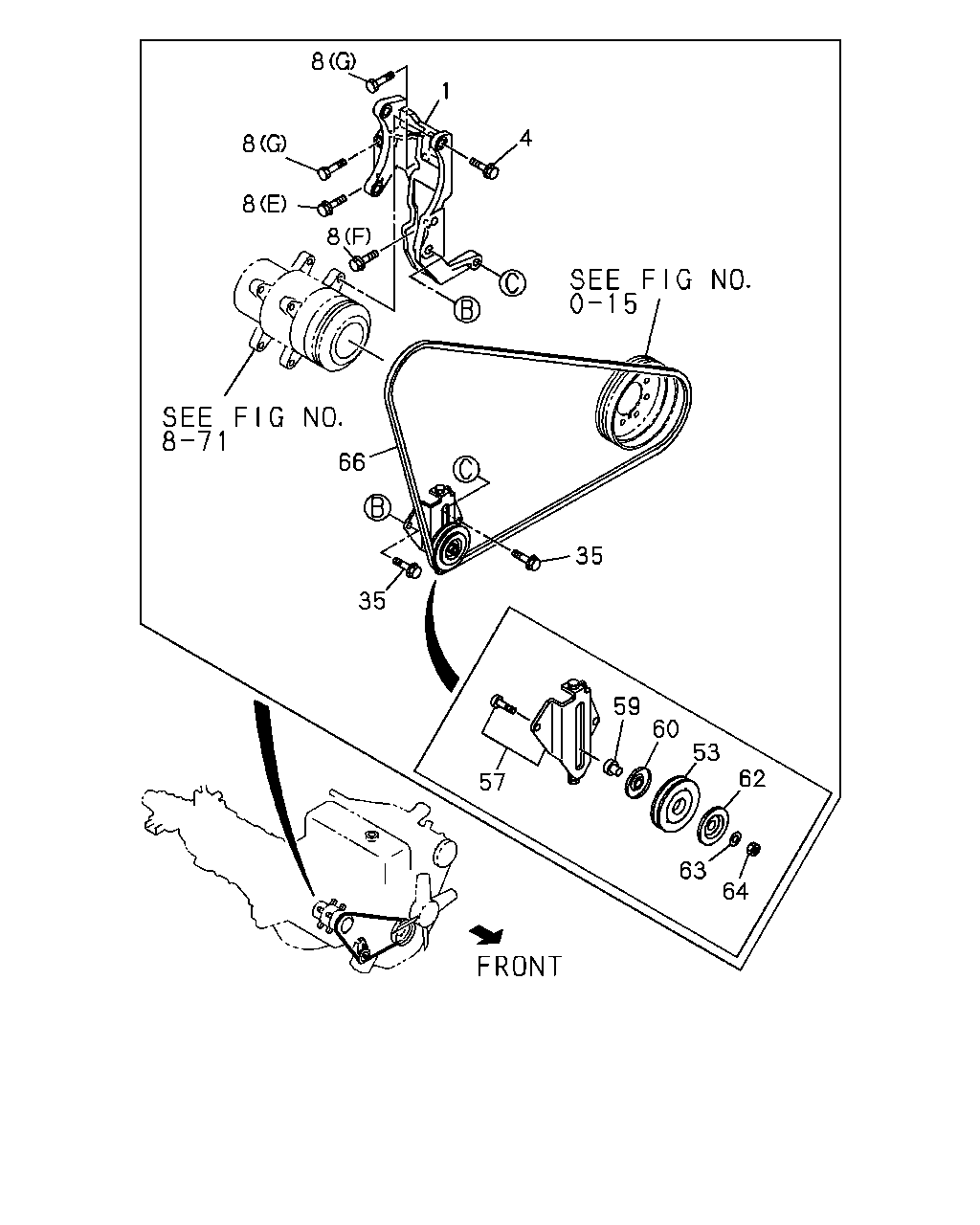

8 1 8 8 4 66 35 35 59 60 53 62 63 64 57 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.242 BRACKET; A/C 4ZA1 ENG(L17) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94454-772-0	01	1	9210-	●	●	●	●
1	09.242 BRACKET; A/C 4ZD1 ENG(LW3) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94438-540-2	01	1	9210-	●	●	●	●	●	●	●	●
1	09.242 BRACKET; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94441-552-4	01	1	9210-	●	●	●	●	●	●	●	●
1	09.242 BRACKET; A/C C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 09.171	8-94438-102-0	01	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-9406	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9407-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9210-9308	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9309-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	04	1	9210-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.727 M8X32 W/LK WASHER	0-50040-832-0	02	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9210-9308		●	●	●		●	●	●
4	09.171 BOLT; A/C CMPR BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9210-9308		●	●	●		●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9210-9406	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9407-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9210-9308	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9309-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9210-9406	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9407-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 01.652 (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 (G) M10X55	5-09030-038-1	02	1	9210-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9210-9308		●	●	●		●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9510-9604					●		●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9605-				●	●		●	●
8	09.171 BOLT; BRKT C223 ENG(LQ7) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 00.724 M10X55	5-09030-038-1	01	1	9210-9308		●	●	●		●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9210-	●	●	●	●	●	●	●	●
53	09.180 PULLEY; IDLER WITH COVER 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94160-544-0	01	1	9210-	●	●	●	●	●	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94160-543-0	01	1	9210-	●	●	●	●	●	●	●	●
59	09.181 COLLAR; IDLER PULLEY 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94161-805-0	01	1	9210-	●	●	●	●	●	●	●	●
60	09.181 COVER; IDLER PULLEY 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) REAR	8-94161-804-0	01	1	9210-	●	●	●	●	●	●	●	●
62	09.181 COVER; IDLER PULLEY 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) FRONT	8-94160-545-0	01	1	9210-	●	●	●	●	●	●	●	●
63	09.181 WASHER; SHAFT,IDLER PULLEY 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94172-502-0	01	1	9210-	●	●	●	●	●	●	●	●
64	09.181 NUT; SHAFT,IDLER PULLEY 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1)	8-94160-678-0	01	1	9210-	●	●	●	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) L=999	8-94478-173-1	01	1	9210-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
