Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#43259) — 121 parça

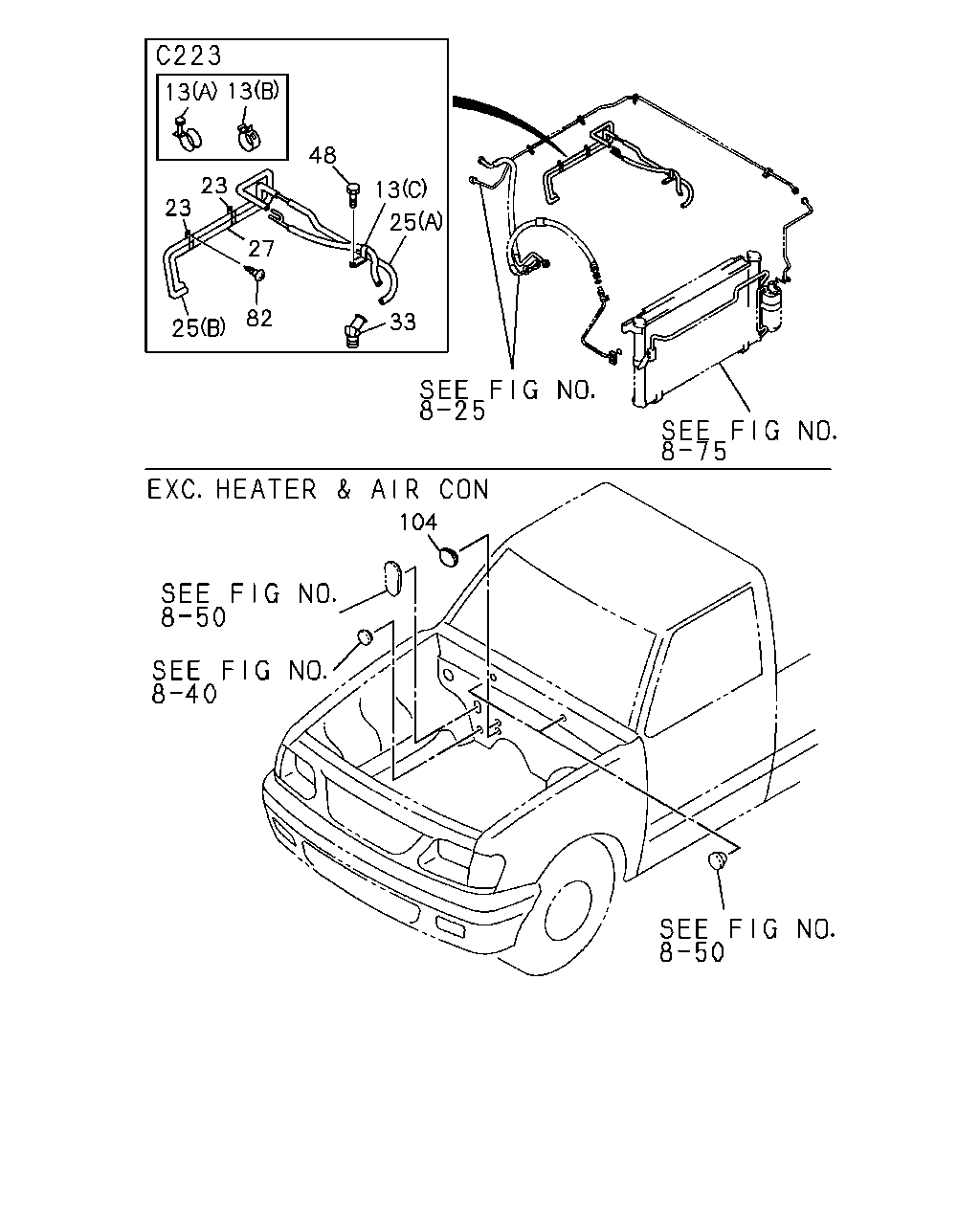

13 13 23 23 48 25 13 33 27 82 25 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	01	1	9210-9308	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	01	1	9309-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9210-9509	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9510-9606	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9510-9606	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9607-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9607-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	02	1	9510-					●		●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	01	1	9210-9509	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	01	1	9510-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C)	5-83574-006-0	01	1	9210-9308		●	●	●		●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94338-298-0	02	1	9210-9509	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94338-298-0	02	1	9510-	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94320-205-0	02	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZA1 ENG(L17) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97078-646-0	01	1	9210-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-214-5	01	1	9210-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B)	8-97081-556-1	01	1	9510-					●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-97138-423-0	01	1	9510-9601	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-97138-423-0	01	1	9602-9603				●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51) (A)	8-97138-423-0	01	1	9604-					●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97078-644-0	01	1	9210-9402	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9403-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9403-9405	●		●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9406-	●		●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B)	8-94475-028-3	01	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C223 ENG(LQ7) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-94435-213-3	01	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C)	8-97039-293-0	01	1	9604-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZA1 ENG(L17) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94462-280-3	01	1	9210-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-211-6	01	1	9210-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97130-159-1	01	1	9510-9601	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97130-159-1	01	1	9602-9603				●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51)	8-97130-159-1	01	1	9604-					●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-209-3	01	1	9210-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-210-3	01	1	9210-9308		●	●	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97039-290-0	01	1	9604-				●
33	08.866 UNION; WATER HOSE,ENG OUT C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 01.097	9-09703-009-0	01	1	9210-9308		●	●	●		●	●	●
48	09.262 BOLT; CLIP FIX C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9210-9308		●	●	●		●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 02.343	8-94470-854-1	02	1	9210-9509	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51) 02.343	8-94470-854-1	01	1	9510-					●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 02.343	8-94470-854-1	02	1	9510-	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 02.343	8-94470-854-1	01	1	9210-9308		●	●	●		●	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-192-0	02	1	9210-9501	●	●	●	●	●	●	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97125-023-0	02	1	9502-	●	●	●	●	●	●	●	●

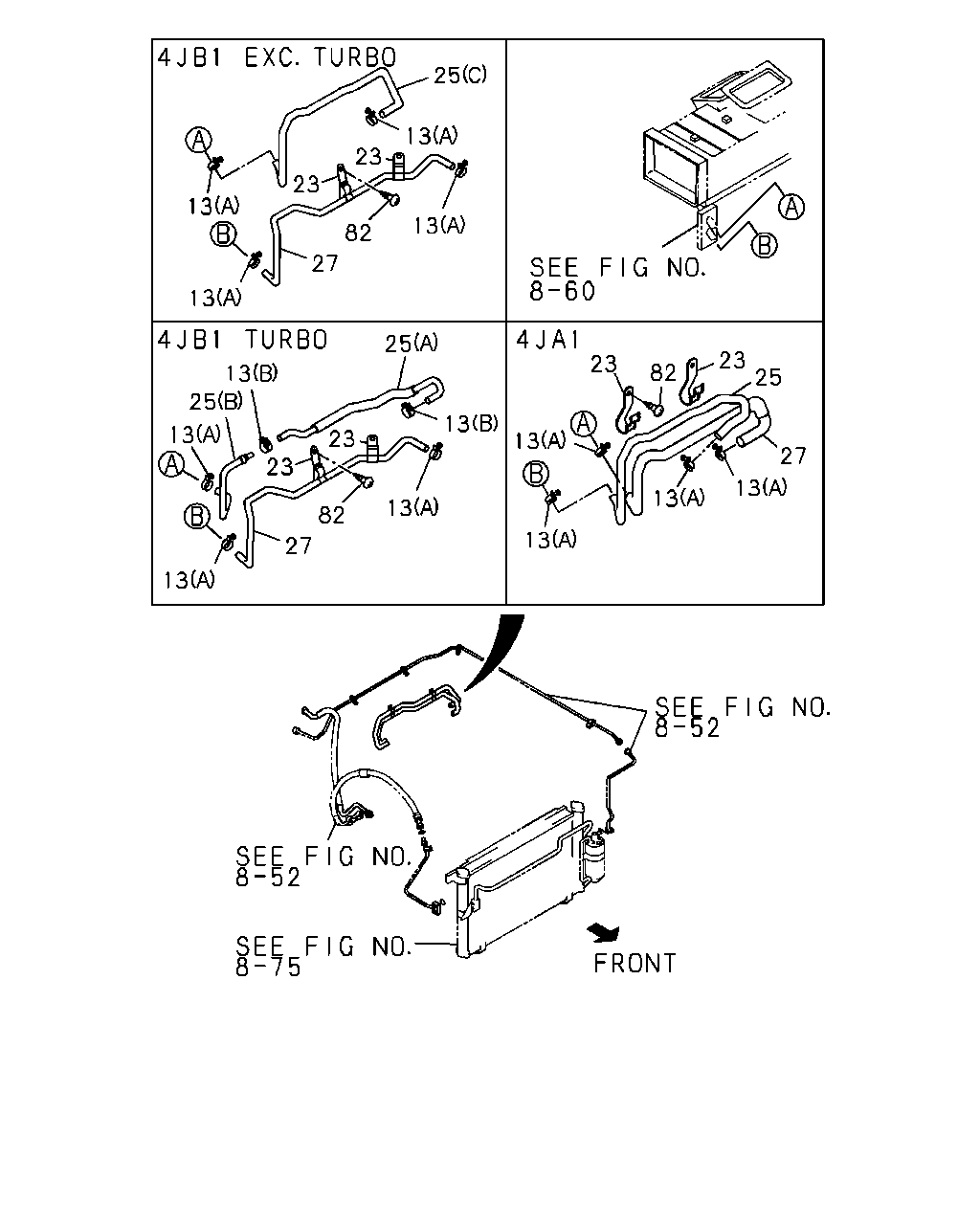

13 25 13 23 23 13 82 27 13 13 25 13 13 82 27 23 23 25 13 13 13 13 23 82 23 25 27 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	01	1	9210-9308	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	01	1	9309-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9210-9509	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9510-9606	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9510-9606	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9607-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9607-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	02	1	9510-					●		●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	01	1	9210-9509	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	01	1	9510-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C)	5-83574-006-0	01	1	9210-9308		●	●	●		●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94338-298-0	02	1	9210-9509	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94338-298-0	02	1	9510-	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94320-205-0	02	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZA1 ENG(L17) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97078-646-0	01	1	9210-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-214-5	01	1	9210-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B)	8-97081-556-1	01	1	9510-					●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-97138-423-0	01	1	9510-9601	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-97138-423-0	01	1	9602-9603				●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51) (A)	8-97138-423-0	01	1	9604-					●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97078-644-0	01	1	9210-9402	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9403-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9403-9405	●		●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9406-	●		●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B)	8-94475-028-3	01	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C223 ENG(LQ7) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-94435-213-3	01	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C)	8-97039-293-0	01	1	9604-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZA1 ENG(L17) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94462-280-3	01	1	9210-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-211-6	01	1	9210-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97130-159-1	01	1	9510-9601	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97130-159-1	01	1	9602-9603				●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51)	8-97130-159-1	01	1	9604-					●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-209-3	01	1	9210-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-210-3	01	1	9210-9308		●	●	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97039-290-0	01	1	9604-				●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 02.343	8-94470-854-1	02	1	9210-9509	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51) 02.343	8-94470-854-1	01	1	9510-					●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 02.343	8-94470-854-1	02	1	9510-	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) 02.343	8-94470-854-1	01	1	9210-9308		●	●	●		●	●	●

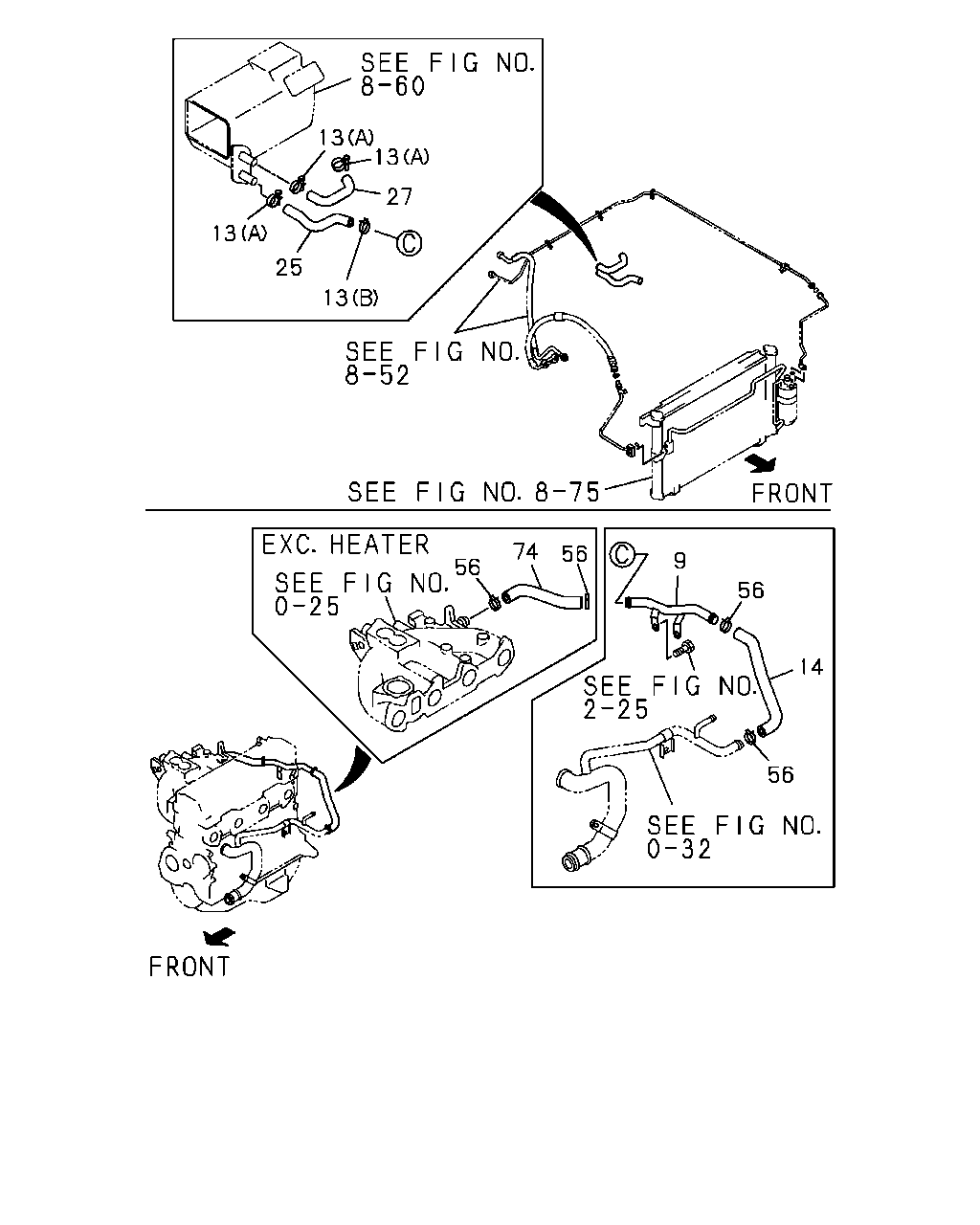

13 13 13 25 27 13 9 56 14 56 56 74 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	08.846 PIPE; HTR 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ)	8-94474-073-2	01	1	9210-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	01	1	9210-9308	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	01	1	9309-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9210-9509	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9510-9606	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9510-9606	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9607-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	02	1	9607-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B) ID=22	8-94382-401-0	02	1	9510-					●		●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	01	1	9210-9509	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A) ID=25	8-94369-726-0	01	1	9510-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C)	5-83574-006-0	01	1	9210-9308		●	●	●		●	●	●
14	08.846 HOSE; WATER,CONN TO PIPE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ)	8-94381-104-1	01	1	9210-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZA1 ENG(L17) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97078-646-0	01	1	9210-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-214-5	01	1	9210-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B)	8-97081-556-1	01	1	9510-					●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-97138-423-0	01	1	9510-9601	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-97138-423-0	01	1	9602-9603				●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51) (A)	8-97138-423-0	01	1	9604-					●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97078-644-0	01	1	9210-9402	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9403-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9403-9405	●		●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9406-	●		●	●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (B)	8-94475-028-3	01	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C223 ENG(LQ7) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (A)	8-94435-213-3	01	1	9210-9308		●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) (C)	8-97039-293-0	01	1	9604-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZA1 ENG(L17) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94462-280-3	01	1	9210-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-211-6	01	1	9210-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97130-159-1	01	1	9510-9601	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97130-159-1	01	1	9602-9603				●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) TURBOCHARGER(K51)	8-97130-159-1	01	1	9604-					●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-209-3	01	1	9210-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C223 ENG(LQ7) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94435-210-3	01	1	9210-9308		●	●	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-97039-290-0	01	1	9604-				●
56	08.846 CLAMP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) ID=22	8-94382-401-0	02	1	9210-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60) ID=22	8-94382-401-0	04	1	9210-	●	●	●	●	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZA1 ENG(L17) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94474-075-2	01	1	9210-	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60)	8-94474-076-2	01	1	9210-9402	●	●	●	●	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER(C60),ELECTRIC FUEL INJECT ION<6GG>	8-94474-076-2	01	1	9403-	●	●	●	●	●	●	●	●
