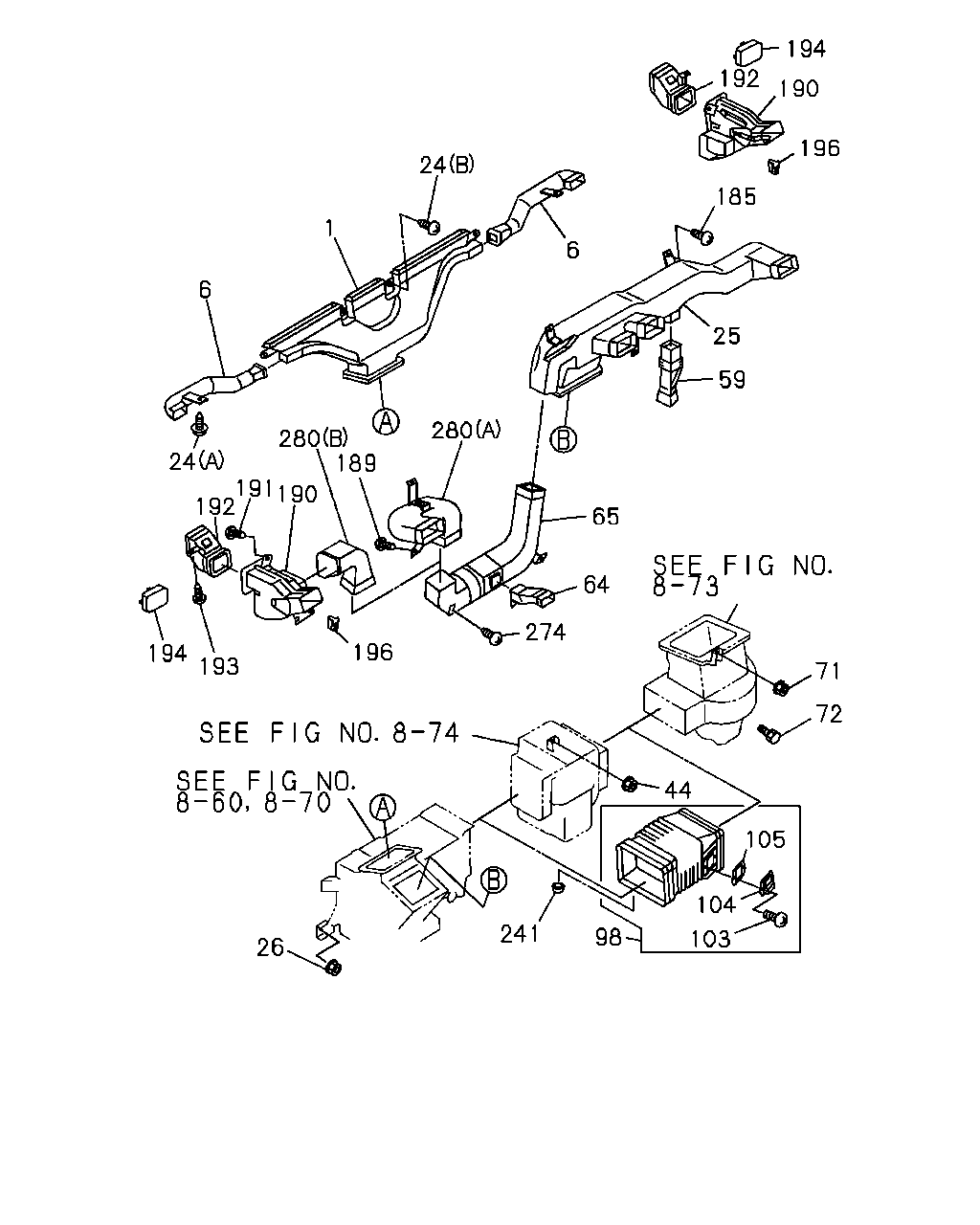

1 |
09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-177-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
09.779 NOZZLE; DEFROSTER,INST PNL
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-94435-177-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
6 |
09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-179-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
6 |
09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-94435-179-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
6 |
09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-178-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
6 |
09.779 DUCT; SIDE DEFROSTER
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-94435-178-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
03.890 SCREW; NOZZLE TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
15.222
(B)
M5X16 TAPPING W/PL WASHER
|
0-74315-516-0 |
04 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
03.890 SCREW; NOZZLE TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
15.222
(B)
M5X16 TAPPING W/PL WASHER
|
0-74315-516-0 |
04 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
03.890 SCREW; NOZZLE TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
06.760
(A)
|
8-94243-190-0 |
02 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
03.890 SCREW; NOZZLE TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
06.760
(A)
|
8-94243-190-0 |
02 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
09.786 DUCT; CENTER
GRADE LS(RBD)
FORGED AIR VENTILATION(C57),COOLER
WO/HEATER(YL1)
|
8-94435-180-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
09.786 DUCT; CENTER
GRADE STD(RBA),GRADE DLX(RBB)
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-180-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
09.786 DUCT; CENTER
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
|
8-94442-972-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
09.786 DUCT; CENTER
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-97113-141-0 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
08.845 NUT; HTR
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
12.809
M6 FLANGE
|
8-97022-131-0 |
04 |
1 |
9210-9307 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
08.845 NUT; HTR
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
07.833
M6 FLANGE
|
8-97063-399-0 |
04 |
1 |
9308-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
08.845 NUT; HTR
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
07.833
M6 FLANGE
|
8-97063-399-0 |
04 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
44 |
09.222 NUT; EVAP
AIR CONDITIONER(C60),COOLER
WO/HEATER(YL1)
12.809
M6 FLANGE
|
8-97022-131-0 |
02 |
1 |
9210-9307 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
44 |
09.222 NUT; EVAP
AIR CONDITIONER(C60),COOLER
WO/HEATER(YL1)
07.833
M6 FLANGE
|
8-97063-399-0 |
02 |
1 |
9308- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
09.786 DUCT; VENT,ASSIST SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-183-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
09.786 DUCT; VENT,ASSIST SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-94435-183-0 |
01 |
1 |
9406-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
64 |
09.264 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-182-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
64 |
09.264 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-94435-182-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
65 |
09.786 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
|
8-94435-181-1 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
65 |
09.786 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
|
8-94435-181-1 |
01 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
12.809
M6 FLANGE
|
8-97022-131-0 |
01 |
1 |
9210-9307 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
07.833
M6 FLANGE
|
8-97063-399-0 |
01 |
1 |
9308-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
08.845 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
07.833
M6 FLANGE
|
8-97063-399-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
72 |
08.857 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
10.701
M6X16
|
8-94206-784-0 |
02 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
72 |
08.857 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
10.701
M6X16
|
8-94206-784-0 |
02 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
98 |
09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
|
8-94376-106-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
98 |
09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
|
8-94376-106-0 |
01 |
1 |
9406-9412 |
● |
● |
● |
|
● |
● |
● |
● |
| |
98 |
09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR CON
PREPARATORY PACK<S6D>
|
8-94376-106-0 |
01 |
1 |
9406-9412 |
|
|
|
● |
|
|
|
|
| |
98 |
09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
|
8-94376-106-0 |
01 |
1 |
9501- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
09.789
M4X16 TAPPING
|
1-83579-114-0 |
02 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
09.789
M4X16 TAPPING
|
1-83579-114-0 |
02 |
1 |
9406-9412 |
● |
● |
● |
|
● |
● |
● |
● |
| |
103 |
08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR CON
PREPARATORY PACK<S6D>
09.789
M4X16 TAPPING
|
1-83579-114-0 |
02 |
1 |
9406-9412 |
|
|
|
● |
|
|
|
|
| |
103 |
08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
09.789
M4X16 TAPPING
|
1-83579-114-0 |
02 |
1 |
9501- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
104 |
08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
|
8-97045-850-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
104 |
08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
|
8-97045-850-0 |
01 |
1 |
9406-9412 |
● |
● |
● |
|
● |
● |
● |
● |
| |
104 |
08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR CON
PREPARATORY PACK<S6D>
|
8-97045-850-0 |
01 |
1 |
9406-9412 |
|
|
|
● |
|
|
|
|
| |
104 |
08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
|
8-97045-850-0 |
01 |
1 |
9501- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
00.030
|
8-97045-851-0 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
00.030
|
8-97045-851-0 |
01 |
1 |
9406-9412 |
● |
● |
● |
|
● |
● |
● |
● |
| |
105 |
08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR CON
PREPARATORY PACK<S6D>
00.030
|
8-97045-851-0 |
01 |
1 |
9406-9412 |
|
|
|
● |
|
|
|
|
| |
105 |
08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57)
00.030
|
8-97045-851-0 |
01 |
1 |
9501- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
185 |
09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
03 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
185 |
09.262 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
03 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
GRADE LS(RBD)
FORGED AIR VENTILATION(C57),COOLER
WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
02 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
GRADE STD(RBA),GRADE DLX(RBB)
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
02 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
GRADE LS(RBD)
FORGED AIR VENTILATION(C57),AIR
CONPREPARATORY PACK<S6D>,COOLER WO/HE
ATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
02 |
1 |
9406-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
GRADE STD(RBA),GRADE DLX(RBB)
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
02 |
1 |
9406-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
01 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
01 |
1 |
9406-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
189 |
09.264 SCREW; AIR DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
03 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
190 |
09.262 BOX; VENT,RAM AIR
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
|
8-94435-186-0 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
190 |
09.262 BOX; VENT,RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-186-0 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
190 |
09.262 BOX; VENT,RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-186-0 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
190 |
09.262 BOX; VENT,RAM AIR
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
|
8-94435-185-0 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
190 |
09.262 BOX; VENT,RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-185-0 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
190 |
09.262 BOX; VENT,RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-185-0 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
191 |
09.262 SCREW; VENT BOX
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
06 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
191 |
09.262 SCREW; VENT BOX
VENTILATION RAM AIR(6TN)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
06 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
191 |
09.262 SCREW; VENT BOX
VENTILATION RAM AIR(6TN)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
06 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
192 |
09.262 DUCT; RAM AIR
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
|
8-94435-190-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
192 |
09.262 DUCT; RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-190-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
192 |
09.262 DUCT; RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-190-1 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
192 |
09.262 DUCT; RAM AIR
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
|
8-94435-189-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
192 |
09.262 DUCT; RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-189-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
192 |
09.262 DUCT; RAM AIR
VENTILATION RAM AIR(6TN)
|
8-94435-189-1 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
193 |
09.262 SCREW; RAM AIR DUCT
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
15.222
M5X16 TAPPING W/PL WASHER
|
0-74315-516-0 |
02 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
193 |
09.262 SCREW; RAM AIR DUCT
VENTILATION RAM AIR(6TN)
15.222
M5X16 TAPPING W/PL WASHER
|
0-74315-516-0 |
02 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
193 |
09.262 SCREW; RAM AIR DUCT
VENTILATION RAM AIR(6TN)
15.222
M5X16 TAPPING W/PL WASHER
|
0-74315-516-0 |
02 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
194 |
09.262 COVER; HOLE,RAM AIR
GRADE LS(RBD)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60),VENTILATION RAM
AIR(6TN)
|
8-94435-191-0 |
02 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
194 |
09.262 COVER; HOLE,RAM AIR
GRADE STD(RBA),GRADE DLX(RBB)
EXC. VENTILATION RAM AIR(6TN)
|
8-94435-191-0 |
02 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
194 |
09.262 COVER; HOLE,RAM AIR
EXC. VENTILATION RAM AIR(6TN)
|
8-94435-191-0 |
02 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
GRADE LS(RBD)
INTERIOR COLOR BEIGE(120)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
BROWN
|
8-94477-098-0 |
02 |
1 |
9210-9308 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
INTERIOR COLOR BEIGE(120)
VENTILATION RAM AIR(6TN)
BROWN
|
8-94477-098-0 |
02 |
1 |
9210-9308 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
GRADE LS(RBD)
INTERIOR COLOR MUSHROOM(150)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
GRAY
|
8-94477-099-0 |
02 |
1 |
9210-9308 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
INTERIOR COLOR MUSHROOM(150)
VENTILATION RAM AIR(6TN)
GRAY
|
8-94477-099-0 |
02 |
1 |
9210-9308 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
GRAY
|
8-94477-099-0 |
02 |
1 |
9309-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
VENTILATION RAM AIR(6TN)
GRAY
|
8-94477-099-0 |
02 |
1 |
9309-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
196 |
09.262 KNOB; VENT BOX
VENTILATION RAM AIR(6TN)
GRAY
|
8-94477-099-0 |
02 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
241 |
16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER(C60),COOLER
WO/HEATER(YL1)
00.206
|
8-94222-309-1 |
01 |
1 |
9210- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
274 |
08.852 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
02 |
1 |
9210-9405 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
274 |
08.852 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
16.085
M5X16 TAPPING
|
9-09829-323-1 |
02 |
1 |
9406- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
280 |
09.264 DUCT; VENT,DRIVER SIDE
GRADE LS(RBD)
FORGED AIR VENTILATION(C57),COOLER
WO/HEATER(YL1)
(A)
|
8-94442-973-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
280 |
09.264 DUCT; VENT,DRIVER SIDE
GRADE STD(RBA),GRADE DLX(RBB)
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),COOLER WO/HEATER(YL1)
(A)
|
8-94442-973-1 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
| |
280 |
09.264 DUCT; VENT,DRIVER SIDE
HEATER & DEFROSTER(C41),FORGED AIR
VENTILATION(C57),AIR
CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO
OLER WO/HEATER(YL1)
(A)
|
8-94442-973-1 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
280 |
09.264 DUCT; VENT,DRIVER SIDE
GRADE LS(RBD)
HEATER & DEFROSTER(C41),AIR
CONDITIONER(C60)
(B)
|
8-94435-184-0 |
01 |
1 |
9210-9406 |
● |
● |
● |
● |
● |
● |
● |
● |
