◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50652 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#43256) — 23 parça

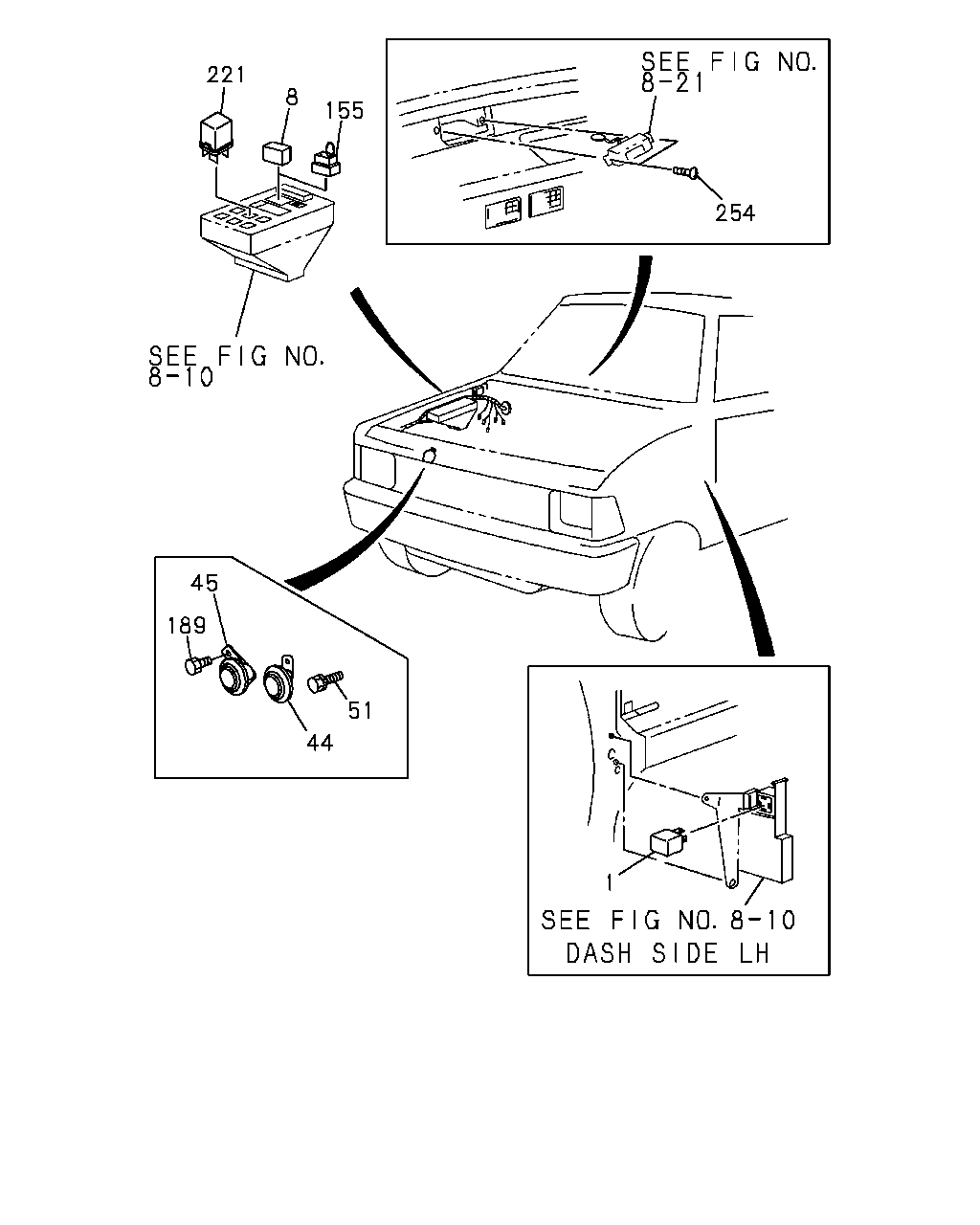

çizim 68481
221 155 8 254 45 189 51 44 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9210- ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97039-288-0 01 1 9210-9406 ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97105-453-0 01 1 9407- ● ● ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-94434-674-1 01 1 9210- ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94417-171-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
SAUDI ARABIA EQUIPMENT(EU2) DUAL TONE HORN<U05> 		8-94434-496-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-94434-496-0 01 1 9309- ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-94434-496-0 01 1 9309- ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97096-431-0 01 1 9309-9404 ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97109-359-0 01 1 9405- ● ● ● ●
45 02.810 HORN; LOW NOTE 8-94434-497-1 01 1 9210-9308 ● ● ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-94434-497-1 01 1 9309- ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-94434-497-1 01 1 9309- ● ● ● ●
45 02.810 HORN; LOW NOTE
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97096-432-0 01 1 9309-9404 ● ● ● ●
45 02.810 HORN; LOW NOTE
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 		8-97109-360-0 01 1 9405- ● ● ● ●
51 02.812 BOLT; HORN TO BRKT
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9309- ● ● ● ●
155 16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 		8-94442-562-0 01 1 9210- ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X12 		8-94148-422-1 02 1 9210-9403 ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9404- ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X12 		8-94148-422-1 01 1 9210-9403 ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9404- ● ● ● ● ● ● ● ●
221 02.510 RELAY; AUTO CRUISE
4ZA1 ENG(L17) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9509 ● ● ● ●
254 09.744 SCREW; BRKT
DIGITAL CLOCK<UE8> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9210- ● ● ● ● ● ● ● ●
