8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#43255) — 57 parça
çizim 66398
273 46 125 31 153 32 204
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
31 01.240 CONTROLLER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97063-273-0 01 1 9210-9411 ● ● ● ● ●
31 01.240 CONTROLLER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97063-273-0 01 1 9412- ● ● ● ● ● ● ●
32 01.240 BUZZER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 09.765 		8-94131-441-0 01 1 9210-9411 ● ● ● ● ●
32 01.240 BUZZER; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 09.765 		8-94131-441-0 01 1 9412- ● ● ● ● ● ● ●
46 01.240 SENSOR; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97061-492-0 01 1 9210-9411 ● ● ● ● ●
46 01.240 SENSOR; RAD LEVEL
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97061-492-0 01 1 9412- ● ● ● ● ● ● ●
125 01.240 SCREW; CONTROLLER
RADIATOR COOLANT LEVELING WARNING<7DL> 16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 01 1 9210-9411 ● ● ● ● ●
125 01.240 SCREW; CONTROLLER
RADIATOR COOLANT LEVELING WARNING<7DL> 16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 01 1 9412- ● ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210-9411 ● ● ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
RADIATOR COOLANT LEVELING WARNING<7DL> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9210-9411 ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
SAUDI ARABIA EQUIPMENT(EU2) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9412- ● ● ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
RADIATOR COOLANT LEVELING WARNING<7DL> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9412- ● ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 02.485 		8-94100-124-0 01 1 9210- ● ● ● ● ● ● ● ●
273 02.559 CLIP; HARNESS
RADIATOR COOLANT LEVELING WARNING<7DL> L=219.5 		1-09987-136-0 01 1 9210-9411 ● ● ● ● ●
273 02.559 CLIP; HARNESS
RADIATOR COOLANT LEVELING WARNING<7DL> L=219.5 		1-09987-136-0 01 1 9412- ● ● ● ● ● ● ●

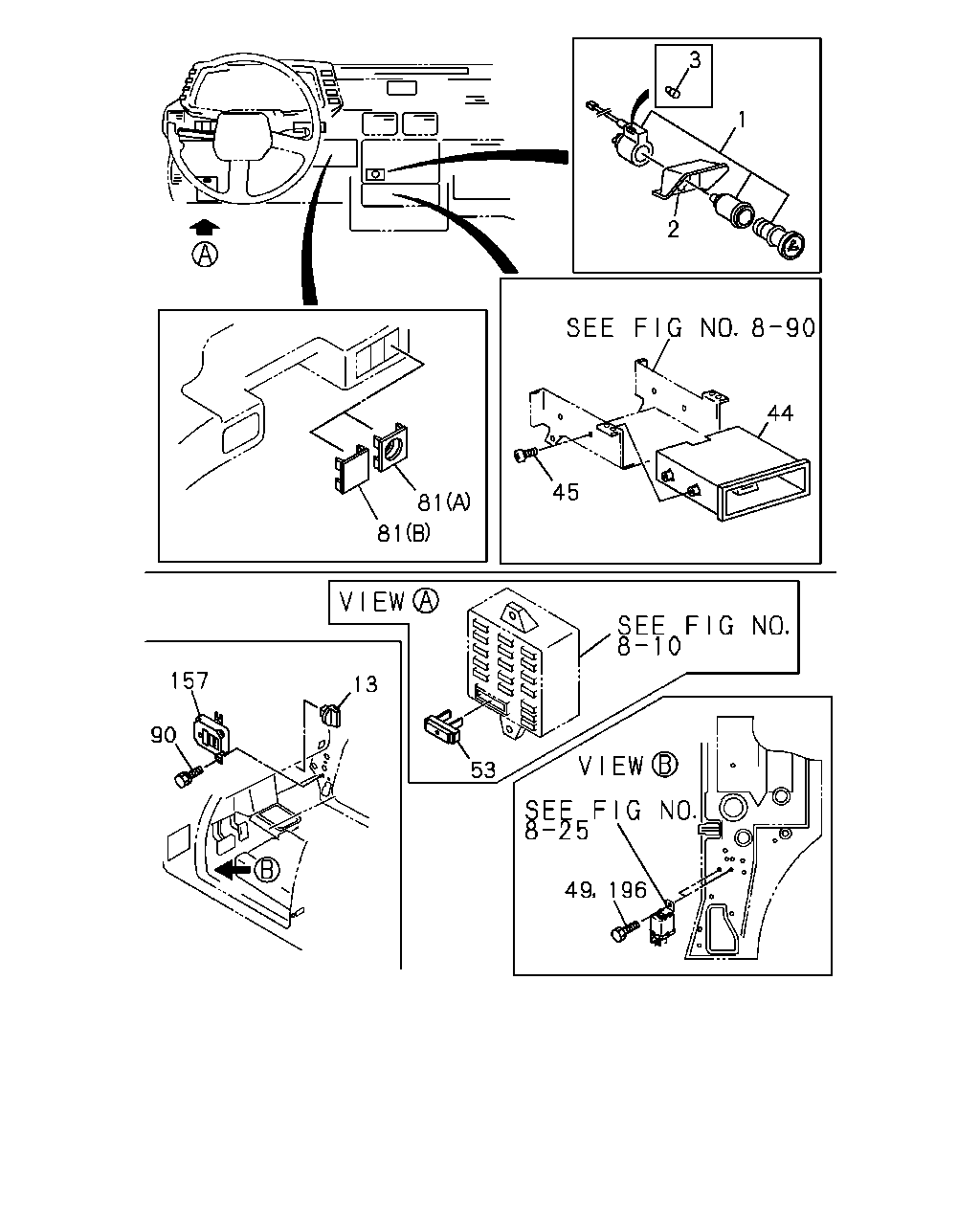

çizim 66425
81 81 45 44 2 1 3 53 13 157 90 49 196
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.709 LIGHTER; CIGAR
GRADE LS(RBD) 		8-94442-590-0 01 1 9210- ● ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE DLX(RBB) 		8-94442-589-1 01 1 9210- ● ●
1 09.709 LIGHTER; CIGAR
GRADE STD(RBA),GRADE DLX(RBB) 		8-94442-589-1 01 1 9210- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) INTERIOR COLOR BEIGE(120) BROWN 		8-94482-847-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-848-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) GRAY 		8-94482-848-0 01 1 9309-9509 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) BLACK 		8-97000-043-0 01 1 9510- ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) BROWN 		8-94482-845-0 01 1 9210-9308 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR BEIGE(120) BROWN 		8-94482-845-0 01 1 9210-9308 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-846-0 01 1 9210-9308 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-846-0 01 1 9210-9308 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE DLX(RBB) GRAY 		8-94482-846-0 01 1 9309-9509 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) GRAY 		8-94482-846-0 01 1 9309-9509 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE DLX(RBB) BLACK 		8-94333-793-0 01 1 9510- ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE STD(RBA),GRADE DLX(RBB) BLACK 		8-94333-793-0 01 1 9510- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9210- ● ● ● ● ● ● ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9210- ● ● ● ● ● ● ● ●
44 16.100 BOX; RADIO COVER
GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU) 10.260 44X184 		8-94435-504-2 01 1 9210-9210 ● ●
44 16.100 BOX; RADIO COVER
GRADE STD(RBA),GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU) 10.260 44X184 		8-94435-504-2 01 1 9210-9210 ● ● ● ● ● ●
44 16.100 BOX; RADIO COVER
GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU),RADIO AM/FM W/CASSETTELATIN AMERICA BAND(7AW) 10.260 44X184 		8-94435-504-2 01 1 9211- ● ●
44 16.100 BOX; RADIO COVER
GRADE STD(RBA),GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU),RADIO AM/FM W/CASSETTELATIN AMERICA BAND(7AW) 10.260 44X184 		8-94435-504-2 01 1 9211- ● ● ● ● ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9210-9210 ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE STD(RBA),GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9210-9210 ● ● ● ● ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU),RADIO AM/FM W/CASSETTELATIN AMERICA BAND(7AW) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9211-9212 ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE STD(RBA),GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU),RADIO AM/FM W/CASSETTELATIN AMERICA BAND(7AW) 16.190 M5X12 TAPPING 		9-09829-321-1 04 1 9211-9212 ● ● ● ● ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU),RADIO AM/FM W/CASSETTELATIN AMERICA BAND(7AW) 09.744 M5X14 TAPPING 		9-09829-322-1 04 1 9301- ● ●
45 10.265 SCREW; BOX TO INST PANEL
GRADE STD(RBA),GRADE DLX(RBB) EXC. RADIO AM ASIA/OCEANIA BAND(7AQ),RADIO AM/FM W/CASSETTE ASIA/OCEAN IA BAND(7AU),RADIO AM/FM W/CASSETTELATIN AMERICA BAND(7AW) 09.744 M5X14 TAPPING 		9-09829-322-1 04 1 9301- ● ● ● ● ● ●
49 09.778 BOLT; RR DEFOGGER RELAY
REAR DEFOGGER<C49> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9502- ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 20A 		8-94447-470-0 01 1 9210-9408 ● ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 20A 		8-94447-470-0 01 1 9409- ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE) (A) 		8-94450-511-3 01 1 9210-9308 ● ●
81 03.451 BEZEL; IDLE CONT
C223 ENG(LQ7),4JA1 ENG(RLE) (A) 		8-94450-511-3 01 1 9210-9308 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE) (A) 		8-94450-511-4 01 1 9309-9509 ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-511-4 01 1 9510- ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) REAR DEFOGGER<C49> (B) 		8-94450-512-4 01 1 9502- ● ●
90 02.510 BOLT; QOS CONTROLLER
4JA1 ENG(RLE) 10.701 M6X8 		8-94155-893-0 02 1 9210-9308 ● ●
90 02.510 BOLT; QOS CONTROLLER
C223 ENG(LQ7),4JA1 ENG(RLE) 10.701 M6X8 		8-94155-893-0 02 1 9210-9308 ● ● ● ● ● ●
90 02.510 BOLT; QOS CONTROLLER
4JA1 ENG(RLE) 10.701 M6X8 		8-94155-893-0 02 1 9309-9509 ● ● ● ● ● ● ● ●
90 02.510 BOLT; QOS CONTROLLER
4JA1 ENG(RLE),4JB1 ENG(RLF) 10.701 M6X8 		8-94155-893-0 02 1 9510- ● ● ● ● ● ● ● ●
157 02.510 CONTROLLER; QOS
C223 ENG(LQ7) 02.559 		8-97068-788-0 01 1 9210-9308 ● ● ● ● ● ●
196 02.500 BOLT
POWER WINDOW<A30> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9404-9408 ● ● ● ● ● ●
196 02.500 BOLT
POWER WINDOW<A30> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9409- ● ● ● ● ● ● ● ●
