8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#43254) — 66 parça

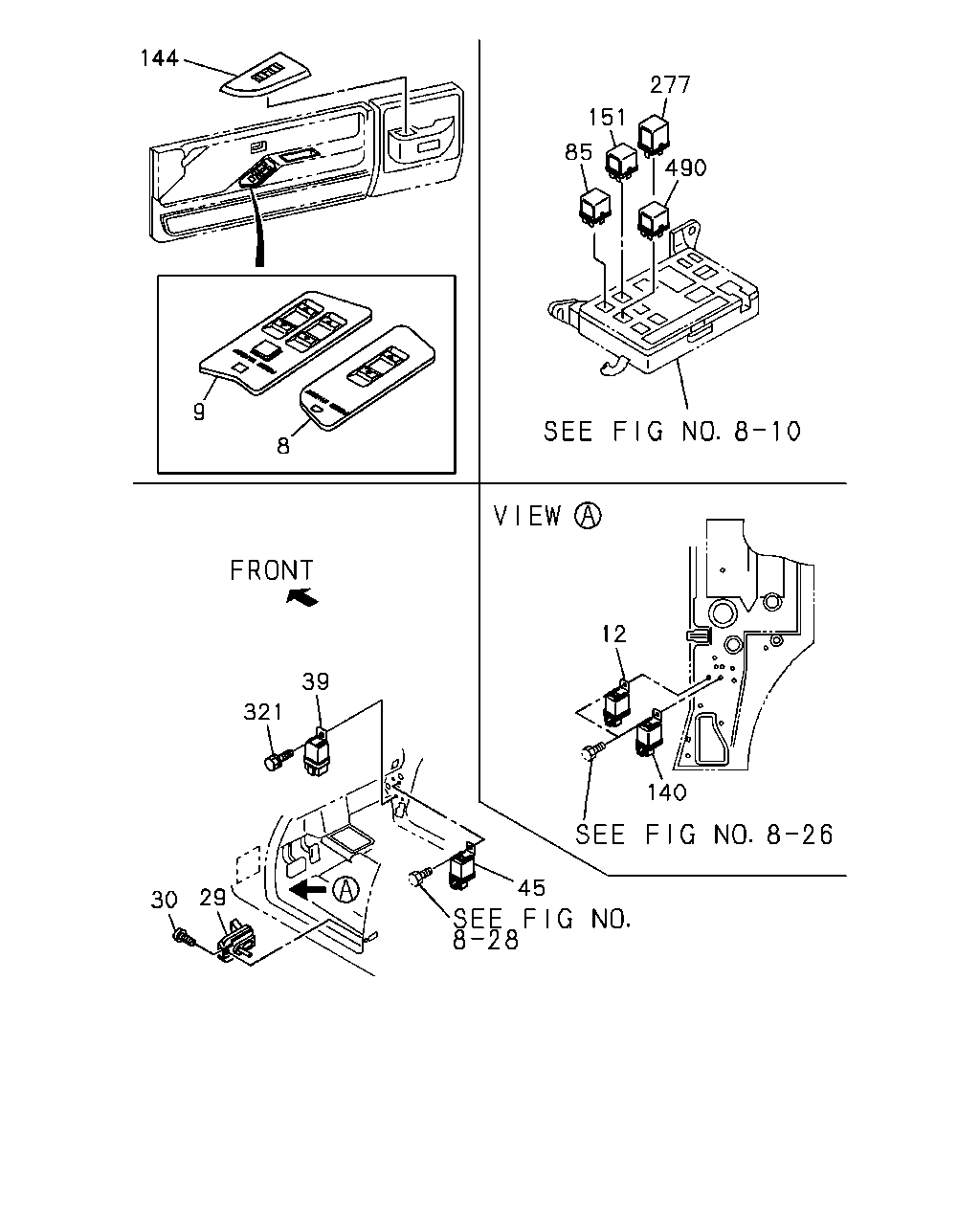

çizim 16995
144 277 490 151 85 12 140 45 39 321 30 29 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BEIGE(120) POWER WINDOW<A30> BROWN 		8-94363-870-0 01 1 9210-9308 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MUSHROOM(150) POWER WINDOW<A30> GRAY 		8-94363-871-0 01 1 9210-9308 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> GRAY 		8-94363-871-0 01 1 9309- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97152-513-0 01 1 9409- ● ●
9 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR BEIGE(120) POWER WINDOW<A30> BROWN 		8-94363-866-0 01 1 9210-9308 ● ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MUSHROOM(150) POWER WINDOW<A30> GRAY 		8-94363-867-0 01 1 9210-9308 ● ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> GRAY 		8-94363-867-0 01 1 9309- ● ● ● ● ● ●
9 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97152-512-0 01 1 9409- ● ●
12 08.852 RELAY; POWER WINDOW
4ZE1 ENG(RLJ) POWER WINDOW<A30> 16.067 		8-94112-911-0 01 1 9210-9301 ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 02.510 12V 		8-94112-912-0 01 1 9302-9408 ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 02.510 12V 		8-94112-912-0 01 1 9409- ● ● ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97077-712-0 02 1 9210-9605 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 02 1 9606- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97077-712-0 04 1 9210-9605 ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 04 1 9606- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 9210- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 9210- ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-94385-490-0 01 1 9409- ● ●
45 02.252 RELAY; HORN
EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2) 02.485 		8-97093-909-1 01 1 9309- ● ●
45 02.252 RELAY; HORN
CHINA EQUIPMENT(YT2) 02.485 		8-97093-909-1 01 1 9309- ● ●
85 02.485 RELAY; HEADLAMP
03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ● ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.485 		5-82550-029-0 01 1 9502- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> 		8-97152-515-1 01 1 9409- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> 		8-97152-514-1 01 1 9409- ● ●
151 09.277 RELAY; HTR & A/C
4ZE1 ENG(RLJ) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4ZE1 ENG(RLJ) 03.910 12V 20A 		8-94218-497-0 01 1 9309-9406 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.910 12V 20A 		8-94218-497-0 01 1 9309-9406 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4ZE1 ENG(RLJ) 03.910 12V 20A 		8-94218-497-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),AIR CON PREPARATORY PACK<S6D>,CO OLER WO/HEATER(YL1) 03.910 12V 20A 		8-94218-497-0 01 1 9407-9509 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.910 12V 20A 		8-94218-497-0 01 1 9510- ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.910 12V 20A 		8-94218-497-0 01 1 9510- ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CON PREPARATORY PACK<S6D> 03.910 12V 20A 		8-94218-497-0 01 1 9510- ●
277 03.900 RELAY; FUEL PUMP
ELECTRIC FUEL INJECTION<6GG> 03.910 12V 20A 		8-94218-497-0 01 1 9404- ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9409-9409 ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9410- ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9410- ● ●
490 09.277 RELAY; THERMO
AIR CONDITIONER(C60),COOLER WO/HEATER(YL1) 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ● ● ● ● ● ● ●

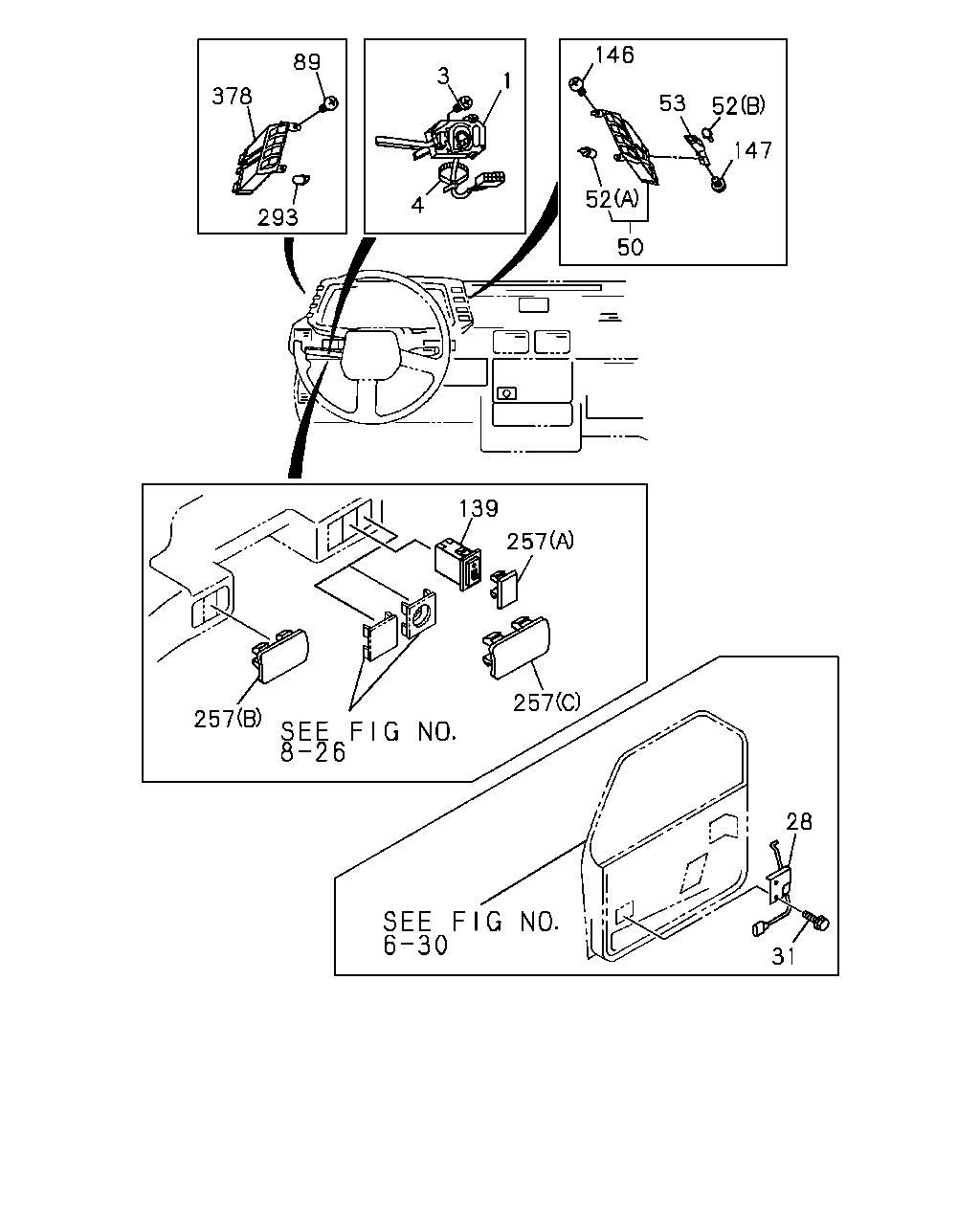

çizim 68574
89 378 293 4 3 1 146 53 52 147 52 50 139 257 257 257 31 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.895 SWITCH; COMB 8-97068-775-2 01 1 9210- ● ● ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 02 1 9210- ● ● ● ● ● ● ● ●
4 02.892 CLIP; COMB SW
02.559 L=250 		5-09707-030-0 02 1 9210- ● ● ● ● ● ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.611 		8-94450-809-1 01 1 9410- ● ●
31 16.342 BOLT; DOOR LK SW
AUTO DOOR LOCK<AU4> 10.260 M6X14 		8-97046-332-0 02 1 9410- ● ●
50 16.067 SWITCH; FRT WIPER
INTERMITTENT WIPER<C13> BLACK 		8-94477-094-2 01 1 9210- ● ● ● ● ● ● ● ●
50 16.067 SWITCH; FRT WIPER
EXC. INTERMITTENT WIPER<C13> BLACK 		8-94477-096-2 01 1 9210- ● ● ● ● ● ● ● ●
52 08.991 BULB ASM; WIPER & WASHER SW
(B) 		8-94325-077-0 01 1 9210- ● ● ● ● ● ● ● ●
52 08.991 BULB ASM; WIPER & WASHER SW
(A) 		8-94337-410-0 01 1 9210- ● ● ● ● ● ● ● ●
53 16.067 LEVER; WINDSHIELD WASHER SW
BLACK 		8-94318-135-0 01 1 9210- ● ● ● ● ● ● ● ●
89 02.485 SCREW; LIGHTING SW
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9210- ● ● ● ● ● ● ● ●
139 09.778 SWITCH; RR DEFOGGER
REAR DEFOGGER<C49> 		8-94450-651-1 01 1 9502- ● ●
146 16.067 SCREW; SW
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9210- ● ● ● ● ● ● ● ●
147 16.067 SCREW; WASHER SW LEVER 8-94318-778-0 01 1 9210- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
C223 ENG(LQ7),4JA1 ENG(RLE) (A) BLACK 		8-94417-418-2 02 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4JA1 ENG(RLE) (A) BLACK 		8-94417-418-2 02 1 9309-9501 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4JA1 ENG(RLE) EXC. REAR DEFOGGER<C49> (A) BLACK 		8-94417-418-2 02 1 9502-9509 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. REAR DEFOGGER<C49> (A) BLACK 		8-94417-418-2 02 1 9510- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
INTERIOR COLOR BEIGE(120) (B) BROWN 		8-94477-560-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-561-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(B) GRAY 		8-94477-561-0 01 1 9309- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) INTERIOR COLOR BEIGE(120) (C) BROWN 		8-94477-557-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94477-558-0 01 1 9210-9308 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) (C) GRAY 		8-94477-558-0 01 1 9309-9501 ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) EXC. REAR DEFOGGER<C49> (C) GRAY 		8-94477-558-0 01 1 9502- ● ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
REAR DEFOGGER<C49> (A) BLACK 		8-94417-418-2 01 1 9502- ● ●
293 08.991 BULB; LIGHTING SW 8-94337-410-0 01 1 9210- ● ● ● ● ● ● ● ●
378 02.485 SWITCH; LIGHTING
BLACK 		8-94383-764-0 01 1 9210- ● ● ● ● ● ● ● ●
