Sayfa 1-41 - Isuzu EPC

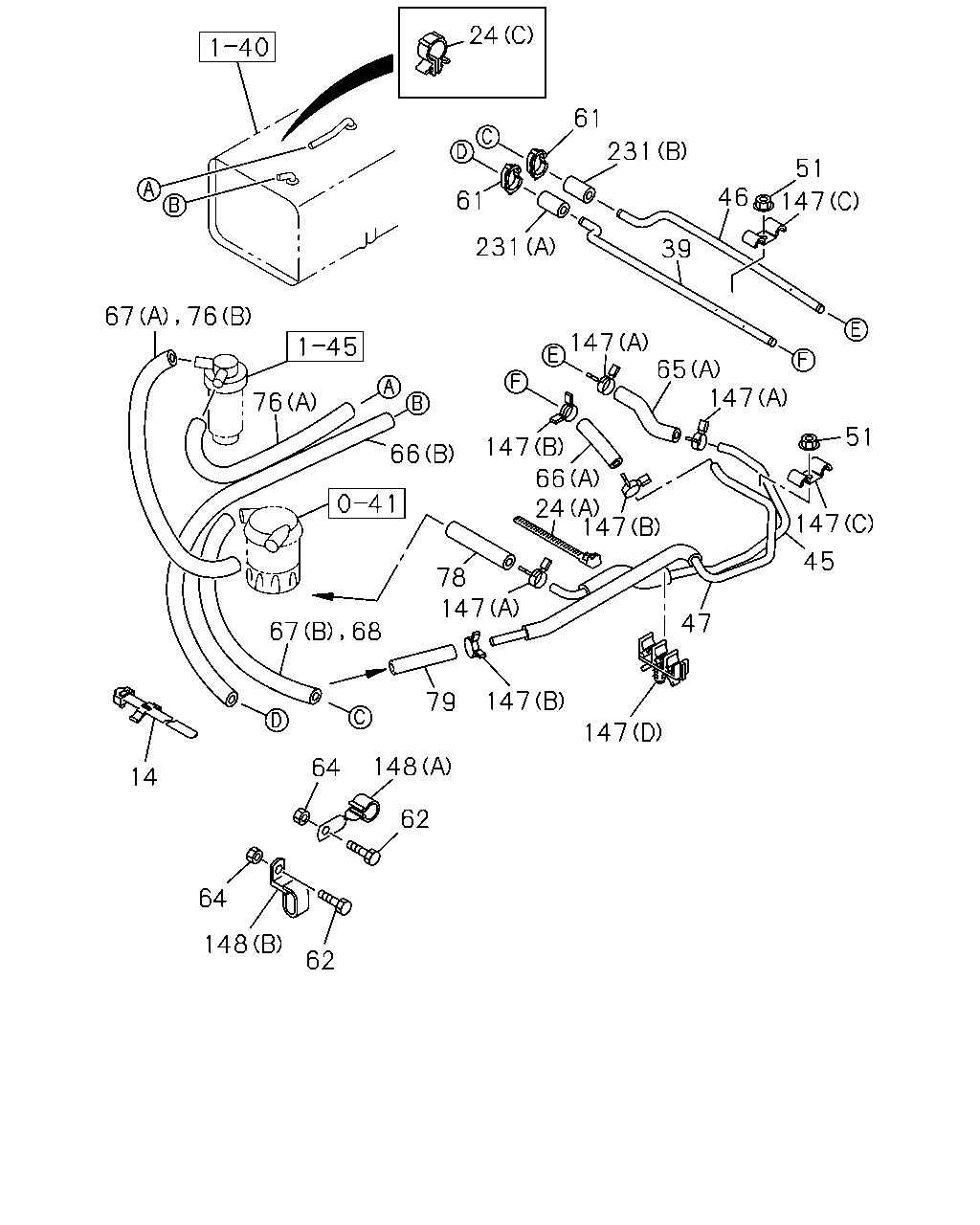

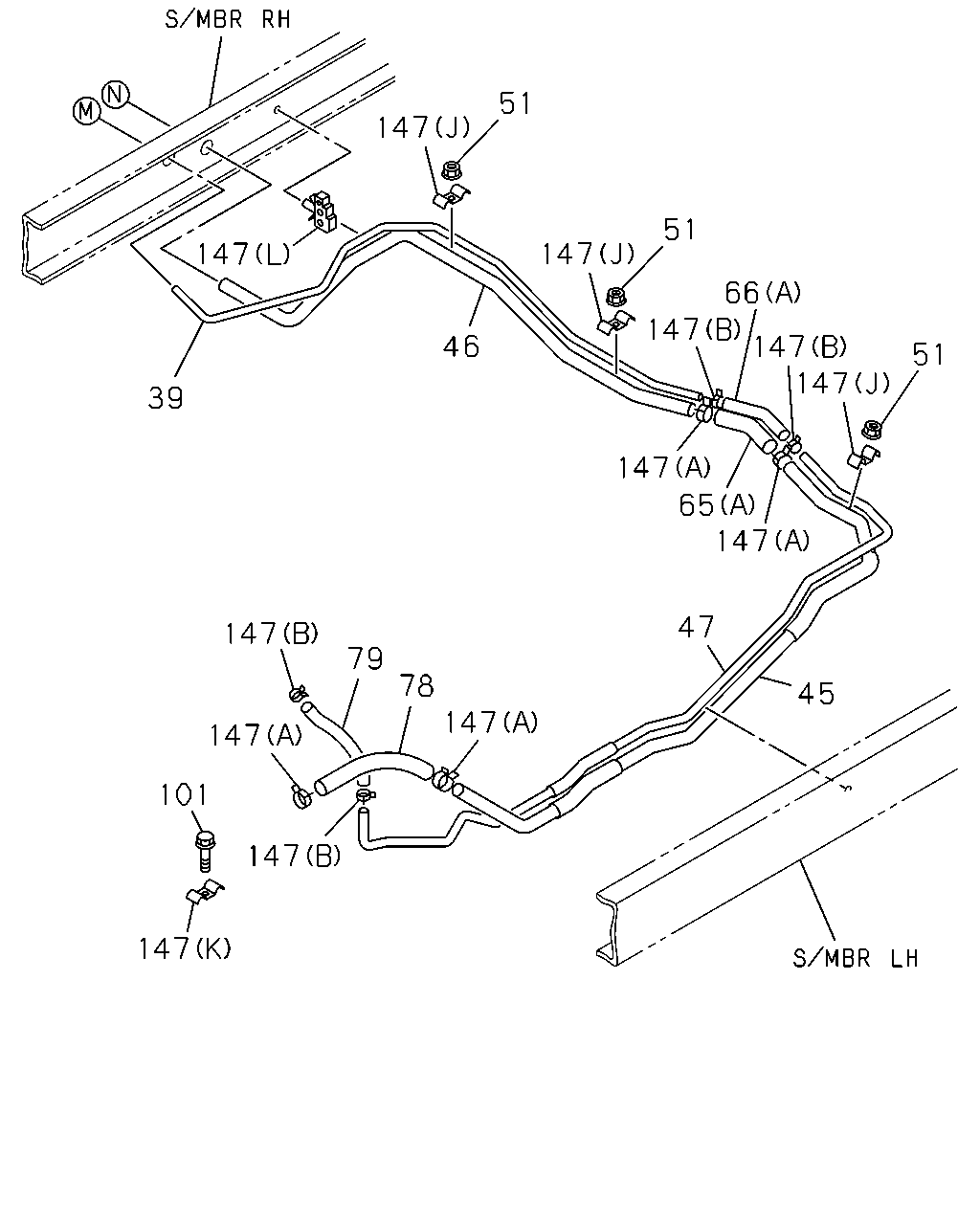

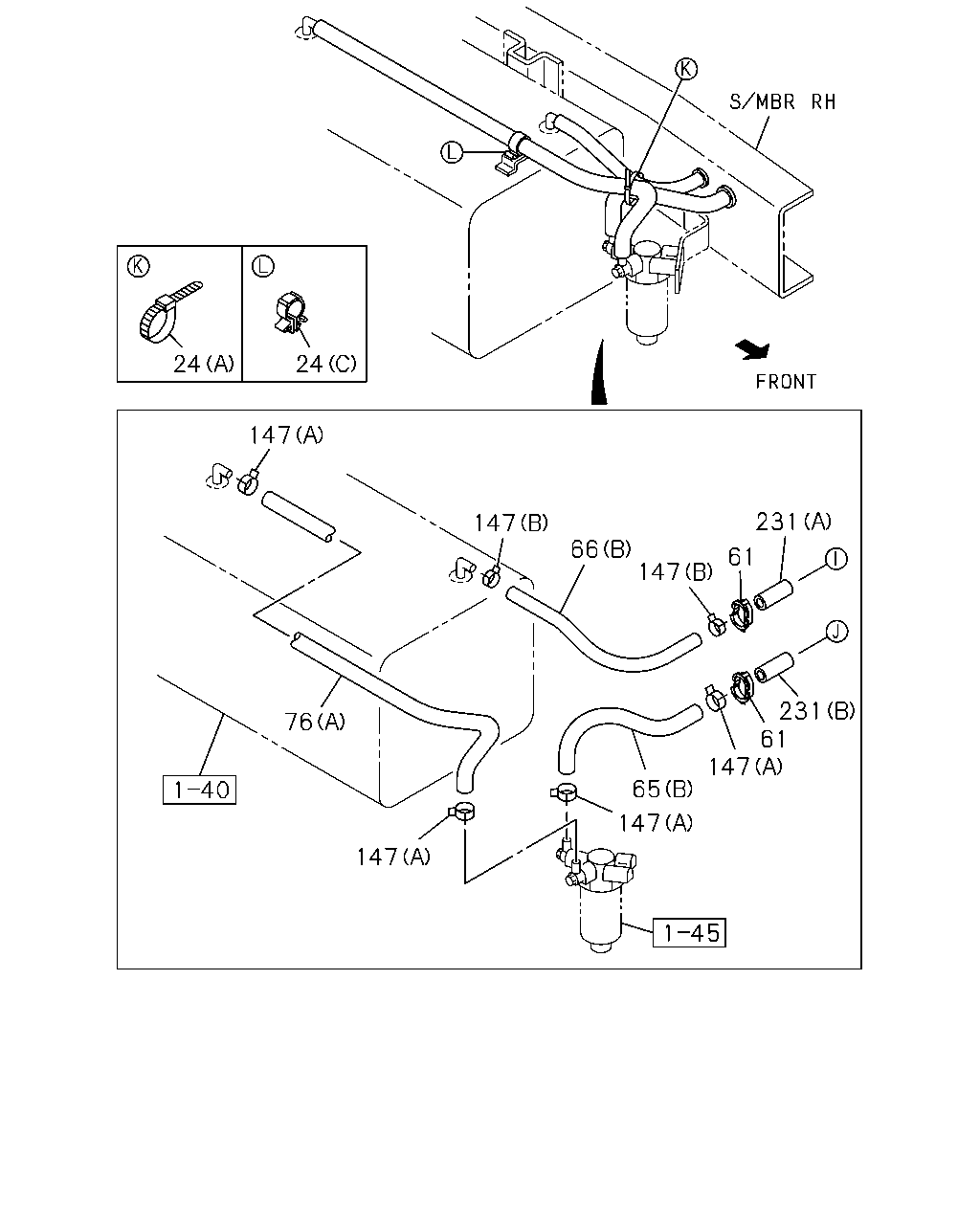

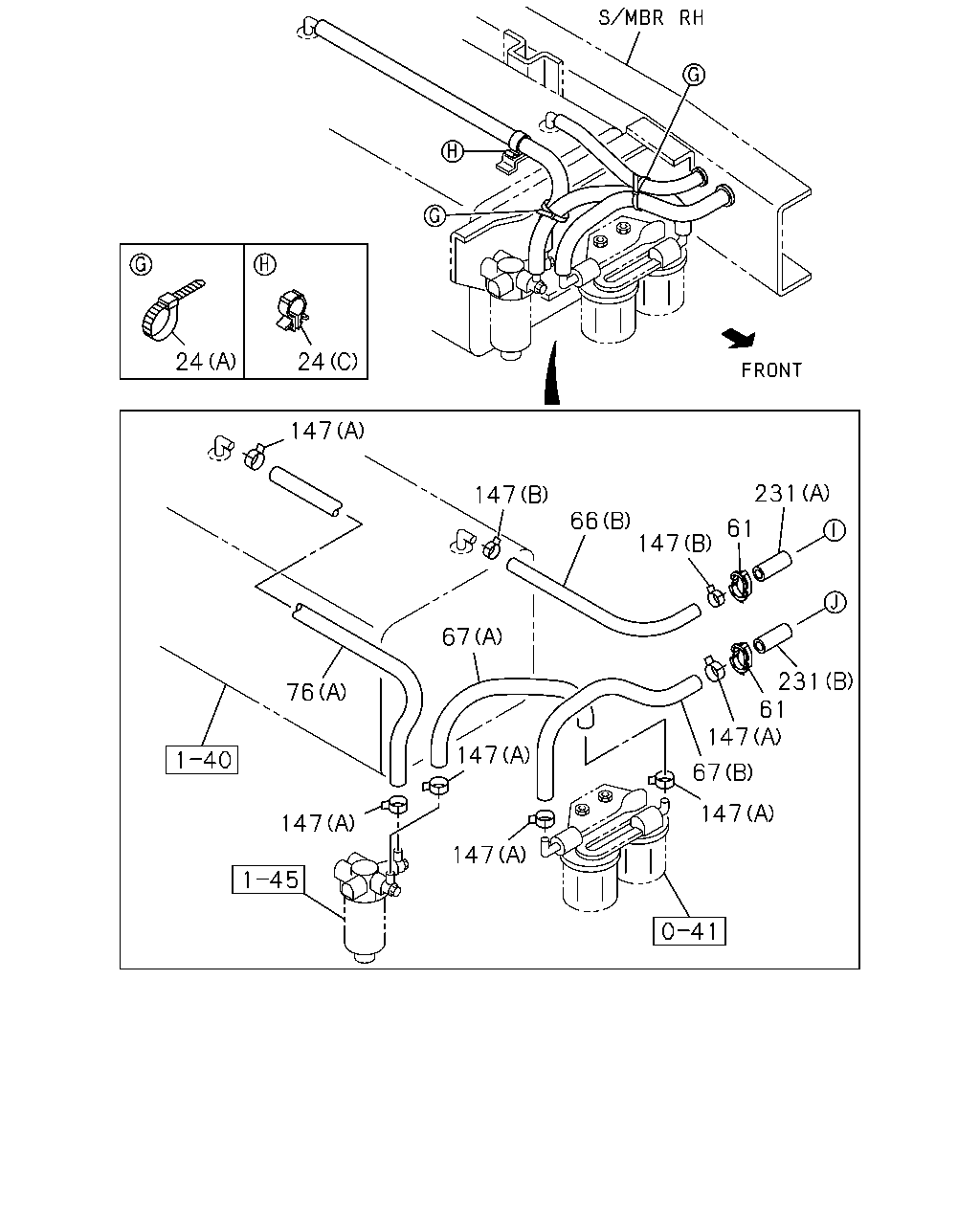

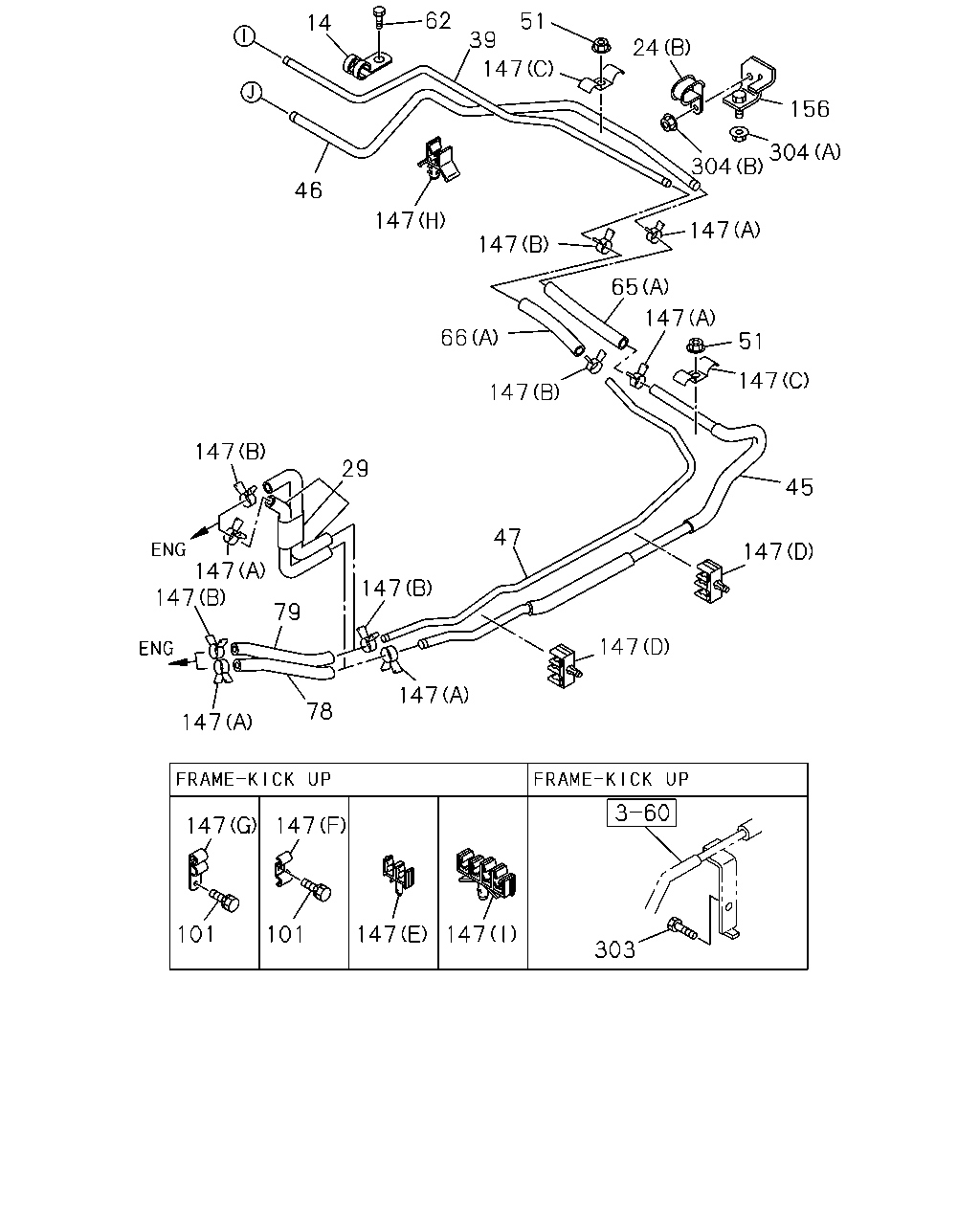

1-41 — FUEL PIPING; CHASSIS (#43251) — 1141 parça

24 61 231 51 46 61 147 231 39 67 76 147 65 147 76 51 147 66 66 24 147 147 45 78 147 47 147 79 147 148 64 14 62 64 148 62 67 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0005-0105	●	●	●
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0106-0112		●
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0201-	●	●	●
14	03.162 CLIP; HOSE 03.630 ID=19 H=25 L=25	1-09700-464-0	01	1	9811-				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9811-0105	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9811-0105	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0201-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B)	9-09916-239-1	01	1	9811-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012						●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012	●	●	●				●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-0012					●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0106-	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0106-				●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9811-0105				●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-379-2	01	1	0201-	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-521-1	01	1	0201-			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97074-754-1	01	1	9811-9903	●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97227-848-0	01	1	9904-	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	9811-0105	●						●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	0106-	●
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	0106-							●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9811-					●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97035-356-2	01	1	9811-0105		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97035-356-2	01	1	0106-		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-217-1	01	1	9811-0105		●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9811-0012		●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	0101-		●	●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9811-9902		●	●	●
39	03.163 PIPE; FUEL	8-97073-597-3	01	1	9811-9902						●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9903-0105		●	●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97073-597-3	01	1	0106-		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97073-597-3	01	1	0106-			●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97227-310-0	01	1	9903-9904				●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97228-944-0	01	1	9905-0105				●
39	03.163 PIPE; FUEL	8-97228-944-0	01	1	0106-				●
39	03.163 PIPE; FUEL 4JB1 ENG(RLF)	8-97103-840-0	01	1	9811-0105				●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-377-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-518-4	01	1	0201-			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97208-991-1	01	1	9811-9812	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97224-314-0	01	1	9901-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97069-366-3	01	1	9811-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	9811-0105	●						●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9811-0105					●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	0106-0112	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0106-0112					●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0201-					●		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-639-3	01	1	9811-0105	●						●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-639-3	01	1	0106-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97208-989-0	01	1	9811-9812		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97224-207-0	01	1	9901-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97224-207-0	01	1	0106-		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-221-4	01	1	9811-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0106-0112	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV)	8-97035-665-3	01	1	9811-0105		●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>,ENGINE POWERN-SPEC(7QV)	8-97035-665-3	01	1	0106-		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97035-665-3	01	1	0106-			●			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97207-060-1	01	1	9811-9904		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97228-197-0	01	1	9905-0105		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW>	8-97228-197-0	01	1	0106-		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9811-0004		●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0005-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	0005-0105				●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0106-0112		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	0106-0112			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0201-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9811-9812			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97222-495-0	01	1	9901-9902			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	9903-0004			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0005-0012		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0005-0012			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0101-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0101-0105			●			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0106-0112		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0106-0112			●			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0201-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0201-			●			●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-376-2	01	1	0201-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-520-1	01	1	0201-			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97074-753-2	01	1	9811-9903	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97227-847-0	01	1	9904-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	9811-0105	●						●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	0106-	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	0106-							●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9811-					●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97035-354-2	01	1	9811-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97035-354-2	01	1	0106-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-213-2	01	1	9811-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9811-0012		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	0101-		●	●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9811-9902		●	●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97068-793-3	01	1	9811-9902						●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9903-0105		●	●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97068-793-3	01	1	0106-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97068-793-3	01	1	0106-			●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97227-309-0	01	1	9903-9904				●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97228-927-0	01	1	9905-0105				●
46	03.163 PIPE; FUEL,TANK SIDE	8-97228-927-0	01	1	0106-				●
46	03.163 PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF)	8-97103-823-0	01	1	9811-0105				●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-378-2	01	1	0201-	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-519-3	01	1	0201-			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97208-992-1	01	1	9811-	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97076-390-2	01	1	9811-	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97080-712-5	01	1	9811-0105	●						●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9811-0105					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0106-					●		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97208-990-0	01	1	9811-9812		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97224-208-0	01	1	9901-0105		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97224-208-0	01	1	0106-		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-225-3	01	1	9811-0105		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV)	8-97035-667-2	01	1	9811-0105		●	●			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>,ENGINE POWERN-SPEC(7QV)	8-97035-667-2	01	1	0106-		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97035-667-2	01	1	0106-			●			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97207-061-1	01	1	9811-0105		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW>	8-97207-061-1	01	1	0106-		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9811-0012		●	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	0101-0105		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	0106-0207		●	●			●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97354-091-0	01	1	0208-		●	●			●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●	●	●	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-	●	●	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0005-0105	●	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-0112		●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0201-	●	●	●
62	03.162 BOLT; CLIP FIX 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-				●
62	03.162 BOLT; CLIP FIX 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-				●
64	03.162 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-				●
64	03.162 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9902-	●	●	●			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
65	03.163 HOSE; FUEL,DELIVERY PIPE ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●		●			●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103	●		●				●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112							●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●	●			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T), FRAME-KICKUP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9811-				●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) EXC. ENGINE POWER N-SPEC(7QV) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. ENGINE POWER N-SPEC(7QV) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0103	●	●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0105-	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105	●	●	●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●			●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-						●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B)	8-97091-765-0	01	1	9811-	●						●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●	●			●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0104-		●	●			●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=280 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901			●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0104			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-			●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104	●	●	●			●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-							●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9902-				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9901-	●	●	●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0005-0105	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0106-0112		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0201-	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812					●
78	03.163 HOSE; FUEL,PUMP TO PIPE ENGINE POWER N-SPEC(7QV) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812						●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0004	●	●	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0004					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0005-0105	●	●	●	●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012	●		●				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0105	●		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●		●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> ENGINE POWER N-SPEC(7QV) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9901-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●	●	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (J) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (K) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0201-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (L) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0201-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9811-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	02	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 (I) ID=10 & 6.4 & 4.8	8-97074-831-0	01	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 03.485 (H) ID=10 H=36	8-94249-686-1	01	1	9905-0105				●
148	03.162 CLIP; HOSE,FUEL 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	9811-				●
148	03.162 CLIP; HOSE,FUEL (B) ID=13 & 15	8-94428-546-0	01	1	9811-				●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0201-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-0105	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0106-	●	●	●	●	●	●	●

62 51 14 39 24 147 156 304 304 46 147 147 147 65 147 66 51 147 147 147 29 45 47 147 147 147 147 79 147 147 78 147 147 147 101 101 147 147 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0005-0105	●	●	●
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0106-0112		●
14	03.162 CLIP; HOSE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 09.242 ID=22 L=22	5-83574-045-0	01	1	0201-	●	●	●
14	03.162 CLIP; HOSE 03.630 ID=19 H=25 L=25	1-09700-464-0	01	1	9811-				●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9811-0105	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9811-0105	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0201-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B)	9-09916-239-1	01	1	9811-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012						●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012	●	●	●				●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-0012					●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0106-	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0106-				●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9811-0105				●
29	03.163 HOSE; FUEL 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97087-833-2	01	1	9811-	●	●	●	●		●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-379-2	01	1	0201-	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-521-1	01	1	0201-			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97074-754-1	01	1	9811-9903	●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97227-848-0	01	1	9904-	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	9811-0105	●						●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	0106-	●
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	0106-							●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9811-					●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97035-356-2	01	1	9811-0105		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97035-356-2	01	1	0106-		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-217-1	01	1	9811-0105		●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9811-0012		●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	0101-		●	●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9811-9902		●	●	●
39	03.163 PIPE; FUEL	8-97073-597-3	01	1	9811-9902						●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9903-0105		●	●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97073-597-3	01	1	0106-		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97073-597-3	01	1	0106-			●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97227-310-0	01	1	9903-9904				●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97228-944-0	01	1	9905-0105				●
39	03.163 PIPE; FUEL	8-97228-944-0	01	1	0106-				●
39	03.163 PIPE; FUEL 4JB1 ENG(RLF)	8-97103-840-0	01	1	9811-0105				●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-377-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-518-4	01	1	0201-			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97208-991-1	01	1	9811-9812	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97224-314-0	01	1	9901-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97069-366-3	01	1	9811-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	9811-0105	●						●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9811-0105					●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	0106-0112	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0106-0112					●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0201-					●		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-639-3	01	1	9811-0105	●						●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-639-3	01	1	0106-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97208-989-0	01	1	9811-9812		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97224-207-0	01	1	9901-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97224-207-0	01	1	0106-		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-221-4	01	1	9811-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0106-0112	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV)	8-97035-665-3	01	1	9811-0105		●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>,ENGINE POWERN-SPEC(7QV)	8-97035-665-3	01	1	0106-		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97035-665-3	01	1	0106-			●			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97207-060-1	01	1	9811-9904		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97228-197-0	01	1	9905-0105		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW>	8-97228-197-0	01	1	0106-		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9811-0004		●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0005-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	0005-0105				●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0106-0112		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	0106-0112			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0201-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9811-9812			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97222-495-0	01	1	9901-9902			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	9903-0004			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0005-0012		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0005-0012			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0101-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0101-0105			●			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0106-0112		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0106-0112			●			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0201-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0201-			●			●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-376-2	01	1	0201-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-520-1	01	1	0201-			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97074-753-2	01	1	9811-9903	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97227-847-0	01	1	9904-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	9811-0105	●						●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	0106-	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	0106-							●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9811-					●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97035-354-2	01	1	9811-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97035-354-2	01	1	0106-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-213-2	01	1	9811-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9811-0012		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	0101-		●	●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9811-9902		●	●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97068-793-3	01	1	9811-9902						●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9903-0105		●	●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97068-793-3	01	1	0106-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97068-793-3	01	1	0106-			●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97227-309-0	01	1	9903-9904				●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97228-927-0	01	1	9905-0105				●
46	03.163 PIPE; FUEL,TANK SIDE	8-97228-927-0	01	1	0106-				●
46	03.163 PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF)	8-97103-823-0	01	1	9811-0105				●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-378-2	01	1	0201-	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-519-3	01	1	0201-			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97208-992-1	01	1	9811-	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97076-390-2	01	1	9811-	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97080-712-5	01	1	9811-0105	●						●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9811-0105					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0106-					●		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97208-990-0	01	1	9811-9812		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97224-208-0	01	1	9901-0105		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97224-208-0	01	1	0106-		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-225-3	01	1	9811-0105		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV)	8-97035-667-2	01	1	9811-0105		●	●			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>,ENGINE POWERN-SPEC(7QV)	8-97035-667-2	01	1	0106-		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97035-667-2	01	1	0106-			●			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97207-061-1	01	1	9811-0105		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW>	8-97207-061-1	01	1	0106-		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9811-0012		●	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	0101-0105		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	0106-0207		●	●			●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97354-091-0	01	1	0208-		●	●			●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●	●	●	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-	●	●	●	●	●	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0005-0105	●	●	●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-0112		●
62	03.162 BOLT; CLIP FIX 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0201-	●	●	●
62	03.162 BOLT; CLIP FIX 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-				●
62	03.162 BOLT; CLIP FIX 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9902-	●	●	●			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
65	03.163 HOSE; FUEL,DELIVERY PIPE ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●		●			●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103	●		●				●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112							●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●	●			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T), FRAME-KICKUP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9811-				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9901-	●	●	●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0005-0105	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0106-0112		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0201-	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812					●
78	03.163 HOSE; FUEL,PUMP TO PIPE ENGINE POWER N-SPEC(7QV) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812						●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0004	●	●	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0004					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0005-0105	●	●	●	●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012	●		●				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0105	●		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●		●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> ENGINE POWER N-SPEC(7QV) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9901-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●	●	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0101-	●	●	●		●	●	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-0105		●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-0105		●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-0112	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-0112		●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0201-	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0201-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (J) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (K) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0201-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (L) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0201-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9811-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	02	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 (I) ID=10 & 6.4 & 4.8	8-97074-831-0	01	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 03.485 (H) ID=10 H=36	8-94249-686-1	01	1	9905-0105				●
156	03.162 BRACKET; FUEL HOSE 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97087-834-3	01	1	9811-	●	●	●	●		●
303	03.130 BOLT; BRKT FRAME-KICK UP<7EW> 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9811-0105		●
304	03.130 NUT; BRKT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9811-	●	●	●	●		●
304	03.130 NUT; BRKT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9811-	●	●	●	●		●

51 147 51 147 147 66 147 46 147 147 51 39 147 65 147 47 147 79 78 147 45 147 101 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-379-2	01	1	0201-	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-521-1	01	1	0201-			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97074-754-1	01	1	9811-9903	●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97227-848-0	01	1	9904-	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	9811-0105	●						●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97090-339-3	01	1	0106-	●
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	0106-							●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9811-					●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97035-356-2	01	1	9811-0105		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97035-356-2	01	1	0106-		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-217-1	01	1	9811-0105		●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9811-0012		●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	0101-		●	●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9811-9902		●	●	●
39	03.163 PIPE; FUEL	8-97073-597-3	01	1	9811-9902						●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9903-0105		●	●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97073-597-3	01	1	0106-		●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97073-597-3	01	1	0106-			●			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97227-310-0	01	1	9903-9904				●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97228-944-0	01	1	9905-0105				●
39	03.163 PIPE; FUEL	8-97228-944-0	01	1	0106-				●
39	03.163 PIPE; FUEL 4JB1 ENG(RLF)	8-97103-840-0	01	1	9811-0105				●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-377-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-518-4	01	1	0201-			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97208-991-1	01	1	9811-9812	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97224-314-0	01	1	9901-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97069-366-3	01	1	9811-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	9811-0105	●						●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9811-0105					●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	0106-0112	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0106-0112					●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0201-					●		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-639-3	01	1	9811-0105	●						●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-639-3	01	1	0106-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97208-989-0	01	1	9811-9812		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97224-207-0	01	1	9901-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97224-207-0	01	1	0106-		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-221-4	01	1	9811-0105		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0106-0112	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	0201-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV)	8-97035-665-3	01	1	9811-0105		●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>,ENGINE POWERN-SPEC(7QV)	8-97035-665-3	01	1	0106-		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97035-665-3	01	1	0106-			●			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97207-060-1	01	1	9811-9904		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97228-197-0	01	1	9905-0105		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW>	8-97228-197-0	01	1	0106-		●	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9811-0004		●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0005-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	0005-0105				●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0106-0112		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	0106-0112			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97091-493-1	01	1	0201-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9811-9812			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97222-495-0	01	1	9901-9902			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	9903-0004			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0005-0012		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0005-0012			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0101-0105		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0101-0105			●			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0106-0112		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0106-0112			●			●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-253-0	01	1	0201-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97225-253-0	01	1	0201-			●			●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-376-2	01	1	0201-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-520-1	01	1	0201-			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97074-753-2	01	1	9811-9903	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97227-847-0	01	1	9904-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	9811-0105	●						●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97075-972-3	01	1	0106-	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	0106-							●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9811-					●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97035-354-2	01	1	9811-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97035-354-2	01	1	0106-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-213-2	01	1	9811-0105		●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9811-0012		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	0101-		●	●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9811-9902		●	●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97068-793-3	01	1	9811-9902						●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9903-0105		●	●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97068-793-3	01	1	0106-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97068-793-3	01	1	0106-			●			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97227-309-0	01	1	9903-9904				●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97228-927-0	01	1	9905-0105				●
46	03.163 PIPE; FUEL,TANK SIDE	8-97228-927-0	01	1	0106-				●
46	03.163 PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF)	8-97103-823-0	01	1	9811-0105				●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) M/T MXA5R(RMT) FRT INDEPENDENT SUSPENSION(6PP)	8-97259-378-2	01	1	0201-	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97259-519-3	01	1	0201-			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97208-992-1	01	1	9811-	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97076-390-2	01	1	9811-	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97080-712-5	01	1	9811-0105	●						●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9811-0105					●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0106-					●		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97208-990-0	01	1	9811-9812		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) DUMP CHASSIS(V4D)	8-97224-208-0	01	1	9901-0105		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FRAME-KICK UP<7EW>	8-97224-208-0	01	1	0106-		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-225-3	01	1	9811-0105		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	0106-	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ENGINE POWER N-SPEC(7QV)	8-97035-667-2	01	1	9811-0105		●	●			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW>,ENGINE POWERN-SPEC(7QV)	8-97035-667-2	01	1	0106-		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97035-667-2	01	1	0106-			●			●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. DUMP CHASSIS(V4D)	8-97207-061-1	01	1	9811-0105		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW>	8-97207-061-1	01	1	0106-		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9811-0012		●	●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	0101-0105		●	●	●		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	0106-0207		●	●			●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97354-091-0	01	1	0208-		●	●			●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●	●	●	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9902-	●	●	●			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
65	03.163 HOSE; FUEL,DELIVERY PIPE ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●		●			●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103	●		●				●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112							●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●	●			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T), FRAME-KICKUP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9811-				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9901-	●	●	●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0005-0105	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0106-0112		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97222-766-0	01	1	0201-	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812					●
78	03.163 HOSE; FUEL,PUMP TO PIPE ENGINE POWER N-SPEC(7QV) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812						●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0004	●	●	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0004					●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0005-0105	●	●	●	●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●	●	●		●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012	●		●				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0105	●		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●		●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> ENGINE POWER N-SPEC(7QV) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9901-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●	●	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012					●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0101-	●	●	●		●	●	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-0105		●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9811-0105		●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-0112	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0106-0112		●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0201-	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0201-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (J) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (K) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0201-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (L) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0201-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9811-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	02	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 (I) ID=10 & 6.4 & 4.8	8-97074-831-0	01	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 03.485 (H) ID=10 H=36	8-94249-686-1	01	1	9905-0105				●

24 24 147 231 147 66 147 61 231 61 147 76 65 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9811-0105	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9811-0105	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0201-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B)	9-09916-239-1	01	1	9811-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012						●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012	●	●	●				●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-0012					●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0106-	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0106-				●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9811-0105				●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9902-	●	●	●			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
65	03.163 HOSE; FUEL,DELIVERY PIPE ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●		●			●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103	●		●				●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112							●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●	●			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T), FRAME-KICKUP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9811-				●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901			●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0104			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-			●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104	●	●	●			●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-							●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9902-				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (J) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (K) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0201-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (L) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0201-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9811-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	02	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 (I) ID=10 & 6.4 & 4.8	8-97074-831-0	01	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 03.485 (H) ID=10 H=36	8-94249-686-1	01	1	9905-0105				●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0201-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-0105	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0106-	●	●	●	●	●	●	●

231 61 147 66 231 61 147 65 65 76 66 147 147 147 147 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9811-0105	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9811-0105	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0201-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B)	9-09916-239-1	01	1	9811-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012						●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012	●	●	●				●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-0012					●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0106-	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0106-				●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9811-0105				●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9902-	●	●	●			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
65	03.163 HOSE; FUEL,DELIVERY PIPE ENGINE POWER N-SPEC(7QV) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●		●			●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103	●		●				●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112							●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●	●			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T), FRAME-KICKUP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9811-				●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901			●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0104			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-			●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104	●	●	●			●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-							●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9902-				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (J) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (K) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0201-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (L) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0201-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9811-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	02	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 (I) ID=10 & 6.4 & 4.8	8-97074-831-0	01	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 03.485 (H) ID=10 H=36	8-94249-686-1	01	1	9905-0105				●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0201-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-0105	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0106-	●	●	●	●	●	●	●

24 24 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (C)	8-97254-204-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9811-0105	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	0106-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9811-0105	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0201-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0201-	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B)	9-09916-239-1	01	1	9811-	●	●	●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012	●	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	9811-0012						●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0101-	●	●	●			●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012	●	●	●				●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9811-0012					●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9811-0012				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0101-0105				●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0106-	●	●	●		●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0106-				●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9811-0105				●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9811-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012	●		●			●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9811-0012		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103	●		●				●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0105-0112							●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-	●						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0201-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9811-					●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9811-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0101-0103						●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0104-0104		●	●			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T), FRAME-KICKUP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-						●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0105-			●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9811-				●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) EXC. ENGINE POWER N-SPEC(7QV) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. ENGINE POWER N-SPEC(7QV) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901	●	●	●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0103	●	●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0105-	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105	●	●	●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●	●			●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-						●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-						●
67	03.163 HOSE; FUEL,DELIVERY 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0105				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) ENGINE POWER N-SPEC(7QV) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0106-				●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0201-	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0201-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901			●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9902-0104			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0106-			●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9812	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012	●	●	●				●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9901-0012		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104	●	●	●			●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0104		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0105-0105		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-	●						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9811-							●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9811-					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=840 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0104		●	●			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0105-			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0012			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103						●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0101-0103			●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0104-0105						●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0106-		●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9811-9901				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9902-				●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9811-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.686 (J) ID=13 & 7 L=16 & 14	1-09700-070-0	03	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0201-	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (K) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0201-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (L) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0201-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9811-	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	0106-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-9904					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●	●				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-	●	●	●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012	●	●	●	●			●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9811-0012					●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	0101-	●	●	●		●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9811-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9811-0105		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	02	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FRAME-KICK UP<7EW> 04.930 (I) ID=10 & 6.4 & 4.8	8-97074-831-0	01	1	0012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 03.485 (H) ID=10 H=36	8-94249-686-1	01	1	9905-0105				●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0201-	●		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9811-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9811-0105	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0106-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
