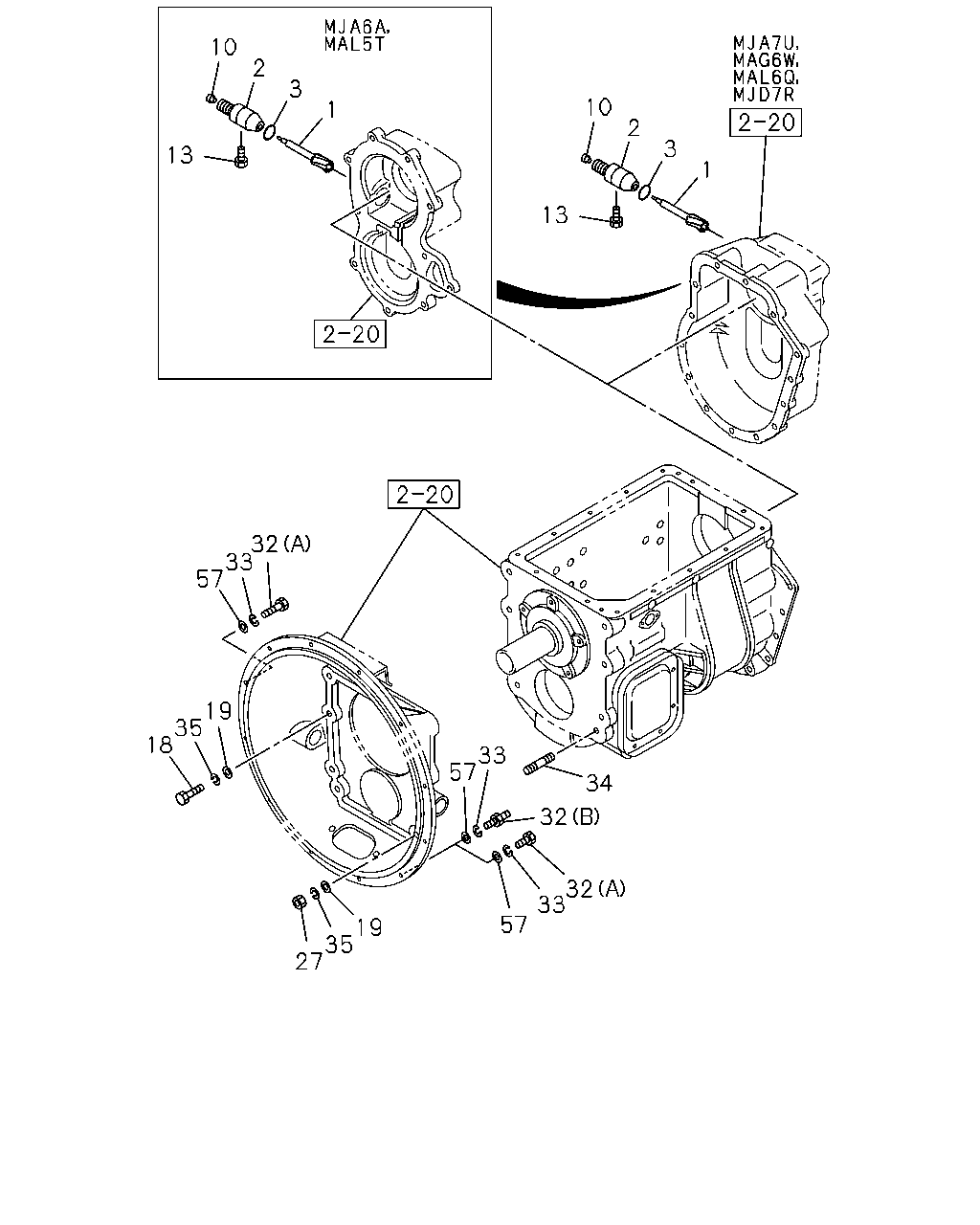

2-25A — SPEEDOMETER DRIVEN GEAR (#4325) — 52 parça

10 2 3 10 1 2 3 13 1 13 3 33 57 19 35 18 33 57 34 32 32 33 57 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9603-9910	●	●	●	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9911-	●	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9605-9605	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9606-9910	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9911-	●	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9603-9604	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9605-9605			●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9603-9910	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9911-	●	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9603-9910	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9911-	●	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9603-9910	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9911-	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9603-9910	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9911-	●	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9603-9910	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9911-	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9603-9910	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9911-	●	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	08	1	9905-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 W/LK&PL WASHER	0-50151-235-0	06	1	9603-9606	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	06	1	9607-9607	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	06	1	9607-9607	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	06	1	9608-9711	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	06	1	9712-9904	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	08	1	9905-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> (A) M12X35 FLANGE	0-28781-235-0	08	1	9905-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (B) M10X16,M12X35 L=59	1-09029-031-1	06	1	9603-9904	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	9905-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	9905-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 W/LK&PL WASHER	0-50151-235-0	08	1	9603-9606	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> (A) M12X35 W/LK&PL WASHER	0-50151-235-0	08	1	9603-9606	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	08	1	9607-9607	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> (A) M12X35 FLANGE	0-28781-235-0	08	1	9607-9607	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	08	1	9608-9711	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> (A) M12X35 FLANGE	0-28781-235-0	08	1	9608-9711	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-S(56L) (A) M12X35 FLANGE	0-28781-235-0	08	1	9712-9904	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 8PE1S(59L),10PE1S(60L) (A) M12X35 FLANGE	0-28781-235-0	08	1	9712-9904			●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A) M12X35 FLANGE	0-28781-235-0	06	1	9905-	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	9603-9904	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG L TYPE ENG<90L> (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	9603-9904	●
32	BOLT; CLU HSG TO FLYWHEEL HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (B) M10X16,M12X35 L=59	1-09029-031-1	06	1	9905-	●	●	●	●	●
33	WASHER; LK,CLU HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.2	9-09150-612-0	06	1	9603-	●	●	●	●	●
33	WASHER; LK,CLU HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.2	9-09150-612-0	04	1	9603-	●	●	●	●	●
33	WASHER; LK,CLU HSG L TYPE ENG<90L> ID=12.2	9-09150-612-0	04	1	9603-	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9603-9910	●	●	●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9911-	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9603-9910	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9911-	●	●	●	●	●	●
57	WASHER; PL,CLU HSG V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.5	9-09164-512-0	06	1	9603-	●	●	●	●	●
57	WASHER; PL,CLU HSG V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.5	9-09164-512-0	04	1	9603-	●	●	●	●	●
57	WASHER; PL,CLU HSG L TYPE ENG<90L> ID=12.5	9-09164-512-0	04	1	9603-	●
