Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#43248) — 1279 parça

399 381 60 242 391 399 60 391 391 381 391 381 389 281 391 399 389 391 2 242 281 242 17 391 64 391 391 389 391 389 242 64 391 64 391 391 242 389 389 64 17 242 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	03.417 HOSE; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97218-392-0	01	1	9811-	●	●
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-0012	●		●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	9811-0012					●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0101-0105	●		●	●	●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0106-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-0	01	1	9811-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9811-0012	●		●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	0101-0105	●		●	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0106-0112	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0201-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9811-0105			●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012	●		●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012					●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0101-0105	●		●	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F)	8-97853-633-1	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G)	8-97857-844-0	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0106-0112	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0201-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0201-	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOW ROOF<6XQ> (D)	8-97161-847-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (B)	8-97089-948-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-94313-520-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9901-0002	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	0003-0105	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0106-0112			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97300-255-0	01	1	0201-	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (D)	8-97161-848-1	01	1	9811-			●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012	●		●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012					●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0101-0105	●		●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A)	8-97080-149-0	01	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-97081-886-0	02	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0106-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	9811-0012	●		●			●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9811-0012					●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0101-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-0012	●		●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0101-0105	●		●	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0106-0112	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0201-	●		●		●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-0012	●		●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9811-0012					●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0101-0105	●		●	●	●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0106-	●		●		●	●

147 5 232 26 32 9 13 290 297 2 314 10 15 5 258 314 15 209 13 13 9 26 258 297 10 393 297 5 102 107 105 155 105 119 107 102 104 103 103 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.417 HOSE; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97218-392-0	01	1	9811-	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (A) ID=112	9-09915-074-1	01	1	0201-	●					●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9904-	●	●		●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6	9-09915-502-1	01	1	9811-	●		●		●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-9903							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	9904-0012	●		●	●		●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0101-	●		●	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-0105	●	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-0105							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0106-	●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	0106-				●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) ID=67	9-09915-069-1	02	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (I)	8-97312-472-0	01	1	0201-	●					●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97240-850-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97300-771-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (F)	8-97300-771-1	01	1	0201-						●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97226-060-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9811-0012	●		●	●		●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0101-0105	●		●	●	●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0106-	●		●		●	●
9	03.417 BRACKET; INT PIPE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-618-0	01	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97205-781-0	01	1	9811-9901	●					●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	9902-0105	●		●			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	0106-0112			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97226-059-0	01	1	0201-	●		●			●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9904-0105	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0112			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●		●			●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●					●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0112	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-		●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811						●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●					●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-0002	●					●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●		●			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0112			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●		●			●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●					●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	03	1	9901-	●	●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105	●	●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105	●	●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-0105							●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-0105							●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105				●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105				●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	0106-	●	●		●			●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	0106-	●	●		●			●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ> (B)	8-97089-952-1	01	1	9811-	●	●		●			●
26	03.417 DUCT; AIR INT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97218-393-0	01	1	9811-9812	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97069-873-3	01	1	9811-0105	●	●		●
26	03.417 DUCT; AIR INT (A)	8-97069-873-3	01	1	9811-0105							●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97069-873-3	01	1	0106-	●					●	●
26	03.417 DUCT; AIR INT MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97069-877-1	01	1	9811-	●			●
26	03.417 DUCT; AIR INT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97218-393-1	01	1	9901-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97077-387-0	01	1	9811-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9811-0105	●		●			●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0106-0112			●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0201-	●		●			●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0201-	●					●
102	03.402 RESONATOR; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97091-928-1	01	1	9811-	●	●		●			●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●		●
103	03.402 NUT; RESONATOR 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105							●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
103	03.402 NUT; RESONATOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●		●			●
104	03.417 RUBBER; MOUNTING,RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	9811-	●	●		●			●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97091-931-1	01	1	9811-	●	●		●			●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-824-1	01	1	9811-	●	●		●			●
107	03.417 CLIP; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	9811-	●	●		●			●
116	01.745 RETAINER; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	9811-	●	●		●			●
119	03.403 HOSE; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-844-0	01	1	9811-	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0012							●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	9811-0012				●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0106-	●			●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0106-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 01.166 ID=72	9-09915-070-1	01	1	0101-0105					●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 01.166 ID=72	9-09915-070-1	01	1	0106-	●				●	●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●		●
155	03.417 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105							●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
155	03.417 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●		●			●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417	8-97072-530-0	01	1	9811-0105	●	●		●			●
209	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0106-	●	●		●			●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 08.846	8-97230-028-0	01	1	0106-	●
209	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-9902	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	9903-9903	●		●	●		●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9903-0002	●					●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0003-0105	●		●			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0106-0112			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0201-	●		●			●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9903-0012	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0101-0105	●		●	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0106-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-0105	●	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-0105							●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	0106-	●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	0106-				●			●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97219-710-0	01	1	9811-	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●		●	●	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●	●
258	03.417 NUT; AIR DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012							●
258	03.417 NUT; AIR DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012							●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012				●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012				●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●	●		●			●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●	●		●			●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●		●	●	●	●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●			●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●			●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●		●		●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9811-9812	●		●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-9812	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9901-0012	●		●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=92	9-09915-072-1	01	1	0101-0105	●		●	●	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=92	9-09915-072-1	01	1	0106-	●		●		●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	9811-0002	●					●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	0003-	●		●			●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9811-	●	●		●			●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 03.417 ID=82	9-09915-511-1	01	1	0101-0105					●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 03.417 ID=82	9-09915-511-1	01	1	0106-	●				●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●	●
297	03.417 BOLT; DUCT 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012							●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012				●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0201-	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012					●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0101-	●		●		●	●
393	03.417 WASHER; LK,AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9811-	●	●		●			●

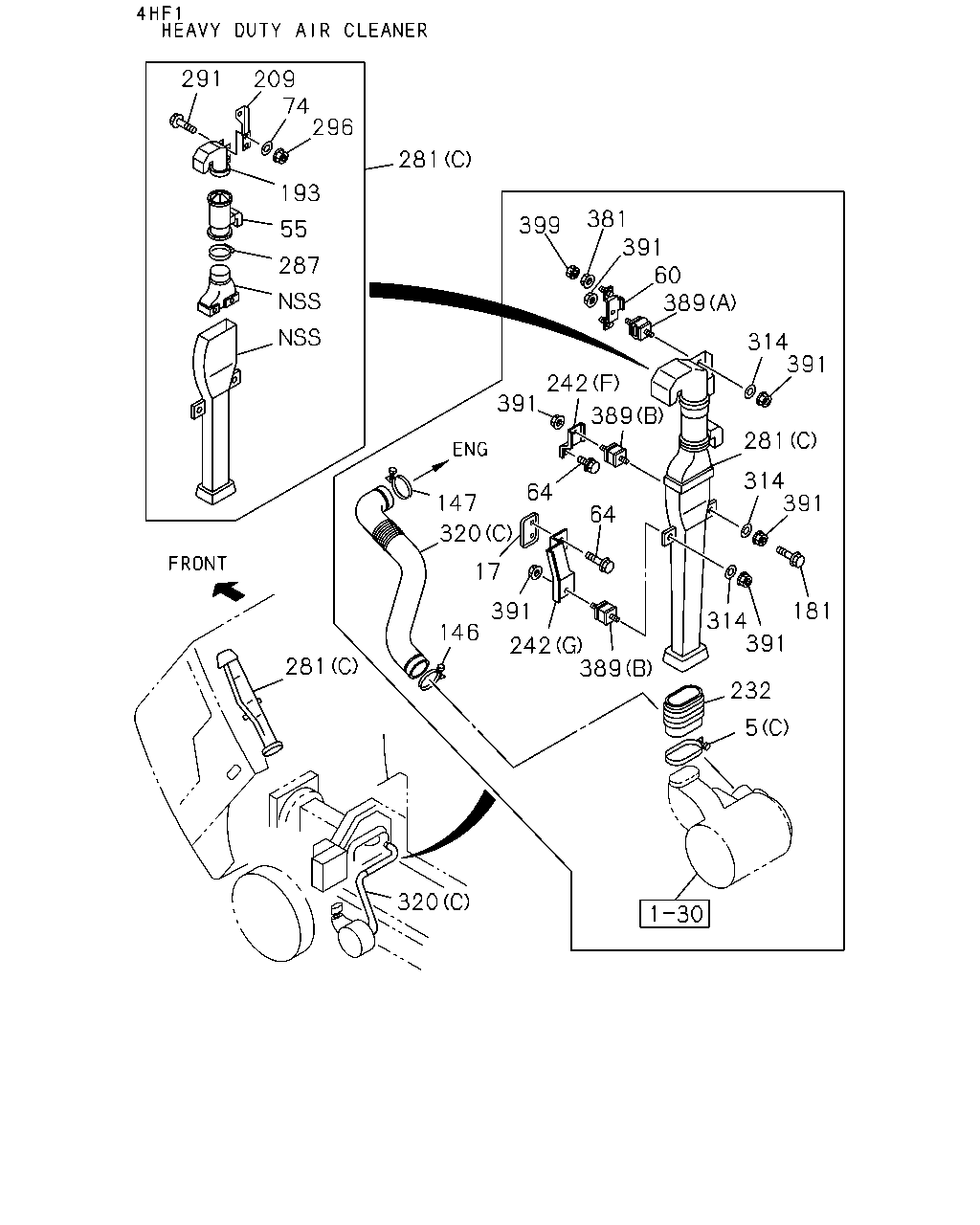

291 209 74 296 281 193 381 391 60 389 399 55 287 314 391 242 391 389 281 314 391 64 147 64 320 17 181 391 314 391 146 242 389 281 232 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (A) ID=112	9-09915-074-1	01	1	0201-	●					●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9904-	●	●		●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6	9-09915-502-1	01	1	9811-	●		●		●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-9903							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	9904-0012	●		●	●		●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0101-	●		●	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-0105	●	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-0105							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0106-	●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	0106-				●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) ID=67	9-09915-069-1	02	1	9811-	●	●
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-0012	●		●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	9811-0012					●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0101-0105	●		●	●	●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0106-	●		●		●	●
55	03.402 CLEANER ASM; AIR,PRE 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	9811-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-0	01	1	9811-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9811-0012	●		●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	0101-0105	●		●	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0106-0112	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0201-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9811-0105			●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012	●		●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012					●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0101-0105	●		●	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●		●		●	●
74	03.417 WASHER; PL,ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9811-	●		●		●	●
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0012							●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	9811-0012				●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0106-	●			●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0106-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 01.166 ID=72	9-09915-070-1	01	1	0101-0105					●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 01.166 ID=72	9-09915-070-1	01	1	0106-	●				●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0012	●		●			●
181	03.407 BOLT; AIR DUCT TO RAD 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0012					●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0101-	●		●		●	●
193	03.417 COVER; DUCT,AIR INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	9811-	●		●		●	●
193	03.417 COVER; DUCT,AIR INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-0	01	1	9811-	●		●		●	●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417	8-97072-530-0	01	1	9811-0105	●	●		●			●
209	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0106-	●	●		●			●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 08.846	8-97230-028-0	01	1	0106-	●
209	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-9902	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	9903-9903	●		●	●		●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9903-0002	●					●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0003-0105	●		●			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0106-0112			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0201-	●		●			●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9903-0012	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0101-0105	●		●	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0106-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-0105	●	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-0105							●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	0106-	●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	0106-				●			●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97219-710-0	01	1	9811-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F)	8-97853-633-1	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G)	8-97857-844-0	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0106-0112	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0201-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0201-	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOW ROOF<6XQ> (D)	8-97161-847-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (B)	8-97089-948-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-94313-520-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9901-0002	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	0003-0105	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0106-0112			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97300-255-0	01	1	0201-	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (D)	8-97161-848-1	01	1	9811-			●
287	03.417 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87	9-09915-071-1	01	1	9811-	●		●		●	●
291	03.405 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9811-	●		●		●	●
296	03.405 NUT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●		●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012					●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0101-	●		●		●	●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97217-471-0	01	1	9811-	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (A)	8-94110-075-2	01	1	9811-0012	●		●	●		●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) (A)	8-94110-075-2	01	1	0101-0105	●		●	●	●	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) (A)	8-94110-075-2	01	1	0106-	●		●		●	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	9811-0002	●					●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	0003-	●		●			●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) (C)	8-97069-875-1	01	1	9811-0012			●			●
320	03.417 HOSE; CONN,ACL (C)	8-97069-875-1	01	1	9811-0012					●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) (C)	8-97069-875-1	01	1	0101-			●		●	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (A)	8-97203-940-0	01	1	0101-0105					●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> (A)	8-97203-940-0	01	1	0106-	●				●	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9811-9811						●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9812-0002	●					●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0003-0105	●		●			●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0106-0112			●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0201-	●		●			●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012	●		●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012					●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0101-0105	●		●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A)	8-97080-149-0	01	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-97081-886-0	02	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0106-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	9811-0012	●		●			●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9811-0012					●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0101-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-0012	●		●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0101-0105	●		●	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0106-0112	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0201-	●		●		●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-0012	●		●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9811-0012					●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0101-0105	●		●	●	●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0106-	●		●		●	●

381 60 391 399 391 381 389 242 391 399 281 391 391 389 389 242 48 64 17 242 391 391 64 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-0012	●		●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	9811-0012					●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0101-0105	●		●	●	●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0106-	●		●		●	●
48	03.417 BOLT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-0012	●		●	●		●
48	03.417 BOLT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0101-0105	●		●	●	●	●
48	03.417 BOLT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-0	01	1	9811-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9811-0012	●		●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	0101-0105	●		●	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0106-0112	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0201-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9811-0105			●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012	●		●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012					●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0101-0105	●		●	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●		●		●	●
76	03.403 VALVE; PRE ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> 03.415	8-94447-157-0	01	1	9811-0012	●	●	●	●
76	03.403 VALVE; PRE ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> 03.415	8-94447-157-0	01	1	0101-0105	●		●	●	●	●
76	03.403 VALVE; PRE ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> 03.415	8-94447-157-0	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F)	8-97853-633-1	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G)	8-97857-844-0	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0106-0112	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0201-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0201-	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOW ROOF<6XQ> (D)	8-97161-847-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (B)	8-97089-948-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-94313-520-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9901-0002	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	0003-0105	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0106-0112			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97300-255-0	01	1	0201-	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (D)	8-97161-848-1	01	1	9811-			●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012	●		●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012					●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0101-0105	●		●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A)	8-97080-149-0	01	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-97081-886-0	02	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0106-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	9811-0012	●		●			●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9811-0012					●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0101-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-0012	●		●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0101-0105	●		●	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0106-0112	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0201-	●		●		●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-0012	●		●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9811-0012					●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0101-0105	●		●	●	●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0106-	●		●		●	●

60 399 391 391 381 281 389 391 2 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

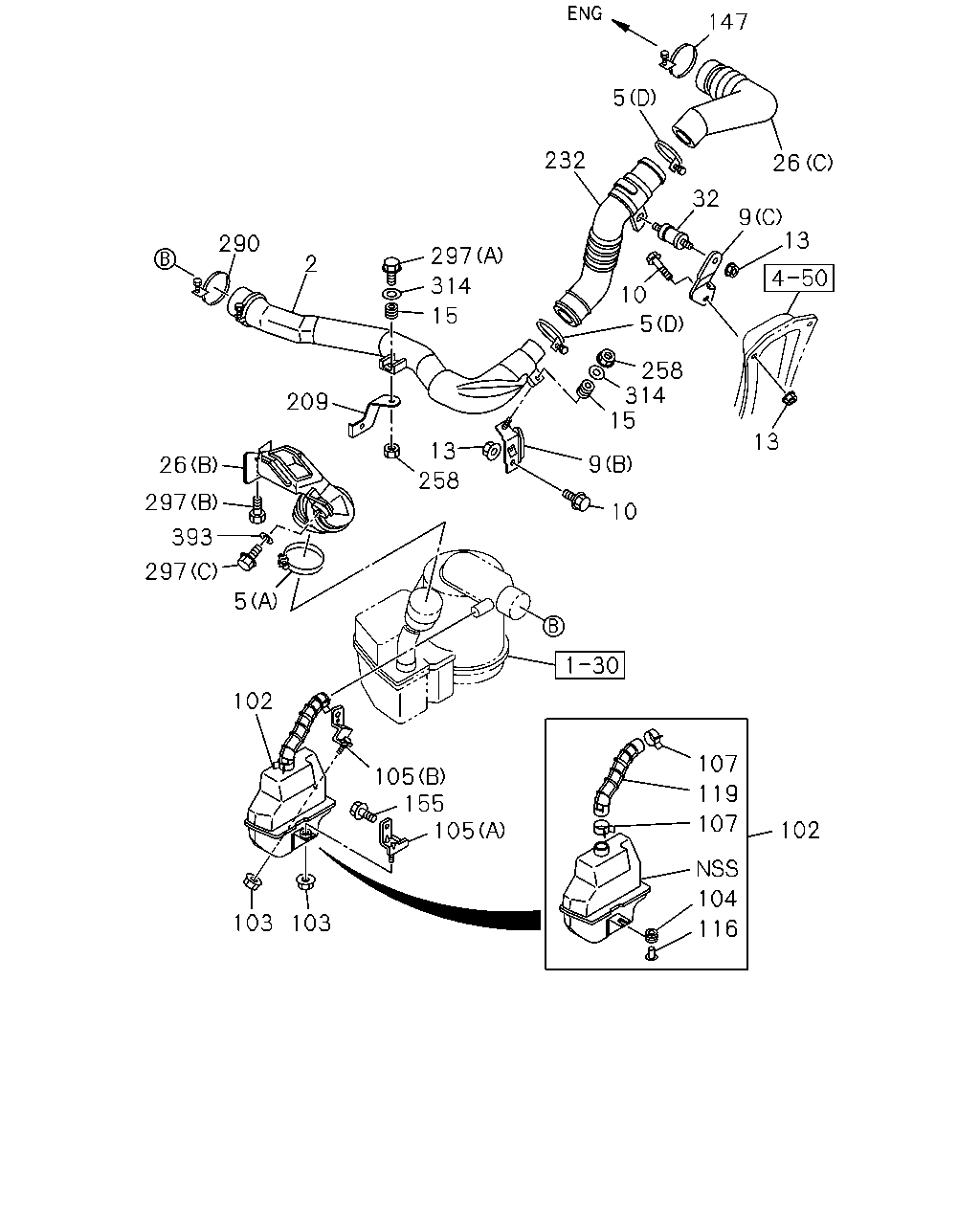

2	03.417 HOSE; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97218-392-0	01	1	9811-	●	●
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (A) ID=112	9-09915-074-1	01	1	0201-	●					●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9904-	●	●		●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6	9-09915-502-1	01	1	9811-	●		●		●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-9903							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	9904-0012	●		●	●		●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0101-	●		●	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-0105	●	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-0105							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0106-	●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	0106-				●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) ID=67	9-09915-069-1	02	1	9811-	●	●
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-0012	●		●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	9811-0012					●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0101-0105	●		●	●	●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0106-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-0	01	1	9811-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9811-0012	●		●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	0101-0105	●		●	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0106-0112	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0201-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9811-0105			●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012	●		●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012					●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0101-0105	●		●	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●		●		●	●
174	03.682 SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-9902	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	9903-9903	●		●	●		●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9903-0002	●					●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0003-0105	●		●			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0106-0112			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0201-	●		●			●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9903-0012	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0101-0105	●		●	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0106-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-0105	●	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-0105							●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	0106-	●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	0106-				●			●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97219-710-0	01	1	9811-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F)	8-97853-633-1	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G)	8-97857-844-0	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0106-0112	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0201-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0201-	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0201-	●		●			●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-540-1	01	1	0201-	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOW ROOF<6XQ> (D)	8-97161-847-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (B)	8-97089-948-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-94313-520-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9901-0002	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	0003-0105	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0106-0112			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97300-255-0	01	1	0201-	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (D)	8-97161-848-1	01	1	9811-			●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-114-0	01	1	0201-	●					●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0201-	●					●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012	●		●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012					●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0101-0105	●		●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A)	8-97080-149-0	01	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-97081-886-0	02	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0106-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	9811-0012	●		●			●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9811-0012					●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0101-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-0012	●		●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0101-0105	●		●	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0106-0112	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0201-	●		●		●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-0012	●		●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9811-0012					●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0101-0105	●		●	●	●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0106-	●		●		●	●
402	03.417 GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0201-	●					●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0201-	●					●

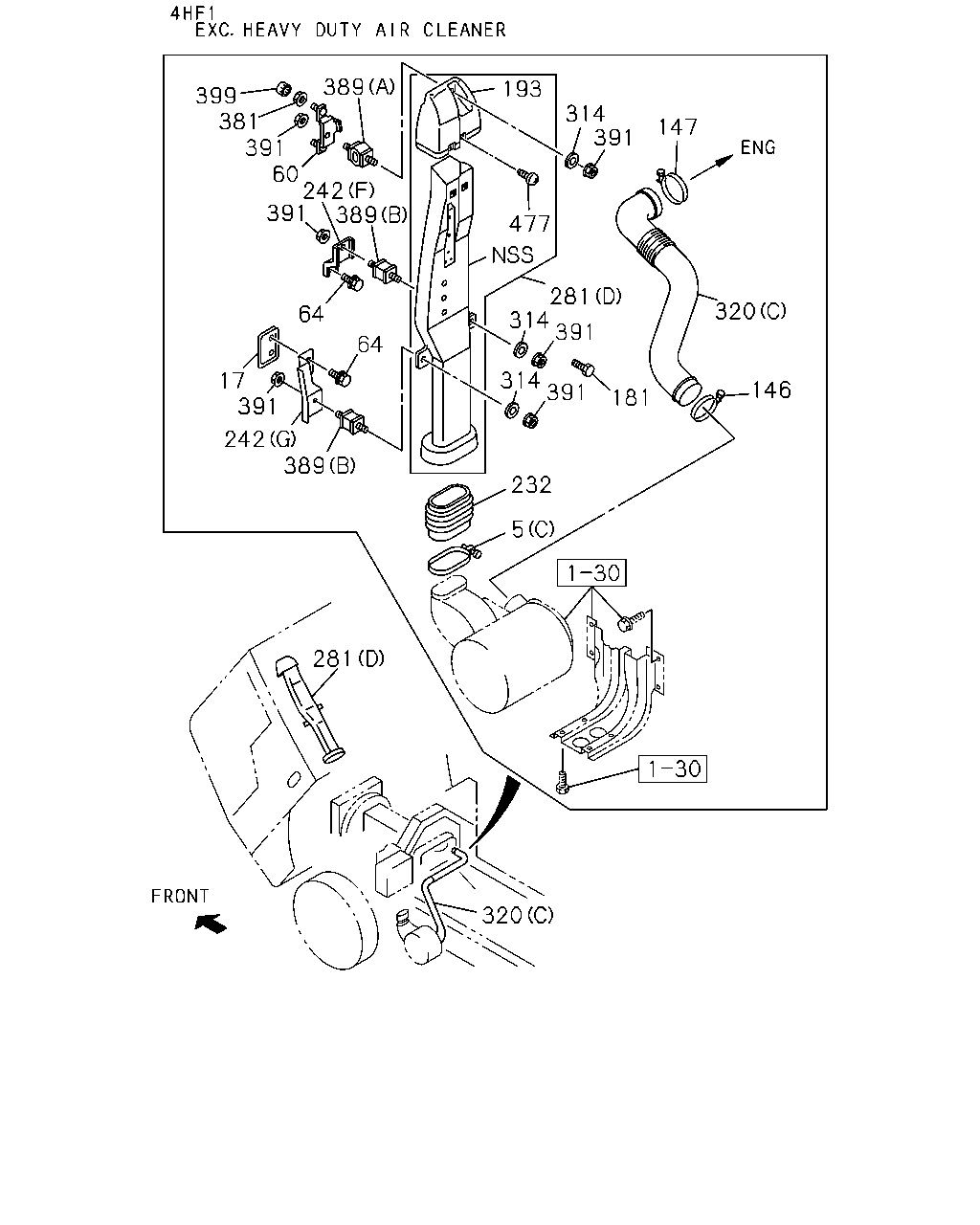

389 193 399 381 391 60 242 391 389 314 391 147 477 281 314 391 320 64 64 314 391 17 391 146 181 242 389 232 5 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (A) ID=112	9-09915-074-1	01	1	0201-	●					●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9904-	●	●		●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6	9-09915-502-1	01	1	9811-	●		●		●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-9903							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	9904-0012	●		●	●		●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0101-	●		●	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-0105	●	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-0105							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0106-	●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	0106-				●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) ID=67	9-09915-069-1	02	1	9811-	●	●
17	03.403 GASKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	9811-0012	●		●	●
17	03.403 GASKET; AIR DUCT	8-97853-699-2	01	1	9811-0012					●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0101-0105	●		●	●	●	●
17	03.403 GASKET; AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-97853-699-2	01	1	0106-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-0	01	1	9811-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	9811-0012	●		●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CAB-LOW ROOF<6XQ>	8-97856-956-0	01	1	0101-0105	●		●	●	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0106-0112	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-956-0	01	1	0201-	●		●		●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) CAB-LOW ROOF<6XQ>	8-97867-792-0	01	1	9811-0105			●
64	03.417 BOLT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012	●		●	●
64	03.417 BOLT; BRKT,AIR DUCT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9811-0012					●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0101-0105	●		●	●	●	●
64	03.417 BOLT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0106-	●		●		●	●
146	03.417 CLIP; HOSE,ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0012							●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	9811-0012				●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0106-	●			●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0106-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 01.166 ID=72	9-09915-070-1	01	1	0101-0105					●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 01.166 ID=72	9-09915-070-1	01	1	0106-	●				●	●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0012	●		●			●
181	03.407 BOLT; AIR DUCT TO RAD 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0012					●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0101-	●		●		●	●
193	03.417 COVER; DUCT,AIR INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-078-1	01	1	9811-	●		●		●	●
193	03.417 COVER; DUCT,AIR INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-9902	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	9903-9903	●		●	●		●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9903-0002	●					●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0003-0105	●		●			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0106-0112			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0201-	●		●			●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9903-0012	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0101-0105	●		●	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0106-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-0105	●	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-0105							●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	0106-	●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	0106-				●			●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97219-710-0	01	1	9811-	●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F)	8-97853-633-1	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (G)	8-97857-844-0	01	1	9811-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0106-0112	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97856-958-0	01	1	0201-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (D)	8-97856-935-0	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	9811-0012	●		●	●		●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0101-0105	●		●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (E)	8-97856-967-1	01	1	0106-	●		●		●	●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97856-932-0	01	1	0201-	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9811-9811						●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	9812-0002	●					●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0003-0105	●		●			●
242	03.417 BRACKET; AIR DUCT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0106-0112			●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B)	8-97856-933-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CAB-LOW ROOF<6XQ> (D)	8-97161-847-1	01	1	9811-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (B)	8-97089-948-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-948-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-94313-520-2	01	1	9811-9812	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	9901-0002	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-94313-520-2	01	1	0003-0105	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0106-0112			●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97300-255-0	01	1	0201-	●		●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (A)	8-97300-255-0	01	1	0201-	●					●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	9901-0012	●		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0101-0105	●		●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97076-959-2	01	1	0106-	●		●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> EXC. HEAVY DUTY AIR CLEANER<K46> (D)	8-97161-848-1	01	1	9811-			●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012					●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0101-	●		●		●	●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97217-471-0	01	1	9811-	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (A)	8-94110-075-2	01	1	9811-0012	●		●	●		●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) (A)	8-94110-075-2	01	1	0101-0105	●		●	●	●	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) (A)	8-94110-075-2	01	1	0106-	●		●		●	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	9811-0002	●					●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	0003-	●		●			●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) (C)	8-97069-875-1	01	1	9811-0012			●			●
320	03.417 HOSE; CONN,ACL (C)	8-97069-875-1	01	1	9811-0012					●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) (C)	8-97069-875-1	01	1	0101-			●		●	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (A)	8-97203-940-0	01	1	0101-0105					●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> (A)	8-97203-940-0	01	1	0106-	●				●	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9811-9811						●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9812-0002	●					●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0003-0105	●		●			●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0106-0112			●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0201-	●		●			●
381	03.417 NUT; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012	●		●	●
381	03.417 NUT; BRKT,AIR DUCT 16.800 M6 FLANGE	1-09984-018-0	02	1	9811-0012					●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0101-0105	●		●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (A)	8-97080-149-0	01	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0106-	●		●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	9811-0012	●		●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-97081-886-0	02	1	9811-0012					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0101-0105	●		●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0106-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	9811-0012	●		●			●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	9811-0012					●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0101-	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	9811-0012	●		●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0101-0105	●		●	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0106-0112	●		●		●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	07	1	0201-	●		●		●	●
399	03.417 CAP; BRKT,AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	9811-0012	●		●	●
399	03.417 CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9811-0012					●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0101-0105	●		●	●	●	●
399	03.417 CAP; BRKT,AIR DUCT AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0106-	●		●		●	●
477	03.417 SCREW; COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9811-	●		●		●	●

192 508 192 511 474 192 509 487 192 13 192 192 9 510 10 9 13 13 32 507 192 509 9 192 13 10 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (I)	8-97312-472-0	01	1	0201-	●					●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97240-850-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97300-771-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (F)	8-97300-771-1	01	1	0201-						●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97226-060-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9811-0012	●		●	●		●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0101-0105	●		●	●	●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0106-	●		●		●	●
9	03.417 BRACKET; INT PIPE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-618-0	01	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97205-781-0	01	1	9811-9901	●					●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	9902-0105	●		●			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	0106-0112			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97226-059-0	01	1	0201-	●		●			●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9904-0105	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0112			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●		●			●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●					●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0112	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-		●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811						●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●					●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-0002	●					●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●		●			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0112			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●		●			●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●					●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	03	1	9901-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97077-387-0	01	1	9811-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9811-0105	●		●			●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0106-0112			●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0201-	●		●			●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0201-	●					●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0201-	●					●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	9811-0012	●		●	●		●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	0101-0105	●		●	●	●	●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	0106-	●		●		●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> (D) ID=87	8-97087-432-0	01	1	9811-9812	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (D) ID=44-60	8-94175-940-0	01	1	9901-0002	●					●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0003-0105	●		●	●		●
192	03.407 CLIP; HOSE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0003-0105	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0106-	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9811-0105	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0106-0112			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0201-	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=77.5	9-09715-102-1	02	1	9811-9812	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=68-89	1-09707-137-0	02	1	9901-9901	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9902-0002	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0003-0105	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-0112			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0201-	●		●			●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0201-	●					●
474	03.417 BOLT; PIPE 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●					●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-536-0	01	1	0201-	●					●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	9811-0105	●		●			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	0106-0112			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	0201-	●		●			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0201-	●					●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97210-753-1	01	1	9811-9904	●					●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	9905-0002	●					●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0003-0105	●		●			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0106-0112			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0201-	●		●			●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0201-	●					●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	9811-0002	●					●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0003-0105	●		●			●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0106-0112			●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0201-	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (C)	8-97260-314-4	01	1	0201-	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (D)	8-97300-859-2	01	1	0201-	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	9901-0002	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0003-0105	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0106-0112			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0201-	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97221-915-0	01	1	9901-9904	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	9905-0002	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0003-0105	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0106-0112			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0201-	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97210-754-0	01	1	9811-9811						●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97210-754-0	01	1	9812-9812	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97210-755-0	01	1	9811-9811						●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97210-755-0	01	1	9812-9812	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-2	01	1	0201-	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97212-098-0	01	1	9811-9904	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	9905-0002	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0003-0105	●		●			●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0106-0112			●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0201-	●		●			●
511	03.417 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●					●

192 508 192 297 297 487 297 192 192 192 297 510 13 509 192 32 13 509 507 192 192 9 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (I)	8-97312-472-0	01	1	0201-	●					●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97240-850-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97300-771-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (F)	8-97300-771-1	01	1	0201-						●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97226-060-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9811-0012	●		●	●		●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0101-0105	●		●	●	●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0106-	●		●		●	●
9	03.417 BRACKET; INT PIPE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-618-0	01	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97205-781-0	01	1	9811-9901	●					●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	9902-0105	●		●			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	0106-0112			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97226-059-0	01	1	0201-	●		●			●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9904-0105	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0112			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●		●			●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●					●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0112	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-		●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811						●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●					●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-0002	●					●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●		●			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0112			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●		●			●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●					●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	03	1	9901-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97077-387-0	01	1	9811-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	9811-0105	●		●			●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0106-0112			●
32	03.417 RUBBER; AIR DUCT MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	01	1	0201-	●		●			●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0201-	●					●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0201-	●					●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	9811-0012	●		●	●		●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	0101-0105	●		●	●	●	●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	0106-	●		●		●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> (D) ID=87	8-97087-432-0	01	1	9811-9812	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (D) ID=44-60	8-94175-940-0	01	1	9901-0002	●					●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0003-0105	●		●	●		●
192	03.407 CLIP; HOSE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0003-0105	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0106-	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9811-0105	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0106-0112			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0201-	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=77.5	9-09715-102-1	02	1	9811-9812	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=68-89	1-09707-137-0	02	1	9901-9901	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9902-0002	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0003-0105	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-0112			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0201-	●		●			●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0201-	●					●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●	●
297	03.417 BOLT; DUCT 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012							●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012				●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0201-	●		●			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-536-0	01	1	0201-	●					●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	9811-0105	●		●			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	0106-0112			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97216-223-0	01	1	0201-	●		●			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0201-	●					●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97210-753-1	01	1	9811-9904	●					●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	9905-0002	●					●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0003-0105	●		●			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0106-0112			●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-660-0	01	1	0201-	●		●			●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0201-	●					●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	9811-0002	●					●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0003-0105	●		●			●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0106-0112			●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97217-911-1	01	1	0201-	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (C)	8-97260-314-4	01	1	0201-	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (D)	8-97300-859-2	01	1	0201-	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	9901-0002	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0003-0105	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0106-0112			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97221-914-2	01	1	0201-	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97221-915-0	01	1	9901-9904	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	9905-0002	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0003-0105	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0106-0112			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97228-657-0	01	1	0201-	●		●			●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97210-754-0	01	1	9811-9811						●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97210-754-0	01	1	9812-9812	●					●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97210-755-0	01	1	9811-9811						●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97210-755-0	01	1	9812-9812	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-2	01	1	0201-	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97212-098-0	01	1	9811-9904	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	9905-0002	●					●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0003-0105	●		●			●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0106-0112			●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97228-658-0	01	1	0201-	●		●			●

320 192 232 147 5 290 22 297 192 9 232 290 5 320 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (A) ID=112	9-09915-074-1	01	1	0201-	●					●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9904-	●	●		●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6	9-09915-502-1	01	1	9811-	●		●		●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-9903							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	9904-0012	●		●	●		●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0101-	●		●	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-0105	●	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-0105							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0106-	●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	0106-				●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) ID=67	9-09915-069-1	02	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (I)	8-97312-472-0	01	1	0201-	●					●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97240-850-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97300-771-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (F)	8-97300-771-1	01	1	0201-						●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97226-060-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9811-0012	●		●	●		●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0101-0105	●		●	●	●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0106-	●		●		●	●
9	03.417 BRACKET; INT PIPE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-618-0	01	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97205-781-0	01	1	9811-9901	●					●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	9902-0105	●		●			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	0106-0112			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97226-059-0	01	1	0201-	●		●			●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	9811-	●	●		●			●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>	8-97107-173-0	01	1	9811-0105	●		●	●	●	●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>	8-97107-173-0	01	1	0106-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0012							●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	9811-0012				●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0106-	●			●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0106-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 01.166 ID=72	9-09915-070-1	01	1	0101-0105					●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 01.166 ID=72	9-09915-070-1	01	1	0106-	●				●	●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0201-	●					●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	9811-0012	●		●	●		●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	0101-0105	●		●	●	●	●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (C) ID=79	9-09915-734-1	02	1	0106-	●		●		●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> (D) ID=87	8-97087-432-0	01	1	9811-9812	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (D) ID=44-60	8-94175-940-0	01	1	9901-0002	●					●
192	03.407 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0003-0105	●		●	●		●
192	03.407 CLIP; HOSE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0003-0105	●	●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.166 (D) ID=44-60	8-94175-940-0	01	1	0106-	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	9811-0105	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0106-0112			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60	8-94175-940-0	07	1	0201-	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=77.5	9-09715-102-1	02	1	9811-9812	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=68-89	1-09707-137-0	02	1	9901-9901	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	9902-0002	●					●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0003-0105	●		●			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0106-0112			●
192	03.407 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	02	1	0201-	●		●			●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0201-	●					●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-9902	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	9903-9903	●		●	●		●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9903-0002	●					●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0003-0105	●		●			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0106-0112			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0201-	●		●			●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9903-0012	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0101-0105	●		●	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0106-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-0105	●	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-0105							●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	0106-	●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	0106-				●			●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97219-710-0	01	1	9811-	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9811-9812	●		●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-9812	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9901-0012	●		●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=92	9-09915-072-1	01	1	0101-0105	●		●	●	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=92	9-09915-072-1	01	1	0106-	●		●		●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	9811-0002	●					●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	0003-	●		●			●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9811-	●	●		●			●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 03.417 ID=82	9-09915-511-1	01	1	0101-0105					●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 03.417 ID=82	9-09915-511-1	01	1	0106-	●				●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●	●
297	03.417 BOLT; DUCT 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012							●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012				●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0201-	●		●			●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97217-471-0	01	1	9811-	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> (A)	8-94110-075-2	01	1	9811-0012	●		●	●		●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) (A)	8-94110-075-2	01	1	0101-0105	●		●	●	●	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) (A)	8-94110-075-2	01	1	0106-	●		●		●	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	9811-0002	●					●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-373-0	01	1	0003-	●		●			●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) (C)	8-97069-875-1	01	1	9811-0012			●			●
320	03.417 HOSE; CONN,ACL (C)	8-97069-875-1	01	1	9811-0012					●
320	03.417 HOSE; CONN,ACL 4HF1 ENG(RLS) (C)	8-97069-875-1	01	1	0101-			●		●	●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) (A)	8-97203-940-0	01	1	0101-0105					●
320	03.417 HOSE; CONN,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> (A)	8-97203-940-0	01	1	0106-	●				●	●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9811-9811						●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	9812-0002	●					●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0003-0105	●		●			●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0106-0112			●
320	03.417 HOSE; CONN,ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97205-771-0	01	1	0201-	●		●			●

147 290 297 26 232 314 15 5 258 314 15 209 9 13 26 258 297 10 393 297 5 102 107 105 155 105 119 102 107 104 103 103 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (A) ID=112	9-09915-074-1	01	1	0201-	●					●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	9904-	●	●		●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C) D=101.6	9-09915-502-1	01	1	9811-	●		●		●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=87	8-97087-432-0	01	1	9811-9903	●	●
5	03.407 CLIP; AIR DUCT (A) ID=87	8-97087-432-0	01	1	9811-9903							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	9904-0012	●		●	●		●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) ID=87	8-97087-432-0	01	1	0101-	●		●	●	●	●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	9811-0105	●	●		●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	9811-0105							●
5	03.407 CLIP; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67	9-09915-069-1	01	1	0106-	●
5	03.407 CLIP; AIR DUCT (B) ID=67	9-09915-069-1	01	1	0106-				●			●
5	03.407 CLIP; AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) ID=67	9-09915-069-1	02	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (I)	8-97312-472-0	01	1	0201-	●					●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97240-850-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97300-772-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97300-771-1	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (F)	8-97300-771-1	01	1	0201-						●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97226-060-0	01	1	0201-	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	9811-0012	●		●	●		●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0101-0105	●		●	●	●	●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-94155-425-1	01	1	0106-	●		●		●	●
9	03.417 BRACKET; INT PIPE 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-618-0	01	1	9811-	●	●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97205-781-0	01	1	9811-9901	●					●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	9902-0105	●		●			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D)	8-97226-059-0	01	1	0106-0112			●
9	03.417 BRACKET; INT PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97226-059-0	01	1	0201-	●		●			●
9	03.417 BRACKET; INT PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97089-655-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9904-0105	●		●			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0112			●
10	03.417 BOLT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●		●			●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0201-	●					●
10	03.417 BOLT; BRKT FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●		●			●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0112	●	●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-	●
10	03.417 BOLT; BRKT FIX 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-		●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811	●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811						●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9811		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●					●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9812		●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-0002	●					●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0003-0105	●		●			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0112			●
13	03.417 NUT; BRKT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●		●			●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●					●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-	●
13	03.417 NUT; BRKT FIX 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	03	1	9901-	●	●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105	●	●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105	●	●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-0105							●
15	03.417 INSULATOR	8-94338-739-0	01	1	9811-0105							●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105				●
15	03.417 INSULATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	9811-0105				●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	0106-	●	●		●			●
15	03.417 INSULATOR AIR INTAKE SYSTEM FRONT<6PC>	8-94338-739-0	01	1	0106-	●	●		●			●
26	03.417 DUCT; AIR INT AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ> (B)	8-97089-952-1	01	1	9811-	●	●		●			●
26	03.417 DUCT; AIR INT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97218-393-0	01	1	9811-9812	●	●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97069-873-3	01	1	9811-0105	●	●		●
26	03.417 DUCT; AIR INT (A)	8-97069-873-3	01	1	9811-0105							●
26	03.417 DUCT; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97069-873-3	01	1	0106-	●					●	●
26	03.417 DUCT; AIR INT MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97069-877-1	01	1	9811-	●			●
26	03.417 DUCT; AIR INT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97218-393-1	01	1	9901-	●	●
102	03.402 RESONATOR; AIR INT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97091-928-1	01	1	9811-	●	●		●			●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●		●
103	03.402 NUT; RESONATOR 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105							●
103	03.402 NUT; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
103	03.402 NUT; RESONATOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●		●			●
104	03.417 RUBBER; MOUNTING,RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	9811-	●	●		●			●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97091-931-1	01	1	9811-	●	●		●			●
105	03.403 BRACKET; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-824-1	01	1	9811-	●	●		●			●
107	03.417 CLIP; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	9811-	●	●		●			●
116	01.745 RETAINER; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	9811-	●	●		●			●
119	03.403 HOSE; RESONATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-844-0	01	1	9811-	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	9811-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	9811-0012	●
147	03.417 CLIP; HOSE TO ENG 03.407 ID=79	9-09915-734-1	01	1	9811-0012							●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.407 ID=79	9-09915-734-1	01	1	9811-0012				●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●	●		●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0101-0105	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79	9-09915-734-1	01	1	0106-	●			●			●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=79	9-09915-734-1	01	1	0106-	●		●		●	●
147	03.417 CLIP; HOSE TO ENG 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-	●	●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 01.166 ID=72	9-09915-070-1	01	1	0101-0105					●
147	03.417 CLIP; HOSE TO ENG 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 01.166 ID=72	9-09915-070-1	01	1	0106-	●				●	●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●		●
155	03.417 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105							●
155	03.417 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●
155	03.417 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●		●			●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417	8-97072-530-0	01	1	9811-0105	●	●		●			●
209	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	0106-	●	●		●			●
209	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 08.846	8-97230-028-0	01	1	0106-	●
209	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-080-1	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0201-	●					●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	9811-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	5-14231-115-1	01	1	9811-9902	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-97224-994-0	01	1	9903-9903	●		●	●		●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	9903-0002	●					●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0003-0105	●		●			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0106-0112			●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97224-994-0	01	1	0201-	●		●			●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	9903-0012	●		●	●		●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0101-0105	●		●	●	●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	5-14231-115-1	01	1	0106-	●		●		●	●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	9811-0105	●	●		●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	9811-0105							●
232	03.417 HOSE; CONN 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-429-1	01	1	0106-	●
232	03.417 HOSE; CONN	8-97096-429-1	01	1	0106-				●			●
232	03.417 HOSE; CONN 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97219-710-0	01	1	9811-	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●		●	●	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●	●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012	●	●
258	03.417 NUT; AIR DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012							●
258	03.417 NUT; AIR DUCT 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012							●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012				●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0012				●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●	●		●			●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●	●		●			●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0101-0105	●		●	●	●	●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●			●
258	03.417 NUT; AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●			●
258	03.417 NUT; AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●		●		●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9811-9812	●		●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	9811-9812	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.407 ID=92	9-09915-072-1	01	1	9901-0012	●		●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=92	9-09915-072-1	01	1	0101-0105	●		●	●	●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,BRAZIL EQUIPMENT(RWF) 03.407 ID=92	9-09915-072-1	01	1	0106-	●		●		●	●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	9811-0002	●					●
290	03.374 CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51> 03.407 ID=87	8-97087-432-0	01	1	0003-	●		●			●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	9811-	●	●		●			●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC) BRAZIL EQUIPMENT(RWF) 03.417 ID=82	9-09915-511-1	01	1	0101-0105					●
290	03.374 CLIP; ACL TO AIR DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. TURBOCHARGER<K51> 03.417 ID=82	9-09915-511-1	01	1	0106-	●				●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	9811-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (D) M10X16 FLANGE	0-28081-016-0	02	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012	●	●
297	03.417 BOLT; DUCT 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012							●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9811-0012				●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●		●			●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	9811-0012	●		●	●		●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0101-0105	●		●	●	●	●
297	03.417 BOLT; DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●		●		●	●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9811-9811						●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	9812-0002	●					●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0003-0105	●		●			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0106-0112			●
297	03.417 BOLT; DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE	0-28081-012-0	01	1	0201-	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105	●	●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105							●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9811-0105				●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-	●	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012	●		●			●
314	03.417 WASHER; PL,AIR INT DUCT 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	9811-0012					●
314	03.417 WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0101-	●		●		●	●
393	03.417 WASHER; LK,AIR DUCT AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	9811-	●	●		●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
