◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#43246) — 703 parça

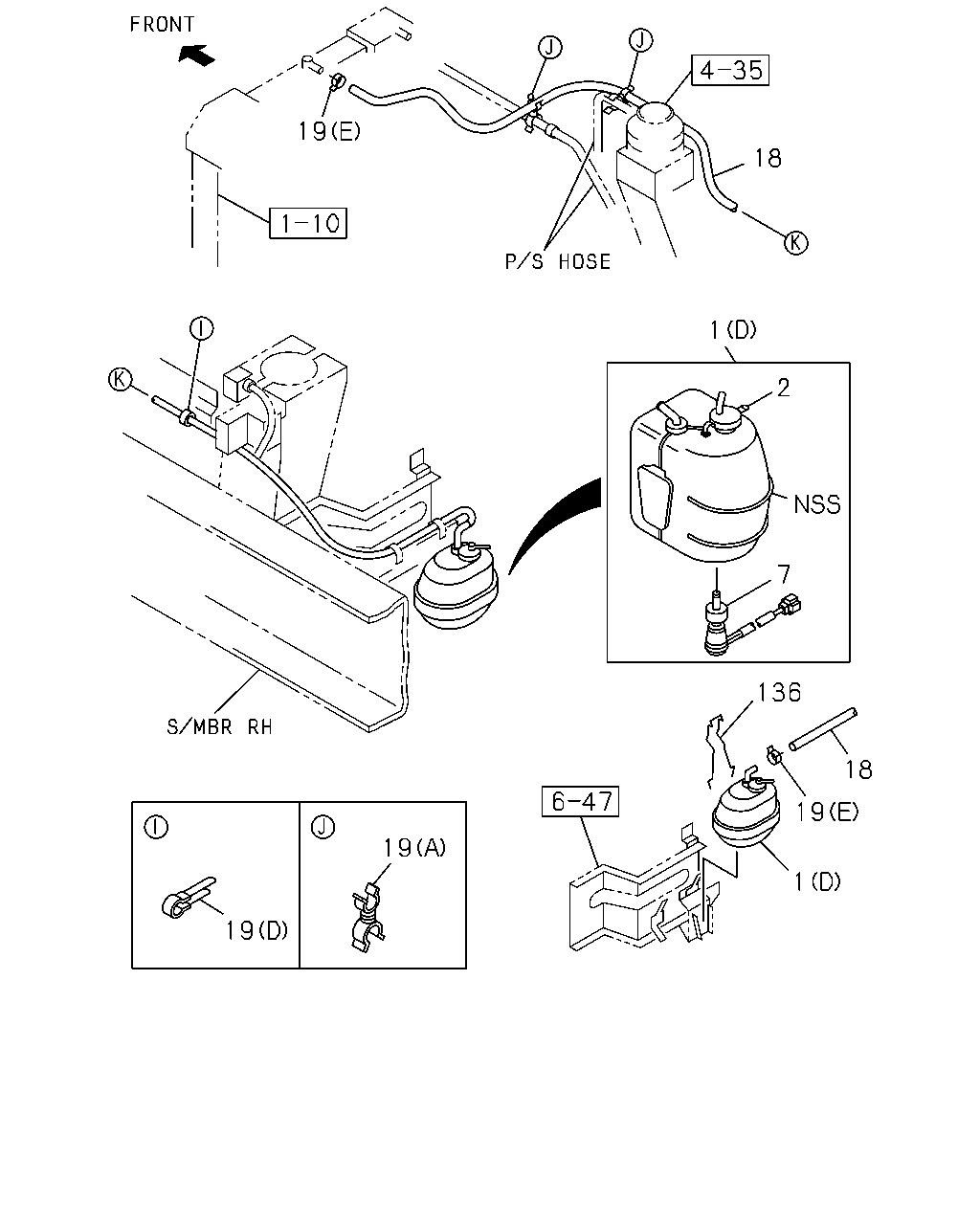

çizim 11435
19 18 1 2 7 136 18 19 19 1 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97131-202-0 01 1 9811-9811 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97131-202-0 01 1 9811-9811 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 9812-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 9812-0012 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 9812-0012 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0101-0105 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0106- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 0106- ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9812-0002 ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0003-0105 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0106-0112 ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9811-9811 ● ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 9812-0012 ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0101-0105 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0106- ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9812-0012 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0101-0105 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0106-0112 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0106-0112 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 0201- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9811-9902 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9811-9902 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9903-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9903-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9811-0105 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9811-9811 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9812-9901 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 9902-0002 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0003-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0106-0112 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9903-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97190-419-0 01 1 9904-0003 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1760 		8-97233-040-0 01 1 0004-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1760 		8-97233-040-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9911 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0106-0112 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (E) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=10 & 12 		8-94416-613-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9912-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0106-0112 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ● ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 9811-0105 ●
136 01.219 STOPPER; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97087-220-0 01 1 9811-0105 ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0106- ● ●

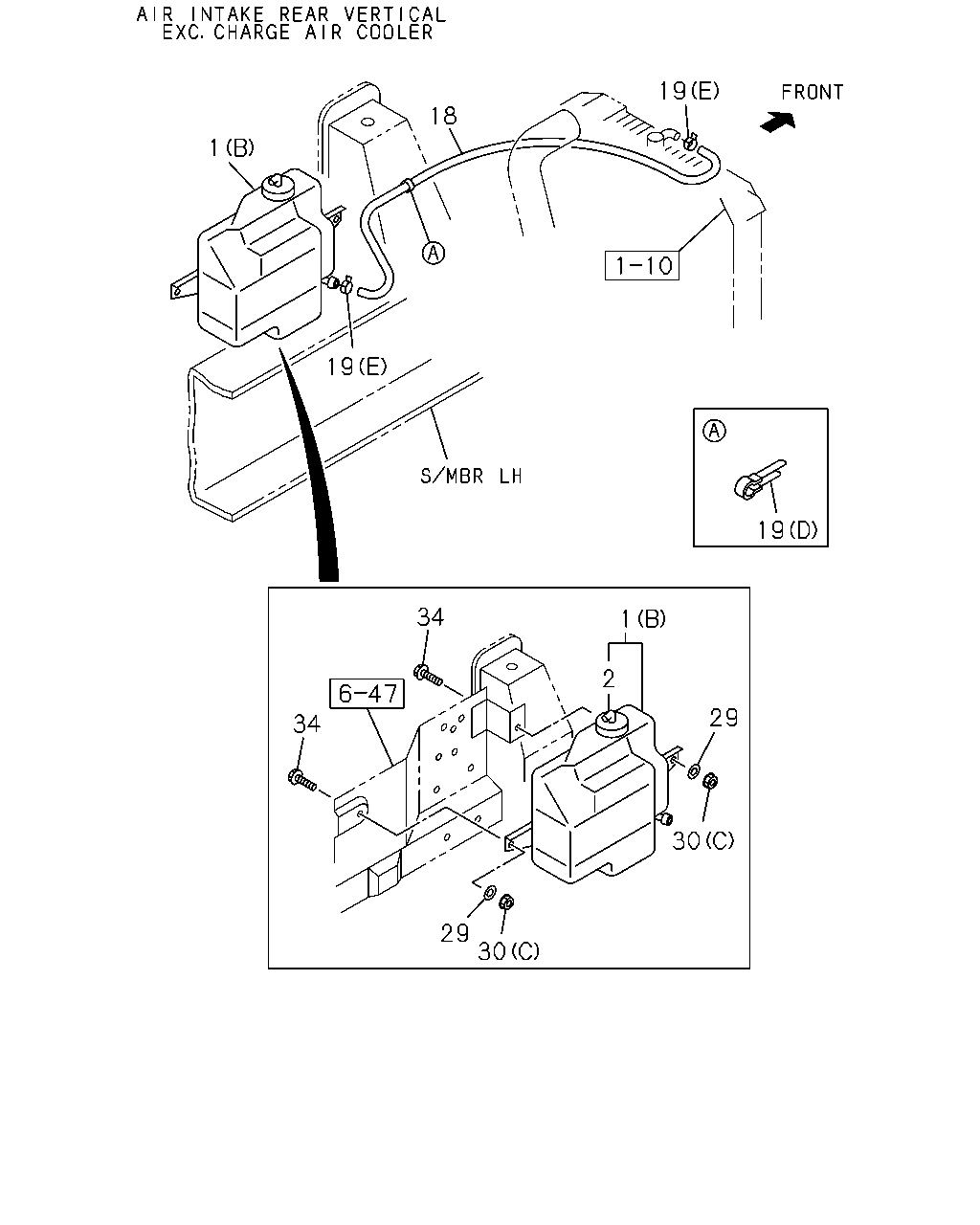

çizim 45666
19 18 1 19 19 34 1 2 29 34 30 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97131-202-0 01 1 9811-9811 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97131-202-0 01 1 9811-9811 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 9812-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 9812-0012 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 9812-0012 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0101-0105 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0106- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 0106- ● ●
1 01.219 TANK; SURGE,RAD

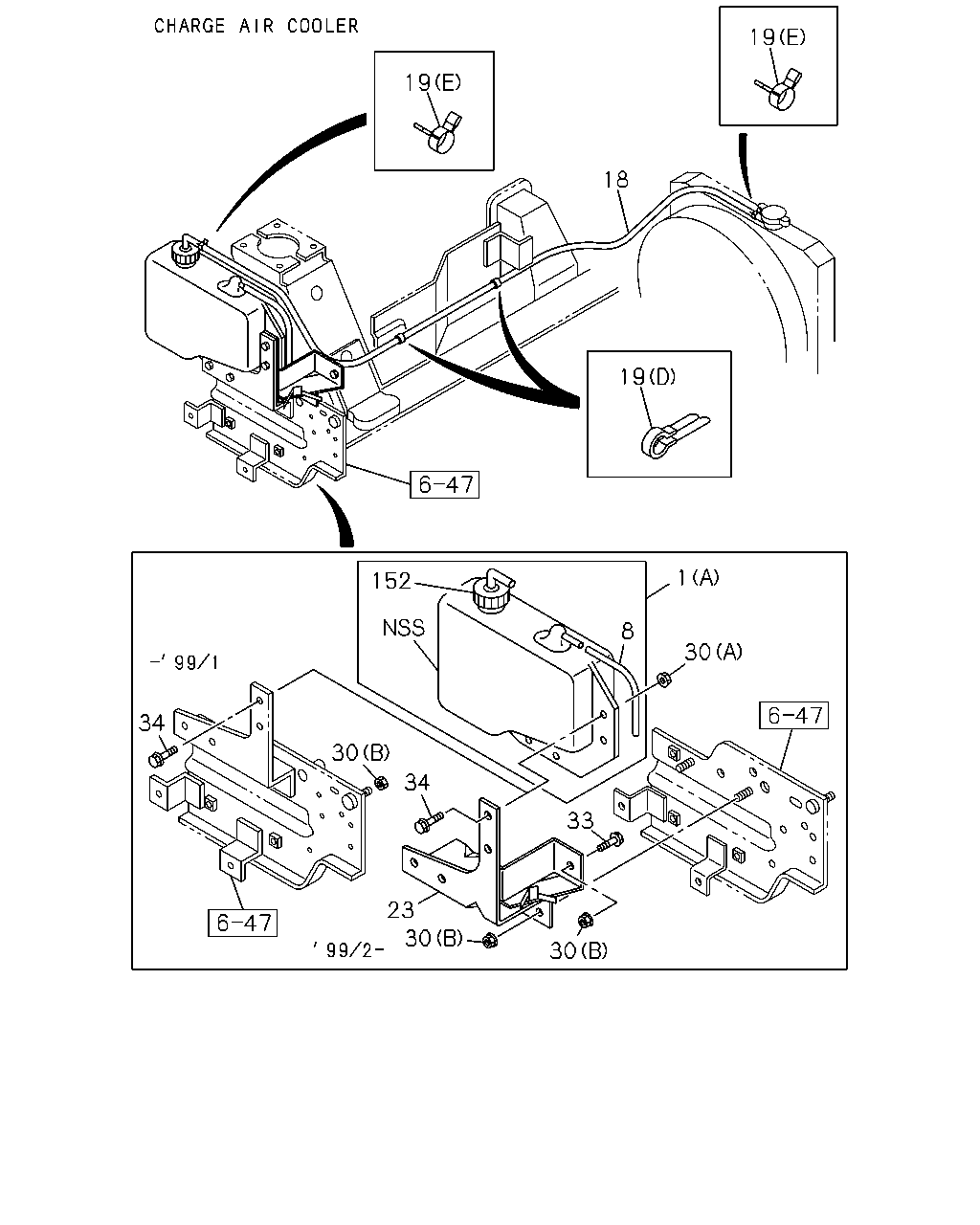

4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9812-0002 ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0003-0105 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0106-0112 ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0201- ● ● ●

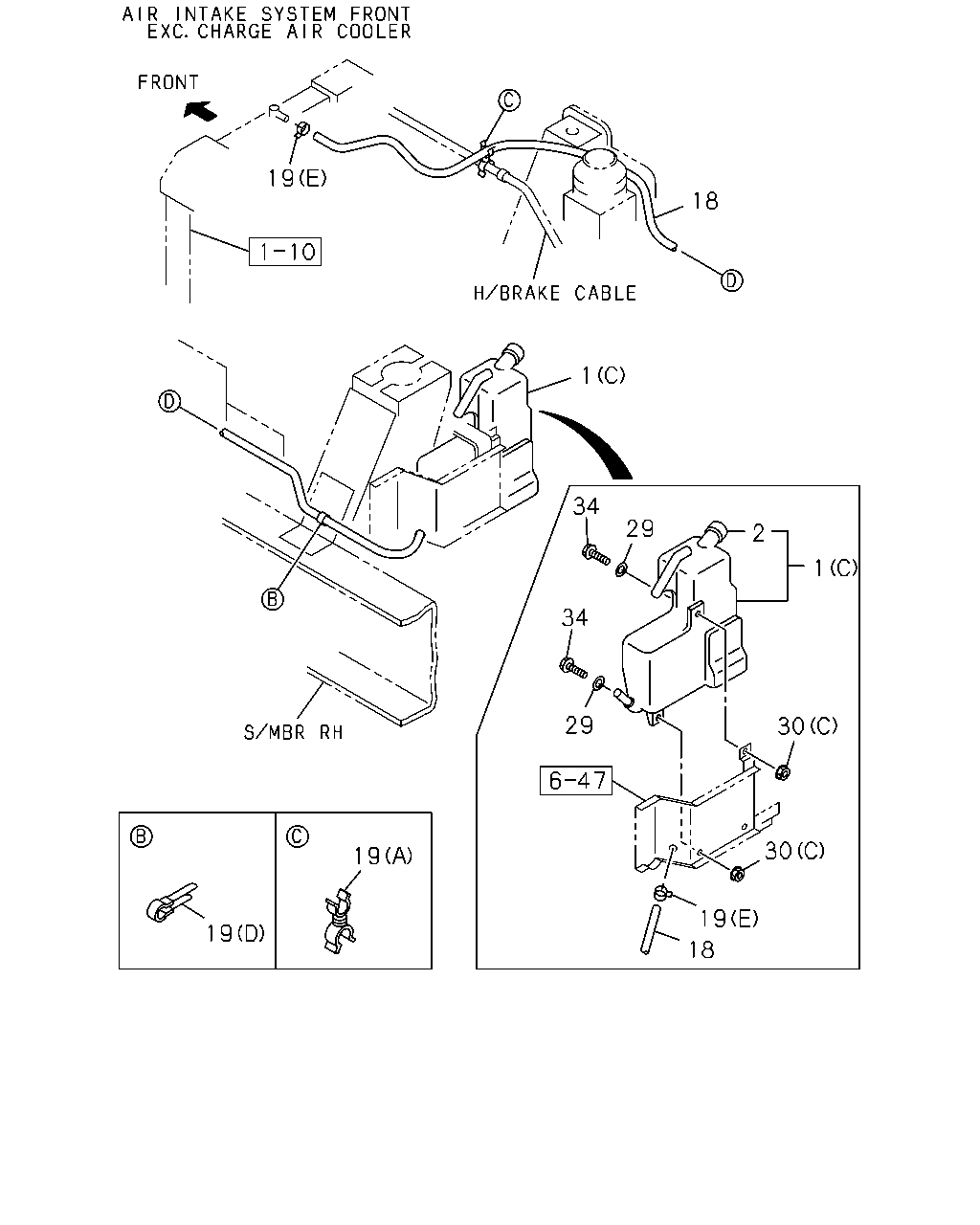

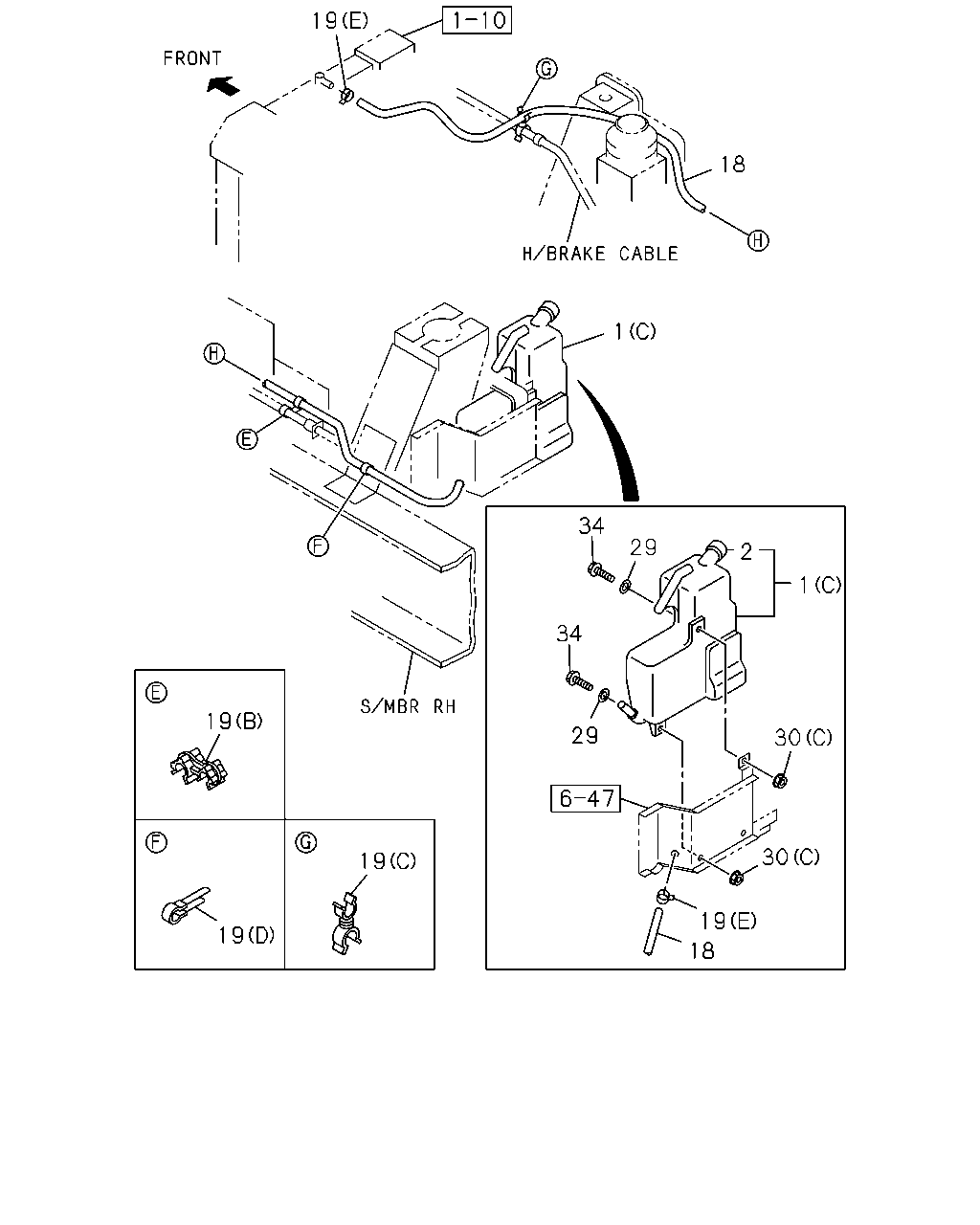

2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9811-9811 ● ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 9812-0012 ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0101-0105 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0106- ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9812-0012 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0101-0105 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0106-0112 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0106-0112 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 0201- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9811-9902 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9811-9902 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9903-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9903-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9811-0105 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9811-9811 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9812-9901 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 9902-0002 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0003-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0106-0112 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9903-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97190-419-0 01 1 9904-0003 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1760 		8-97233-040-0 01 1 0004-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1760 		8-97233-040-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9911 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0106-0112 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (E) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=10 & 12 		8-94416-613-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9912-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0106-0112 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ●
29 01.203 WASHER; PL,RESERVE TANK
EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0101-0112 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0201- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0201- ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ●
30 01.203 NUT
EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0101-0112 ● ● ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0201- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106-0112 ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0201- ● ● ●
çizim 46026
19 18 1 34 29 2 1 34 19 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97131-202-0 01 1 9811-9811 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97131-202-0 01 1 9811-9811 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 9812-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 9812-0012 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 9812-0012 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0101-0105 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0106- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 0106- ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9812-0002 ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0003-0105 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0106-0112 ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9811-9811 ● ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 9812-0012 ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0101-0105 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0106- ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9812-0012 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0101-0105 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0106-0112 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0106-0112 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 0201- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9811-9902 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9811-9902 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9903-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9903-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9811-0105 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9811-9811 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9812-9901 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 9902-0002 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0003-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0106-0112 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9903-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97190-419-0 01 1 9904-0003 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1760 		8-97233-040-0 01 1 0004-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1760 		8-97233-040-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9911 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0106-0112 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (E) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=10 & 12 		8-94416-613-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9912-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0106-0112 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ●
29 01.203 WASHER; PL,RESERVE TANK
EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0101-0112 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0201- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0201- ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ●
30 01.203 NUT
EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0101-0112 ● ● ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0201- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106-0112 ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0201- ● ● ●
çizim 46217
19 8 1 34 29 2 1 34 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97131-202-0 01 1 9811-9811 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97131-202-0 01 1 9811-9811 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 9812-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 9812-0012 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 9812-0012 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0101-0105 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0106- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 0106- ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9812-0002 ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0003-0105 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0106-0112 ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9811-9811 ● ●
2 01.203 CAP; SURGE TANK 8-97126-876-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 9812-0012 ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0101-0105 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0106- ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0106- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9811-9811 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9811-9811 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9811-9811 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 9812-0012 ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9812-0012 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 9812-0012 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0101-0105 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0101-0105 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0106-0112 ● ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0106-0112 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 0201- ● ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-94449-363-0 01 1 0201- ● ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 9811-9811 ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 9812-0002 ● ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0003-0105 ● ● ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0106-0112 ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9811-9902 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9811-9902 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9903-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9903-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9811-0105 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9811-9811 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9812-9901 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 9902-0002 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0003-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0106-0112 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9903-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97190-419-0 01 1 9904-0003 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1760 		8-97233-040-0 01 1 0004-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1760 		8-97233-040-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9911 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0106-0112 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (E) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=10 & 12 		8-94416-613-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9912-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0106-0112 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9811-9811 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9812-0012 ●
29 01.203 WASHER; PL,RESERVE TANK
EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0101-0112 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0201- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0201- ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ●
30 01.203 NUT
EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0101-0112 ● ● ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0201- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106-0112 ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0201- ● ● ●
çizim 46752
52 51 50 46 51 51 48 51 49 158 17 158 50 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
17 01.219 GASKET; PLUG
FIRE TRUCK CHASSIS(V4F) 		9-09571-114-0 01 1 9811-0105 ●
45 01.219 RADIATOR; SUB
FIRE TRUCK CHASSIS(V4F) 		8-94153-769-4 01 1 9811-0105 ●
46 01.240 BOLT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ●
48 01.240 WASHER; PL,BRKT FIX
FIRE TRUCK CHASSIS(V4F) 07.633 ID=8.4 OD=22 		9-09164-708-0 04 1 9811-0105 ●
49 01.240 NUT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 01.540 M8 FLANGE 		0-91150-208-0 04 1 9811-0105 ●
50 01.173 HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 		8-97124-747-0 02 1 9811-0105 ●
51 01.166 CLIP; WATER HOSE,RAD
FIRE TRUCK CHASSIS(V4F) ID=48 		5-09704-049-0 04 1 9811-0105 ●
52 01.219 BRACKET; SUB RAD
FIRE TRUCK CHASSIS(V4F) 		8-94170-331-0 02 1 9811-0105 ●
158 01.219 PLUG; DRAIN
FIRE TRUCK CHASSIS(V4F) (A) 		9-21439-036-0 01 1 9811-0105 ●
158 01.219 PLUG; DRAIN
FIRE TRUCK CHASSIS(V4F) (B) 		9-99202-214-0 01 1 9811-0105 ●
çizim 48513
19 19 18 19 1 152 8 30 34 30 34 33 23 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97131-202-0 01 1 9811-9811 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97131-202-0 01 1 9811-9811 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97131-202-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 9812-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 9812-0012 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 9812-0012 ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0101-0105 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (C) 		8-97210-844-0 01 1 0106- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
(C) 		8-97210-844-0 01 1 0106- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9811-0012 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0101-0105 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 0106- ● ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-94378-388-1 01 1 9811-0105 ●
1 01.219 TANK; SURGE,RAD
(D) 		8-94378-388-1 01 1 0106- ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9811-9811 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 9812-0002 ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0003-0105 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0106-0112 ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97205-136-0 01 1 0201- ● ● ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 9811-9811 ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 9812-0002 ● ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0003-0105 ● ● ●
8 01.166 HOSE; VINYL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0106-0112 ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9811-9902 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9811-9902 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9903-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97160-993-2 01 1 9903-0012 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 0101- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9811-0012 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0101-0105 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 0106- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9811-0105 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97162-122-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9811-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 0106- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9811-9811 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97205-586-1 01 1 9812-9901 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 9902-0002 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0003-0105 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0106-0112 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1700 		8-97225-445-2 01 1 0201- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-0 01 1 9903-9903 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97190-419-0 01 1 9904-0003 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1760 		8-97233-040-0 01 1 0004-0105 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1760 		8-97233-040-0 01 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 9811-9911 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 9912-0002 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0003-0105 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0106-0112 ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 01 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (E) ID=12 		8-94238-610-0 02 1 9811- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=10 & 12 		8-94416-613-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 9811- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 9912-0105 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0106-0112 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0201- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (A) ID=10 & 11 		8-94438-996-0 02 1 0106- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 9811-0105 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (A) ID=12 & 16.5 		8-94400-865-0 02 1 0106- ● ●
23 01.219 BRACKET; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-271-1 01 1 9902-0105 ● ● ●
23 01.219 BRACKET; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-271-1 01 1 0106-0112 ●
23 01.219 BRACKET; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-271-1 01 1 0201- ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9811-9811 ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ● ● ● ●
30 01.203 NUT
04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 9812-0012 ●
30 01.203 NUT
EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0101-0112 ● ● ● ● ●
30 01.203 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0201- ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 04 1 9811-9901 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (A),(B) M8 FLANGE 		0-91150-208-0 07 1 9902-9907 ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 9908-0105 ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0106-0112 ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0201- ● ● ●
33 01.277 BOLT; BRKT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9902-0105 ● ● ●
33 01.277 BOLT; BRKT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ● ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9811-0012 ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0101-0105 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0106- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811-0012 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0101-0105 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0106- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106-0112 ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0201- ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97217-799-0 01 1 9811-9811 ●
152 01.203 CAP ASM; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97217-799-0 01 1 9812-0105 ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97217-799-0 01 1 0106-0112 ●
152 01.203 CAP ASM; SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97217-799-0 01 1 0201- ● ● ●
çizim 49441
128 56 56 56 55 56 128 56 56 55 56 128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-186-1 01 1 0201- ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-187-1 01 1 0201- ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) 		8-97260-187-1 01 1 0201- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-740-0 01 1 9811-0105 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97124-740-0 01 1 9811-0105 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-740-0 01 1 0106- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97089-916-1 01 1 9811-0012 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97089-916-1 01 1 9811-0012 ●
55 01.173 HOSE; WATER,RAD OUTLET
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97089-916-1 01 1 0101- ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97124-742-0 01 1 9811-0105 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		5-09704-049-0 02 1 9811-0001 ● ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS) (A) ID=40 		8-97245-216-0 02 1 0002- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS) (B) ID=62 		9-09915-068-1 01 1 9811-0001 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS) (B) ID=50 		8-97245-217-0 01 1 0002- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=48 		5-09704-049-0 01 1 9811-0001 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		5-09704-049-0 01 1 9811-0001 ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=48 		5-09704-049-0 03 1 0002-0012 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		5-09704-049-0 03 1 0002-0012 ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=48 		5-09704-049-0 03 1 0101-0112 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) (A) ID=48 		5-09704-049-0 03 1 0201- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JH1 ENG(RJX) 		8-97289-369-0 01 1 0201- ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97162-163-0 01 1 9811- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97147-473-0 01 1 9811-0012 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC) 		8-97147-473-0 01 1 9811-0012 ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-97147-473-0 01 1 9811-0012 ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97147-473-0 01 1 0101-0105 ● ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97147-473-0 01 1 0106-0112 ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97147-473-0 01 1 0201- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC) 		8-97147-473-0 01 1 0201- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-853-0 01 1 9811-9812 ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97221-676-0 01 1 9901-0105 ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97221-676-0 01 1 0106-0112 ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97221-676-0 01 1 0201- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
