2-20B — MANUAL TRANSMISSION ASM AND CASE (#4323) — 534 parça

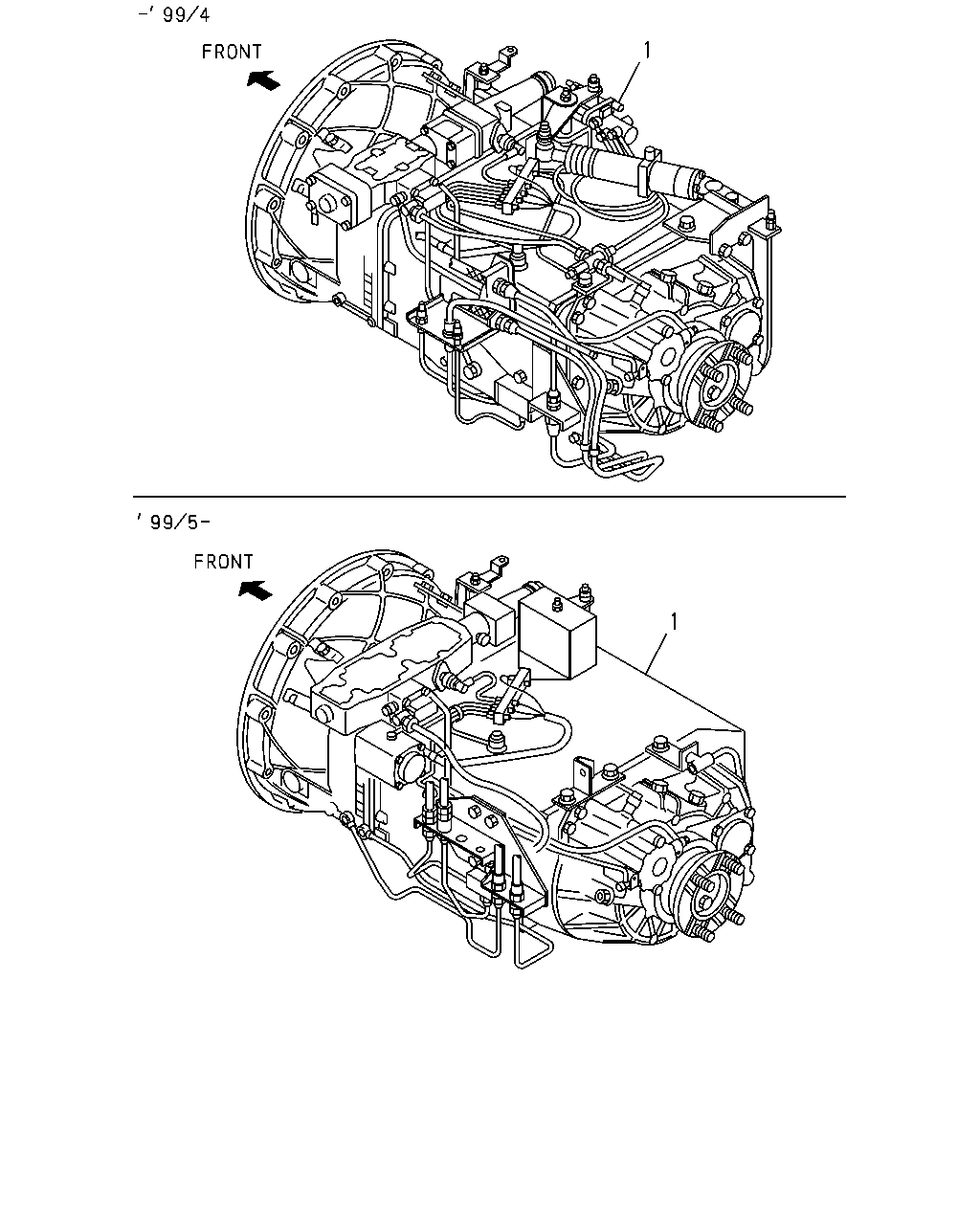

çizim 6169
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,F RAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-019-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,BRAKE SYSTEM RETARDER<RE2> 		1-33042-019-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTGSEPARATE TYPE<SGM> 		1-33042-019-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2> 		1-33042-019-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSIO N SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-163-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-163-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-164-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-164-0 01 1 9911- ●

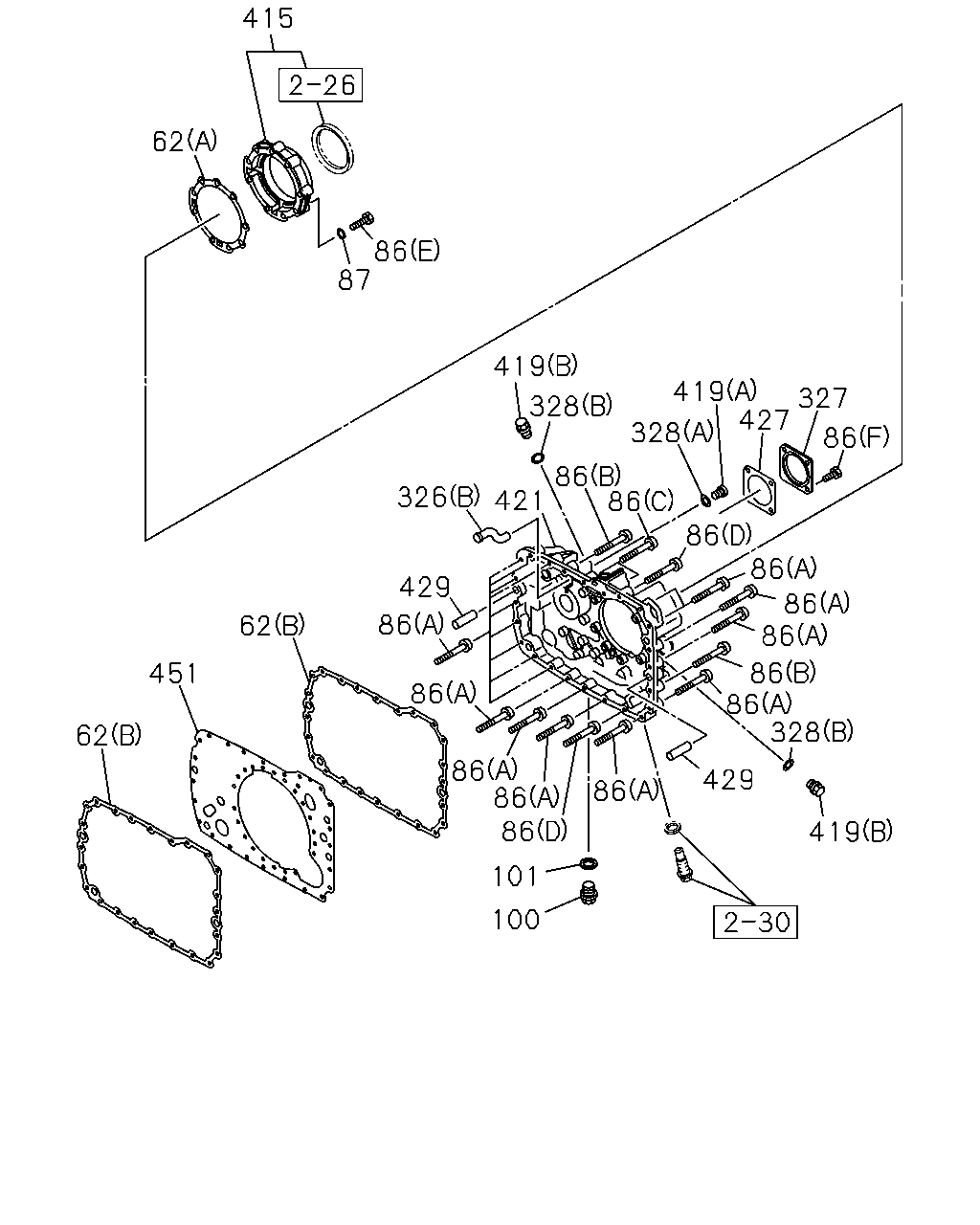

çizim 6183
415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33132-065-0 02 1 9603-9707 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (B) 		1-33132-065-0 02 1 9708-9904 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9603- ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B) 		1-33119-399-0 02 1 9708-9904 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9905- ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9603- ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9603- ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9603- ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9603- ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9603- ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X28 		1-33139-051-0 04 1 9603-9707 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9708- ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9603- ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9603- ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9603- ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9603- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9603- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9603- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9603- ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9603-9707 ●
328 GASKET; PLUG
PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 02 1 9708-9904 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9905- ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9603- ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 03 1 9708-9904 ●
415 COVER; BRG 1-33159-039-0 01 1 9603- ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9603- ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9603- ●
421 COVER; RR,TRANS 1-33131-219-0 01 1 9603-9904 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 9905- ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9603- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9603- ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9603- ●

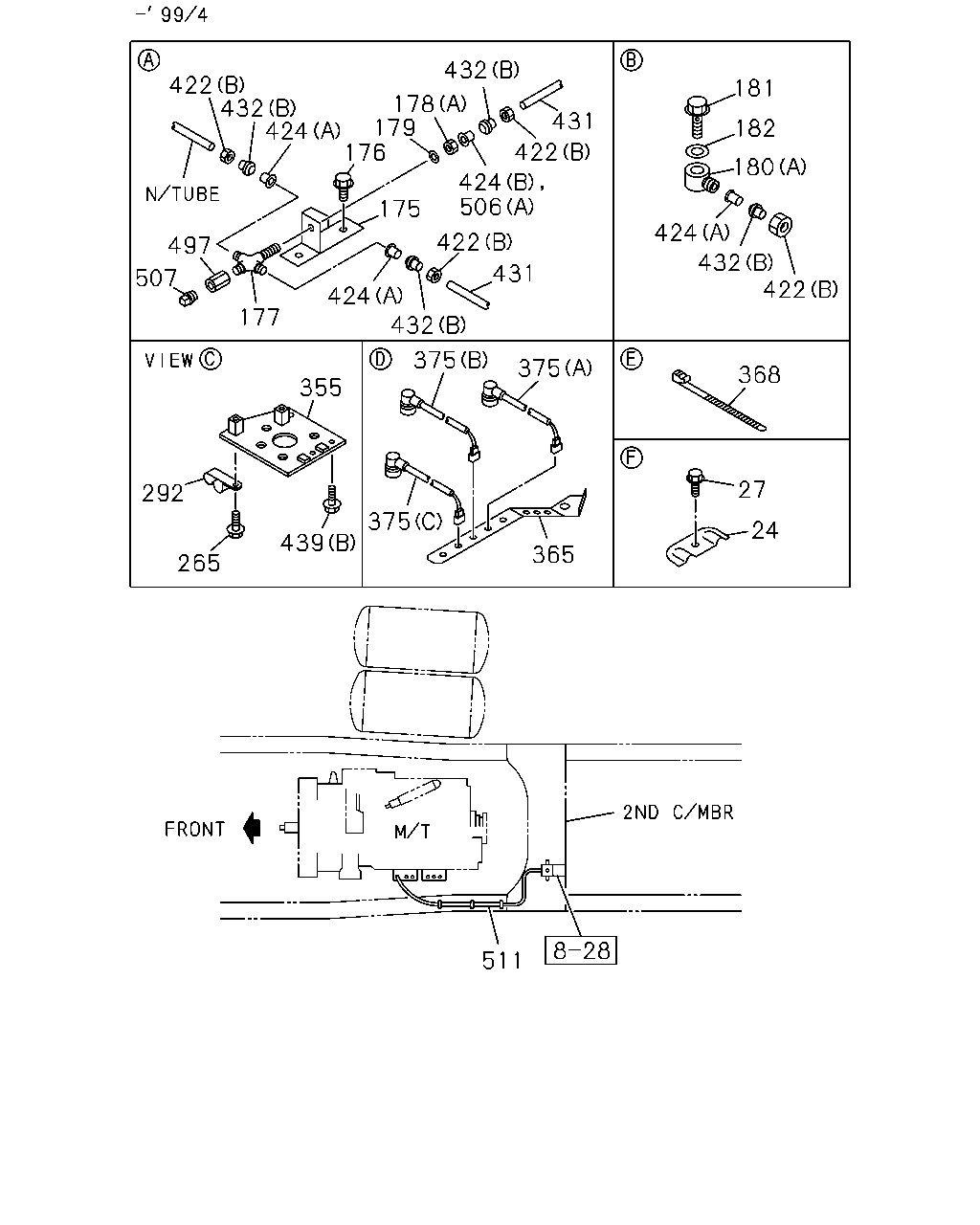

çizim 6276
432 422 432 424 181 178 179 176 431 182 422 180 424 506 175 424 422 497 432 422 431 507 424 177 432 375 375 368 355 27 292 375 24 439 365 265 511
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9603-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9904 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9905- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9905- ● ●
175 BRACKET; UNION 1-47477-545-0 01 1 9603-9904 ●
175 BRACKET; UNION 1-47477-545-0 01 1 9905- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9905- ● ●
177 UNION; NYLON TUBE 1-09664-070-0 01 1 9603-9904 ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603- ●
179 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9603-9904 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9904 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9905- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9904 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9603-9904 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9905- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9603-9904 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9905- ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9603-9904 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9905- ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9603-9904 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9905- ● ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9603-9904 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9905- ● ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9603-9904 ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9905- ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9603-9904 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9905- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9603-9904 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9905- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9603-9904 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9905- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9603- ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603- ●
424 RING; INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 02 1 9603-9904 ●
424 RING; INSERT
(B) ID=4.2 OD=5 L=18 		1-09669-089-0 01 1 9603-9904 ●
431 TUBE; NYLON
L TYPE ENG<90L> L=1300 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9904 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9905- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
497 ADAPTER; PLUG 1-09660-880-0 01 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9905- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603- ●
507 PLUG; UNION
PT1/4 		9-99204-513-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 02 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9905- ● ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 02 1 9603-9706 ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 02 1 9707-9707 ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9708-9904 ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 03 1 9603-9904 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9905- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9909 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9708-9904 ●

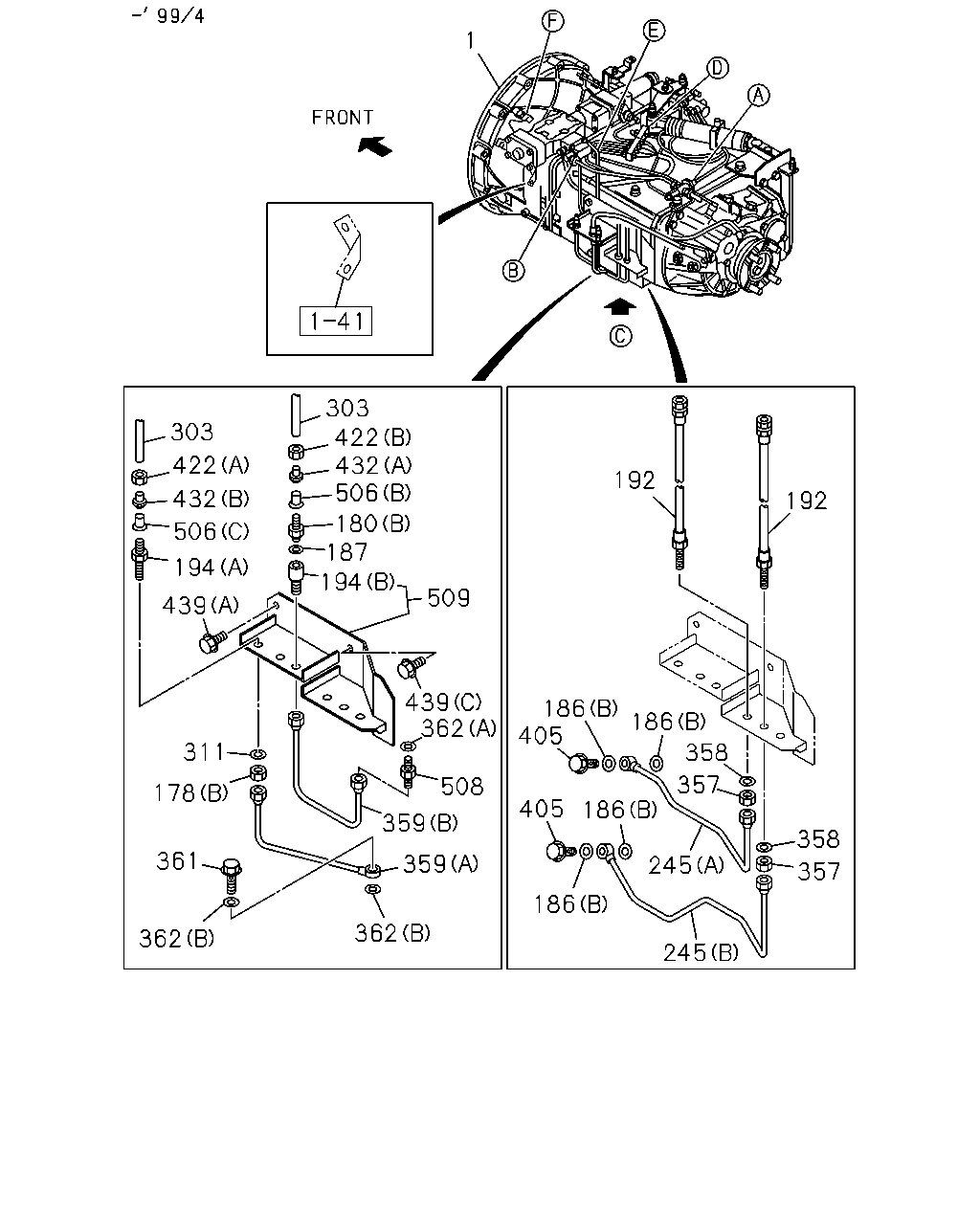

çizim 6277
1 303 422 432 506 303 422 192 432 192 180 187 194 506 194 509 439 439 362 186 405 186 358 311 357 508 178 405 186 359 358 361 359 245 357 186 362 362 245
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,F RAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-019-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,BRAKE SYSTEM RETARDER<RE2> 		1-33042-019-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTGSEPARATE TYPE<SGM> 		1-33042-019-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2> 		1-33042-019-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSIO N SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-163-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-163-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-164-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-164-0 01 1 9911- ●

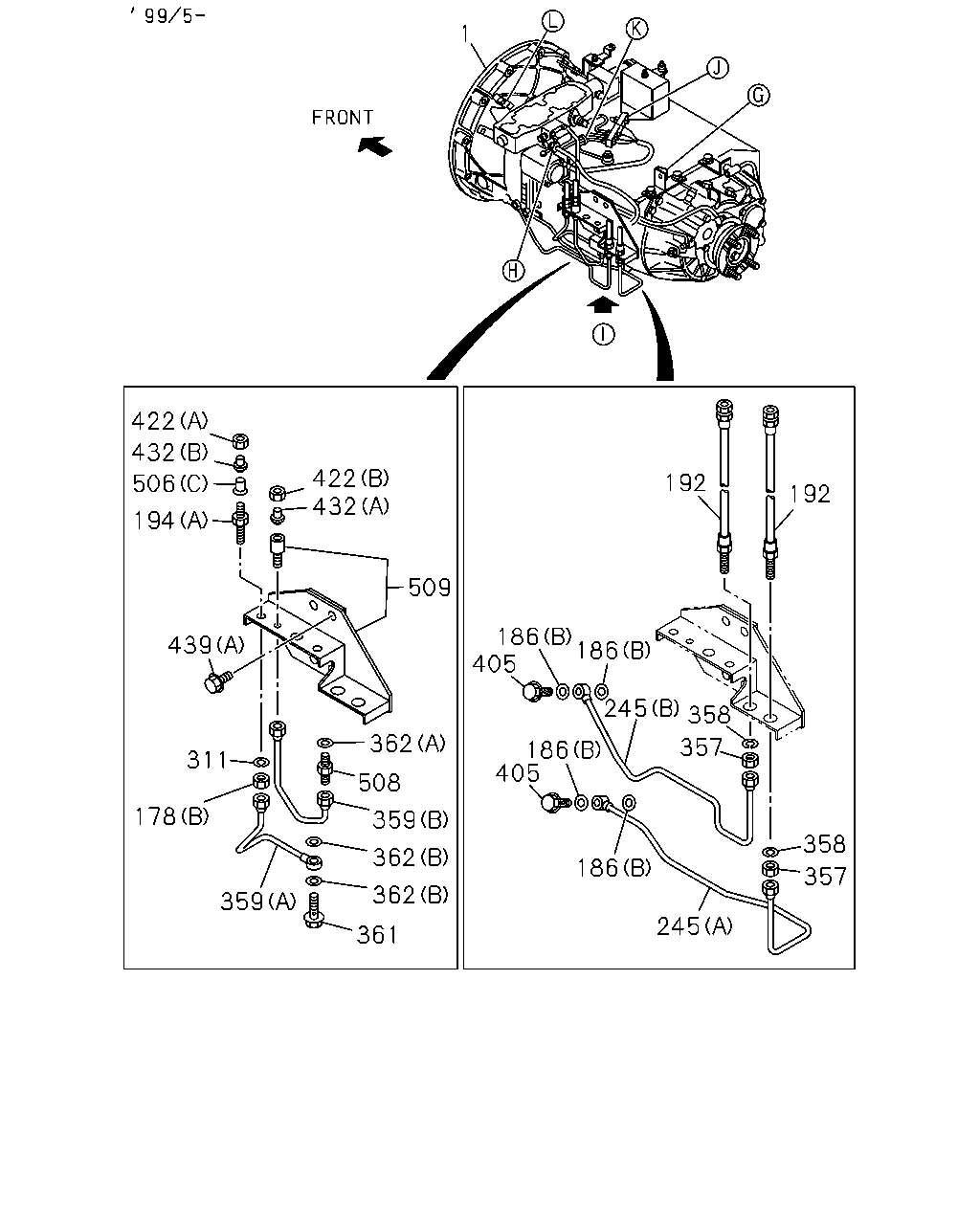

178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603- ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9904 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9905- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9904 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9904 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9905- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9904 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9905- ● ●
187 GASKET; CONNECTOR
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9904 ●
192 HOSE; FLEX,TRANS
OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=400 		1-09364-913-0 01 1 9604-9606 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=400 		1-09364-913-0 01 1 9607-9609 ●
192 HOSE; FLEX,TRANS
SHORT CHASSIS(CXZ5MC) 6WA1 TC-S(56L) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
LONG CHASSIS(CXZ5MF) 6WA1 TC-S(56L) EXC. PTO ZF TRANS RR(BDM) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
SHORT CHASSIS(CXZ5MC) 6WA1 TC-S(56L) INLET L=500 		1-09364-914-0 01 1 9702-9904 ●
192 HOSE; FLEX,TRANS
LONG CHASSIS(CXZ5MF) 6WA1 TC-S(56L) EXC. PTO ZF TRANS RR(BDM) INLET L=500 		1-09364-914-0 01 1 9702-9904 ●
192 HOSE; FLEX,TRANS
INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=500 		1-09364-914-0 01 1 9604-9606 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) INLET L=500 		1-09364-914-0 01 1 9607-9701 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=311 		1-09364-921-0 01 1 9805-9904 ●
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 9905-9905 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L) INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=406 		1-09364-961-0 01 1 9610-9904 ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 9905-9905 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L) OUTLET L=406 		1-09364-961-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) OUTLET L=400 		1-09364-913-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) INLET L=500 		1-09364-914-0 01 1 9905- ● ●
194 UNION; NYLON TUBE
(A) M14 		1-09664-230-0 01 1 9603- ●
194 UNION; NYLON TUBE
(B) 		1-09664-234-0 01 1 9603-9904 ●
245 PIPE; OIL
(A) 		1-47428-569-0 01 1 9603-9608 ●
245 PIPE; OIL
(A) 		1-49161-057-0 01 1 9609-9904 ●
245 PIPE; OIL
(A) 		1-49119-467-1 01 1 9905-9906 ● ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) 		1-47428-570-0 01 1 9603-9608 ●
245 PIPE; OIL
(B) 		1-49161-058-0 01 1 9609-9904 ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9905- ● ●
303 TUBE; NYLON
L=3000 		1-09369-578-0 01 1 9603-9904 ●
303 TUBE; NYLON
L=900 OD=4 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9906 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9907- ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9603- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9603-9904 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9905- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9603-9904 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9905- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9603-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612- ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603- ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9603- ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9904 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9905- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603- ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9904 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9905- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9905- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603- ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9603- ●
509 BRACKET; PIPE 1-47477-551-0 01 1 9603-9904 ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9905- ● ●

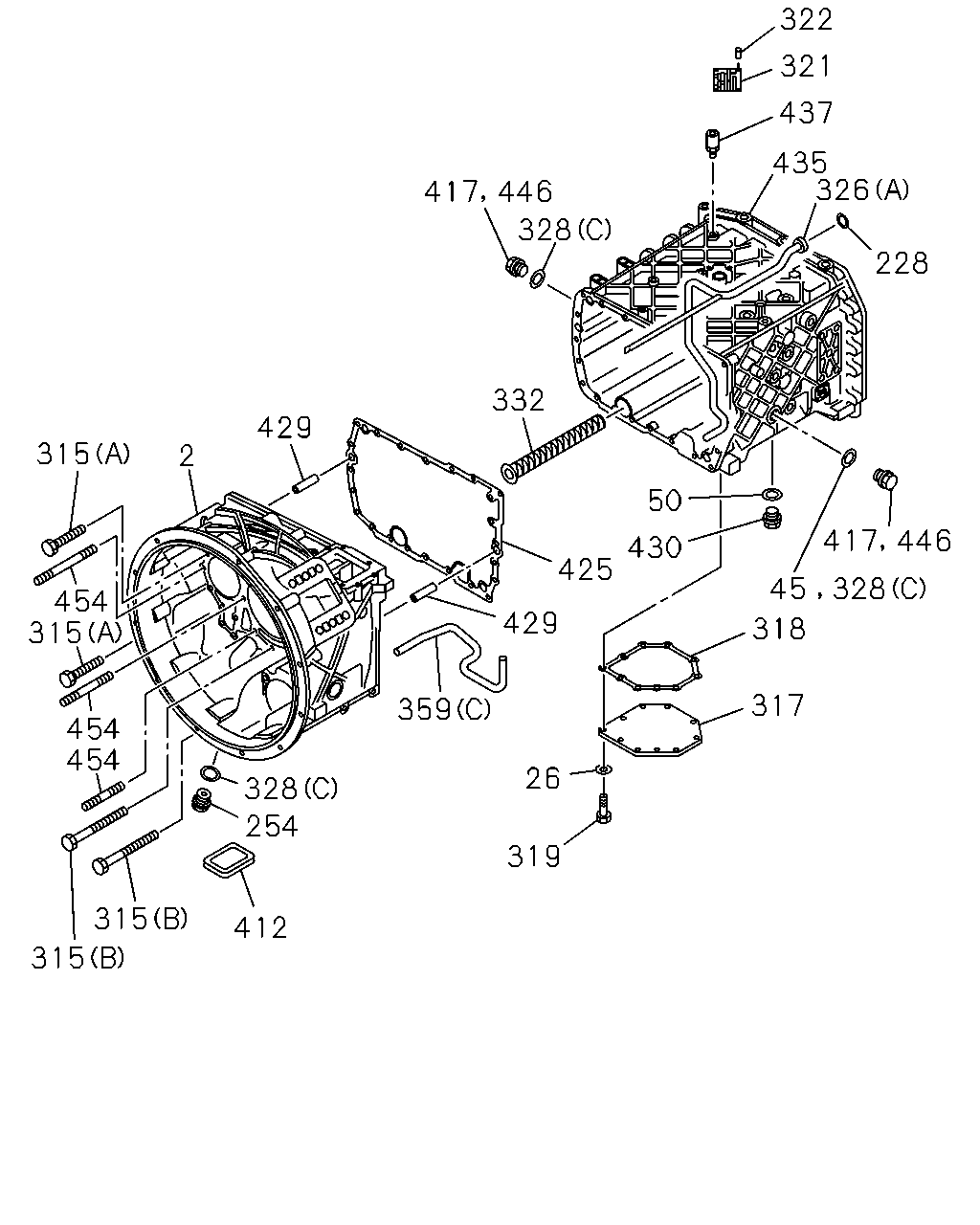

çizim 7164
322 321 437 435 326 328 228 332 429 315 2 50 430 425 429 454 315 318 317 359 454 454 26 328 254 319 315 412 315 417 446 417 446 45 328
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-189-0 01 1 9603-9707 ●
2 HOUSING; CLU
EXC. PTO ZF TRANS RR(BDM) 		1-31111-189-0 01 1 9708-9904 ●
2 HOUSING; CLU
PTO ZF TRANS RR(BDM) 		1-31111-194-0 01 1 9708-9904 ●
2 HOUSING; CLU 1-31111-194-0 01 1 9905- ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9603- ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) 		1-33119-264-0 01 1 9708-9904 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9905- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9603- ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9603- ●
254 PLUG; DRAIN,OIL 1-33119-263-0 01 1 9603-9707 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9708- ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9603- ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9603- ●
317 COVER; CASE 1-33119-274-0 01 1 9603- ●
318 GASKET; COVER 1-33119-275-0 01 1 9603-9904 ●
318 GASKET; COVER 1-33119-409-0 01 1 9905- ●
319 BOLT; COVER 1-33119-276-0 10 1 9603- ●
321 PLATE; NAME 1-33119-277-0 01 1 9603- ●
322 RIVET; NAME PLATE 1-36119-006-0 04 1 9603-9707 ●
322 RIVET; NAME PLATE
PTO ZF TRANS RR(BDM) 		1-33119-398-0 04 1 9708-9807 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9808- ●
322 RIVET; NAME PLATE
EXC. PTO ZF TRANS RR(BDM) 		1-33449-398-0 04 1 9708-9807 ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9603- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9603- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9603- ●
328 GASKET; PLUG
(C) 		1-33119-264-0 03 1 9603-9707 ●
328 GASKET; PLUG
PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 02 1 9708-9904 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9905- ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9603- ●
328 GASKET; PLUG
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33119-264-0 03 1 9708-9904 ●
332 FILTER; OIL 1-33119-157-0 01 1 9603-9707 ●
332 FILTER; OIL
PTO ZF TRANS RR(BDM) 		1-33119-370-0 01 1 9708-9904 ●
332 FILTER; OIL 1-33119-370-0 01 1 9905- ●
332 FILTER; OIL
EXC. PTO ZF TRANS RR(BDM) 		1-33119-157-0 01 1 9708-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9603- ●
417 PLUG; OIL FILLER,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9904 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9905- ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9603- ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9603- ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9603- ●
435 CASE; TRANS 1-33111-275-0 01 1 9603-9904 ●
435 CASE; TRANS 1-33111-286-0 01 1 9905- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9603- ●
446 PLUG; CASE,TRANS 1-33119-268-0 02 1 9603-9707 ●
446 PLUG; CASE,TRANS
PTO ZF TRANS RR(BDM) 		1-33119-268-0 01 1 9708-9904 ●
446 PLUG; CASE,TRANS
EXC. PTO ZF TRANS RR(BDM) 		1-33119-268-0 02 1 9708-9904 ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) M10 L=50 		1-33119-381-0 04 1 9708-9904 ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 9905- ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) M10 L=80 		1-33119-393-0 08 1 9708-9904 ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 9905- ●
454 STUD; CLU HSG
PTO ZF TRANS RR(BDM) M10 L=25 		1-33119-394-0 11 1 9708-9904 ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 9905- ●

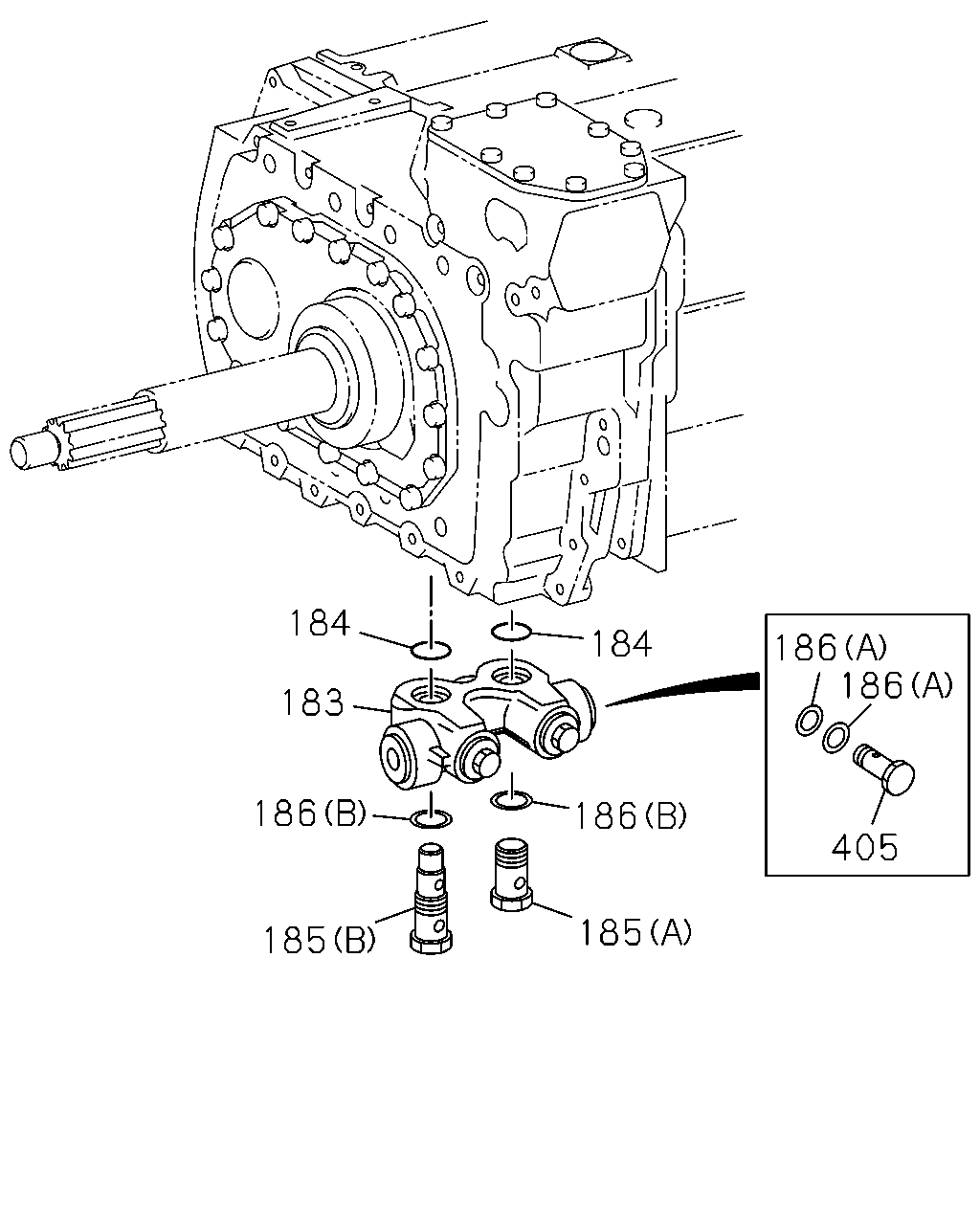

çizim 39930
184 184 186 186 183 186 186 405 185 185
BalonParca AdiParca NoAdetTipApplied Date A B
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9603-9904 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9905- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9603-9904 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9905- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9603-9904 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9905- ● ●
185 UNION; SCREW,BYPASS VLV
(B) L=67 		1-32567-014-0 01 1 9603-9701 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9702-9904 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9905- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9904 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9905- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9904 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9905- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9904 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9905- ● ●

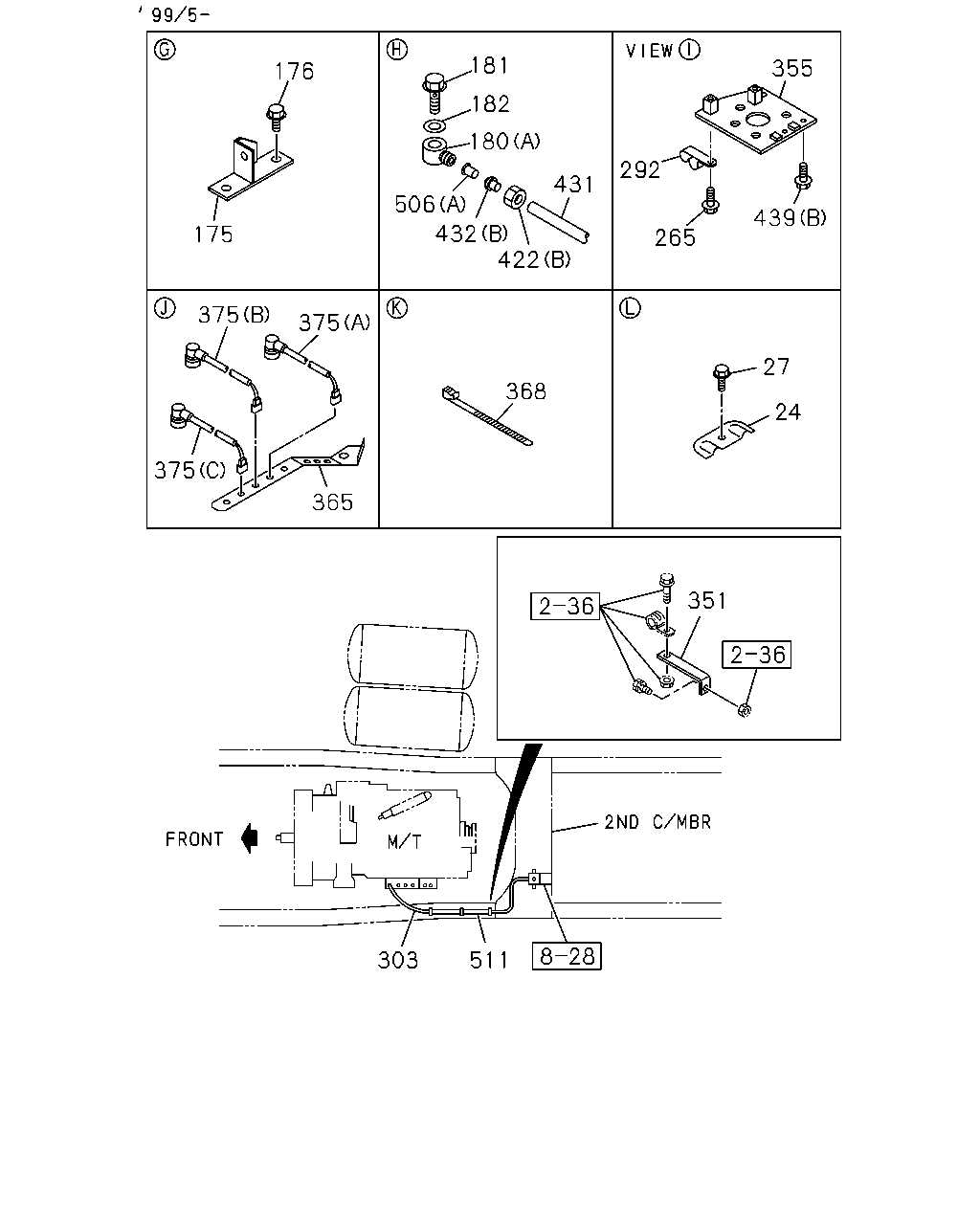

çizim 40130
181 355 176 182 180 292 431 506 439 432 422 175 265 375 375 27 368 24 375 365 351 303 511
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 02 1 9603-9704 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9705-9904 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9905- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9905- ● ●
175 BRACKET; UNION 1-47477-545-0 01 1 9603-9904 ●
175 BRACKET; UNION 1-47477-545-0 01 1 9905- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9905- ● ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9603-9904 ●
180 CONNECTOR; NYLON TUBE
(A) 		1-09660-239-0 01 1 9905- ● ●
180 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9603-9904 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9603-9904 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9905- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9603-9904 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9905- ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9603-9904 ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9905- ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9603-9904 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9905- ● ●
303 TUBE; NYLON
L=3000 		1-09369-578-0 01 1 9603-9904 ●
303 TUBE; NYLON
L=900 OD=4 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9904 ●
303 TUBE; NYLON
V TYPE ENG<91L> SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0003- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9906 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9907- ● ●
351 BRACKET; UNION,FLEX HOSE
L=125 		1-47475-897-0 01 1 9905- ●
355 BRACKET; OIL PIPE 1-47477-465-1 01 1 9603-9904 ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9905- ● ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9603-9904 ●
365 BRACKET; HARNESS 1-82699-490-2 01 1 9905- ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9603-9904 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9905- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9603-9904 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9905- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9603-9904 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9905- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9603- ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603- ●
431 TUBE; NYLON
L TYPE ENG<90L> L=1300 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9904 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9905- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9905- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603- ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 02 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9905- ● ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 02 1 9603-9706 ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 02 1 9707-9707 ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9708-9904 ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9603-9904 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 03 1 9603-9904 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9905- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9909 ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9910-9910 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9911- ●
511 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9708-9904 ●
çizim 40249
1 422 432 422 432 192 506 192 194 509 186 186 405 439 245 358 362 357 186 405 311 508 178 359 358 362 186 357 362 359 245 361
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-019-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,F RAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-019-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,BRAKE SYSTEM RETARDER<RE2> 		1-33042-019-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTGSEPARATE TYPE<SGM> 		1-33042-019-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) PTO ZF TRANS RR(BDM) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2> 		1-33042-019-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-012-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-020-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSIO N SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDE R<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-020-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 9907- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33040-359-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33041-633-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9905- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33040-584-2 01 1 9603-9707 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33041-634-0 01 1 9708-9904 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9905-9906 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>,BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
6WA1 TC-N(54L),6WA1 TC-C(55L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> FRAME ENG MTG SEPARATE TYPE<SGM> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-166-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-163-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PARKING BRAKE TRANSMISSION REAR<PJ8>,BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM> 		1-33042-163-0 01 1 9911- ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-164-0 01 1 9907-9910 ●
1 TRANSMISSION ASM; MANUAL
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANS SELECT DETENT HEAVY<BFU> CLUTCH HOUSING-AL<B1V> TRANSMISSION OIL COOLER<C2C> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SHIFT CONTROL ASSISTER<WX8> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP>,PTO ZF TRANS RR(BDM),PARKING BRAKE TRANSMISSION REAR<PJ8>,B RAKE SYSTEM RETARDER<RE2>,FRAME ENG MTG SEPARATE TYPE<SGM>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33042-164-0 01 1 9911- ●
178 NUT; UNION
(A) M14 		9-99110-414-0 01 1 9603-9904 ●
178 NUT; UNION
(B) M14 		9-99111-414-0 01 1 9603- ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9603-9904 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9905- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9603-9904 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9905- ● ●
192 HOSE; FLEX,TRANS
OUTLET L=400 		1-09364-913-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=400 		1-09364-913-0 01 1 9604-9606 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=400 		1-09364-913-0 01 1 9607-9609 ●
192 HOSE; FLEX,TRANS
SHORT CHASSIS(CXZ5MC) 6WA1 TC-S(56L) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
LONG CHASSIS(CXZ5MF) 6WA1 TC-S(56L) EXC. PTO ZF TRANS RR(BDM) OUTLET L=400 		1-09364-913-0 01 1 9610-9701 ●
192 HOSE; FLEX,TRANS
SHORT CHASSIS(CXZ5MC) 6WA1 TC-S(56L) INLET L=500 		1-09364-914-0 01 1 9702-9904 ●
192 HOSE; FLEX,TRANS
LONG CHASSIS(CXZ5MF) 6WA1 TC-S(56L) EXC. PTO ZF TRANS RR(BDM) INLET L=500 		1-09364-914-0 01 1 9702-9904 ●
192 HOSE; FLEX,TRANS
INLET L=500 		1-09364-914-0 01 1 9603-9603 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=500 		1-09364-914-0 01 1 9604-9606 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) INLET L=500 		1-09364-914-0 01 1 9607-9701 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=400 		1-09364-913-0 01 1 9702-9804 ●
192 HOSE; FLEX,TRANS
10PE1S(60L) OUTLET L=311 		1-09364-921-0 01 1 9805-9904 ●
192 HOSE; FLEX,TRANS
INLET L=535 		1-09364-936-0 01 1 9905-9905 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L) INLET L=535 		1-09364-936-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=410 		1-09364-935-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> INLET L=535 		1-09364-936-0 01 1 9604-9609 ●
192 HOSE; FLEX,TRANS
L TYPE ENG<90L> OUTLET L=406 		1-09364-961-0 01 1 9610-9904 ●
192 HOSE; FLEX,TRANS
OUTLET L=406 		1-09364-961-0 01 1 9905-9905 ● ●
192 HOSE; FLEX,TRANS
6WA1 TC-N(54L),6WA1 TC-C(55L) OUTLET L=406 		1-09364-961-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) OUTLET L=400 		1-09364-913-0 01 1 9905- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) INLET L=500 		1-09364-914-0 01 1 9905- ● ●
194 UNION; NYLON TUBE
(A) M14 		1-09664-230-0 01 1 9603- ●
194 UNION; NYLON TUBE
(B) 		1-09664-234-0 01 1 9603-9904 ●
245 PIPE; OIL
(A) 		1-47428-569-0 01 1 9603-9608 ●
245 PIPE; OIL
(A) 		1-49161-057-0 01 1 9609-9904 ●
245 PIPE; OIL
(A) 		1-49119-467-1 01 1 9905-9906 ● ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) 		1-47428-570-0 01 1 9603-9608 ●
245 PIPE; OIL
(B) 		1-49161-058-0 01 1 9609-9904 ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9905- ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9603- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9603-9904 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9905- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9603-9904 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9905- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49115-055-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49117-645-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-936-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49115-949-0 01 1 9603-9608 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49117-647-0 01 1 9609-9710 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-938-0 01 1 9711-9904 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9905- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9708- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-082-0 01 1 9603-9611 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9612- ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603- ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9603- ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9603-9904 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9905- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 04 1 9603-9904 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9905- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9603- ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 04 1 9603-9904 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9905- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9603- ●
439 BOLT; BRKT
(A) M10X20 FLANGE 		0-28781-020-0 01 1 9603-9904 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9905- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9603-9904 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9905- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9603-9904 ●
506 INSERT
(A) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9905- ● ●
506 INSERT
(B) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
506 INSERT
(C) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9603- ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9603- ●
509 BRACKET; PIPE 1-47477-551-0 01 1 9603-9904 ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9905- ● ●

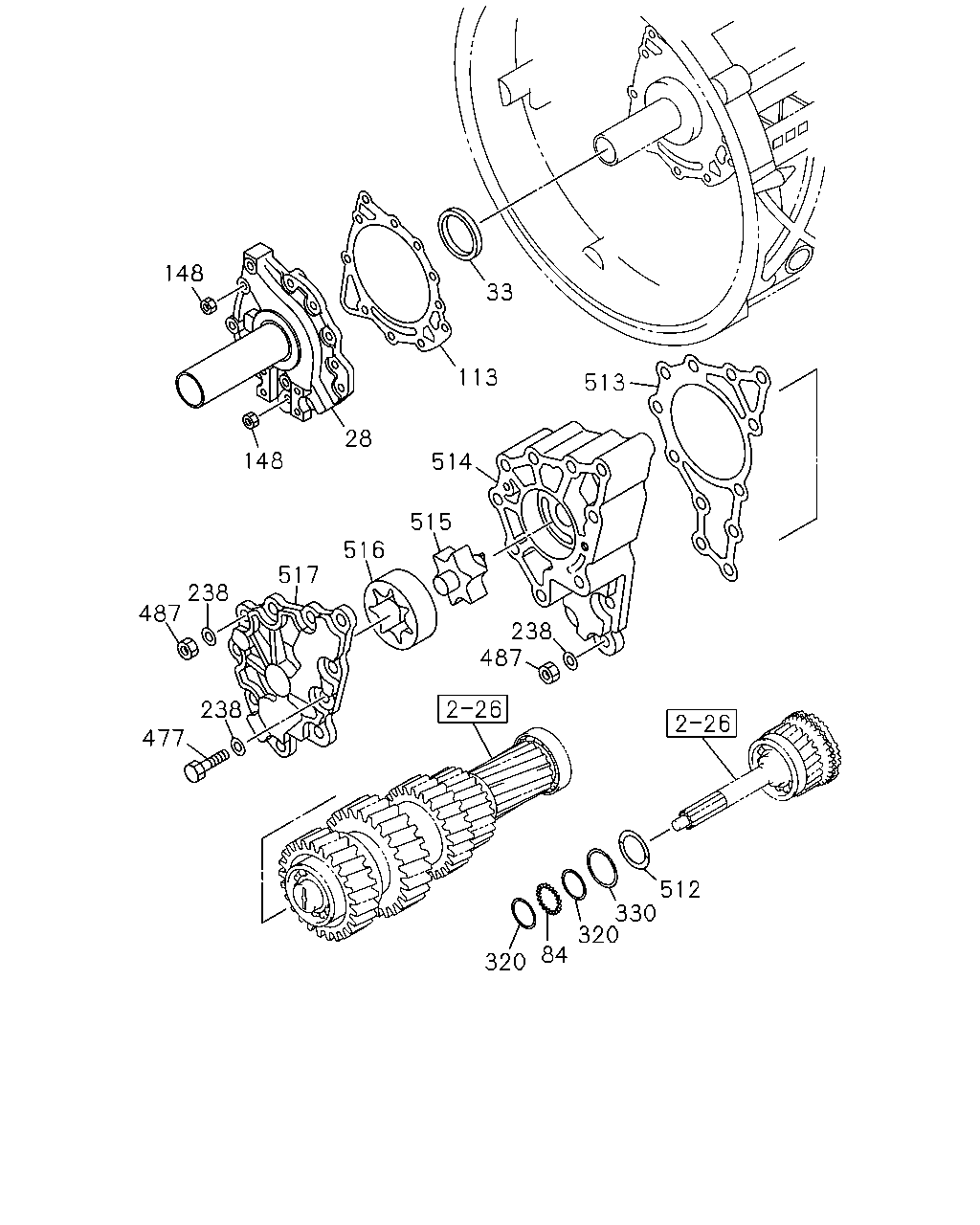

çizim 43330
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 512 330 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9603-9707 ●
28 COVER; FRT,TRANS CASE
PTO ZF TRANS RR(BDM) 		1-33121-149-0 01 1 9708-9904 ●
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9905- ●
28 COVER; FRT,TRANS CASE
EXC. PTO ZF TRANS RR(BDM) 		1-33121-132-0 01 1 9708-9904 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-058-0 01 1 9603-9805 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9806- ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9603- ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9603- ●
148 NUT 1-33529-056-0 11 1 9603- ●
238 WASHER; PL 1-09469-010-0 14 1 9603- ●
320 WASHER; COVER 1-33129-007-0 02 1 9603- ●
330 RING; RET 1-33219-030-0 01 1 9603-9707 ●
330 RING; RET
EXC. PTO ZF TRANS RR(BDM) 		1-33219-030-0 01 1 9708-9904 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9603- ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9603- ●
512 WASHER; THRUST
T=4.20 		1-33219-144-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.20 		1-33219-144-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.15 		1-33219-145-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.15 		1-33219-145-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.10 		1-33219-146-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.10 		1-33219-146-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.05 		1-33219-147-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.05 		1-33219-147-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=4.00 		1-33219-148-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=4.00 		1-33219-148-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.95 		1-33219-149-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.95 		1-33219-149-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.90 		1-33219-150-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.90 		1-33219-150-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.85 		1-33219-151-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.85 		1-33219-151-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.80 		1-33219-152-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.80 		1-33219-152-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.75 		1-33219-153-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.75 		1-33219-153-0 AR 1 9708-9904 ●
512 WASHER; THRUST
T=3.70 		1-33219-154-0 AR 1 9603-9707 ●
512 WASHER; THRUST
EXC. PTO ZF TRANS RR(BDM) T=3.70 		1-33219-154-0 AR 1 9708-9904 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9603- ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9603- ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9603- ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9603- ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
