Isuzu WW
▶
TRUCKS
▶
NKR
▶
50809 - NKR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-82C - BOOST COMPENSATOR; INJECTION GOVERNOR
▶

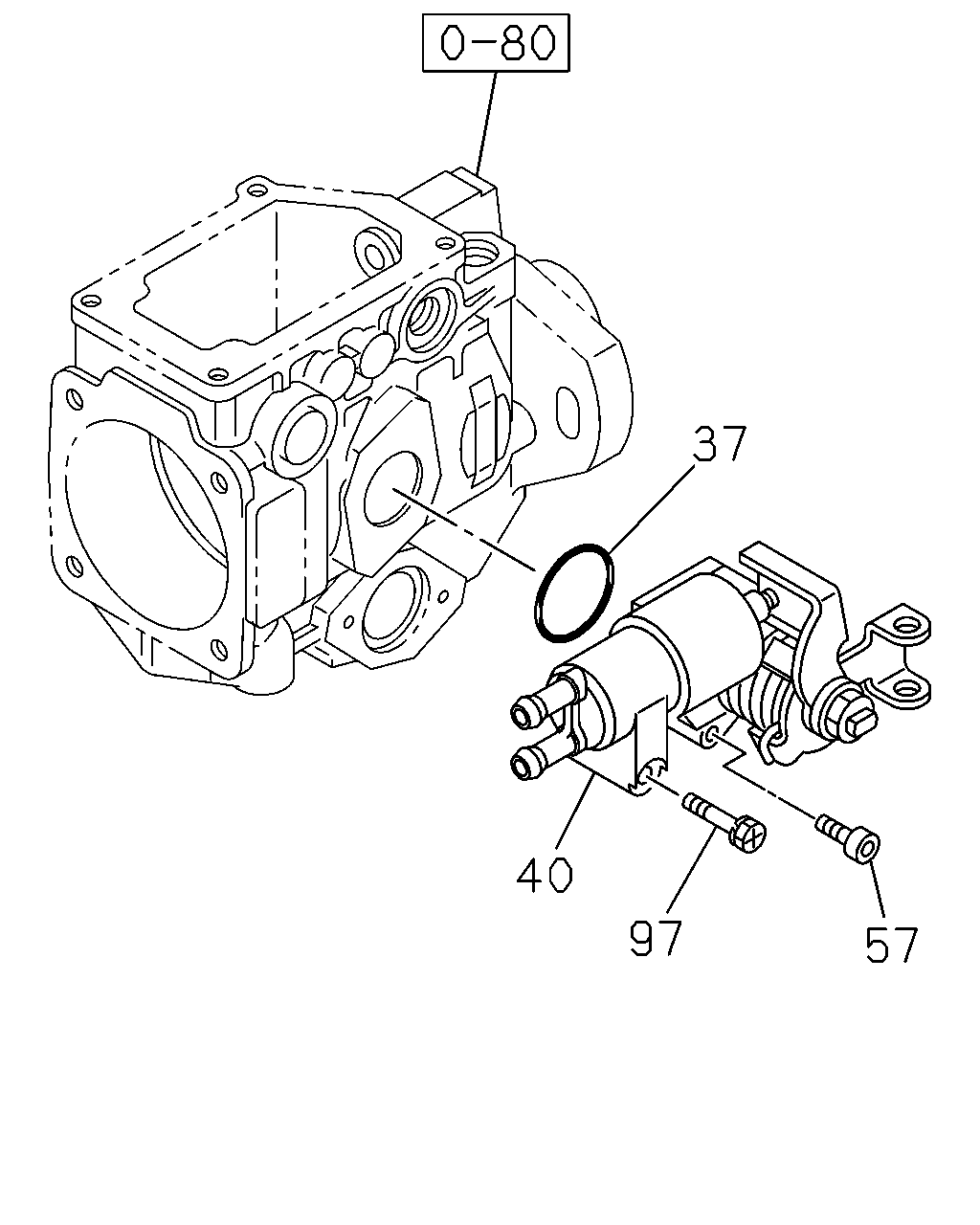

0-82C — BOOST COMPENSATOR; INJECTION GOVERNOR
(#43229) — 4 parça
37
40
97
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105
8-94227-491-0
01
1
-
40
03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105
8-97148-141-0
01
1
-
57
03.308 BOLT; START ADVANCE
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105
1-15619-276-0
02
1
-
97
03.306 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105
8-97029-204-0
01
1
-
