◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82A - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82A — BOOST COMPENSATOR; INJECTION GOVERNOR (#43227) — 41 parça

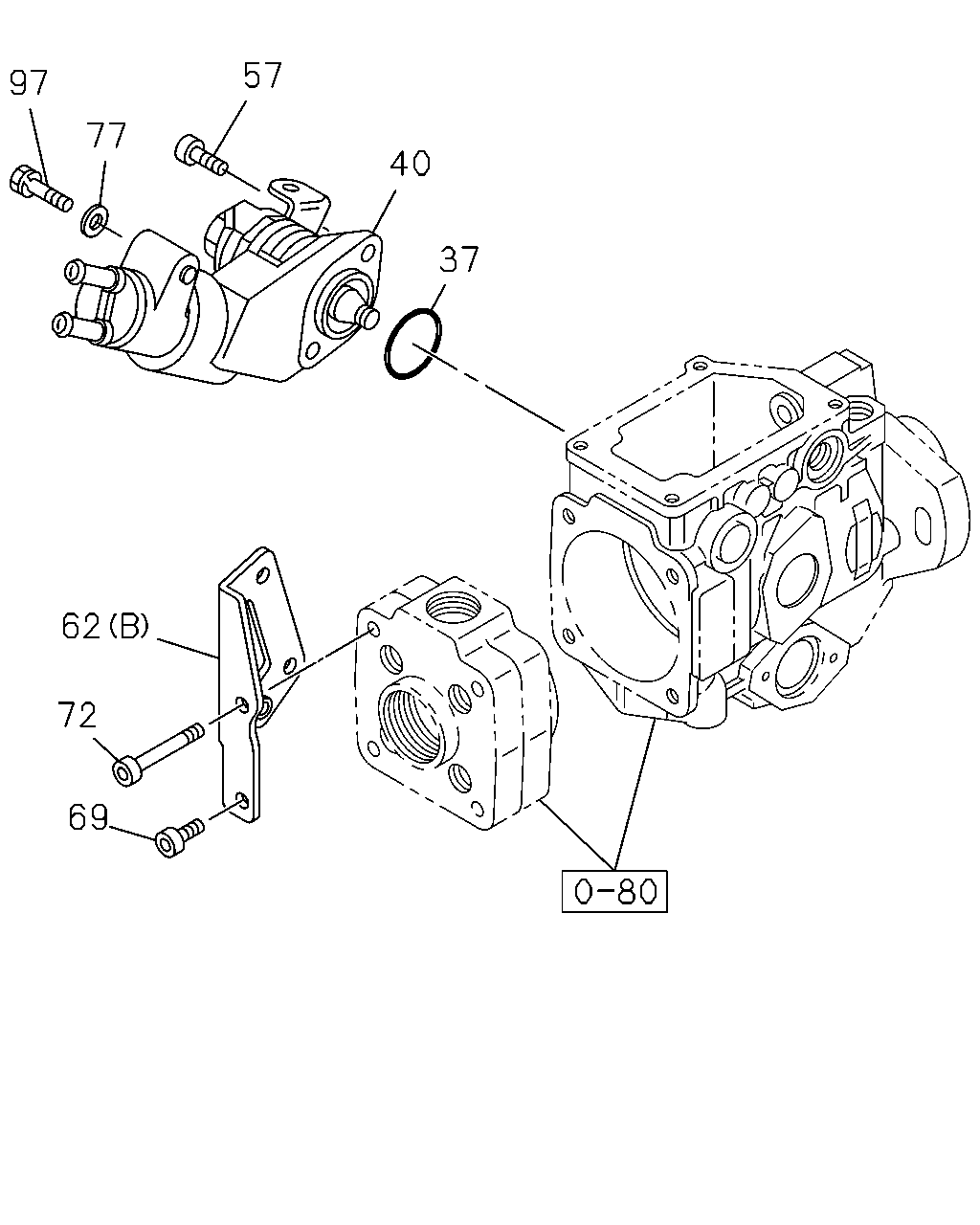

çizim 46027
57 97 77 40 37 62 72 69
BalonParca AdiParca NoAdetTipApplied Date
37 03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97091-746-1, 97091746 		8-94227-491-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97091-746-1, 97091746 		8-97105-393-0 01 1 -
57 03.308 BOLT; START ADVANCE
ASM PART: A = 8-97091-746-1, 97091746 		1-15619-276-0 02 1 -
62 03.314 BRACKET; ACTUATOR
(B) ASM PART: A = 8-97091-746-1, 97091746 		8-97086-129-0 01 1 -
69 03.330 SCREW; BRKT,INJ PUMP
ASM PART: A = 8-97091-746-1, 97091746 		8-94325-497-0 01 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-97091-746-1, 97091746 		8-94242-278-0 01 1 -
77 03.330 WASHER; LK,START ADVANCE FIX
02.183, ID=6.4 OD=14 ASM PART: A = 8-97091-746-1, 97091746 		9-09160-606-0 01 1 -
97 03.306 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97091-746-1, 97091746 		8-97029-204-0 01 1 -

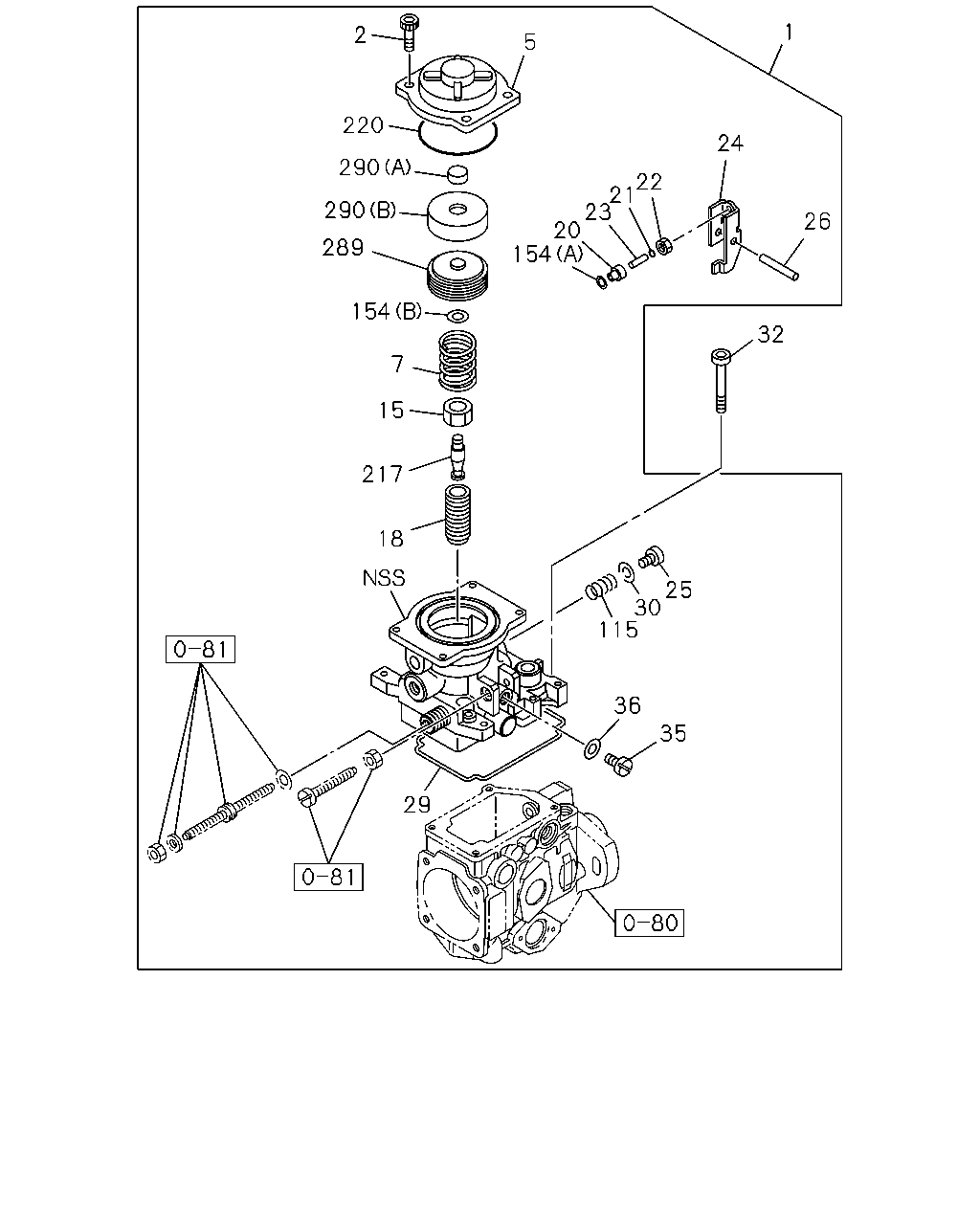

çizim 47907
1 2 5 220 24 290 22 21 23 20 154 290 26 289 154 32 7 15 217 18 25 30 115 36 35 29
BalonParca AdiParca NoAdetTipApplied Date
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-564-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
03.330 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97161-960-0 04 1 -
5 03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-591-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-614-0 01 1 -
15 03.320 NUT; BUSHING LK,BOOST COMPENSATO
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-612-0 01 1 -
18 03.320 BUSHING; ADJ PIN,BOOST COMPENSAT
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-600-0 01 1 -
20 03.320 BUSHING; CONT PIN,BOOST COMPENSA
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-601-0 01 1 -
21 03.320 GASKET; CONT PIN,BOOST COMPENSAT
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-604-0 01 1 -
22 03.320 NUT; BUSHING,CONT PIN,BOOST COMP
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-603-0 01 1 -
23 03.320 PIN; CONT,BOOST COMPENSATOR
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-602-0 01 1 -
24 03.320 LEVER; BOOST COMPENSATOR,GOV
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-606-0 01 1 -
25 03.306 PLUG; HSG,BOOST COMPENSATOR
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-610-0 01 1 -
26 03.320 PIN; CONT LEVER,BOOST COMPENSATO
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-607-0 01 1 -
29 03.306 GASKET; HSG,BOOST COMPENSATOR
03.308 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97141-201-0 01 1 -
30 03.306 GASKET; HSG PLUG,BOOST COMPENSAT
T=1.6 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-611-0 01 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
01.531 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97141-178-0 04 1 -
35 03.320 PLUG; CONT LEVER PIN,BOOST COMPE
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-608-0 02 1 -
36 03.320 GASKET; LEVER PIN,BOOST COMPENSA
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-609-0 02 1 -
115 03.308 SPRING; COMPENSATOR
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-627-0 01 1 -
154 03.320 WASHER; LK
(A), T=1.0 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-605-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.2 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-618-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.5 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-619-0 01 1 -
154 03.320 WASHER; LK
(B), T=1.0 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-620-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.6 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-621-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.7 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-622-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.8 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-623-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.9 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-624-0 01 1 -
154 03.320 WASHER; LK
(B), T=0.3 ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-625-0 01 1 -
217 03.320 ROD; PUSH,BOOST COMPENSATOR
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-599-0 01 1 -
220 03.308 GASKET; ADJ SCREW,BOOST COMPENSA
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-616-0 01 1 -
289 03.485 COMPENSATOR SUB ASM; BOOST
ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-593-0 01 1 -
290 03.485 CAP; BOOST COMPENSATOR
(A) ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-615-0 01 1 -
290 03.485 CAP; BOOST COMPENSATOR
(B) ASM PART: B = 8-97172-393-0, 97172393, C = 8-97228-147-1, 97228147 		8-97234-617-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
