Sayfa 0-80A - Isuzu EPC

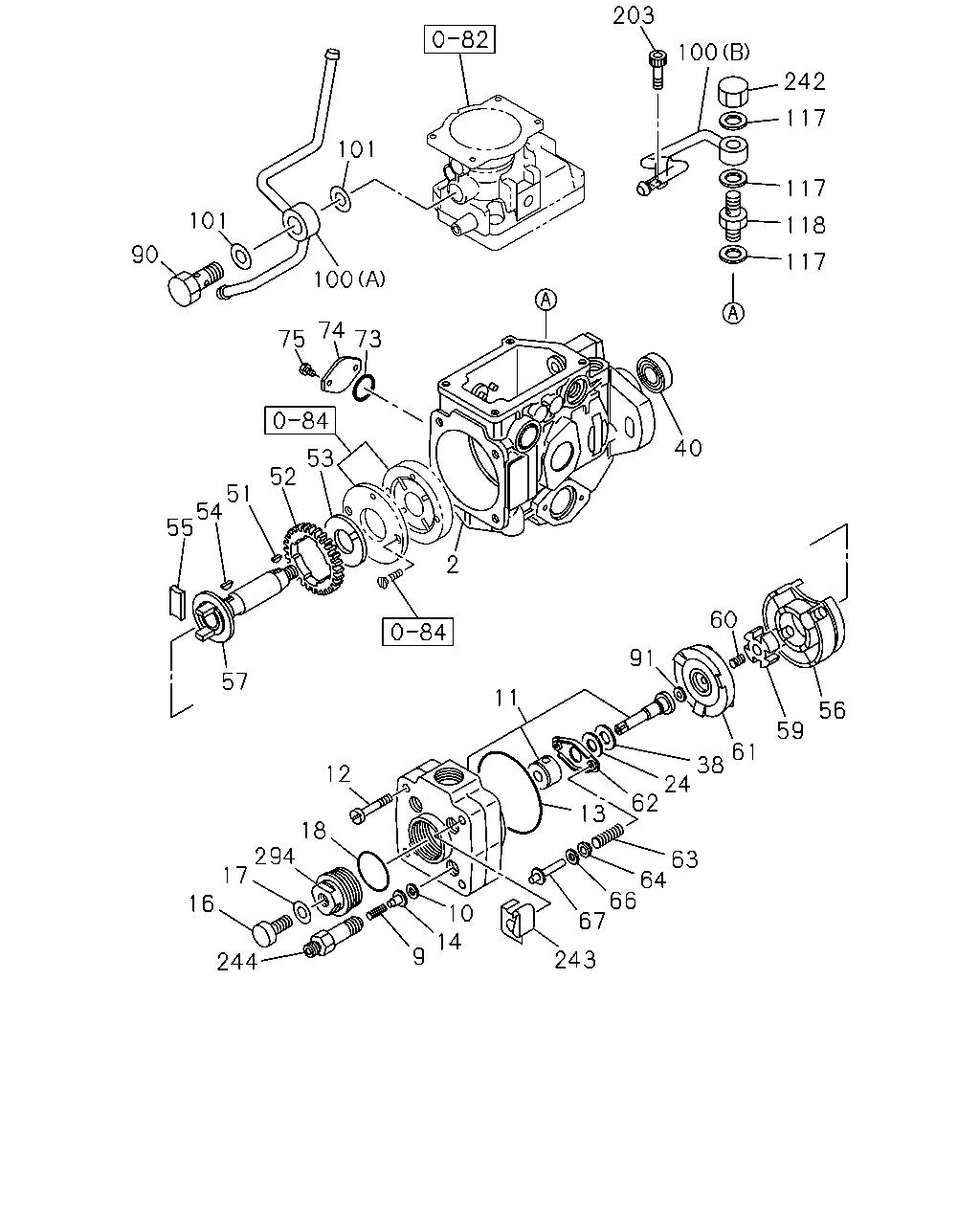

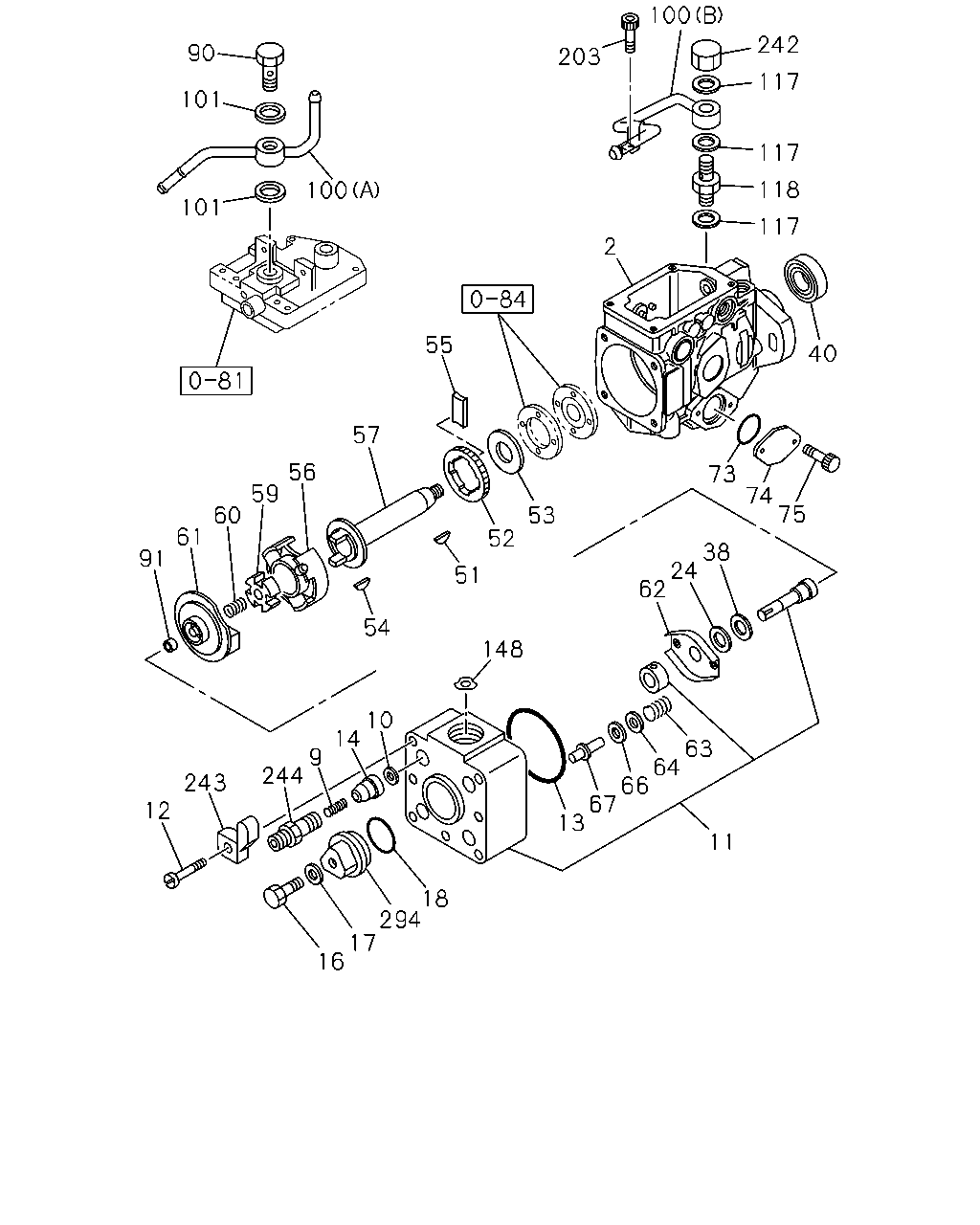

0-80A — INJECTION PUMP (#43217) — 542 parça

203 100 242 117 101 117 101 118 90 117 100 74 73 75 40 53 2 51 54 55 2 60 91 57 11 56 59 61 38 24 62 12 13 18 294 17 16 63 64 66 67 10 14 9 243 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97091-746-1, 97091746	8-97102-537-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97138-842-3, 97138842	8-97161-855-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-560-0	01	1	-
9	03.302 SPRING; DELIVERY VLV 03.335 ASM PART: A = 8-97091-746-1, 97091746	8-94227-581-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-868-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97102-536-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-856-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: A = 8-97091-746-1, 97091746	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP M6X45 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-258-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-527-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94460-298-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-867-0	04	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-639-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-902-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-602-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-637-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-515-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-905-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-514-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-903-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-940-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94239-370-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-939-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-930-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-481-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-936-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-482-1	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-928-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97105-391-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-858-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-480-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-857-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-489-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-877-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-647-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-876-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97094-103-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-869-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-151-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-155-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97091-746-1, 97091746	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-156-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97091-746-1, 97091746	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97091-746-1, 97091746	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97091-746-1, 97091746	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97091-746-1, 97091746	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97091-746-1, 97091746	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97091-746-1, 97091746	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97091-746-1, 97091746	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-265-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-266-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-267-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-268-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-269-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-270-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-271-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-272-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-273-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-274-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-275-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-918-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-919-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-920-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-921-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-922-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97091-746-1, 97091746	8-94227-525-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-152-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94242-967-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG M6X16 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-853-0	02	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94389-430-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-906-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97091-746-1, 97091746	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97091-746-1, 97091746	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97091-746-1, 97091746	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97091-746-1, 97091746	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97091-746-1, 97091746	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97091-746-1, 97091746	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97091-746-1, 97091746	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97091-746-1, 97091746	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97091-746-1, 97091746	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97091-746-1, 97091746	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97091-746-1, 97091746	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97091-746-1, 97091746	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97091-746-1, 97091746	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97091-746-1, 97091746	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97091-746-1, 97091746	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97091-746-1, 97091746	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97091-746-1, 97091746	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97091-746-1, 97091746	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97091-746-1, 97091746	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97091-746-1, 97091746	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97091-746-1, 97091746	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97091-746-1, 97091746	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97091-746-1, 97091746	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97091-746-1, 97091746	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97091-746-1, 97091746	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97091-746-1, 97091746	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97091-746-1, 97091746	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97091-746-1, 97091746	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97091-746-1, 97091746	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97091-746-1, 97091746	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97091-746-1, 97091746	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97091-746-1, 97091746	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97091-746-1, 97091746	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97091-746-1, 97091746	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97091-746-1, 97091746	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97091-746-1, 97091746	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97091-746-1, 97091746	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97091-746-1, 97091746	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97091-746-1, 97091746	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97091-746-1, 97091746	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97091-746-1, 97091746	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97091-746-1, 97091746	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97091-746-1, 97091746	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97091-746-1, 97091746	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97091-746-1, 97091746	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97091-746-1, 97091746	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97091-746-1, 97091746	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97091-746-1, 97091746	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97091-746-1, 97091746	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97091-746-1, 97091746	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97091-746-1, 97091746	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97091-746-1, 97091746	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97091-746-1, 97091746	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97091-746-1, 97091746	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97091-746-1, 97091746	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97091-746-1, 97091746	8-94227-578-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-431-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-955-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-956-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-957-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-958-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97091-746-1, 97091746	8-97086-127-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97091-746-1, 97091746	8-97094-109-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97138-842-3, 97138842	8-97161-964-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97138-842-3, 97138842	8-97161-965-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94174-824-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-240-0	01	1	-
203	03.330 BOLT; FUEL INL 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94313-203-0	01	1	-
203	03.330 BOLT; FUEL INL ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-960-0	01	1	-
242	03.308 NUT; CAP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-143-0	01	1	-

100 242 90 203 117 101 117 118 100 101 117 2 55 40 57 56 73 74 75 59 60 53 61 52 38 24 62 91 51 54 148 10 14 63 64 66 67 13 9 244 243 12 11 18 294 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97091-746-1, 97091746	8-97102-537-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97138-842-3, 97138842	8-97161-855-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-560-0	01	1	-
9	03.302 SPRING; DELIVERY VLV 03.335 ASM PART: A = 8-97091-746-1, 97091746	8-94227-581-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-868-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97102-536-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-856-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: A = 8-97091-746-1, 97091746	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP M6X45 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-258-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-527-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94460-298-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-867-0	04	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-639-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-902-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-602-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-637-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-515-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-905-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-514-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-903-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-940-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94239-370-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-939-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-483-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-927-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-930-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-481-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-936-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-482-1	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-928-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97105-391-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-858-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-480-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-857-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-489-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-877-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-647-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-876-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97094-103-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-869-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-151-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-155-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97091-746-1, 97091746	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-156-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97091-746-1, 97091746	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97091-746-1, 97091746	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97091-746-1, 97091746	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97091-746-1, 97091746	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97091-746-1, 97091746	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97091-746-1, 97091746	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97091-746-1, 97091746	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-265-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-266-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-267-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-268-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-269-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-270-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-271-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-272-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-273-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-274-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-275-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-918-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-919-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-920-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-921-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-922-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97091-746-1, 97091746	8-94227-525-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-152-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94242-967-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG M6X16 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-853-0	02	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94389-430-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-906-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97091-746-1, 97091746	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97091-746-1, 97091746	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97091-746-1, 97091746	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97091-746-1, 97091746	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97091-746-1, 97091746	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97091-746-1, 97091746	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97091-746-1, 97091746	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97091-746-1, 97091746	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97091-746-1, 97091746	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97091-746-1, 97091746	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97091-746-1, 97091746	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97091-746-1, 97091746	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97091-746-1, 97091746	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97091-746-1, 97091746	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97091-746-1, 97091746	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97091-746-1, 97091746	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97091-746-1, 97091746	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97091-746-1, 97091746	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97091-746-1, 97091746	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97091-746-1, 97091746	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97091-746-1, 97091746	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97091-746-1, 97091746	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97091-746-1, 97091746	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97091-746-1, 97091746	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97091-746-1, 97091746	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97091-746-1, 97091746	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97091-746-1, 97091746	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97091-746-1, 97091746	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97091-746-1, 97091746	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97091-746-1, 97091746	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97091-746-1, 97091746	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97091-746-1, 97091746	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97091-746-1, 97091746	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97091-746-1, 97091746	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97091-746-1, 97091746	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97091-746-1, 97091746	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97091-746-1, 97091746	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97091-746-1, 97091746	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97091-746-1, 97091746	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97091-746-1, 97091746	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97091-746-1, 97091746	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97091-746-1, 97091746	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97091-746-1, 97091746	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97091-746-1, 97091746	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97091-746-1, 97091746	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97091-746-1, 97091746	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97091-746-1, 97091746	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97091-746-1, 97091746	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97091-746-1, 97091746	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97091-746-1, 97091746	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97091-746-1, 97091746	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97091-746-1, 97091746	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97091-746-1, 97091746	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97091-746-1, 97091746	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97091-746-1, 97091746	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97091-746-1, 97091746	8-94227-578-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-431-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-955-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-956-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-957-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-958-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97091-746-1, 97091746	8-97086-127-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97091-746-1, 97091746	8-97094-109-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97138-842-3, 97138842	8-97161-964-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97138-842-3, 97138842	8-97161-965-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94174-824-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-240-0	01	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: B = 8-97138-842-3, 97138842	8-97141-573-0	01	1	-
203	03.330 BOLT; FUEL INL 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94313-203-0	01	1	-
203	03.330 BOLT; FUEL INL ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-960-0	01	1	-
242	03.308 NUT; CAP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-143-0	01	1	-

118 117 90 203 101 100 117 101 117 100 119 42 44 43 84 74 73 75 163 164 40 53 52 41 51 54 55 39 2 60 91 11 56 59 57 226 61 38 24 62 12 13 15 18 65 64 66 67 17 16 10 14 9 175 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97091-746-1, 97091746	8-97102-537-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97138-842-3, 97138842	8-97161-855-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-560-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP 03.335 ASM PART: A = 8-97091-746-1, 97091746	8-94227-582-0	04	1	-
9	03.302 SPRING; DELIVERY VLV 03.335 ASM PART: A = 8-97091-746-1, 97091746	8-94227-581-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-868-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97102-536-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-856-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: A = 8-97091-746-1, 97091746	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP M6X45 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-258-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-527-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94460-298-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-867-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94227-638-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-639-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-902-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-602-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-637-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-515-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-905-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-514-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-903-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-97091-746-1, 97091746	8-94244-829-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-940-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97091-746-1, 97091746	8-94174-843-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94458-257-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97091-746-1, 97091746	8-94227-648-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	1-15629-006-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94239-370-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-939-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-483-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-927-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-930-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-481-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-936-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-482-1	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-928-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97105-391-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-858-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-480-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-857-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-489-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-877-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-647-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-876-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97094-103-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-869-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-151-0	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97091-746-1, 97091746	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-156-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94228-404-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97091-746-1, 97091746	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97091-746-1, 97091746	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97091-746-1, 97091746	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97091-746-1, 97091746	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97091-746-1, 97091746	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97091-746-1, 97091746	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97091-746-1, 97091746	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-265-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-266-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-267-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-268-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-269-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-270-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-271-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-272-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-273-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-274-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-275-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-918-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-919-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-920-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-921-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-922-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97091-746-1, 97091746	8-94227-525-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-152-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94242-967-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG M6X16 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-853-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94247-722-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94389-430-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-906-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97091-746-1, 97091746	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97091-746-1, 97091746	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97091-746-1, 97091746	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97091-746-1, 97091746	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97091-746-1, 97091746	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97091-746-1, 97091746	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97091-746-1, 97091746	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97091-746-1, 97091746	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97091-746-1, 97091746	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97091-746-1, 97091746	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97091-746-1, 97091746	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97091-746-1, 97091746	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97091-746-1, 97091746	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97091-746-1, 97091746	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97091-746-1, 97091746	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97091-746-1, 97091746	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97091-746-1, 97091746	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97091-746-1, 97091746	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97091-746-1, 97091746	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97091-746-1, 97091746	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97091-746-1, 97091746	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97091-746-1, 97091746	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97091-746-1, 97091746	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97091-746-1, 97091746	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97091-746-1, 97091746	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97091-746-1, 97091746	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97091-746-1, 97091746	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97091-746-1, 97091746	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97091-746-1, 97091746	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97091-746-1, 97091746	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97091-746-1, 97091746	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97091-746-1, 97091746	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97091-746-1, 97091746	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97091-746-1, 97091746	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97091-746-1, 97091746	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97091-746-1, 97091746	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97091-746-1, 97091746	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97091-746-1, 97091746	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97091-746-1, 97091746	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97091-746-1, 97091746	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97091-746-1, 97091746	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97091-746-1, 97091746	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97091-746-1, 97091746	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97091-746-1, 97091746	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97091-746-1, 97091746	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97091-746-1, 97091746	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97091-746-1, 97091746	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97091-746-1, 97091746	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97091-746-1, 97091746	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97091-746-1, 97091746	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97091-746-1, 97091746	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97091-746-1, 97091746	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97091-746-1, 97091746	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97091-746-1, 97091746	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97091-746-1, 97091746	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97091-746-1, 97091746	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97091-746-1, 97091746	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97091-746-1, 97091746	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97091-746-1, 97091746	8-94227-578-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-431-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-955-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-956-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-957-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-958-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97091-746-1, 97091746	8-97086-127-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97091-746-1, 97091746	8-97094-109-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97138-842-3, 97138842	8-97161-964-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97138-842-3, 97138842	8-97161-965-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97234-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94174-824-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-240-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-662-0	01	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-97102-606-0	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: A = 8-97091-746-1, 97091746	5-15619-112-0	06	1	-
175	03.302 STOPPER; SPR ASM PART: A = 8-97091-746-1, 97091746	8-94317-496-0	04	1	-
203	03.330 BOLT; FUEL INL 03.306 ASM PART: A = 8-97091-746-1, 97091746	8-94313-203-0	01	1	-
203	03.330 BOLT; FUEL INL ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97161-960-0	01	1	-
226	03.330 BRACKET; DISTR HEAD ASM PART: A = 8-97091-746-1, 97091746	8-97105-395-0	01	1	-

3 117 101 101 117 117 73 18 13 17 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94228-545-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-880-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-527-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-158-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-602-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-149-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-746-1, 97091746	8-94227-637-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97209-532-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97091-746-1, 97091746	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97140-980-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97091-746-1, 97091746	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: B = 8-97138-842-3, 97138842, C = 8-97172-393-0, 97172393, D = 8-97228-147-1, 97228147	8-97141-182-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
