◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43213) — 357 parça

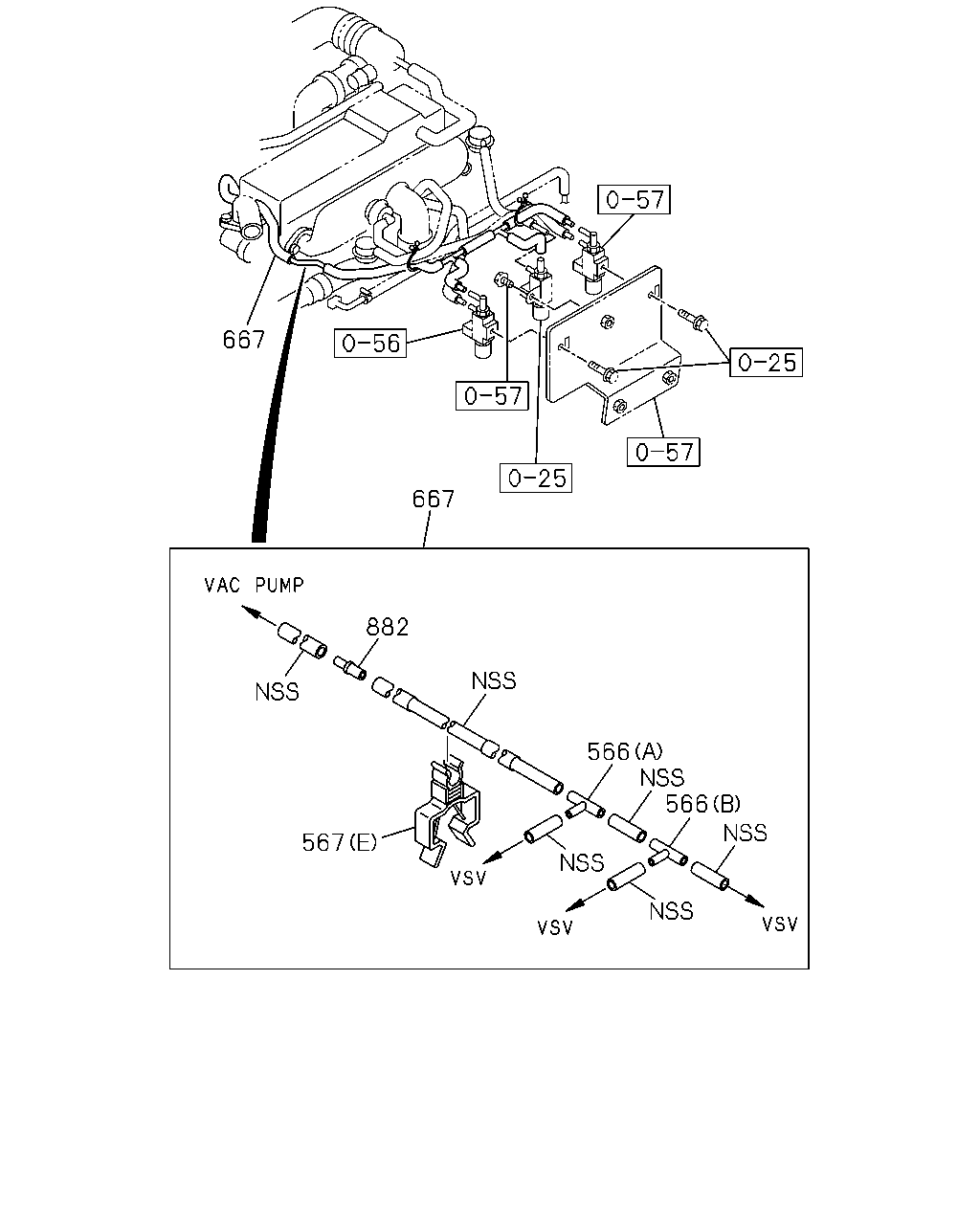

çizim 9387
667 667 882 566 566 567
BalonParca AdiParca NoAdetTipApplied Date A B C D
566 02.420 JOINT; 3 WAY
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.145 (A) BLACK 		8-94425-194-0 01 1 9811-9901 ●
566 02.420 JOINT; 3 WAY
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.680 (A) 3WAY 		8-94165-537-0 01 1 9902-9904 ●
566 02.420 JOINT; 3 WAY
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.680 (B) 3WAY 		8-94439-294-0 01 1 9811-9904 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (E) ID=23.6 		8-94315-427-0 01 1 9811-9901 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (E) ID=23.6 		8-94315-427-0 02 1 9902-9904 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9811-9812 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9901-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9811-9812 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9901-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 (A) L=300 		1-09707-001-1 01 1 9811-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (B) ID=8 & 16 		5-09707-032-0 01 1 9811- ●
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97208-197-0 01 1 9811-9901 ●
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97225-698-0 01 1 9902-9904 ●
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97228-358-1 01 1 9905- ●
882 03.280 JOINT; 2 WAY
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.680 2WAY 		8-97165-694-0 01 1 9811-9904 ●
çizim 10435
211 553 489 209 211 403
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ●
211 02.343 NUT; CABLE FIX
04.594 (A),(C) M6 FLANGE 		0-91150-106-0 01 1 9811- ●
211 02.343 NUT; CABLE FIX
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A),(C) M6 FLANGE 		0-91150-106-0 01 1 9811- ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811- ●
403 02.343 CLIP; CABLE
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97125-981-0 01 1 9811- ●
489 03.483 BOLT; ENG STOPPER
EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811- ●
553 03.485 MOTOR ASM; ENG STOP
SEMI MIDDLE(NK***D) EXC. ENGINE POWER N-SPEC(7QV) 		8-97105-992-2 01 1 9811-9910 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) EXC. ENGINE POWER N-SPEC(7QV) 		8-97105-992-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
SEMI MIDDLE(NK***D) EXC. ENGINE POWER N-SPEC(7QV) 		8-97234-418-0 01 1 9911-0005 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) EXC. ENGINE POWER N-SPEC(7QV) 		8-97234-418-0 01 1 9911-0005 ●
553 03.485 MOTOR ASM; ENG STOP
SEMI MIDDLE(NK***D) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-070-0 01 1 0006-0012 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-070-0 01 1 0006-0012 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-070-0 01 1 0101- ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97105-993-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97230-999-0 01 1 9911-0007 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-066-0 01 1 0008- ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97090-625-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97234-406-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-043-0 01 1 0005- ●

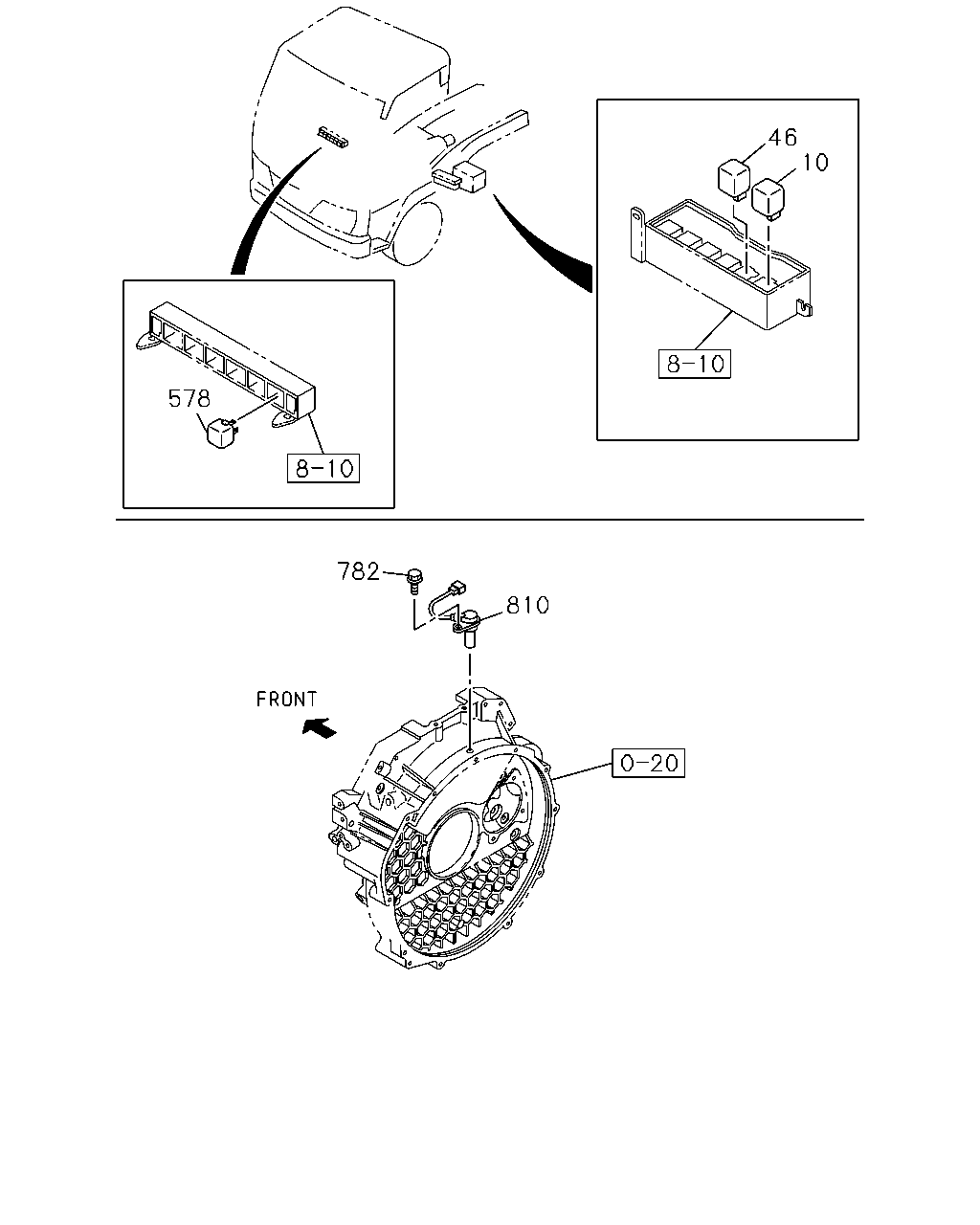

çizim 10758
46 10 578 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0106-0112 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0201- ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 0201- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0201- ● ● ● ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0201- ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-0 01 1 0201- ●

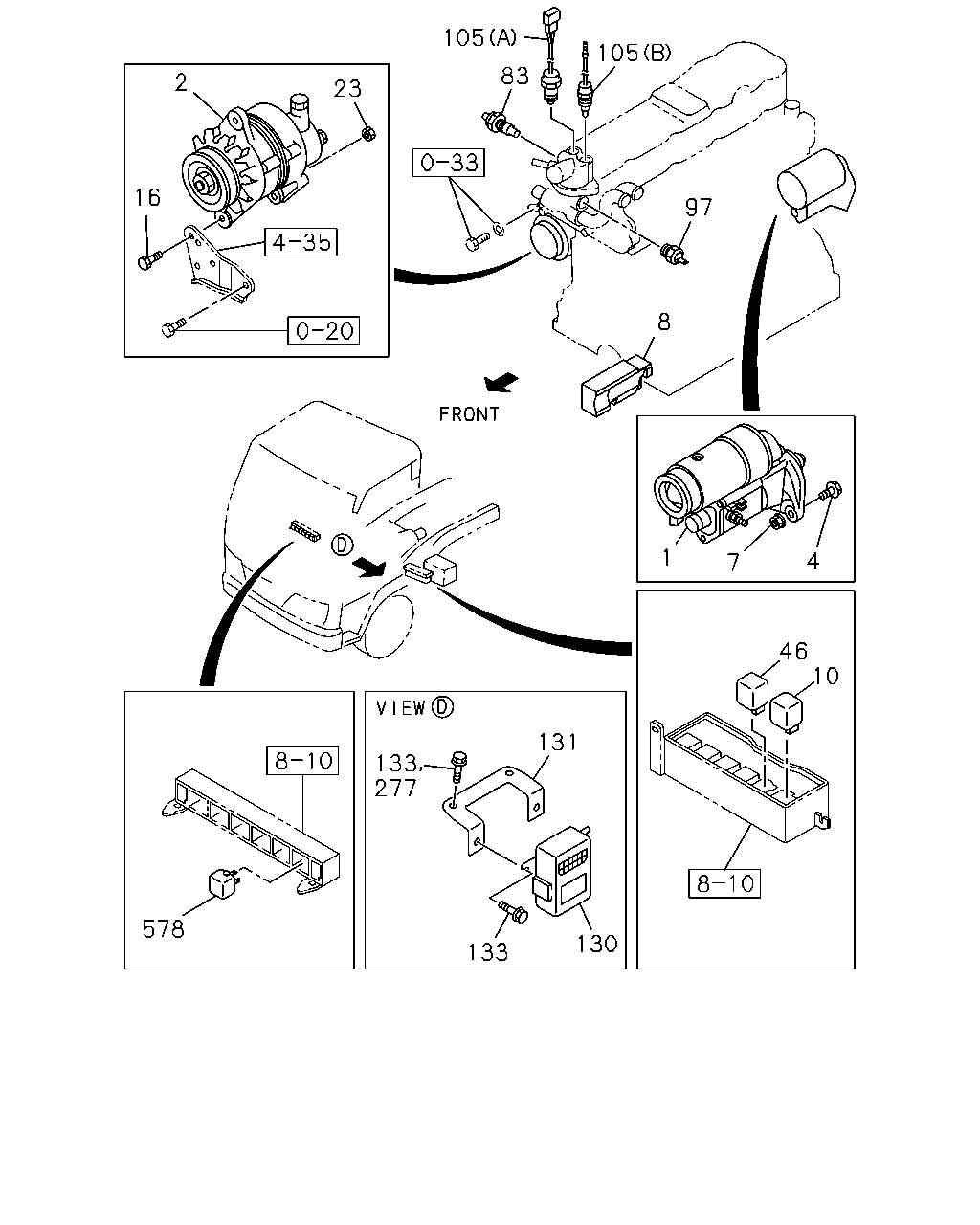

çizim 45592
105 105 83 2 23 16 97 8 1 4 7 46 10 131 133 277 578 130 133
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0201- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74) 12V 50A 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 60A 		8-97187-658-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0201- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-0012 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0101-0105 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0106- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811- ● ● ●
8 02.042 SPACER; STARTER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97210-762-0 01 1 9811-9902 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0112 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ● ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0106-0112 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0201- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ● ● ● ●
97 01.150 SWITCH; THERMO,EGR CONT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94368-591-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
COLOMBIA EQUIPMENT(X74) EXC. TURBOCHARGER<K51> 		8-97068-804-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) (B) 		8-94457-511-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> (B) 		8-94457-511-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0106- ● ●
130 02.510 CONTROLLER; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97201-734-3 01 1 9811- ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-813-1 01 1 9811- ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 04 1 9811-9904 ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9905- ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9905- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 0201- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0201- ● ● ● ●

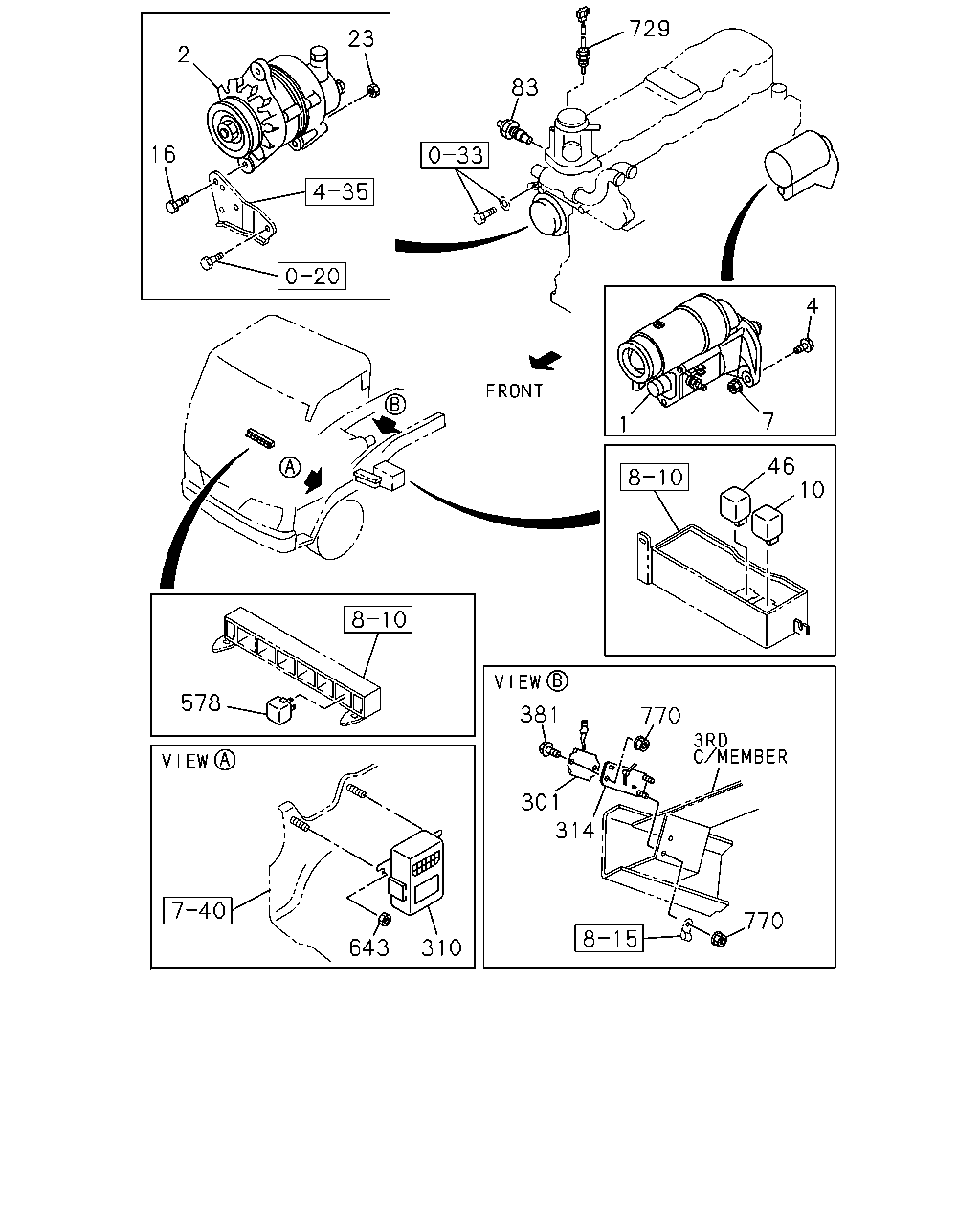

çizim 45640
729 23 2 83 16 4 7 1 46 10 578 381 770 301 314 770 643 310
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0201- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74) 12V 50A 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 60A 		8-97187-658-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0201- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-0012 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0101-0105 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0106- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811- ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0112 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ● ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0106-0112 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0201- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ● ● ● ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 		8-94389-802-1 01 1 9811- ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 9811- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9811- ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 0201- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0201- ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9811- ● ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9811- ●

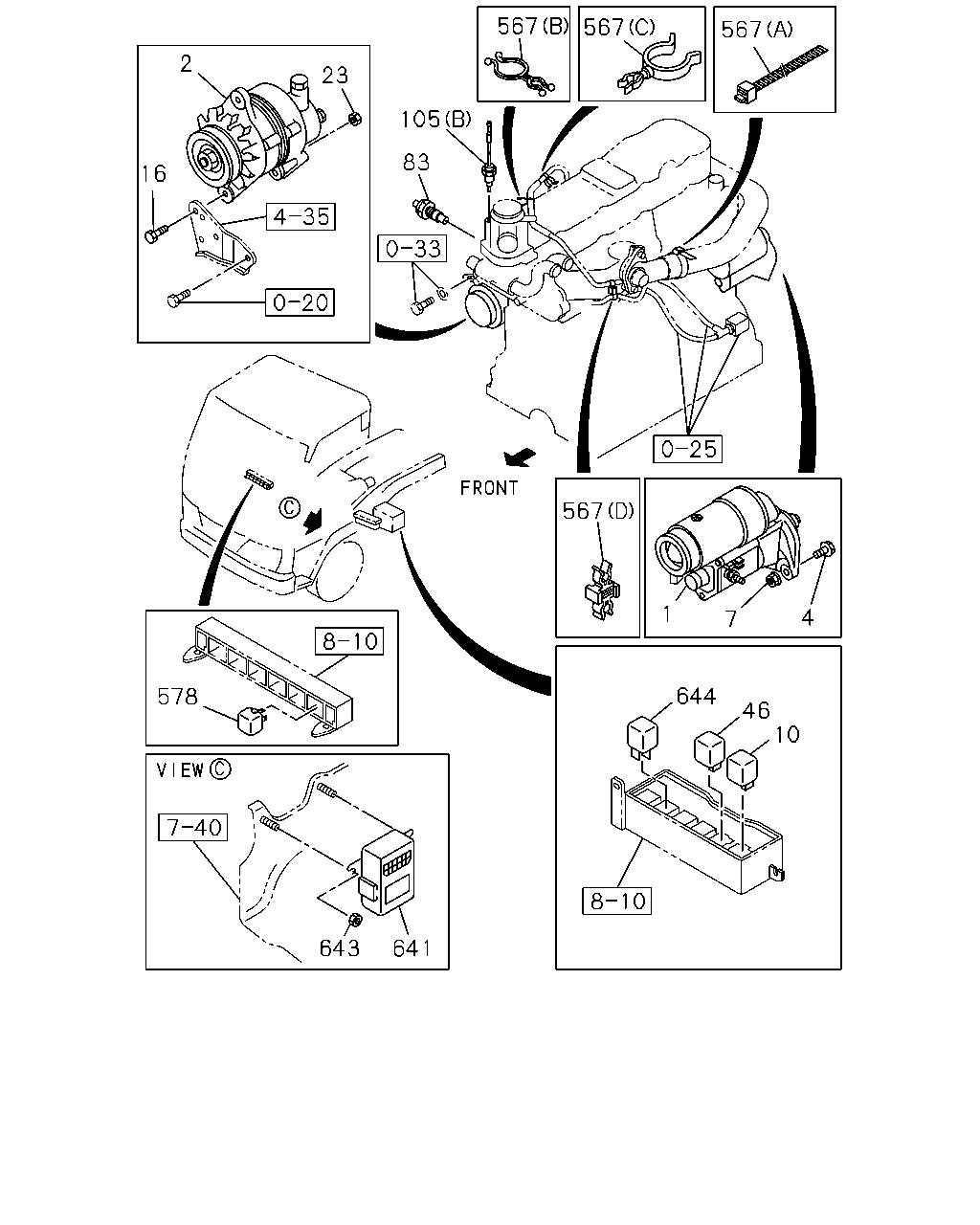

çizim 47389
567 567 567 2 23 105 83 16 567 1 4 7 644 578 46 10 643 641
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0201- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74) 12V 50A 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 60A 		8-97187-658-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0201- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-0012 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0101-0105 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0106- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811- ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0112 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ● ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0106-0112 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0201- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ● ● ● ●
105 01.150 SWITCH; THERMO,QOS
COLOMBIA EQUIPMENT(X74) EXC. TURBOCHARGER<K51> 		8-97068-804-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) (B) 		8-94457-511-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> (B) 		8-94457-511-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0106- ● ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (E) ID=23.6 		8-94315-427-0 01 1 9811-9901 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (E) ID=23.6 		8-94315-427-0 02 1 9902-9904 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9811-9812 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9901-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9811-9812 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9901-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 02.559 (A) L=300 		1-09707-001-1 01 1 9811-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (B) ID=8 & 16 		5-09707-032-0 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 0201- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0201- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9811- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9811- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> 08.852 12V 20A 		8-97060-926-1 01 1 9811-9812 ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 08.852 12V 20A 		8-97060-926-1 01 1 9901- ●
çizim 47936
16 23 2 83 435 129 435 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0201- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74) 12V 50A 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 60A 		8-97187-658-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0201- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-0012 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0101-0105 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0106- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0112 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ● ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0201- ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0201- ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0201- ●

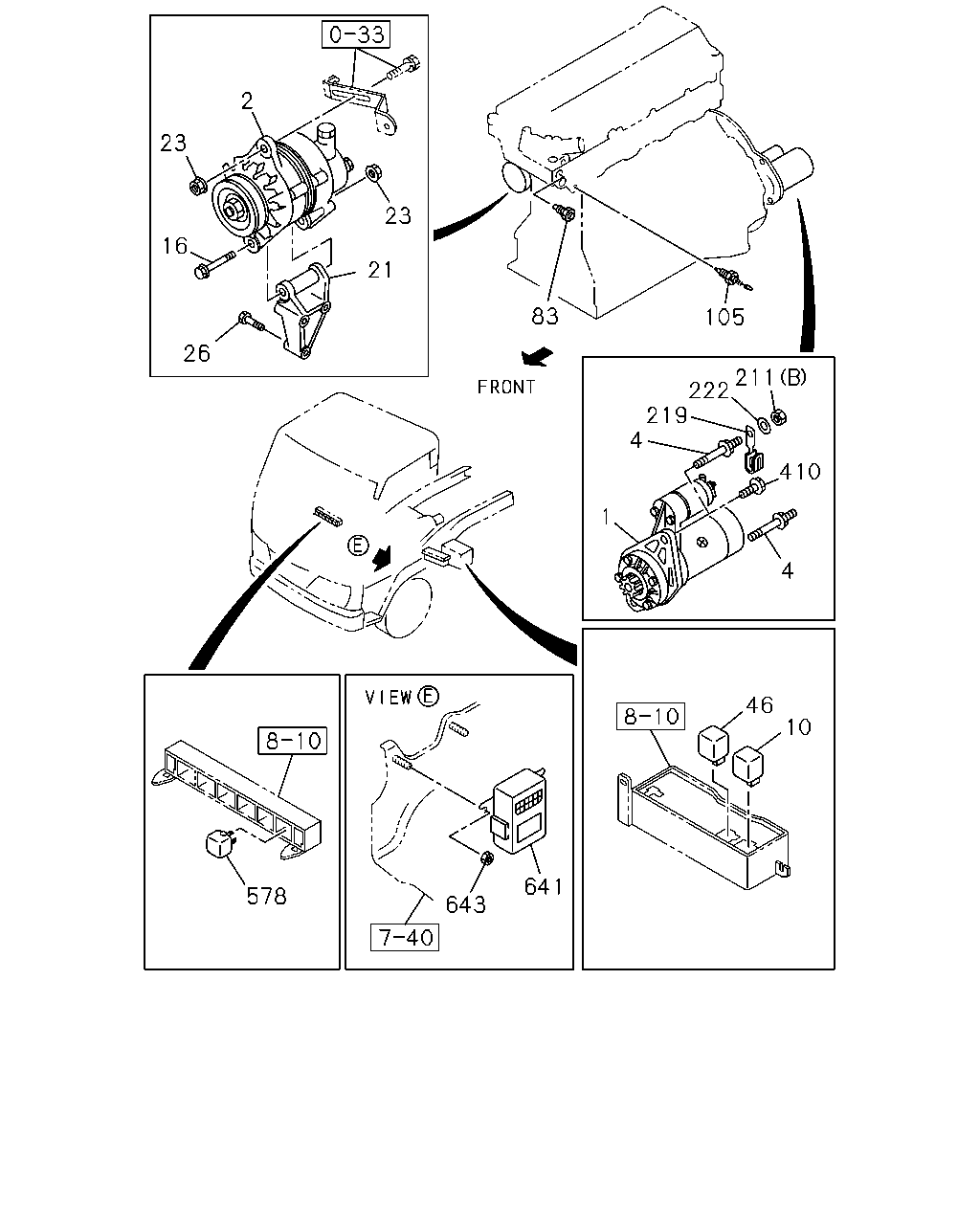

çizim 47997
2 23 23 16 21 83 105 26 211 222 219 4 410 1 4 46 10 641 578 643
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0201- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0201- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74) 12V 50A 		8-97187-657-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 60A 		8-97187-658-1 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0201- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-0012 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0101-0105 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0106- ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9811-0105 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0106- ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0112 ● ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ● ●
23 02.277 NUT; GEN
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9811-0105 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0106- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9811-0105 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811- ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0106-0112 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0201- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0112 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ● ● ● ●
105 01.150 SWITCH; THERMO,QOS
COLOMBIA EQUIPMENT(X74) EXC. TURBOCHARGER<K51> 		8-97068-804-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-94336-668-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) (B) 		8-94457-511-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
TURBOCHARGER<K51> (B) 		8-94457-511-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0106- ● ●
211 02.343 NUT; CABLE FIX
04.594 (A),(C) M6 FLANGE 		0-91150-106-0 01 1 9811- ●
211 02.343 NUT; CABLE FIX
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A),(C) M6 FLANGE 		0-91150-106-0 01 1 9811- ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97101-436-0 01 1 9811- ●
222 03.485 WASHER; PL,CONT CABLE
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 9811- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9811-0012 ● ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0101-0105 ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0106- ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 0201- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0112 ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0201- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9811- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9811- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
