0-57 — EMISSION PIPING (#43212) — 127 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	93	03.675 HOSE ASM TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97216-313-0	01	1	9811-	●

17 1 17 16 12 681 15 17

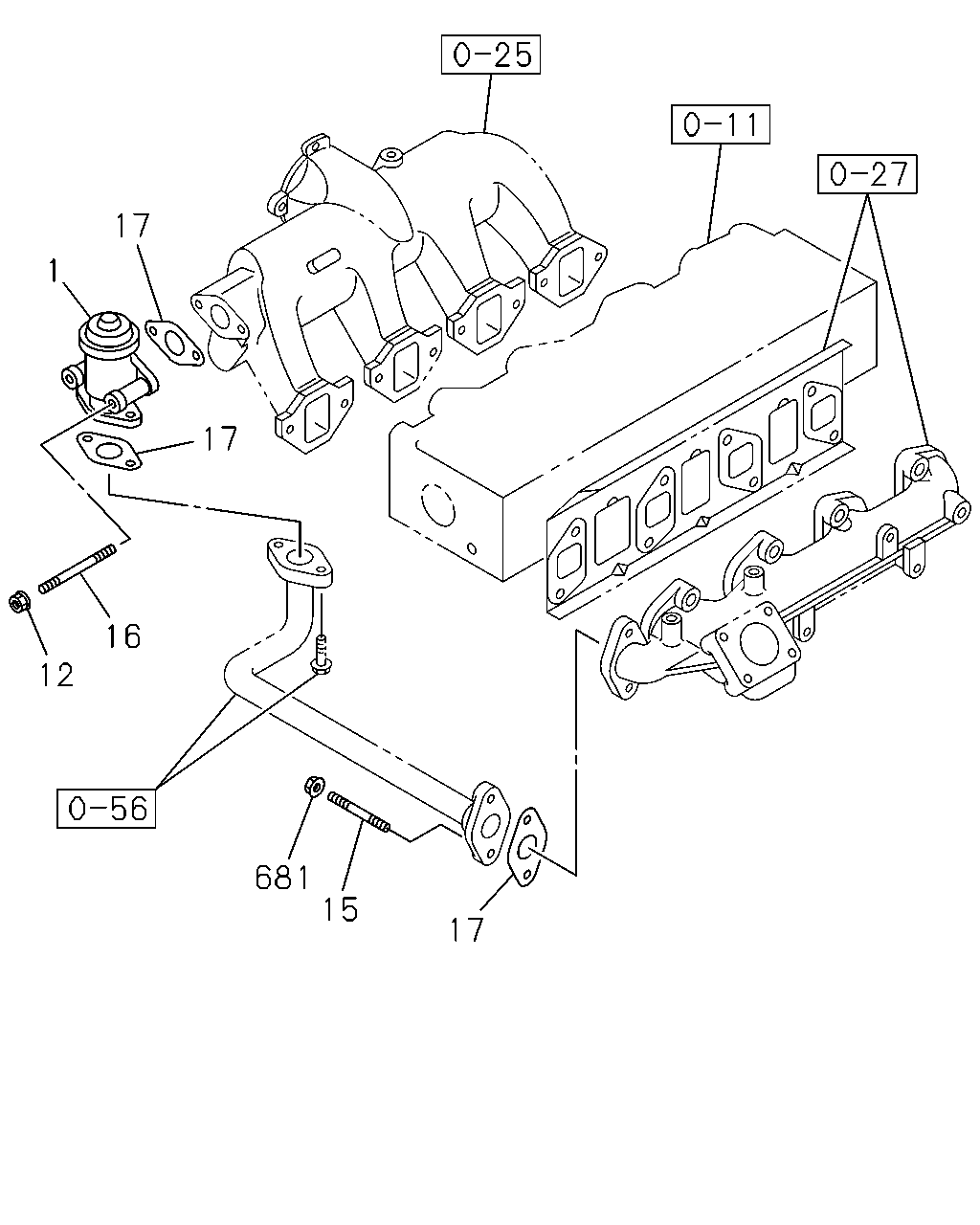

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-656-3	01	1	9811-0112	●
1	03.670 VALVE; EGR TURBOCHARGER<K51>	8-97208-656-3	01	1	0201-	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0201-		●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0112	●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	0201-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0201-		●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0201-		●
15	03.670 STUD; EGR PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M8X25 L=36	8-94156-470-2	02	1	9811-	●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.413 M8X55 L=67	9-04110-855-0	02	1	9811-0112	●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> 00.413 M8X55 L=67	9-04110-855-0	02	1	0201-	●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0201-		●
17	03.665 GASKET; EGR PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97192-765-0	03	1	9811-	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0201-		●
681	03.671 NUT; EGR PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-	●

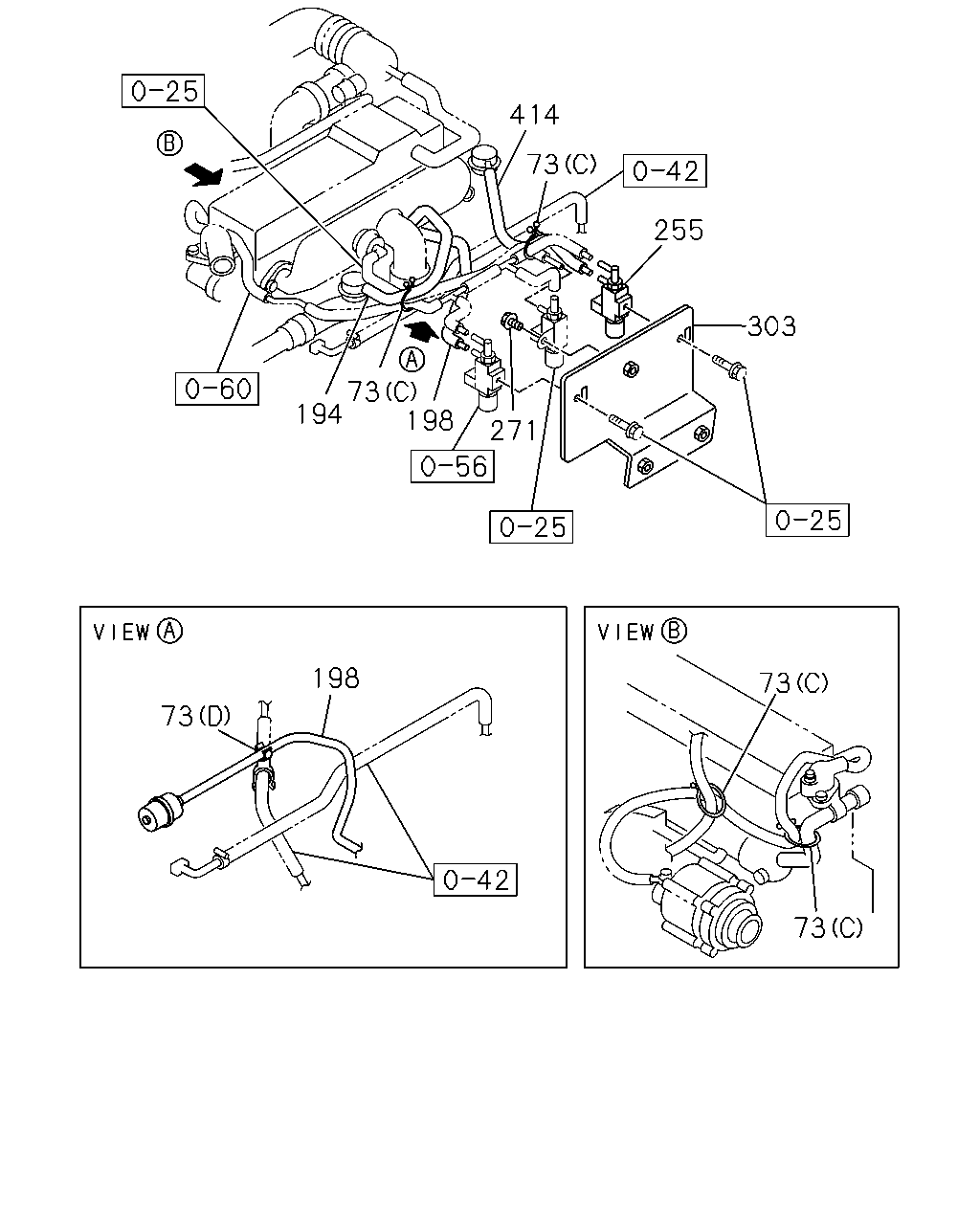

414 73 255 303 73 194 198 271 198 73 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 16.065 (A) ID=20	1-09709-068-0	01	1	0108-			●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.278 (C) ID=37	8-94481-468-0	03	1	9811-9812	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.278 (C) ID=37	8-94481-468-0	01	1	9901-	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (C) ID=30	8-94315-423-0	03	1	9901-	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D) ID=16.5 & 7	8-97226-171-0	01	1	9902-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 16.065 (A) ID=20	1-09709-068-0	02	1	9811-0105			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE REAR VERTICAL<KJ3> 16.065 (A) ID=20	1-09709-068-0	02	1	0106-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE REAR VERTICAL<KJ3> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0106-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 16.065 (A) ID=20	1-09709-068-0	01	1	0006-0105			●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0201-		●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0201-		●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0201-		●
194	03.675 HOSE; VAC TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-495-0	01	1	9811-	●
198	03.675 HOSE; VAC,VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.670	8-97208-487-0	01	1	9811-9901	●
198	03.675 HOSE; VAC,VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> L=300 SERVICED BY L=3000	0-04930-300-0	01	1	9902-	●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97171-030-0	01	1	9811-0112	●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97171-030-0	01	1	0201-	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0201-		●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0201-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0201-		●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-	●
303	03.671 BRACKET; VAC SW	8-97240-156-1	01	1	0201-0211		●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0212-		●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-103-1	01	1	9811-9901	●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-561-0	01	1	9902-	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97194-944-0	01	1	9811-9812	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97224-049-0	01	1	9901-0006	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97259-489-0	01	1	0007-	●

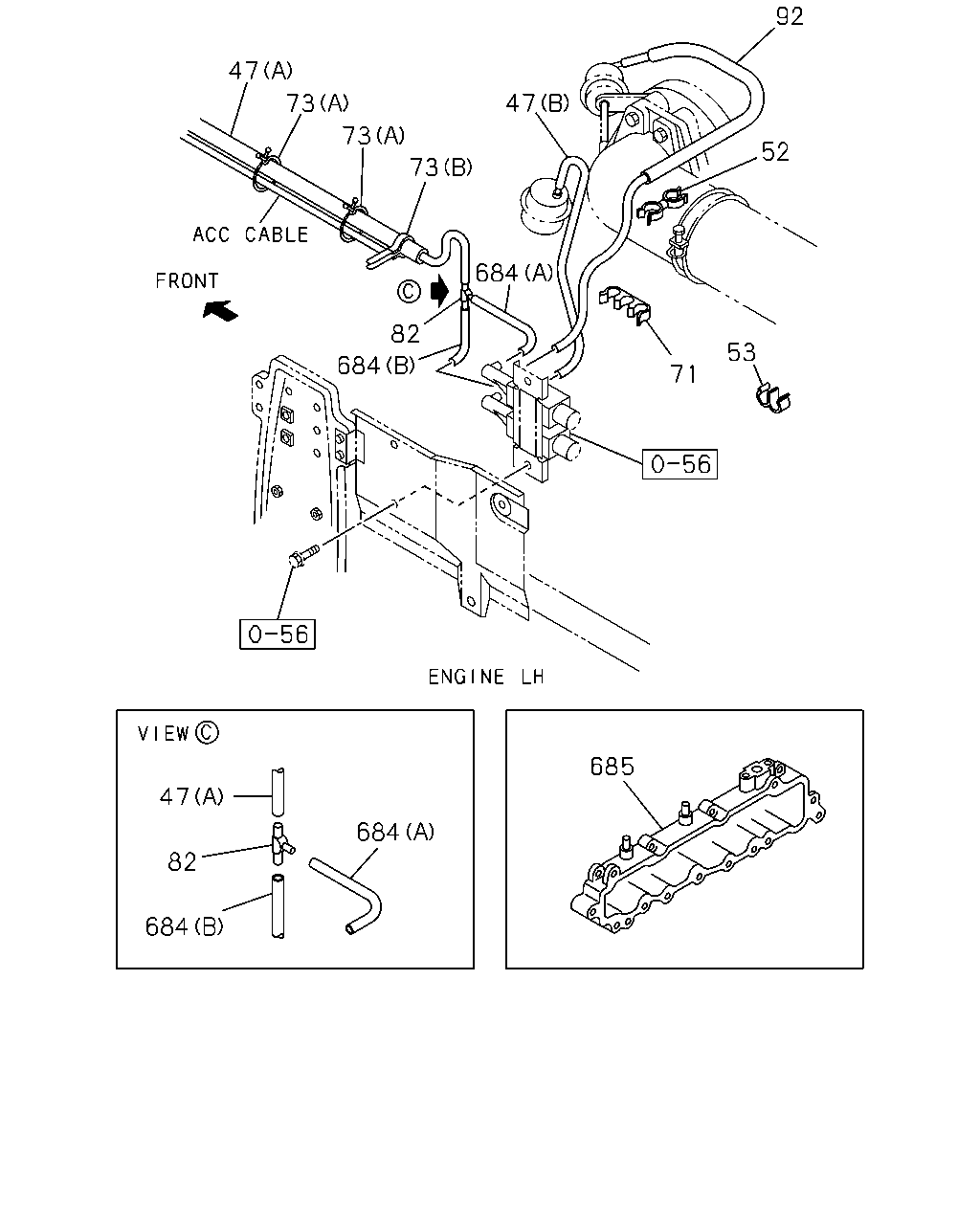

92 47 47 73 73 52 73 684 82 53 684 71 685 47 684 82 684

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=930	8-97089-489-1	01	1	9811-0005			●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> AIR INTAKE REAR VERTICAL<KJ3> (A) L=930	8-97089-489-1	01	1	0006-			●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97258-180-0	01	1	0006-0105			●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97258-180-0	01	1	0108-			●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0201-		●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0201-		●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0201-		●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0201-		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	9811-			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2	8-94126-636-0	01	1	9811-			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9811-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 16.065 (A) ID=20	1-09709-068-0	01	1	0108-			●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.278 (C) ID=37	8-94481-468-0	03	1	9811-9812	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.278 (C) ID=37	8-94481-468-0	01	1	9901-	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (C) ID=30	8-94315-423-0	03	1	9901-	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-	●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (D) ID=16.5 & 7	8-97226-171-0	01	1	9902-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 16.065 (A) ID=20	1-09709-068-0	02	1	9811-0105			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE REAR VERTICAL<KJ3> 16.065 (A) ID=20	1-09709-068-0	02	1	0106-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE REAR VERTICAL<KJ3> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0106-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 16.065 (A) ID=20	1-09709-068-0	01	1	0006-0105			●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	9811-			●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520	8-97089-490-2	01	1	9811-			●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
685	03.680 CASE; INLET,EGR	8-97146-873-0	01	1	9811-0105			●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0106-		●	●

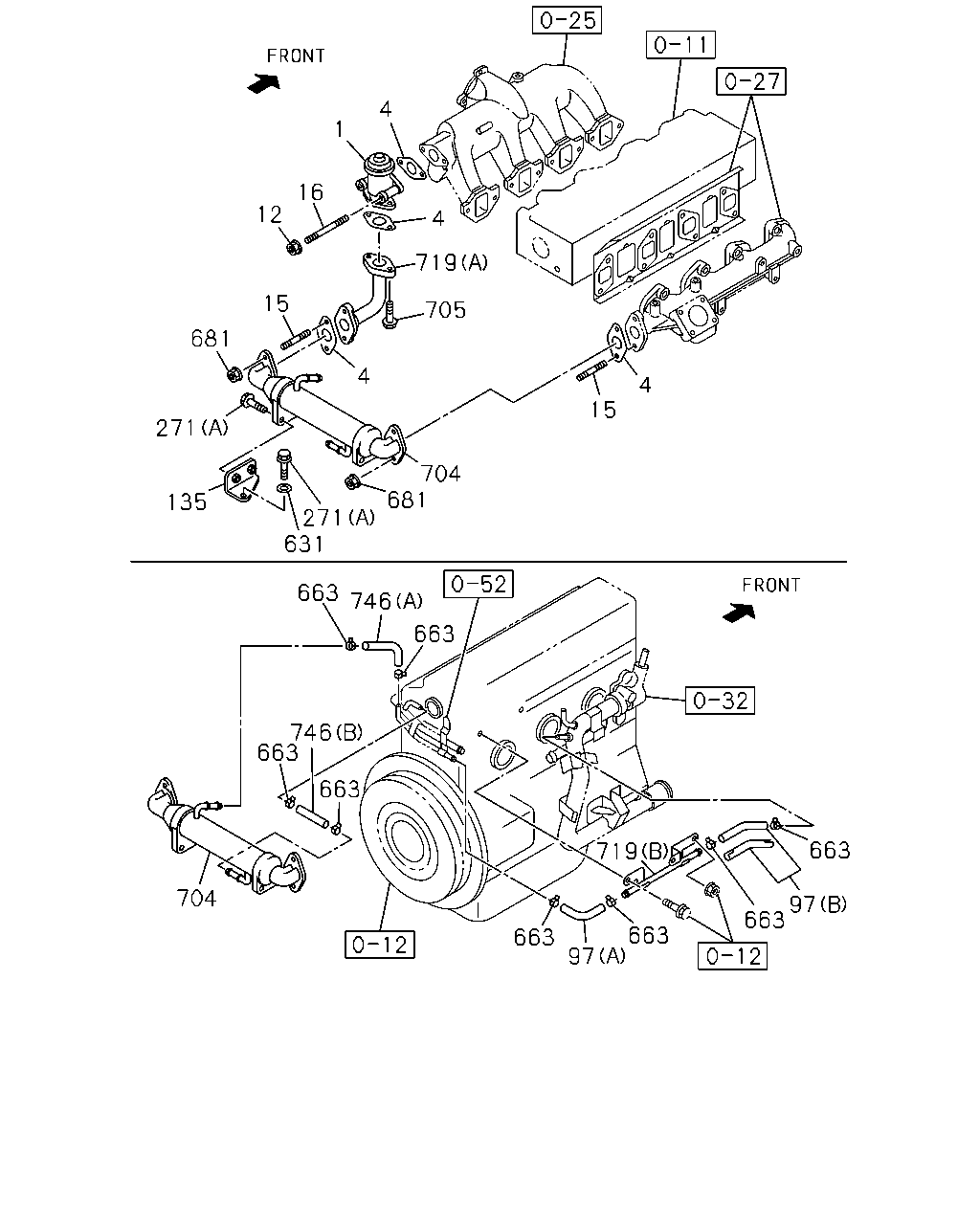

4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 663 746 663 746 663 663 719 663 704 97 663 663 663 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-656-3	01	1	9811-0112	●
1	03.670 VALVE; EGR TURBOCHARGER<K51>	8-97208-656-3	01	1	0201-	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0201-		●
4	03.671 GASKET; EGR VLV 03.665	8-97192-765-0	04	1	0201-		●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0112	●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	02	1	0201-	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0201-		●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0201-		●
15	03.670 STUD; EGR PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M8X25 L=36	8-94156-470-2	02	1	9811-	●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.413 M8X55 L=67	9-04110-855-0	02	1	9811-0112	●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> 00.413 M8X55 L=67	9-04110-855-0	02	1	0201-	●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0201-		●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0201-		●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0201-		●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0201-		●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0201-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0201-		●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-	●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0201-		●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0201-		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0201-		●
681	03.671 NUT; EGR PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-	●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0201-		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-		●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0201-		●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0201-		●
746	03.675 HOSE; WATER,EGR COOLER 03.342 (B) L=90 SERVICED BY L=3000	0-03259-300-0	01	1	0201-0204		●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0205-		●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0201-		●

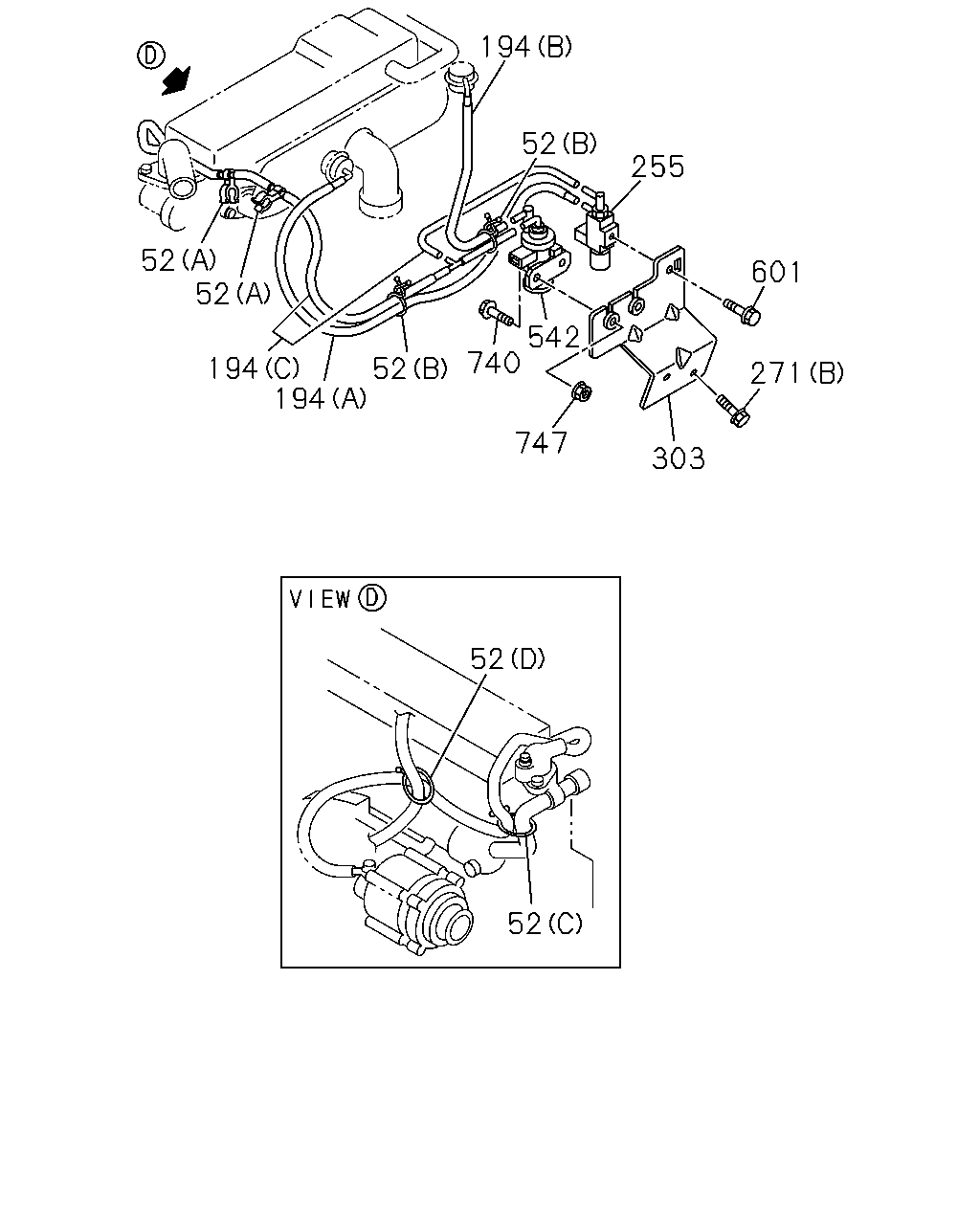

194 52 255 52 52 601 542 740 194 194 52 271 747 303 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0201-		●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0201-		●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0201-		●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0201-		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	9811-			●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0201-		●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0201-		●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0201-		●
194	03.675 HOSE; VAC TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-495-0	01	1	9811-	●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97171-030-0	01	1	9811-0112	●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97171-030-0	01	1	0201-	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0201-		●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0201-		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0201-		●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-	●
303	03.671 BRACKET; VAC SW	8-97240-156-1	01	1	0201-0211		●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0212-		●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-103-1	01	1	9811-9901	●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-561-0	01	1	9902-	●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0201-		●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0201-		●
740	03.680 BOLT; VAC REG VALVE 09.190 M6X30 FLANGE	0-28680-630-0	02	1	0201-0211		●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0212-		●
747	03.671 NUT; VAC REG VALVE 04.594 M6 FLANGE	0-91150-106-0	02	1	0201-0211		●
