0-56 — EMISSION SYSTEM (#43211) — 8 parça

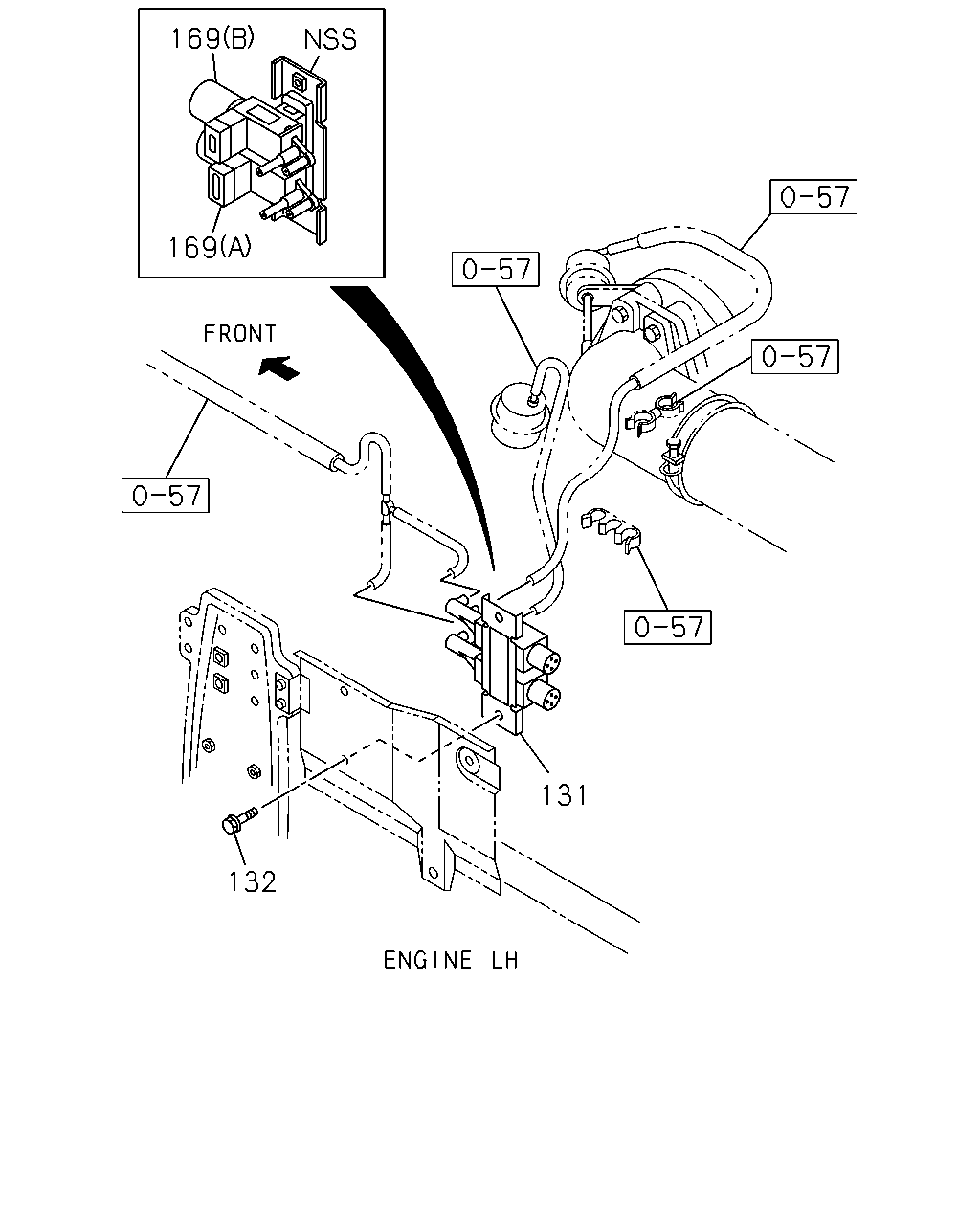

çizim 7548

169 169 131 132

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9811-	●
	131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9811-	●
	132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-	●
	169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9811-	●
	169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	9811-	●

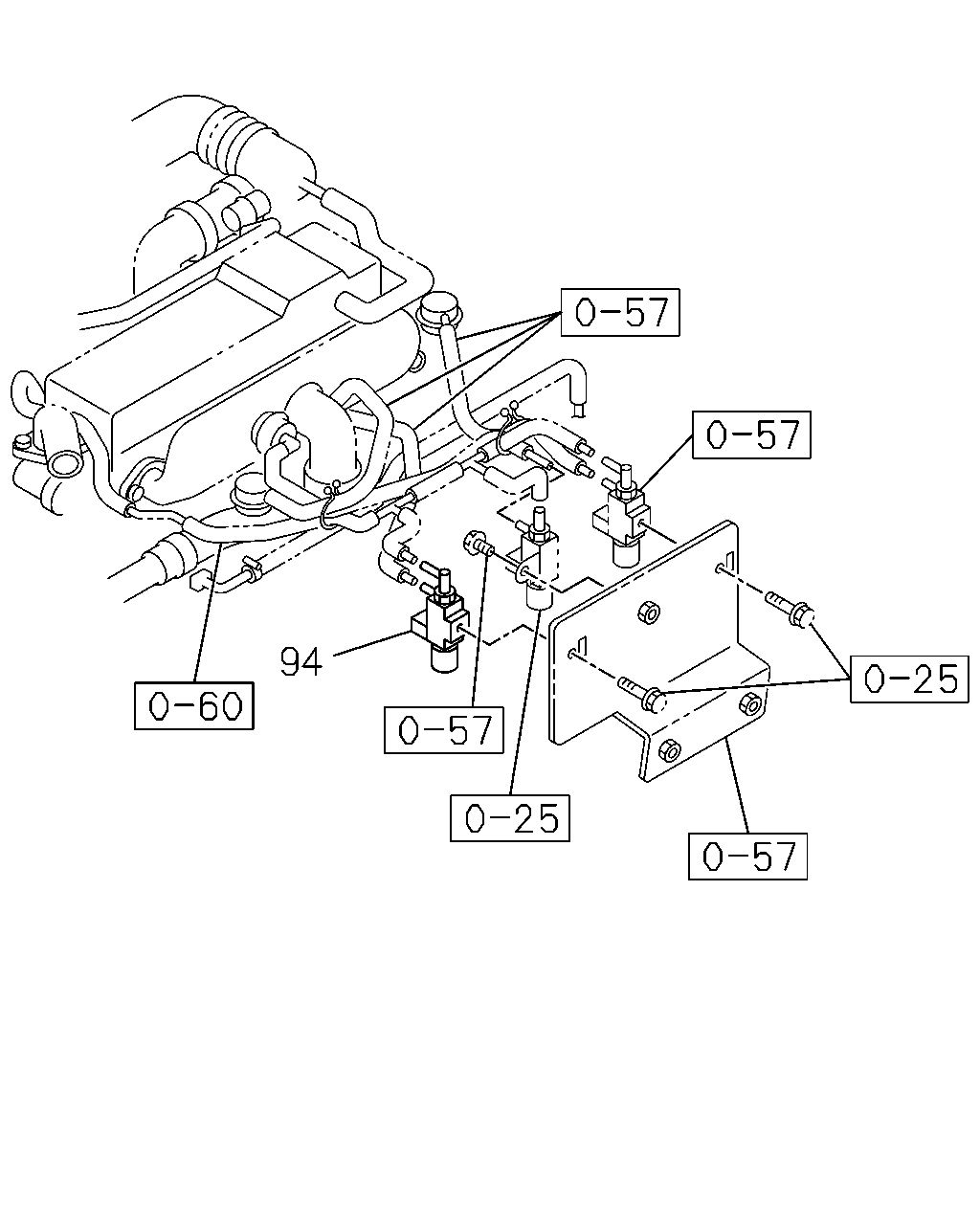

çizim 10717

94

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	94	03.670 VALVE; VAC SWITCH,FAST IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-94384-335-0	01	1	9811-		●

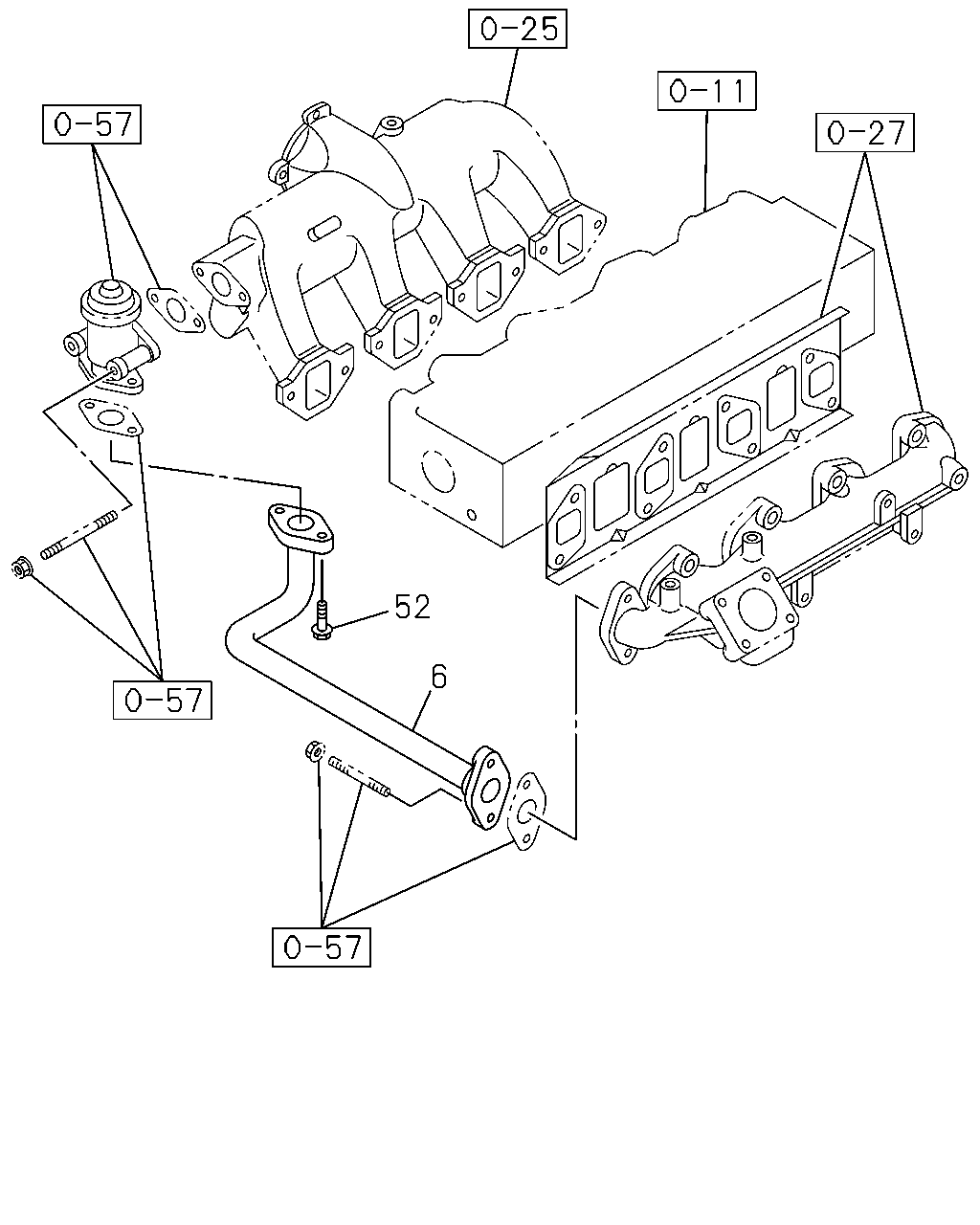

çizim 12537

52 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	03.675 PIPE; EGR TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97208-682-1	01	1	9811-		●
	52	03.680 BOLT; EGR PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-		●
