◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#43210) — 314 parça

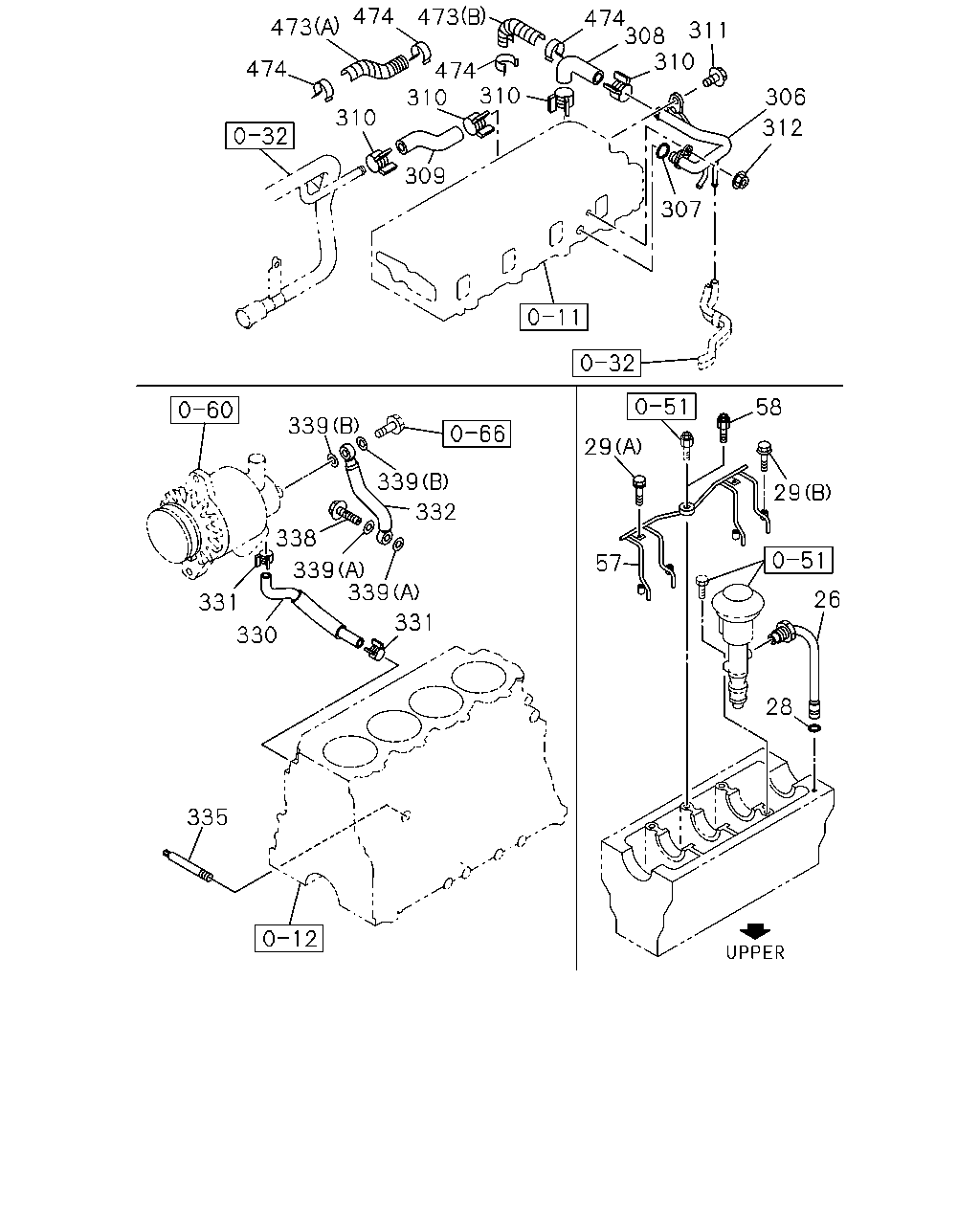

çizim 45229
474 473 474 308 310 473 311 474 474 306 310 312 309 307 58 339 29 339 29 332 338 57 339 339 26 331 331 330 28 335 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 9811- ● ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0201-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0201- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-9812 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-9812 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9901-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9901-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9811-9812 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0201- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-2 01 1 9811- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 9811- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 9811- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0201- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 		8-97145-612-0 01 1 9811-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 01.639 		8-97311-976-0 01 1 0105- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0201- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-1 01 1 9902-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97225-604-1 01 1 9902-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97169-754-1 01 1 9811- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
. 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
. 		8-97264-168-0 01 1 0201- ● ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0201- ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0201- ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0201- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9811- ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-0 01 1 9811- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94174-464-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0201- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9811-9812 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-138-0 01 1 9901- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97224-318-0 01 1 9901- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0201- ● ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0201- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0201- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ● ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ● ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811- ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811- ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811- ● ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811- ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811- ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811- ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ● ● ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0201- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0201- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811- ●

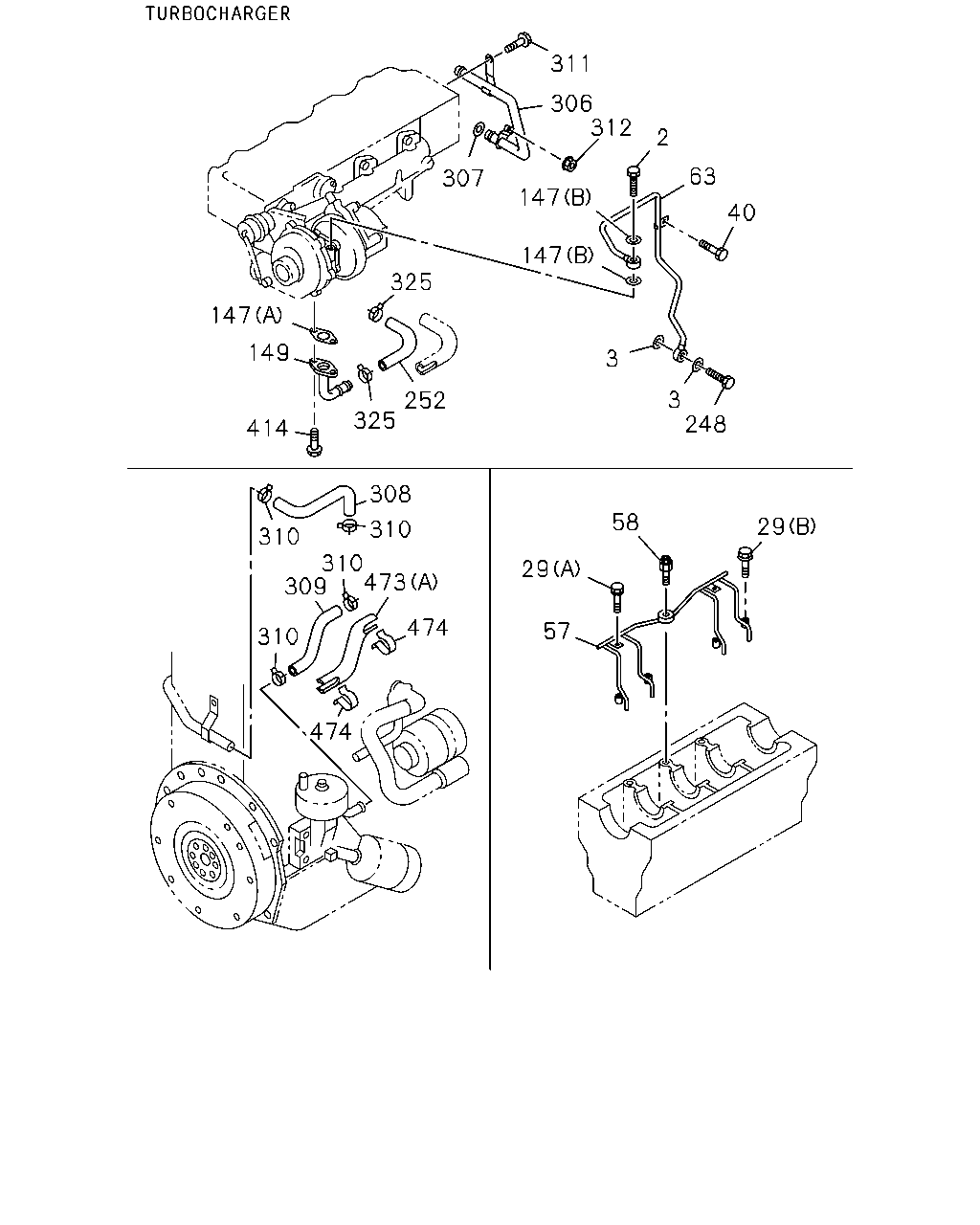

çizim 45967
311 306 312 2 63 307 147 40 147 325 147 149 3 3 248 252 325 414 308 58 29 310 310 310 309 473 29 474 57 310 474
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0201- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0201-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0201- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-9812 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-9812 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9901-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9901-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9811-9812 ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0201- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-2 01 1 9811- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 9811- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 9811- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0201- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 		8-97145-612-0 01 1 9811-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 01.639 		8-97311-976-0 01 1 0105- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-198-0 01 1 9811-9812 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97224-297-0 01 1 9901- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97214-267-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.358 (A) 		8-94362-672-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A) ID=14 		8-97041-638-0 01 1 9811-0112 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>. (A) ID=14 		8-97041-638-0 01 1 0201- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 0201- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0201- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97192-313-0 01 1 9811- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97166-389-0 01 1 9811- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0201- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0201- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-1 01 1 9902-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97225-604-1 01 1 9902-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97169-754-1 01 1 9811- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
. 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
. 		8-97264-168-0 01 1 0201- ● ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0201- ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0201- ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0201- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9811- ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-0 01 1 9811- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94174-464-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0201- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9811-9812 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-138-0 01 1 9901- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97224-318-0 01 1 9901- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0201- ● ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0201- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0201- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ● ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ● ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 06.672 ID=21 		8-94242-034-0 02 1 9811-9901 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 02 1 9902- ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0201- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9811- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0201- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0201- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811- ●

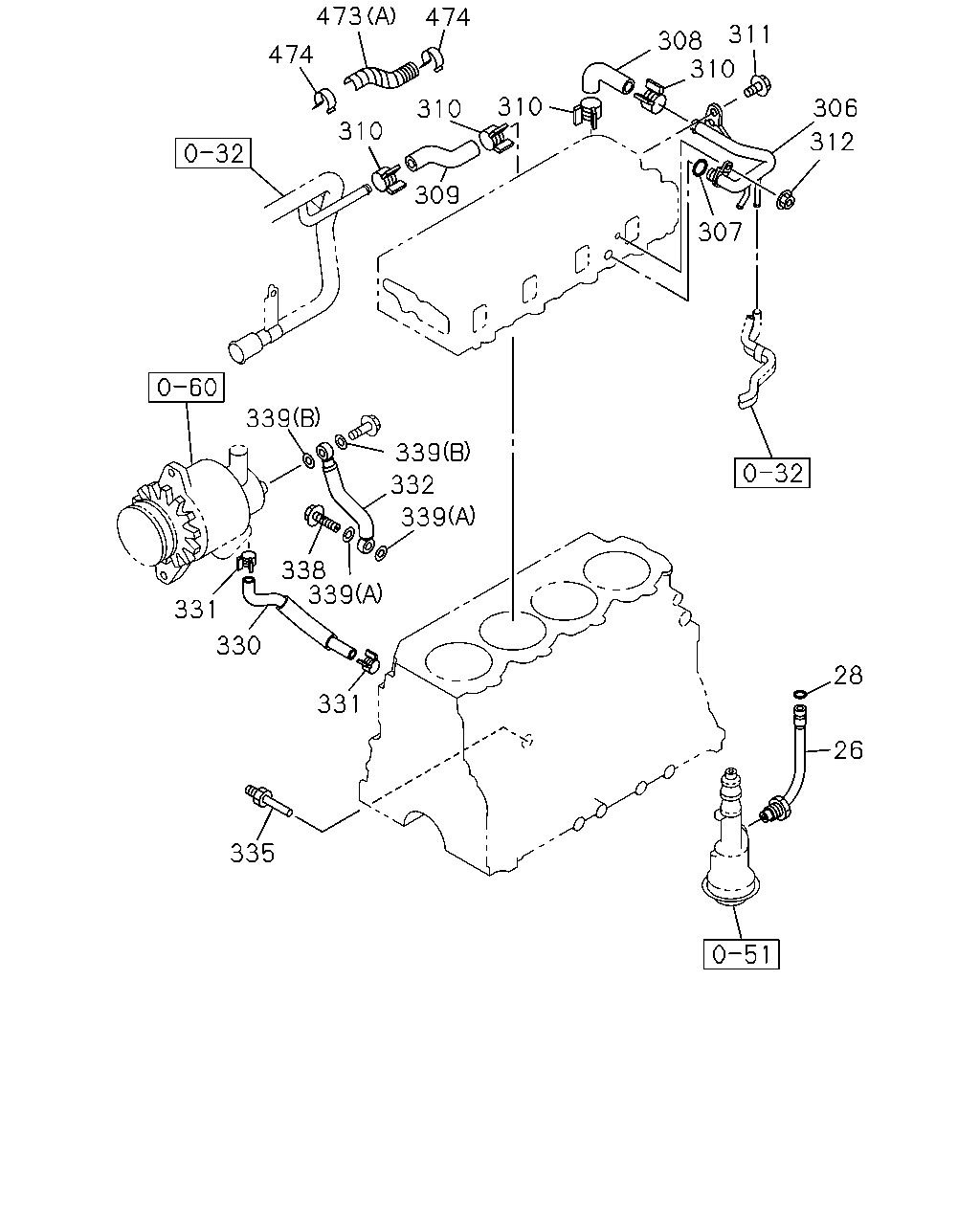

çizim 46750
473 474 311 308 310 474 310 306 310 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 9811- ● ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811- ● ● ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0201- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-1 01 1 9902-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97225-604-1 01 1 9902-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97169-754-1 01 1 9811- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
. 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106-0112 ●
307 01.531 GASKET; WATER PIPE
. 		8-97264-168-0 01 1 0201- ● ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0201- ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0201- ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0201- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9811- ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-0 01 1 9811- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94174-464-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0201- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9811-9812 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-138-0 01 1 9901- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97224-318-0 01 1 9901- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0112 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0201- ● ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0201- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0201- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0112 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ● ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0201- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0112 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ● ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0201- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811- ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811- ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811- ● ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811- ● ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811- ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811- ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ● ● ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0201- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0201- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811- ●
çizim 47395
3 3 3 1 2 3 2 27 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0201- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0002 ●
çizim 47426
202 89 65 86 202 89 202 83 202 65 27 340 157 480 472
BalonParca AdiParca NoAdetTipApplied Date A B C D
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9811- ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9811-9910 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-670-0 01 1 9911- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9811- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> 		8-97209-355-0 01 1 9811-0006 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9811- ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811-0003 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) 08.971 M10X7 		9-09202-310-0 02 1 9811-9901 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) M10X10 		1-09604-074-0 02 1 9902-0003 ●
çizim 47427
202 202 202 89 65 86 89 83 157 340 202 65 480 472
BalonParca AdiParca NoAdetTipApplied Date A B C D
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9811- ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97139-538-0 01 1 9811-9910 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-670-0 01 1 9911- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9811- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> 		8-97209-355-0 01 1 9811-0006 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9811- ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811-0003 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) 08.971 M10X7 		9-09202-310-0 02 1 9811-9901 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) M10X10 		1-09604-074-0 02 1 9902-0003 ●

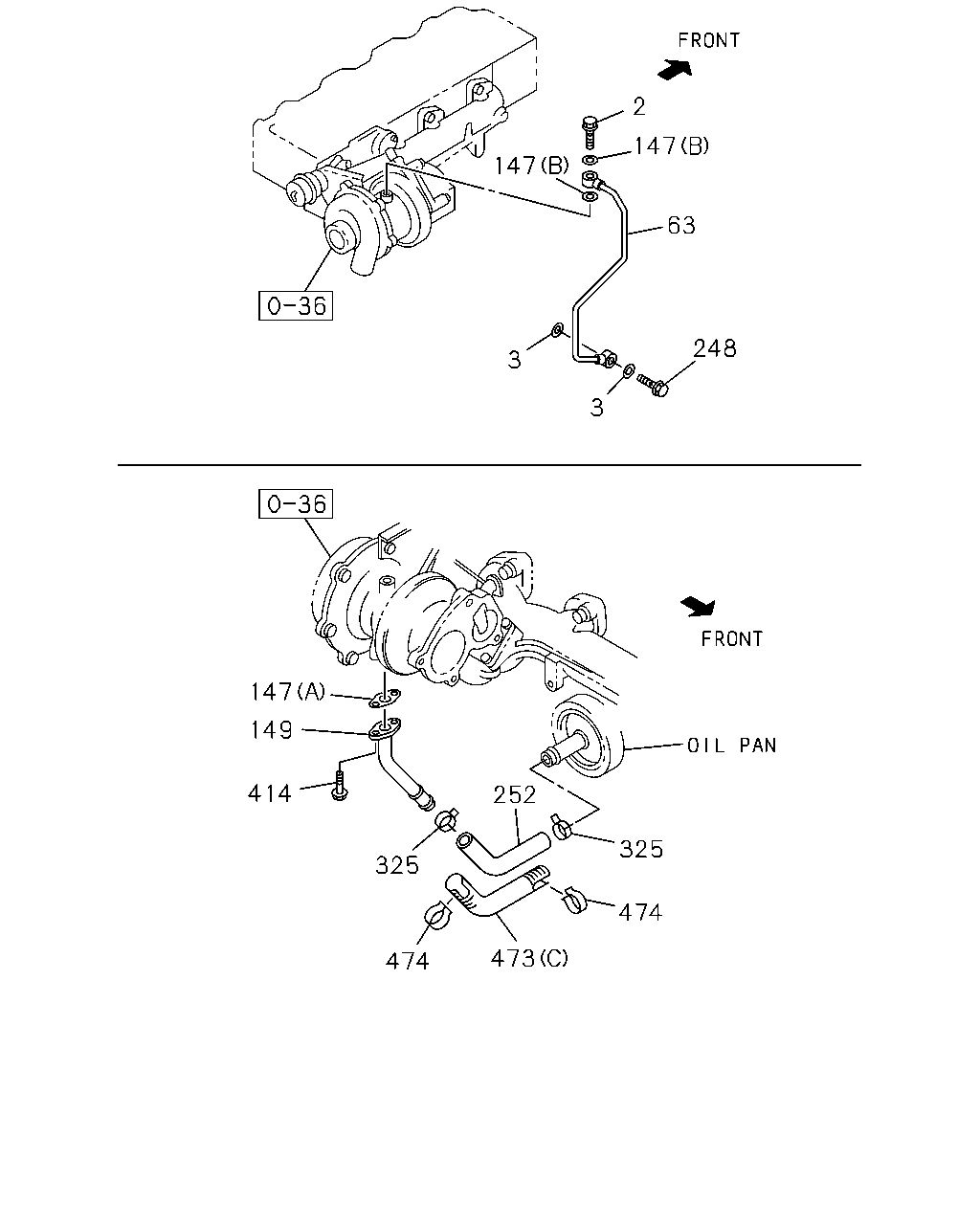

çizim 48592
2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0201- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97204-198-0 01 1 9811-9812 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97224-297-0 01 1 9901- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97214-267-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.358 (A) 		8-94362-672-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A) ID=14 		8-97041-638-0 01 1 9811-0112 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>. (A) ID=14 		8-97041-638-0 01 1 0201- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 0201- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0201- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97192-313-0 01 1 9811- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97166-389-0 01 1 9811- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0201- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 9811- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 06.672 ID=21 		8-94242-034-0 02 1 9811-9901 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 02 1 9902- ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0201- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9811- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0201- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9811- ● ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0201- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
