0-42 — FUEL PUMP AND PIPE (#43207) — 50 parça

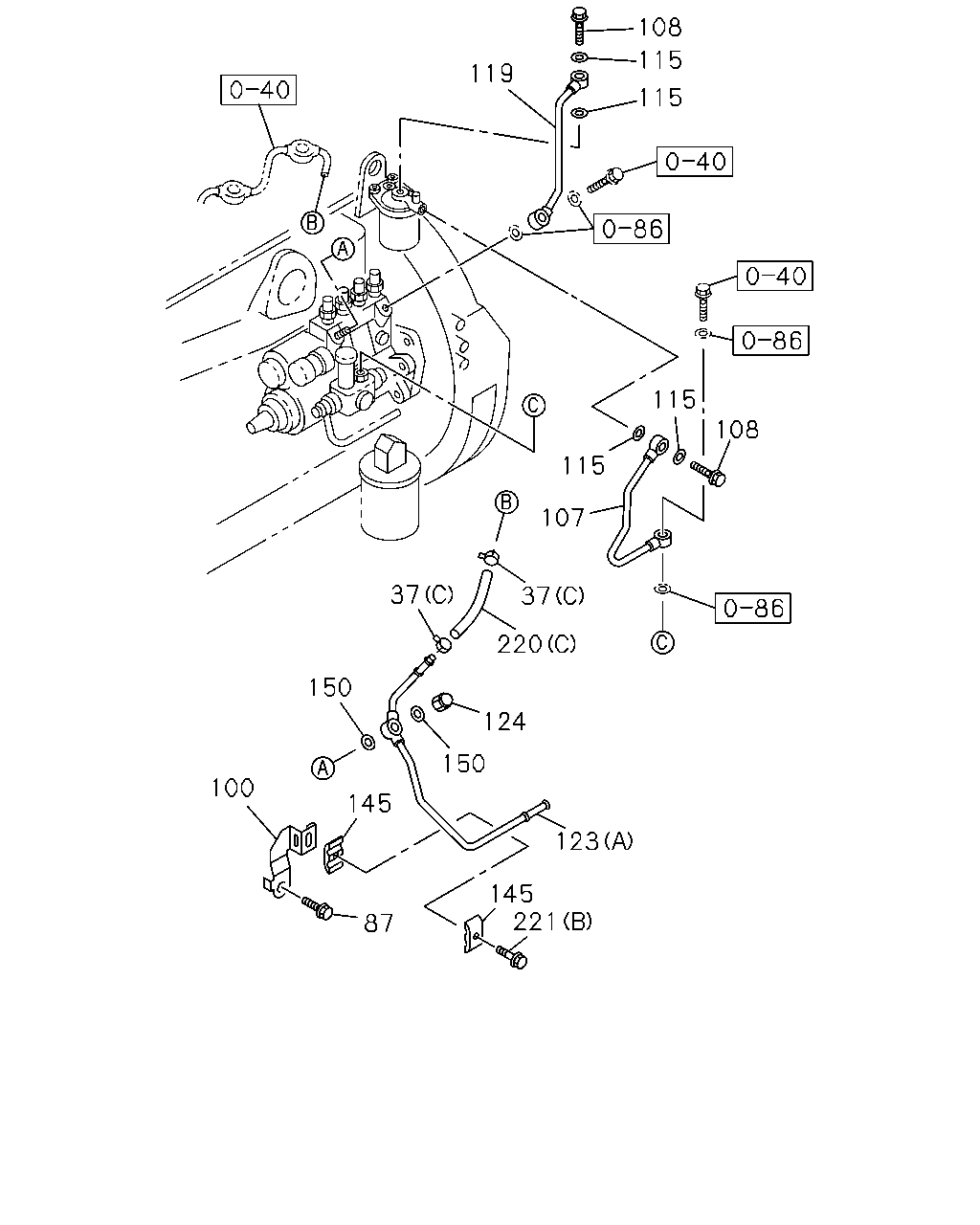

108 115 119 115 115 108 115 107 37 37 220 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	9811-
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 01.219 (B) ID=13	8-94238-571-0	02	1	9811-
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-
100	03.162 CLIP; "B",FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV)	8-97108-315-0	01	1	9811-
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. ENGINE POWER N-SPEC(7QV)	8-97088-046-3	01	1	9811-
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. ENGINE POWER N-SPEC(7QV)	8-97088-047-0	01	1	9811-
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-196-0	01	1	9811-
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97118-894-1	01	1	9811-
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	9811-
145	03.162 CLIP; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) (D)	8-97145-019-2	01	1	9811-9901
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) (D)	8-97118-903-0	01	1	9902-9902
220	03.163 HOSE; FUEL HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) (D)	8-97118-903-0	01	1	9903-
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	9903-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97087-227-1	01	1	9811-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-228-1	01	1	9811-
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) (B) M6X40 FLANGE	0-28680-640-0	01	1	9811-

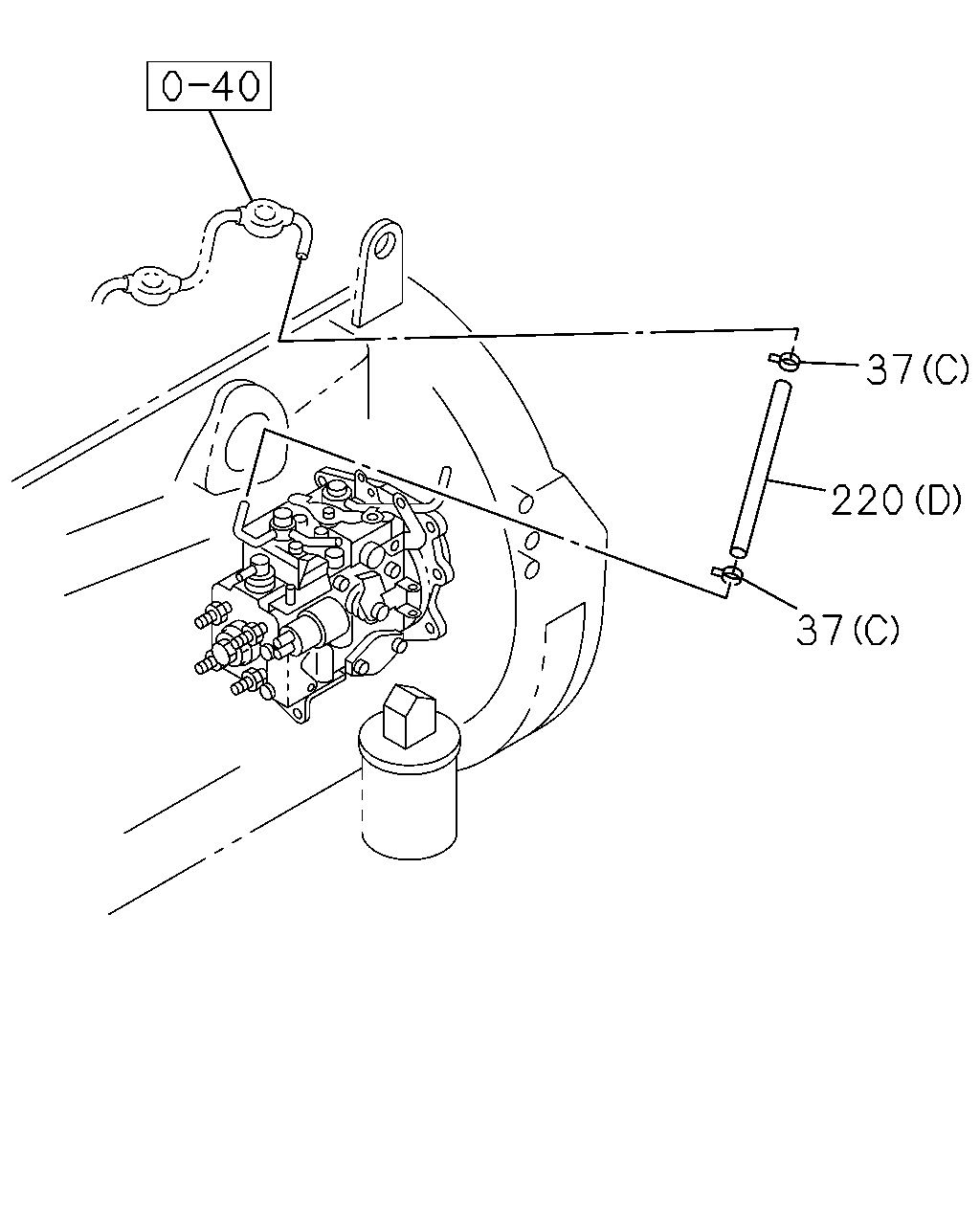

37 220 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	9811-
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 01.219 (B) ID=13	8-94238-571-0	02	1	9811-
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) (D)	8-97145-019-2	01	1	9811-9901
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) (D)	8-97118-903-0	01	1	9902-9902
220	03.163 HOSE; FUEL HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) (D)	8-97118-903-0	01	1	9903-
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	9903-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97087-227-1	01	1	9811-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-228-1	01	1	9811-

37 220 37 221 37 123 37 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	9811-
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 04.930 (A) ID=16	8-94238-568-0	02	1	9811-
37	03.162 CLIP; FUEL HOSE EXC. ENGINE POWER N-SPEC(7QV) 01.219 (B) ID=13	8-94238-571-0	02	1	9811-
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-196-0	01	1	9811-
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97118-894-1	01	1	9811-
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) (D)	8-97145-019-2	01	1	9811-9901
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) (D)	8-97118-903-0	01	1	9902-9902
220	03.163 HOSE; FUEL HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) (D)	8-97118-903-0	01	1	9903-
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (D)	8-97145-019-2	01	1	9903-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97087-227-1	01	1	9811-
220	03.163 HOSE; FUEL EXC. ENGINE POWER N-SPEC(7QV) (B)	8-97087-228-1	01	1	9811-
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) (B) M6X40 FLANGE	0-28680-640-0	01	1	9811-
