Isuzu WW
▶
TRUCKS
▶
NKR
▶
50809 - NKR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

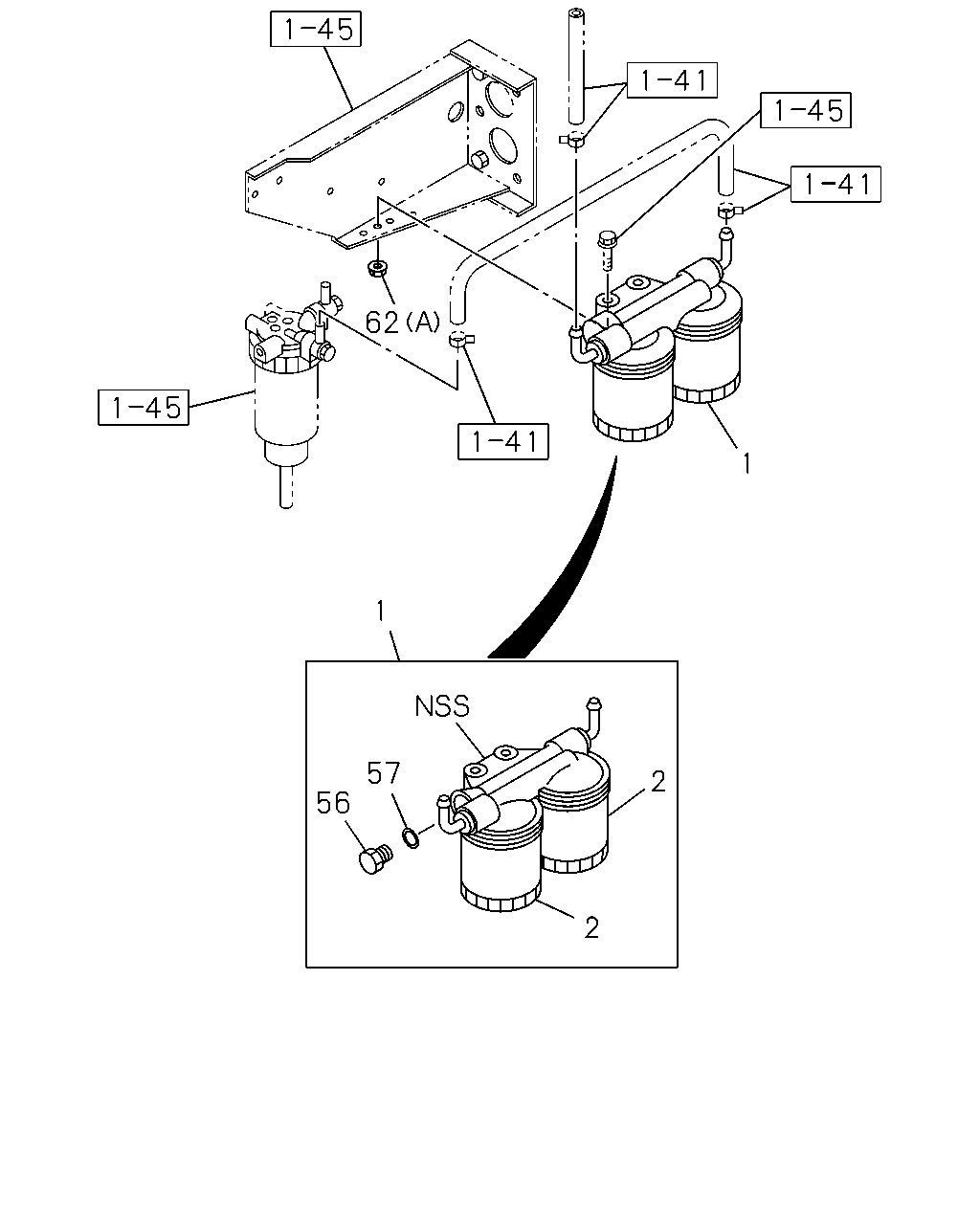

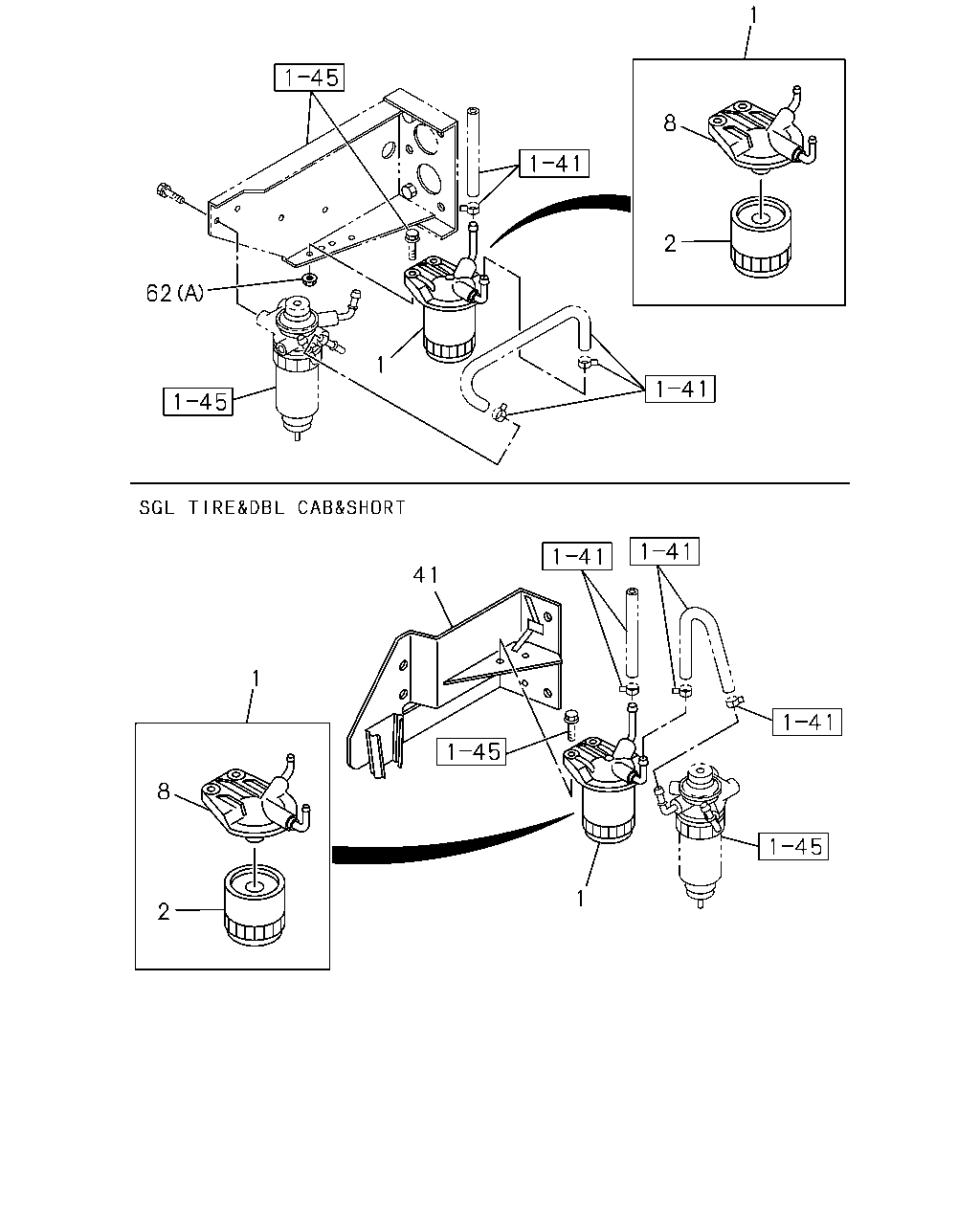

0-41 — FUEL FILTER AND BRACKET
(#43206) — 70 parça
Tümü
A - 4JH1 ENG
B - 4JG2 ENG
C - 4JB1 ENG
D - 4HF1 ENG
◀
[041A] 4HF1 (22 parça)
[041A] 4JG2,4JB1 EXC.FUEL FILTER DUAL (16 parça)
[041A] 4JH1 (18 parça)
[041A] 4JG2,4JB1 FUEL FILTER DUAL (14 parça)
▶
62
62
35
1
92
93
36
36
8
2
46
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU>
8-97240-124-0
01
1
0201-
●
1
03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B)
8-97070-864-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B)
8-97070-865-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
8-97171-451-2
01
1
9811-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94369-299-3
01
1
0201-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836
8-94144-613-0
02
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-94246-908-0
01
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-549-1
01
1
9811-
●
8
03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-97363-518-0
01
1
0106-
●
●
8
03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-94254-730-0
01
1
9811-0105
●
●
8
03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-543-1
01
1
9811-
●
35
03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B)
8-97070-864-0
01
1
9811-
●
36
03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836
8-94144-613-0
02
1
9811-
●
43
03.890 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE
0-28181-220-0
02
1
9811-0002
●
43
03.890 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE
0-28181-228-0
02
1
9811-
●
46
03.890 BRACKET
EXC. ENGINE POWER N-SPEC(7QV)
8-94313-323-1
01
1
9811-
●
62
03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE
0-91150-210-0
02
1
9811-
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
9811-
●
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
9811-0002
●
62
03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0003-
●
92
03.417 CAP; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-548-0
01
1
9811-
●
93
03.890 CONNECTOR; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-546-1
01
1
9811-
●
1
8
2
62
1
41
1
8
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU>
8-97240-124-0
01
1
0201-
●
1
03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B)
8-97070-864-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B)
8-97070-865-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
8-97171-451-2
01
1
9811-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94369-299-3
01
1
0201-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836
8-94144-613-0
02
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-94246-908-0
01
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-549-1
01
1
9811-
●
8
03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-97363-518-0
01
1
0106-
●
●
8
03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-94254-730-0
01
1
9811-0105
●
●
8
03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-543-1
01
1
9811-
●
41
03.890 BRACKET; FUEL FILTER
DBL CAB&SHORT(NK**WC)
8-97103-345-1
01
1
9811-
●
62
03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE
0-91150-210-0
02
1
9811-
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
9811-
●
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
9811-0002
●
62
03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0003-
●
1
2
5
6
112
3
112
112
66
66
7
7
72
88
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU>
8-97240-124-0
01
1
0201-
●
1
03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B)
8-97070-864-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B)
8-97070-865-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
8-97171-451-2
01
1
9811-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94369-299-3
01
1
0201-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836
8-94144-613-0
02
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-94246-908-0
01
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-549-1
01
1
9811-
●
3
03.890 SENSOR ASM; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-97079-821-0
01
1
0201-
●
5
03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94132-674-0
01
1
0201-
●
6
03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94132-675-0
01
1
0201-
●
7
03.890 PLUG; SENSOR,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-97123-549-0
01
1
0201-
●
40
03.890 BRACKET; FUEL FILTER
FRT INDEPENDENT SUSPENSION(6PP)
8-97240-698-2
01
1
0201-
●
40
03.890 BRACKET; FUEL FILTER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
8-97306-600-1
01
1
0201-
●
66
03.890 GASKET; PLUG,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94447-156-0
01
1
0201-
●
72
03.890 NUT; BRKT,FUEL FILTER
04.785 M10 FLANGE
0-91150-110-0
03
1
0201-
●
88
03.895 BOLT; BRKT,FUEL FILTER
00.685 M10X30 FLANGE
0-28081-030-0
02
1
0201-
●
112
06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927
9-09563-334-0
01
1
0201-
●
62
1
1
57
2
56
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU>
8-97240-124-0
01
1
0201-
●
1
03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B)
8-97070-864-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B)
8-97070-865-0
01
1
9811-
●
●
1
03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
8-97171-451-2
01
1
9811-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU>
8-94369-299-3
01
1
0201-
●
2
03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836
8-94144-613-0
02
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B)
8-94246-908-0
01
1
9811-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-549-1
01
1
9811-
●
56
03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B)
5-13226-001-0
01
1
0106-
●
●
57
03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0
9-09571-414-0
01
1
0106-
●
●
62
03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE
0-91150-210-0
02
1
9811-
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
9811-
●
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
9811-0002
●
62
03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0003-
●
