◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#43202) — 108 parça

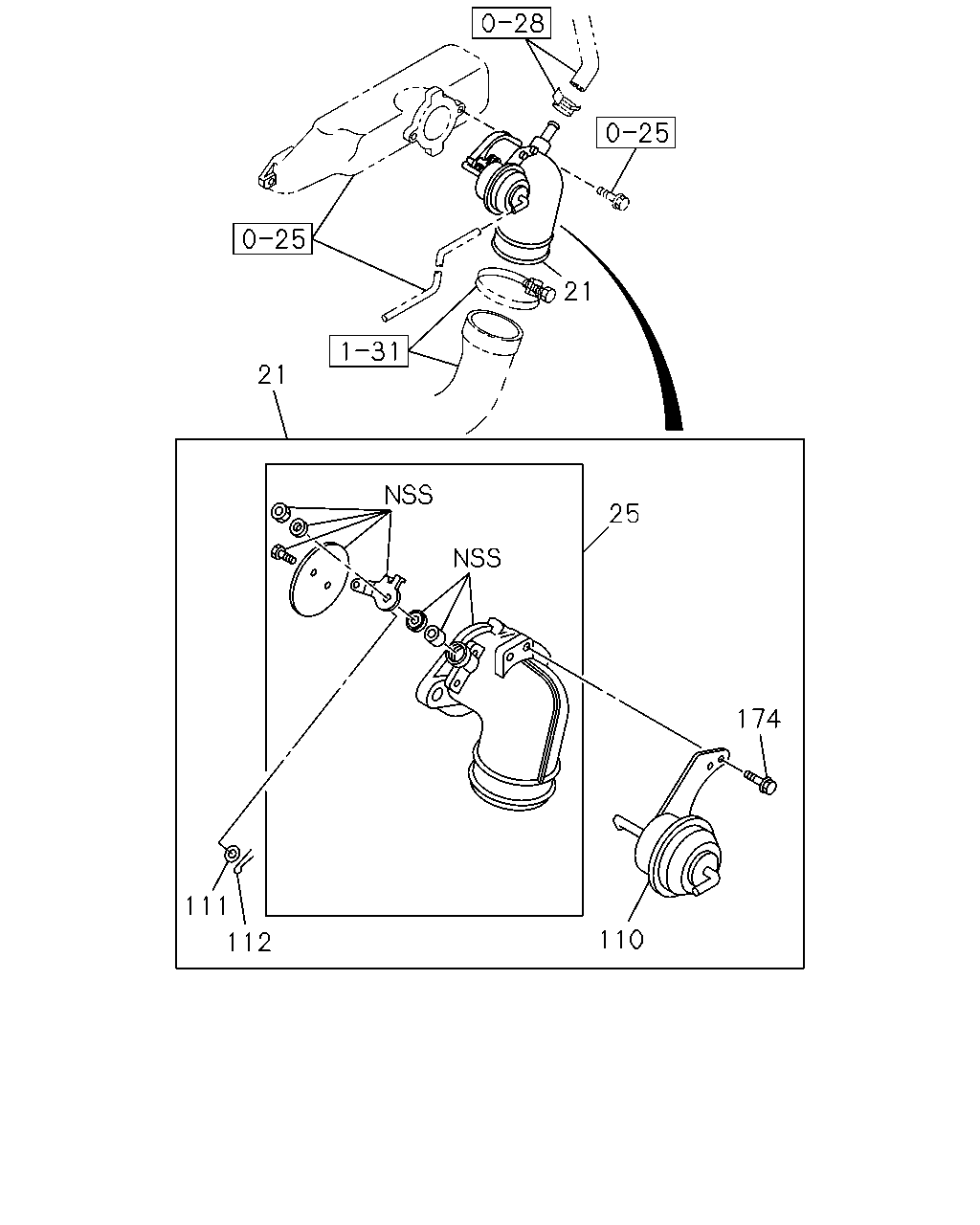

çizim 10285
21 21 25 174 111 110 112
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE 8-97309-925-2 01 1 0201- ●
21 03.440 VALVE ASM; THROTTLE
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265 		8-94143-586-1 01 1 9811- ● ●
21 03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97042-996-1 01 1 9811- ● ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-097-1 01 1 9811-0105 ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97309-924-2 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-077-1 01 1 9811-0105 ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97309-923-1 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE 8-97317-384-1 01 1 0201- ●
25 03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97094-116-0 01 1 9811- ● ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97222-772-0 01 1 9811-0105 ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97317-383-1 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97168-304-0 01 1 9811-0105 ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97315-046-0 01 1 0106- ●
110 03.440 CHAMBER ASM; DIAPH
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97104-169-0 01 1 9811- ● ●
110 03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97019-267-0 01 1 9811- ● ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97094-120-0 01 1 9811-0105 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97317-385-0 01 1 0106-0112 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> 		8-97317-385-0 01 1 0201- ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 0201- ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97168-305-0 01 1 9811-0105 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97315-051-0 01 1 0106- ●
111 03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94467-828-0 01 1 9811- ● ●
111 03.440 WASHER; SPLIT PIN
TURBOCHARGER<K51> 		8-94467-828-0 01 1 9811- ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9811- ●
112 03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		9-08112-010-0 01 1 9811- ● ●
112 03.440 PIN; SPLIT,LEVER
TURBOCHARGER<K51> 		9-08112-010-0 01 1 9811- ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 9811- ●
174 03.440 BOLT; CHAMBER
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9811-0208 ● ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9811-0112 ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9811-0112 ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ●

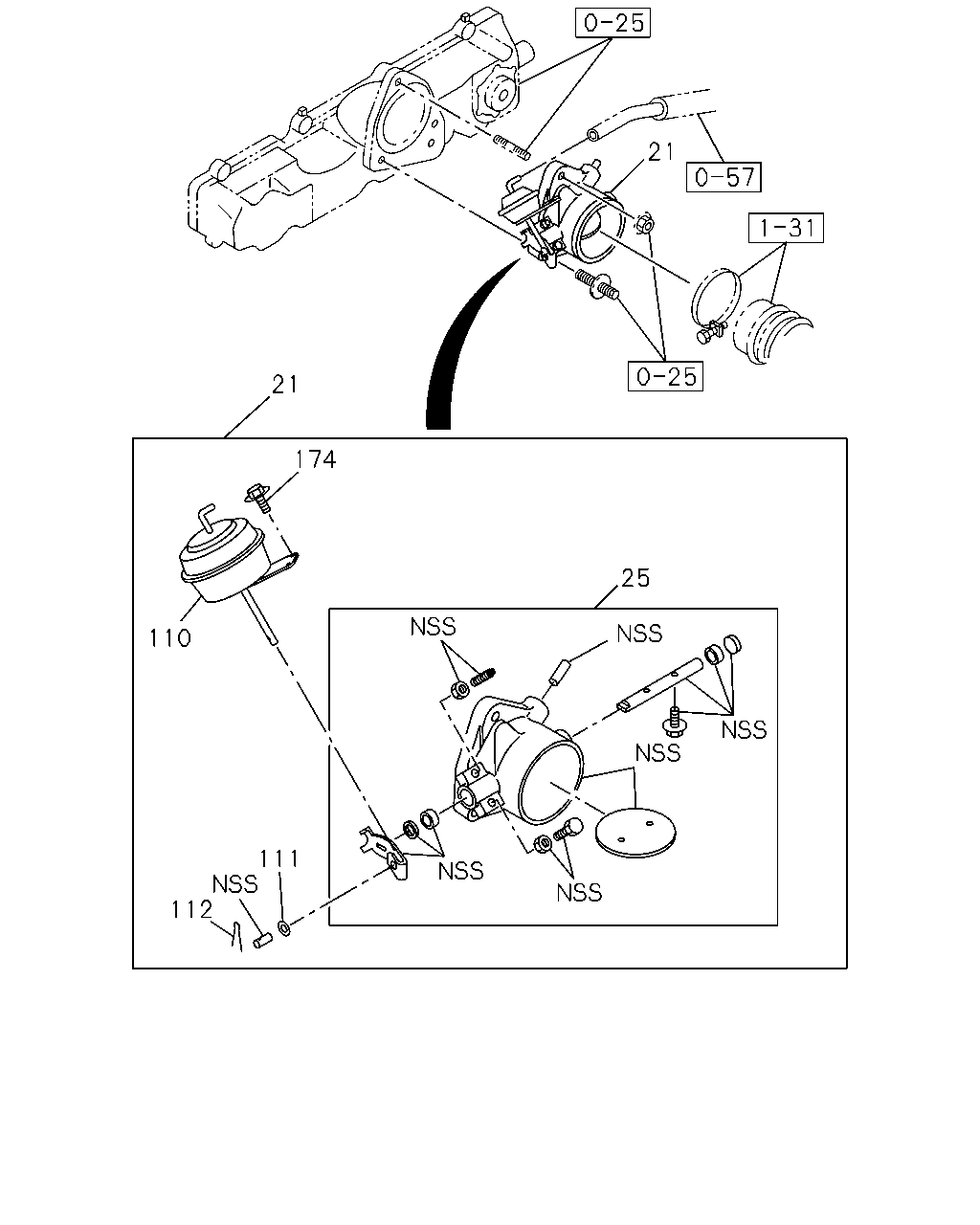

çizim 44275
21 21 174 25 110 111 112
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE 8-97309-925-2 01 1 0201- ●
21 03.440 VALVE ASM; THROTTLE
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265 		8-94143-586-1 01 1 9811- ● ●
21 03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97042-996-1 01 1 9811- ● ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-097-1 01 1 9811-0105 ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97309-924-2 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-077-1 01 1 9811-0105 ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97309-923-1 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE 8-97317-384-1 01 1 0201- ●
25 03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97094-116-0 01 1 9811- ● ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97222-772-0 01 1 9811-0105 ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97317-383-1 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97168-304-0 01 1 9811-0105 ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97315-046-0 01 1 0106- ●
110 03.440 CHAMBER ASM; DIAPH
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97104-169-0 01 1 9811- ● ●
110 03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97019-267-0 01 1 9811- ● ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97094-120-0 01 1 9811-0105 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97317-385-0 01 1 0106-0112 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> 		8-97317-385-0 01 1 0201- ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 0201- ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97168-305-0 01 1 9811-0105 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97315-051-0 01 1 0106- ●
111 03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94467-828-0 01 1 9811- ● ●
111 03.440 WASHER; SPLIT PIN
TURBOCHARGER<K51> 		8-94467-828-0 01 1 9811- ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9811- ●
112 03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		9-08112-010-0 01 1 9811- ● ●
112 03.440 PIN; SPLIT,LEVER
TURBOCHARGER<K51> 		9-08112-010-0 01 1 9811- ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 9811- ●
174 03.440 BOLT; CHAMBER
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9811-0208 ● ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9811-0112 ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9811-0112 ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ●
çizim 44302
21 21 25 174 112 111 110
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE 8-97309-925-2 01 1 0201- ●
21 03.440 VALVE ASM; THROTTLE
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265 		8-94143-586-1 01 1 9811- ● ●
21 03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97042-996-1 01 1 9811- ● ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-097-1 01 1 9811-0105 ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97309-924-2 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-077-1 01 1 9811-0105 ●
21 03.440 VALVE ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97309-923-1 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE 8-97317-384-1 01 1 0201- ●
25 03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97094-116-0 01 1 9811- ● ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97222-772-0 01 1 9811-0105 ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97317-383-1 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97168-304-0 01 1 9811-0105 ●
25 03.440 BODY ASM; THROTTLE
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97315-046-0 01 1 0106- ●
110 03.440 CHAMBER ASM; DIAPH
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97104-169-0 01 1 9811- ● ●
110 03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97019-267-0 01 1 9811- ● ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97094-120-0 01 1 9811-0105 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97317-385-0 01 1 0106-0112 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> 		8-97317-385-0 01 1 0201- ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 0201- ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97168-305-0 01 1 9811-0105 ●
110 03.440 CHAMBER ASM; DIAPH
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97315-051-0 01 1 0106- ●
111 03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94467-828-0 01 1 9811- ● ●
111 03.440 WASHER; SPLIT PIN
TURBOCHARGER<K51> 		8-94467-828-0 01 1 9811- ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9811- ●
112 03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		9-08112-010-0 01 1 9811- ● ●
112 03.440 PIN; SPLIT,LEVER
TURBOCHARGER<K51> 		9-08112-010-0 01 1 9811- ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 9811- ●
174 03.440 BOLT; CHAMBER
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9811-0208 ● ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9811-0112 ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9811-0112 ●
174 03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ● ●
174 03.440 BOLT; CHAMBER
TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0201-0208 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
