Sayfa 0-33 - Isuzu EPC

0-33 — FAN AND FAN BELT (#43201) — 176 parça

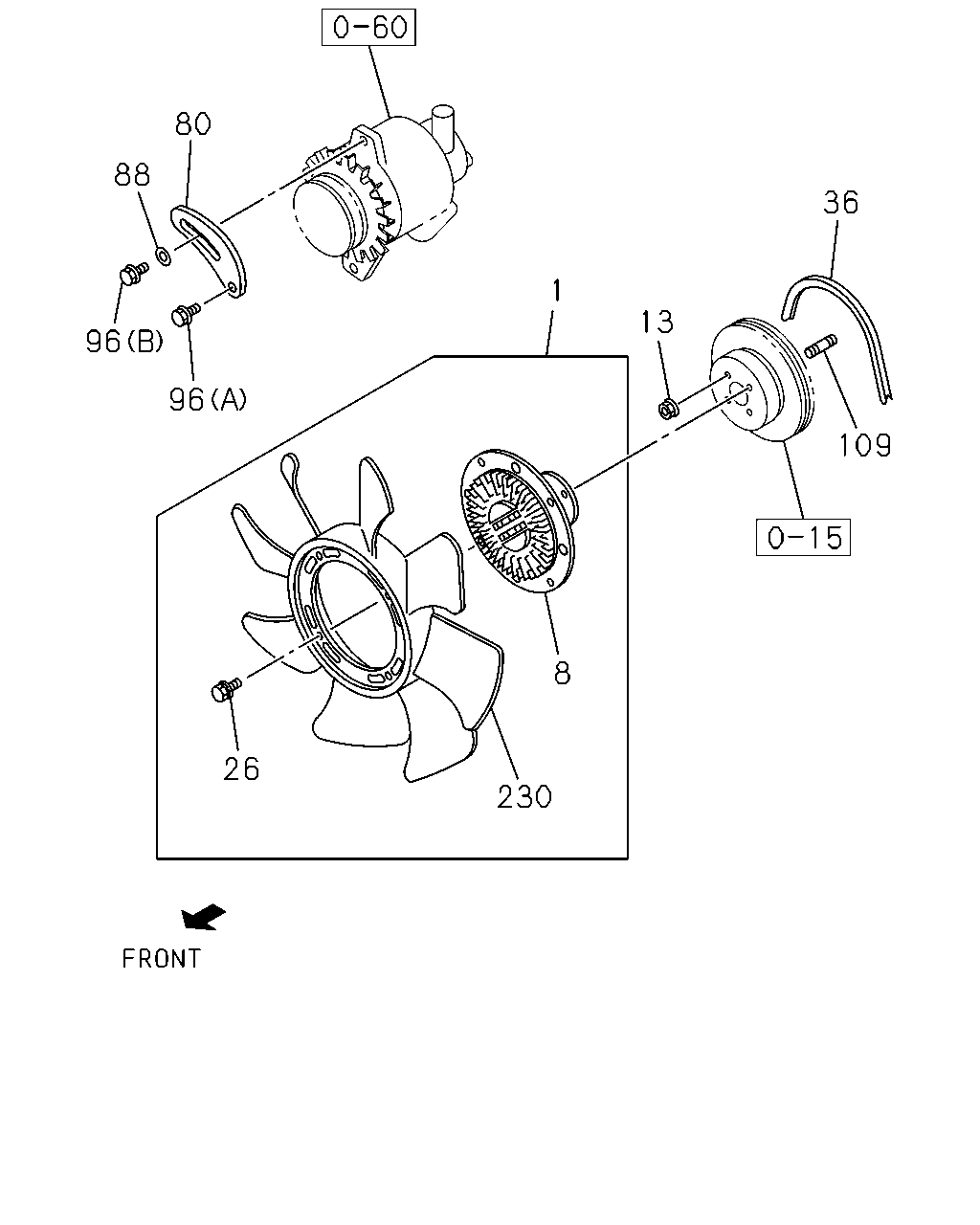

80 88 36 1 13 96 96 109 8 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING	8-97128-531-0	01	1	0201-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9811-		●
1	01.064 FAN; COOLING TURBOCHARGER<K51> OD=410	8-97129-769-0	01	1	9811-			●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9811-			●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390	5-13660-285-0	01	1	9811-			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9811-				●
8	01.064 CLUTCH; COOLING FAN	8-97129-736-0	01	1	0201-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9811-		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97129-735-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9811-				●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0112			●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0112			●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-			●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-			●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-	●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-				●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9811-		●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9811-			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9811-	●			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812		●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9901-0206	●	●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●	●	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-94256-800-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	9811-				●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9811-	●	●	●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9811-				●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE	8-97172-720-1	01	1	9811-				●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0112			●
109	01.062 STUD; FAN CLU TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0112			●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-			●
109	01.062 STUD; FAN CLU TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-			●
109	01.062 STUD; FAN CLU 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	9811-				●
230	01.055 FAN; COOLING	8-97131-664-0	01	1	0201-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9811-		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.064	8-97094-660-0	01	1	9811-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9811-			●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9811-				●

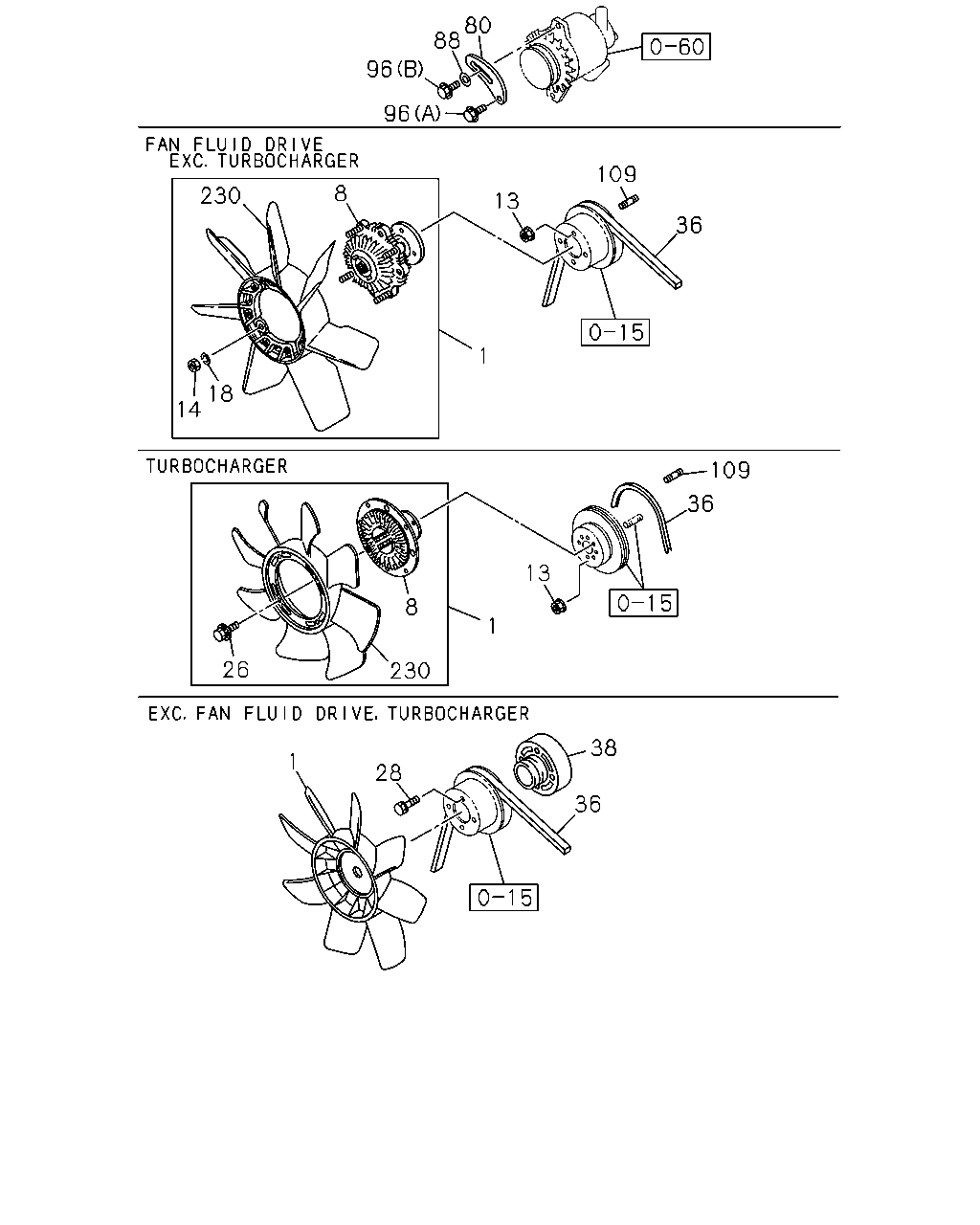

80 88 96 96 109 8 230 13 36 1 18 14 109 36 13 8 1 26 230 38 1 28 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING	8-97128-531-0	01	1	0201-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9811-		●
1	01.064 FAN; COOLING TURBOCHARGER<K51> OD=410	8-97129-769-0	01	1	9811-			●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9811-			●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390	5-13660-285-0	01	1	9811-			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9811-				●
8	01.064 CLUTCH; COOLING FAN	8-97129-736-0	01	1	0201-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9811-		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97129-735-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9811-				●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0112			●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0112			●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-			●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-			●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-	●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-				●
14	01.062 NUT; FAN TO CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.413 M6	9-09110-506-0	04	1	9811-			●
18	01.062 WASHER; FAN TO CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.206 ID=6.1	9-09150-506-0	04	1	9811-			●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9811-		●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9811-			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9811-	●			●
28	01.062 BOLT; COOLING FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> M6X45 W/LK WASHER	0-50040-645-0	04	1	9811-			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812		●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9901-0206	●	●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●	●	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-94256-800-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	9811-				●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064	9-13642-078-0	01	1	9811-			●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9811-				●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9811-	●	●	●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9811-				●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE	8-97172-720-1	01	1	9811-				●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0112			●
109	01.062 STUD; FAN CLU TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0112			●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-			●
109	01.062 STUD; FAN CLU TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-			●
109	01.062 STUD; FAN CLU 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	9811-				●
230	01.055 FAN; COOLING	8-97131-664-0	01	1	0201-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9811-		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.064	8-97094-660-0	01	1	9811-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9811-			●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9811-				●

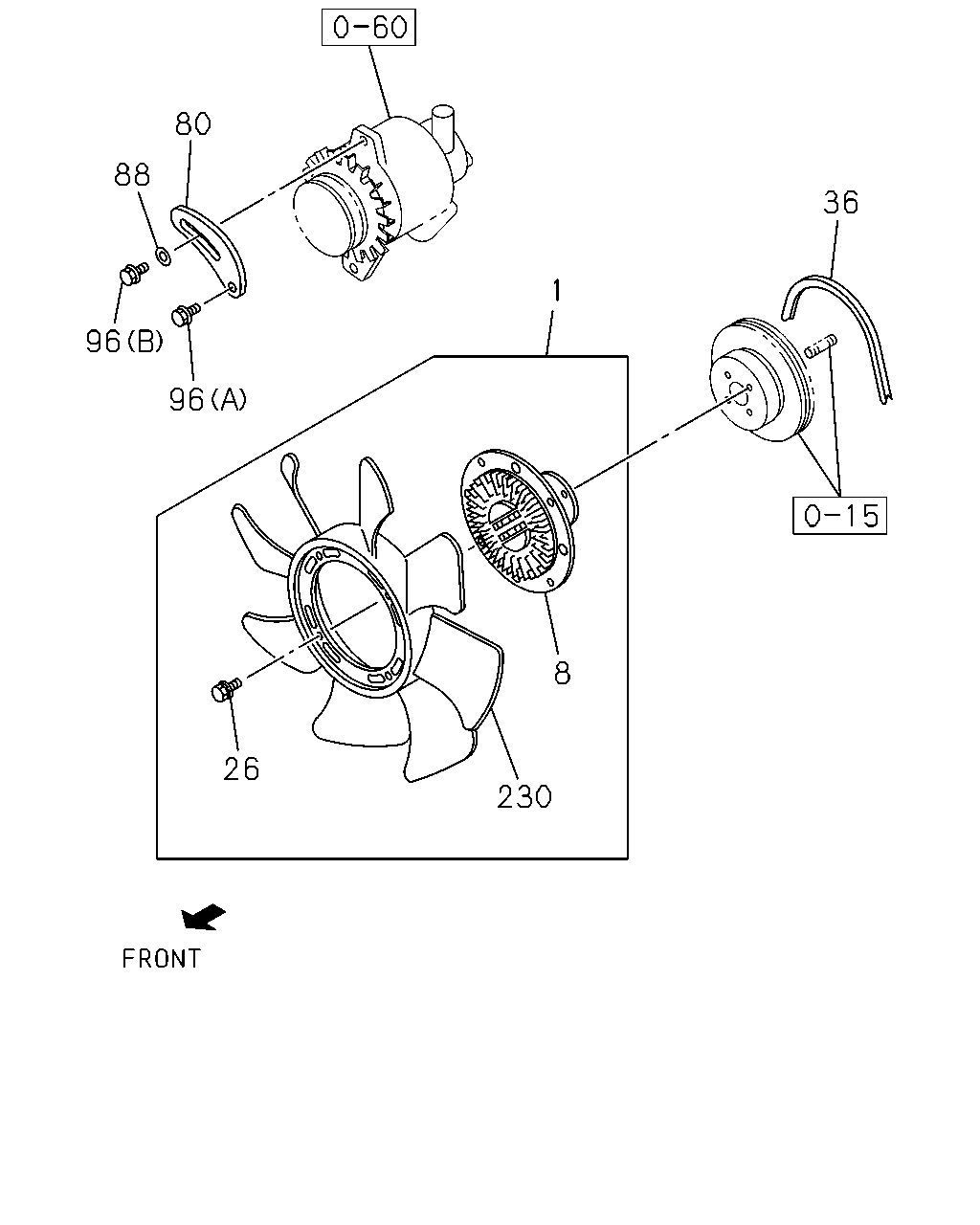

80 88 36 1 96 96 8 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING	8-97128-531-0	01	1	0201-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9811-		●
1	01.064 FAN; COOLING TURBOCHARGER<K51> OD=410	8-97129-769-0	01	1	9811-			●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9811-			●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390	5-13660-285-0	01	1	9811-			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9811-				●
8	01.064 CLUTCH; COOLING FAN	8-97129-736-0	01	1	0201-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9811-		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97129-735-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9811-				●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9811-		●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9811-			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9811-	●			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812		●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9901-0206	●	●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●	●	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-94256-800-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	9811-				●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9811-	●	●	●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9811-				●
88	02.317 WASHER; PL,ADJ PLATE 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE	8-97172-720-1	01	1	9811-				●
230	01.055 FAN; COOLING	8-97131-664-0	01	1	0201-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9811-		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.064	8-97094-660-0	01	1	9811-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9811-			●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9811-				●

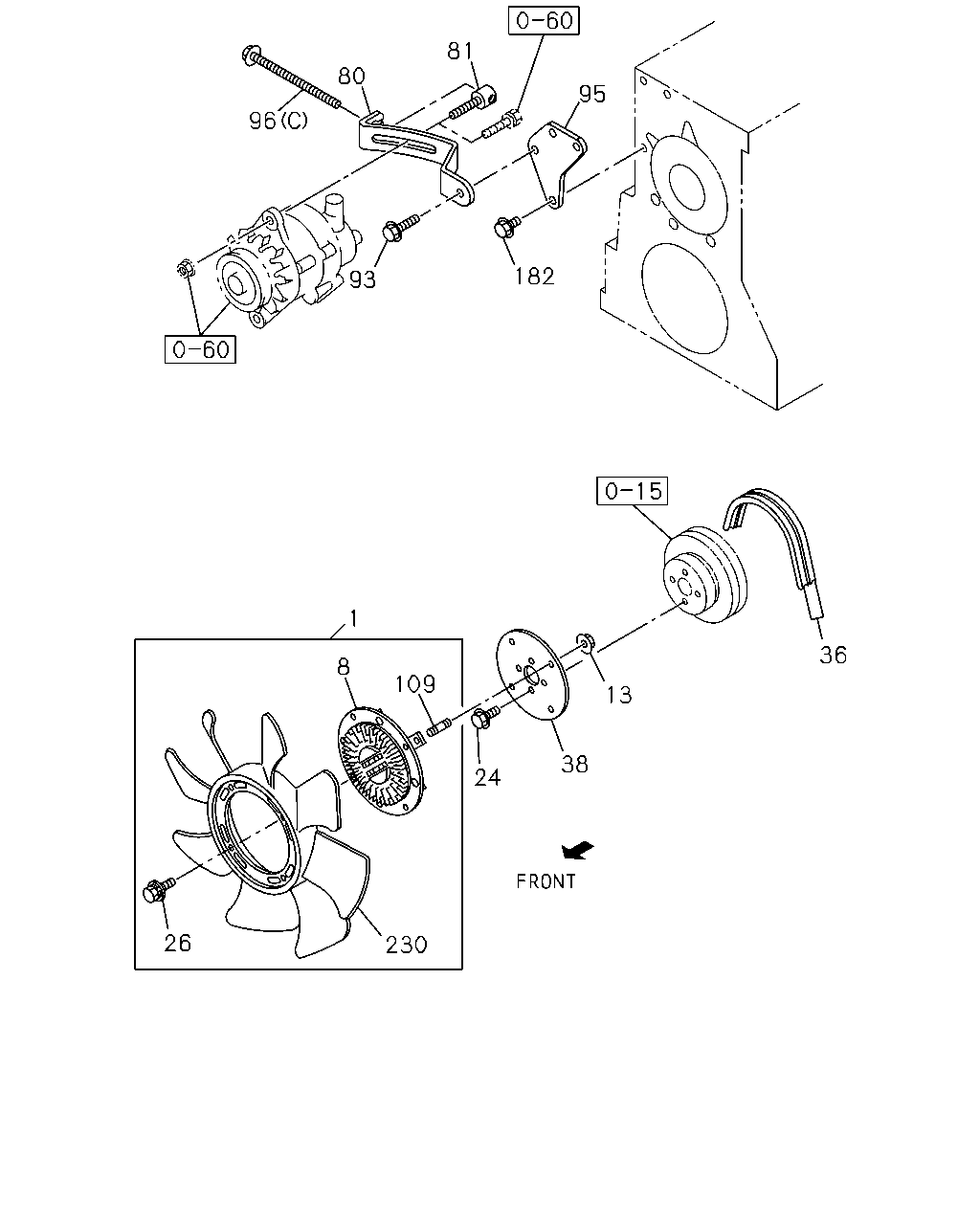

81 80 95 96 182 93 1 36 8 109 13 38 24 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING	8-97128-531-0	01	1	0201-	●
1	01.064 FAN; COOLING OD=410	8-97129-769-0	01	1	9811-		●
1	01.064 FAN; COOLING TURBOCHARGER<K51> OD=410	8-97129-769-0	01	1	9811-			●
1	01.064 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390	8-94239-651-0	01	1	9811-			●
1	01.064 FAN; COOLING EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390	5-13660-285-0	01	1	9811-			●
1	01.064 FAN; COOLING	8-97129-772-1	01	1	9811-				●
8	01.064 CLUTCH; COOLING FAN	8-97129-736-0	01	1	0201-	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	9811-		●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97129-735-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9811-			●
8	01.064 CLUTCH; COOLING FAN	8-97129-738-0	01	1	9811-				●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0112			●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0112			●
13	01.062 NUT; COOLING FAN FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-			●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-			●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0201-	●
13	01.062 NUT; COOLING FAN 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-				●
24	01.062 BOLT; FAN 08.900 M8X18 FLANGE	0-28080-818-0	04	1	9811-				●
26	01.062 BOLT; FAN TO CLU FAN FLUID DRIVE<KA3>	8-94389-764-0	04	1	9811-		●
26	01.062 BOLT; FAN TO CLU TURBOCHARGER<K51>	8-94389-764-0	04	1	9811-			●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	9811-	●			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812		●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9901-0206	●	●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●	●	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-94256-800-0	01	1	9811-9812			●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	9811-				●
38	01.062 SPACER; FAN EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064	9-13642-078-0	01	1	9811-			●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	9811-				●
80	02.317 PLATE; ADJ	8-97080-556-1	01	1	9811-	●	●	●
80	02.317 PLATE; ADJ	8-97172-415-0	01	1	9811-				●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97086-228-1	01	1	9811-0005				●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	0006-				●
93	02.317 BOLT; ADJ PLATE BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9811-				●
95	02.317 BRACKET; ADJ PLATE	8-97037-510-0	01	1	9811-				●
96	02.317 BOLT; ADJ PLATE 01.540 (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE 01.073 (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9811-	●	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE	8-97172-720-1	01	1	9811-				●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0112			●
109	01.062 STUD; FAN CLU TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0112			●
109	01.062 STUD; FAN CLU FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-			●
109	01.062 STUD; FAN CLU TURBOCHARGER<K51> 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-			●
109	01.062 STUD; FAN CLU 01.073 M6X18 L=27	9-04110-618-0	04	1	0201-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	9811-				●
182	01.062 BOLT; BRKT 02.183 M8X35 FLANGE	0-28680-835-0	03	1	9811-				●
230	01.055 FAN; COOLING	8-97131-664-0	01	1	0201-	●
230	01.055 FAN; COOLING 01.064	8-97094-660-0	01	1	9811-		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.064	8-97094-660-0	01	1	9811-			●
230	01.055 FAN; COOLING FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064	5-13660-300-0	01	1	9811-			●
230	01.055 FAN; COOLING	8-97078-662-1	01	1	9811-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
