2-08B — CLUTCH MASTER CYLINDER (#4320) — 48 parça

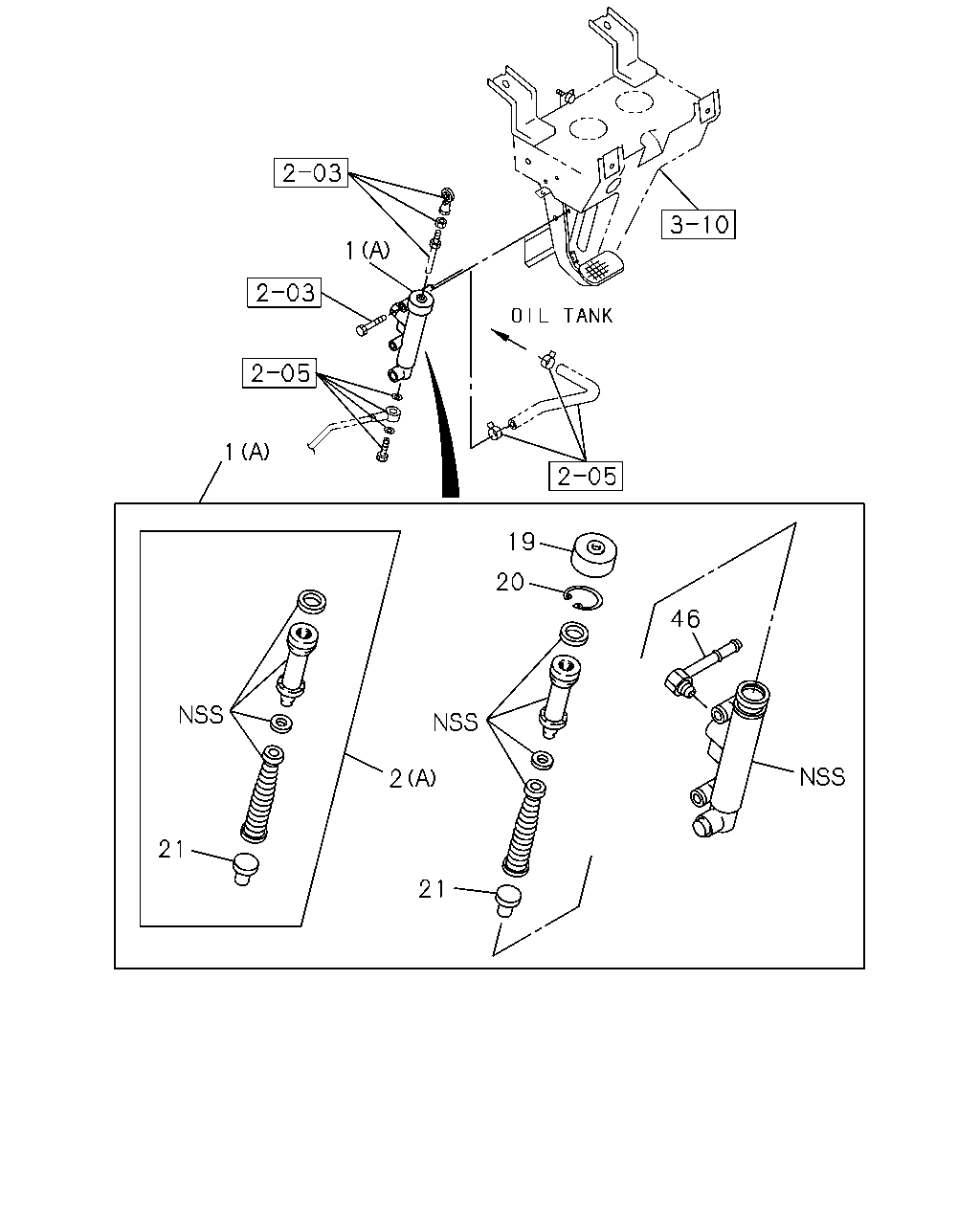

çizim 5522
1 1 19 20 46 2 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-47500-232-1 01 1 9603-9904 ● ●
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-232-2 01 1 9905- ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> (A) 		1-47500-232-2 01 1 9905- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-242-1 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-242-2 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-85576-114-0 01 1 9603-9904 ● ●
2 REPAIR KIT; CLU M/CYL
(A) 		1-85576-114-0 01 1 9905- ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> (A) 		1-85576-114-0 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-47545-032-0 01 1 9603-9904 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9905- ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 9603-9904 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9905- ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9603-9904 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9905- ● ● ●
21 VALVE; CHECK
ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> 		1-47565-004-0 01 1 9603-9904 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> 		1-47517-004-0 01 1 9603-9904 ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9905- ● ● ● ●

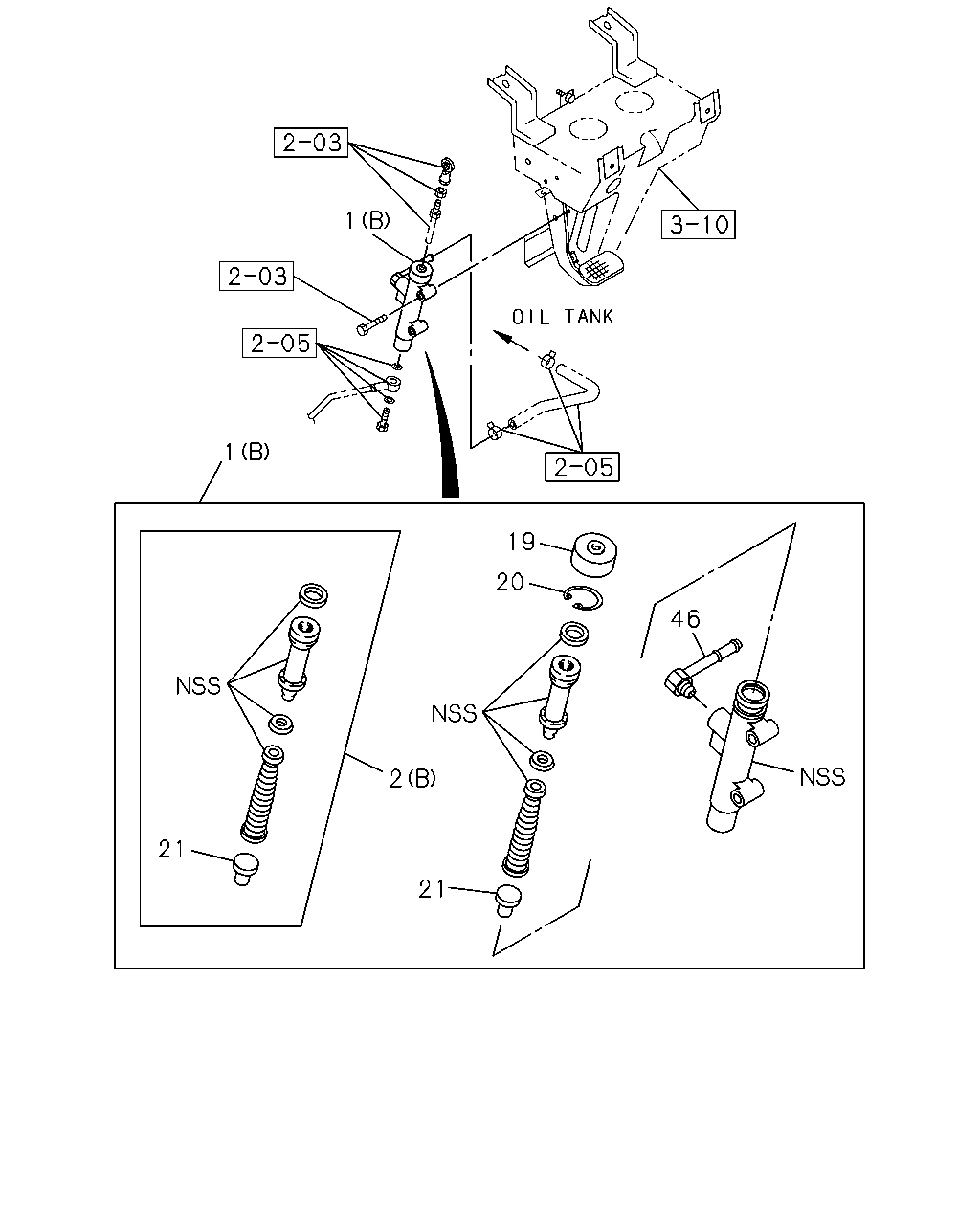

çizim 40342
1 1 19 20 46 2 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-47500-232-1 01 1 9603-9904 ● ●
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-232-2 01 1 9905- ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> (A) 		1-47500-232-2 01 1 9905- ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-242-1 01 1 9603-9904 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-242-2 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-85576-114-0 01 1 9603-9904 ● ●
2 REPAIR KIT; CLU M/CYL
(A) 		1-85576-114-0 01 1 9905- ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> (A) 		1-85576-114-0 01 1 9905- ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9603-9904 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-47545-032-0 01 1 9603-9904 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9905- ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9905- ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9603-9904 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 9603-9904 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9905- ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9905- ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9603-9904 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9905- ● ● ●
21 VALVE; CHECK
ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> 		1-47565-004-0 01 1 9603-9904 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> 		1-47517-004-0 01 1 9603-9904 ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 9905- ● ● ● ●
