0-36 — TURBOCHARGER SYSTEM (#432) — 50 parça

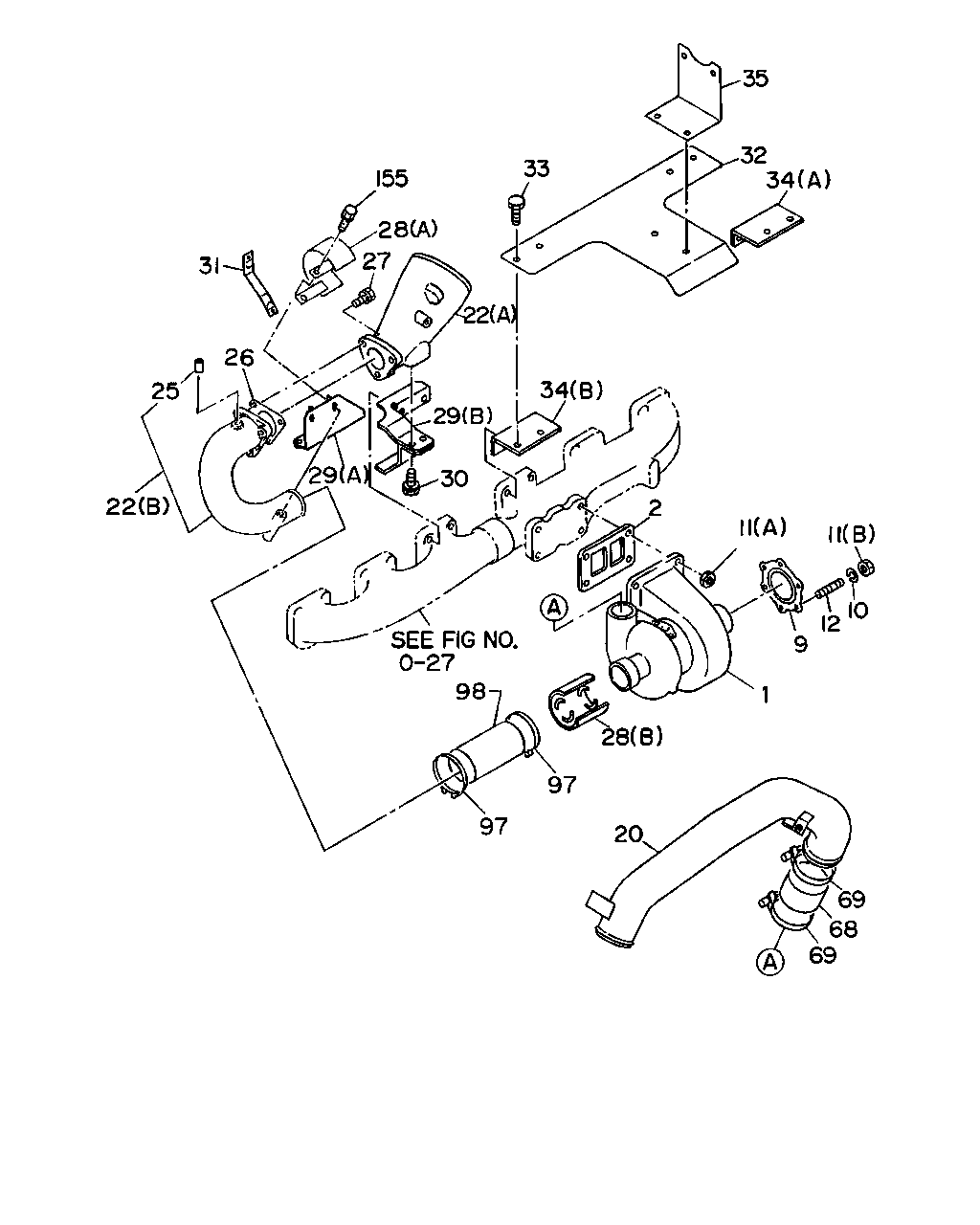

çizim 94727
35 34 32 33 155 31 28 27 26 25 22 29 22 34 29 30 2 11 11 10 12 9 1 28 97 98 97 20 69 68 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-187-0 01 1 8712-9001 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-170-0 01 1 8712- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-180-0 01 1 8712-9306 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-103-0 01 1 8712- ● ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-122-0 01 1 8712- ● ● ●
10 WASHER; LK,TURBOCHARGER 1-09500-007-0 06 1 8712- ● ● ●
11 NUT; TURBOCHARGER
(B) 		1-09400-027-0 06 1 8712- ● ● ●
11 NUT; TURBOCHARGER
(A) 		9-09844-575-0 04 1 8712- ● ●
12 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 06 1 8712- ● ● ●
20 PIPE; INL,TURBOCHARGER OUT 1-14112-229-0 01 1 8712- ●
20 PIPE; INL,TURBOCHARGER OUT 1-14112-173-0 01 1 8712-9306 ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		1-14114-826-0 01 1 8712- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		1-14114-827-0 01 1 8712-9001 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		1-14114-995-0 01 1 9002- ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		1-14114-635-2 01 1 8712-9001 ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		1-14114-774-0 01 1 8712-9306 ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		1-14114-935-0 01 1 9002-9306 ●
25 PIPE; AIR SUCTION 9-14119-228-0 01 1 8712-9001 ● ● ●
25 PIPE; AIR SUCTION 8-94129-650-0 01 1 9002- ● ●
26 GASKET; DUCT 1-14117-022-0 01 1 8712- ● ● ●
27 BOLT; DUCT,ACL TO TURBOCHARGER
M10X35 W/LK WASHER 		9-01991-035-0 03 1 8712-9002 ● ● ●
27 BOLT; DUCT,ACL TO TURBOCHARGER
M10X35 W/LK&PL WASHER 		0-50151-035-0 03 1 9003- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-190-0 01 1 8712- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-191-1 01 1 8712- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-157-1 01 1 8712-9306 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER
(B) 		1-14119-165-1 01 1 8712- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER
(A) 		1-14119-184-0 01 1 8712-9306 ●
30 BOLT; PIPE TO BRKT
M10X25 		9-01911-025-0 02 1 8712-9002 ● ● ●
30 BOLT; PIPE TO BRKT
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9003- ● ●
30 BOLT; PIPE TO BRKT
M10X22 		9-01971-022-0 02 1 8712-9002 ●
30 BOLT; PIPE TO BRKT
M10X22 W/LK&PL WASHER 		0-50141-022-0 02 1 9003-9306 ●
31 BRACKET; INL DUCT,HEAT PROTECTOR 1-14119-231-0 01 1 8712- ● ●
32 PROTECTOR; HEAT,TURBOCHARGER 1-14181-196-0 01 1 8712- ● ● ●
33 BOLT; HEAT PROTECTOR
M10X22 		9-01971-022-0 06 1 8712-9002 ● ● ●
33 BOLT; HEAT PROTECTOR
M10X22 W/LK&PL WASHER 		0-50141-022-0 06 1 9003- ● ●
34 BRACKET; HEAT PROTECTOR
(A) 		1-14189-080-0 01 1 8712- ● ● ●
34 BRACKET; HEAT PROTECTOR
(B) 		1-14189-082-0 01 1 8712- ● ● ●
35 STAY; HEAT PROTECTOR,TURBOCHARGER 1-14189-081-0 01 1 8712- ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-618-1 01 1 8712- ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=58-79 		8-94126-771-0 02 1 8712- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=96 		9-09915-597-0 01 1 8712- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104 		9-09915-601-0 01 1 8712- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=90 		9-09915-594-0 01 1 8712-9306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=100 		9-09915-599-0 01 1 8712-9306 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-723-1 01 1 8712- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-619-0 01 1 8712-9306 ●
155 BOLT; HEAT PROTECTOR
M8X20 		9-01970-820-0 02 1 8712-9005 ● ●
155 BOLT; HEAT PROTECTOR
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9006- ●
155 BOLT; HEAT PROTECTOR
M8X16 		9-01970-816-0 02 1 8712-9005 ●
155 BOLT; HEAT PROTECTOR
M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 9006-9306 ●
