Sayfa 0-31 - Isuzu EPC

0-31 — THERMOSTAT AND HOUSING (#43199) — 184 parça

50 58 50 207 50 49 66 1 1 66 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9811-9811	●
1	01.246 THERMOSTAT TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 82 CELSIUS	8-97089-891-0	01	1	9811-9811		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 82 CELSIUS	8-97089-891-0	01	1	9811-9811		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9812-0006	●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	0007-0112	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97089-891-0	01	1	0007-0112		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	0201-	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97089-891-0	01	1	0201-		●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0201-			●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-0	01	1	9811-9811	●
1	01.246 THERMOSTAT TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-0	01	1	9812-0006	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-2	01	1	0007-	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-94482-277-2	01	1	0007-		●
1	01.246 THERMOSTAT COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97254-816-0	01	1	0007-0105		●
1	01.246 THERMOSTAT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 82 CELSIUS	8-97254-816-1	01	1	0106-		●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97167-497-0	01	1	9811-9907				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97231-889-0	01	1	9908-9911				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97233-417-0	01	1	9912-0008				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97263-193-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-1	01	1	0011-				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97167-495-0	01	1	9811-9904				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97167-495-0	01	1	9905-9907				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97231-887-0	01	1	9908-0008				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97263-194-0	01	1	0009-0010				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97300-787-1	01	1	0011-				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97167-496-0	01	1	9811-9904				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97167-496-0	01	1	9905-9907				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97231-888-0	01	1	9908-0008				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97263-192-0	01	1	0009-0010				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97300-792-1	01	1	0011-				●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	9811-				●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0201-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9811-	●
49	01.153 PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94254-601-1	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94254-601-1	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-199-0	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	9811-				●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9811-	●	●	●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9811-				●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	9811-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94365-675-1	01	1	9811-9902	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	9903-	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	01	1	9811-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	01	1	9811-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	01	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	01	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	01	1	0011-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	01	1	0011-				●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9811-				●

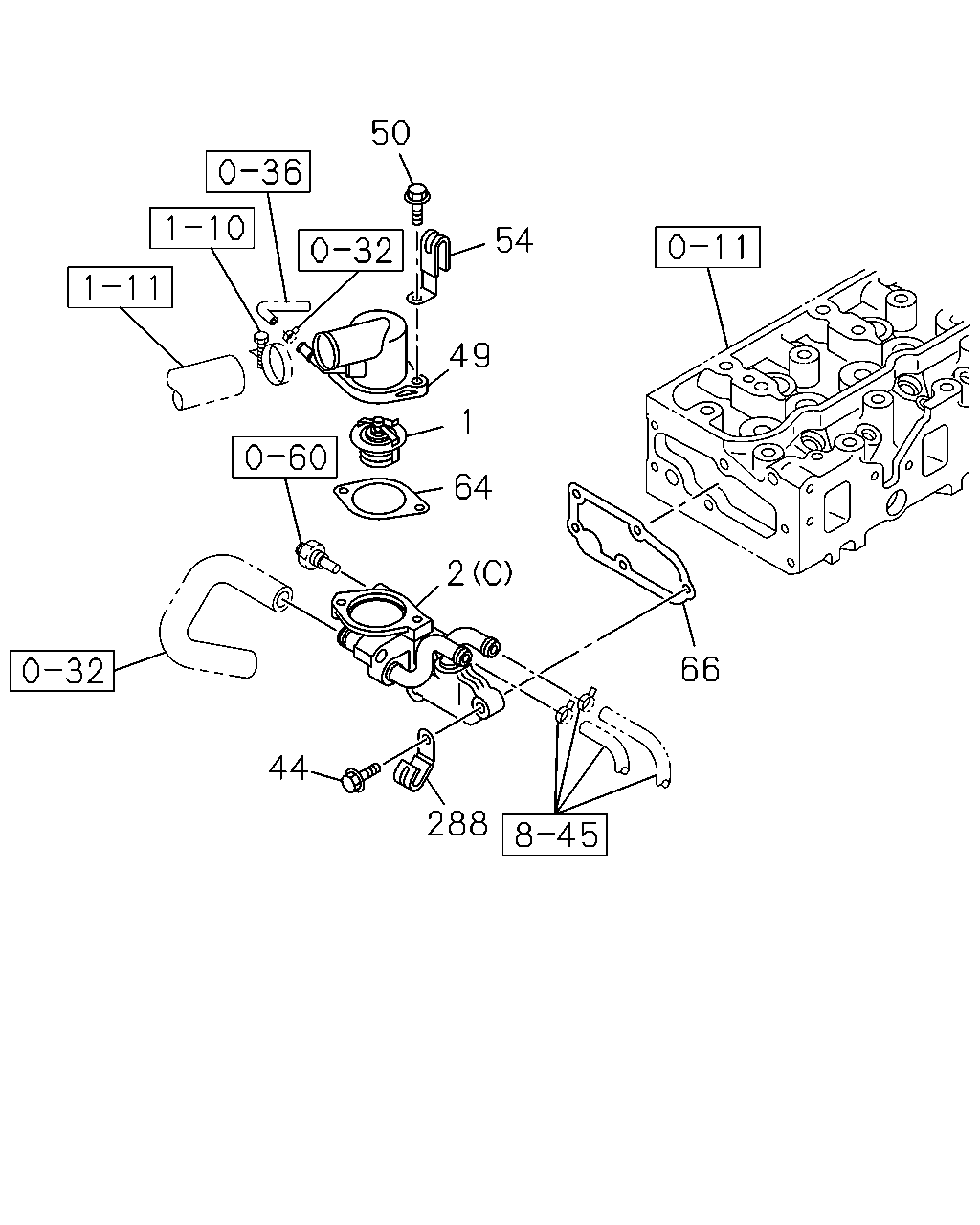

50 54 49 1 64 2 66 44 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9811-9811	●
1	01.246 THERMOSTAT TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 82 CELSIUS	8-97089-891-0	01	1	9811-9811		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 82 CELSIUS	8-97089-891-0	01	1	9811-9811		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9812-0006	●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	0007-0112	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97089-891-0	01	1	0007-0112		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	0201-	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97089-891-0	01	1	0201-		●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0201-			●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-0	01	1	9811-9811	●
1	01.246 THERMOSTAT TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-0	01	1	9812-0006	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-2	01	1	0007-	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-94482-277-2	01	1	0007-		●
1	01.246 THERMOSTAT COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97254-816-0	01	1	0007-0105		●
1	01.246 THERMOSTAT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 82 CELSIUS	8-97254-816-1	01	1	0106-		●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97167-497-0	01	1	9811-9907				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97231-889-0	01	1	9908-9911				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97233-417-0	01	1	9912-0008				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97263-193-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-1	01	1	0011-				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97167-495-0	01	1	9811-9904				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97167-495-0	01	1	9905-9907				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97231-887-0	01	1	9908-0008				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97263-194-0	01	1	0009-0010				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97300-787-1	01	1	0011-				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97167-496-0	01	1	9811-9904				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97167-496-0	01	1	9905-9907				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97231-888-0	01	1	9908-0008				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97263-192-0	01	1	0009-0010				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97300-792-1	01	1	0011-				●
2	01.251 HOUSING; THERMOSTAT (C)	8-97252-416-2	01	1	0201-			●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) (A)	8-97139-602-0	01	1	9811-9812	●	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) (A)	8-97139-602-0	01	1	9901-	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97139-602-0	01	1	9901-		●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97139-602-0	01	1	9901-		●
2	01.251 HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41) (B)	8-97139-604-2	01	1	9811-	●	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97139-603-0	01	1	9901-		●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9811-	●	●	●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0201-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9811-	●
49	01.153 PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94254-601-1	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94254-601-1	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-199-0	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	9811-				●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9811-	●	●	●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9811-				●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	9811-	●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252	8-94365-674-2	01	1	9811-	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94365-675-1	01	1	9811-9902	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	9903-	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	01	1	9811-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	01	1	9811-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	01	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	01	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	01	1	0011-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	01	1	0011-				●
288	04.930 CLIP 02.559 ID=12	5-09700-331-0	01	1	0201-			●

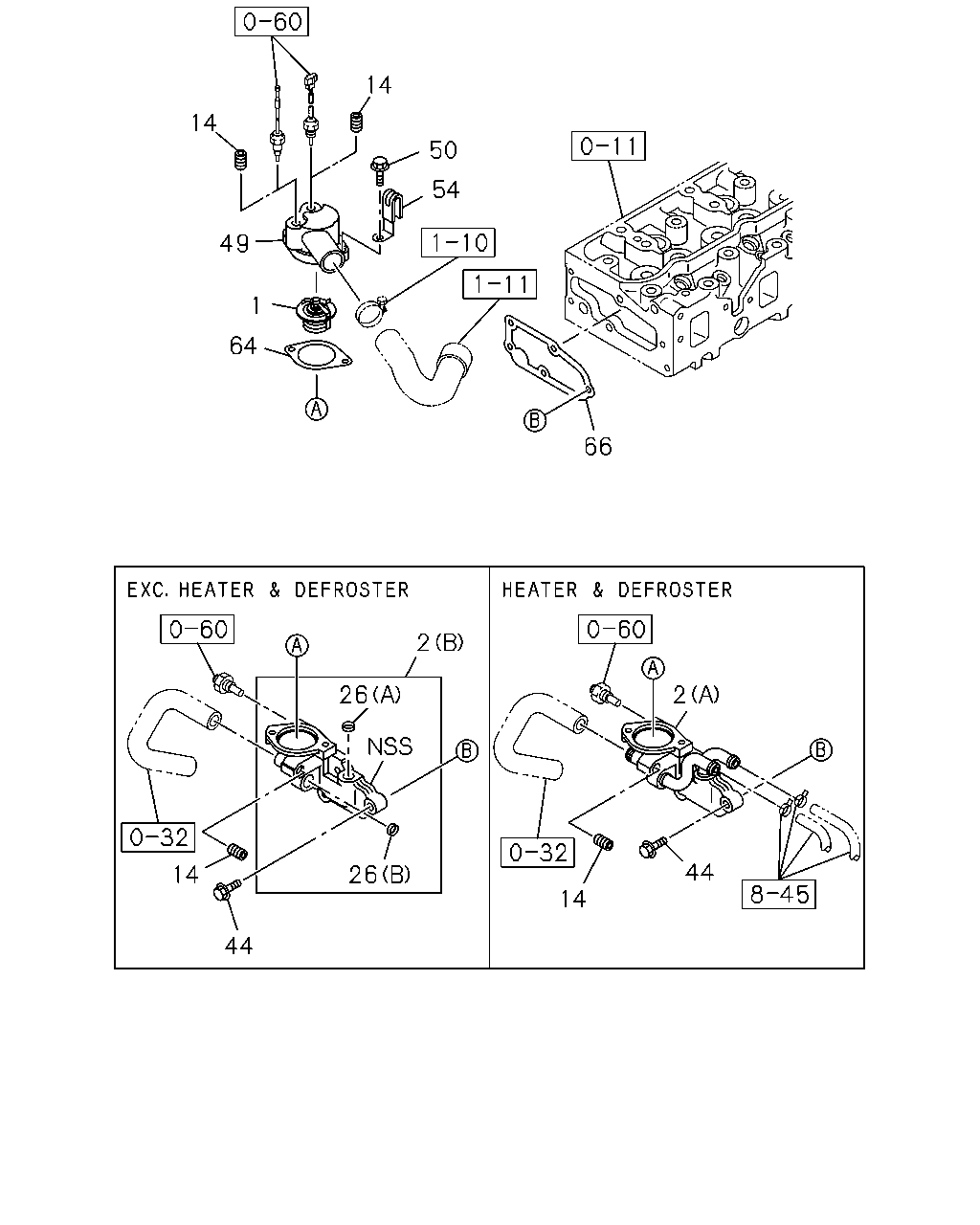

14 14 50 54 49 1 64 66 2 2 26 44 26 14 14 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9811-9811	●
1	01.246 THERMOSTAT TURBOCHARGER<K51> HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> 82 CELSIUS	8-97089-891-0	01	1	9811-9811		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 82 CELSIUS	8-97089-891-0	01	1	9811-9811		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	9812-0006	●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	0007-0112	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97089-891-0	01	1	0007-0112		●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) 82 CELSIUS	8-97089-891-0	01	1	0201-	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) EXC. COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97089-891-0	01	1	0201-		●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0201-			●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-0	01	1	9811-9811	●
1	01.246 THERMOSTAT TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 82 CELSIUS	8-94482-277-0	01	1	9811-9811		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-0	01	1	9812-0006	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) 82 CELSIUS	8-94482-277-2	01	1	0007-	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-94482-277-2	01	1	0007-		●
1	01.246 THERMOSTAT COLOMBIA EQUIPMENT(X74) 82 CELSIUS	8-97254-816-0	01	1	0007-0105		●
1	01.246 THERMOSTAT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 82 CELSIUS	8-97254-816-1	01	1	0106-		●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97167-497-0	01	1	9811-9907				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97231-889-0	01	1	9908-9911				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97233-417-0	01	1	9912-0008				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97263-193-0	01	1	0009-0010				●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-1	01	1	0011-				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97167-495-0	01	1	9811-9904				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97167-495-0	01	1	9905-9907				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97231-887-0	01	1	9908-0008				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97263-194-0	01	1	0009-0010				●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 85 CELSIUS	8-97300-787-1	01	1	0011-				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS	8-97167-496-0	01	1	9811-9904				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97167-496-0	01	1	9905-9907				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97231-888-0	01	1	9908-0008				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97263-192-0	01	1	0009-0010				●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS	8-97300-792-1	01	1	0011-				●
2	01.251 HOUSING; THERMOSTAT (C)	8-97252-416-2	01	1	0201-			●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) (A)	8-97139-602-0	01	1	9811-9812	●	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) (A)	8-97139-602-0	01	1	9901-	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (A)	8-97139-602-0	01	1	9901-		●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (A)	8-97139-602-0	01	1	9901-		●
2	01.251 HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41) (B)	8-97139-604-2	01	1	9811-	●	●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A)	8-97139-603-0	01	1	9901-		●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9811-	●
14	01.252 PLUG; SW HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 01.073 PT3/8	5-09605-005-0	02	1	9811-		●
14	01.252 PLUG; SW HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.073 PT3/8	5-09605-005-0	02	1	9811-		●
14	01.252 PLUG; SW EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> 01.073 PT3/8	5-09605-005-0	01	1	9811-		●
14	01.252 PLUG; SW TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> 01.073 PT3/8	5-09605-005-0	01	1	9811-		●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41) (A) OD=18	9-11129-082-0	02	1	9811-0009	●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41), TURBOCHARGER<K51> (A) OD=18	9-11129-082-0	02	1	9811-0009		●
26	01.251 CUP; SEALING,VLV,VENTILATION TURBOCHARGER<K51> EXC. HEATER & DEFROSTER(C41),CHARGE AIRCOOLER<6PL> (A) OD=18	9-11129-082-0	02	1	9811-0009		●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41) (A) OD=18	9-11129-082-0	02	1	0010-	●	●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41) 00.253 (B) OD=18	5-11219-008-0	01	1	0010-	●	●
44	01.252 BOLT; HSG TO HD 00.780 M8X30 W/LK WASHER	0-50040-830-0	05	1	9811-	●	●	●
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	0201-			●
49	01.153 PIPE; WATER OUTLET	8-94254-601-1	01	1	9811-	●
49	01.153 PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94254-601-1	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-94254-601-1	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97204-199-0	01	1	9811-		●
49	01.153 PIPE; WATER OUTLET	8-97200-620-0	01	1	9811-				●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9811-	●	●	●
50	01.252 BOLT; OUTLET PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9811-				●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	9811-	●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252	8-94365-674-2	01	1	9811-	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94365-675-1	01	1	9811-9902	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97216-156-0	01	1	9903-	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	01	1	9811-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97167-477-0	01	1	9811-9907				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	01	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97231-848-0	01	1	9908-0010				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	01	1	0011-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97300-793-0	01	1	0011-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
