◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50809 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#43196) — 106 parça
çizim 10177
18 14 1 19 2 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0201- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TAIWAN EQUIPMENT(RWV) 		8-97124-873-0 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-908-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-075-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9811- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97259-886-1 01 1 0201-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9811-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97146-499-0 01 1 9811- ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9811-0006 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9811- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9811- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9811- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9811- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9811- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9811- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9811- ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9811- ● ● ●

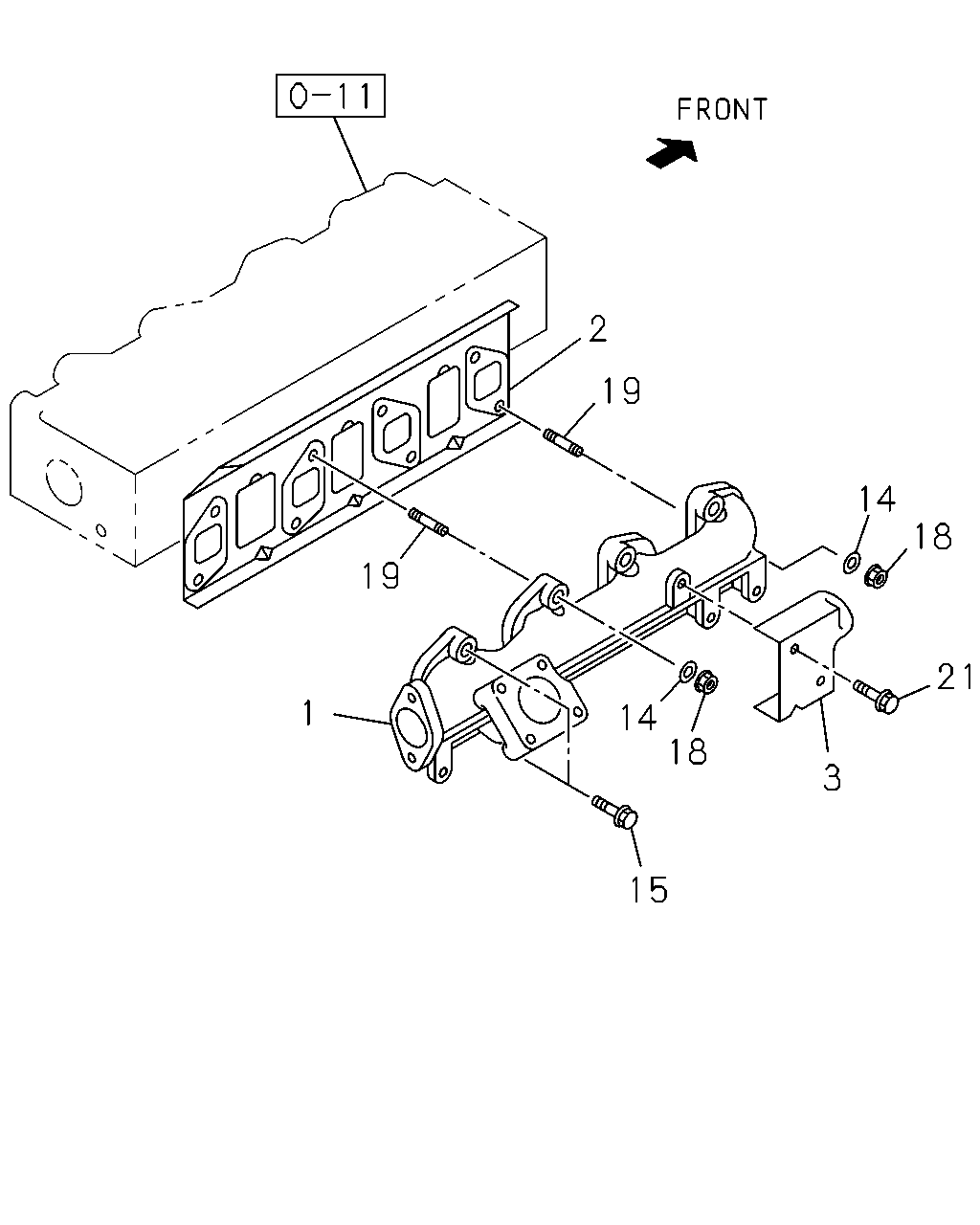

çizim 46247
2 19 14 18 19 21 1 14 18 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0201- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TAIWAN EQUIPMENT(RWV) 		8-97124-873-0 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-908-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-075-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9811- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97259-886-1 01 1 0201-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9811-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97146-499-0 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97259-171-1 01 1 0201- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-97214-580-0 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97176-085-2 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 9811- ●
14 03.604 WASHER; PL,EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9811-0006 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9811- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9811- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9811- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9811- ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9811- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9811-0112 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0201- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0201- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811- ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9811- ●

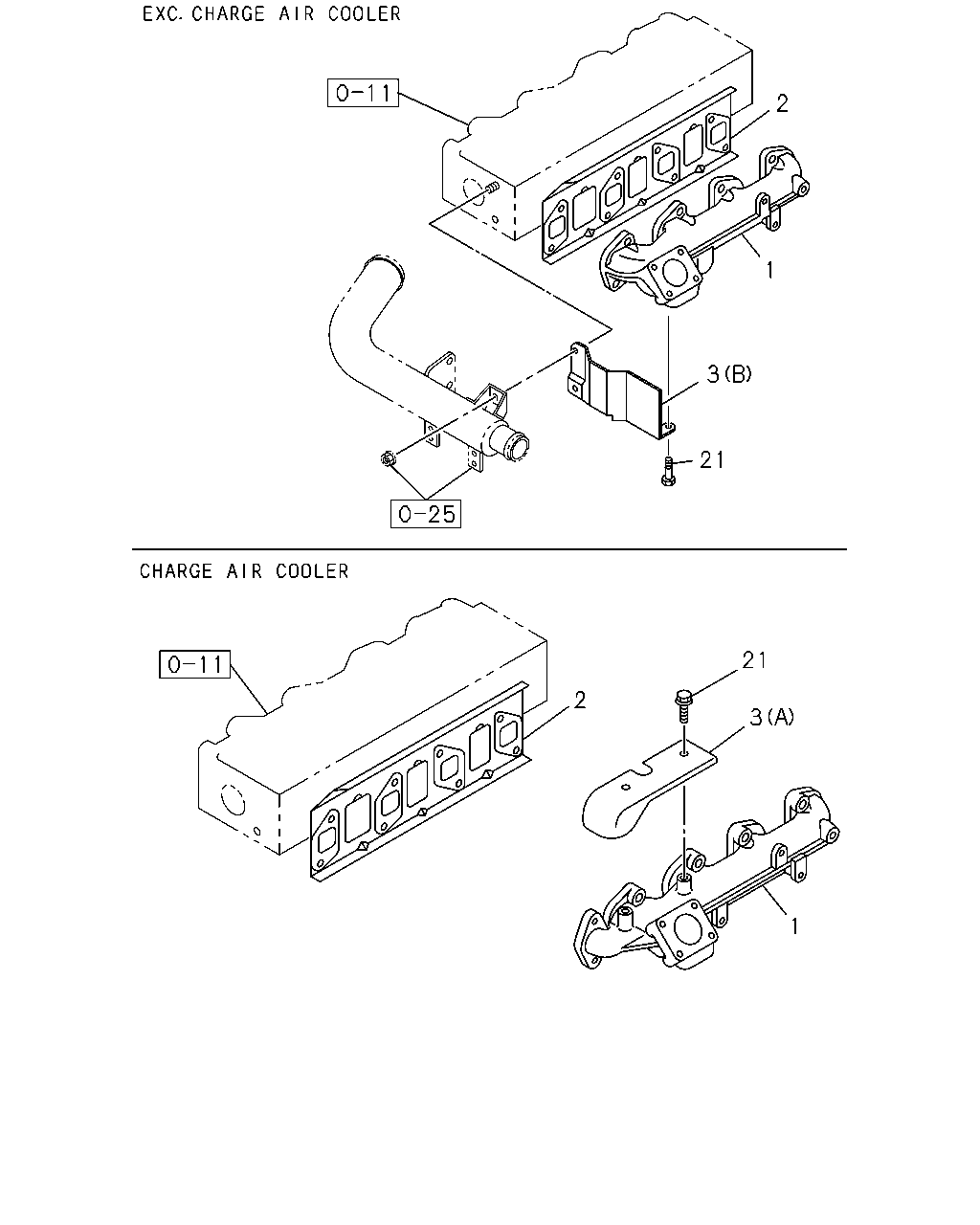

çizim 46751
2 1 3 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0201- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TAIWAN EQUIPMENT(RWV) 		8-97124-873-0 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-908-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-075-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9811- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97259-886-1 01 1 0201-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9811-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97146-499-0 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97259-171-1 01 1 0201- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-97214-580-0 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97176-085-2 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 9811- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9811-0112 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0201- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0201- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811- ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9811- ●

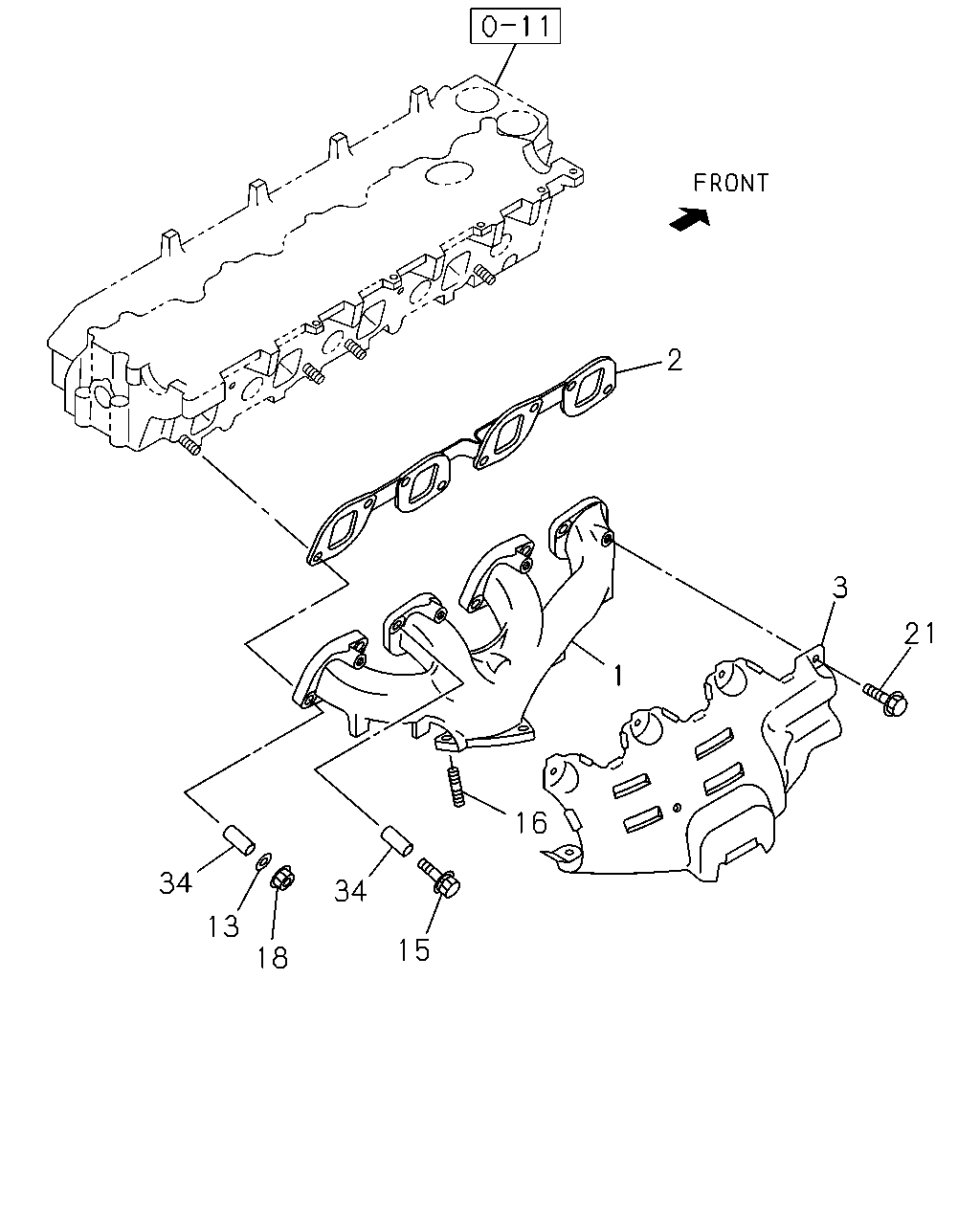

çizim 47239
2 3 21 1 16 34 34 13 15 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0201- ●
1 03.601 MANIFOLD; EXHAUST
EURO2 SPECIFICATION<7AF> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TAIWAN EQUIPMENT(RWV) 		8-97124-873-0 01 1 9811-0105 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-908-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97176-075-0 01 1 9811- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 9811- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97259-886-1 01 1 0201-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9811-0210 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97146-499-0 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97259-171-1 01 1 0201- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) 		8-97214-580-0 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97176-085-2 01 1 9811- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97096-424-1 01 1 9811- ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 9811- ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9811- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 9811- ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9811- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 9811- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 9811- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9811- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 9811- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9811-0112 ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0201- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0201- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811- ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 9811- ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97108-653-0 08 1 9811-0003 ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
